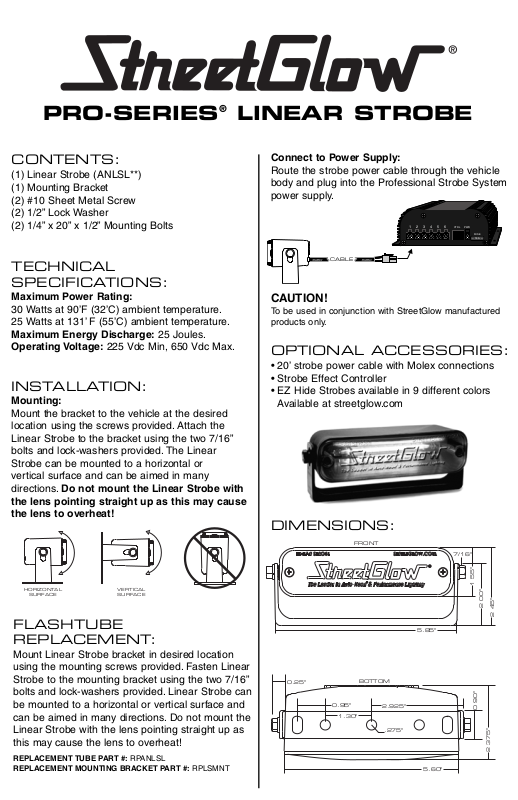

PRO-SERIES®LINEAR STROBE
CONTENTS:
(1) Linear Strobe (ANLSL**)
(1) Mounting Bracket
(2) #10 Sheet Metal Screw
(2) 1/2” Lock Washer
(2) 1/4” x 20” x 1/2” Mounting Bolts
TECHNICAL
SPECIFICATIONS:
Maximum Power Rating:
30 Watts at 90’F (32’C) ambient temperature.
25 Watts at 131’ F (55’C) ambient temperature.
Maximum Energy Discharge: 25 Joules.
Operating Voltage: 225 Vdc Min, 650 Vdc Max.
INSTALLATION:
Mounting:
Mount the bracket to the vehicle at the desired
location using the screws provided. Attach the
Linear Strobe to the bracket using the two 7/16”
bolts and lock-washers provided. The Linear
Strobe can be mounted to a horizontal or
vertical surface and can be aimed in many
directions.
the lens pointing straight up as this may cause
the lens to overheat!
Do not mount the Linear Strobe with
Connect to Power Supply:
Route the strobe power cable through the vehicle
body and plug into the Professional Strobe System
power supply.
CAUTION!
To be used in conjunction with StreetGlow manufactured
products only.
OPTIONAL ACCESSORIES:
• 20’ strobe power cable with Molex connections
• Strobe Effect Controller
• EZ Hide Strobes available in 9 different colors
Available at streetglow.com
DIMENSIONS:
FLASHTUBE
REPLACEMENT:
Mount Linear Strobe bracket in desired location
using the mounting screws provided. Fasten Linear
Strobe to the mounting bracket using the two 7/16”
bolts and lock-washers provided. Linear Strobe can
be mounted to a horizontal or vertical surface and
can be aimed in many directions. Do not mount the
Linear Strobe with the lens pointing straight up as
this may cause the lens to overheat!
REPLACEMENT TUBE PART #: RPANLSL
REPLACEMENT MOUNTING BRACKET PART #: RPLSMNT
Page 2
PRO-SERIES®LINEAR STROBE
INSTALLATION INSTRUCTIONS
