21 304 08

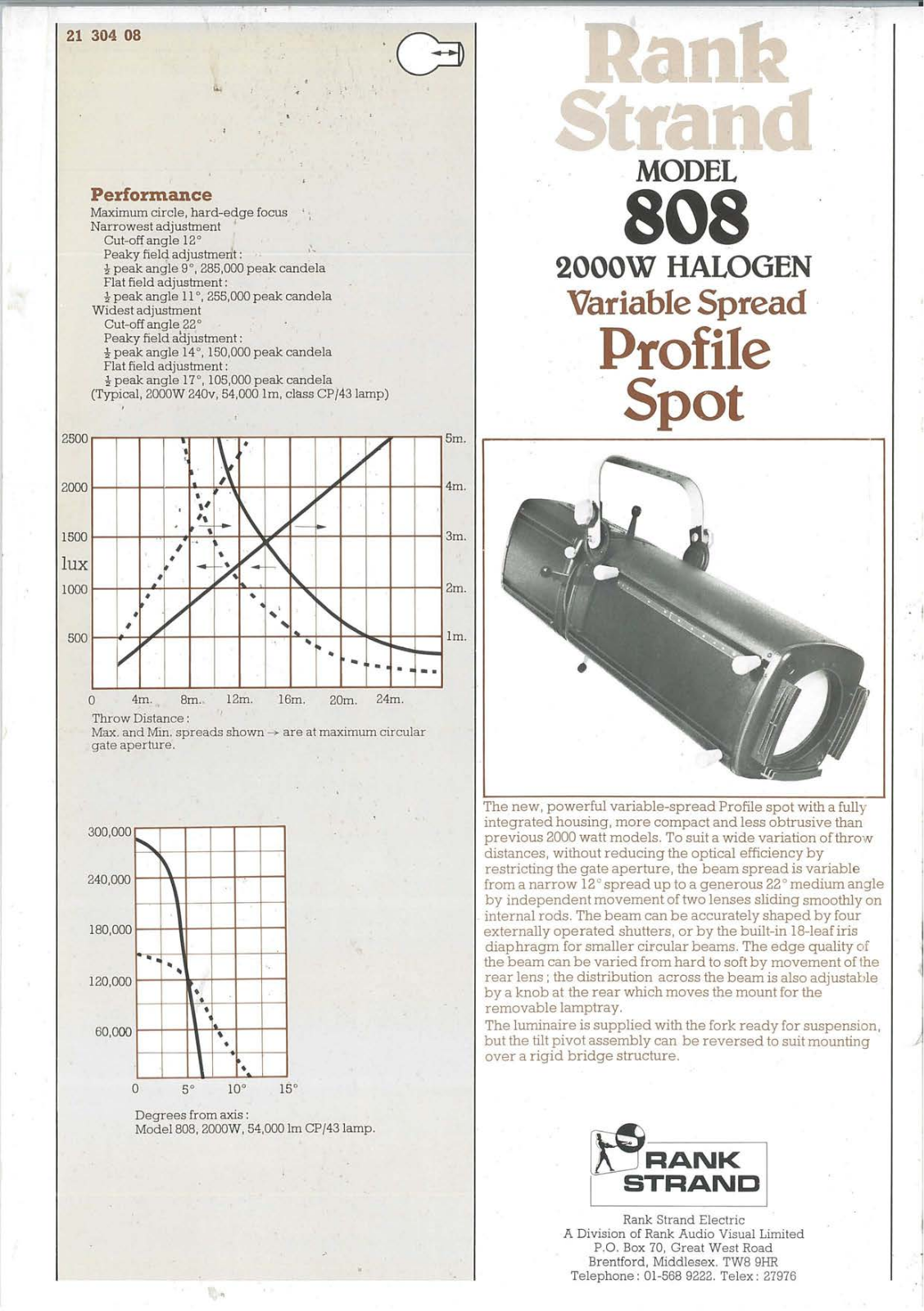

Performance
Maximum circle, hard-edge focus '
Narrowest adjustment '
Widest adjustment
(Typical, 2000W 240v, 54,000 lm,
angle 12°
Cut-off
fielq adjustment: · · .
Peaky
½ peak angle 9°, 285,000 peak candela
Flat field adjustment:
½ peak angle 11 °, 255,000 peak candela
Cut-off angle Z2°
Peaky fieid acljustment:
½ peak angle 14°, 150,000 peak candela
Flat field adjustment:
½ peak angle 17°, 105,000 peak candela
MODEL
808
2000W HALOGEN
Variable Spread
Profile
class CP/43 lamp)
Spot
lux
1000
1----1---1 ........ -.+----,1--,.;f-- fl'--'+- ~-.+ -+---+-+---+--i 2m .
4m. Sm.. 12m.
0
Throw Distance :
Max. and Min. spr eads
gate aperture.
300,000
'
•••
~
'
\
•
•
•
240,000
180,000
120,000
60,000
shown-+ are at maximum circular
'
~
16m. 20m. 24m.
•
\ •.
0
50
10° 15°
Degrees from axis :
Model 808, 2000W, 54,000 lm CP/43 lamp.
. .
The new, powerful var iable-sp read Profile spot with a fully
integrated housing, mo re compact and less obtrusive than
previous 2000 watt mode ls. To suit a wide varia tion of throw
distances, without reducing the optical efficiency by
restricting the gate aperture, the beam spread is variable
from a narrow 12
by independent movement of two lenses sliding smoothly on
internal rods. The beam can be accurately shaped by four
externally operated shutters, or by the built-in 18-leafiris
diaphragm for smaller circular beams . The edge qual ity of
the beam can be var ied from hard to soft by movement of the
rear lens ; the distribution across the beam is also adjustable
by a knob at the rear which moves the mount for the
removable lamptray .
The luminaire is supplied with the fork ready for suspension,
but the tilt pivot assembly can be reversed to suit mounting
over a rigid bridge structure.
° spread up to a generous 22 ° medium angle
I
• I
..,
~RANK I
I STRANO
Rank Strand Electric
A Division of Rank Audio Visual Limited
P.O. Box 70, Great West Road
Brentford, Middlesex . TWS 9HR
Telephone: 01-568 9222. Telex: 27976
Page 2
,.._
MODEL
808

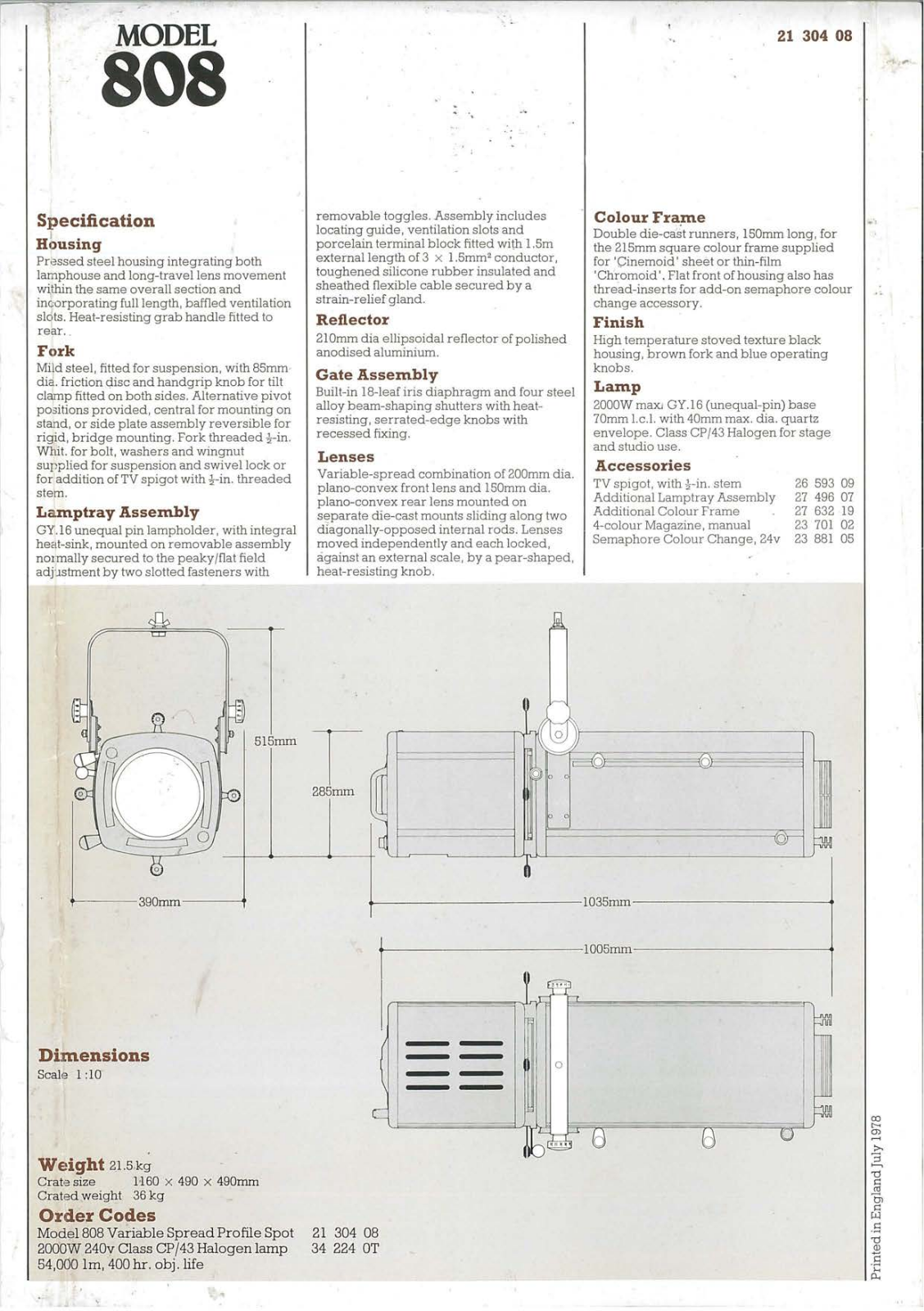

Specification
I •
H
ousmg
Pressed steel housing integrating both
lamphouse and long-travel lens movement
within the same overall section and
incorporating full length, baffied ventilation
sl9ts. Heat-resisting grab handle fitted to
rear ..
Fork
Mild steel, fitted for suspension, with 85mm -
friction <;l.isc and handgrip knob for tilt
di~.
clamp fitted on both sides . Alternative pivot
pokitions provided, central for mounting on
stand, or side plate assembly reversible for
rigid, bridge mounting . Fork threaded
Whit. for bolt, washers and wingnut
supplied for suspension and swivel lock or
for addition of TV spigot with
stem.
Lamptray Assembly
GY.16 unequal pin lampholder, with integral
heat-sink, mounted on removable assembly
nmmally secured to the peaky/flat field
adjustment by two slotted fasteners with
½-in. threaded
½-in.
removable toggles. Assembly includes
locating guide, ventilation slots and
porcelain terminal block fitted with l .Sm
external length of 3 x l .5mm2 conductor,
toughened silicone rubber insulated and
sheathed flexible cable secured by a
strain-relief gland .
Reflector
210mm dia ellipsoidal reflector of polished
anodised aluminium.
Gate Assembly
Built-in 18-leaf iris diaphragm and four steel
alloy beam-shaping shutters with heatresisting, serrated-edge knobs with
recessed fixing.
Lenses
Variable-spread combination of 200mm dia .
piano-convex front lens and 150mm dia .
piano-convex rear lens mounted on
separate die-cast mounts sliding along two
diagonally-opposed internal rods. Lenses
moved independently and each locked,
against an external scale, by a pear-shaped,
heat-resisting knob.
21 304 08
Colour Frame
Double die-ci~t runners, 150mm long, for
the 215mm square colour frame supplied
for
'Cinemoid' sheet or thin-film
'Chromoid'. Flat front of housing also has
thread-inserts for add-on semaphore colour
change accessory .
Finish
High temperature staved texture black
housing, brown fork and blue operating
knobs.
Lamp
2000W maxi GY.16 (unequal-pin) base
70mm l.c.l. with 40mm max. dia . quartz
envelope . Class CP/43 Halogen for stage
and studio use.
Accessories
TV spigot, with ½-in. stem
Additional Lamptray Assembly
Additional Colour Frame
4-colour Magazine, manual
Semaphore Colour Change, 24v
26 593 09
27 496 07
27 632 19
23 701 02
23 881 05
.. ,.
.-,
0
t-- --- 390mm --- -
Dimensions
Scale 1 :10
Weight 21.s.kg
Crat e
size 1-160 x 490 x 490mm
Crat ed weight 36 kg
Order Codes
Modl;')l 808 Variable Spread Profile Spot
2000W 240y Class CP/43 Halog en lamp
54,000 lm, 400 hr. obj. life
T
285mm
21 304 08
