STIHL GTA 26
Instruction Manual
Manual de instrucciones
WARNING
Read Instruction Manual thoroughly before use and
follow all safety precautions – improper use can cause
serious or fatal injury.
ADVERTENCIA
Antes de usar la máquina lea y siga todas las precauciones
de seguridad dadas en el manual de instrucciones – el uso
incorrecto puede causar lesiones graves o mortales.
Instruction Manual
1 - 45
Manual de instrucciones
46 - 93
Contents
English
1 Introduction
2 Guide to Using this Manual
2.1 Signal Words
2.2 Symbols in Text
3 Main Parts
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
. . . . . . . . . . . . . . . . . . . . . . . . . .
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
3.1 Garden Pruner, Battery and Charger
4 Safety Symbols on the Products
4.1 Garden Pruner, Battery and Charger
Original Instruction ManualPrinted on chlorine-free paper
5 General Power Tool Safety Warnings
5.1 Introduction
5.2 Work Area Safety
5.3 Electrical Safety
5.4 Personal Safety
5.5 Power Tool Use and Care
5.6 Battery Tool Use and Care
5.7 Service
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
. . . . . . . . . . . . . . . . . . . . . . . . . . .
. . . . . . . . . . . . . . . . . . . . . . . . . .
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
6 IMPORTANT SAFETY INSTRUCTIONS
6.1 Intended Use
6.2 Operator
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
6.3 Personal Protective Equipment
6.4 Garden Pruner
6.5 Using the Garden Pruner
6.6 Reactive Forces
Printing inks contain vegetable oils, paper can be recycled.
7 Battery Safety
7.1 Warnings and Instructions
8 Charger Safety
8.1 Warnings and Instructions
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
. . . . . . . . . . . . . . . . . . . . . . . . . . .
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
. . . . . . . . . . . . . . . . . . . . . . . . . .
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
. . . . . . . . . . . . . . . . . . . . . . . . . .
9 Maintenance, Repair and Storage
9.1 Warnings and Instructions
10 Before Starting Work
. . . . . . . . . . . . . . . . . . . . . . . . . .
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
10.1 Preparing the Garden Pruner for Operation
11 Charging the Battery
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
. . . . . . . . . . . . . . . .
. . . . . . . . . . . . . . . . . . . . .
. . . . . . . . . . . . . . . .
. . . . . . . . . . . . . . . .
. . . . . . . . . . . . .
. . . . . . . . . . . . . . . . . . . . . .
. . . . . . . . . . . . . . . . . .
. . . . . . . . .
11.1 Setting up the Charger
3
11.2 Charging
3
11.3 Mounting the Charger on a Wall
3
12 LED Diagnostics
3
12.1 LEDs on the Garden Pruner
4
12.2 LED on the Charger
4
13 Assembling the Garden Pruner
5
13.1 Cutting Attachment
5
13.2 Removing and Mounting the Guide Bar and the
6
6
6
6
6
7
7
8
8
8
8
9
10
11
16
17
17
18
18
20
20
21
21
21
Saw Chain
13.3 Tensioning the Chain
13.4 Lubricating the Saw Chain and Guide Bar
14 Inserting and Removing the Battery
14.1 Inserting the Battery
14.2 Removing the Battery
15 Switching the Garden Pruner On and Off
15.1 Switching On
15.2 Switching Off
16 Checking the Garden Pruner
16.1 Checking the Guard
16.2 Testing the Controls
17 During Operation
17.1 Cutting
18 After Finishing Work
18.1 Preparing for Transportation or Storage
19 Transporting the Garden Pruner, Battery and
Charger
19.1 Garden Pruner
19.2 Battery
19.3 Charger
20 Storing the Garden Pruner, Battery and Charger
20.1 Garden Pruner
20.2 Battery
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
. . . . . . . . . . . . . . . . . . . . . . . . . . . . .
. . . . . . . . . . . . . . . . . . . .
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
. . . . . . . . . . . . . . . . . . . . . . . .
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
. . . . . . . . . . . . . . . . . . . . .
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
. . . . . . . . . . . . . . . . . . . . . . .
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
. . . . . . . . . .
. . . . . . . . . . . . . . . .
. . . . . . . . . . .
. . . . . . . . . . . .
. . .
21
22
22
23
23
23
24
24
24
26
26
27
27
27
28
28
28
29
29
29
30
30
30
30
31
31
31
31
32
32
32
© ANDREAS STIHL AG & Co. KG 2021
0458-694-8621-A. VA2.C21.
0000008798_004_GB
0458-694-8621-A
This instruction manual is protected by copyright. All rights reserved, especially the rights to reproduce, translate and process
with electronic systems.
1
English
Contents
20.3 Charger
21 Cleaning
21.1 Garden Pruner, Battery and Charger
21.2 Guide Bar and Saw Chain
22 Inspection and Maintenance
22.1 Garden Pruner
22.2 Chain Sprocket
22.3 Guide Bar
22.4 Saw Chain
23 Troubleshooting Guide
23.1 Garden Pruner and Battery
23.2 Charger
24 Specifications
24.1 STIHL GTA 26
24.2 Chain Sprockets
24.3 Minimum Groove Depth of Guide Bars
24.4 Depth Gauge Setting
24.5 STIHL AS Series Battery
24.6 STIHL AL 1
24.7 STIHL Multioil Bio
24.8 Ambient Temperature Limits
24.9 Ambient Temperature Recommendations
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
. . . . . . . . . . . . . . .
. . . . . . . . . . . . . . . . . . . . . . . . . .
. . . . . . . . . . . . . . . . . . . . . . . .
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
. . . . . . . . . . . . . . . . . . . . . . . . . . . . .
. . . . . . . . . . . . . . . . . . . . . . . . .
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
. . . . . . . . . . . . .
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
. . . . . . . . . . . . . . . . . . . . . . . . . . .
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
. . . . . . . . . . . . . . . . . . . . . . .
. . . . . . . . . .
24.10 Symbols on the Garden Pruner, Battery and
Charger
24.11 Engineering Improvements
24.12 FCC 15 Compliance Statement
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
. . . . . . . . . . . . . . . . . . . . . . .
. . . . . . . . . . . . . . . . . . .
25 Combinations of Guide Bars and Saw Chains
25.1 STIHL GTA 26
26 Replacement Parts and Equipment
26.1 Genuine STIHL Replacement Parts
27 Disposal
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
. . . . . . . . . . . . . . . . .
. . . . . . . . . . . . . . . .
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
27.1 Disposal of the Garden Pruner and Charger
27.2 Battery Recycling
28 Limited Warranty
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
28.1 STIHL Incorporated Limited Warranty Policy
29 Trademarks
29.1 Registered Trademarks
29.2 Common Law Trademarks
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
. . . . . . . . . . . . . . . . . . . . . . . . . . . .
. . . . . . . . . . . . . . . . . . . . . . . . .
. . . . . .
. . . . . . . .
. . . . . . .
32
30 Addresses
33
30.1 STIHL Incorporated
33
33
34
34
34
34
35
38
38
39
40
40
40
40
40
40
40
40
40
41
41
41
41
43
43
44
44
44
44
44
44
44
44
44
45
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
45
45
2
0458-694-8621-A
1 Introduction
English
1Introduction
Thank you for your purchase. The information contained in
this manual will help you receive maximum performance and
satisfaction from your STIHL garden pruner and, if followed,
reduce the risk of injury from its use.
SAVE THIS MANUAL!
Because a garden pruner is a high-speed, fastcutting power tool, special safety precautions
must be observed to reduce the risk of personal
injury.
Read this instruction manual thoroughly before
use and periodically thereafter. Follow all safety
precautions. Careless or improper use of the
garden pruner can cause serious or fatal injury.
Have your authorized STIHL servicing dealer show you how
to operate your garden pruner. All safety precautions that
are generally observed when working with an axe or a hand
saw also apply to the operation of garden pruners. Observe
all applicable federal, state and local safety regulations,
standards and ordinances.
Do not lend or rent your garden pruner without this
instruction manual. Allow only persons who have the proper
training and fully understand the information in this manual
to operate the garden pruner.
Your garden pruner comes with a bottle of
STIHL Multioil Bio. Use it or an equivalent, biodegradable
multifunction oil to lubricate the bar and chain. See product
labeling for use, handling and storage instructions.
For further information, or if you do not understand any of
the instructions in this manual, please go to
www.stihlusa.com or contact your authorized STIHL
servicing dealer.
2 Guide to Using this Manual
2.1 Signal Words
This manual contains safety information that requires your
special attention. Such information is introduced with the
following symbols and signal words:
DANGER
Indicates a hazardous situation that, if not avoided, will
result in death or serious injury.
WARNING
Indicates a hazardous situation that, if not avoided, could
result in death or serious injury.
NOTICE
Indicates a risk of property damage, including damage to the
machine or its individual components.
2.2 Symbols in Text
The following symbol is included to assist you with the use
of the manual:
Refers to a designated chapter or sub-chapter in this
instruction manual.
0458-694-8621-A
3
English
3 Main Parts
3Main Parts
3.1 Garden Pruner, Battery and Charger
1
2
5
4
6
7
8
9
17
10
11
#
12
13
16
#
20
1918
21
#
14
3
15
22
0000-GXX-B009-A0
1 Gripping Surface
For the operator's front hand.
2Guard
Helps protect against contact with the saw chain.
3 Chain Scabbard
Covers the guide bar and saw chain to reduce the risk of
injury from inadvertent contact during transportation and
storage
4 Bumper
Helps hold the garden pruner steady against the branch
or limb during cutting.
5 Trigger Switch Lockout
Prevents activation of the trigger switch until depressed.
6Saw Chain
Toothed cutting tool consisting of cutters, tie straps and
drive links.
7 Guide Bar
Supports and guides the saw chain.
8 Chain Sprocket
Drives the saw chain.
9 Wingnut
Tightens the chain sprocket cover.
10 Chain Sprocket Cover
Covers the chain sprocket.
11 Garden Pruner LEDs
Indicate the battery's state of charge and display error
messages regarding potential malfunctions in the power
tool or battery.
12 Push Button
Activates the garden pruner's LEDs.
13 Trigger Switch
Switches the motor on and off.
14 Control Handle
Handle for the operator's rear hand.
4
0458-694-8621-A
4 Safety Symbols on the Products
English
15 Battery Compartment
Holds the battery.
16 Battery
Supplies electrical power to the motor.
17 Locking Lever
Secures the battery in the battery compartment.
18 Charger
Charges the battery.
19 Charger LED
Indicates the operating status of the charger.
20 Power Supply Cord
Supplies the charger with electricity when plugged into
an electrical outlet.
21 Plug
Connects the power supply cord to an electrical outlet.
22 Carrying Bag
Designed for transporting and storing the garden pruner,
battery, charger and accessories. The carrying bag is
included when the garden pruner, battery and charger
are purchased as a set.
# Rating Plate
Contains electrical information and the product's serial
number.
4 Safety Symbols on the Products
4.1 Garden Pruner, Battery and Charger
The following safety symbols are found on the garden
pruner, battery and/or charger:
To reduce the risk of injury, follow the specified
safety precautions.
Read and follow all safety precautions in the
instruction manual. Improper use can lead to
serious or fatal personal injury or property
damage.
To reduce the risk of eye injury, always wear
proper eye protection, @ 6.3.
To reduce the risk of serious or fatal injury from
loss of control, always grip the garden pruner
with both hands when you are working, @ 6.5.2.
To reduce the risk of cut injuries, keep hands,
feet and other parts of your body away from the
saw chain, @ 6.5.4.
To reduce the risk of injury or property damage
from unintended activation, remove the battery
any time the garden pruner is not in use, @ 6.4.
To reduce the risk of electric shock, do not
expose the garden pruner to rain, water or
excessive moisture. Store it indoors. If it is
exposed to rain or very damp conditions, take it
to your authorized STIHL servicing dealer before
further operation, @ 6.4.
To reduce the risk of personal injury or property
damage from fire or electric shock, keep the
charger dry. Protect it from rain, water, liquids
and damp conditions. For indoor use only, @ 8.
To reduce the risk of personal injury or property
damage from fire, explosion or burns, including
chemical burns, do not disassemble, crush,
drop, damage or heat the battery above 212 °F
(100 °C). Never expose it to fire or incinerate,
@ 7.
0458-694-8621-A
5
English
5 General Power Tool Safety Warnings
To reduce the risk of personal injury or property
damage from a short circuit, fire or explosion,
keep the battery dry. Protect it from rain, water,
liquids and damp conditions. Never immerse the
battery in water or other liquids, @ 7.
5 General Power Tool Safety Warnings
5.1 Introduction
This chapter contains the prescribed general safety
warnings and instructions for handheld, motor-operated
electric power tools. Additional important warnings and
instructions are provided in subsequent chapters of this
manual.
WARNING
￭ Read all safety warnings and all instructions. Failure to
follow the warnings and instructions may result in electric
shock, fire and/or serious injury.
￭ Save all warnings and instructions for future reference.
The term “power tool” in the warnings refers to your mainsoperated (corded) power tool or battery-operated (cordless)
power tool.
5.2 Work Area Safety
a)Keep work area clean and well lit. Cluttered or dark areas
invite accidents.
b)Do not operate power tools in explosive atmospheres,
such as in the presence of flammable liquids, gases or
dust. Power tools create sparks which may ignite the dust
or fumes.
c) Keep children and bystanders away while operating a
power tool. Distractions can cause you to lose control.
5.3 Electrical Safety
a)Power tool plugs must match the outlet. Never modify the
plug in any way. Do not use any adapter plugs with
earthed (grounded) power tools. Unmodified plugs and
matching outlets will reduce the risk of electric shock.
b)Avoid body contact with earthed or grounded surfaces,
such as pipes, radiators, ranges and refrigerators. There
is an increased risk of electric shock if your body is
earthed or grounded.
c) Do not expose power tools to rain or wet conditions. Water
entering a power tool will increase the risk of electric
shock.
d)Do not abuse the cord. Never use the cord for carrying,
pulling or unplugging the power tool. Keep cord away from
heat, oil, sharp edges or moving parts. Damaged or
entangled cords increase the risk of electric shock.
e)When operating a power tool outdoors, use an extension
cord suitable for outdoor use. Use of a cord suitable for
outdoor use reduces the risk of electric shock.
f) If operating a power tool in a damp location is
unavoidable, use a residual current device (RCD) or
ground fault circuit interruptor (GFCI) protected supply.
Use of an RCD or GFCI reduces the risk of electric shock.
5.4 Personal Safety
a)Stay alert, watch what you are doing and use common
sense when operating a power tool. Do not use a power
tool while you are tired or under the influence of drugs,
alcohol or medication. A moment of inattention while
operating power tools may result in serious personal
injury.
b)Use personal protective equipment. Always wear eye
protection. Protective equipment such as dust mask, nonskid safety shoes, hard hat, or hearing protection used for
appropriate conditions will reduce personal injuries.
6
0458-694-8621-A
5 General Power Tool Safety Warnings
English
c) Prevent unintentional starting. Ensure the switch is in the
off-position before connecting to power source and/or
battery pack, picking up or carrying the tool. Carrying
power tools with your finger on the switch or energizing
power tools that have the switch on invites accidents.
d)Remove any adjusting key or wrench before turning the
power tool on. A wrench or a key left attached to a rotating
part of the power tool may result in personal injury.
e)Do not overreach. Keep proper footing and balance at all
times. This enables better control of the power tool in
unexpected situations.
f) Dress properly. Do not wear loose clothing or jewellery.
Keep your hair and clothing away from moving parts.
Loose clothes, jewellery or long hair can be caught in
moving parts.
g)If devices are provided for the connection of dust
extraction and collection facilities, ensure these are
connected and properly used. Use of dust collection can
reduce dust-related hazards.
h)Do not let familiarity gained from frequent use of tools
allow you to become complacent and ignore tool safety
principles. A careless action can cause severe injury
within a fraction of a second.
5.5 Power Tool Use and Care
a)Do n ot force the power tool. Use the corre ct power tool for
your application. The correct power tool will do the job
better and safer at the rate for which it was designed.
b)Do not use the power tool if the switch does not turn it on
and off. Any power tool that cannot be controlled with the
switch is dangerous and must be repaired.
c) Disconnect the plug from the power source and/or remove
the battery pack, if detachable, from the power tool before
making any adjustments, changing accessories, or storing
power tools. Such preventive safety measures reduce the
risk of starting the power tool accidentally.
d)Store idle power tools out of the reach of children and do
not allow persons unfamiliar with the power tool or these
instructions to operate the power tool. Power tools are
dangerous in the hands of untrained users.
e)Maintain power tools and accessories. Check for
misalignment or binding of moving parts, breakage of
parts and any other condition that may affect the power
tool's operation. If damaged, have the power tool repaired
before use. Many accidents are caused by poorly
maintained power tools.
f) Keep cutting tools sharp and clean. Properly maintained
cutting tools with sharp cutting edges are less likely to
bind and are easier to control.
g)Use the power tool, accessories and tool bits etc. in
accordance with these instructions, taking into account
the working conditions and the work to be performed. Use
of the power tool for operations different from those
intended could result in a hazardous situation.
h)Keep handles and grasping surfaces dry, clean and free
from oil and grease. Slippery handles and grasping
surfaces do not allow for safe handling and control of the
tool in unexpected situations.
5.6 Battery Tool Use and Care
a)Recharge only with the charger specified by the
manufacturer. A charger that is suitable for one type of
battery pack may create a risk of fire when used with
another battery pack.
b)Use power tools only with specifically designated battery
packs. Use of any other battery packs may create a risk of
injury and fire.
c) When battery pack is not in use, keep it away from other
metal objects, like paper clips, coins, keys, nails, screws
or other small metal objects that can make a connection
from one terminal to another. Shorting the battery
terminals together may cause burns or a fire.
d)Under abusive conditions, liquid may be ejected from the
battery; avoid contact. If contact accidentally occurs, flush
with water. If liquid contacts eyes, additionally seek
medical help. Liquid ejected from the battery may cause
irritation or burns.
0458-694-8621-A
7
English
6 IMPORTANT SAFETY INSTRUCTIONS
e)Do not use a battery pack or tool that is damaged or
modified. Damaged or modified batteries may exhibit
unpredictable behaviour resulting in fire/explosion or risk
of injury.
f) Do not expose a battery pack or tool to fire or excessive
temperature. Exposure to fire or temperatures above
100 °C may cause explosion.
g)Follow all charging instructions and do not charge the
battery pack or tool outside the temperature range
specified in the instructions. Charging improperly or at
temperatures outside the specified range may damage the
battery and increase the risk of fire.
5.7 Service
a)Have your power tool serviced by a qualified repair person
using only identical replacement parts. This will ensure
that the safety of the power tool is maintained.
b)Never service damaged battery packs. Service of battery
packs should only be performed by the manufacturer or
authorized service provider.
6 IMPORTANT SAFETY
INSTRUCTIONS
6.1 Intended Use
WARNING
￭ This garden pruner is designed for cutting branches and
limbs around the home. It is not designed for felling trees
or cutting logs. Use of the garden pruner for operations
different than intended could result in serious injury or
death.
– Cut wood only. For example, do not use the garden
pruner for cutting metal, plastic or masonry.
– Use this garden pruner only for light-duty cutting
tasks around the home and garden.
￭ Read and follow the operating and use instructions in this
manual for approved applications and recommended
working techniques.
￭ The saw chain has many sharp cutters. If they contact
your flesh, they will cut you even if the chain is not moving.
– Always wear heavy-duty work gloves when handling
the garden pruner or its chain.
– Keep hands, feet and other parts of your body away
from the chain.
￭ Reactive forces can be dangerous.
– Pay special attention to the sections of this
instruction manual dealing with reactive forces.
￭ Improper use could result in personal injury or property
damage, including damage to the garden pruner.
– Use the garden pruner, battery and charger only as
described in this manual.
– Never attempt to modify or override the garden
pruner's controls or safety devices in any way.
– Never use a garden pruner that has been modified or
altered from its original design.
￭ The STIHL AS series battery is designed for use only with
compatible STIHL power tools.
￭ The STIHL AL 1 series charger is designed for charging
STIHL AS series batteries only.
6.2 Operator
WARNING
￭ Working with the garden pruner can be strenuous. The
operator must be in good physical condition and mental
health. To reduce the risk of personal injury from fatigue
and loss of control:
– Check with your doctor before using the garden
pruner if you have any health condition that may be
aggravated by strenuous work.
– Do not operate the garden pruner while under the
influence of any substance (drug, alcohol or
medication, etc.) that might impair vision, balance,
dexterity or judgment.
– Be alert. Do not operate the garden pruner when you
are tired. Take a break if you become tired.
8
0458-694-8621-A
6 IMPORTANT SAFETY INSTRUCTIONS
English
– Do not permit minors to use the garden pruner.
– Bystanders, especially children, and animals should
not be allowed in the area where the garden pruner
is in use.
￭ Prolonged use of a garden pruner (or other power tools)
exposing the operator to vibration may produce white
finger disease (Raynaud's phenomenon) or carpal tunnel
syndrome. These conditions reduce the hand's ability to
feel and regulate temperature. They produce numbness
and burning sensations and may also cause nerve and
circulation damage as well as tissue necrosis.
￭ All factors which contribute to white finger disease are not
known. Cold weather, smoking and diseases or physical
conditions that affect blood vessels and blood transport,
as well as high vibration levels and long periods of
exposure to vibration, are mentioned as factors in the
development of white finger disease.
￭ To reduce the risk of white finger disease and carpal
tunnel syndrome:
– Wear gloves while working and keep your hands
warm.
– Keep the garden pruner well maintained. An
improperly maintained garden pruner or one with
loose components will tend to have higher vibration
levels.
– Keep the saw chain sharp. A dull chain will increase
cutting time, and pressing a dull chain through wood
will increase the vibration transmitted to your hands.
– Maintain a firm grip at all times, but do not squeeze
the control handle or gripping surface with,
excessive pressure. Take frequent breaks.
￭ These precautions do not guarantee that you will not
sustain white finger disease or carpal tunnel syndrome.
– Closely monitor the condition of your hands and
fingers if you are a regular operator.
– Seek medical advice immediately if any of the above
symptoms appear.
￭ According to STIHL's current knowledge, the electric
motor of this garden pruner should not interfere with a
pacemaker.
– However, persons with a pacemaker or other
implanted medical device should consult their
physician and device manufacturer before operating
this garden pruner.
6.3 Personal Protective Equipment
WARNING
￭ To reduce the risk of personal injury:
– Always wear proper clothing and protective apparel,
including proper eye protection.
￭ Loss of control and severe cut injuries may result if hair,
clothing or apparel make contact with the moving saw
chain or otherwise become entangled in the components
of the garden pruner. To reduce the risk of severe
personal injury:
– Wear sturdy and snug-fitting clothing that
also allows complete freedom of
movement.
– Wear overalls or long pants made of
heavy material to help protect your legs.
Do not wear shorts.
– Avoid loose-fitting jackets, scarves, neckties, flared
or cuffed pants, jewelry and any other apparel that
could be caught on branches, brush or the moving
chain.
– Secure hair above shoulder level before starting
work.
￭ To reduce the risk of eye injury:
– Always wear goggles or close-fitting
protective glasses with adequate top and
side protection that are impact-rated and
marked as complying with ANSI Z87 "+".
– Wear an approved protective helmet when there is a
risk of head injury.
0458-694-8621-A
9
English
6 IMPORTANT SAFETY INSTRUCTIONS
￭ Good footing is very important. To help maintain a secure
footing and reduce the risk of injury while working:
– Wear substantial footwear with non-slip
soles. Do not wear sandals, flip-flops,
open-toed or similar footwear.
￭ To improve your grip and help protect your hands:
– Always wear heavy-duty, non-slip work
gloves made of leather or another wearresistant material when handling the
garden pruner or its chain.
6.4 Garden Pruner
WARNING
￭ To reduce the risk of electric shock:
– Do not expose the garden pruner to rain,
water or excessive moisture.
– Never immerse the garden pruner in
water or other liquids.
– Store the garden pruner indoors.
￭ The saw chain has many sharp cutters. Contacting the
cutters may result in serious laceration injuries, even if the
chain is not moving. To reduce the risk of such injuries:
– Keep hands, feet and other parts of your body away
from the chain.
– Wear heavy-duty work gloves when handling the
garden pruner or its chain.
– Never touch a moving chain with your hand or any
other part of your body.
– Do not use the garden pruner with a damaged or
missing guard.
– Cover the guide bar with a chain scabbard before
transporting or storing the garden pruner to reduce
the risk of injury from inadvertent contact.
￭ Reactive forces can be dangerous.
– Pay special attention to the section of this instruction
manual on Reactive Forces, @ 6.6.
￭ This battery-powered garden pruner is intended only for
light-duty garden and landscape maintenance around the
home. Use for other purposes may increase the risk of
personal injury and property damage.
– Do not use the garden pruner for felling trees or
cutting logs.
– Read and follow the operating instructions in this
manual for approved applications, @ 17.1.
￭ To reduce the risk of personal injury to the operator and
bystanders:
– Always release the trigger switch and
remove the battery before assembling,
transporting, adjusting, inspecting,
cleaning, servicing, maintaining or
storing the garden pruner, and any other
time it is not in use.
￭ Although certain unauthorized attachments may fit your
STIHL garden pruner, their use may be extremely
dangerous. Only attachments supplied by STIHL or
expressly approved by STIHL for use with this specific
model are recommended.
– Use only attachments supplied or expressly
approved by STIHL.
– Never modify this garden pruner in any way.
– Never attempt to modify or override the garden
pruner's controls or safety devices in any way.
– Never use a garden pruner that has been modified or
altered from its original design.
￭ If the garden pruner is dropped or subjected to similar
heavy impacts:
– Check that it is undamaged, in good condition and
functioning properly before continuing work.
– Check that the controls and safety devices are
working properly, @ 16.
– Check the LEDs for error messages, @ 12.1.1.
10
0458-694-8621-A
6 IMPORTANT SAFETY INSTRUCTIONS
English
– Check that the battery has not been damaged.
Never use or charge a malfunctioning, damaged,
cracked, leaking or deformed battery.
– Never work with a damaged or malfunctioning
garden pruner or battery. In case of doubt, have the
garden pruner and battery checked by your
authorized STIHL servicing dealer.
￭ If the garden pruner or battery is damaged, not working
properly, has been left outdoors, exposed to rain or damp
conditions or dropped into water or other liquid, its
components may no longer function properly and safety
devices may be inoperative. To reduce the risk of personal
injury and property damage:
– Take the garden pruner and battery to your
authorized STIHL servicing dealer to be checked
before further operation.
￭ Genuine STIHL replacement parts are specifically
designed to match your garden pruner and meet safety
and performance requirements. Use of parts that are not
authorized or approved by STIHL may cause serious or
fatal injury or property damage.
– STIHL recommends that only identical STIHL
replacement parts be used.
6.5 Using the Garden Pruner
6.5.1 Before Operation
WARNING
￭ Misuse or unauthorized use may result in personal injury
and property damage.
– Use the garden pruner only as described in this
instruction manual.
￭ For proper assembly of the bar and chain:
– Read and follow the instructions on mounting the
guide bar and chain, @ 13.2.2.
￭ The chain, guide bar and sprocket must match each other
in gauge and pitch. Before mounting or replacing:
– Read the information on guide bar and chain
combinations, @ 25.
– Read and follow the instructions on reactive forces,
@ 6.6.

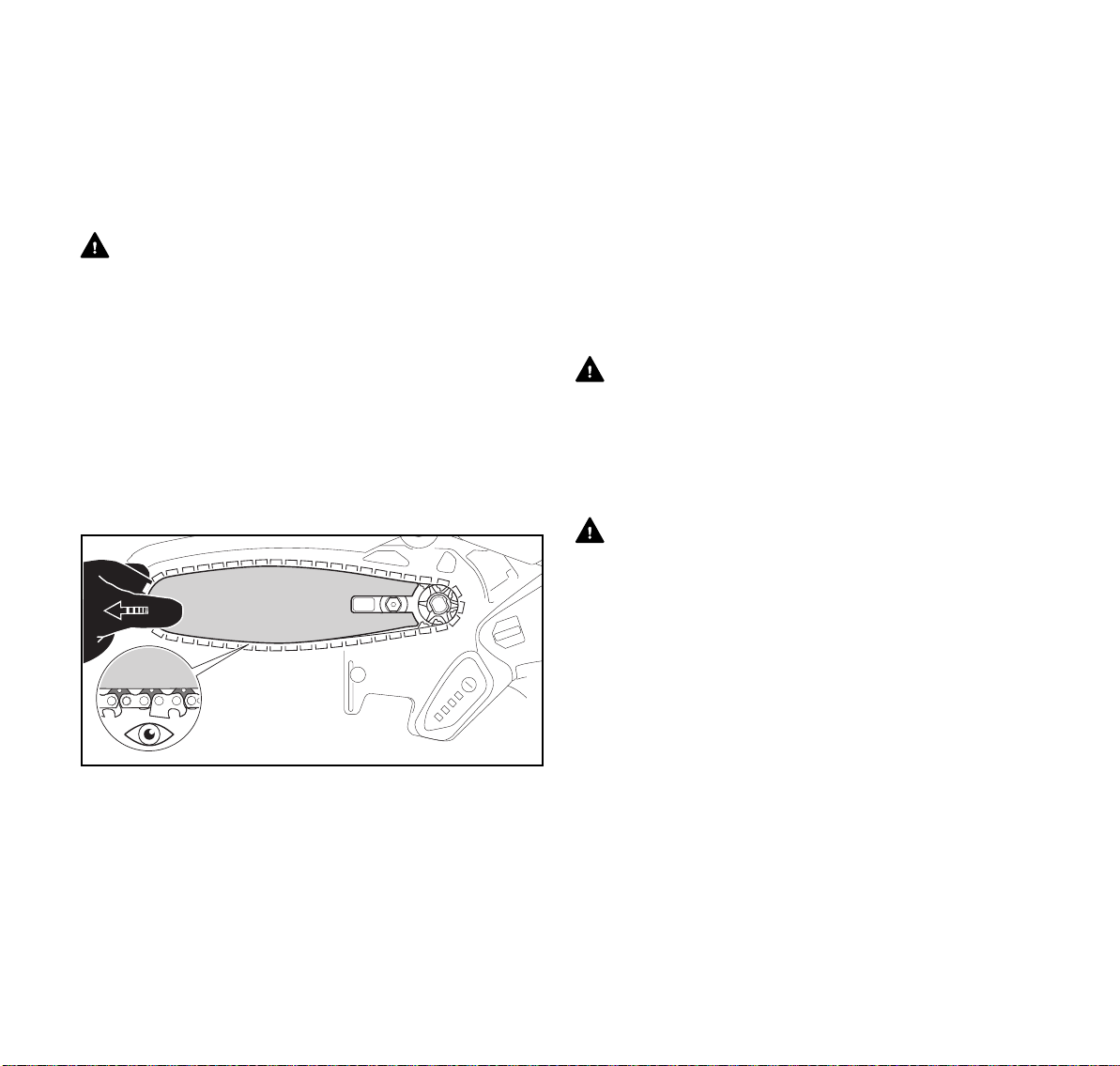

￭ Proper tension of the chain is important to maximize
cutting performance and reduce the risk of personal injury
from chain breakage, derailment or reactive forces:
– Read and follow the chain tensioning instructions,
@ 13.3.
– Always make sure the chain sprocket cover is
tightened securely after tensioning the chain in order
to secure the bar. Never start the garden pruner with
the chain sprocket cover loose or missing.
– Check chain tension once more after tightening the
chain sprocket cover.
– After adjusting the chain, let the motor run for a
minute or two, then switch the motor off. Remove the
battery and recheck chain tension.
– Check chain tension periodically thereafter at
regular intervals (only after removing the battery).
– Never cut with a loose chain. If the chain becomes
loose while cutting, switch off the motor and remove
the battery from the garden pruner before tightening
the chain. Never attempt to adjust the chain while
the battery is inserted.
0458-694-8621-A
11
English
6 IMPORTANT SAFETY INSTRUCTIONS
￭ Using a garden pruner that is modified, damaged,
improperly adjusted or maintained, or not completely and
securely assembled can lead to a malfunction and
increase the risk of serious personal injury or death.
– Never operate a garden pruner that is modified,
damaged, improperly maintained or not completely
and securely assembled.
– Always check your garden pruner for proper
condition and operation before starting work,
particularly the trigger switch, trigger switch lockout,
guard, and cutting attachment.
– Ensure that the trigger switch and trigger switch
lockout move freely and always spring back to the
locked position when released. The trigger switch
must not engage until the trigger switch lockout is
depressed.
– Never attempt to modify or override the controls or
safety devices in any way.
– If your garden pruner or any part is damaged or does
not function properly, take it to your authorized
STIHL servicing dealer. Do not use the garden
pruner until the problem has been corrected.
￭ Before inserting the battery:
– Check the contacts in the battery compartment for
corrosion or other foreign matter and keep clean.
– Never insert or use a malfunctioning, damaged,
cracked, leaking or deformed battery.
– Read and follow the instructions on switching on the
garden pruner, @ 15.1.
￭ To help reduce the risk of serious personal injury or death
from unintentional starting:
– Be sure the trigger switch and trigger switch lockout
are in the off position when inserting the battery.
– Avoid contacting the trigger switch lockout and
trigger switch when grasping the control handle of
the garden pruner.
– Release the trigger switch and trigger switch lockout
before removing the battery.
– Remove the battery before assembling,
transporting, adjusting, inspecting,
cleaning, servicing, maintaining or
storing the garden pruner, and any time
it is not in use.
– Never leave the garden pruner unattended when the
battery is inserted.
– Never store the battery in the garden pruner.
￭ Before switching on your garden pruner, take the following
steps to reduce the risk of personal injury from reactive
forces, loss of control or inadvertent contact with the
chain:
– Be sure that the guide bar and chain are clear of you
and all other obstructions and objects, including the
ground.
– Never attempt to switch on the garden pruner when
the guide bar is in a cut or kerf. Doing so could lead
to reactive forces and injury.
– Read and follow the instructions on switching on the
garden pruner, @ 15.1.
6.5.2 Holding and Controlling the Garden Pruner
WARNING
￭
2
1
0000-GXX-9351-A0
12
0458-694-8621-A
6 IMPORTANT SAFETY INSTRUCTIONS
English
￭ To reduce the risk of personal injury from unintentional
starting when grasping the control handle or carrying the
garden pruner:
– Wrap the fingers of your rear hand tightly around the
control handle (1) and place your front hand tightly
on the gripping surface (2).
￭ To maintain a firm grip and properly control your garden
pruner:
– Keep the control handle (1) and gripping surface (2)
clean and dry at all times. Keep them free of
moisture, pitch, oil, grease and resin.
￭ To reduce the risk of serious or fatal injuries to the
operator or bystanders from loss of control:
– Always grasp the garden pruner firmly
with both hands when you are working.
– Wrap your fingers tightly around the control
handle (1), keeping the handle cradled between
your thumb and forefinger (see illustration).
– Wrap your fingers of the other hand tightly around
the gripping surface (2) (see illustration).
– Position the garden pruner in such a way that all
parts of your body are clear of the cutting attachment
whenever the battery is inserted.
– Never attempt to operate the garden pruner with one
hand. Doing so could lead to loss of control due to
reactive forces.
– Read and follow all warnings and instructions in the
chapter Reactive Forces, @ 6.6.
￭ To reduce the risk of serious or fatal cut injuries to the
operator or bystanders from loss of control, keep proper
footing and balance at all times:
– Take special care in overgrown or wet terrain and
always watch for hidden obstacles such as tree
stumps, roots, rocks, holes and ditches to avoid
stumbling.
– Be extremely cautious when working on slopes or
uneven ground.
– For better footing, always clear away fallen
branches, scrub and cuttings.
– Use caution when cutting small-size brush,
branches and saplings because slender material
may catch the chain and spring toward you or pull
you off balance.
￭ To reduce the risk of injury from loss of control:
– Never work on a ladder, roof, in a tree or while
standing on any other insecure support.
– Never operate the garden pruner above shoulder
height.
– Do not overreach. Keep proper footing and balance
at all times.
– Never switch on the garden pruner when the guide
bar is in a cut or kerf. Doing so could lead to reactive
forces and injury. Instead, remove the guide bar
from the cut and re-enter at full speed, taking care to
avoid contacting any object with the tip of the guide
bar.
￭ The bumper is designed to provide greater control of the
garden pruner while cutting. If you work without the
bumper, the garden pruner may pull you forward
suddenly.
– Always work with the bumper to maintain better
control of the garden pruner.
￭ Applying pressure to the garden pruner when reaching the
end of a cut may cause the bar and rotating chain to
accelerate out of the kerf, go out of control and strike the
operator or some other object. To reduce the risk of injury:
– Use caution when approaching the end of a cut.
– Never put pressure on the garden pruner when
reaching the end of a cut.
0458-694-8621-A
13
English
6 IMPORTANT SAFETY INSTRUCTIONS
6.5.3 Working Conditions
WARNING
￭ Operate your garden pruner only under good visibility
during favorable daylight conditions.
– Postpone the work if the weather is windy, foggy,
rainy or inclement.
– Never cut near power lines.
￭ Your garden pruner is a one-person machine.
– Do not allow other persons in the general work area.
– Bystanders, especially children, and animals should
not be allowed in the area where it is in use.
– Switch off the motor immediately if you are
approached.
￭ To reduce the risk of injury to bystanders and
unauthorized users:
– Never leave the garden pruner unattended when the
battery is inserted.
– Switch off the garden pruner and remove the battery
during work breaks and any other time the garden
pruner is not in use.
￭ Sparks generated from the operation of the garden pruner
may be capable of igniting combustible gases, liquids,
vapors, dusts or other combustible materials and
substances. To reduce the risk of fire and explosion:
– Never operate the garden pruner in a location where
combustible gases, liquids, vapors, dusts or other
combustible materials and substances are present.
– Read and follow recommendations issued by
government authorities (e.g., OSHA) for identifying
and avoiding the hazards of combustible gases,
liquids, vapors, dusts or other combustible materials
and substances.
￭ If a rotating chain strikes a rock or other hard object,
sparks may be created, which can ignite flammable
materials under certain circumstances. Flammable
materials can include dry vegetation and brush,
particularly when weather conditions are hot and dry.
– When there is a risk of fire or wildfire, do not use your
garden pruner around flammable materials or
around dry vegetation or brush.
– Contact your local fire authorities or the U.S. Forest
Service if you have any question about whether
vegetation and weather conditions are suitable for
the use of a garden pruner.
￭ Using this garden pruner and sharpening its chain can
generate dust, oil mist and other substances containing
chemicals known to cause respiratory problems, cancer,
birth defects and other reproductive harm.
– Consult governmental agencies such as EPA,
OSHA, CARB and NIOSH and other authoritative
sources on hazardous materials if you are unfamiliar
with the risks associated with the particular
substances you are cutting or with which you are
working.
￭ Inhalation of certain dusts, especially organic dusts such
as mold or pollen, can cause susceptible persons to have
an allergic or asthmatic reaction. Substantial or repeated
inhalation of dust or other airborne contaminants,
especially those with a smaller particle size, may cause
respiratory or other illnesses. This includes wood dust,
especially from hardwoods, but also from some softwoods
such as Western Red Cedar.
– Control dust (such as saw dust) and mists (such as
oil mist from chain lubrication) at the source where
possible.
– Always work with a properly sharpened chain, which
produces wood chips rather than fine dust.
– To the extent possible, operate the garden pruner so
that the wind or operating process directs any dust,
mist or other particulate matter raised by the garden
pruner away from the operator.
14
0458-694-8621-A
6 IMPORTANT SAFETY INSTRUCTIONS
English
– When respirable dust or other particulate matter
cannot be kept at or near background levels, always
wear a respirator that is approved by NIOSH and
rated for worksite-specific conditions. Follow the
recommendations of governmental authorities (e.g.,
OSHA/NIOSH) and occupational and trade
associations.
￭ If the vegetation being cut or the surrounding ground is
coated with a chemical substance, such as pesticide or
herbicide:
– Read and follow the instructions and warnings that
accompanied the substance coating the vegetation
or surrounding ground.
￭ Breathing asbestos dust is dangerous and can cause
severe or fatal illness, respiratory illness or cancer,
including mesothelioma. The use and disposal of
asbestos-containing products is strictly regulated by
OSHA and the EPA.
– Do not use your garden pruner to cut or disturb
asbestos or asbestos-containing products.
– Stop work immediately and contact the relevant
state and local authorities and/or EPA, your
employer or local OSHA representative if you have
reason to believe that you might be disturbing
asbestos.
￭ Repeated contact with waste oil can cause skin cancer
and its use is harmful to the environment.
– Do not use waste oil to lubricate the bar and chain of
your STIHL garden pruner.
6.5.4 Operating Instructions
WARNING
￭ To reduce the risk of serious or fatal cut injuries to the
operator or bystanders from contact with the saw chain:
– Keep hands, feet and other body parts
away from the saw chain.
– Do not touch the saw chain while the
battery is inserted.
– Never touch rotating saw chain with your
hand or any other part of your body.
– Never hold the material to be cut or
attempt to remove cut material without
first releasing the trigger switch and
removing the battery.
– Release the trigger switch and remove
the battery before clearing jammed
material.
￭ To reduce the risk of severe personal injuries from
unintentional starting:
– Never touch a chain with your hand or any part of
your body when the battery is inserted, even when
the chain is not rotating.
– Avoid contacting the trigger switch lockout and
trigger switch when grasping the control handle of
the garden pruner.
￭ The chain continues to move for a short period after the
trigger switch is fully released.
– Wait for the chain to stop before walking with the
garden pruner or putting it down.
￭ In the event of an emergency:
– Switch off the motor immediately and remove the
battery.
￭ Contacting foreign objects while cutting might cause the
chain to break or be thrown, or cause the garden pruner to
propel dangerous debris in the direction of the operator.
To reduce the risk of severe or fatal personal injury
caused by contact with foreign objects:
– Inspect the branch or limb before cutting.
– Remove any foreign objects to ensure that the wood
is free of materials such as nails, spikes, cables, or
wires.
0458-694-8621-A
15
English
6 IMPORTANT SAFETY INSTRUCTIONS
– Before starting a cut, ensure that it can be completed
without contacting surrounding objects or structures
such as fencing or stonework.
￭ The chain may break or be thrown if it is not properly
tensioned and lubricated. To reduce the risk of severe or
fatal personal injury or damage to the chain:
– Use STIHL Multioil Bio or an equivalent,
biodegradable multifunction oil to lubricate the bar
and chain, @ 13.4.
– Lubricate the chain before starting work with a new
or recharged battery.
– Check the condition and tension of the chain at
regular short intervals during operation.
￭ Check the chain and guide bar at regular short intervals
during operation, or immediately if there is a change in
cutting behavior:
– Switch off the motor and remove the battery.
– Check the condition and tension of the chain. Look
for damage to the chain or guide bar.
– If the chain cannot be properly tensioned, or if other
components of the garden pruner are worn or
damaged, stop work immediately and take your
garden pruner to an authorized STIHL servicing
dealer for inspection, repair or maintenance.
￭ The guide bar, saw chain and chain sprocket may become
hot during operation.
– Remove the battery and allow the tool to cool before
attempting to handle these components.
DANGER
￭ To reduce the risk of electrocution:
– Never operate this garden pruner in the
vicinity of any wires or cables that may
be carrying electric current.
– Never cut near power lines.
– Do not rely on the garden pruner's
insulation against electric shock.
6.6 Reactive Forces
6.6.1 Pull-in
0000-GXX-9358-A0
WARNING
￭ Pull-in occurs when the chain on the bottom of the bar is
suddenly stopped or significantly slowed when it is
pinched, caught or encounters a foreign object in the
wood. The reaction of the chain pulls the garden pruner
forward and may cause the operator to lose control,
which, in turn, may cause serious or fatal injury.
￭ Pull-in usually occurs when the bumper of the garden
pruner is not held securely against the branch or limb and
the chain is not rotating at full speed before it contacts the
wood.
￭ To reduce the risk of pull-in:
– Cut with a sharp, properly tensioned chain.
– Always start a cut with the chain rotating at full speed
and with the bumper in contact with the wood.
– Use caution when cutting small-size brush,
branches and saplings which may easily catch the
chain, spring towards you or pull you off balance.
– Do not use the garden pruner with a damaged or
missing guard.
16
0458-694-8621-A
7 Battery Safety
English
7 Battery Safety
7.1 Warnings and Instructions
WARNING
￭ Use of unauthorized batteries can damage the garden
pruner and result in fire, explosion and personal injury and
property damage.
– Use only genuine STIHL AS series batteries.
￭ Use of STIHL AS series batteries for any purpose other
than powering STIHL power tools could be extremely
dangerous.
– Use STIHL AS series batteries only to power
compatible STIHL power tools.
￭ Use of unauthorized chargers can damage the battery and
result in fire, explosion and personal injury and property
damage.
– Use only a genuine STIHL AL 1 series charger to
charge STIHL AS series batteries.
￭ The battery contains safety features and devices which, if
damaged, may allow the battery to generate heat, rupture,
leak, ignite or explode.
– Never heat the battery above 212 °F
(100 °C).
– Never incinerate or place the battery on
or near fires, stoves or other high-
temperature locations.
– Never use or charge a malfunctioning, damaged,
cracked, leaking or deformed battery.
– Never open, disassemble, crush, drop, subject to
heavy impact or otherwise damage the battery.
– Never expose the battery to microwaves or high
pressures.
– Never insert objects into the battery's cooling slots.
￭ Extreme temperatures may cause the battery to generate
heat, rupture, leak, ignite or explode, resulting in severe or
fatal personal injury and property damage.
– Never charge, use or store the battery outside the
specified ambient temperature limits, @ 24.8.
– Never store the battery in direct sunlight or inside a
vehicle in hot weather.
￭ To reduce the risk of personal injury and property damage
in the event the battery emits smoke, an unusual smell or
feels unusually hot while using, charging or storing:
– Immediately discontinue using or charging the
battery. Contact the authorities in the event of fire or
explosion.
￭ To reduce the risk of a short circuit, which could lead to
electric shock, fire and explosion:
– Keep the battery dry. Protect it from rain,
water, liquids and damp conditions.
– Never immerse the battery in water or
other liquids.
– Never bridge the battery terminals with wires or
other metallic objects.
– Keep a battery that is not in use away from metal
objects (e.g., paper clips, nails, coins, keys).
– Never transport or store the battery in a metal
container.
– Store the battery indoors in a dry room.
– Never store the battery in damp or corrosive
environments or in conditions that could lead to
corrosion of its metal components.
– Never store the battery in the garden pruner or
charger.
– Protect the battery from exposure to corrosive
agents such as garden chemicals and de-icing salts.
– Protect the battery from exposure to conductive
liquids such as salt water.
– Do not attempt to repair, open or disassemble the
battery. There are no user-serviceable parts inside.
0458-694-8621-A
17
English
8 Charger Safety
￭ Leaking battery fluid is potentially harmful and can cause
skin and eye irritation, chemical burns and other serious
personal injury.
– Avoid contact with skin and eyes.
– Use an inert absorbent such as sand on spilled
battery fluid.
– In the event of accidental contact, immediately rinse
the contact area thoroughly with mild soap and
water.
– If fluid gets into your eye(s): Do not rub. Rinse water
over the open eye(s) for at least 15 minutes and
seek medical attention.
￭ A battery fire can be dangerous. To reduce the risk of
severe personal injury and property damage in the event
of fire:
– Evacuate the area. Fire can spread rapidly. Stay
clear of any vapors generated and maintain a safe
distance.
– Contact the fire department.
– Although water can be used to put out a battery fire,
use of a multi-purpose dry chemical fire extinguisher
is preferable.
– Consult the fire department regarding proper
disposal of a burned battery.
￭ Dropping the battery could result in personal injury or
property damage. To prevent the battery from falling
during removal:
– Use care when ejecting the battery.
8 Charger Safety
8.1 Warnings and Instructions
WARNING
￭ To reduce the risk of fire, electric shock and other
personal injury or property damage:
– Read and follow all cautionary markings on the
charger, battery and garden pruner and all
instructions in this manual before using the charger.
– Charge only genuine STIHL AS series batteries.
Other batteries may burst, catch fire or explode,
resulting in personal injury and property damage.
– For indoor use only.
– Keep the charger dry. Protect it from
rain, water, liquids and damp conditions.
Never insert a wet battery or use a wet
charger.
– Do not handle the charger, including power supply
cord and plug, with wet hands.
– Never use a damaged charger.
– Never charge malfunctioning, damaged, cracked,
leaking or deformed batteries.
– Never store a battery in the charger.
– Operate the charger only indoors, in dry rooms.
– Operate the charger only within the specified
ambient temperature limits, @ 24.8.
– Keep the charger out of the reach of children.
– Always plug the charger into a properly installed
electrical outlet matching the voltage and electrical
frequency stated on the charger.
– Never use power strips to operate multiple chargers
or other devices from the same outlet or on the same
circuit.
18
0458-694-8621-A
8 Charger Safety
English
– Do not operate a charger that has received a sharp
or heavy blow, has been dropped or is otherwise
damaged in any way.
– Do not attempt to repair, open or disassemble the
charger. There are no user-serviceable parts inside.
￭ To reduce the risk of electric shock or fire from a short
circuit:
– Make sure the battery and charger are completely
dry before starting the charging process.
– Never bridge the contacts of the charger with wires
or other metallic objects.
– Do not insert any objects into the charger's cooling
slots.
￭ The charger heats up during the charging process. To
reduce the risk of fire:
– Do not operate on a combustible surface (e.g.,
paper, cardboard, textiles) or in a combustible
environment.
– Allow the charger to cool down normally. Do not
cover it.
￭ Chargers can produce sparks which may ignite
combustible gases, liquids, vapors, dusts or other
combustible materials. To reduce the risk of fire and
explosion:
– Do not operate in a location where combustible
gases, liquids, vapors, dusts or other combustible
materials are present.
￭ Using a damaged power supply cord or plug may result in
fire, electric shock and other personal injury or property
damage. To reduce these risks:
– Check the charger’s power supply cord
and plug regularly for damage. If
damaged, immediately disconnect the
plug from the electrical outlet.
– Have a damaged power supply cord replaced by an
authorized STIHL servicing dealer.
– Unplug the power supply cord from the outlet when
the charger is not in use.
– Never jerk the power supply cord to disconnect it
from the electrical outlet. To unplug, grasp the plug,
not the power supply cord.
– Do not use the power supply cord for carrying or
hanging up the charger.
– Make sure the power supply cord is located or
marked so that it will not be stepped on, tripped over,
come in contact with sharp objects or moving parts,
or otherwise be subjected to damage or stress.
￭ An extension cord should not be used unless absolutely
necessary. Overloading an extension cord can result in
overheating and fire. If an extension cord must be used:
– Use only a properly wired 16 gauge (AWG 16) or
heavier gauge extension cord and the cord length
should not exceed 75 ft.
– Never connect more than one charger or other
device to an extension cord.
– Never use an extension cord with a wattage rating
lower than the wattage on your charger's rating
plate.
– Never use an extension cord if the blades on its plug
are different from the blades on the charger plug in
number, size or shape.
– Do not link (chain) extension cords.
￭ A typical household electrical circuit is between 15 and
20 amps. A single STIHL AL 1 charger draws
approximately 0.275 amps. To reduce the risk of fire from
overloading an electrical circuit:
– Ensure the electrical system is rated to withstand the
expected electrical draw before charging.
– Charge multiple batteries one at a time or on
separate circuits, unless you know your circuit can
handle the total expected draw from multiple
chargers.
0458-694-8621-A
19
English
9 Maintenance, Repair and Storage
￭ In case of fire, or if the charger or the battery it is charging
emits smoke, an unusual smell, feels hot or appears
abnormal in any other way:
– Immediately disconnect the charger from the outlet.
Contact the authorities in the event of fire or
explosion.
￭ To reduce the risk of electric shock and other personal
injury or property damage when mounting the charger:
– Ensure that no electrical cables, pipes or other
service lines run behind the wall where the charger
is to be mounted.
– Mount the charger only as described in this manual.
– Remove the battery before mounting the charger.
9 Maintenance, Repair and Storage
9.1 Warnings and Instructions
WARNING
￭ There are no user-authorized repairs for the battery,
charger or garden pruner. To reduce the risk of fire,
electric shock or other personal injury and property
damage:
– Users may carry out only the cleaning and
maintenance operations described in this manual.
– Strictly follow the cleaning and maintenance
instructions in the appropriate sections of this
instruction manual.
– STIHL recommends that all repair work be
performed by authorized STIHL servicing dealers.
￭ Unintentional starting may result in personal injury or
property damage. To reduce the risk of personal injury
and property damage from unintentional starting:
– Remove the battery before inspecting
the garden pruner or carrying out any
cleaning, maintenance or repair work,
before storing, and any other time it is
not in use.
￭ The bar and chain are the only user-serviceable parts of
the garden pruner. Proper maintenance will help maintain
cutting performance and reduce the risk of personal injury
caused by chain derailment and reactive forces.
– Wear gloves when handling the saw chain.
– Keep the chain, guide bar and sprocket clean.
– Replace the chain and guide bar when they become
worn or damaged.
– Keep the chain sharp and at proper tension.
– Tighten all nuts, bolts and screws after each use.
￭ Use of parts that are not authorized or approved by STIHL
may cause serious or fatal injury or property damage.
– STIHL recommends that only identical STIHL
replacement parts be used for repair or
maintenance.
￭ To reduce the risk of electric shock:
– Unplug the charger from the electrical outlet before
inspecting or cleaning the charger.
– Regularly check the charger and ensure that the
insulation of the power cord and plug are in good
condition and show no signs of aging (brittleness),
wear or damage.
– Have a damaged power supply cord replaced by an
authorized STIHL servicing dealer.
￭ To reduce the risk of short circuit and fire:
– Keep the battery guides free of foreign matter. Clean
as necessary with a dry cloth or soft, dry brush.
￭ Improper storage can result in unauthorized use, damage
to the garden pruner, battery and charger, and an
increased risk of fire, electric shock and other personal
injury or property damage.
– Remove the battery from the garden pruner before
storing.
– Never store the garden pruner or charger with the
battery inserted.
– Before storing, always unplug the charger from the
electrical outlet and remove the battery.
20
0458-694-8621-A
10 Before Starting Work
English
– Store the garden pruner, battery and charger
indoors in a dry, secure place that cannot be
accessed by children or other unauthorized users.
– Never store the battery in the garden pruner, in the
charger, in a metal container or in a container with
metal objects (e.g., paper clips, nails, coins, keys).
10 Before Starting Work
10.1 Preparing the Garden Pruner for Operation
Before starting work:
► Fully charge the battery, @ 11.
► Mount the guide bar and chain, @ 13.2.2.
► Tension the chain, @ 13.3.
► Lubricate the chain, @ 13.4.
► Check the controls for proper function and condition,
@ 16.2.
11 Charging the Battery
WARNING
A typical household electrical circuit is between 15 and
20 amps. A single STIHL AL 1 charger draws approximately
0.275 amps. To reduce the risk of fire from overloading an
electrical circuit:
► Ensure the electrical system is rated to withstand the
expected electrical draw before charging your battery.
► Charge multiple batteries one at a time or on separate
circuits, unless you know your circuit can handle the total
expected draw from multiple chargers.
WARNING
Since the battery and charger heat up during the charging
process, do not operate the charger on a combustible
surface or in a location where combustible gases, liquids,
vapors, dusts or other materials are present, @ 8.
To set up the charger:
4
3
11.1 Setting up the Charger
WARNING
Read and follow the safety precautions on the battery and
charger and the warnings and instructions in this manual,
@ 8. To reduce the risk of short circuit, which could lead to
electric shock, fire and explosion, make sure the charger
and its components are dry and not damaged; operate the
charger indoors at an appropriate ambient temperature,
@ 8.
0458-694-8621-A
1
► Insert the plug (3) into a properly installed electrical
outlet (4) matching the voltage and electrical frequency
stated on the charger's rating plate.
The charger runs a self-test immediately after it is plugged
in. The LED (1) will glow green for about 1 second, then it
will glow red briefly before going out. Once the LED goes
out, the self-test is complete and the charger is ready to
charge the battery.
2
21
0000-GXX-9295-A0
English
11 Charging the Battery
► Position the power supply cord (2) so that it will not be
stepped on, tripped over, come in contact with sharp
objects or moving parts or otherwise be subjected to
damage or stress.
11.2 Charging
WARNING
STIHL batteries contain safety features and devices which,
if damaged, may allow the battery to generate heat, rupture,
leak, ignite or explode. Never charge a malfunctioning,
damaged, cracked, leaking or deformed battery or use a
charger that has been damaged, @ 8. Make sure the
charger and the battery to be charged are both completely
dry before charging, @ 8. Follow all product-specific
warnings and instructions accompanying your battery.
To charge the battery:
1
2
3
Operate the charger indoors in a dry room. For optimum
performance, observe the recommended ambient
temperature ranges, @ 24.9.
The battery heats up during operation. If a hot battery is
inserted into the charger, it may be necessary for it to cool
down before charging starts. The charging process begins
only after the battery has cooled down sufficiently.
Charging time depends on a number of factors, including
battery condition and the ambient temperature. For a
complete list of approximate charging times, see
www.stihl.com/charging-times.
11.3 Mounting the Charger on a Wall
Before mounting, ensure that no electrical cables, pipes or
other service lines run in the wall behind the charger.
To mount the wall charger:
2 3
1
a
b
c
e
d
f
f
► Push the battery (1) into the charger (2) until it stops.
The LED on the charger (3) glows or flashes green when
the battery is charging.
When the LED on the charger goes out, the charging
process is complete and the charger will shut itself off. The
battery can be removed from the charger.
► Disconnect the power supply cord from the electrical
outlet when the charger is not in use for extended periods
of time.
A battery is not fully charged when it ships from the factory.
STIHL recommends that you fully charge the battery before
using it the first time.
22
0000-GXX-9296-A0
► Mount the charger indoors in a dry room near an electrical
outlet.
► Sink the screws into a wall stud. Use appropriate screw-in
wall anchors or other similar mounting devices if an
appropriate wall stud is not available.
► Align the charger as shown above. Mount to a wall with the
following dimensions:
– a = minimum 18 in. (450 mm)
– b = minimum 3.9 in. (100 mm)
– c = 2.1 in. (54 mm)
– d = 0.2 in. (4.5 mm)
0458-694-8621-A
0000-GXX-8802-A1
12 LED Diagnostics
English
– e = 0.4 in. (9 mm)
– f = 0.1 in. (2.5 mm)
12 LED Diagnostics
12.1 LEDs on the Garden Pruner
12.1.1 Garden Pruner Status
The LEDs on the garden pruner show the status of the power
tool.
If three LEDs glow red continuously: the garden pruner
motor is too hot. Allow the motor to cool down.
If three LEDs flash red when you activate the trigger switch:
the garden pruner has an electrical malfunction. Do not
operate the garden pruner. Have it checked by an
authorized STIHL servicing dealer before use or storage.
For troubleshooting information, @ 23.
12.1.2 Battery Status
The same LEDs on the garden pruner also indicate the
status of the battery.
These LEDs can glow or flash green or red.
If one LED glows red continuously: the battery is either too
hot or too cold. Allow the battery to warm up or cool down
gradually at an ambient temperature of about 50 °F to 68 °F
(10 °C to 20 °C).
If all 4 LEDs flash red: the battery has a malfunction and
must be replaced. Do not attempt to charge, use or store the
battery.
To determine the battery's state of charge:
80-100%
60-80%
40-60%
20-40%
0-20%
1
► Insert the battery.
► Press the button (1).
The LEDs on the garden pruner will glow or flash green for
about 5 seconds and indicate the state of charge (see
illustration).
For example:
If four green LEDs glow continuously: full charge.
If one green LED is flashing: less than 20 % charge.
12.2 LED on the Charger
One LED shows the status of the charger and battery. The
LED can glow or flash green or red.
If the LED glows green continuously or flashes
green: the battery is being charged.
0000-GXX-9341-A1
12.1.3 Charge Status
The LEDs on the garden pruner also show the battery's state
of charge.
0458-694-8621-A
23
English
If the LED flashes red: there is no contact
between the battery and the charger. Remove
and reinsert the battery.
or
The battery has a malfunction and must be
replaced. Do not use or charge the battery.
or
The charger has a malfunction. Have it checked
by an authorized STIHL servicing dealer before
use.
If the LED glows red continuosly: The battery is
too hot or too cold for charging. Allow the battery
to warm up or cool down gradually at an ambient
temperature of about 50 °F to 68 °F (10 °C to
20 °C).
For more information, @ 23.
13 Assembling the Garden Pruner
13 Assembling the Garden Pruner
1
2
a
3
t = a 2
– The pitch (t) of the chain (1), must match the pitch of the
chain sprocket.
– The drive link gauge (2) of the chain must match the
groove width of the guide bar (3).
13.2 Removing and Mounting the Guide Bar and the
Saw Chain
13.2.1 Removing the Guide Bar and Chain
0000-GXX-1445-A0
13.1 Cutting Attachment
WARNING
If non-matching components are used, the cutting
attachment will be damaged beyond repair after a short
period of operation, and the chain could de-rail, resulting in
serious or fatal personal injury.
A cutting attachment consists of the chain, guide bar and
chain sprocket.
24
WARNING
To reduce the risk of unintended activation, take out the
battery before attempting to remove the guide bar and chain.
WARNING
The chain has many sharp cutters. If they contact your flesh,
they will cut you, even if the chain is not moving, @ 6.4.
Always wear heavy-duty work gloves when handling the
chain, @ 6.3.
To remove the guide bar and chain:
► Switch off the garden pruner, @ 15.2.
► Remove the battery, @ 14.2.
0458-694-8621-A
13 Assembling the Garden Pruner
3
1
2
0000-GXX-9342-A0
0000-GXX-9343-A0
English
► Raise the handle (1) of the wingnut (2).
► Turn the wingnut counterclockwise until the chain
sprocket cover (3) can be removed.
► Remove the chain sprocket cover.
► Remove the guide bar and chain.
NOTICE
The top and bottom of the guide bar are symmetrical, and
the bar may be mounted with the printing facing up or down.
Flipping the guide bar each time the chain is sharpened or
changed will help reduce uneven wear and improve its
service life.
13.2.2 Mounting the Guide Bar and Chain
WARNING
Make sure the battery is removed before starting assembly.
Never operate your garden pruner without a properly
mounted guide bar and chain, @ 6.5. Use only guide bar
and chain combinations expressly recommended or
approved by STIHL, @ 6.4.
To mount the guide bar and chain:
► Switch off the garden pruner, @ 15.2.
► Remove the battery, @ 14.2.
► Remove the chain sprocket cover by turning the wingnut
counterclockwise.
0458-694-8621-A
► Position the chain in the groove of the guide bar, starting
at the tip.
► Make sure that the cutters in the groove on the top side of
the guide bar face the tip of the bar. STIHL chains are
manufactured with arrows on the tie straps to help the
operator determine the proper direction of the chain.
Arrows on the tie straps on the top of the bar must point
toward the bar tip.
2 3
1
0000-GXX-9344-A0
► Point the guide bar tip away from the chain sprocket (1).
► Place the chain around the chain sprocket.
► Slide the guide bar over the collar screw (3) and pin (2).
The head of the collar screw must protrude into the oblong
hole.
► Fit the sprocket cover on the garden pruner so that it is
flush with the housing.
► Direct the drive links into the groove of the guide bar.
The guide bar and chain must be firmly and securely
mounted on the garden pruner.
25
English
13 Assembling the Garden Pruner
► Tension the saw chain.
► Turn the wingnut clockwise until the chain sprocket cover
is firmly attached to the garden pruner.
► Close the handle of the wingnut.
13.3 Tensioning the Chain
WARNING
To reduce the risk of severe personal injury from chain
derailment, check chain tension frequently, @ 6.5. At
operating temperatures, the chain stretches and sags. New
chain tends to stretch more than used chain. Tension the
chain so that the drive links cannot come completely out of
the groove on the underside of the guide bar.
To properly tension the chain:
► Switch off the garden pruner, @ 15.2.
► Remove the battery, @ 14.2.
► Raise the handle of the wingnut.
► Turn the wingnut counterclockwise until the chain is loose.
► Pull the guide bar to tighten the chain.
The chain is properly adjusted when the drive links are
half inserted into the groove at the underside of the guide
bar. Always wear gloves when handling the chain.
► Tighten the wingnut by hand to secure the chain sprocket
cover.
► If the chain cannot be moved easily with low force along
the guide bar, it is too tight.
– Turn the wingnut counterclockwise twice or until the
chain is loose.
– Reduce the tension by pushing the guide bar in the
direction of the chain sprocket until the chain can move
freely along the guide bar.
– Ensure that the drive links remain in the groove and are
half inserted into the groove at the underside of the
guide bar.
► Once the chain is properly tensioned, tighten the wingnut
by hand to secure the chain sprocket cover.
13.4 Lubricating the Saw Chain and Guide Bar
WARNING
Never operate your garden pruner without bar and chain
lubrication. If the chain runs dry, the cutting attachment will
be damaged beyond repair within a very short time. A
damaged chain may break, resulting in severe or fatal
personal injury. Always lubricate the chain before starting
work with a new or recharged battery.
WARNING
Never use waste oil to lubricate your STIHL saw chain and
guide bar. Repeated contact with waste oil can cause skin
cancer. Moreover, waste oil is environmentally harmful.
Bar and chain oil lubricates and cools the rotating saw chain.
The service life of the chain and guide bar depends on the
quality of the lubricant. It is therefore essential to use only a
specially formulated chain lubricant.
► For reliable lubrication of the chain and guide bar, use the
STIHL Multioil Bio that comes with your garden pruner or
an equivalent, biodegradable multifunction oil.
0000-GXX-9345-A0
NOTICE
Waste oil does not have the necessary lubricating properties
and is unsuitable for chain lubrication.
Lubricate the chain before starting work with a new or
recharged battery:
► Switch off the garden pruner, @ 15.2.
► Remove the battery, @ 14.2.
26
0458-694-8621-A
14 Inserting and Removing the Battery
English
► Position the garden pruner on a level surface with the
chain sprocket cover facing up.
► Clean the guide bar and saw chain with a brush, a slightly
dampened cloth or resin solvent, such as STIHL Resin
Remover & Lubricant.
1
► Apply STIHL Multioil Bio in the area (1) between the guide
bar and saw chain.
► Insert the battery.
► Switch on the garden pruner for a few seconds.
The oil is dispersed on the saw chain.
14 Inserting and Removing the Battery
14.1 Inserting the Battery
To insert the battery:
2
1
► Push the battery (1) into the battery compartment (2) until
it stops.
The battery is properly inserted when you hear an audible
0000-GXX-9346-A1
click.
Since a new battery is not fully charged, STIHL recommends
that you fully charge the battery before using it the first time,
@ 11.
14.2 Removing the Battery
WARNING
To reduce the risk of severe personal injury from unintended
activation, always remove the battery before assembling,
transporting, adjusting, cleaning, servicing, maintaining or
storing the garden pruner, and any other time it is not in use.
0000-GXX-9347-A0
WARNING
Never use a malfunctioning, damaged, cracked, leaking or
deformed battery, @ 7. Never charge, use or store the
battery outside the specified ambient temperature limits,
@ 24.8.
WARNING
To reduce the risk of unintended activation, never store the
battery in the garden pruner, @ 20.2.
0458-694-8621-A
WARNING
Use care when ejecting the battery to prevent it from falling
and causing personal injury or property damage.
27
Loading...
