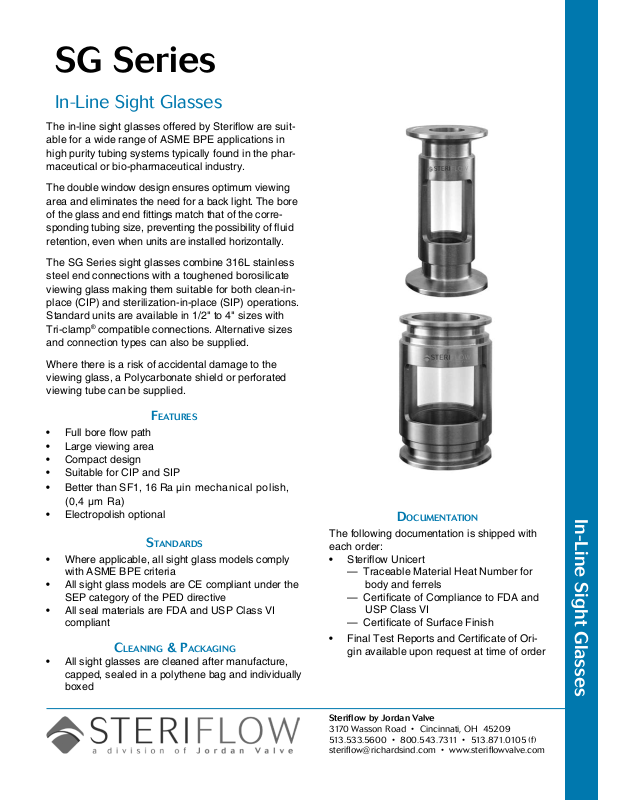

SG Series

In-Line Sight Glasses

The in-line sight glasses offered by Steriow are suitable for a wide range of ASME BPE applications in high purity tubing systems typically found in the pharmaceutical or bio-pharmaceutical industry.

The double window design ensures optimum viewing area and eliminates the need for a back light. The bore of the glass and end ttings match that of the corresponding tubing size, preventing the possibility of uid retention, even when units are installed horizontally.

The SG Series sight glasses combine 316L stainless steel end connections with a toughened borosilicate viewing glass making them suitable for both clean-inplace (CIP) and sterilization-in-place (SIP) operations. Standard units are available in 1/2" to 4" sizes with Tri-clamp and connection types can also be supplied.

compatible connections. Alternative sizes

In-Line Sight Glasses

Where there is a risk of accidental damage to the viewing glass, a Polycarbonate shield or perforated viewing tube can be supplied.

Fe a t u r e s

Full bore ow path• Large viewing area• Compact design• Suitable for CIP and SIP• Better than SF1, • 16 Ra µin mechanical polish, (0,4 µm Ra) Electropolish optional•

st a n d a r d s

Where applicable, all sight glass models comply • with ASME BPE criteria All sight glass models are CE compliant under the • SEP category of the PED directive All seal materials are FDA and USP Class VI • compliant

Cl e a n i n g & Pa C k a g i n g

All sight glasses are cleaned after manufacture, • capped, sealed in a polythene bag and individually

boxed

do C u m e n t a t i o n

The following documentation is shipped with each order:

Steriow Unicert• — Traceable Material Heat Number for

body and ferrels

— Certicate of Compliance to FDA and USP Class VI — Certicate of Surface Finish

Final Test Reports and Certicate of Ori-• gin available upon request at time of order

Steriow by Jordan Valve

3170 Wasson Road • Cincinnati, OH 45209

513.533.5600 • 800.543.7311 • 513.871.0105 (f) steri[email protected] • www.steriowvalve.com

Page 2

In-LI n e SI g h t gL a S S e S

sP eC iF iC at io ns

SightGlasses/1009/5K/AB

Sizes: 1/2", 3/4", 1", 1-1,2", 2", 2-1/2", 3", 4"

End Connections

Tri-clamp•

compatible

Materials of Construction

Body – 316L Stainless Steel• End tting – 316L Stainless Steel• Glass – Borosilicate• Seals – EPDM, Viton, Silicone or FEP-Silicone • (all FDA and USP VI compliant)

Surface Finish

Internal – better than SF1; 16 Ra • µin (0,4 µm) mechanical finish, Electropolish optional External – 32 Ra • µin (0,8 µm) mechanical nish, electropolish optional

Operating Conditions

Maximum operating pressure – 145 psig (10 barg)• Maximum allowable temperature with EPDM • seals – 175°F (135°C) Maximum allowable temperature with FEP- • Silicone, Viton or Silicone seals – 392°F (200°C)

Options

DIN, ISO & SMS sizes available upon request• Electropolished nishes• Perforated viewing tube• Alternative lengths / weld end connections•

Certications

Steriow Unicert•

— Traceable Material Heat Number for body

and ferrels

— Certicate of Compliance to FDA and USP Class VI Certicate of Surface Finish

Final Test Reports and Certicate of Origin avail-• able upon request at time of order

or d e r i n g sC h e m a t i C

Model Size Seal Shield Finish

Model

SG Sight Glass

Size

050 1/2" ASME BPE Tri-Clamp 075 3/4" ASME BPE Tri-Clamp 100 1" ASME BPE Tri-Clamp

150 1-1/2" ASME BPE Tri-Clamp 200 2" ASME BPE Tri-Clamp

250 2-1/2" ASME BPE Tri-Clamp 300 3" ASME BPE Tri-Clamp 400 4" ASME BPE Tri-Clamp

Valve Size A B Viewing Area C°

1/2", 3/4" 3.54 (90mm) 1.57 (40mm) 120°

1" – 4" 3.94(100mm) 1.57 (40mm) 120°

00 None

Seal

EP EPDM, FDA, USP Class VI

VI Viton, FDA, USP Class VI SI Silicone, FDA, USP Class VI

00 Standard Mechanical Polish

EP Electro-Polish

FI FEP-Silicon for USP Class VI

Steriow, a division of Jordan Valve

3170 Wasson Road • Cincinnati, OH 45209

513.533.5600 • 800.543.7311 • 513.871.0105 (f) steri[email protected] • www.steriowvalve.com

Steriow Valve reserves the right to make revisions to its product, specications, literature and related information without notice. Please visit our website at www.steriowvalve.com for the latest information on our products.

Shield

Polycarbonate outer shield

Finish
