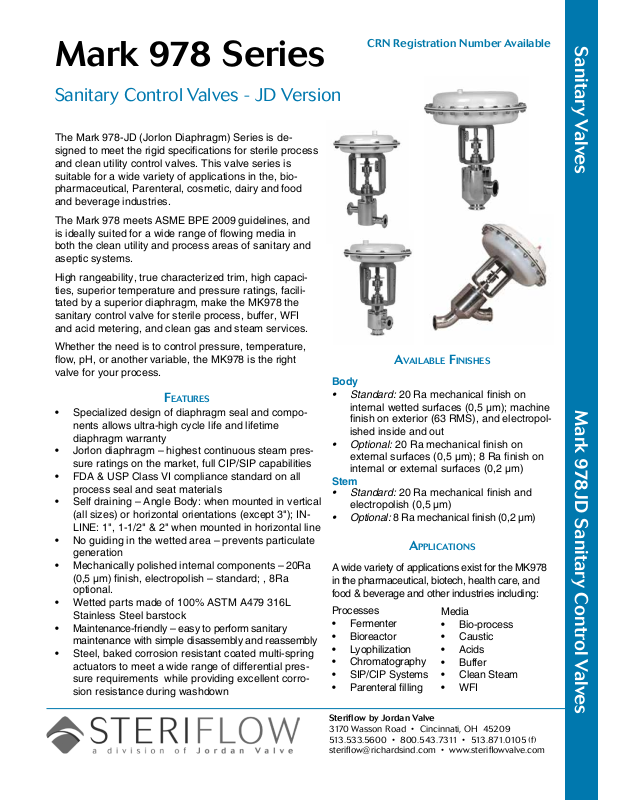

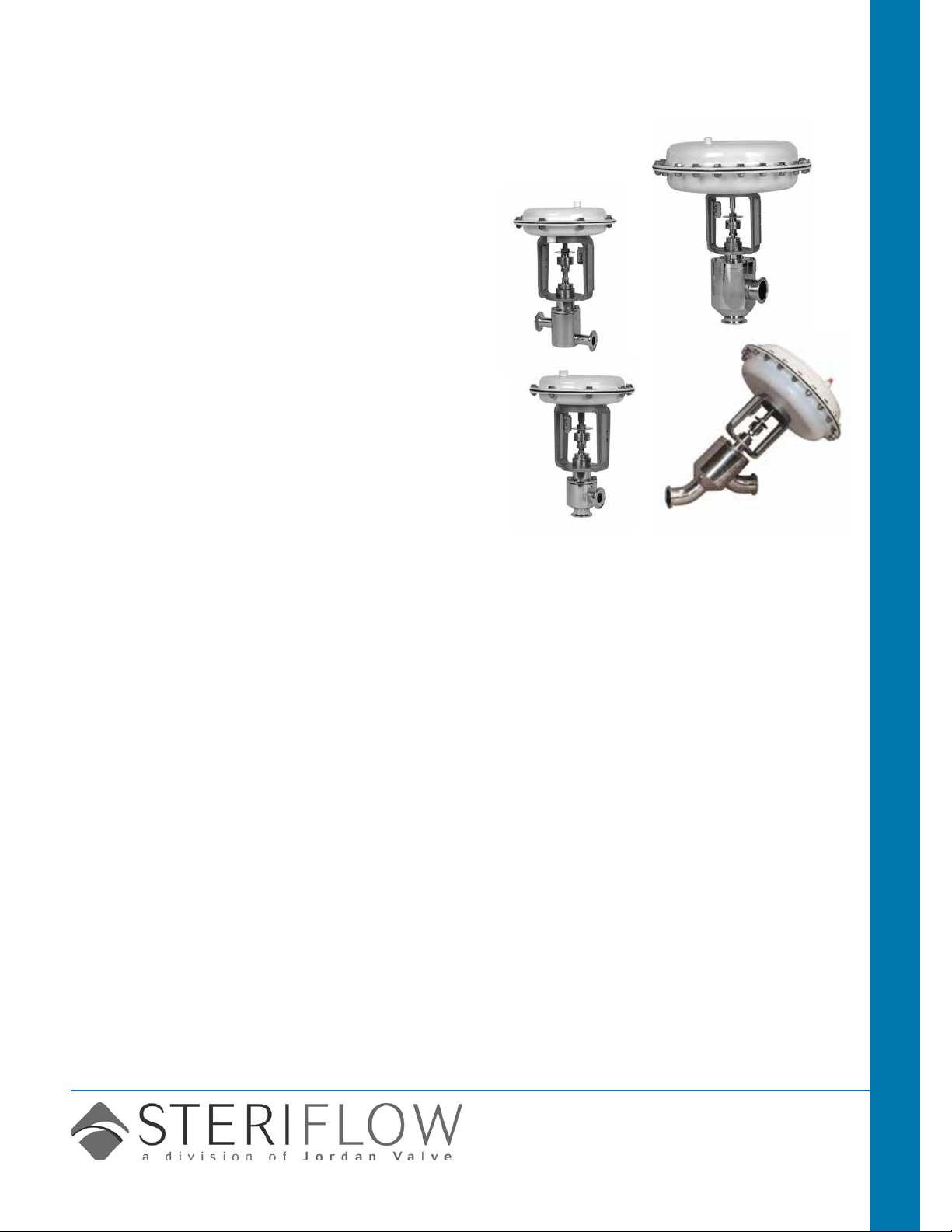

Mark 978 Series

Sanitary Control Valves - JD Version

The Mark 978-JD (Jorlon Diaphragm) Series is de-

signed to meet the rigid specications for sterile process

and clean utility control valves. This valve series is

suitable for a wide variety of applications in the, biopharmaceutical, Parenteral, cosmetic, dairy and food

and beverage industries.

The Mark 978 meets ASME BPE 2009 guidelines, and is ideally suited for a wide range of owing media in both the clean utility and process areas of sanitary and

aseptic systems.

High rangeability, true characterized trim, high capacities, superior temperature and pressure ratings, facilitated by a superior diaphragm, make the MK978 the sanitary control valve for sterile process, buffer, WFI and acid metering, and clean gas and steam services.

CRN Registration Number Available

Sanitary Valves Mark 978JD Sanitary Control Valves

Whether the need is to control pressure, temperature, ow, pH, or another variable, the MK978 is the right valve for your process.

Features

• Specialized design of diaphragm seal and components allows ultra-high cycle life and lifetime diaphragm warranty

• Jorlon diaphragm – highest continuous steam pres-

sure ratings on the market, full CIP/SIP capabilities

• FDA & USP Class VI compliance standard on all process seal and seat materials

• Self draining – Angle Body: when mounted in vertical

(all sizes) or horizontal orientations (except 3"); INLINE: 1", 1-1/2" & 2" when mounted in horizontal line

• No guiding in the wetted area – prevents particulate generation

• Mechanically polished internal components – 20Ra (0,5 µm) nish, electropolish – standard; , 8Ra

optional.

• Wetted parts made of 100% ASTM A479 316L Stainless Steel barstock

• Maintenance-friendly – easy to perform sanitary

maintenance with simple disassembly and reassembly

• Steel, baked corrosion resistant coated multi-spring actuators to meet a wide range of differential pressure requirements while providing excellent corrosion resistance during washdown

available Finishes

Body

• Standard: 20 Ra mechanical nish on internal wetted surfaces (0,5 µm); machine

nish on exterior (63 RMS), and electropol-

ished inside and out

• Optional: 20 Ra mechanical nish on external surfaces (0,5 µm); 8 Ra nish on

internal or external surfaces (0,2 µm)

Stem

• Standard: 20 Ra mechanical nish and electropolish (0,5 µm)

• Optional: 8 Ra mechanical nish (0,2 µm)

applications

A wide variety of applications exist for the MK978 in the pharmaceutical, biotech, health care, and food & beverage and other industries including:

Processes

• Fermenter

• Bioreactor

• Lyophilization

• Chromatography

• SIP/CIP Systems

• Parenteral lling

Media

• Bio-process

• Caustic

• Acids

• Buffer

• Clean Steam

• WFI

Steriﬂow by Jordan Valve

3170 Wasson Road • Cincinnati, OH 45209

513.533.5600 • 800.543.7311 • 513.871.0105 (f) steriﬂ[email protected] • www.steriﬂowvalve.com

Page 2

Mark 978 Sanitary Globe-Style Control ValVeS - Jorlon DiaphraGM Seal

speciFications – Jorlon Diaphragm

Sizes

• Angle Body: 1/2" (DN15) through 3" (DN80)

• InLine Series: 1" (DN25) through 2" (DN50)

Body/Bonnet Connection: bolted ange

Body/Bonnet Seal: valve diaphragm serves as body/

bonnet seal

Body Material: ASTM A479 316L SST Barstock

Stem Material: ASTM A479 316L SST Barstock

Bonnet Material: ASTM A479 316L SST Barstock

Diaphragm

Jorlon (1/2" – 3")

• FDA/USP Class VI to +340°F (171°C)

Stem Bushing: FDA PEEK (no process contact)

Actuators

Pneumatic

• 1/2" – 1" (DN15 – DN25); 35M & 55M: Steel, baked corrosion resistant coating

• 1-1/2" – 2" (DN40 – DN50); 55M & 85M: Steel, baked corrosion resistant coating

• 3" (DN80); 85M: Steel, baked corrosion resistant coating

Soft Seat Option ((Cv ≥ 3.5 only)

• PTFE FDA/USP Class VI to 252°F (122°C) continuous or 275°F (135°C) in intermittent (<15 min over 1 hour)

• PEEK FDA/USP Class VI to 350°F (177°C)

Electric

• Contact factory

Shutoff

• Standard: ANSI Class III with metal seat

• Optional: ANSI Class VI with soft seat (Cv > 3.5 only)

Ranges: 3-15, 6-30, 3-9*, or 9-15* psi (0,2-1,0; 04-2,0;

0,2-0,6; or 0,6-1,0 bar) (* positioner required);

Maximum Pressure @ 100°F (38°C)

• Jorlon (1/2" – 3"): 150 psi (10,3 bar)

Maximum Pressure/Temperature Rating

• Jorlon (1/2" – 3"): 100 psi @ +340°F (6,9 bar @ +171°C)

Flow Characteristics: Linear, equal percentage, or

quick opening (consult factory for quick opening's Cvs)

Cv (Kv) Ratings (Diaphragm)

Cv (Kv) Ratings

Size Linear Equal Percentage

1/2" 0.2 / 0.5 / 1.0 (0,17 / 0,43 / 0,86) 3/4" 1.0 \ 2.0 \ 3.5 \ 5.0 (0,86 \ 1,72 \ 3,01 \ 4,30)

1-1/2"

3" 75\100\125 (65\86\108) 60\80\100 (52\69\86)

7.5 \ 15 (6,45 \ 12,90) 7.5 (6,45)

5.0 \ 10 \ 15 \ 20.0 (4,30 \ 8,60 \ 12,90 \ 17,20)

10 \ 15 \ 20 \ 30 (8,60 \ 12,90 \ 17,20 \ 25,8)

40, 60 (34,4 \ 52)

3.5 \ 5.0 (3,01 \ 4,30)

30 (25,80)

maximum ∆ Ratings, PSI (BAR)

Valve

Size

1/2"* 0.2 / 0.5 / 1.0 35M/55M 150 (10,3) 150 (10,3) 150 (10,3) 150 (10,3)

3/4"* 1 / 2 / 3.5 / 5 35M/55M 150 (10,3) 150 (10,3) 150 (10,3) 150 (10,3)

1"* 3.5 / 5 35M 150 (10,3) 150 (10,3) 150 (10,3) 150 (10,3)

1"* 3.5 / 5 55M 150 (10,3) 150 (10,3) 150 (10,3) 150 (10,3)

1"* 7.5 / 15 35M 75 (5,2) 120 (8,3) 75 (5,2) 150 (10,3)

1"* 7.5 / 15 55M 150 (10,3) 150 (10,3) 150 (10,3) 150 (10,3)

1-1/2"** 5 / 10 / 15 55M N/A 126 (8,7) 150 (10,3) 150 (10,3)

1-1/2"** 5 / 10 / 15 85M N/A 150 (10,3) 150 (10,3) 150 (10,3)

1-1/2"** 20 / 30 55M N/A 97 (6,7) 150 (10,3) 150 (10,3)

1-1/2"** 20 / 30 85M N/A 150 (10,3) 150 (10,3) 150 (10,3)

2"** 10/15/20/30/40/60 55M N/A 34 (2,3) 111 (7,7) 111 (7,7)

2"** 10/15/20/30/40/60 85M N/A 111 (7,7) 150 (10,3) 150 (10,3)

3"** 60/75/80/100/125 85M N/A 100 (6,9) 100 (6,9) 100 (6,9)

Note: 1-1/2", 2" & 3" require positioner supplied by Steriow or customer. 3" actuator is bench set @ 11 - 30 psi * 1/2" - 1" may be sold with I/P instead of positioners ** 1/2" – 2" with postioner ATO actuator is bench set @ 6-30 psi/ ATC actuator is bench set @ 3-15 psi.

Valve Cv

Actuator

Size

ATO 3-15

ATO 6-30 or with

positioner @ 40 psi

-2-

ATC 3-15 or with

positioner @ 20 psi

ATC 6-30 @ 40 psi

Page 3

Mark 978 Sanitary Globe-Style Control ValVeS - Jorlon DiaphraGM Seal

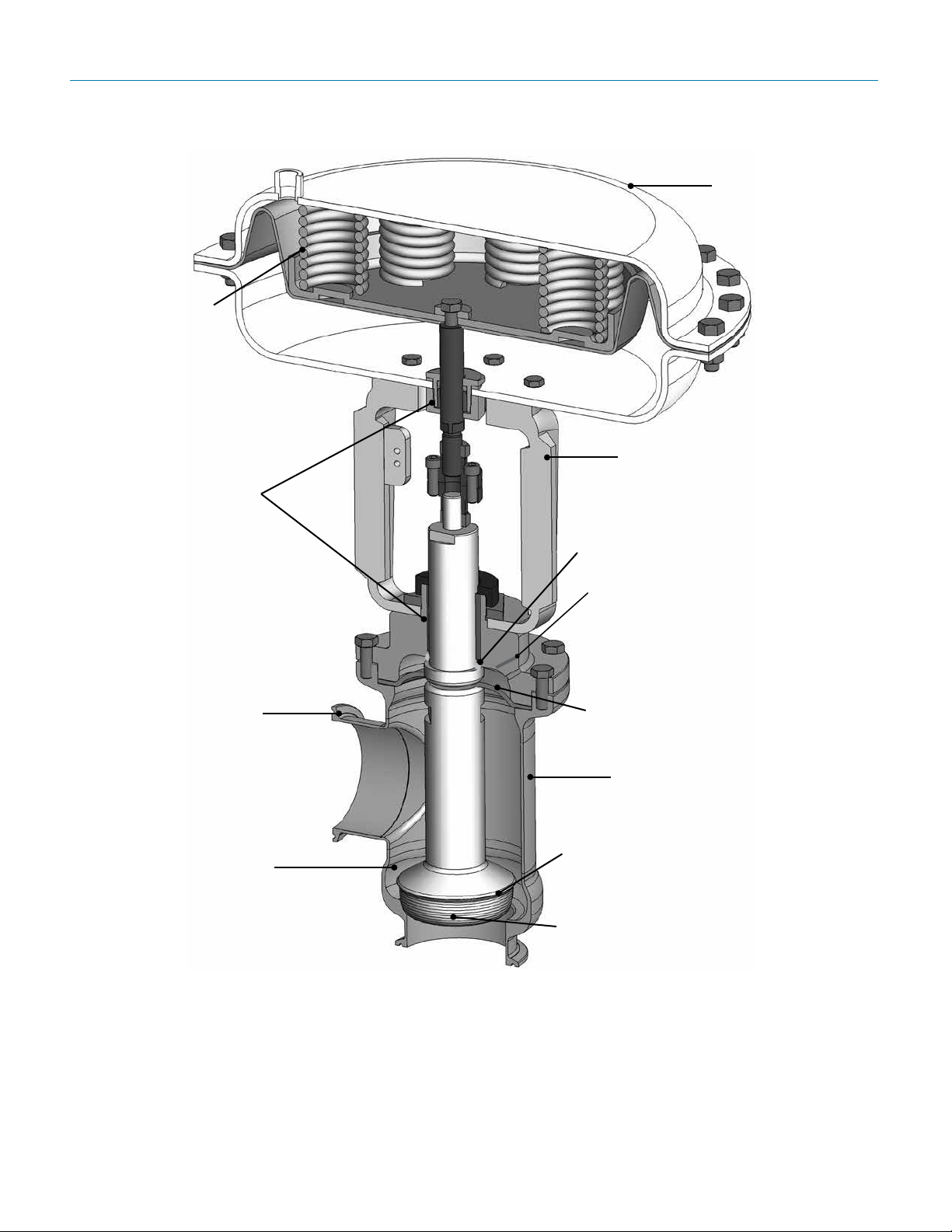

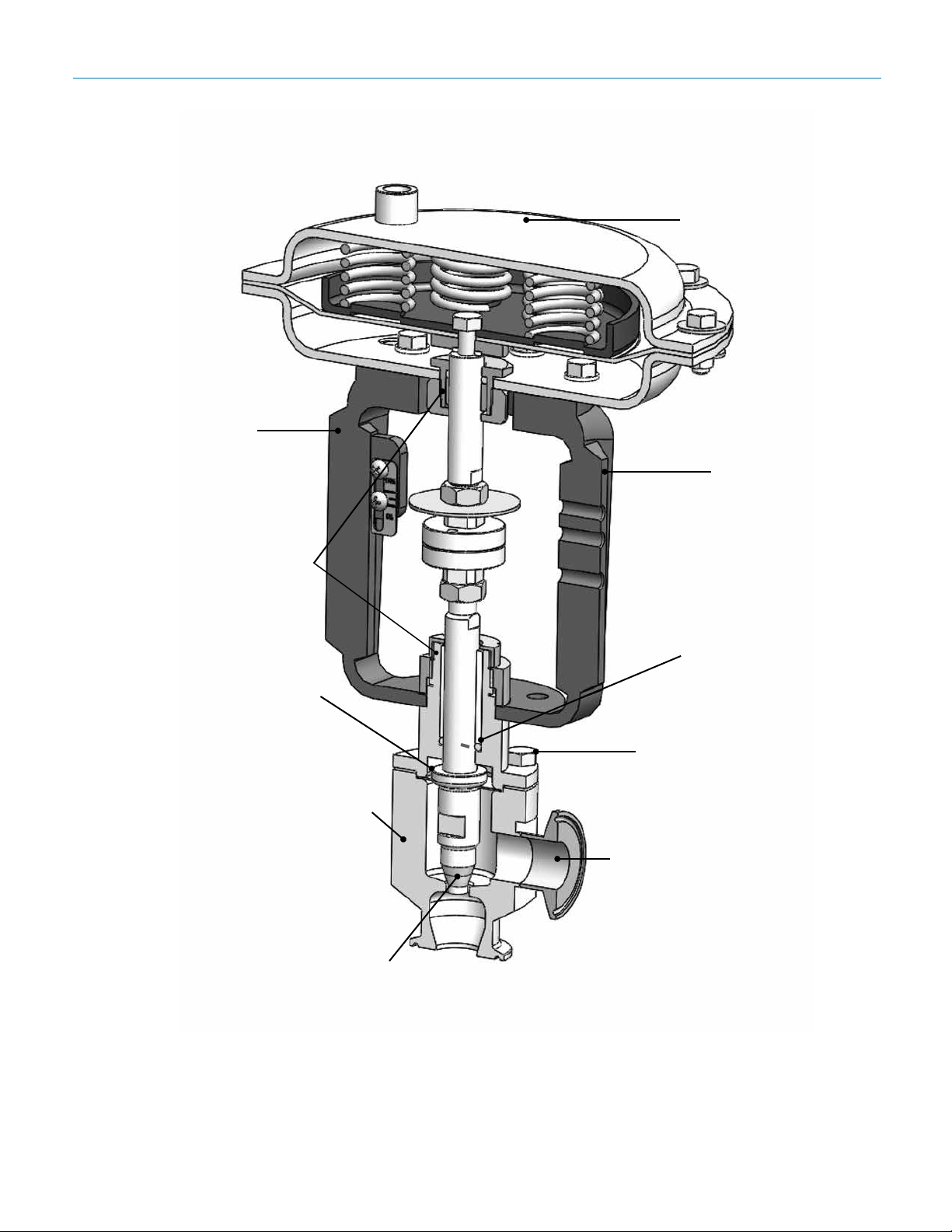

mark 978e Jorlon Diaphragm seal (1/2" - 1" angle style; 1" inline style)

NEW Bi-direction ow capability.

Valve can be installed with inlet on side or bottom. Self draining when valve is installed with inlet on side

and valve in upright

position as shown.

Corrosion resistant SST yoke assembly suitable for washdown

Corrosion resistant coating with SST fasteners

Namur yoke permits easy mounting of a variety of positioners

Extended PEEK guide bushings ensures smooth, stable move-

ment throughout entire stroke length

FDA/USP Class VI

FDA/USP Class VI Jorlon diaphragm resistant to aggressive chemicals, suitable for continuous steam service;

Lifetime Warranty

Solid 316L barstock construction offers excellent chemical resistance, ensures consistent material integrity and surface nish

Optimal ow inlet geometry for true ow characteristics.

Contoured plug and orice design to

provide true equal percentage or linear

ow characteristic for improved turndown

secondary stem seal

Bolted bonnet provides enhanced strength and

safety over clamped bonnet

speciFication

Stainless steel sanitary control valve shall be made from ASTM A479 316L barstock material, which includes body and all wetted metal parts. Control valve with the stem sealed by FDA approved and USP Class VI certied Jorlon diaphragm with lifetime warranty. The valve stem shall be supported by a one piece, SS NAMUR Yoke with two extended PEEKTM Guide bushings to provide structural rigidity and true guiding in any installation orientation. Guiding of valve stem/plug shall be outside of the wetted process areas of valve above diaphragm. Control valve shall have secondary stem seal, and extended guide bushing to provide additional support for multiple installation orientations. Valve shall be self draining in any orientation.

-3-

Page 4

Mark 978 Sanitary Globe-Style Control ValVeS - Jorlon DiaphraGM Seal

Corrosion resistant SST yoke assembly suitable for washdown

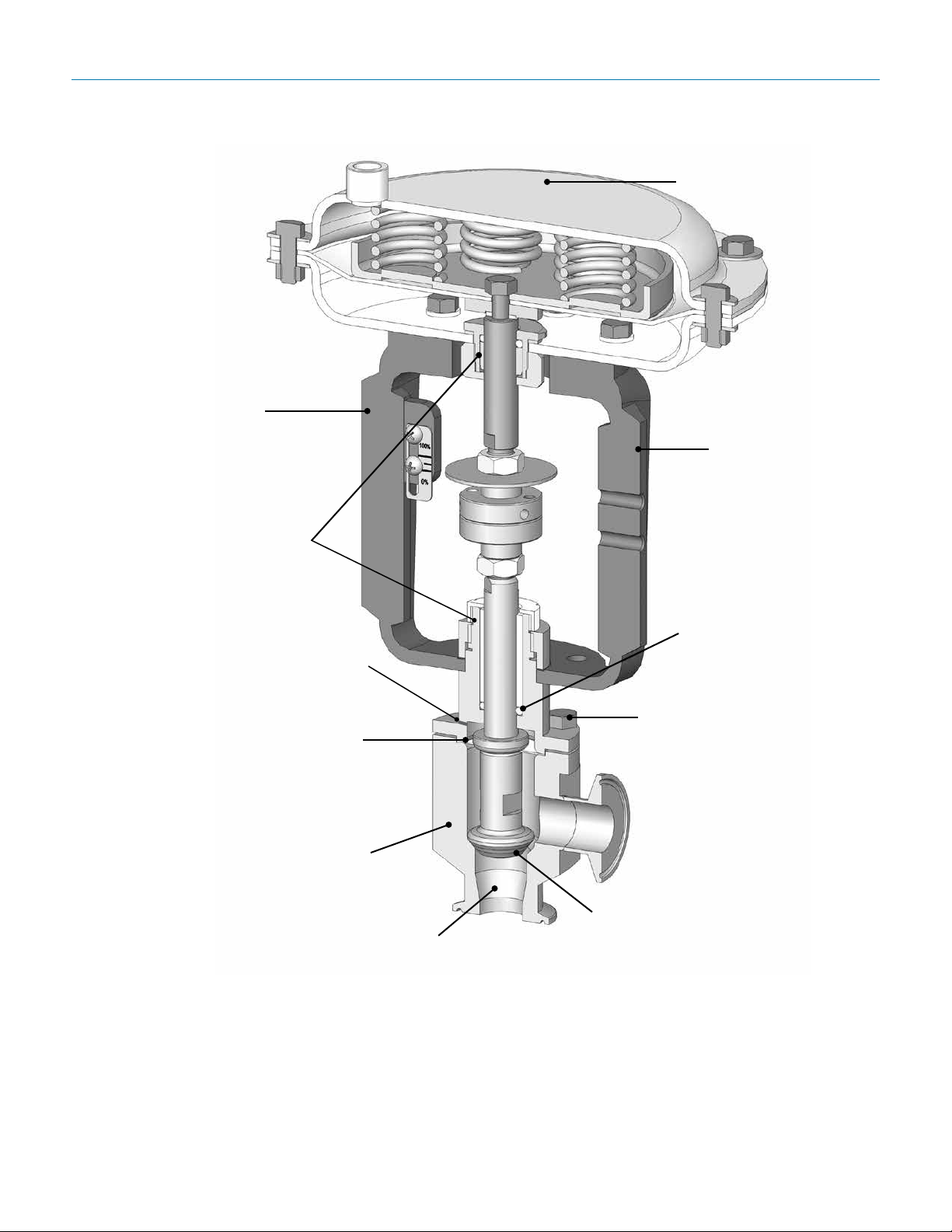

Jorlon Diaphragm seal (1-1/2" – 2")

Corrosion resistant coating with SST fasteners

Namur yoke permits easy mounting of a variety of positioners

Extended PEEK guide bushings ensures smooth, stable move-

ment throughout entire stroke length

Telltale weephole between primary diaphragm and secondary

stem seal per ASME BPE 2009

FDA/USP Class VI Jorlon diaphragm resistant to aggressive chemicals, suitable for continuous steam service;

Lifetime Warranty

Solid 316L barstock construction offers excellent chemical resistance, ensures consistent material integrity and surface nish

Optimal ow inlet geometry for true ow characteristics. Self draining geometry in either vertical or horizontal orientation allows installation exibility

FDA/USP Class VI

secondary stem seal

Bolted bonnet provides enhanced strength and

safety over clamped bonnet

Contoured plug design for true equal percentage or linear ow characteristic

throughout entire stroke length

speciFication

Stainless steel sanitary control valve shall be made from ASTM A479 316L barstock material, which includes body and all wetted metal parts. Control valve with the stem sealed by FDA approved and USP Class VI certied Jorlon diaphragm with lifetime warranty. The valve stem shall be supported by a one piece, SS NAMUR Yoke to provide structural rigidity in any installation orientation. Guiding of valve stem/plug shall be outside of the wetted process areas of valve above diaphragm. Control valve shall have secondary stem seal, and extended guide bushing to provide additional support for multiple installation orientations. Valve shall be self draining

in any orientation.

-4-

Page 5

Mark 978 Sanitary Globe-Style Control ValVeS - Jorlon DiaphraGM Seal

Optimized spring conguration for maximum pressure drop in compact size

Extended PEEK guide

bushings ensures smooth, stable movement throughout entire stroke length

Jorlon Diaphragm seal (3")

Corrosion resistant coating with SST fasteners

SST Namur yoke permits easy mounting of a variety of positioners

FDA/USP Class VI secondary stem seal

Telltale weephole between primary

diaphragm and secondary stem seal

per ASME BPE 2009

FDA/USP Class VI Jorlon diaphragm

Unique body design is compact and ultra-lightweight simplifying installation

Optimized ow geometry to

accommodate high hydraulic

forces of large ows

resistant to aggressive chemicals, suitable for continuous steam service;

Lifetime Warranty

100% 316L construction for body and trim which ensures process

compatibility

Hard seats for ANSI Class III shut-off Soft seats to ANSI Class VI

Contoured plug design for true equal percentage or linear ow characteristic

throughout entire stroke length

speciFication

Stainless steel sanitary control valve shall be made from ASTM SA479 316L material, which includes body and all wetted metal parts. Control valve with the stem sealed by FDA approved and USP Class VI certied Jorlon diaphragm with lifetime warranty. The valve stem shall be supported by a one piece, SS NAMUR Yoke to provide structural rigidity in any installation orientation. Guiding of valve stem/plug shall be outside of the wetted process areas of valve above diaphragm. Control valve shall have secondary stem seal, and extended guide bushing to provide additional support for multiple installation orientations. Valve shall be self draining when installed with inlet vertical and below valve assembly.

-5-

Page 6

Mark 978 Sanitary Globe-Style Control ValVeS - Jorlon DiaphraGM Seal

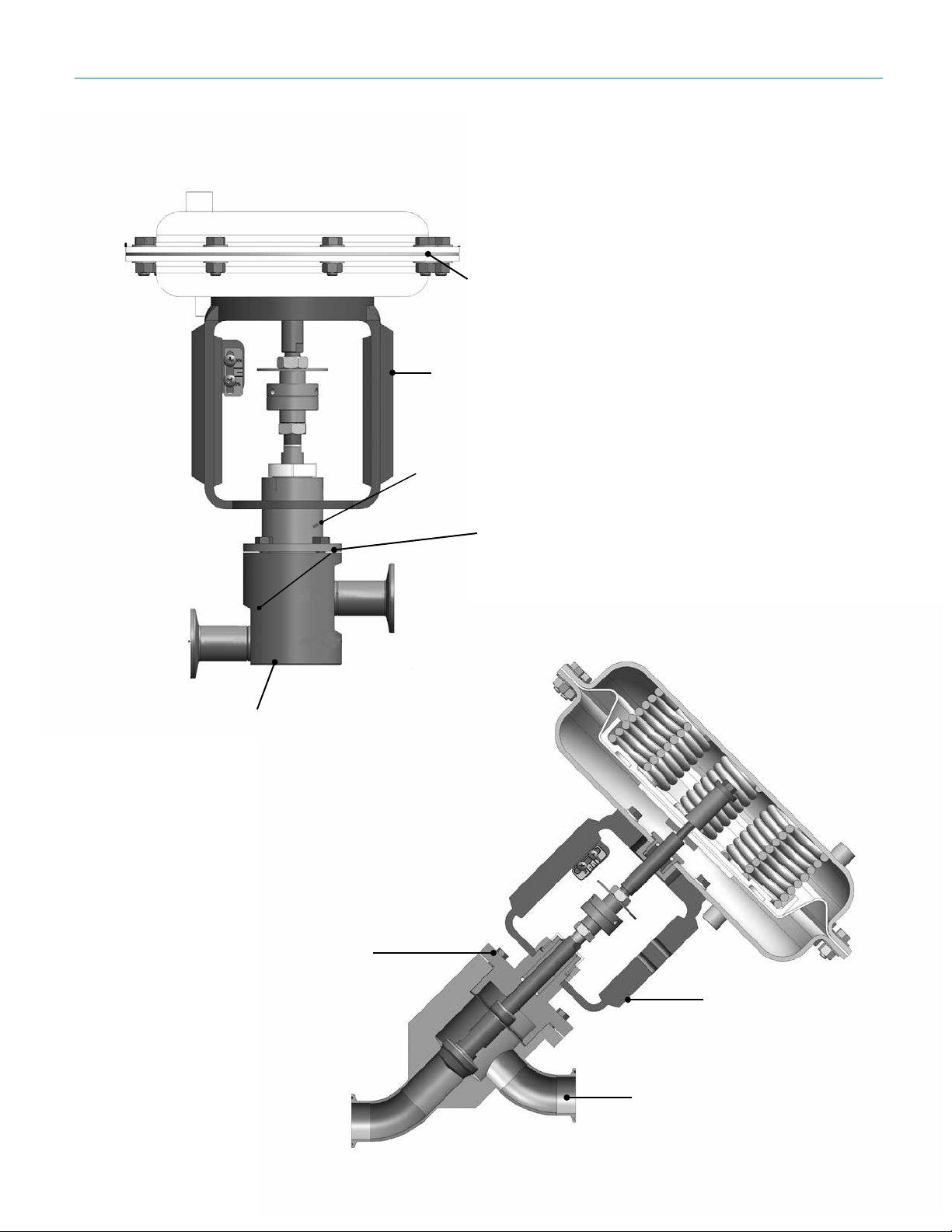

mark 978e inline (1")

New INLINE design allows process design exibility. Process

designers are no longer constrained

by angle valve process tubing. Fully drainable, no hold up when installed as shown

Corrosion resistant coating with SST fasteners

Namur yoke permits easy mounting of positioners

Telltale weephole between primary diaphragm and secondary stem seal per ASME BPE 2009

100% 316L construction for body and trim which ensures

process compatibility

Bolted bonnet provides

enhanced strength and safety

over clamped bonnet

Unique body design is compact and ultra-lightweight simplifying installation

mark 978 inline (1-1/2" - 2")

Namur yoke permits easy mounting of a variety of positioners

FDA/USP Class VI Jorlon diaphragm

– resistant to aggressive process

utilities, suitable for continuous steam service, Lifetime Warranty

100% 316L construction for body and trim which ensures

process compatibility

-6-

Page 7

Mark 978 Sanitary Globe-Style Control ValVeS - Jorlon DiaphraGM Seal

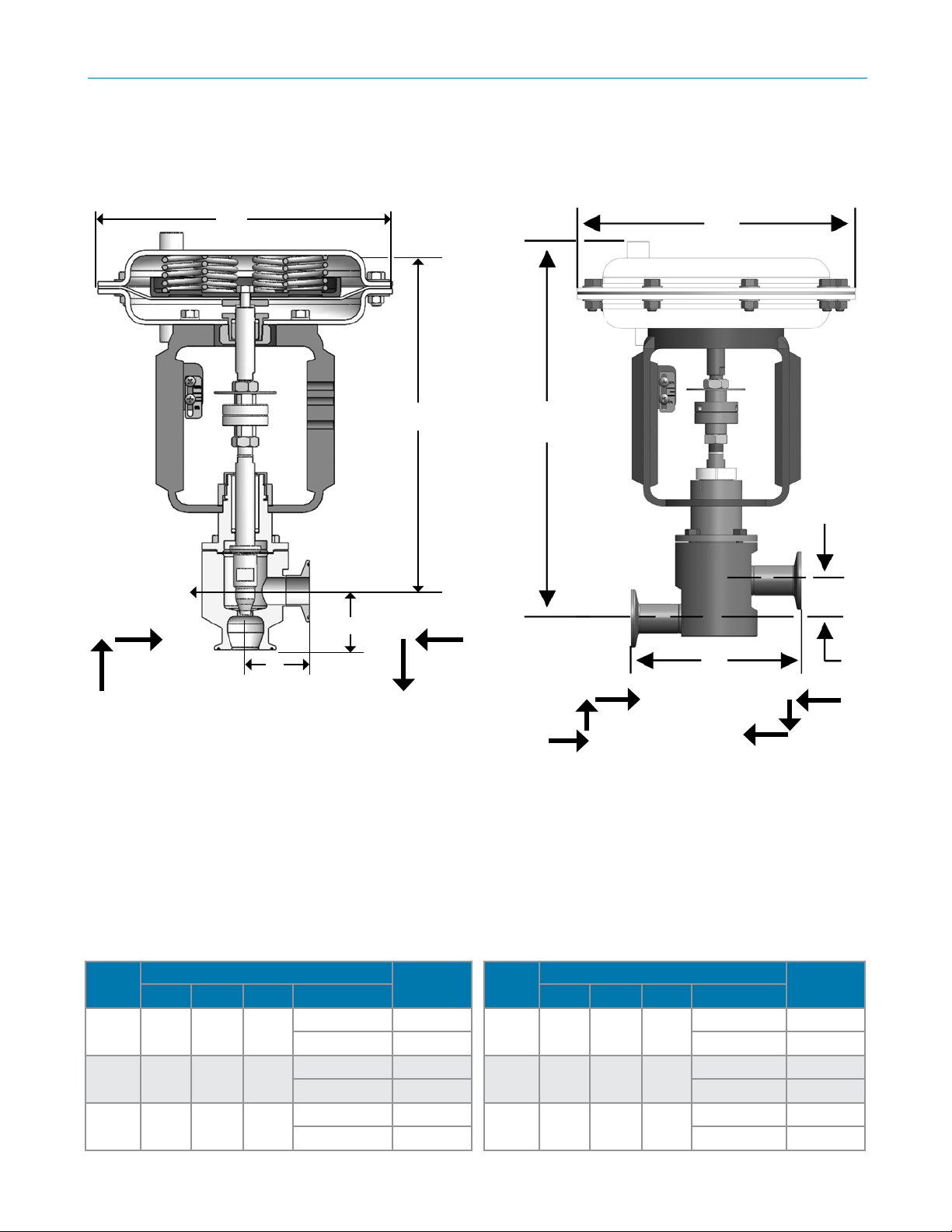

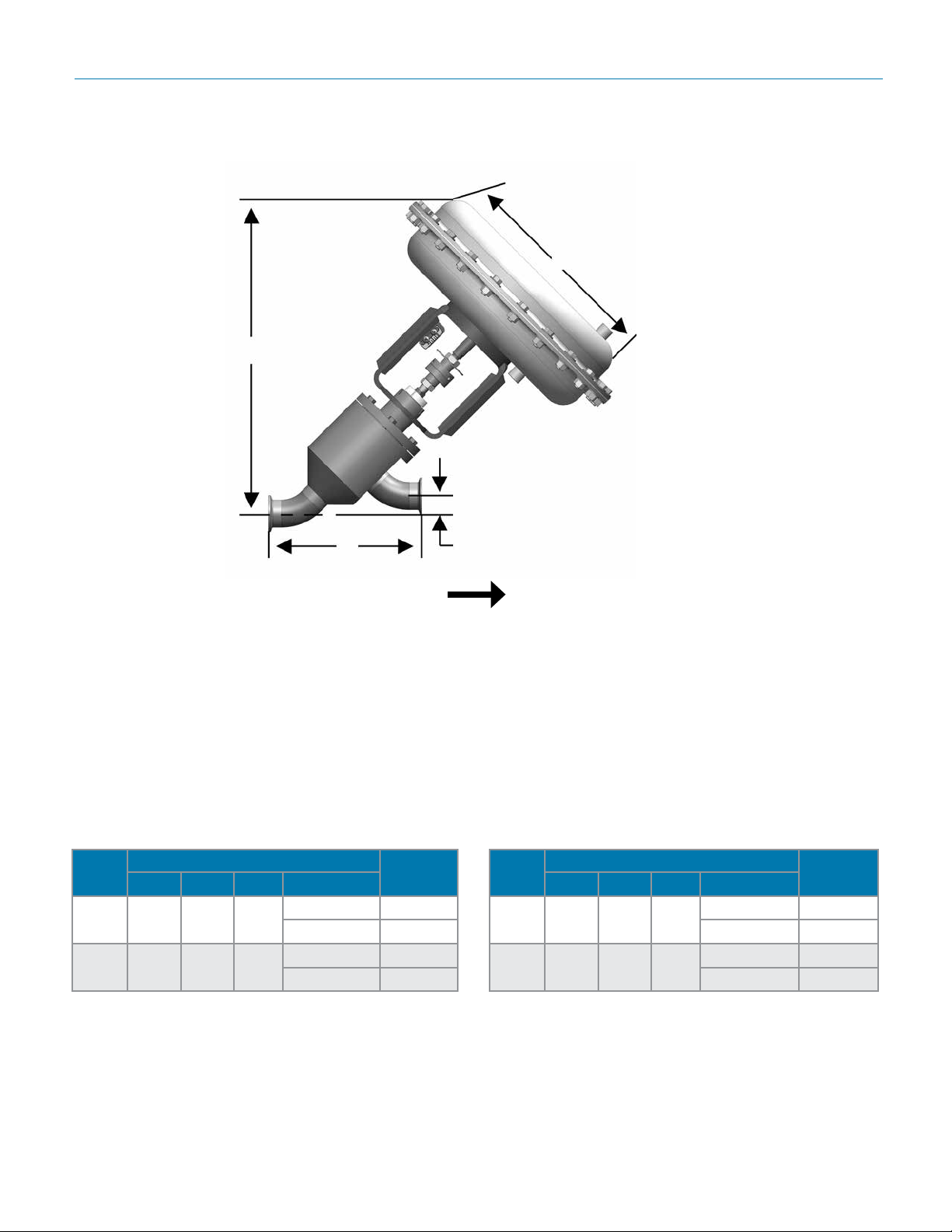

Dimensions

12.87

(326,9)

9.50

(241,3)

5.80

(147,3)

1.30

(33,0)

1/2" – 1" angle style

Installation and Drainability (for both valves):

• Valve is bi-directional, ow can enter either connection

• When valve is open, there is no hold up volume

• * For gravity drainage from inlet to outlet, install as shown above.

Dimensions 1/2" - 1" angle style

inches metric

Valve

Size

1/2" 2.08 11.94 1.91

3/4" 2.08 11.94 1.91

1" 2.08 11.94 1.91

A B C D

Dimensions

Weight

Lbs

9.50 (35M) 27 (35M)

12.50 (55M) 42 (55M)

9.50 (35M) 27 (35M)

12.50 (55M) 42 (55M)

9.50 (35M) 27 (35M)

12.50 (55M) 42 (55M)

Valve

Size

DN15 53 303 49

DN20 53 303 49

DN25 53 303 49

-7-

A B C D

1" valve size

Dimensions

Weight

Kgs

241 (35M) 12 (35M)

318 (55M) 19 (55M)

241 (35M) 12 (35M)

318 (55M) 19 (55M)

241 (35M) 12 (35M)

318 (55M) 19 (55M)

Page 8

Mark 978 Sanitary Globe-Style Control ValVeS - Jorlon DiaphraGM Seal

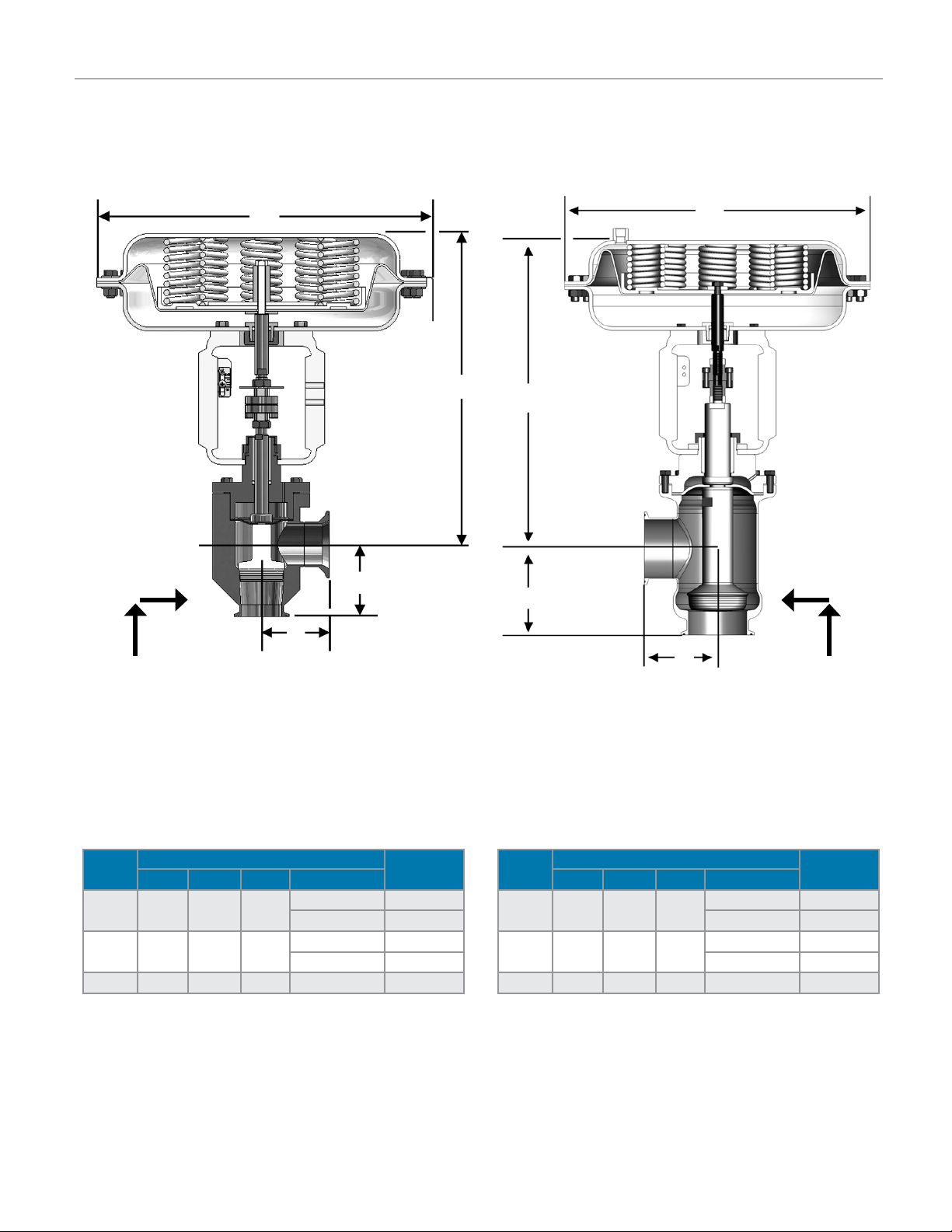

Dimensions

Flow

Inlet

Outlet

Inlet

Flow

1-1/2" – 2" valve sizes 3" valve size

Installation Orientation and Drainability:

• Valve has not hold-up when installed as shown above, but must be drained below inlet.

• 1-1/2" - 2" valves will gravity drain from inlet to outlet, when installed with inlet horizontal (outlet facing down)

inches metric

Valve

Size

1-1/2" 3.08 15.00 3.30

2" 3.08 15.00 3.30

3" 3.59 15.1 4.2 15.00 (85M) 59 (85M)

A B C D

Dimensions

Weight

Lbs

12.50 (55M) 47 (55M)

15.00 (85M) 57 (85M)

12.50 (55M) 47 (55M)

15.00 (85M) 57 (85M)

Valve

Size

DN40 78 381 84

DN50 78 381 84

DN80 91 384 107 381 (85M) 27 (85M)

Based on US tri-clamp ends. Consult factory for DIN and ISO tri-clamp end dimensions

A B C D

Dimensions

Weight

Kgs

318 (55M) 21 (55M) 381 (85M) 26 (85M) 318 (55M) 21 (55M) 381 (85M) 26 (85M)

-8-

Page 9

Mark 978 Sanitary Globe-Style Control ValVeS - Jorlon DiaphraGM Seal

inline Dimensions

Flow

1-1/2" & 2" valve size

Installation Orientation and Drainability:

• Valve has not hold-up when installed as shown above, but must be drained below inlet.

inches metric

Valve

Size

A B C D

Dimensions

1-1/2" 8.31 17.00 0.96

2" 10.23 17.25 0.96

Weight

Lbs

12.50 (55M) 49 (55M)

15.00 (85M) 59 (85M)

12.50 (55M) 49 (55M)

15.00 (85M 59 (85M)

Valve

Size

A B C D

DN40 211 432 24,4

DN50 260 438 24,4

Dimensions

Weight

Kgs

318 (55M) 22 (55M)

381 (85M) 27 (85M)

318 (55M) 22 (55M)

381 (85M) 27 (85M)

Based on US tri-clamp ends. Consult factory for DIN and ISO tri-clamp end dimensions

-9-

Page 10

Mark 978 Sanitary Globe-Style Control ValVeS - Jorlon DiaphraGM Seal

orDering schematic - mark 978e (1/2", 3/4", 1")

Model No Size Stem Seal / Seat 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15

Model

978E Standard

978ESP Side Mounted Positioner (SMP) 978ETP Top Mounted Positioner (TMP)

978EN In Line Body* 978ENSP InLine with SMP* 978ENTP InLine with TMP*

* Available for all Cv's in 1" only. Contact factory for others.

Size

Ø5Ø 1/2" Ø75 3/4"

1ØØ 1"

Stem Seal / Seat

JD Jorlon Diaphragm / Hard Seat

JDP

JDT

1,2.3,4,5,6 1/2" Tri-C Body, Cv, Char. Finish

AALN1A 1/2" LIN Cv 0.2 20Ra int./63 RMS. ext. A1LN1A 1/2" LIN Cv 0.2 20Ra int./20Ra ext.

A2LN1Ø 1/2" LIN Cv 0.2 8Ra int. /20Ra ext. A3LN1Ø 1/2" LIN Cv 0.2 8Ra int./8Ra ext. A4LN1Ø 1/2" LIN Cv 0.2 8Ra int./63RMS ext.

AAEPA1 1/2" EQP Cv 0.2 20Ra int./63 RMS ext. A1EPA1 1/2" EQP Cv 0.2 20Ra int./20Ra ext.

A2EP11 1/2" EQP Cv 0.2 8Ra int./20Ra ext. A3EP11 1/2" EQP Cv 0.2 8Ra int./8Ra ext. A4EP11 1/2" EQP Cv 0.2 8Ra int./63 RMS ext.

AALN2A 1/2" LIN Cv 0.5 20Ra int./63RMS ext. A1LN2A 1/2" LIN Cv 0.5 20Ra int./20Ra ext.

A2LN21 1/2" LIN Cv 0.5 8Ra int./20Ra ext. A3LN21 1/2" LIN Cv 0.5 8Ra int./8Ra ext. A4LN21 1/2" LIN Cv 0.5 8Ra int./63 RMS ext.

AAEPA2 1/2" EQP Cv 0.5 20Ra int./63 RMS ext. A1EPA2 1/2" EQP Cv 0.5 20Ra int./20Ra ext.

A2EP12 1/2" EQP Cv 0.5 8Ra int./20Ra ext. A3EP12 1/2" EQP Cv 0.5 8Ra int./8Ra ext. A4EP12 1/2" EQP Cv 0.5 8Ra int./63 RMS ext.

Jorlon / PEEK (FDA/USP Class VI)

(Cv ≥ 3.5 only)

Jorlon / Teon FDA/USP Class VI

(Cv ≥ 3.5 only)

Continued in next column

1,2.3,4,5,6 1/2" Tri-C Body, Cv, Char. Finish

AALN3A 1/2" LIN Cv 1.0 20Ra int./63 RMS ext.

A1LN3A 1/2" LIN Cv 1.0 20Ra int./20Ra ext. A2LN31 1/2" LIN Cv 1.0 8Ra int./20Ra ext. A3LN31 1/2" LIN Cv 1.0 8Ra int./8Ra ext. A4LN31 1/2" LIN Cv 1.0 8Ra int./63 RMS ext.

AAEPA3 1/2" EQP Cv 1.0 20Ra int./63 RMS ext. A1EPA3 1/2" EQP Cv 1.0 20Ra int./20Ra ext.

A2EP13 1/2" EQP Cv 1.0 8Ra int./20Ra ext. A3EP13 1/2" EQP Cv 1.0 8Ra int./8Ra ext. A4EP13 1/2" EQP Cv 1.0 8Ra int./63 RMS ext.

1,2.3,4,5,6 3/4" Tri-C Body, Cv, Char. Finish

BALN1A 3/4" LIN Cv 1.0 20Ra int./63 RMS ext.

B1LN1A 3/4" LIN Cv 1.0 20Ra int./20Ra ext. B2LN1Ø 3/4" LIN Cv 1.0 8Ra int./20Ra ext. B3LN1Ø 3/4" LIN Cv 1.0 8Ra int./8Ra ext. B4LN1Ø 3/4" LIN Cv 1.0 8Ra int./63 RMS ext.

BAEPA1 3/4" EQP Cv 1.0 20Ra int./63 RMS ext. B1EPA1 3/4" EQP Cv 1.0 20Ra int./20Ra ext.

B2EP11 3/4" EQP Cv 1.0 8Ra int./20Ra ext. B3EP11 3/4" EQP Cv 1.0 8Ra int./8Ra ext. B4EP11 3/4" EQP Cv 1.0 8Ra int./63 RMS ext.

BALN2A 3/4" LIN Cv 2.0 20Ra int./63 RMS ext.

B1LN2A 3/4" LIN Cv 2.0 20Ra int./20Ra ext. B2LN21 3/4" LIN Cv 2.0 8Ra int./20Ra ext. B3LN21 3/4" LIN Cv 2.0 8Ra int./8Ra ext. B4LN21 3/4" LIN Cv 2.0 8Ra int./63 RMS ext.

B2LNBC 3/4" LIN Cv 2.0 8Ra int/20Ra ext. - TBL

BAEPA2 3/4" EQP Cv 2.0 20Ra int./63 RMS ext. B1EPA2 3/4" EQP Cv 2.0 20Ra int./20Ra ext.

B2EP12 3/4" EQP Cv 2.0 8Ra int./20Ra ext. B3EP12 3/4" EQP Cv 2.0 8Ra int./8Ra ext. B4EP12 3/4" EQP Cv 2.0 8Ra int./63 RMS ext.

CALN3A 3/4" LIN Cv 3.5 20Ra int./63 RMS ext. C1LN3A 3/4" LIN Cv 3.5 20Ra int./20Ra ext.

C2LN31 3/4" LIN Cv 3.5 8Ra int./20Ra ext. C3LN31 3/4" LIN Cv 3.5 8Ra int./8Ra ext. C4LN31 3/4" LIN Cv 3.5 8Ra int./63 RMS ext.

CAEPA3 3/4" EQP Cv 3.5 20Ra int./63 RMS ext.

C1EPA3 3/4" EQP Cv 3.5 20Ra int./20Ra ext.

C2EP13 3/4" EQP Cv 3.5 8Ra int./20Ra ext. C3EP13 3/4" EQP Cv 3.5 8Ra int./8Ra ext. C4EP13 3/4" EQP Cv 3.5 8Ra int./63 RMS ext.

-10-

Continued on next page

Page 11

Mark 978 Sanitary Globe-Style Control ValVeS - Jorlon DiaphraGM Seal

orDering schematic - mark 978e (1/2", 3/4", 1") continueD

1,2.3,4,5,6 3/4" Tri-C Body, Cv, Char. Finish

CALN4A 3/4" LIN Cv 5.0 20Ra int./63 RMS ext. C1LN4A 3/4" LIN Cv 5.0 20Ra int./20Ra ext.

C2LN41 3/4" LIN Cv 5.0 8Ra int./20Ra ext. C3LN41 3/4" LIN Cv 5.0 8Ra int./8Ra ext. C4LN41 3/4" LIN Cv 5.0 8Ra int./63 RMS ext.

C2LNBD 3/4" LIN Cv 5.0 8Ra int./20Ra ext. - TBL

CAEPA4 3/4" EQP Cv 5.0 20Ra int./63 RMS ext. C1EPA4 3/4" EQP Cv 5.0 20Ra int./20Ra ext.

C2EP14 3/4" EQP Cv 5.0 8Ra int./20Ra ext. C3EP14 3/4" EQP Cv 5.0 8Ra int./8Ra ext. C4EP14 3/4" EQP Cv 5.0 8Ra int./63 RMS ext.

1,2.3,4,5,6 1" Tri-C Body, Cv, Char. Finish

DALN1A 1" LIN Cv 3.5 20Ra int./63 RMS ext. D1LN1A 1" LIN Cv 3.5 20Ra int./20Ra ext.

D2LN1Ø 1" LIN Cv 3.5 8Ra int./20Ra ext. D3LN1Ø 1" LIN Cv 3.5 8Ra int./8Ra ext. D4LN1Ø 1" LIN Cv 3.5 8Ra int./63 RMS ext.

DAEPA1 1" EQP Cv 3.5 20Ra int./63 RMS ext. D1EPA1 1" EQP Cv 3.5 20Ra int./20Ra ext.

D2EP11 1" EQP Cv 3.5 8Ra int./20Ra ext. D3EP11 1" EQP Cv 3.5 8Ra int./8Ra ext. D4EP11 1" EQP Cv 3.5 8Ra int./63 RMS ext.

DALN2A 1" LIN Cv 5.0 20Ra int./63 RMS ext. D1LN2A 1" LIN Cv 5.0 20Ra int./20Ra ext.

D2LN21 1" LIN Cv 5.0 8Ra int./20Ra ext. D3LN21 1" LIN Cv 5.0 8Ra int./8Ra ext. D4LN21 1" LIN Cv 5.0 8Ra int./63 RMS ext.

1,2.3,4,5,6 1" Tri-C Body, Cv, Char. Finish

EALN4A 1" LIN Cv 15 20Ra int./63 RMS ext.

E1LN4A 1" LIN Cv 15 20Ra int./20Ra ext. E2LN41 1" LIN Cv 15 8Ra int./20Ra ext. E3LN41 1" LIN Cv 15 8Ra int./8Ra ext. E4LN41 1" LIN Cv 15 8Ra int./63 RMS ext.

E2LNBD 1" LIN Cv 15 8Ra int./20Ra ext. - TBL

7 & 8 Stem Seal

JH Jorlon / FDA / USP Class VI ZZ Non-Standard

9 & 10 Actuator / Range

978 / 978TP/978N 3D 35M 3-15 DIR 3R 35M 3-15 REV 4D 35M 6-30 DIR 4R 35M 6-30 REV 5D 55M 3-15 DIR 5R 55M 3-15 REV 6D 55M 6-30 DIR 6R 55M 6-30 REV

978SP 3D 35M ALL DIR 3R 35M ALL REV 5D 55M ALL DIR 5R 55M ALL REV

11 & 12 Action

DD Direct

RR Reverse

DAEPA2 1" EQP Cv 5.0 20Ra int./63 RMS ext. D1EPA2 1" EQP Cv 5.0 20Ra int./20Ra ext.

D2EP12 1" EQP Cv 5.0 8Ra int./20Ra ext. D3EP12 1" EQP Cv 5.0 8Ra int./8Ra ext. D4EP12 1" EQP Cv 5.0 8Ra int./63 RMS ext.

EALN3A 1" LIN Cv 7.5 20Ra int./63 RMS ext.

E1LN3A 1" LIN Cv 7.5 20Ra int./20Ra ext. E2LN31 1" LIN Cv 7.5 8Ra int./20Ra ext. E3LN31 1" LIN Cv 7.5 8Ra int./8Ra ext. E4LN31 1" LIN Cv 7.5 8Ra int./63 RMS ext.

EAEPA3 1" EQP Cv 7.5 20Ra int./63 RMS ext. E1EPA3 1" EQP Cv 7.5 20Ra int./20Ra ext.

E2EP13 1" EQP Cv 7.5 8Ra int./20Ra ext. E3EP13 1" EQP Cv 7.5 8Ra int./8Ra ext. E4EP13 1" EQP Cv 7.5 8Ra int./63 RMS ext.

Continued in next column

13 & 14 Accessories

ØØ

1A I/P Trans. 4-20M / 3-15P 2A Air Reg. with gage 3A I/P Trans. 4-20M / 6-30P

15 SMP

A SMP DIR / REV 3-15 B SMP DIR / REV 3-9

C SMP DIR / REV 9-15

D SMP / IP DIR / REV 4-20 E SMP / IP DIR / REV 4-12

F SMP / IP DIR / REV 12-20

G MK16IQ-S DIR / REV 4-20 H MK16IQ - B DIR / REV 4-20

J MK16IQ - FF DIR / REV 4-20

11-

None

Page 12

Mark 978 Sanitary Globe-Style Control ValVeS - Jorlon DiaphraGM Seal

orDering schematic continueD (1-1/2" & 2")

Model No Size Stem Seal Seat 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15

Model

978SP Side Mounted Positioner

978TP Top Mounted Positioner 978NSP InLine with SMP 978NTP InLine with TMP

Size

150 1-1/2" 200 2"

Stem Seal

JD Jorlon Diaphragm

Seat

Leave blank for standard Hard Seat P PEEK (FDA/USP Class VI) T Teon FDA/USP Class VI

1,2.3,4,5,6 1-1/2" Tri-C Body, Cv, Char. Finish

FALN1A 1-1/2" LIN Cv 5 20Ra int./63 RMS. ext.

F1LN1A 1-1/2" LIN Cv 5 20Ra int./20Ra ext. F2LN1Ø 1-1/2" LIN Cv 5 8Ra int. /20Ra ext. F3LN1Ø 1-1/2" LIN Cv 5 8Ra int./8Ra ext. F4LN1Ø 1-1/2" LIN Cv 5 8Ra int./63RMS ext.

FAEPA1 1-1/2" EQP Cv 5 20Ra int./63 RMS ext.

F1EPA1 1-1/2" EQP Cv 5 20Ra int./20Ra ext. F2EP11 1-1/2" EQP Cv 5 8Ra int./20Ra ext. F3EP11 1-1/2" EQP Cv 5 8Ra int./8Ra ext. F4EP11 1-1/2" EQP Cv 5 8Ra int./63 RMS ext.

FALN2A 1-1/2" LIN Cv 10 20Ra int./63 RMS. ext.

F1LN2A 1-1/2" LIN Cv 10 20Ra int./20Ra ext.

F2LN21 1-1/2" LIN Cv 10 8Ra int. /20Ra ext. F3LN21 1-1/2" LIN Cv 10 8Ra int./8Ra ext. F4LN21 1-1/2" LIN Cv 10 8Ra int./63RMS ext.

FAEPA2 1-1/2" EQP Cv 10 20Ra int./63 RMS. ext.

F1EPA2 1-1/2" EQP Cv 10 20Ra int./20Ra ext. F2EP12 1-1/2" EQP Cv 10 8Ra int. /20Ra ext. F3EP12 1-1/2" EQP Cv 10 8Ra int./8Ra ext. F4EP12 1-1/2" EQP Cv 10 8Ra int./63RMS ext.

Continued on next column

1,2.3,4,5,6 1-1/2" Tri-C Body, Cv, Char. Finish

FALN3A 1-1/2" LIN Cv 15 20Ra int./63 RMS. ext.

F1LN3A 1-1/2" LIN Cv 15 20Ra int./20Ra ext.

F2LN31 1-1/2" LIN Cv 15 8Ra int. /20Ra ext. F3LN31 1-1/2" LIN Cv 15 8Ra int./8Ra ext.

F4LN31 1-1/2" LIN Cv 15 8Ra int./63RMS ext.

FAEPA3 1-1/2" EQP Cv 15 20Ra int./63 RMS. ext.

F1EPA3 1-1/2" EQP Cv 15 20Ra int./20Ra ext. F2EP13 1-1/2" EQP Cv 15 8Ra int. /20Ra ext. F3EP13 1-1/2" EQP Cv 15 8Ra int./8Ra ext.

F4EP13 1-1/2" EQP Cv 15 8Ra int./63RMS ext.

GALN4A 1-1/2" LIN Cv 20 20Ra int./63 RMS. ext.

G1LN4A 1-1/2" LIN Cv 20 20Ra int./20Ra ext.

G2LN41 1-1/2" LIN Cv 20 8Ra int. /20Ra ext. G3LN41 1-1/2" LIN Cv 20 8Ra int./8Ra ext. G4LN41 1-1/2" LIN Cv 20 8Ra int./63RMS ext.

GAEPA4 1-1/2" EQP Cv 20 20Ra int./63 RMS ext.

G1EPA4 1-1/2" EQP Cv 20 20Ra int./20Ra ext. G2EP14 1-1/2" EQP Cv 20 8Ra int./20Ra ext. G3EP14 1-1/2" EQP Cv 20 8Ra int./8Ra ext. G4EP14 1-1/2" EQP Cv 20 8Ra int./63 RMS ext.

GALN5A 1-1/2" LIN Cv 30 20Ra int./63 RMS. ext.

G1LN5A 1-1/2" LIN Cv 30 20Ra int./20Ra ext.

G2LN51 1-1/2" LIN Cv 30 8Ra int. /20Ra ext. G3LN51 1-1/2" LIN Cv 30 8Ra int./8Ra ext. G4LN51 1-1/2" LIN Cv 30 8Ra int./63RMS ext.

G2LNBB 1-1/2" LIN Cv 30 8Ra int./20Ra ext. - TBL

1,2.3,4,5,6 2" Tri-C Body, Cv, Char. Finish

HALN1A 2" LIN Cv 10 20Ra int./63 RMS. ext. H1LN1A 2" LIN Cv 10 20Ra int./20Ra ext.

H2LN1Ø 2" LIN Cv 10 8Ra int. /20Ra ext. H3LN1Ø 2" LIN Cv 10 8Ra int./8Ra ext. H4LN1Ø 2" LIN Cv 10 8Ra int./63RMS ext.

HAEPA1 2" EQP Cv 10 20Ra int./63 RMS. ext.

H1EPA1 2" EQP Cv 10 20Ra int./20Ra ext.

H2EP11 2" EQP Cv 10 8Ra int. /20Ra ext. H3EP11 2" EQP Cv 10 8Ra int./8Ra ext. H4EP11 2" EQP Cv 10 8Ra int./63RMS ext.

HALN2A 2" LIN Cv 15 20Ra int./63 RMS. ext. H1LN2A 2" LIN Cv 15 20Ra int./20Ra ext.

H2LN21 2" LIN Cv 15 8Ra int. /20Ra ext. H3LN21 2" LIN Cv 15 8Ra int./8Ra ext. H4LN21 2" LIN Cv 15 8Ra int./63RMS ext.

Continued on next page

-12-

Page 13

Mark 978 Sanitary Globe-Style Control ValVeS - Jorlon DiaphraGM Seal

orDering schematic continueD (1-1/2" & 2")

1,2.3,4,5,6 2" Tri-C Body, Cv, Char. Finish

HAEPA2 2" EQP Cv 15 20Ra int./63 RMS. ext. H1EPA2 2" EQP Cv 15 20Ra int./20Ra ext.

H2EP12 2" EQP Cv 15 8Ra int. /20Ra ext. H3EP12 2" EQP Cv 15 8Ra int./8Ra ext. H4EP12 2" EQP Cv 15 8Ra int./63RMS ext.

HALN3A 2" LIN Cv 20 20Ra int./63 RMS. ext.

H1LN3A 2" LIN Cv 20 20Ra int./20Ra ext. H2LN31 2" LIN Cv 20 8Ra int. /20Ra ext. H3LN31 2" LIN Cv 20 8Ra int./8Ra ext. H4LN31 2" LIN Cv 20 8Ra int./63RMS ext.

HAEPA3 2" EQP Cv 20 20Ra int./63 RMS. ext. H1EPA3 2" EQP Cv 20 20Ra int./20Ra ext.

H2EP13 2" EQP Cv 20 8Ra int. /20Ra ext. H3EP13 2" EQP Cv 20 8Ra int./8Ra ext. H4EP13 2" EQP Cv 20 8Ra int./63RMS ext.

HALN4A 2" LIN Cv 30 20Ra int./63 RMS. ext.

H1LN4A 2" LIN Cv 30 20Ra int./20Ra ext. H2LN41 2" LIN Cv 30 8Ra int. /20Ra ext. H3LN41 2" LIN Cv 30 8Ra int./8Ra ext. H4LN41 2" LIN Cv 30 8Ra int./63RMS ext.

HAEPA4 2" EQP Cv 30 20Ra int./63 RMS. ext. H1EPA4 2" EQP Cv 30 20Ra int./20Ra ext.

H2EP14 2" EQP Cv 30 8Ra int. /20Ra ext. H3EP14 2" EQP Cv 30 8Ra int./8Ra ext. H4EP14 2" EQP Cv 30 8Ra int./63RMS ext.

9 & 10 Actuator / Range

978 / 978TP/978N 5D 55M 3-15 DIR 5R 55M 3-15 REV 6D 55M 6-30 DIR 6R 55M 6-30 REV 8D 85M 3-15 DIR 8R 85M 3-15 REV 9D 85M 6-30 DIR 9R 85M 6-30 REV

978SP 5D 55M ALL DIR 5R 55M ALL REV 8D 85M ALL DIR 8R 85M ALL REV

11 & 12 Action

DD Direct

RR Reverse

13 & 14 Accessories

00 None 1A I/P Trans. 4-20M / 3-15P 2A Air Reg. with gage 3A I/P Trans. 4-20M / 6-30P

IALN5A 2" LIN Cv 40 20Ra int./63 RMS. ext.

I1LN5A 2" LIN Cv 40 20Ra int./20Ra ext. I2LN51 2" LIN Cv 40 8Ra int. /20Ra ext. I3LN51 2" LIN Cv 40 8Ra int./8Ra ext. I4LN51 2" LIN Cv 40 8Ra int./63RMS ext.

IALN6A 2" LIN Cv 60 20Ra int./63 RMS. ext.

I1LN6A 2" LIN Cv 60 20Ra int./20Ra ext. I2LN61 2" LIN Cv 60 8Ra int. /20Ra ext. I3LN61 2" LIN Cv 60 8Ra int./8Ra ext. I4LN61 2" LIN Cv 60 8Ra int./63RMS ext.

7 & 8 Stem Seal

JH Jorlon – FDA / USP Class VI

15 SMP

0 None

A SMP DIR / REV 3-15 B SMP DIR / REV 3-9

C SMP DIR / REV 9-15

D SMP / IP DIR / REV 4-20 E SMP / IP DIR / REV 4-12

F SMP / IP DIR / REV 12-20

G MK16IQ-S DIR / REV 4-20 H MK16IQ - B DIR / REV 4-20

J MK16IQ - FF DIR / REV 4-20

-13-

Page 14

Mark 978 Sanitary Globe-Style Control ValVeS - Jorlon DiaphraGM Seal

978/0714

orDering schematic (3")

Model No Size Stem Seal Seat 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15

Model

978SP Side Mounted Positioner

Size

300 3"

Stem Seal

JD Jorlon Diaphragm

Seat

Leave blank for standard Hard Seat P PEEK (FDA/USP Class VI) T Teon FDA/USP Class VI

1,2.3,4,5,6 3" Tri-C Body, Cv, Char. Finish

JALN1A 3" LIN Cv 75 20Ra int./63 RMS. ext.

J4LN10 3" LIN Cv 75 8Ra int./63RMS ext.

JAEPA1 3" EQP Cv 60 20Ra int. /63RMS ext.

J4EP11 3" EQP Cv 60 8Ra int./63RMS ext.

JALN2A 3" LIN Cv 100 20Ra 63RMS ext.

J4LN21 3" LIN Cv 100 8Ra int./63RMS ext.

JAEPA2 3" EQP Cv 80 20Ra int./63RMS ext.

J4EP12 3" EQP Cv 80 8Ra int./63RMS ext.

JALN3A 3" LIN Cv 125 20Ra int./63RMS ext.

J4LN31 3" LIN Cv 125 8Ra int./63 RMS ext.

JAEPA3 3" EQP Cv100 20 Ra int./63RMS ext.

J4EP13 3" EQP Cv100 8Ra int/63RMS ext.

7 & 8 Stem Seal

JH Jorlon - FDA/USP Class VI

9 & 10 Actuator/Range

8D 85M Direct 8R 85M Reverse

11 & 12 Action

DD Direct

RR Reverse

13 & 14 Accessories

00 None 1A I/P Trans. 4-20M / 3-15P 2A Air Reg. with gage 3A I/P Trans. 4-20M / 6-30P

15 SMP

0 None

A SMP DIR / REV 3-15 B SMP DIR / REV 3-9

C SMP DIR / REV 9-15

D SMP / IP DIR / REV 4-20 E SMP / IP DIR / REV 4-12

F SMP / IP DIR / REV 12-20

G MK16IQ-S DIR / REV 4-20 (HART H MK16IQ - B DIR / REV 4-20 (not HART

MK16IQ - FF DIR / REV 4-20

(Foundation Fieldbus

)

Documentation

A Certicate of Compliance to material (with heat number and MTR's for body and ferule), surface nish and FDA USP Class VI is provided for each line item on all Steriow orders at no charge. The following additional documentation is available from our factory upon request at time of ordering:

• Traceable Material Certicates for all wetted parts

• Final Test Reports

• Certicate of Compliance/Certicate of Origin

Steriﬂow, a division of Jordan Valve

3170 Wasson Road • Cincinnati, OH 45209

513.533.5600 • 800.543.7311 • 513.871.0105 (f) steriﬂ[email protected] • www.steriﬂowvalve.com

Steriﬂow Valve reserves the right to make revisions to its product, speciﬁcations, literature and related information without notice. Please visit our website at www.steriﬂowvalve.com for the latest information on our products.
