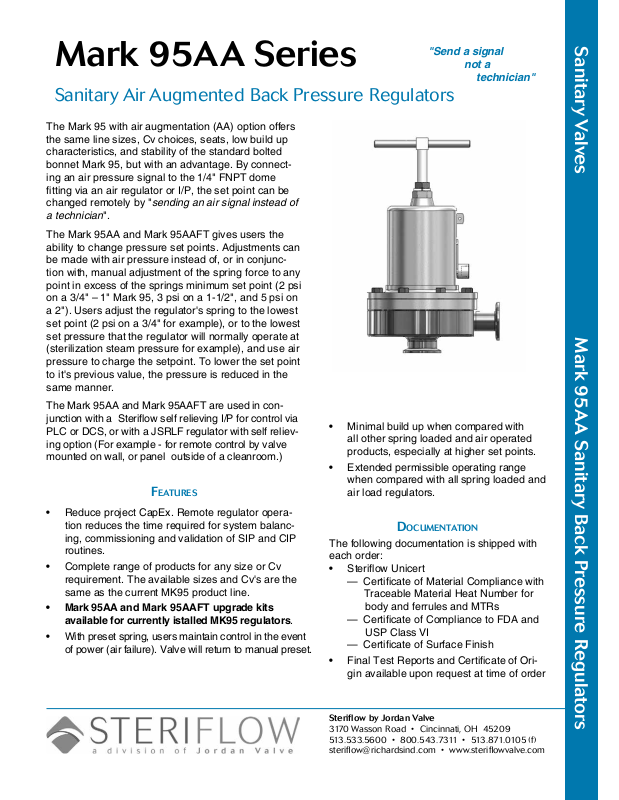

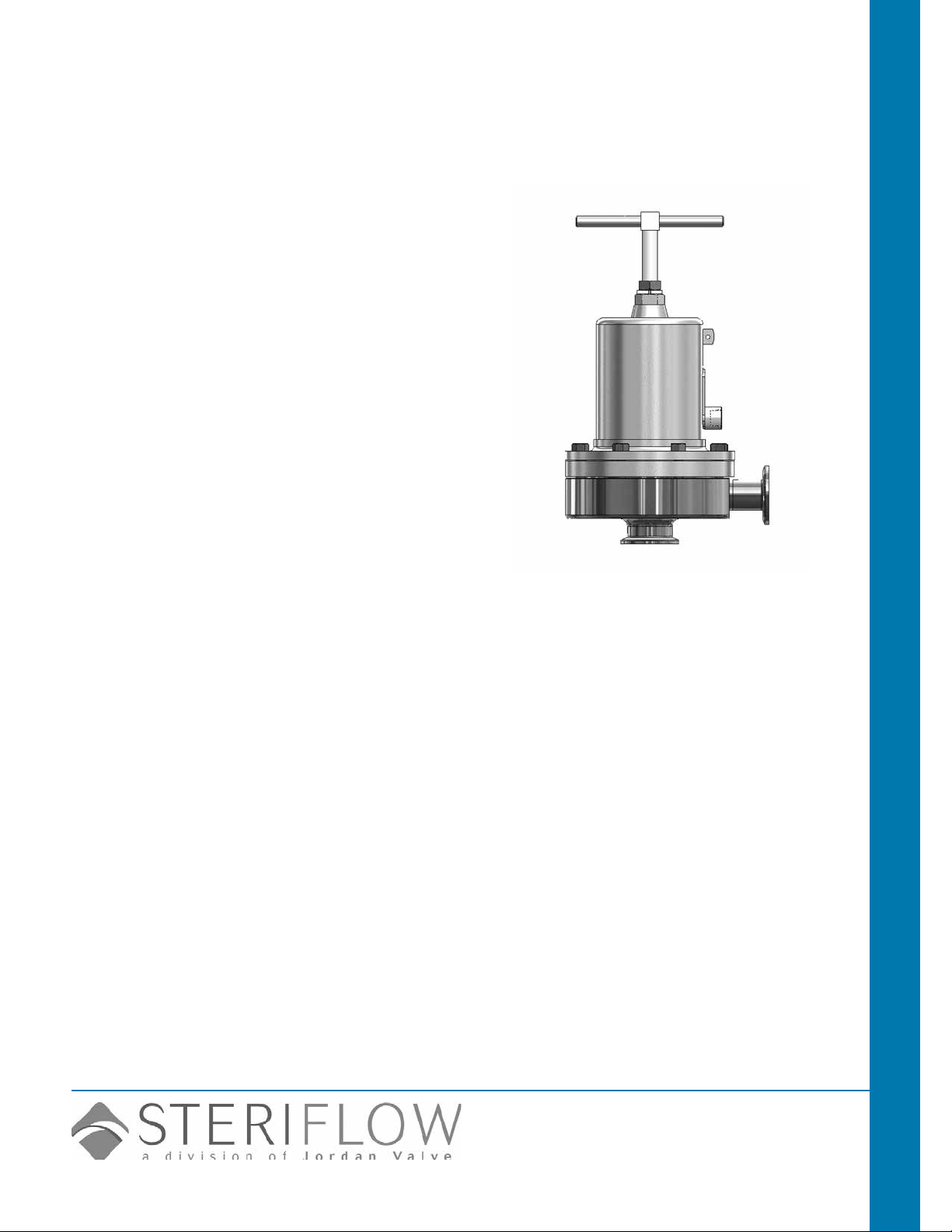

Sanitary Air Augmented Back Pressure Regulators
The Mark 95 with air augmentation (AA) option offers
the same line sizes, Cv choices, seats, low build up
characteristics, and stability of the standard bolted
bonnet Mark 95, but with an advantage. By connecting an air pressure signal to the 1/4" FNPT dome
tting via an air regulator or I/P, the set point can be
changed remotely by "sending an air signal instead of
a technician".
The Mark 95AA and Mark 95AAFT gives users the
ability to change pressure set points. Adjustments can
be made with air pressure instead of, or in conjunction with, manual adjustment of the spring force to any
point in excess of the springs minimum set point (2 psi
on a 3/4" – 1" Mark 95, 3 psi on a 1-1/2", and 5 psi on
a 2"). Users adjust the regulator's spring to the lowest
set point (2 psi on a 3/4" for example), or to the lowest
set pressure that the regulator will normally operate at
(sterilization steam pressure for example), and use air
pressure to charge the setpoint. To lower the set point
to it's previous value, the pressure is reduced in the
same manner.
Sanitary Valves Mark 95AA Sanitary Back Pressure Regulators
The Mark 95AA and Mark 95AAFT are used in con-
junction with a Steriow self relieving I/P for control via
PLC or DCS, or with a JSRLF regulator with self relieving option (For example - for remote control by valve
mounted on wall, or panel outside of a cleanroom.)
Features
• Reduce project CapEx. Remote regulator operation reduces the time required for system balanc-
ing, commissioning and validation of SIP and CIP
routines.
• Complete range of products for any size or Cv
requirement. The available sizes and Cv's are the
same as the current MK95 product line.
• Mark 95AA and Mark 95AAFT upgrade kits
available for currently istalled MK95 regulators.
• With preset spring, users maintain control in the event
of power (air failure). Valve will return to manual preset.
• Minimal build up when compared with
all other spring loaded and air operated
products, especially at higher set points.
• Extended permissible operating range
when compared with all spring loaded and
air load regulators.
Documentation
The following documentation is shipped with
each order:
• Steriow Unicert
— Certicate of Material Compliance with
Traceable Material Heat Number for
body and ferrules and MTRs
— Certicate of Compliance to FDA and
USP Class VI
— Certicate of Surface Finish
• Final Test Reports and Certicate of Origin available upon request at time of order
Steriflow by Jordan Valve
3170 Wasson Road • Cincinnati, OH 45209
513.533.5600 • 800.543.7311 • 513.871.0105 (f)
sterifl[email protected] • www.steriflowvalve.com
Page 2
Mark 95aa SerieS Sanitary air augMented Back PreSSure regulatorS
Sizes: 1/2" (DN15), 3/4" (DN20), 1" (DN25), 1-1/2"
(DN40), 2" (DN50), 3" (DN80)
End Connections
• Quick disconnect ttings (to match Tri-Clamp®
tting)
• DIN/ISO sanitary connections
Body & Trim Materials: 316L Stainless Steel (ASTM
A47, S31603)
Seat Materials
• Optional soft seat (for Cv 1.5, 1" size and above)
– Jorlon (FDA & USP Class VI) for steam and hot
uid service to 338°F (170°C)
– PEEK (FDA & USP Class VI) for steam and hot
uid service to 350° (177°C)
–
PTFE to +252°F (122°C) continuous or 275°F
(135°C) intermittent [not to exceed 15 min. in a one
hour period] FDA, USP Class VI
Note: consult factory for 1/2" & 3/4" soft seat materials
Spring Housing Materials
• CF8M cast SST (1/2" – 1-1/2")
• Fabricated 316L SST (2" – 3")
Diaphragm Materials
• EPDM/Nylon (to 275°F, 135°C) – FDA only
• Jorlon (to 400°F, 204°C) – FDA, USP Class VI
• Ulta-thin Jorlon (to 400°F, 204°C), FDA, USP
Class VI (for use with 3-8 range spring only)
O-Ring Materials
• EPDM (to 275°F, 135°C) - FDA, USP Class VI
• Buna-N (to 225°F, 107°C) - FDA
• Viton (to 400°F, 204°C) - FDA, USP Class VI
• Silicone (to 400°F, 204°C) - FDA, USP Class VI
• Teon-Encapsulated Viton (to 400°F, 204°C) -
FDA, USP Class VI
• Teon-Encapsulated Silicone (to 400°F, 204°C) FDA, USP Class VI (1-1/2" - 3")
Shutoff: Class VI soft seat; Class III hard seat
Body Pressure Temperature Rating: (dependent
upon construction)
Set Point Spring Ranges
Valve Size Set Point Ranges, PSI (bar)
1/2", 3/4" & 1"
1-1/2"
2"
3" 15-25 (1,0-1,7) or 15-60 (1,0-4,1)
* Range available with elastomer or Ultra-thin Jorlon
diaphragm only. Maximum pressure drop 40 psi
3-8* (0,2-0,5), 5-30 (0,3-2,1),
15-50 (1,0-3,4), or 35-90 (2,4-6,2)
3-25* (0,2-1,7), 10-25 (0,7-1,7),
15-40 (1,0-2,8) or 35-85 (2,4-5,9)
5-25* (0,3-1,7), 10-25 (0,7-1,7)
or 15-60 (1,0-4,1)
.
Cv (Kv) Ratings:
Valve Size
1/2", 3/4"** 0.5 (04,), 1.5 (1,3)
1"** 1.5 (1,3), 3.0 (2,6) or 5.5 (4,7)
1-1/2" 4.5 (3,9) or 10.0 (8,6)
2"
3"
Elastomer & Jorlon Diaphragms
Cvs (Kvs)
10.0 (8,6) or
19.0 (16,3)
10.0 (8,6) or
28.0 (24,1)
** Cv's limited when using the 3-8 range spring
Maximum Allowable Pressure Differential: 200 psi
(3-8 spring range has a max of 40 psi)
Maximum Allowable Pressure Setpoint: The total
of the spring setpoint and additional air pressure cannot exceed:
• 3/4" – 1": 135 psi (9,3 bar)
• 1-1/2": 100 psi (6,9 bar)
• 2" – 3": 80 psi (5,5 bar)
Minimum Allowable Differential Pressure: No
restrictions
Minimum Allowable Setpoint: Equivalent to the
minimum spring rate set point:
• 3/4" – 1": 2 psi (0,14 bar)
• 1-1/2": 3 psi (0,21 bar)
• 2": 5 psi (0,34 bar)
Surface Finish: Refer to MK95 data sheet
Valve Size PSIG @ 100°F PSIG @ 450°F
1/2", 3/4" & 1" 350 (24,1 bar) 250 (17,2 bar)
1-1/2" , 2" & 3" 200 (13,8 bar) 200 (13,8 bar)
Pressure on 1/2", 3/4" & 1" size limited to 225 psig (15,5 bar)
@ 100°F and 200 psig (13,8 bar) @ 400°F if using Ultra-thin
Jorlon diaphragm.
-2-
Page 3
Mark 95aa SerieS Sanitary air augMented Back PreSSure regulatorS

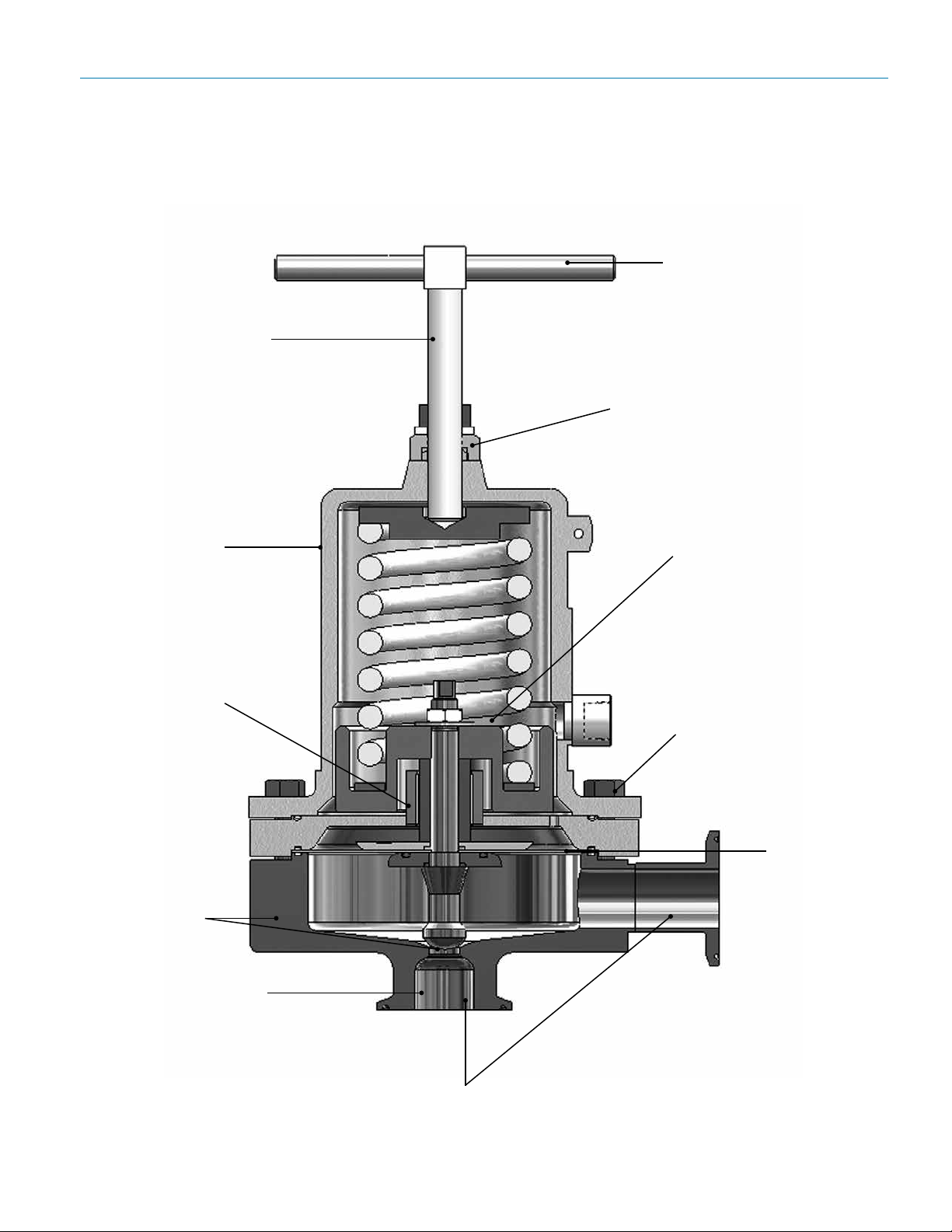

316 adjusting screw
Features & BeneFits
316 T-handle for easy
handling and minimum
setpoint adjustment
Teon Seal Nut
316 Stainless Steel
spring housing
Guiding above
diaphragm area,
not in seat/orice,
to eliminate metalto-metal particulate
generation
100% barstock
body and trim
No guiding in the
wetted area
With an airload the
balanced spring and
bushing assembly provides
excellent stability and
minimal droop
Bolted bonnet for increased
safety and pressure/
temperature rating
Lifetime
guarantee on
Jorlon
diaphragm
Self-draining design (this orientation) with 20
Ra (µ in, 5 Ra µm), ASME BPE SF1 (SF1)
mechanical and electropolished internals as
standard
-3-
Page 4
Mark 95aa SerieS Sanitary air augMented Back PreSSure regulatorS

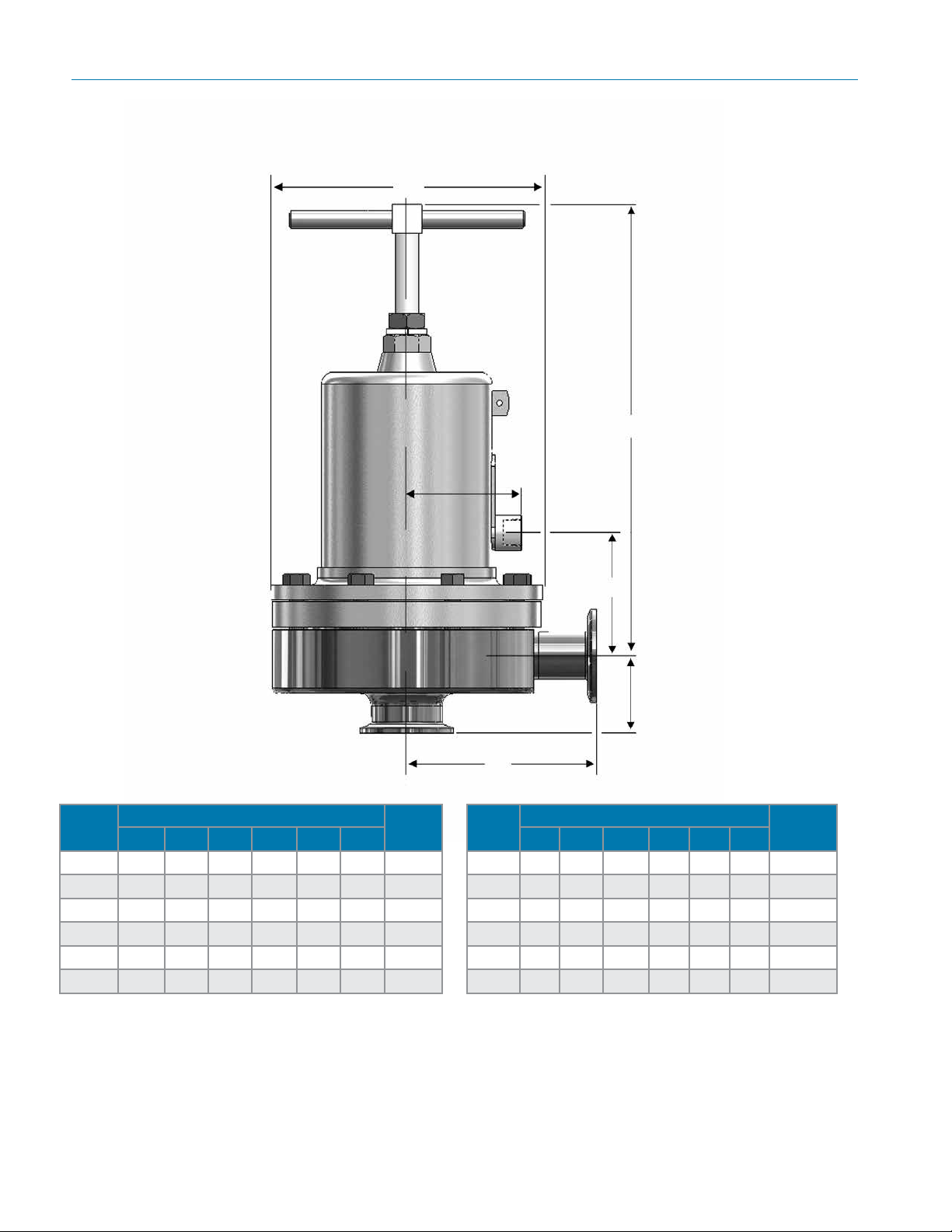

Dimensions
ØD
B
E
Outlet
Valve
Size
A B C D E F
Dimensions (inches)
Weight
Lbs
1/2" 3.29 8.00 1.37 5.70 2.44 2.44 18
3/4" 3.29 8.00 1.50 5.70 2.44 2.44 18
1" 4.00 8.00 1.64 5.70 2.44 2.57 20
1-1/2" 4.21 10.5 2.53 7.25 2.82 3.49 40
2" 5.34 17.5 2.96 9.50 3.83 4.89 90
3" 5.34 18.0 3.46 9.50 3.83 5.39 98
F
Inlet
C
A
Valve
Size
A B C D E F
Dimensions (mm)
Weight
Kgs
DN15 84 203 34,8 145 62 62 8,1
DN20 84 203 38,1 145 62 62 8,1
DN25 102 203 41,7 145 62 65 9,1
DN40 107 267 64,3 184 72 89 18
DN50 136 445 75,2 241 97 124 41
DN80 136 457 87,9 241 97 137 44
Based on US tri-clamp ends. Consult factory for DIN and ISO tri-clamp
end dimensions
Refer to the MK95FT dimensional data sheet for the MK95FTAA dimensions.
-4-
Page 5
Mark 95aa SerieS Sanitary air augMented Back PreSSure regulatorS
sample speciFication
Stainless steel sanitary back pressure regulator shall be made from ASME-SA479 barstock material,
which includes body and all wetted metal parts. Regulator shall utilize FDA approved, USP Class VI certied Jorlon diaphragm. Regulator shall be fully and remotely adjustable with the addition of a pneumatic
air signal, to any set point above the minimum spring set point up to a maximum of 90 psi for sizes 1" and
below; 85 psi for 1-1/2", and 60 psi for 2" & 3". In the event of air system failure, valve shall be manually
adjustable. Guiding of valve stem/plug shall be completely outside of the wetted process areas of valve in-
ternals, above diaphragm per ASME BPE. Regulator shall be free of threads within wetted process areas
and shall be self draining when installed with inlet vertical and below valve assembly.
sizing anD selection
In order to nd out the actual Cv and/or ow rates for your application, complete the following:
1. Select the appropriate line size, required nominal Cv, and set point spring for your application from the
charts on page 2, or from the ordering grid below.
2. Input that data, along with the installation inlet pressure, desired outlet pressure set point, and other
required data into the Steriow SFCV sizing program. If you do not have a copy of the sizing program,
go to www.steriowvalve.com and click on Technical/Valve Sizing Program or call your local Steriow
representative.
3. If the actual Cv, or ow rate (if solving for ow rate), are not sufcient for your application, then
select and input a more appropriate valve Cv for that line size until you get an actual Cv that will work
in your application. Note: if the actual Cv generated by the program is still not appropriate, you may
be required to input a different valve line size, in order to obtain the correct Cv. Note, never select an
automated valve by line size only.
Note: if ordering a Retrot Kit for an existing Mark 95, you must provide the serial number of the
Mark 95 with your RFQ or order.
orDering schematic For mark 95aa
1 & 2 3 & 4 5 & 6 7 & 8 9 & 10 11 & 12 13 & 14
— —
Model
95AA Standard
95FTAA Flow-Through
Size
050 1/2" (DN15)
075 3/4" (DN20)
100 1" (DN25)
150 1-1/2" (DN40)
200 2" (DN50)
300 3" (DN80)
Body Material
6L 316L
* Note: Consult factory for parts to retrot a MK95 into
a MK95AA. Retrot kits may not be available for some
MK95 project valves and valve models older than 2002.
The valve serial number will identify your MK95's bill of
material and is required for proper retrot selection.
1
1 & 2 Body
Finish Cvs (Kvs)
20Ra Interior/63rms Exterior (Std) A 0.5 & 1.5 (0,5 & 1,3)
A
20Ra Interior/20Ra Exterior G 3.0 (2,6)
B
8Ra Interior/63rms Exterior* H 4.5 (3,9)
C
20Ra Interior/8Ra Exterior K 5.5 (4,7)
D
8Ra Interior/8Ra Exterior* M 10.0 (8,6)
E
8Ra Interior/20Ra Exterior* N 19.0 (16,3)
F
P 28.0 (24,1)
ZZ Non-Standard
3 Trim Finish
A 20Ra (Standard)
B 8Ra
-5-
Page 6
Mark 95aa SerieS Sanitary air augMented Back PreSSure regulatorS
orDering schematic For mark 95aa
1 & 2 3 & 4 5 & 6 7 & 8 9 & 10 11 & 12 13 & 14
— —
1
95AA/0214/AB
4 Trim - CV & Seat
5 Cv 0.5 Hard Seat
A Cv 1.5 Hard Seat
2 Cv 1.5 Jorlon Seat
E Cv 3.0 Hard Seat
F Cv 3.0 Teon Seat
G Cv 3.0 Jorlon Seat
H Cv 4.5 Hard Seat
J Cv 4.5 Teon Seat
K Cv 4.5 Jorlon Seat
L Cv 5.5 Hard Seat
M Cv 5.5 Teon Seat
N Cv 5.5 Jorlon Seat
P Cv 10 Hard Seat
Q Cv 10 Teon Seat
R Cv 10 Jorlon Seat
S Cv 19 Hard Seat
T Cv 19 Teon Seat
U Cv 19 Jorlon Seat
V Cv 28 Hard Seat
W CV 28 Teon Seat
X Cv 28 Jorlon Seat
Z Non-standard
5 & 6 O-Ring/Diaphragm
EE EPDM/EPDM Diaphragm
JE EPDM/Jorlon Diaphragm
JK Kalrez/Jorlon Diaphragm
JS Silicone/Jorlon Diaphragm
JV Viton/Jorlon
JY
Teon/Silicone/Jorlon Diaphragm
(1-1/2" - 3")
TY Teon Encaps. Viton/Jorlon Diaphragm
ZZ Non-standard
8 Range PSI (Bar)
A 3 - 8 (0,1 - 0,6)*
B 3 - 25 (0,3 - 1,7)*
D 5 - 30 (0,3 - 2,1)
E 10 - 25 (0,7 - 1,7)
F 5 - 25 (0,3 - 1,7)
P 15 - 25 (1,0 - 1,7)
G 15 - 40 (1,0 - 2,8)
H 15 - 50 (1,0 - 3,4)
J 15 - 60 (1,0 - 4,1)
K 35 - 85 (2,4 - 5,9)
L 35 - 90 (2,4 - 6,2)
Q 50 - 105 (3,4 - 7,2)
Z Non-standard
* Must use EPDM or Ultra-thin Jorlon diaphragm
9 & 10 Diaphragm
EP EPDM (all exterior)
JL Jorlon (all exterior)
UJ Ultra-thin Jorlon (all exterior)
ZZ Non-standard
11 & 12 Actuator Finish/Type
AA Standard
BA 20Ra (SFV5) exterior
ZZ Non-standard
13 & 14 PED Compliance
00 Not Required
0G SEP/PED Compliant
7 Adjusting Screw Finish
A Standard
B 20Ra (Except threads)
C 8Ra (Except threads)
Z Non-standard
Steriflow, a division of Jordan Valve
3170 Wasson Road • Cincinnati, OH 45209
513.533.5600 • 800.543.7311 • 513.871.0105 (f)
sterifl[email protected] • www.steriflowvalve.com
Steriflow Valve reserves the right to make revisions to its product, specifications, literature and related information without notice. Please visit our
website at www.steriflowvalve.com for the latest information on our products.
Loading...
