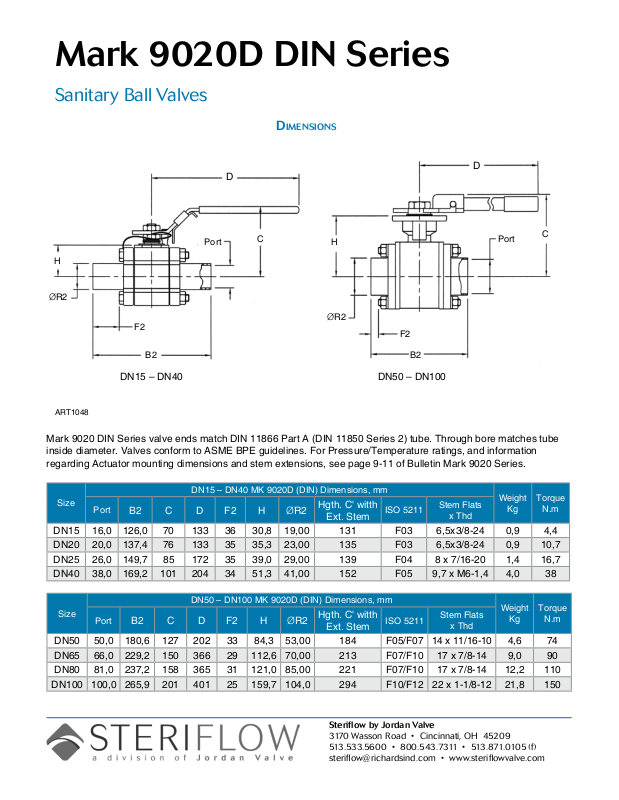

Page 1
Mark 9020D DIN Series
Sanitary Ball Valves

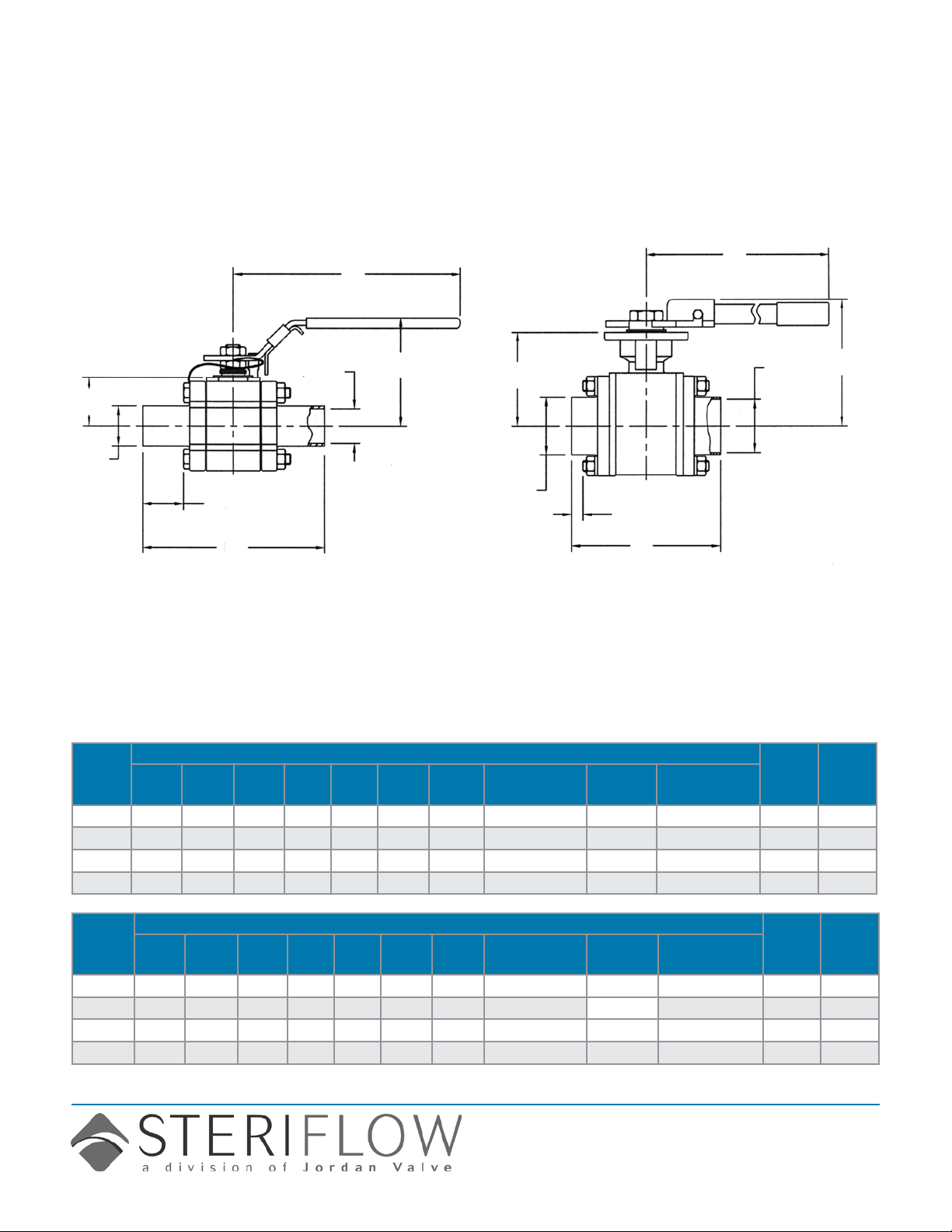

Dimensions
D
D
Port
H
ØR2
F2
B2
DN15 – DN40
ART1048
Mark 9020 DIN Series valve ends match DIN 11866 Part A (DIN 11850 Series 2) tube. Through bore matches tube
inside diameter. Valves conform to ASME BPE guidelines. For Pressure/Temperature ratings, and information
regarding Actuator mounting dimensions and stem extensions, see page 9-11 of Bulletin Mark 9020 Series.
DN15 – DN40 MK 9020D (DIN) Dimensions, mm
Size
DN15 16,0 126,0 70 133 36 30,8 19,00 131 F03 6,5x3/8-24 0,9 4,4
DN20 20,0 137,4 76 133 35 35,3 23,00 135 F03 6,5x3/8-24 0,9 10,7
DN25 26,0 149,7 85 172 35 39,0 29,00 139 F04 8 x 7/16-20 1,4 16,7
DN40 38,0 169,2 101 204 34 51,3 41,00 152 F05 9,7 x M6-1,4 4,0 38
Port
B2 C D F2 H ØR2
C
H
ØR2
Hgth. C' witth
Ext. Stem
F2
B2
DN50 – DN100
ISO 5211
Stem Flats
x Thd
Port
Weight KgTorque
C
N.m
DN50 – DN100 MK 9020D (DIN) Dimensions, mm
Size
DN50 50,0 180,6 127 202 33 84,3 53,00 184 F05/F07 14 x 11/16-10 4,6 74
DN65 66,0 229,2 150 366 29 112,6 70,00 213 F07/F10 17 x 7/8-14 9,0 90
DN80 81,0 237,2 158 365 31 121,0 85,00 221 F07/F10 17 x 7/8-14 12,2 110
DN100 100,0 265,9 201 401 25 159,7 104,0 294 F10/F12 22 x 1-1/8-12 21,8 150
Port
B2 C D F2 H ØR2
Hgth. C' witth
Ext. Stem
Steriflow by Jordan Valve
3170 Wasson Road • Cincinnati, OH 45209
513.533.5600 • 800.543.7311 • 513.871.0105 (f)
sterifl[email protected] • www.steriflowvalve.com
ISO 5211
Stem Flats
x Thd
Weight KgTorque
N.m
Page 2
Mark 9020D DIN SerIeS SaNItary Ball ValVeS
orDering schematic
Model
—
Size
Body Mat'l 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15
—
Model Number
9020D 3-Pc Sanitary Ball Valve (DIN)
Size (DN 11866 Part A)
15 DN15
20 DN20
25 DN25
32 DN32
40 DN40
50 DN50
65 DN65
80 DN80
100 DN100
Body Material
LF CF3M 316L 1% Ferrite
1 Seat/Stem Extension
T TFM1600 Enhanced Teon (Std.)
C TFM1600 Cavity Filler Enhanced Teon
E TFM1600 with Enclosed Stem Extension
S TFM1600 Cavity Filler with Stem Extension
1
Stem extension not available in DN100 size
2 Ends
A Tri-Clamp / SF1 Int. Fin. (Std.)
B Extended Tube End / SF1 Int. Fin. (Std.)
C** Tri-Clamp x Extended Tube End / SF1 Int. Fin.
D Tri-Clamp / SF4 Int. Fin.
E Extended Tube End / SF4 Int. Fin.
F** Tri-Clamp x Extended Tube End / SF4 Int. Fin.
G** Extended Tube x Tri-Clamp / SF4 Int. Fin.
H** Extended Tube x Tri-Camp / SF1 Int. Fin.
3 & 4 Operation
HL Lever (Std.)
NN None
P1 UT-0A-DA STD
P2 UT-0-DA STD S1 UT-0-SR STD
P3 UT-1-DA-STD S2 UT-1-SR STD
P4 UT-2-DA STD S3 UT-2-SR STD
P5 UT-2.5-DA STD S4 UT-2.5-SR STD
P6 UT-3-DA-STD S5 UT-3-SR STD
P7 UT-3.5-DA STD S6 UT-3.5-SR STD
P8 UT-4-DA STD S7 UT-4-SR STD
PF UT-4.5-DA STD SF UT-4.5-SR STD
P9 UT-5-DA STD S8 UT-5-SR STD
ZZ Non-Standard
5 & 6 Actuator Pressure
40 40 psi
60 60 psi
80 80 psi
NN N/A (no pneumatic actuator)
ZZ Non-Standard
1
1
7 & 8 Solenoid Feature Act. Type
3A 3W 8551-120VAC N4 UT-0/5 SR
3C 3W EF8551-120VAC N7 UT-0/5 SR
3J 3W 8317G35-120VAC N4 UT-0/2.5 SR
3M 3W 8321G1-120VAC N4 UT-3/5 SR
3Q 3W EF8317G35-120VAC N7 UT-0/2.5 SR
3R 3W EF8321G1-120VAC N7 UT-3/5 SR
4A 4W 8551-120VAC N4 UT-0A DA
4B 4W 8551-120VAC N4 UT-0/5 DA
4D 4W EF8551-120VAC N7 UT-0A DA
4E 4W EF8551-120VAC N7 UT0/5 DA
ZZ Non-Standard
Note: SF1 nish is 20 Ra µin (.5 Ra µm) Mechanical Polish,
SF4 is 15Ra µin (.4 Ra µm) mechanical/electropolish nish
** See page 7
Page 3
Mark 9020D DIN SerIeS SaNItary Ball ValVeS
MK9020D/0514/5K/AB
Model
—
Size
Body Mat'l 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15
—
9 & 10 Limit Switch
AA LS FMYB-5120-N4 to UT-0/3
AB LS FMYB-5120-N4 to UT-3.5/7
AC LS AMYB-5120-N7 to UT-0/3
AD LS AMYB-5120-N7 to UT-3.5/7
AE LS-AMYB-5120-N4 to Valve
AF LS AMYB-5120-N7 to Valve
0Z Non-Standard
11 & 12 Fail Position
NN Fail Position N/A (No "SR" Actuator)
01 Fail Closed
02 Fail Open
13 & 14 Positioner
AA Siemens 760P (3-15 psi), for UT-0/3
AB Siemens 760P (3-15 psi), for UT-3.5/7
AC Siemens 760E (4-20 mA), for UT-0/3
AD Siemens 760E (4-20 mA), for UT-3.5/7
AE Siemens 2-IQ (4-20 mA) for UT-0/3DA
AF Siemens 2-IQ (4-20 mA) for UT-3.5/7DA
AQ Siemens 2-IQ (4-20 mA), for UT-0/3SR
AR Siemens 2-IQ (4-20 mA), for UT-3.5/7SR
ZZ Non-Standard
15 Misc. Features
1 2-Bug Screen 1/8" SST
2 2-Speed Control 1/8" (4-Way)
3 SST Tube & Fittings F/Automation
4 AFR 4Z030A to UT-0-2.5 SST
Z Non-Standard
Steriflow, a division of Jordan Valve
3170 Wasson Road • Cincinnati, OH 45209
513.533.5600 • 800.543.7311 • 513.871.0105 (f)
sterifl[email protected] • www.steriflowvalve.com
Steriflow Valve reserves the right to make revisions to its product, specifications, literature and related information without notice. Please visit our
website at www.steriflowvalve.com for the latest information on our products.
