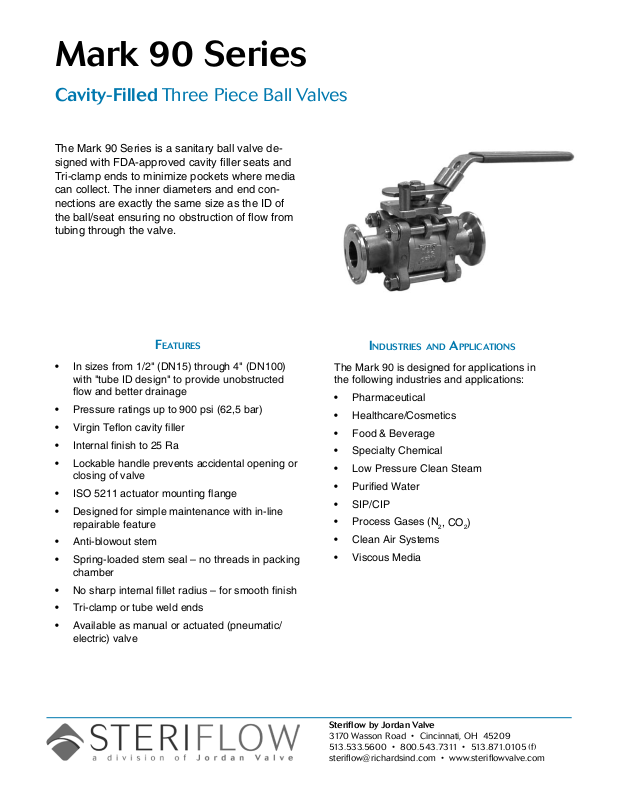

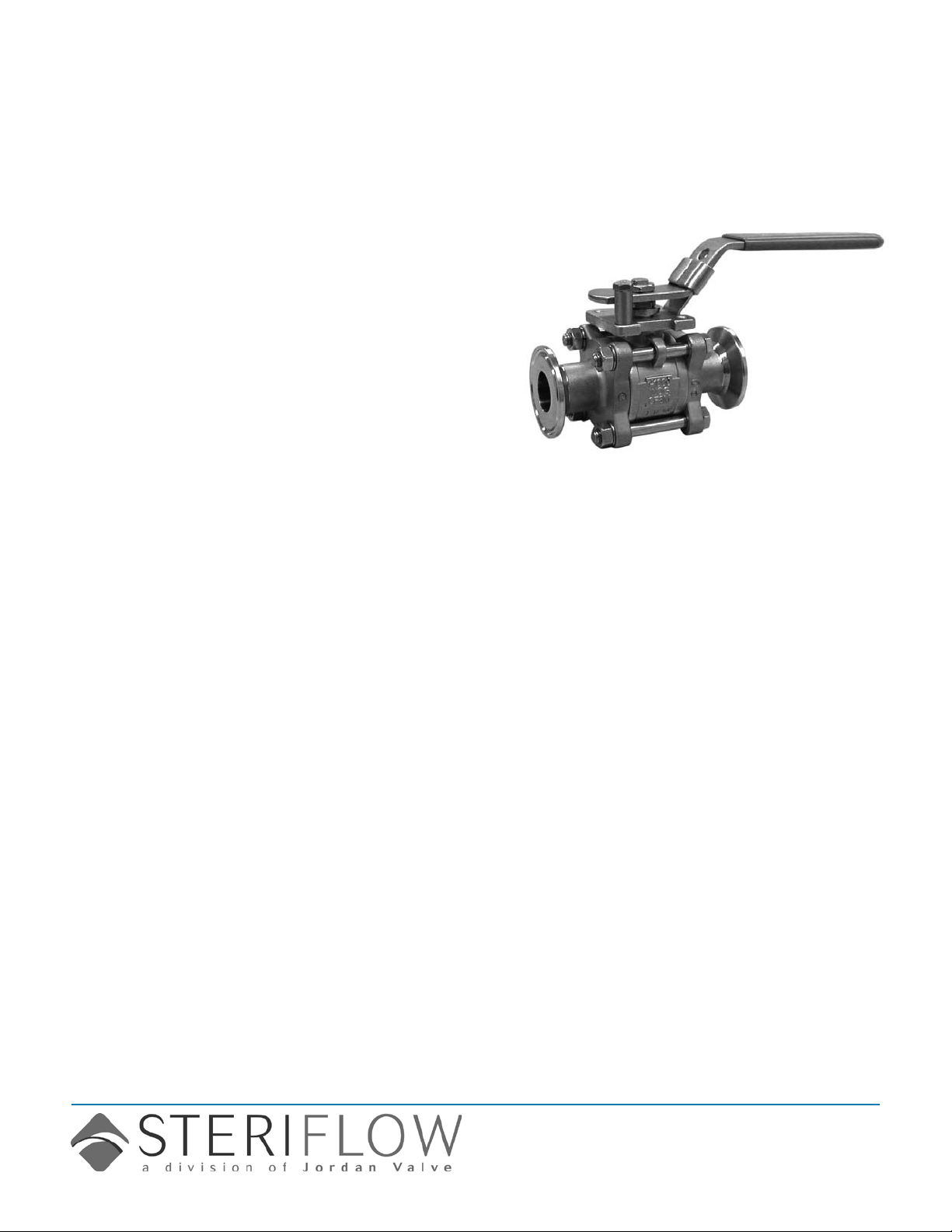

Mark 90 Series

Cavity-Filled Three Piece Ball Valves

The Mark 90 Series is a sanitary ball valve de-

signed with FDA-approved cavity ller seats and

Tri-clamp ends to minimize pockets where media
can collect. The inner diameters and end con­nections are exactly the same size as the ID of

the ball/seat ensuring no obstruction of ow from

tubing through the valve.

Fe a t u r e s

In sizes from 1/2" (DN15) through 4" (DN100) •
with "tube ID design" to provide unobstructed

ow and better drainage

Pressure ratings up to 900 psi (62,5 bar)•

Virgin Teon cavity ller•

Internal nish to 25 Ra•

Lockable handle prevents accidental opening or •
closing of valve

ISO 5211 actuator mounting ange•

Designed for simple maintenance with in-line •
repairable feature

Anti-blowout stem•

Spring-loaded stem seal – no threads in packing •
chamber

No sharp internal llet radius – for smooth nish•

Tri-clamp or tube weld ends•

Available as manual or actuated (pneumatic/•
electric) valve

In d u s t r I e s a n d ap p l I c a t I o n s

The Mark 90 is designed for applications in
the following industries and applications:

Pharmaceutical•

Healthcare/Cosmetics•

Food & Beverage•

Specialty Chemical•

Low Pressure Clean Steam•

Puried Water•

SIP/CIP•

Process Gases (N•

Clean Air Systems•

Viscous Media•

, CO2)

2

Steriow by Jordan Valve

3170 Wasson Road • Cincinnati, OH 45209

513.533.5600 • 800.543.7311 • 513.871.0105 (f)
steri[email protected] • www.steriowvalve.com

Ma r k 90 Se r i e S Ca v i t y -Fi l l e d Ba l l v a l v e S

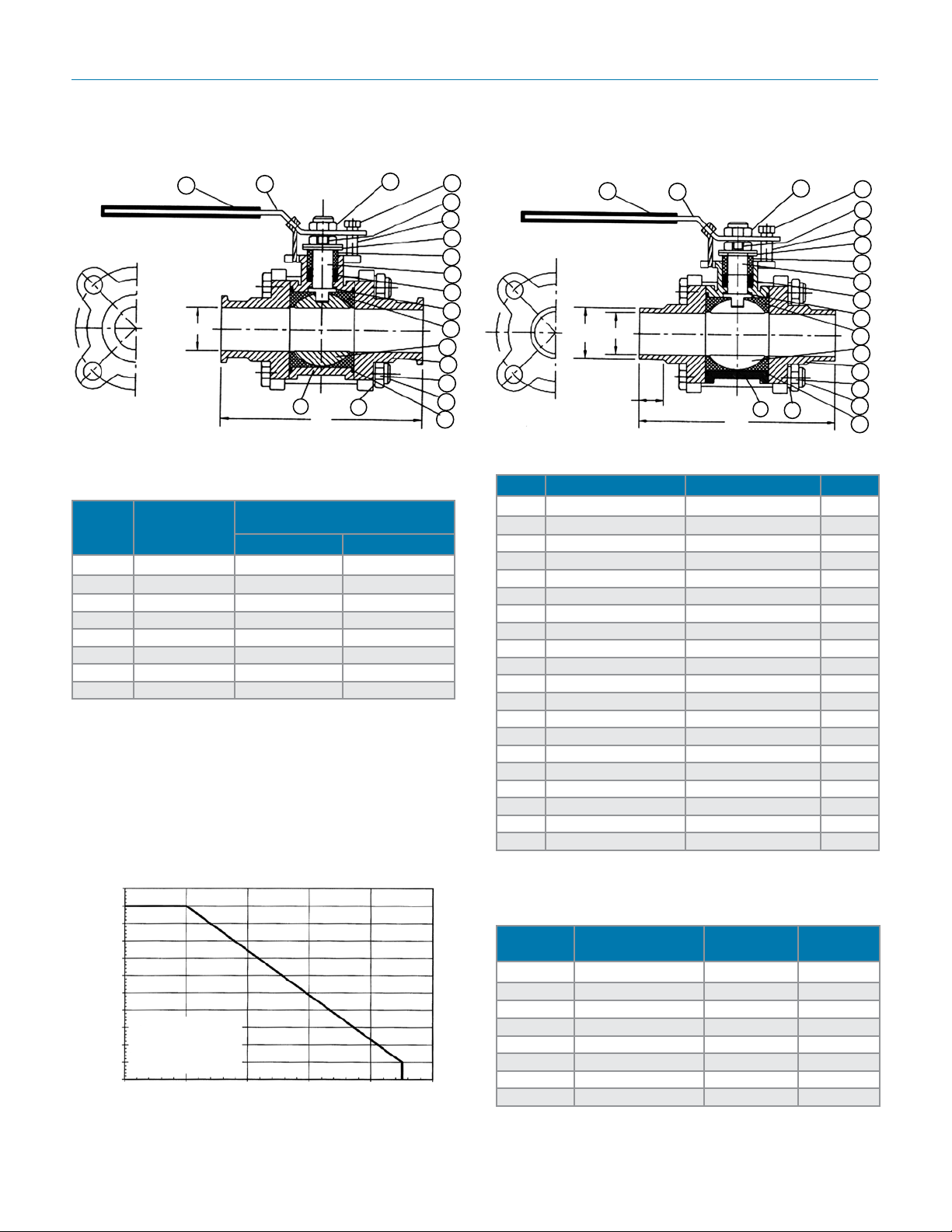

Ma t e r I a l sp e cI F Ic at Io ns

15

ØD

20-88001 20-88001

14

1

L1

13

5

10

Va l V e na M e pl a t e ra t I n g

Size,

NPS

Body Pressure

Rating

1/2" 1000 500 1000
3/4" 1000 500 1000

1" 1000 500 1000

1-1/2" 1000 500 1000

2" 1000 450 950

2-1/2" 1000 400 50

3" 1000 350 625
4" 1000 300 600

1

Clamp end name plate pressure rating is based on Tri-Clover A13MHM

Tri-Clamp (hinged 2-segment clamp with wing nut)

2

Tube end name plate pressure rating is the lesser of the body rating or
the tube end rating calculated with ANSI B31.3 using Sy-20ksi
Y=0.4 and E=0.8

Valve Name Plate Pressure

Rating, PSI

Clamp End

1

Tube End

19

12
18

17
11

5
7
6

4

3
2
9

8

16

No. Part Material Qty

1 Body CF8M 1
2 Cap CF8M 2

1

3 Ball 316 1
4 Seat PTFE 2
5 Stem AISI 316 1
6 Thrust Washer PTFE 1
7 Stem Packing PTFE 2
8 Bolt AISI 304 4 - 6

9 Hex Nut AISI 304 4 - 12
10 Bolt Washer AISI 304 4 - 12
11 Gland AISI 304 1
12 Lock Washer AISI 304 1
13 Stem Nut AISI 304 2
14 Locking Handle AISI 304 1
15 Handle Cover Vinyl 1
16 Body Seal PTFE 2
17 Disc Spring AISI 304 2
18 Stop Pin AISI 304 1
19 Hex Cap Screw AISI 304 1

pr e s s u r e – te M p e r a t u r e ch a r t

20 Name Plate SST 1

ØD1

15

ØD

14

M

L2

13

1

10

19

12
18
17
11

5
7
6

4

3

2
9

8

16

1100
1000

800

600

400

Pressure, psi

Chart shows body rating.
Clamp or tube end rating
may lower allowable

200

pressure & temperature
values from those shown.

0

0 100 200 300 400 500

Temperature, °F

-2-

te c h n I c a l sp ec IF I cat Io n s

Size

Operating Torque

in-lbs (Nm)

Cv (Kv)

1/2" 89 (10) 8 (6,9) 1.6 (0,73)
3/4" 142 (16) 30 (26) 1.8 (0,82)

1" 177 (20) 65 (56) 2.8 (1,27)

1-1/2" 310 (35) 190 (163) 5.4 (2,45)

2" 443 (50) 435 (374) 8.1 (3,67)

2-1/2" 752 (85) 720 (619) 18.9 (8,57)

3" 974 (110) 1120 (963) 26.5 (12,0)
4" 1195 (135) 2100 (1806) –

Weight

Lb (Kg)

Ma r k 90 Se r i e S Ca v i t y -Fi l l e d Ba l l v a l v e S

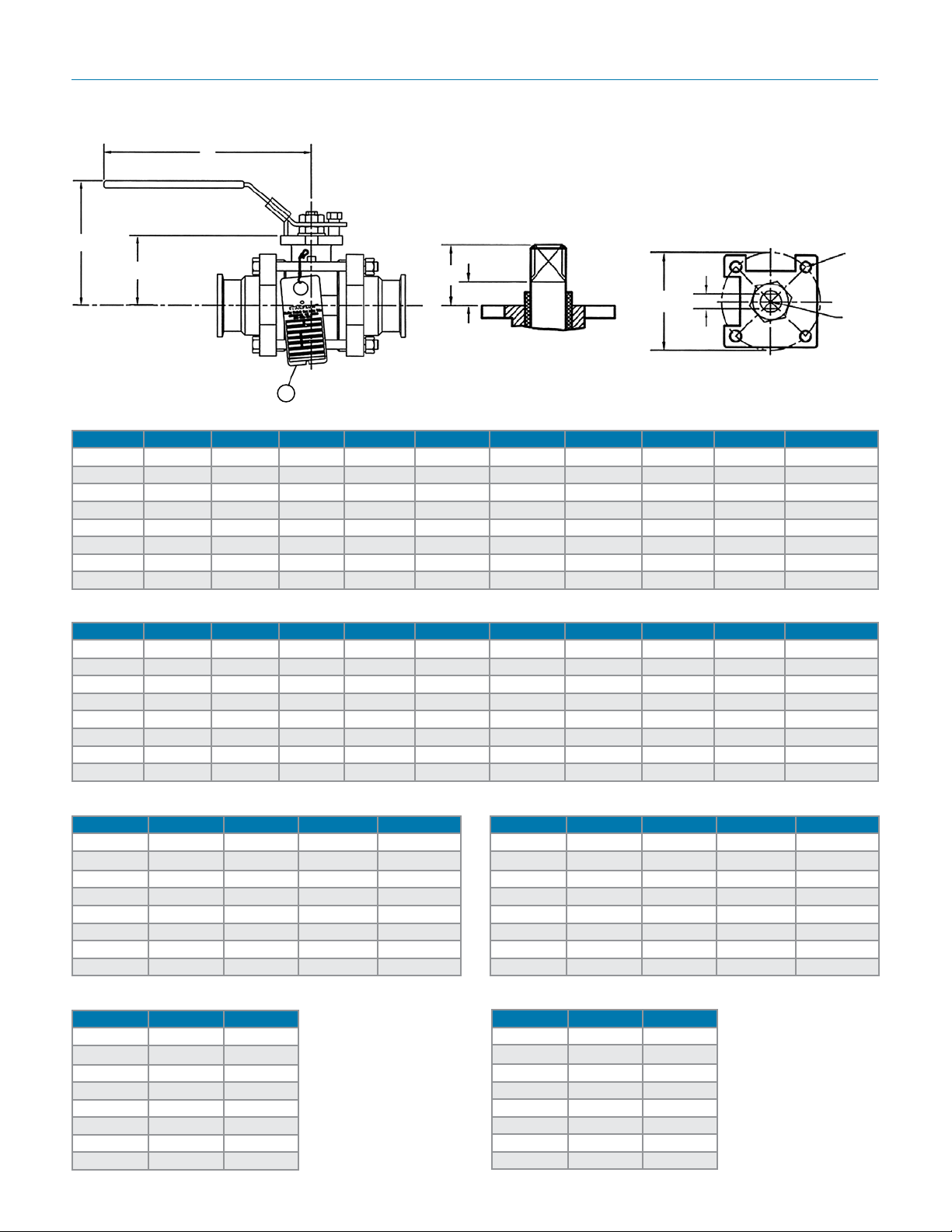

dI M e n s I o n s

H

C

K

20-88001

20

B

A

ØF

S

Clamp End & Tube End Dimensions, inches•

Size A B C H K E F G S ISO 5211

1/2" 0.28 0.57 2.6 5.2 1.18 0.315 1.65 M5 0.197 F01
3/4" 0.35 0.69 2.8 5.2 1.37 0.394 1.65 M5 0.276 F01

1" 0.39 0.79 3.1 6.5 1.48 0.394 1.97 M6 0.276 F05

1-1/2" 0.51 1.00 4.0 7.9 2.10 0.472 1.97 M6 0.354 F05

2" 0.51 0.96 4.3 8.4 2.43 0.472 2.76 M8 0.354 F7

2-1/2" 0.75 1.44 6.1 10.9 3.14 0.787 2.76 M8 0.472 F07

3" 0.75 1.46 6.4 14.6 3.41 0.787 4.02 M10 0.472 F10
4" 0.84 1.61 7.6 14.7 4.54 0.945 4.02 M10 0.630 F10

Clamp End & Tube End Dimensions, metric•

Size A B C H K E F G S ISO 5211

DN15 7,1 14,5 66,0 132,1 30,2 8,00 41,9 M5 5,00 F01
DN20 8,9 17,5 71,1 132,1 34,8 10,01 41,9 M5 7,01 F01
DN25 9,9 17,5 78,7 165,1 37,6 10,01 50,0 M6 7,01 F05
DN40 13,0 25,4 101,6 200,7 53,3 11,99 50,0 M6 8,99 F05
DN50 13,0 24,4 109,2 213,4 61,7 11,99 70,1 M8 8,99 F7
DN65 19,1 36,6 154,9 276,9 79,8 19,99 70,1 M8 11,99 F07
DN80 19,1 37,1 162,6 370,8 86,6 19,99 102,1 M10 11,99 F10

DN100 21,3 40,9 193,0 373,4 115,3 24,00 102,1 M10 16,00 F10

ØGx3

ØE

Tube End Dimensions, inches•

Size D D1 M L2

1/2" 0.370 0.504 1.57 6.6
3/4" 0.618 0.750 1.57 6.7

1" 0.870 1.000 1.57 7.1

1-1/2" 1.366 1.500 1.57 8.0

2" 1.870 2.00 1.57 8.5

2-1/2" 2.374 2.504 1.57 10.0

3" 2.874 3.004 1.57 10.6
4" 3.835 4.004 2.09 12.9

Clamp End Dimensions, inches•

Size D L1

1/2" 0.37 3.5
3/4" 0.62 4.0

1" 0.87 4.5

1-1/2" 1.37 5.5

2" 1.87 6.1

2-1/2" 2.37 7.8

3" 2.87 9.0
4" 3.83 9.5

Tube End Dimensions, metric•

Size D D1 M L2

DN15 9,4 12,8 39,9 167,6
DN20 15,7 19,1 39,9 170,1
DN25 22,1 25,4 39,9 180,3
DN40 34,7 38,1 39,9 203,2
DN50 47,5 50,8 39,9 215,9
DN65 60,3 63,6 39,9 254,0
DN80 73,0 76,3 39,9 269,2

DN100 97,4 101,7 53,1 327,7

Clamp End Dimensions, inches•

Size D D1

1/2" 9,4 88,9
3/4" 15,7 101,6

1" 22,1 114,3

1-1/2" 34,8 139,7

2" 47,5 154,9

2-1/2" 60,2 198,1

3" 72,9 228,6

-3-

4" 97,3 241,3

Ma r k 90 Se r i e S Ca v i t y -Fi l l e d Ba l l v a l v e S

or d e r I n g sc h e M a t I c

MK90/0510/5K/AB

Model

—

Size

Body Mat'l 1 2 3 4 5 6

—

Model Number

90BD Double Acting Pneumatic Actuator
90BH Handle Operated

90BM Motor Operated

90BS Spring Return Pneumatic Actuator

Size

05 1/2"
07 3/4"
10 1"
15 1-1/2"
20 2"
25 2-1/2"
30 3"
40 4"

Body Material

S 316SS

1 End Connections

C Clamp Ends

T Tube Ends (Extended)

3 Cavity Filler & Seats

T Virgin Teon

4 Actuator

90BH

1 Standard

90BD & 90BS

A with 80 psi to Actuator
B with 60 psi to Actuator
C with 40 psi to Actuator

90BM

M with 110VAC

5 Actuator Accessories

0 None
1 Limit Switch 2-SPDT NEMA 4
2 Positioner 3-15 psi
3 Positioner with I-P 4-20mA
4 Solenoid 4-Way 110VAC (NEMA 4)
5 Solenoid 4-Way 24VDC (NEMA 4)
6 #1 & #4
7 #1 & #5

Z Non-Standard

6 Fail Position
2 Packing

T Virgin Teon

0 Standard

90BD, 90BH, 90BM

90BS

1 Fail Open

2 Fail Closed

Steriow, a division of Jordan Valve

3170 Wasson Road • Cincinnati, OH 45209

513.533.5600 • 800.543.7311 • 513.871.0105 (f)
steri[email protected] • www.steriowvalve.com

Steriow Valve reserves the right to make revisions to its product, specications, literature and related information without notice. Please visit our
website at www.steriowvalve.com for the latest information on our products.
