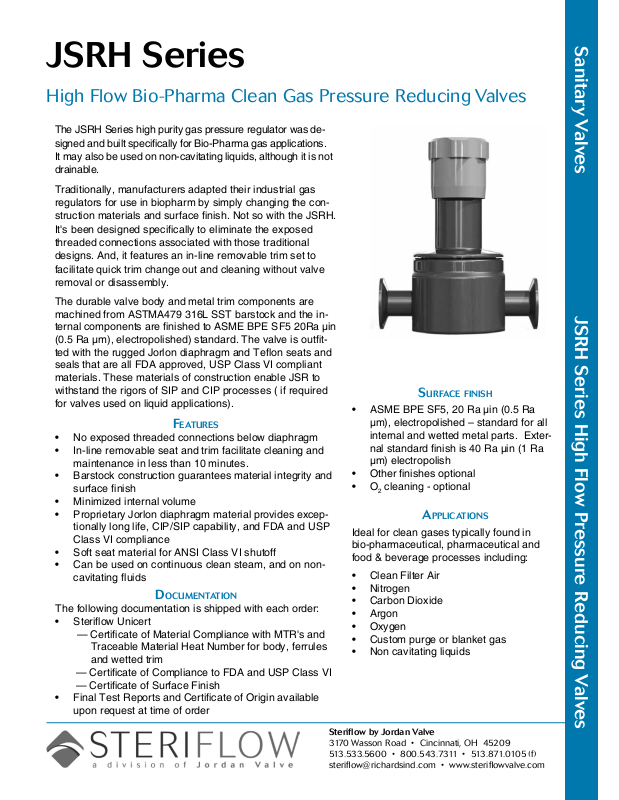

JSRH Series
High Flow Bio-Pharma Clean Gas Pressure Reducing Valves
The JSRH Series high purity gas pressure regulator was de-
signed and built specically for Bio-Pharma gas applications.
It may also be used on non-cavitating liquids, although it is not
drainable.
Traditionally, manufacturers adapted their industrial gas
regulators for use in biopharm by simply changing the construction materials and surface nish. Not so with the JSRH.
It's been designed specically to eliminate the exposed
threaded connections associated with those traditional
designs. And, it features an in-line removable trim set to
facilitate quick trim change out and cleaning without valve
removal or disassembly.
The durable valve body and metal trim components are
machined from ASTMA479 316L SST barstock and the internal components are nished to ASME BPE SF5 20Ra μin
(0.5 Ra μm), electropolished) standard. The valve is outtted with the rugged Jorlon diaphragm and Teon seats and
seals that are all FDA approved, USP Class VI compliant
materials. These materials of construction enable JSR to
withstand the rigors of SIP and CIP processes ( if required
for valves used on liquid applications).
Features
• No exposed threaded connections below diaphragm
• In-line removable seat and trim facilitate cleaning and
maintenance in less than 10 minutes.
• Barstock construction guarantees material integrity and
surface nish
• Minimized internal volume
• Proprietary Jorlon diaphragm material provides excep-
tionally long life, CIP/SIP capability, and FDA and USP
Class VI compliance
• Soft seat material for ANSI Class VI shutoff
• Can be used on continuous clean steam, and on non-
cavitating uids
•
Documentation
The following documentation is shipped with each order:
• Steriow Unicert
— Certicate of Material Compliance with MTR's and
Traceable Material Heat Number for body, ferrules
and wetted trim
— Certicate of Compliance to FDA and USP Class VI
— Certicate of Surface Finish
• Final Test Reports and Certicate of Origin available
upon request at time of order
• ASME BPE SF5, 20 Ra μin (0.5 Ra
μm), electropolished – standard for all
internal and wetted metal parts. External standard nish is 40 Ra μin (1 Ra
μm) electropolish
• Other nishes optional
• O2 cleaning - optional
Ideal for clean gases typically found in
bio-pharmaceutical, pharmaceutical and
food & beverage processes including:
• Clean Filter Air
• Nitrogen
• Carbon Dioxide
• Argon
• Oxygen
• Custom purge or blanket gas
• Non cavitating liquids
surFace Finish
applications
Sanitary Valves JSRH Series High Flow Pressure Reducing Valves
Steriflow by Jordan Valve
3170 Wasson Road • Cincinnati, OH 45209
513.533.5600 • 800.543.7311 • 513.871.0105 (f)
sterifl[email protected] • www.steriflowvalve.com
Page 2
JSRH SeRieS HigH Flow Bio-PHaRma Clean gaS PReSSuRe ReduCing ValVe
speciFications
Sizes: 1/2" (DN15), 3/4" (DN20) & 1" (DN25)
Connection and gauge port ends: Tri-clamp, Tube
weld end and NPT Standard. VCR® connections
optional, contact factory
Body Material: All wetted parts - ASTM A479 316L
Stainless Steel; others on application
Body Seals: Elastomer o-rings (EPDM, Viton,
Silicon, Kalrez); PTFE gasket - All FDA and USP
Class VI compliant
Soft Seat:
275°F(135°C) intermittent [not to exceed 15 min. in a one
hour period] FDA, USP Class VI
Shutoff: Class VI
Spring Range:
PTFE to +252°F (122°C) continuous or

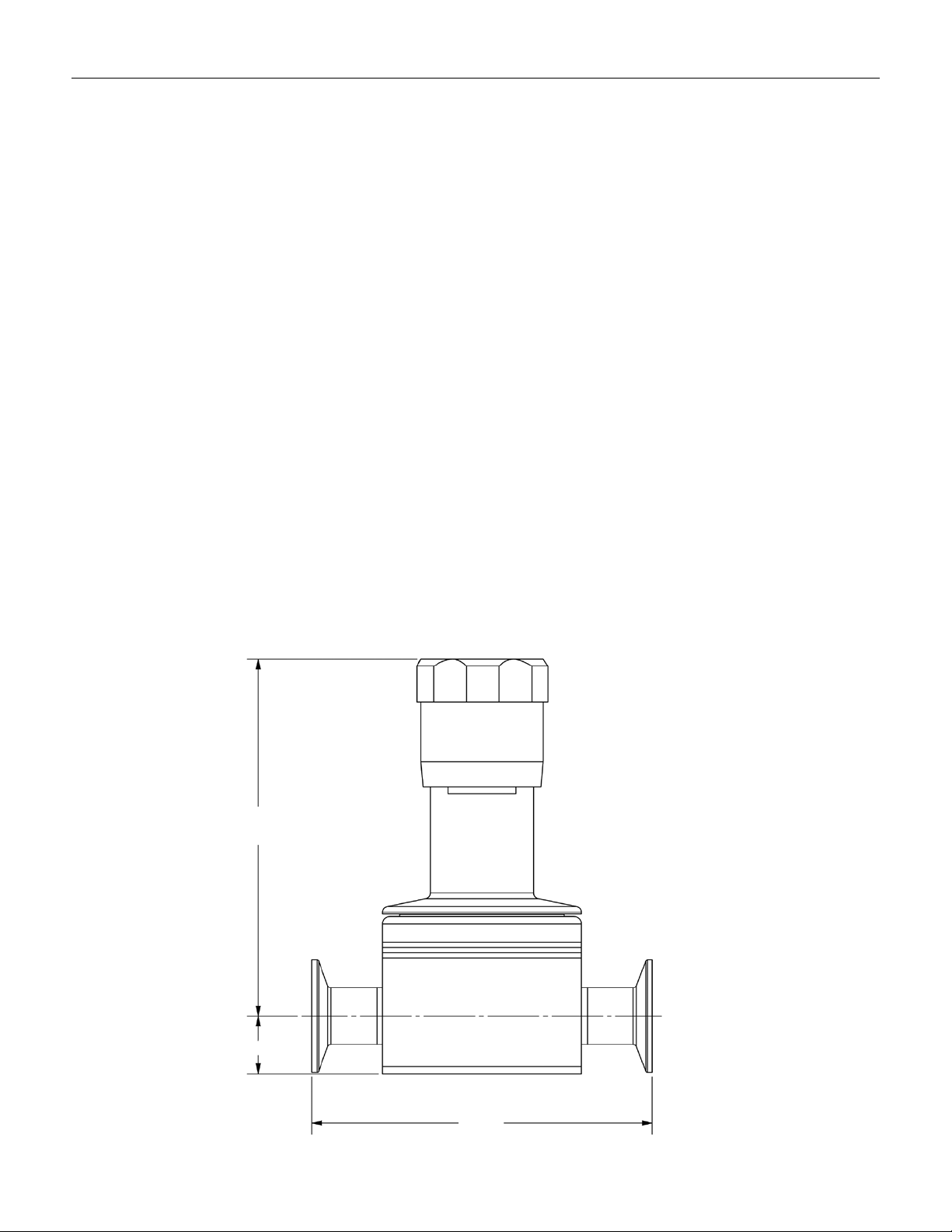

Dimensions
• 0 - 150 psi (0 - 10,3 bar)
• 0 - 100 psi (0 - 6,9 bar)
• 0 - 50 psi (0 - 3,4 bar)
• 0 - 20 psi (0 - 1,4 bar)
Sizing: Use SVCV Steriow software sizing
module, size at 60% capacity
Maximum Operating Pressure: 230 psi max inlet
@ 100°F / psi max ∆P
Maximum Operating Temperature: 150 psi max
inlet @ 275°F
Flow Capacity:
• 1/2" Cv: 1.5
• 3/4" & 1": Cv: 1.9
Mechanical Polish: Wetted Internal components
to 20Ra μin (0.5 Ra μm), electropolished
6.29 (160)
1.02 (26)
6.00
(152)
-2-
Page 3

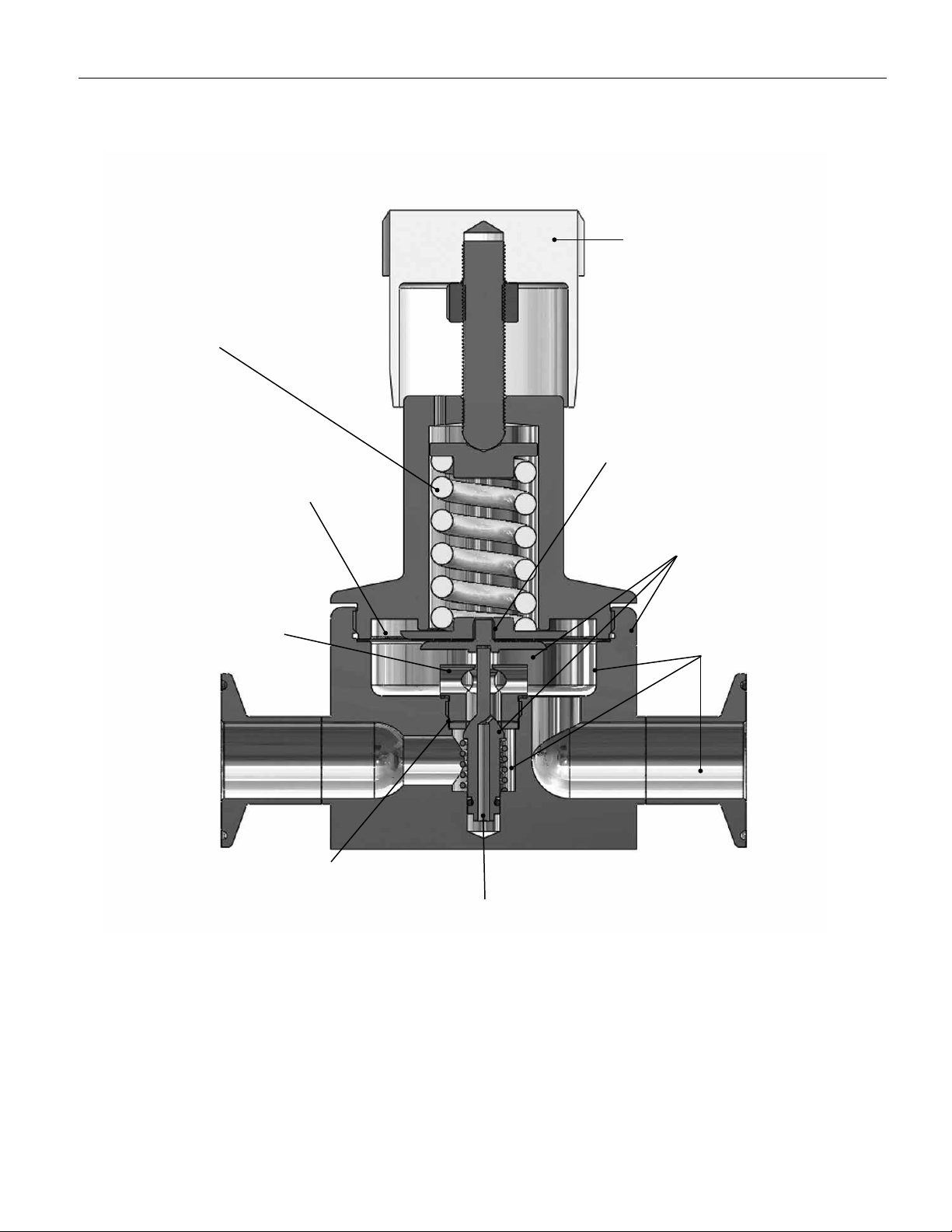

JSRH SeRieS HigH Flow Bio-PHaRma Clean gaS PReSSuRe ReduCing ValVe
4 spring ranges below 150 psi (10
bar) allow set point optimization to
minimize droop
Rugged FDA and USP Class VI
JorlonTM - PTFE diaphragm will
eliminate diaphragm failures
Features & BeneFits
Autoclavable Anodized
Aluminum Knob available
as cataloged option
One piece diaphragm subassembly
promotes quick, inline maintenance
access - less than 10 minutes to
complete component replacement
Hex outlet diffuser eliminates
hydraulic ow forces from
effecting diaphragm position,
insuring smooth, accurate
control
PTFE gasket, and soft seat eliminate
exposed threads. Both are FDA and
USP Class VI compliant materials
Wetted materials are
ASTM A479 316L
All internal surfaces are
SF5, 20 Ra μin (0.5 Ra
μm), electropolished
Balanced port design minimizes
DP forces on the plug, maximizing
stability in spite of supply pressure
variation
-3-
Page 4
JSRH SeRieS HigH Flow Bio-PHaRma Clean gaS PReSSuRe ReduCing ValVe

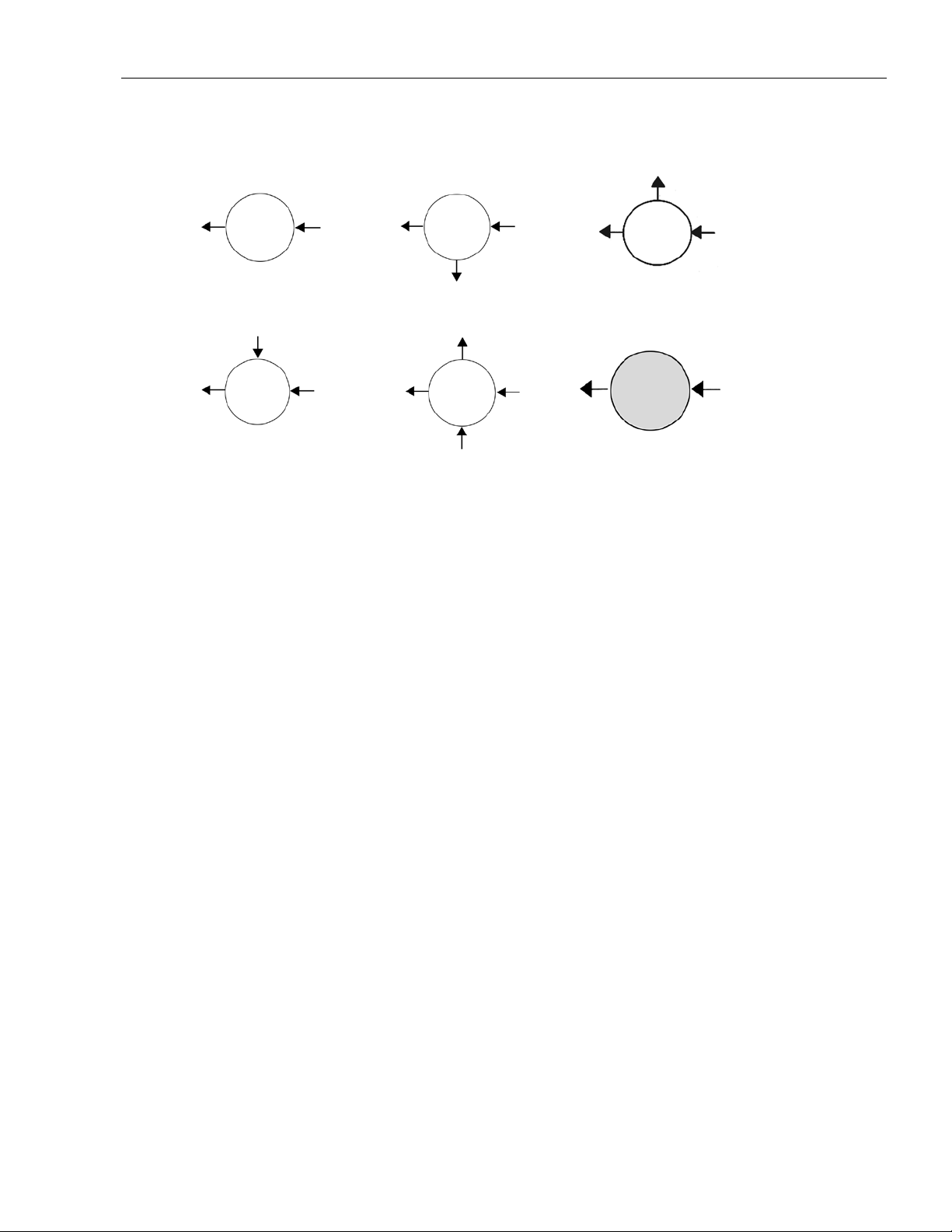

Flow conFigurations
outlet gage
A B
outlet inlet
inlet gage
outlet inlet
outlet gage
outlet gage
outlet inlet
D E
outlet inlet outlet inlet
inlet gage
* Gage ports are 1/4" FNPT (consult factory for required Tri-clamp, VCR, or other alternative)
Consult factory for other porting options
outlet inlet
C
270°
SAMPLE
90°
sample speciFications
Stainless Steel pressure regulator shall be made from ASTM A479 barstock material, which includes body and all wetted metal parts. Regulator shall be activated by an un-tied, FDA approved,
USP Class VI certied JorlonTM diaphragm. Regulator shall be free of exposed threads within wetted process area and valve internal to hold minimal media volume. Regulator shall have one piece
diaphragm subassembly, and trim that can be replaced inline without dome/spring chamber disassembly.
-4-
Page 5
JSRH SeRieS HigH Flow Bio-PHaRma Clean gaS PReSSuRe ReduCing ValVe
orDering schematic
Model Size Material 1 & 2 3 & 4 5 & 6 7 & 8 9 & 10 11 & 12 13 & 14 15 16 17
JSRH — 050 — 6L
Model
JSRH High Flow Gas Pressure Reducing Valve
Size
050 1/2" (DN15)
075 3/4" (DN20)
100 1" (DN25)
Material
6L Stainless Steel 316L
1 & 2 Body Feature
End Connection/Int. Finish Port Conguration
C Tri-Clamp 20 Ra EP A Port "A"
P FNPT 20 Ra EP B Port "B"
T BWE 20 Ra EP C Port "C"
D Port "D"
E Port "E"
ZZ Non-Standard
3 & 4 Trim -FDA & USP Class V
1E USP - EPDM & 6L
1V USP - Viton & 6L
1K USP - KLRZ & 6L
1L USP - Silicone & 6L
5 & 6 Seat Material - FDA & USP Class V
TF PTFE (1/2" 1.5 Cv) (3/4"& 1" 1.9 Cv)
ZZ Non-Standard
7 & 8 Range Spring/Outlet Pressure
02 0 - 20 PSI (0 - 1,4 bar)
05 0 - 50 PSI (0 - 3,4 bar)
10 0 - 100 PSI (0 - 6,9 bar)
15 0 - 150 (0 - 10,3 bar)
ZZ Non-Standard
11 & 12 Actuator
SK Standard Actuator / Nylon Knob
AK
ZZ Non-Standard
13 & 14 Inlet Gauge*
ØB
ØC
ØD
ØE
ØF
ØN
ZZ Non-Standard
* Gauges are Oil Free and O2 clean as standard.
15 Outlet Gauge*
B
C
D
E
N
ZZ Non-Standard
* Gauges are Oil Free and O2 clean as standard.
16 SEP Compliance
0
G
Z
17 Accessories
S
X
Z
Standard Actuator / Autoclavable Anod.
Aluminum Knob
0 - 30 PSIG/Bar (Dual)
0 - 60 PSIG/Bar (Dual)
0 - 100 PSIG/Bar (Dual)
0 - 160 PSIG/Bar (Dual)
0 - 200 PSIG/Bar (Dual)
None
0 - 30 PSIG/Bar (Dual)
0 - 60 PSIG/Bar (Dual)
0 - 100 PSIG/Bar (Dual)
0-160 PSIG/Bar (Dual)
None
None Required
SEP Compliant
Non-Standard
Clean For Oil Free
Clean for Oxygen
Non-Standard
9 & 10 Diaphragm Material
JL Jorlon PTFE ZZ Non-Standard
FDA & USP Class VI
-5-
Page 6
JSRH/1013/10K/AB
Steriflow, a division of Jordan Valve
3170 Wasson Road • Cincinnati, OH 45209
513.533.5600 • 800.543.7311 • 513.871.0105 (f)
sterifl[email protected] • www.steriflowvalve.com
Steriflow Valve reserves the right to make revisions to its product, specifications, literature and related information without notice. Please visit our
website at www.steriflowvalve.com for the latest information on our products.
Loading...
