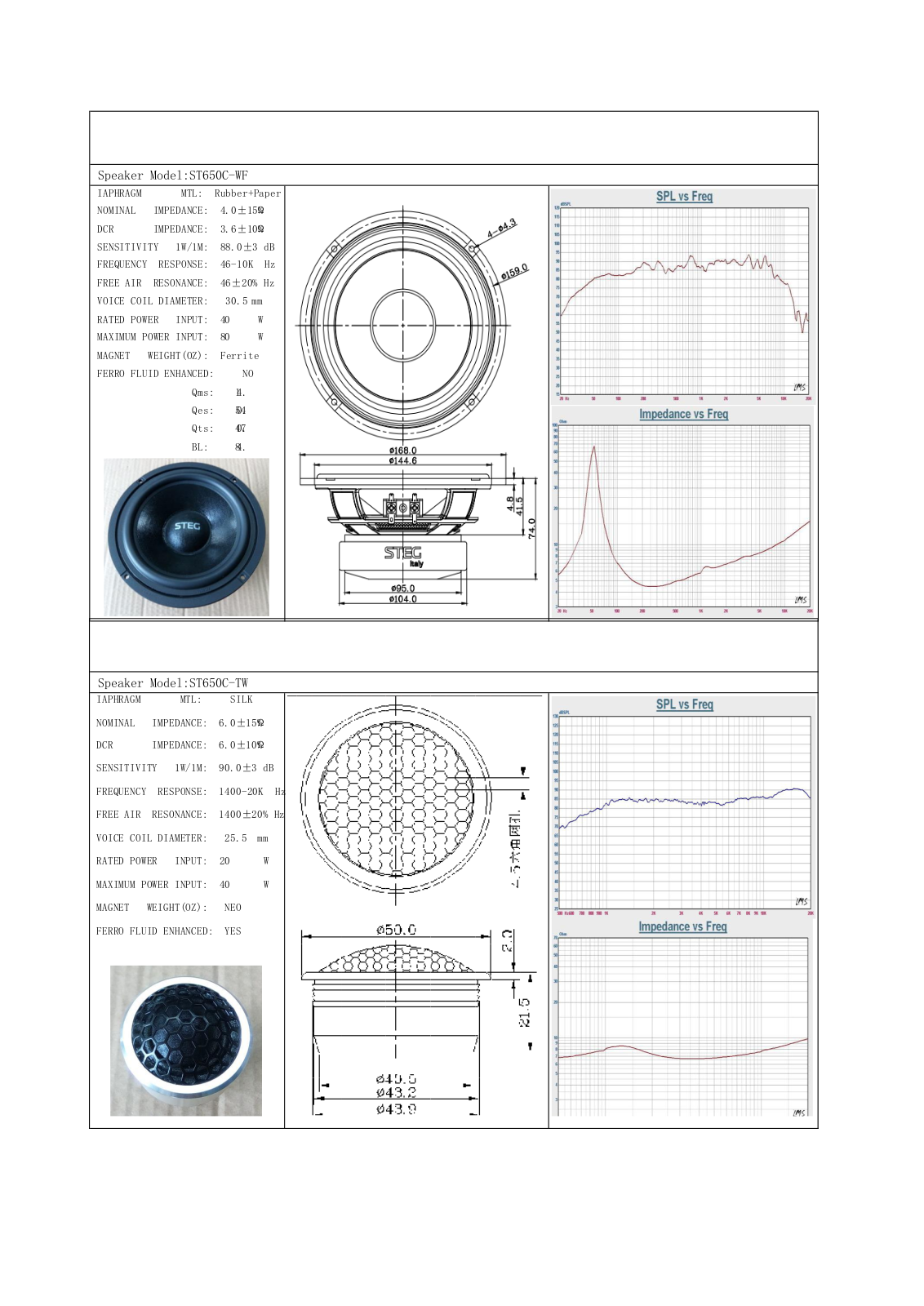

ST 650C
Speaker Model:ST650C-WF
IAPHRAGM |
|
MTL: |
Rubber+Paper |
||
NOMINAL |
IMPEDANCE: |
4.0±15%Ω |
|||
DCR |
|
IMPEDANCE: |
3.6±10%Ω |
||
SENSITIVITY |
1W/1M: |
88.0±3 dB |
|||
FREQUENCY |
|
RESPONSE: |
46-10K |
Hz |
|
FREE AIR |
RESONANCE: |
46±20% Hz |
|||
VOICE |
COIL |
DIAMETER: |
30.5 mm |
||
RATED |
POWER |
INPUT: |
40 |
W |
|
MAXIMUM POWER INPUT: |
80 |
W |
|||
MAGNET |
|
WEIGHT(OZ): |
Ferrite |
||
FERRO FLUID ENHANCED: |
NO |
|
|||
|
|
|
Qms: |
14. |
|
|
|
|
Qes: |
540. |
|
|
|
|
Qts: |
470. |
|
|
|
|
BL: |
84. |
|
Speaker Model:ST650C-TW
IAPHRAGM |
|
MTL: |
SILK |
|
|
|
|
NOMINAL |
IMPEDANCE: |
6.0±15%Ω |
|
|
|||
DCR |
|
IMPEDANCE: |
6.0±10%Ω |
|
|
||
SENSITIVITY |
1W/1M: |
90.0±3 dB |
|
|
|||
FREQUENCY |
|
RESPONSE: |
1400-20K Hz |
|
|
||
FREE AIR |
RESONANCE: |
1400±20% Hz |
|
|
|||
VOICE |
COIL |
DIAMETER: |
25.5 |
mm |
|
|
|
RATED |
POWER |
INPUT: |
20 |
W |
|
|
|
MAXIMUM POWER INPUT: |
40 |
W |
|
|
|||
MAGNET |
|
WEIGHT(OZ): |
NEO |
|
|
|
|
FERRO FLUID ENHANCED: |
YES |
|
|
|
|||
|
|
|
|
|
|
|
|
