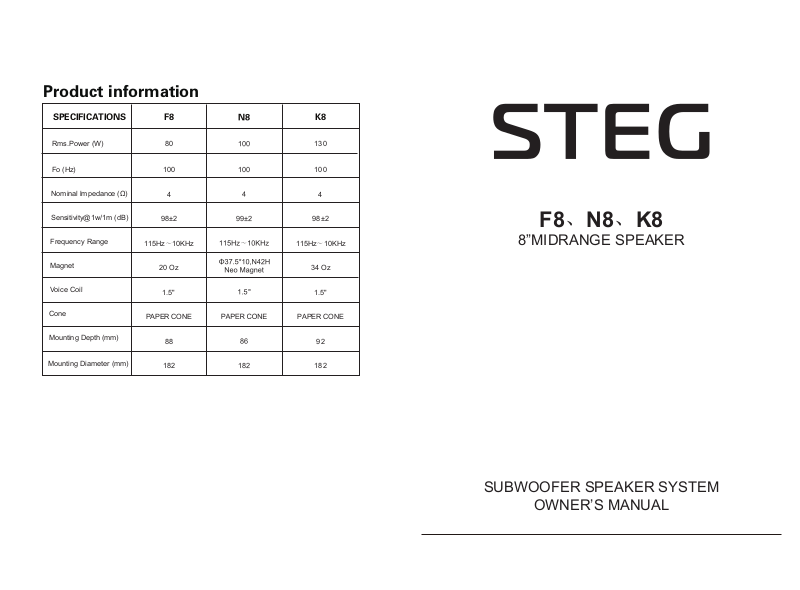

Product information
SPECIFICATIONS
Rms.Power (W)
Fo (Hz)
Nominal lmpedance (Ω)
Sensitivity@1w/1m (dB)
Frequency Range
Magnet
Voice Coil
Cone
Mounting Depth (mm)
Mounting Diameter (mm)
F8
80
100
4
98±2
115Hz～10KHz
20 Oz
1.5"
PAPER CONE
88
182
K8
130
100
4
98±2
115Hz～10KHz
34 Oz
1.5"
PAPER CONE
92
182
F8、N8、K8
8”MIDRANGE SPEAKER
SUBWOOFER SPEAKER SYSTEM
OWNER’S MANUAL
Page 2
Thank you for purchasing a STEG Subwoofer Speaker. It is a
state-of-the-art product specifically designed and engineered for
vehicle use, and has been thoroughly tested to ensure consistent
and reliable performance.
Should you have any questions regarding the installation or
operation of your STEG Subwoofer Speaker, which are not
answered in this manual, please contact your dealer for assistance.
FEATURES
Model: K8
6.5" Subwoofer Speaker
Rms.Power: 130W
Cloth edge paper cone
Dual 4ohm 1.5" Aluminum Voice Coil
Ø207.9 [8.18" ]
Ø176.3 [6.94"]
5.0 [0.197"]
FEATURES
Model: F8
6.5" Subwoofer Speaker
Rms.Power: 80W
Cloth edge paper cone
Dual 4 ohm 1.5" Aluminum Voice Coil
20Oz Magnet Structure
PVC Magnet Cover
FEATURES
Model: N8
6.5" Subwoofer Speaker
Rms.Power: 100W
Cloth edge paper cone
Dual 4ohm 1.5" Aluminum Voice Coil
Φ37.5*10,N42H Neo Magnet
Ø207.9 [8.18" ]
Ø176.3 [6.94"]
Ø207.9 [8.18" ]
Ø176.3 [6.94"]
5.0 [0.197"]
92.5 [ 3.64"]
5.0 [0.197"]
34Oz Magnet Structure
PVC Magnet Cover
96.5 [3.78" ]
PRECAUTIONS
Before making holes, check the mounting space with supplied
template.
To prevent noise pick-up, keep the wiring away from motors,
highvoltage leads and other potential noise sources.
To prevent a short-circuit, keep all wiring away from moving parts
and sharp edges.
Make sure you carefully read and understand the installation
instructions before installing this subwoofer in your vehicle.
90.5 [3.56"]
