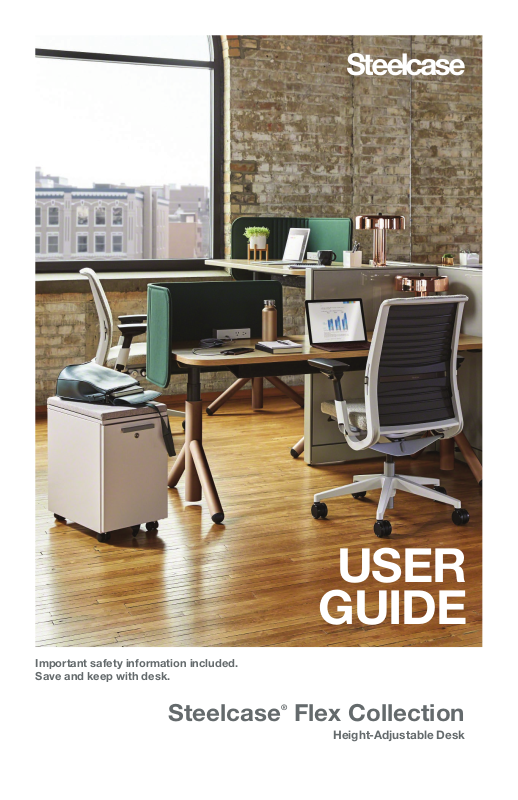

USER
GUIDE
Important safety information included.
Save and keep with desk.
Steelcase® Flex Collection
Height-Adjustable Desk
Crush Hazard – Keep Clear
X
NO CHILDREN
RISK OF SERIOUS INJURY OR DEATH
Raising or lowering desk can trap or crush body parts.
DO NOT OPERATE THIS EQUIPMENT UNLESS PROPERLY TRAINED. Read this guide first.
DO NOT ALLOW USE BY CHILDREN or people unable to understand the risks and to safely adjust desk height.
MAINTAIN >1" (25 mm) GAP ABOVE OBJECTS ON DESK AT MAX HEIGHT, AND BETWEEN DESK AND ADJACENT
OBJECTS. Locate desk, accessories and nearby objects to allow movement of desktop through full range without pulling cords, trapping body parts or colliding with anything (shelves, electrical plugs and cords, door knobs, window sills, storage cabinets, etc.).
DO NOT PLACE FEET OR OTHER BODY PARTS ON CABINETS OR OBJECTS BELOW DESKTOP.
>1"
(25mm)
>1"
(25mm)
>1" |
|
(25mm) |
Max. |
|
|
|
Min. |
DO NOT STAND ON THIS PRODUCT. USE ONLY AS INTENDED.
Regularly inspect for damage or broken parts and loose fasteners (screws, etc.).
If any of these conditions exist, remove from service immediately. Repairs are to be made using only factory authorized parts and methods. For information on furniture maintenance, or to report furniture which requires service, call Steelcase
toll-free at 1.888.783.3522.
FAILURE TO FOLLOW THESE INSTRUCTIONS COULD RESULT IN PROPERTY DAMAGE OR PERSONAL INJURY.
To reduce the risk of burns, fire, electric shock, or injury to persons:
The desk or table shall be positioned near power socket and the plug shall be easily accessible.
When using an electrical furnishing, basic precautions should always be followed, including the following:
1.Read all instructions before using this furnishing.
2.Always unplug this furnishing from the electrical outlet before cleaning or servicing.
3.Use this table only for its intended use as described in these instructions. Do not use attachments not recommended by the manufacturer.
4.Never operate this table if it has a damaged cord or plug, if it is not working properly, or if it has been dropped or damaged.
5.Keep the cord away from heated surfaces.
Products with Polarized Plugs
Fig. 1 Polarized Plug
POLARIZED PLUG INSTRUCTIONS:
To reduce the risk of electrical shock, some furnishings have a polarized plug (one blade is wider than the other) like the plug illustrated in Fig. 1. This plug will fit in a polarized outlet only one way. If the plug does not fit fully in the outlet, reverse the plug. If it still does not fit, contact a qualified electrician to install the proper outlet. Do not change the plug in any way.
INSTRUCTIONS FOR DOUBLE INSULATED PRODUCTS:
No grounding means is provided on a double-insulated product. Nor is a means for grounding to be added to the product. The plug looks like the plug illustrated
in Fig. 1. A double insulated product is marked with the words “double insulation”, “double insulated”, or
.
6.Never drop or insert any object into any opening.
7.Do not use outdoors.
8.For tables not provided with work surfaces, if the obtained work surfaces are not installed according to the assembly instructions, it could cause the product to be unstable. Table may collapse and the electrical components may fail.
9.For loading always put heavier items at the bottom and not near the top in order to help prevent the possibility of the furnishing tipping over.
Products with Grounded Plugs
Fig. 2 Grounding Methods
Grounded
Outlet
Grounded
Grounding Pin Outlet Box
(sketch A)
GROUNDING INSTRUCTIONS:
Some products must be grounded. Connect these types of appliances to a properly grounded outlet in accordance with all local codes and ordinances.
For products sold in North America and other 120V regions: the product is for use on a nominal 120-V circuit. These products use a grounded plug that looks like the plug illustrated in sketch A in Fig. 2. Make sure that the product is connected to an outlet having the same configuration as the plug. No adapter should be used with this product.
WARNING - RISK OF FIRE AND SHOCK, USE ONLY TYPE SJT 18 AWG CORD
PLUG ILLUSTRATION DISCLAIMER: Illustrations shown here may not match your product. Depending on your region, the plug pin size and shape may change.
HEIGHT ADJUSTMENT CONTROLLERS
For a visual demonstration, please visit youtube.com/steelcasetv
Simple Touch Controller
OPERATING THE CONTROLLER
The desk adjusts via the simple touch controller.
•• Lift up or press down on the controller to reach the desired desk height.
•• The desk will continue to move up or down until the controller is released or the minimum or maximum height is reached.
Note: The user must continuously lift up or press down the controller in order for the desk to move.
Active Touch Controller
OPERATING THE CONTROLLER
The desk adjusts via the active touch controller.
•• Lift up or press down on the controller to reached the desired desk height. The display will show the current height of the desk.
•• To switch to a stored height in memory, tap twice on the controller in quick succession in the direction you want the desk to move. The desk will move up or down until it has reached the stored height.
•• Or when lifting or pressing down on the controller, the desk will pause at the stored preset. Release the controller to stop at the stored height.
Note: To bypass stored heights, continue to lift or press down. The desk will pause
briefly before continuing until the minimum or maximum height is reached.
Note: To stop the desk from traveling to the stored height, lift or press down on the controller.
Note: For a visual demonstration, please visit youtube.com/steelcasetv
This controller allows the desk to move to a saved height without continuously touching the controller. Be sure no people or objects are in the path of the desk. Never allow children to operate this desk as injury or property damage could occur.
