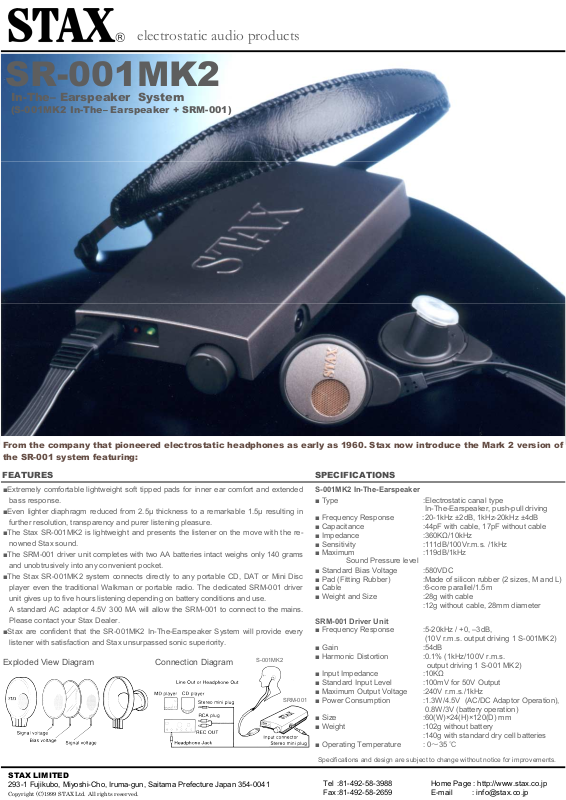

Stax SR-001 Mk2 Brochure

electrostatic audio products

SR-001MK2

In-The– Earspeaker System

(S-001MK2 In-The– Earspeaker + SRM-001)

From the company that pioneered electrostatic headphones as early as 1960. Stax now introduce the Mark 2 version of
the SR-001 system featuring:

FEATURES

■Extremely comfortable lightweight soft tipped pads for inner ear comfort and extended
bass response.

■Even lighter diaphragm reduced from 2.5µ thickness to a remarkable 1.5µ resulting in
further resolution, transparency and purer listening pleasure.

■The Stax SR-001MK2 is lightweight and presents the listener on the move with the re­nowned Stax sound.

■The SRM-001 driver unit completes with two AA batteries intact weighs only 140 grams
and unobtrusively into any convenient pocket.

■The Stax SR-001MK2 system connects directly to any portable CD, DAT or Mini Disc
player even the traditional Walkman or portable radio. The dedicated SRM-001 driver
unit gives up to five hours listening depending on battery conditions and use.
A standard AC adaptor 4.5V 300 MA will allow the SRM-001 to connect to the mains.
Please contact your Stax Dealer.

■Stax are confident that the SR-001MK2 In-The-Earspeaker System will provide every
listener with satisfaction and Stax unsurpassed sonic superiority.

Exploded View Diagram

STAX LIMITED

293-1 Fujikubo, Miyoshi-Cho, Iruma-gun, Saitama Prefecture Japan 354-0041

Copyright (C)1999 STAX Ltd. All rights reserved.

Connection Diagram

S-001MK2

SRM-001

SPECIFICATIONS

S-001MK2 In-The-Earspeaker

■ Type :Electrostatic canal type
In-The-Earspeaker, push-pull driving

■ Frequency Response :20-1kHz ±2dB, 1kHz-20kHz ±4dB

■ Capacitance :44pF with cable, 17pF without cable

■ Impedance :360KΩ/10kHz

■ Sensitivity :111dB/100Vr.m.s. /1kHz

■ Maximum :119dB/1kHz

■ Standard Bias Voltage :580VDC

■ Pad (Fitting Rubber) :Made of silicon rubber (2 sizes, M and L)

■ Cable :6-core parallel/1.5m

■ Weight and Size :28g with cable

:12g without cable, 28mm diameter

SRM-001 Driver Unit

■ Frequency Response :5-20kHz / +0, –3dB,

■ Gain :54dB

■ Harmonic Distortion :0.1% (1kHz/100V r.m.s.

■ Input Impedance :10KΩ

■ Standard Input Level :100mV for 50V Output

■ Maximum Output Voltage :240V r.m.s./1kHz

■ Power Consumption :1.3W/4.5V (AC/DC Adaptor Operation),

0.8W/3V (battery operation)

■ Size :60(W)×24(H)×120(D) mm

■ Weight :102g without battery

:140g with standard dry cell batteries

■ Operating Temperature : 0～35 ℃

Sound Pressure level

Specifications and design are subject to change without notice for improvements.

Tel :[phone] Home Page : http://www.stax.co.jp
Fax :[phone] E-mail : [e-mail]

(10V r.m.s. output driving 1 S-001MK2)

output driving 1 S-001 MK2)
