RESIDENTIAL WATER HEATERS
REPLACEMENT PARTS LIST
MODELS: GP6 50 YTPDT
GP6 50 HTPDT
Item Description Kit Number
1 Display Board 9006412005
2 Power Switch 9005980205
3 Plastic Top 9005978205
4 Plastic Enclosure 9006414005
5 Display Label 9006416005
6 T&P Valve 9000728015
7 Drain Valve 9003906015
8 T&P Outlet Tube (Canadian Models Only) 700340-004
State Water Heater Parts Fulllment • phone: 1-800-821-2017 • www.statewaterheaters.com
PRINTED 0309 197843-002
TOP COVER CONTROL ASSEMBLY
Item Description 100/101 Series
1 Controller 9006420005
2 Switch-Blocked Outlet 9006282015
3 Switch-Blocked Inlet 9005972215
4 Switch-Fan Prover 9004586215
5 Upper Temperature Probe 9004238215
6 Anode - Alum. 9003892005
6A Anode - Mag. 9001829005
7 Inlet Tube 9006422005
8 Inlet Nipple 5" DHT 9003936015
9 Anode - Outlet Alum. 9006827005
9A Anode - Outlet Mag. 9004333005
Standard hardware items may be purchased locally.

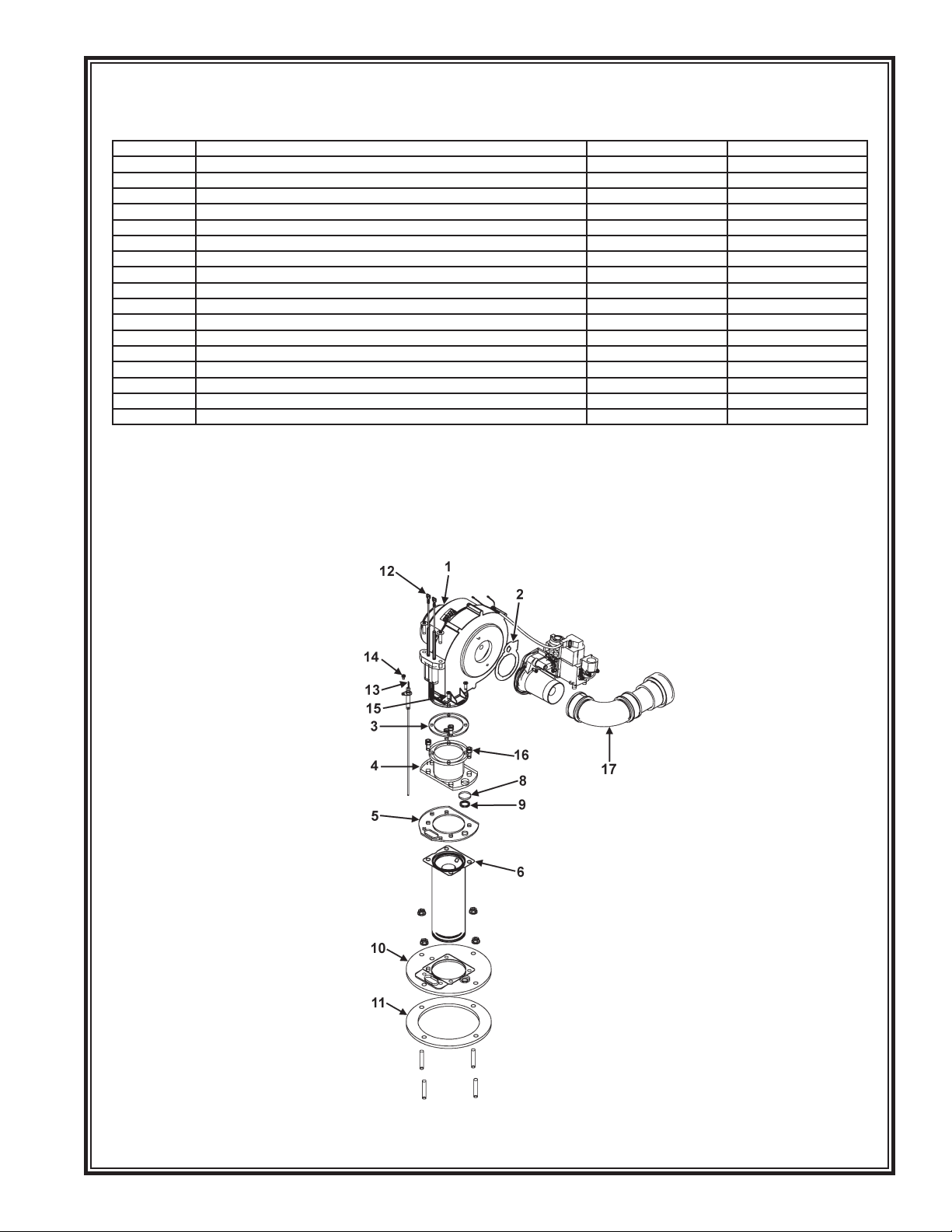

BLOWER/BURNER ASSEMBLY
Item Description 100 Series 101 Series
1 Blower 9006423005 9006423005
2 Venturi Gasket 197789-000 197789-000
3 Blower Gasket 197618-000 197618-000
4 Blower Adapter 197607-000 197607-000
5 Burner Gasket 197257-000 197257-000
6 Burner Assembly 9006424005 9006424005
7 Gas Valve/Venturi Assembly 9006425005 9006426005
8 Observation Window 9006102215 9006102215
9 Observation Window Gasket 9006103215 9006103215
10 Burner Flange 197611-000 197611-000
11 Burner Flange Gasket 194817-000 194817-000
12 Igniter 9006101205 9006101205
13 Flame Sensor Rod 9006106205 9006106205
14 Machine Screw* --------- --------15 Socket Buttonhead Cap Screw* --------- --------16 Socket Head Cap Screw* --------- --------17 Inlet Assembly 198107-000 198107-000
* Standard hardware items may be purchased locally.
ENVELOPE WITH PARTS
Item Description 100/101 Series
1 Vent Kit with All Components 9006427005
1A Vent Kit with All Components ULC S636 Certied 9006784005
2 Wall Plate 4" Included in Kit
3 Wall Plate 3" Included in Kit
4 Wall Plate 2" Included in Kit
5 Wire Screen 4" Included in Kit
6 Wire Screen 3" Included in Kit
7 Intruction Sheet Included in Kit
8 Instruction Tag - Wire Screen f/e 4" Included in Kit
9 Instruction Tag - Wire Screen f/e 3" Included in Kit
10 Vent Terminal Included in Kit

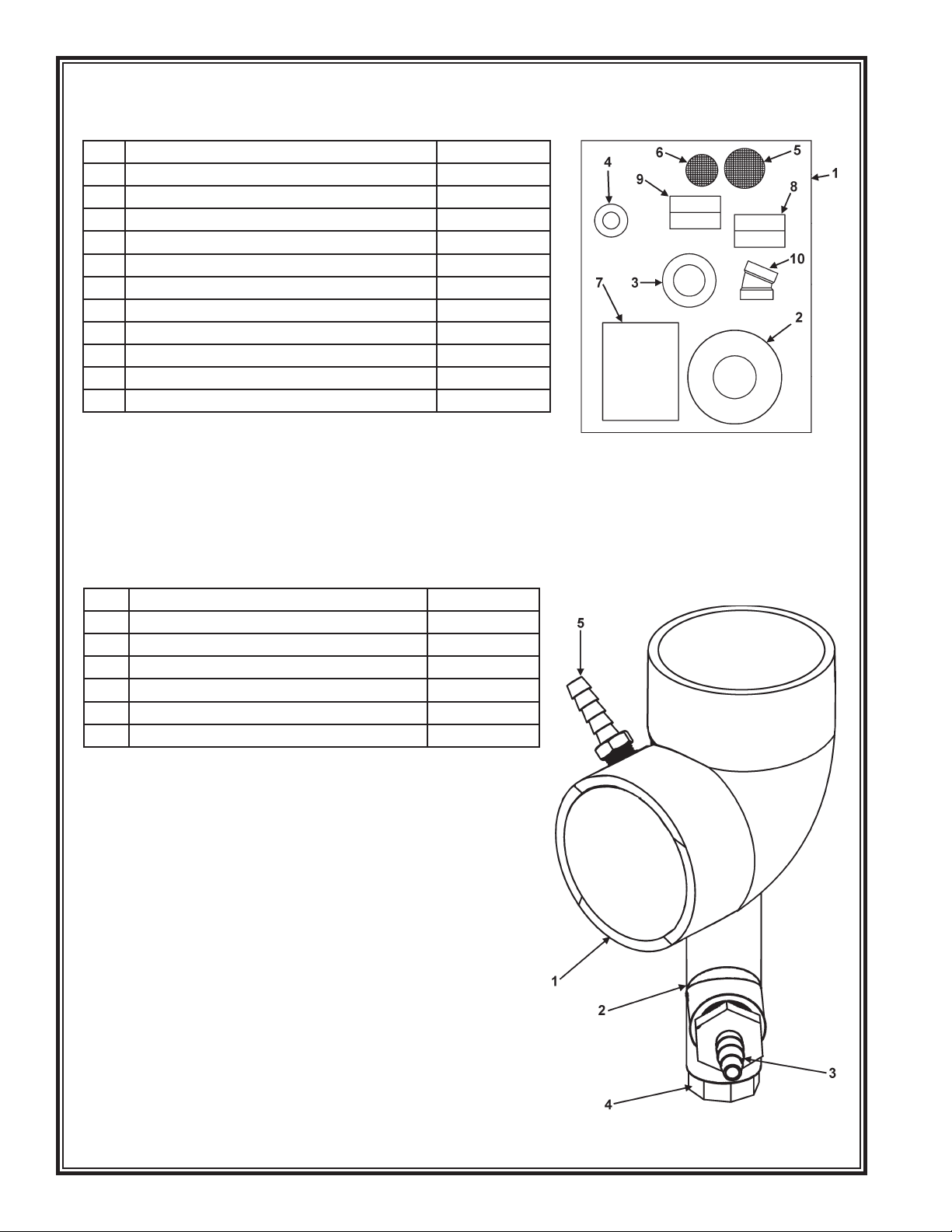

EXHAUST ELBOW ASSEMBLY
Item Description 100/101 Series
1 Exhaust Elbow Assembly 9006428005
1A Exhaust Elbow Assembly ULC S636 Certied 9006785005
2 Tee - 3/4" NPT Included in Kit
3 Hose Adapter Included in Kit
4 Hex Plug Included in Kit
5 Hose Barb Included in Kit
