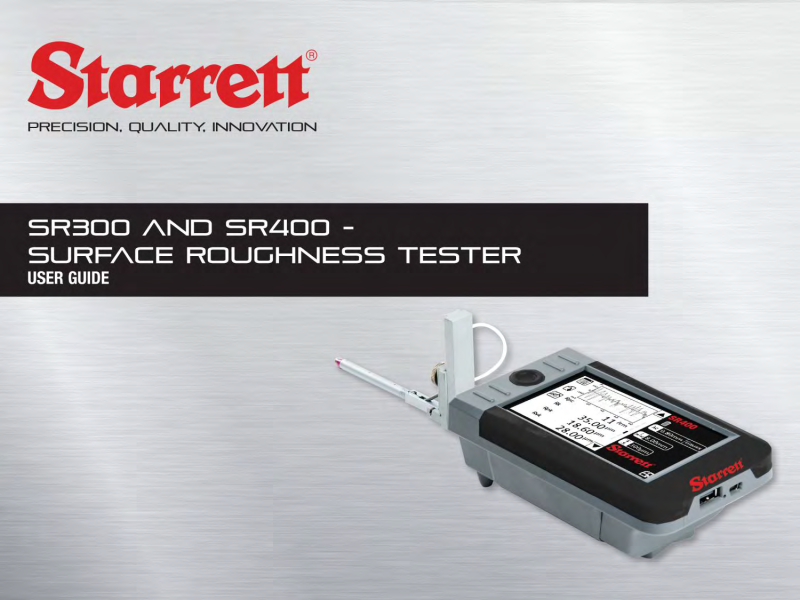

SR300 and SR400 Surface Roughness Tester
SR300 and SR400 Overview
Talyprofile
Pick-Ups
Starrett Products
Instrument Overview
SR300 and SR400 Accessories
System Information
Instructions
SR300 and SR400 Surface Roughness Tester
SR300 AND SR400 OVERVIEW
SR300 and SR400 Surface Roughness Tester
SR300 and SR400 Surface Roughness Tester
These new editions of Starrett Surface Roughness Testers incorporate a large
display with the simplest of menu structures and the most up-to-date
parameters. Their mechanical rigidity and styli have a firm reputation for
reliable and repeatable surface finish measurements across a wide range of
applications.
The SR Surface Roughness Tester comes in two variants: the SR300 is our
standard offering, while the SR400 offers extended measurement range and
analysis capability.
The SR300 and 400 are battery powered and offers total portability with a
built-in memory capacity (holds up to 100 readings). The instrument can be
used either freestanding (on horizontal, vertical or even inverted surfaces) or
with bench mounted fixtures for batch measurement and laboratory
applications.
SR300 and SR400 Surface Roughness Tester
SR300 and SR400 Surface Roughness Tester
Durable
• High impact rubberized molding IP44 rated
• Recessed, Mylar protected high durability
touch screen
• Solid steel drive mechanism
• Robust anti-wear gears and bearings
• Heavy-duty Li-Poly battery
– 2000 measurements
– 5000 hours standby
Versatile
• Unique 50mm stylus lift/lower
– Simple setup on any surface
• Multiple pickups available
– Small bore, groove, o-ring, etc.
• Measure in any orientation
– Even upside down
• Evaluation length up to 25mm
• Anti-slip V-feet for flat or curved parts
SR300 and SR400 Surface Roughness Tester
SR300 and SR400 Surface Roughness Tester
User-Friendly
• 4.3” daylight readable display
• Operation in any orientation
– Settings always on display
• Colour touch screen interface
– Up to 7 results on each page
• Single button measurement
• InstantOnTM < 1 second restart
Connectivity
• Standard USB Charging (PC or Mains)
• Storage of results internal or USB key
– 100 internal, >10,000 on USB
• USB to PC for advanced analysis
– Includes free Talyprofile software
• USB remote Settings and Measurement
• Standard USB Printing (ESC/POS)
SR300 and SR400 Surface Roughness Tester
SR300 and SR400 Surface Roughness Tester
Measuring Flat or
Cylindrical Surfaces
Lift Lower Mechanism
0 to 60mm of Height
Extended Pick-Up Measure
Right-Angles
Built in Memory
as Standard
Traverse Length = 25mm
SR300 and SR400 Surface Roughness Tester
SR300 and SR400 Surface Roughness Tester
Function Button
• Turn the Device On
• Make a Measurement
USB Mini Port
• Connect to PC
• Charge Device
Touch Screen
USB Type A Port
• Connect Printer
• Connect External Memory
SR300 and SR400 Surface Roughness Tester
Parameter Options
Fast Measurement
Intuitive Menu Structure
Unique Stylus Lift Mechanism for Total Flexibility
Long Traverse Length and Extended
Comprehensive Range of Accessory and Pick
Storage of Up
Powerful Software Option
World Class Technical Support
SR300 and SR400 Surface Roughness Tester
to Suit Your Application
Cycle
Pick-Up Reach
-Up Options
to 100 Readings
SR300 and SR400 Surface Roughness Tester
INSTRUMENT OVERVIEW
Instrument Overview
SR300 and SR400 Surface Roughness Tester

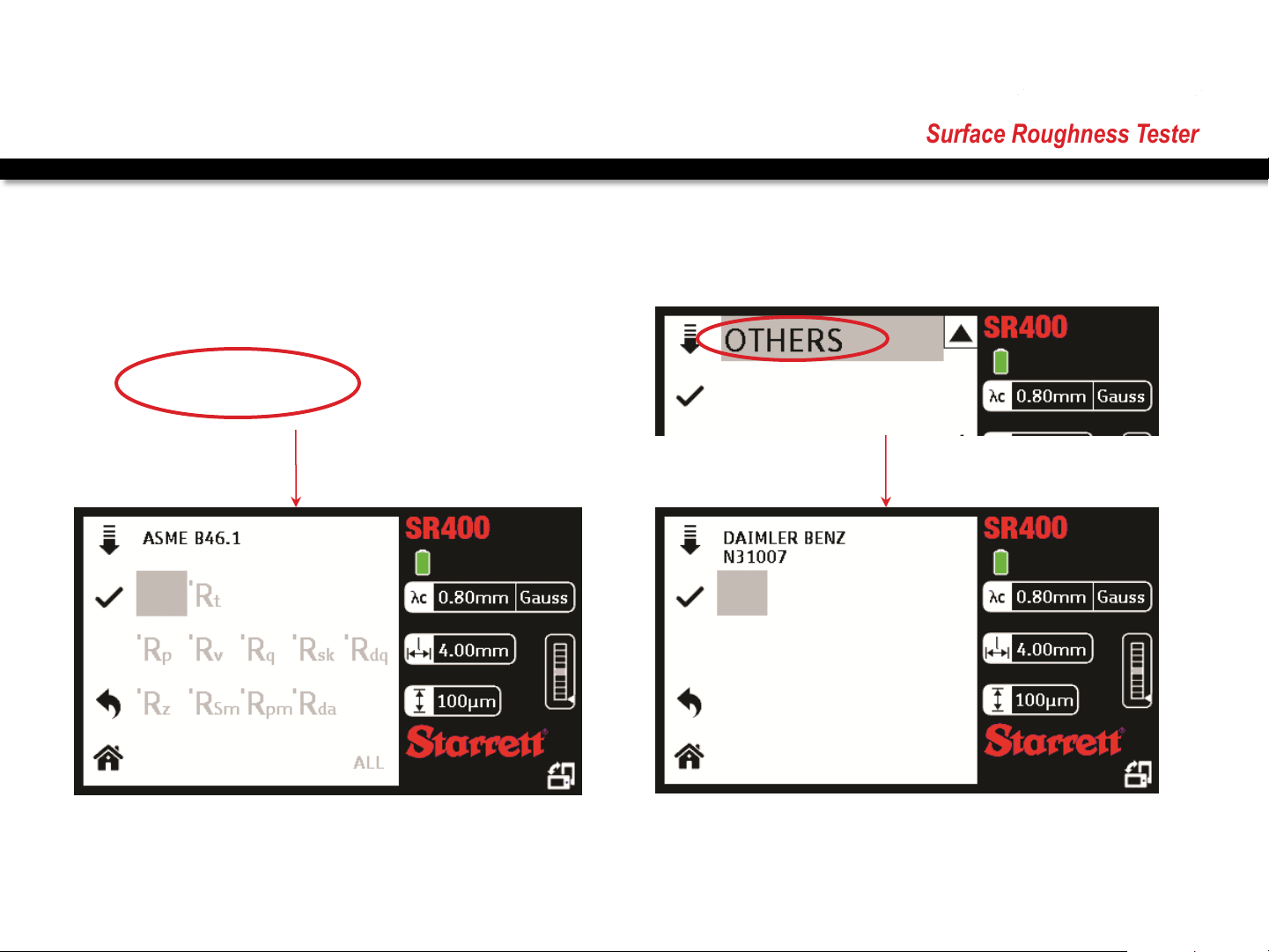

Parameter Options to Suit Your Application
Amplitude Parameters
Measures the vertical characteristics
of the surface deviations:
• Ra (Arithmetic Mean Deviation)
• Rsk (Skewness)
• Rz (Average peak to valley
height)
• Rt (Total height of profile)
• Rp (Max profile peak height)
• Rz1max (Max peak to valley
height)
Spacing Parameters
Measures the horizontal
characteristics of the surface
deviations:
• RPc (Peak count)
• RSm (Mean width of profile
elements)
The above parameters cover the most common requirements to check
lubrication, feed rates, stresses, friction and wear properties.
Additional parameters can be analysed with the addition of Talyprofile software.
The SR300/SR400 can calculate up to 22 parameters
according to your measurement application including:
Hybrid Parameters
Combinations of spacing and
amplitude parameters:

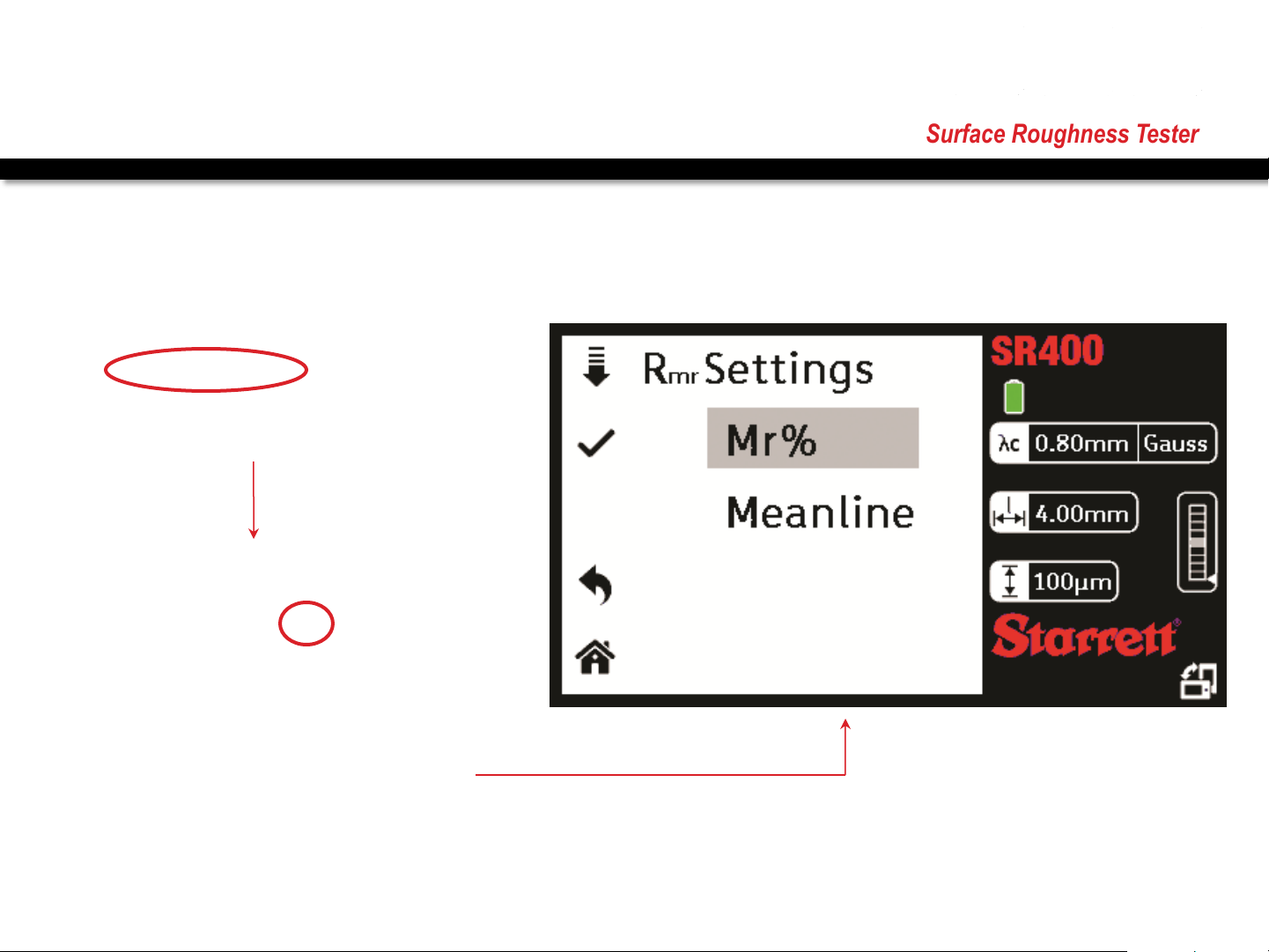

• Rmr (Material Ratio)
• Rda - R Delta a (Arithmetic
Mean Slope)
Instrument Overview
SR300 and SR400 Surface Roughness Tester
Fast Measurement Cycle
The SR300/SR400 incorporates the
latest electronics for very fast analysis results are calculated and displayed
even before the traverse unit returns.
This fast processing, combined with
intuitive menu buttons, greatly reduces
measurement cycles.
Powerful Software Options
The SR300/SR400 includes Type A
USB and USB mini ports which allow
connection to a printer or exportation of
results to a PC for further analysis using
the optional Talyprofile software. By
setting the SR300/SR400 to 'Data
Dump' mode, measurements can be
instigated directly from the Talyprofile
software.

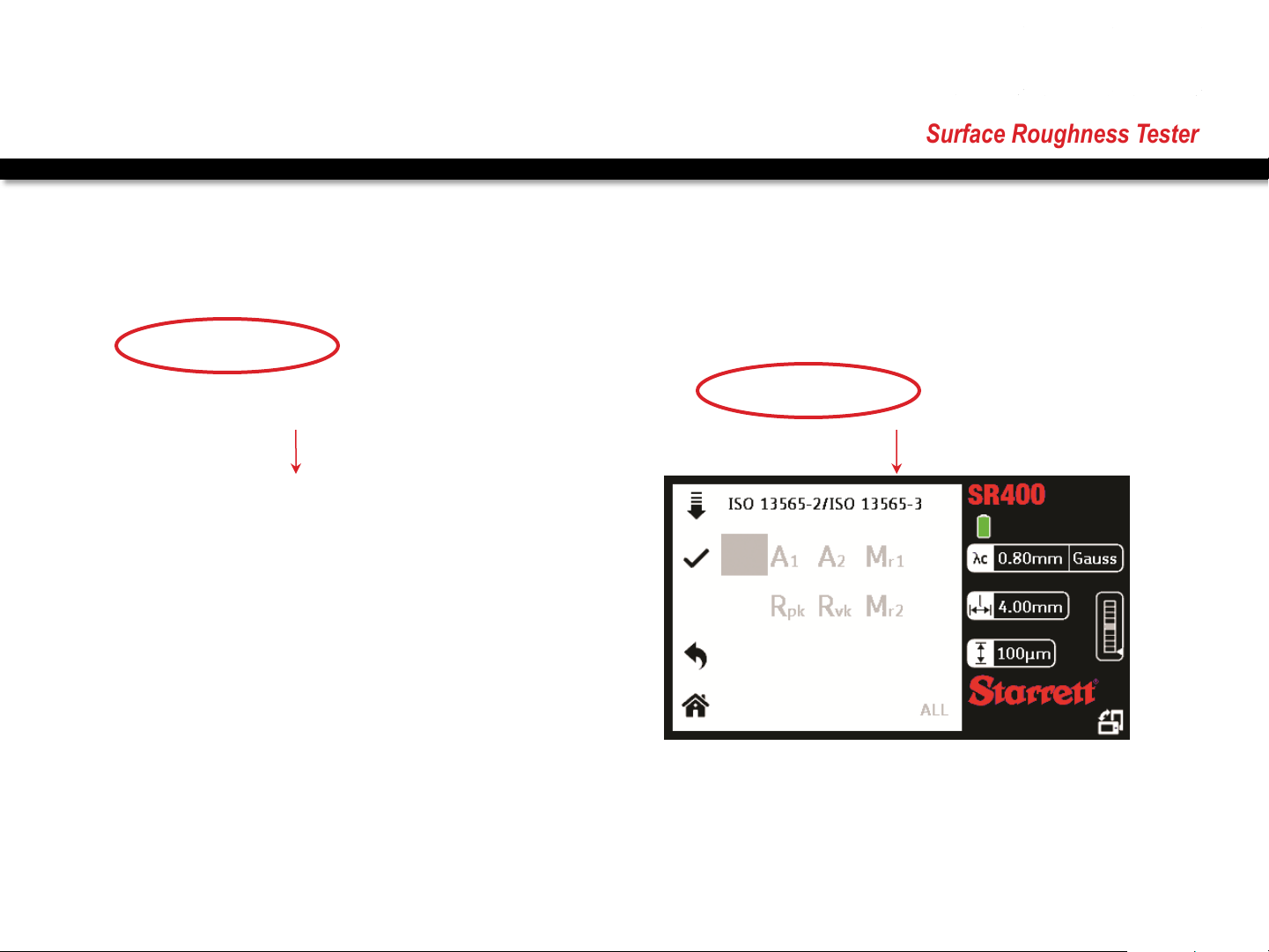

Intuitive Menu Structure

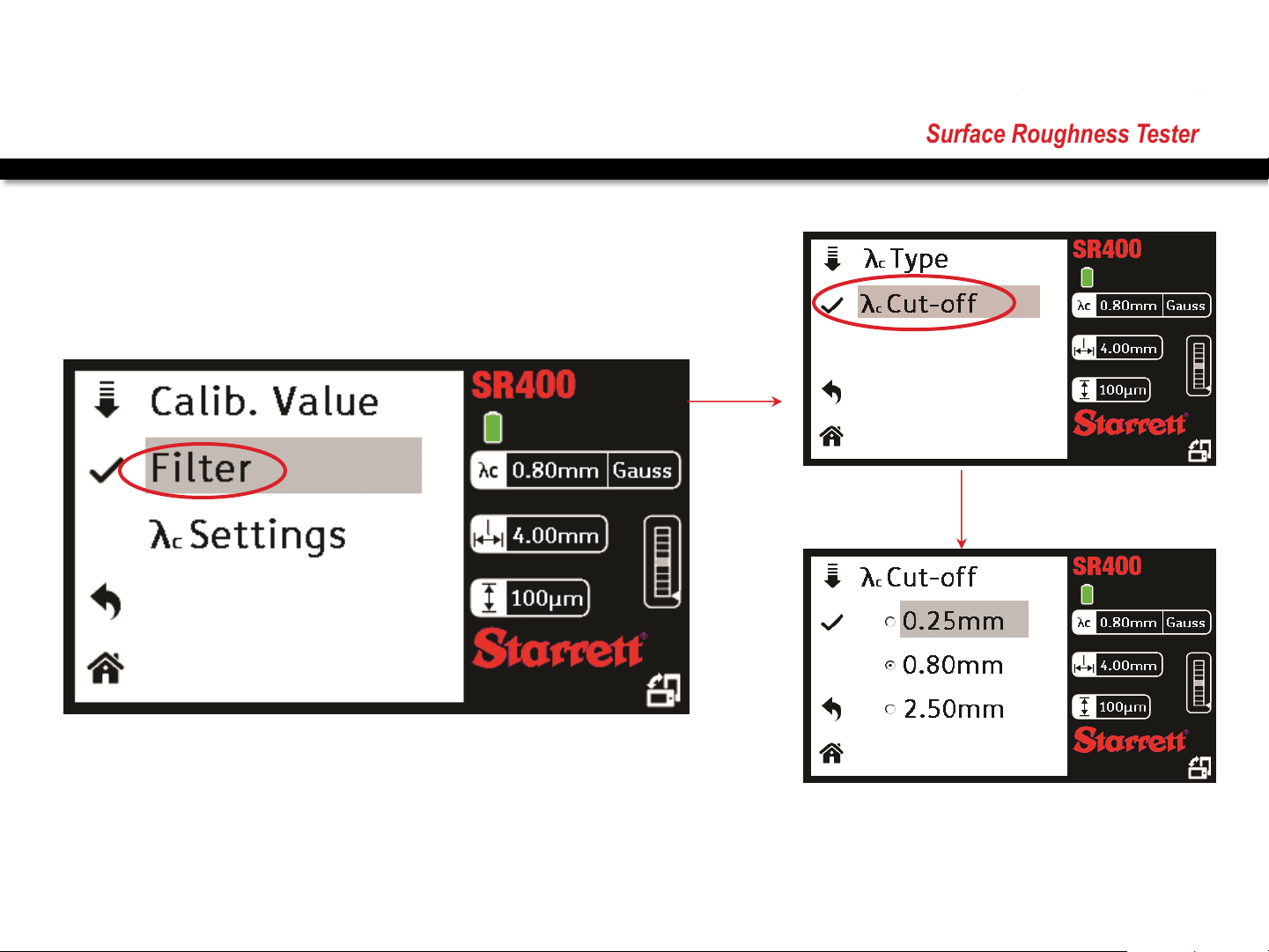

The SR300/SR400 incorporates a large LCD screen which allows full
menu and measurement results to be displayed. Using only two buttons
the user can scroll through the menus and make selections intuitively
before pressing the MEASURE key. All selections are saved for future
measurements. All the measurement criteria and results are displayed
clearly on the screen ready to print or export to a PC.
Instrument Overview
SR300 and SR400 Surface Roughness Tester
Unique Stylus Lift Mechanism
The SR300/SR400 has a uniquely engineered stylus lift
mechanism which allows a vertical adjustment of 50mm and
rotation of the pick-up to different measuring positions, including
right angle or inverted measurements. These adjustments to the
height and position of the gauge allow areas and features of a
part to be easily measured without additional fixtures. This
feature saves the operator a huge amount of set up time and
allows total flexibility. Typical applications where the stylus lift is
invaluable include the measurement of steps, bores, grooves and
lands.
Built-in Memory/Storage
No PC or printer cables in your way while you
measure – the SR300/SR400 is now truly
portable: Take your surface roughness tester
wherever you need to take measurements,
save as many batch readings as you need
(max 100 measurements) then download to
your PC or printer at your convenience.
External Memory
Storage is expandable with a standard
USB stick. The 4 GB USB stick provided
with the unit is capable of storing over
64,000 screen shots and/or
measurements
Instrument Overview
SR300 and SR400 Surface Roughness Tester
Long Traverse Length and Extended
Pick-Up Reach
The SR300/SR400 can traverse up to 25mm (or as little
as 0.25mm) depending on your component. In addition,
the stylus length and pick-up configuration give a long
reach, making it an ideal instrument for features such
as large and narrow bores. Optional extension rods
extend the pick-up further.
Comprehensive Range of Accessories
and Pick-Ups
Starrett has developed an extensive range of pick-ups
and accessories to suit the varied measurement needs
of our customers. In addition to the pick-ups shown on
page 6 our applications department regularly designs
and manufactures pick-ups and fixtures for specific
requirements.
SR300 and SR400 Surface Roughness Tester
TALYPROFILE
Talyprofile
Advanced Surface Finish Analysis
Talyprofile is a dedicated software package
designed for use with workshop or laboratory
instruments.
Three versions are available:
• Talyprofile “Silver” has all functions typically
used for a shop floor inspection.
• Talyprofile “Gold” has complete laboratory
analysis functions.
• Talyprofile “Lite” is a free download, available
SR300 and SR400 Surface Roughness Tester
from ‘talyprofile.com’
• Click the button below to open the website.
Talyprofile.com
Talyprofile
General Features
Modules
Acquisition interface
Basic set of file formats
Can be used without
V6
Desktop publishing and template
File
Manage parametric profiles
V6
Management of non
Minidocs
V5
Series of profiles
Statistics
V5
Table of results
V5
Template of document on all data
Third party plug
Tolerance limits
SR300 and SR400 Surface Roughness Tester
Gold Silver
for workshop profilers
USB dongle
formats of 2D profilers
-measured points
enabled
enabled
-ins
document
of a folder
Lite
CT ACT
CT ACT
ACT
STA
STA
STA
Key
Included
Available in Optional Module(s)
STA Statistics
CT Contour
ACT Advanced Contour
(pass/fail)
Talyprofile
Interface
Modules
Analysis workflow
Document pages
File explorer and favorite folders
Interactive bank
Languages:
Masterpages
Operators on Profiles
Modules
Filtering
Filtering by direct edition of the FFT
Filtering by threshold of the FFT
Form
Join two profiles
Leveling
Resampling
Retouch profile
Symmetries
Thresholding
Zoom
SR300 and SR400 Surface Roughness Tester
Gold Silver Lite
V5
viewer V5
V5
of studiables
EN, FR, DE, ES, IT, PL, JP, CH, KR
V5
Gold Silver Lite
V5
removal
points
Key
Included
Available in Optional Module(s)
STA Statistics
CT Contour
ACT Advanced Contour
Talyprofile
Studies on Profiles
Modules
Abbott
Advanced options
Area
Averaged
Contour
Distance measurement
Fractal analysis
Frequency Spectrum
Graphical
Morphological envelopes
Profile curve
Profile
R&W motifs (ISO
Rk
Roughness and waviness profile curves
Step height measurement
Waviness
SR300 and SR400 Surface Roughness Tester
Gold Silver Lite
-Firestone curve/depth distribution
in contour analysis V6
of a hole/peak
power spectrum density
analysis CT ACT
study of Rk parameters
parameters study
12085)
calculation profiles
ACT
Key
Included
Available in Optional Module(s)
STA Statistics
CT Contour
ACT Advanced Contour
parameters of groups A and/or B
Talyprofile
Parameters
Silver
Modules
2D (P+R)
2D (P+R) parameters, Group B: old parameters
2D parameters, Group C: automotive
Operators
Modules
Profile
Studies on Series of Profiles
Modules
Profile
SR300 and SR400 Surface Roughness Tester
Gold
parameters, Group A: ISO 4287
on Series of Profiles Gold Silver
extraction
Gold Silver
curves of the series
Lite
Lite
Lite
Key
Included
Available in Optional Module(s)
STA Statistics
CT Contour
ACT Advanced Contour
Talyprofile
Operators
Modules
Profile
Studies on Surfaces
Modules
Pseudo
Studies of the Statistical Module
Modules
Box plot
V5
Histogram
V5
Scatter plot
V5
Table of statistical
V5
Trend plot
V5
SR300 and SR400 Surface Roughness Tester
on Surfaces Gold Silver
extraction
Gold Silver
-color image
Gold Silver
parameters
Lite
Lite
Lite
STA
STA
STA
STA
STA
Key
Included
Available in Optional Module(s)
STA Statistics
CT Contour
ACT Advanced Contour
Talyprofile
SR300 and SR400 Surface Roughness Tester
Time-Saving Templates
A 'template' can be created whereby a
sequence of analytical functions can be
saved and applied to future
measurements, turning detailed
reporting tasks into routine documents.
Full Compatibility
Surface finish results from other Starrett
surface roughness instruments can be
imported to Talyprofile software,
allowing a uniform report style to be
used throughout your workshop or
Desktop Publishing Facility
Talyprofile offers a comprehensive desk top publishing function which
allows professional presentation of measurement results and profiles.
Graphs, profiles and results can be arranged and printed from within the
Talyprofile software or copied into other word-processing documents
giving complete flexibility in reporting.
laboratory.
Talyprofile
SR300 and SR400 Surface Roughness Tester
Talyprofile Parameters
Roughness Parameters
Obtained by Filtering: Ra, Rq, Rt, Rp, Ry, Rku, Rsk, RSm, Rz,
RΔq, RTp, RHTp, Rlo, Rλq, RPC, RzJIS, R3z.
Waviness Parameters
Obtained by Filtering: Wa, Wq, Wt,Wp, Wv, Wku, Wsk, WSm,
Wz, WzJIS, Wλq, WΔq, WTp, WHTp, WLo, WPC, W3z.
(only with Gold version and instruments with straightness datum)
Parameters on the Raw Profile
Unfiltered: Pa, Pq, Pt, Pp, Pv, Pku, Psk, PSm, Pz,
PΔq, Pλq, PTp, PHTp, PLo, PPc.
Parameters Obtained by Double Filtering
DIN 4776: Rk, Rpk, Rvk, MR1, MR2, A1, A2, Rvk.
(only with Gold version)
Parameters Obtained by the Motifs Method
"R&W": R, AR, Pt, Rx, SR, SAR, Nr, Kr, W, AW, Wte,
Wx, SW, SAW, Nw, Kw, Rke, Rpke, Rvke, Trc, HTrc.
(only with Gold version
Talyprofile
SR300 and SR400 Surface Roughness Tester
Outstanding Graphics
The software is visually advanced and provides clear
on screen profile images. Talyprofile allows the user to
take a basic measurement and create a full
measurement report using the software's detailed
analysis options and desktop publishing function
In Depth Analysis
Profiles can be levelled and zoomed to remove unwanted
features or defects from the analysis. Distance
measurement between features and areas of a profile are
easily implemented and the information can be displayed
graphically and numerically. Step height and the area of a
hole or peak can also be displayed.
SR300 and SR400 Surface Roughness Tester
SR300 AND SR400 ACCESSORIES
SR300 and SR400 Accessories
USB Thermal Printer
Cat. No. SR-112-4570
Compact and highspeed 60mm
(24in)/second. Includes USB lead and
International Power Supply Outputs
settings, results, and high resolution
graph.
SR300 and SR400 Surface Roughness Tester
SR300 and SR400 Accessories
SR300 and SR400 Surface Roughness Tester
Support Stand
Cat. No. SR-112-1517
With 4 degrees of freedom. Max measuring height of
430 mm and a range of 115 mm at a horizontal reach of
305–420 mm.
Column and Stand
Cat. No. SR-112-2693
Granite base (400 x 250 mm) with manually operated
column providing adjustment height of 260 mm
SR300 and SR400 Accessories
SR300 and SR400 Surface Roughness Tester
Extension Rod
Cat. No. SR-112-1510 (200mm length)
Provides extension to pick-up for measurements in
deep holes. Longer extension rods can be made to
order.
Plug Adaptors
Cat. No. SR-112-4545
International USB charger
• 5V 1A 110-240VAC
• 50/60Hz
Recharges SR300/SR400 in 4 hours.
SR300 and SR400 Accessories
Height Transfer Gage
Cat. No. 252Z-14
Clamp
Part No. PT99560
Clamp to attach SR300 and SR400 to
252 Height Transfer Gage
SR300 and SR400 Surface Roughness Tester
SR300 and SR400 Surface Roughness Tester
PICK-UPS
Pick-Ups
SR300 and SR400 Surface Roughness Tester
Starrett has developed an extensive range of pick-ups to suit the varied measurement needs of our customers. In addition
to the pick-ups shown below our applications department regularly design and manufacture pick-ups for specific
requirements.
Standard Pick-Up
Cat. No. SR-112-1502
For general surface roughness measurement. Also
available with 10μm (400μin) tip radius. (code 112-1503)
Small Bore Pick-Up
Cat. No. SR-155-P28495
For general use in small bores, grooves and on narrow
surfaces.
Pick-Ups
SR300 and SR400 Surface Roughness Tester
Right Angle Pick-Up
Cat. No. SR-112-1505
For measurement at right angles to the direction of
traverse.
Recess Pick-Up
Cat. No. SR-112-1506
For recesses to a depth of 5.7mm (0.23in). A 2μm tip
radius version is available (code 112-2672). (Also
available for 25mm depth.)
Technical Specifications and Dimensions
SR300 and SR400 Surface Roughness Tester
SYSTEM INFORMATION
Technical Specifications
SR300 and SR400 Surface Roughness Tester
Technical SR300 SR400
Languages Basic English, French, German, Italian, Spanish
Extended
Asian
Data Output On-Screen Up to 7 results per page, selectable on-screen graph with XZ axis
Printer Output settings, results and high resolution profile graph
PC Connection Full data analysis with Talyprofile
Data Storage Internal 100 measurement results, 1 raw profile
USB (4GB supplied) >39,000 raw profiles, up to 100,000 results per batch (>70 batches)
PC Connection Unlimited data storage
SPC/Stats Internal Optional Min, Max, Mean, StdDev of stored results
USB (4B supplied) Optional ASCII export o fall results for SPC
PC Connection Full SPC and tolerancing of all parameters using Talyprofile software
Battery Charger USB 5v 1A 110-240VAC 50/60Hz
Charging Time 4 hours
Battery Life 2,000 measurements
Standby Time 5,000 hours
InstantOn Max 1 sec from standby to ready to measure
Auto Sleep Function 30 sec – 6 hours
Technical Specifications
Component Capacity
SR300
SR400
Physical Specifications
Weight Including Pickup
0.5
IP Rating
None
IP43
Power Source
Li Poly
Operating Conditions
Temperature
5
Humidity
0
Storage Conditions
Temperature
0
Humidity
0
SR300 and SR400 Surface Roughness Tester
Kg (1.1lbs)
rechargeable battery
- 40°C (41-104°F)
-80% non-condensing
-50°C (32 - 122°F)
– 90% non-condensing
Dimensions
SR300 and SR400 Surface Roughness Tester
Measurement Capability SR300 SR400
Gage Range 200µm, 100µm, 10µm 400µm, 100µm, 10µm
Resolution 100nm, 20nm, 10nm 50nm, 10nm, 5nm
Noise Floor (Ra) 250nm, 150nm, 100nm 150nm, 100nm, 50nm
Repeatability (Ra) 1% of value + noise 0.5% of value + noise
Pickup Type Inductive
Gage Force 150 – 300mg
Stylus Tip Radius 5µm (200µin default/2µm (80µm) or 10µm (400µm) optional
Measurement Type Skidded
Calibration Process Automated software calibration routine
Standards Able to calibrate to ISO 4287 roughness standards
Analysis Filter Cut-Off 0.25mm/0.8mm/2.5mm
Filter Type 2CR/Gaussian
Evaluation Length 0.25mm – 12.5mm (0.01in - 0.49in) 0.25mm – 25.0mm (0.01in – 0.98in)
Max X Axis Range 17.5mm 25.5mm
Speed Measuring Speed 1mm/sec (0.04in/sec)
Returning Speed 1.5mm/sec (0.06in/sec)
Dimensions
SR300 and SR400 Surface Roughness Tester
Analysis Capability SR300 SR400
Parameters Standards ISO 4287, ISO 13565-1, ISO 13565-2, ASME 46.1, JIS 0601, N31007
ISO Basics Ra, Rv, Rp, Rz, Rt, Rq, Rsk, Rmr, Rdq, RSm, Rz1max
ISO Advanced Optional Rk, A1, A2, Mr1, Mr2, Rpk, Rvk
ASME Ra, Rv, Rp, Rz, Rt, Rq, Rsk, Rdq, RSm, Rpm, Rda
JIS Ra, Rv, Rp, Rz, Rt, Rq, Rsk, Rmr, Rdq, RSm, RzJIS, Rc, Rku, Rdc
Other R3z (Daimler Benz)
ISO Primary Optional Pa, Pv, Pp, Pz, Pt, Psk, Pmr, Pdq, Ppc,
PSm, Pz1max
Units µm/µin
SR300 and SR400 Surface Roughness Tester
OTHER STARRETT PRODUCTS
Other Starrett Products
SR100 – Surface Roughness Tester
(Roughness only)
The SR100 measures Ra or Rz at the touch of a
button and shows the result on a large LCD
window.
Optional additional parameters Rp, Rv and Rt can
be displayed and units of measure switched
between inch and metric without re-measuring the
part.
• Skidded pick-up with 5μm (200μin) stylus tip.
• 0.8mm (0.03in) cut-off.
• Self-contained, battery operation for shop
floor use.
SR300 and SR400 Surface Roughness Tester
Other Starrett Products
SR300 and SR400 Surface Roughness Tester
RT800
The RT800 is robust enough for the shop floor but
accurate for any inspection area, giving a flexible
solution for all roundness and form measurements.
• Patented gage orientation
• Robust enough for 24/7 operation
• Easy-to-use touchscreen software
RT500
The RT500 has the same robust construction as the
RT800, but with a few less features and is economically
priced.
SR300 and SR400 Surface Roughness Tester
INSTRUCTION MENU
Instruction Menu
SR300 and SR400 Surface Roughness Tester
Menu
Internal Memory
Calibration
Cut-Off
Parameters
New Batch
Print Batch
Device Icons
External Memory
Calibration Value
Filter Type
Parameter Settings
Keyboard
Print
Graph
Rotate
Calibration Filter
Measurement Length
Units
View Batch
Language
Battery
Screen Shot
Calibration Settings
Range
Storage
Delete Batch
Sleep Timer
Brightness
Battery Level
Stylus Return
Set Zero
Instructions
Instruction Menu
Menu

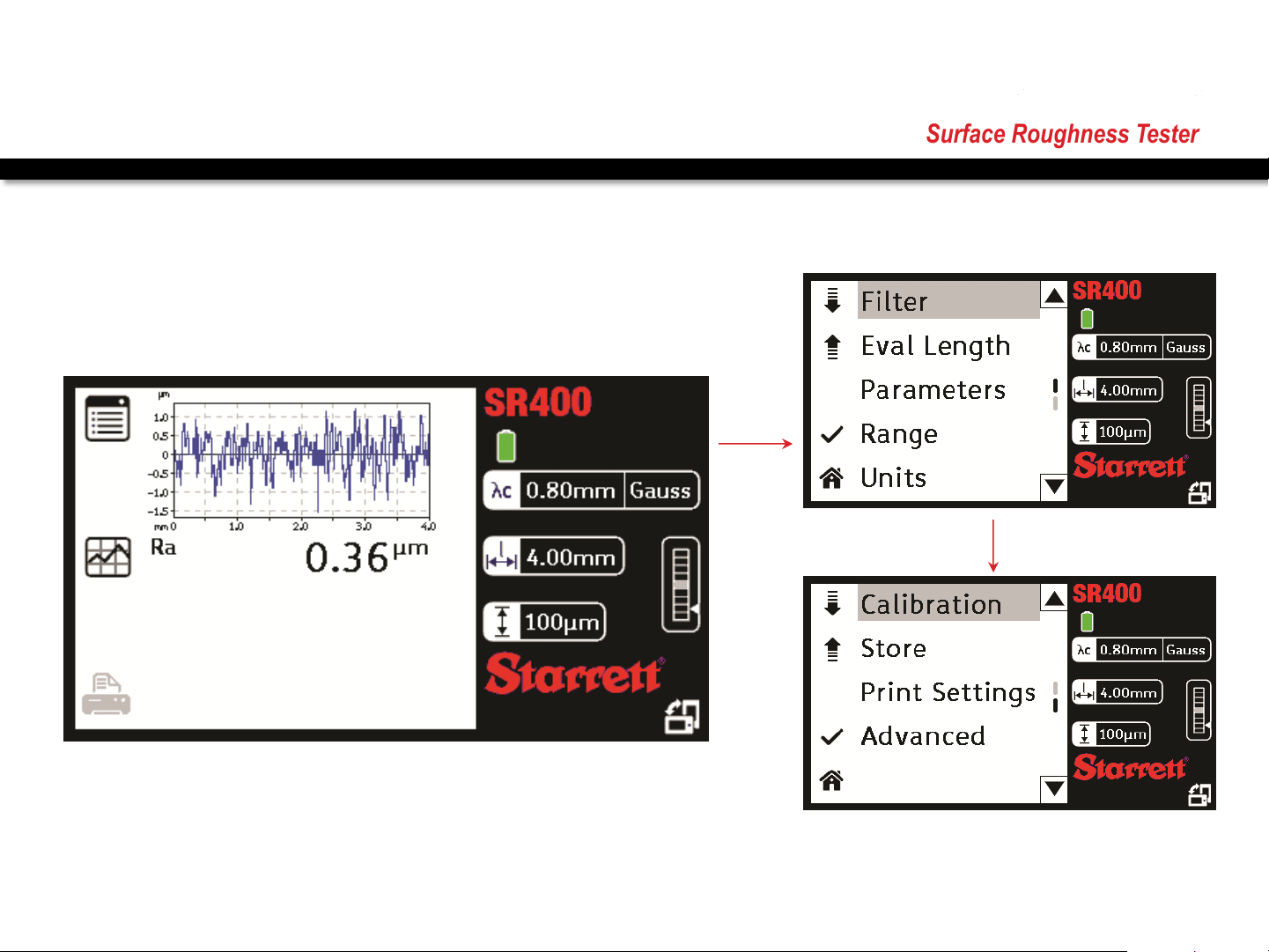

Tap the “Menu” icon in the left-hand corner.
SR300 and SR400 Surface Roughness Tester
Tap the “Down Arrow” to scroll down through the menu.
Instructions
Instruction Menu
SR300 and SR400 Surface Roughness Tester
Tap the ‘Arrow’ icon to move down to
the next item in a list.
Tap the ‘Tick’ icon to confirm your
selection or data input.
Tap the ‘Return’ icon to return to the
previous screen.
Tap the ‘Home’ icon to return to the
Home screen.
Instructions
Instruction Menu
SR300 and SR400 Surface Roughness Tester

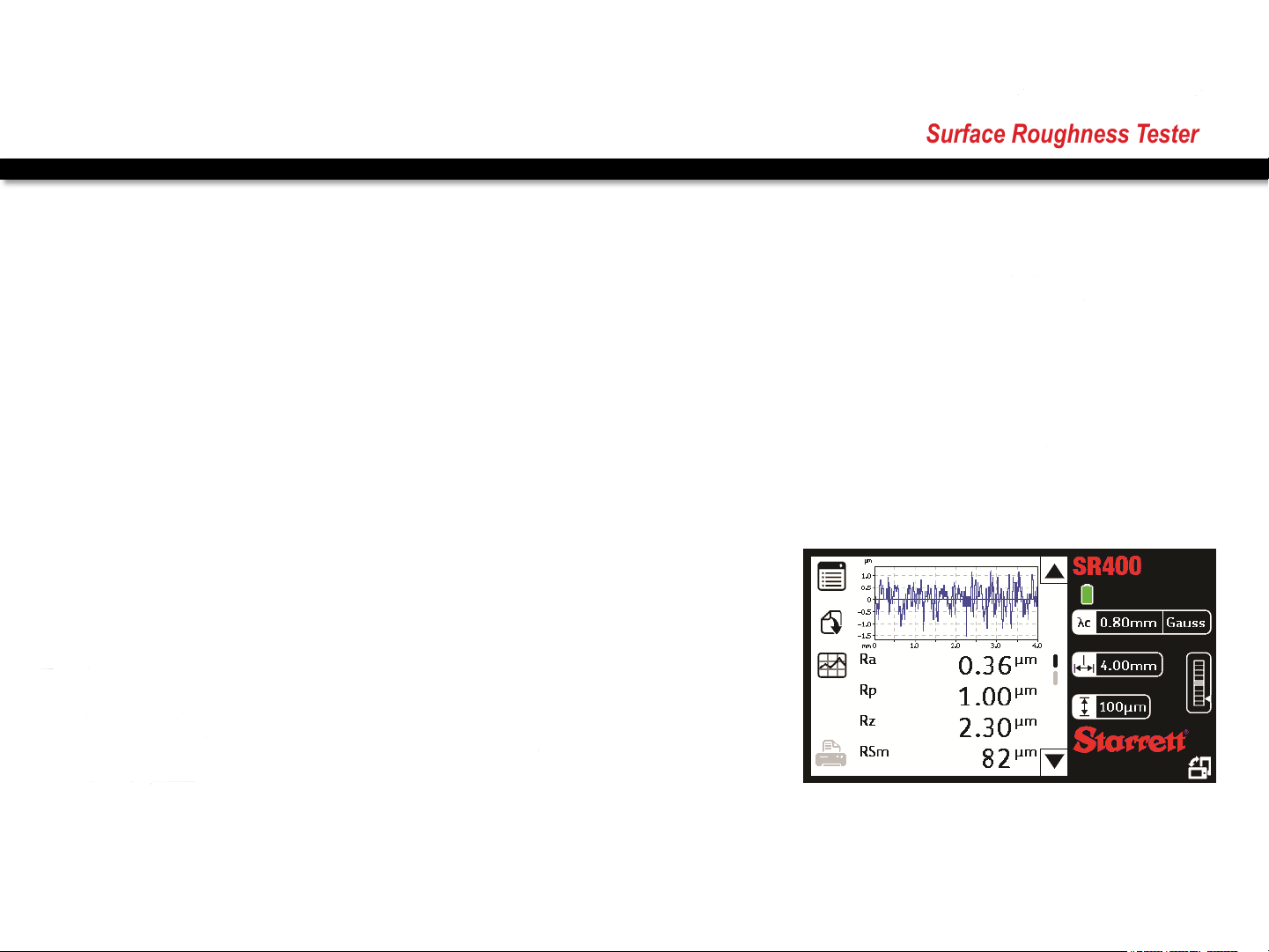

Graph
Tap the “Graph” icon on the left-hand side of the screen to view a graph of your measurement.
Instructions
Instruction Menu
SR300 and SR400 Surface Roughness Tester
Battery
This icon indicates the SR300/SR400 current Battery
life.
This icon indicates that the SR300/SR400’s battery is
charging.
Internal Memory
This icon indicates that the data is saved to internal
memory.
External Memory
This icon indicates that the data is saved to an external
memory source.
Instructions
Instruction Menu
Rotate
Tap the “Rotate” icon to rotate the screen between landscape and
portrait mode.
SR300 and SR400 Surface Roughness Tester
Instructions
Instruction Menu
Rotate
Tap “Starrett” icon to take a screen shot of the device.
SR300 and SR400 Surface Roughness Tester
The screen shot saved to the external USB drive.
Instructions
Instruction Menu
Calibration
SR300 and SR400 Surface Roughness Tester
Tap ‘Calibration’ and then the ‘Settings’ icon to see a list
of calibration options.
Instructions
Instruction Menu
SR300 and SR400 Surface Roughness Tester

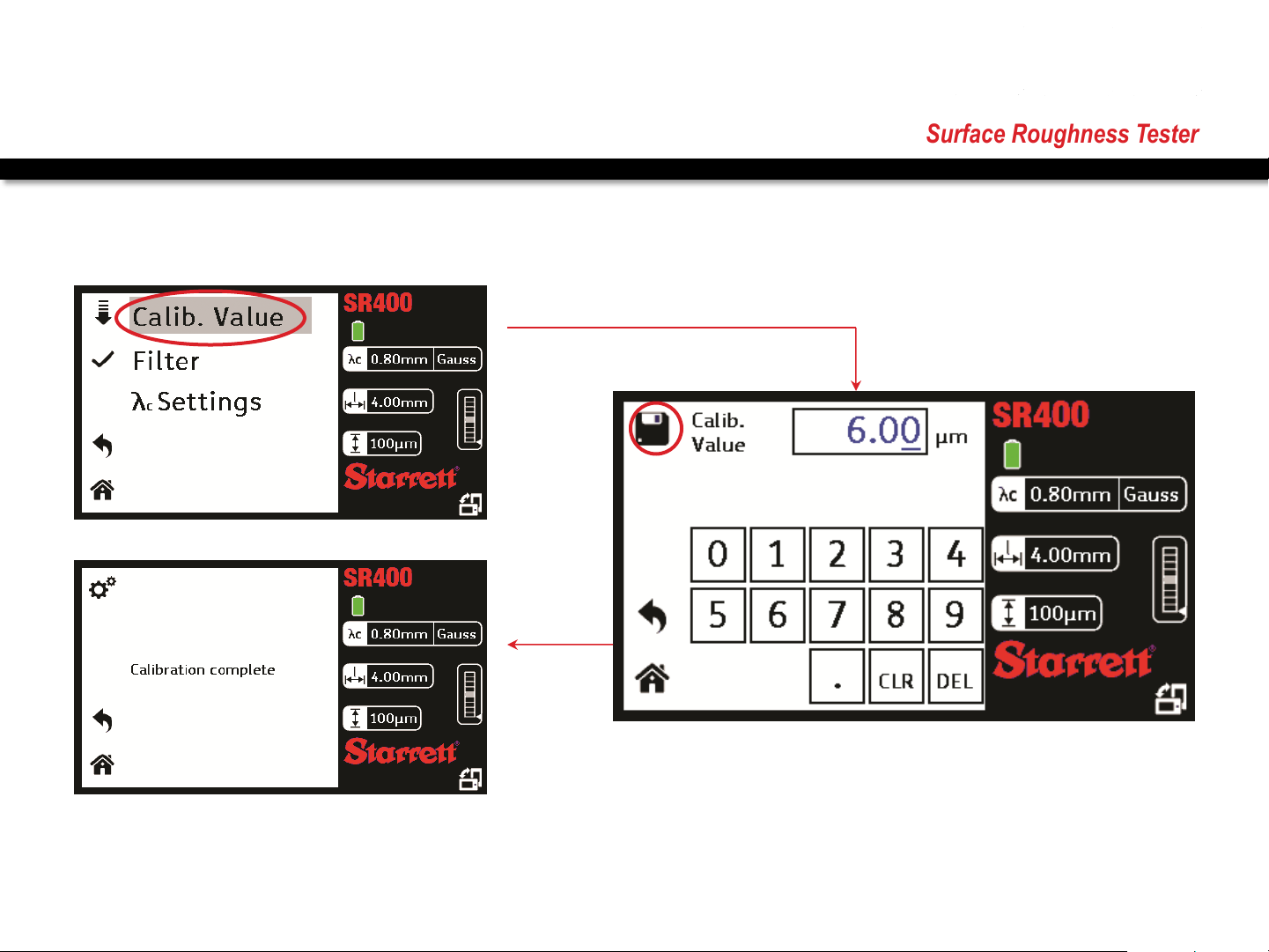

Calibration Value
Tap ‘Calib. Value” and enter the value you require.
Tap the “Save” icon to save the calibration value.
Instructions
Instruction Menu

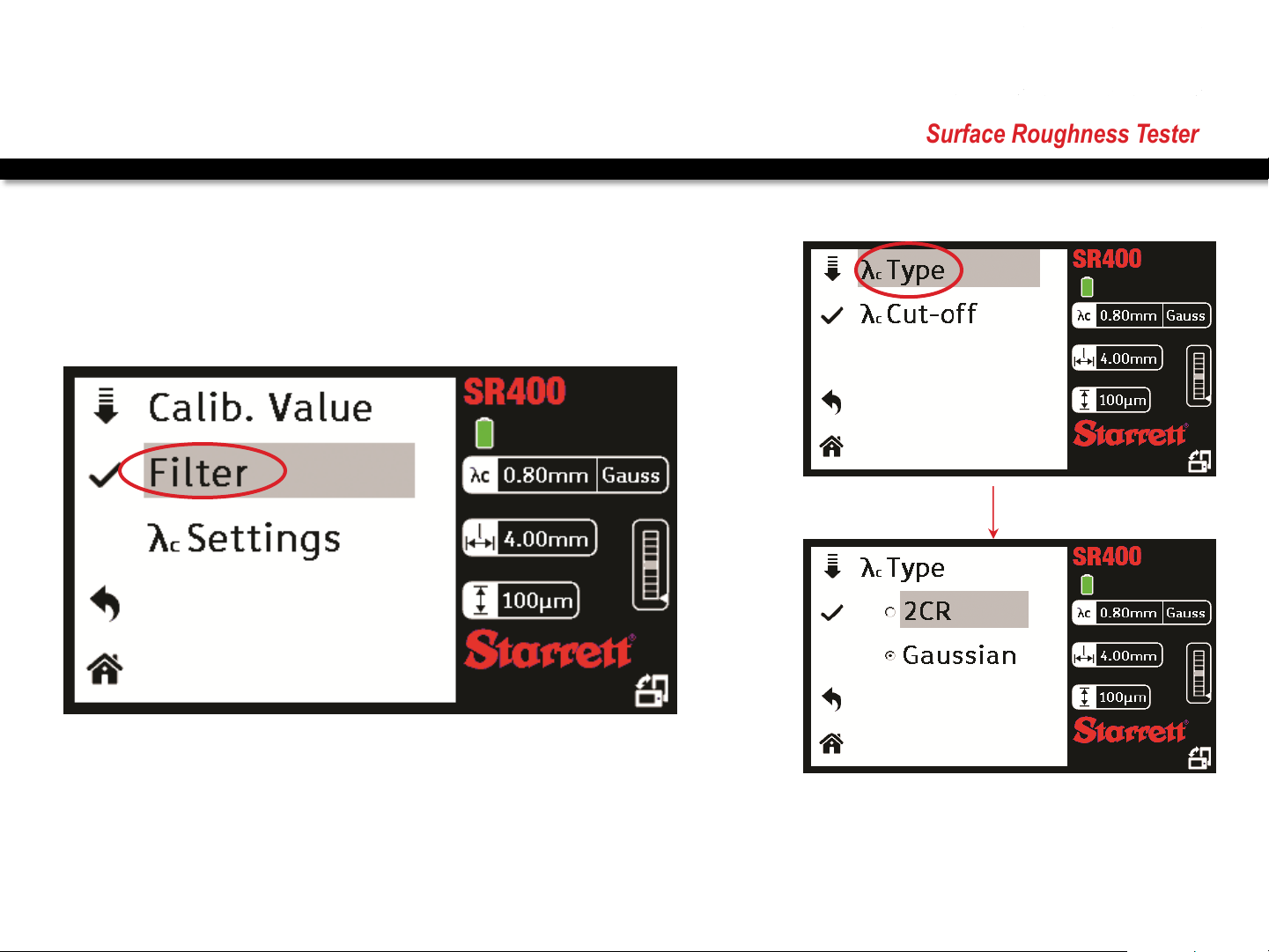

Calibration Filter - Type
Tap “Filter” and then “Type” to select your required filter option.
SR300 and SR400 Surface Roughness Tester
Instructions
Instruction Menu
Calibration Filter – Cut Type
Tap “Filter” and then “Cut-Off” to select your required cut-off option.
SR300 and SR400 Surface Roughness Tester
Instructions
Instruction Menu
Calibration Settings
Tap “Settings” to enter your required calibration options.
SR300 and SR400 Surface Roughness Tester
Instructions
Instruction Menu
SR300 and SR400 Surface Roughness Tester

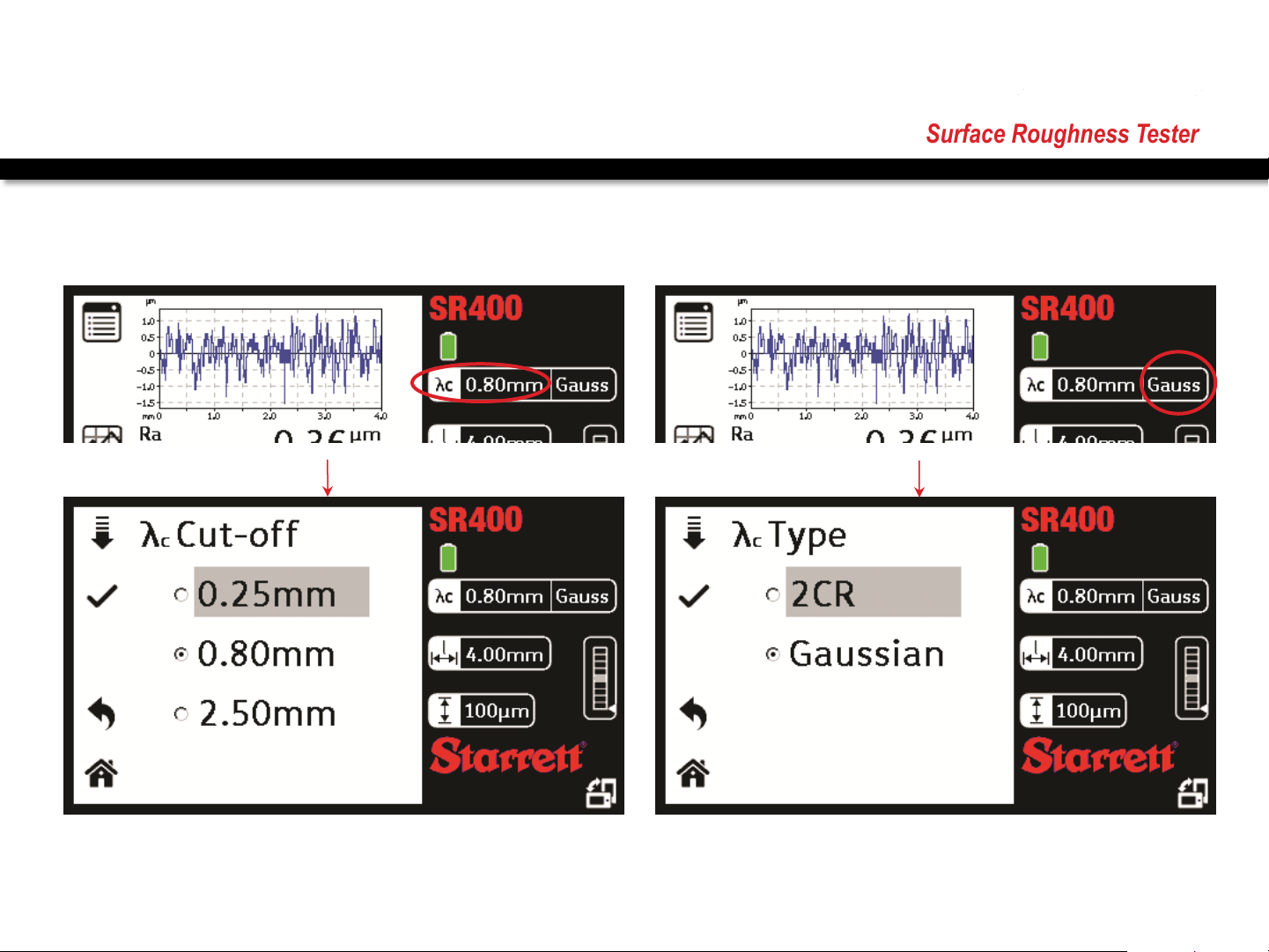

Cut-Off
Tap the “Cut-off” icon to edit the length.
Filter Type
Tap the “Filter” icon to edit the type.
Instructions
Instruction Menu
SR300 and SR400 Surface Roughness Tester
Measurement Length
Tap the “Measurement” icon to edit the length.
Range
Tap the “Range” icon to edit the range.
Instructions
Instruction Menu
SR300 and SR400 Surface Roughness Tester
ISO 4287
Tap “ISO 4287” to select parameters.
ISO 13565
Tap “ISO 13565” to select parameters.
Instructions
Instruction Menu
SR300 and SR400 Surface Roughness Tester
ASME B46.1
Tap “ASME B46.1” to select parameters.
Others
Tap “Others” to select parameters.
Instructions
Instruction Menu
Parameter Setting – “Rmr”
SR300 and SR400 Surface Roughness Tester
Tap “ISO 4287” and then the first “Settings” icon to open
the “Rmr” settings.
Instructions
Instruction Menu

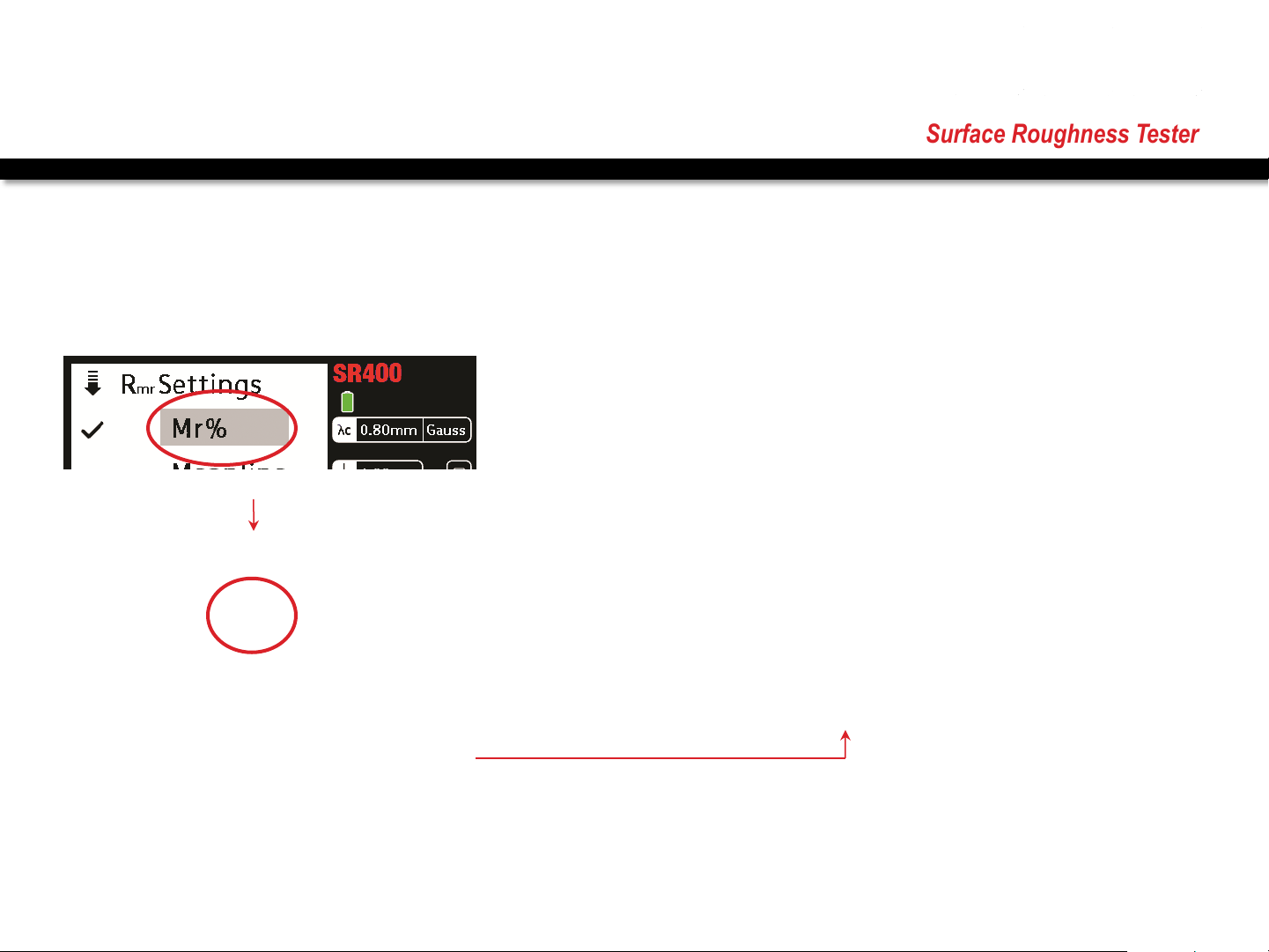

Parameter Setting – “Mr%”
SR300 and SR400 Surface Roughness Tester
Tap “Mr%” and then the box where the number is displayed to
adjust the setting.
Instructions
Instruction Menu
SR300 and SR400 Surface Roughness Tester

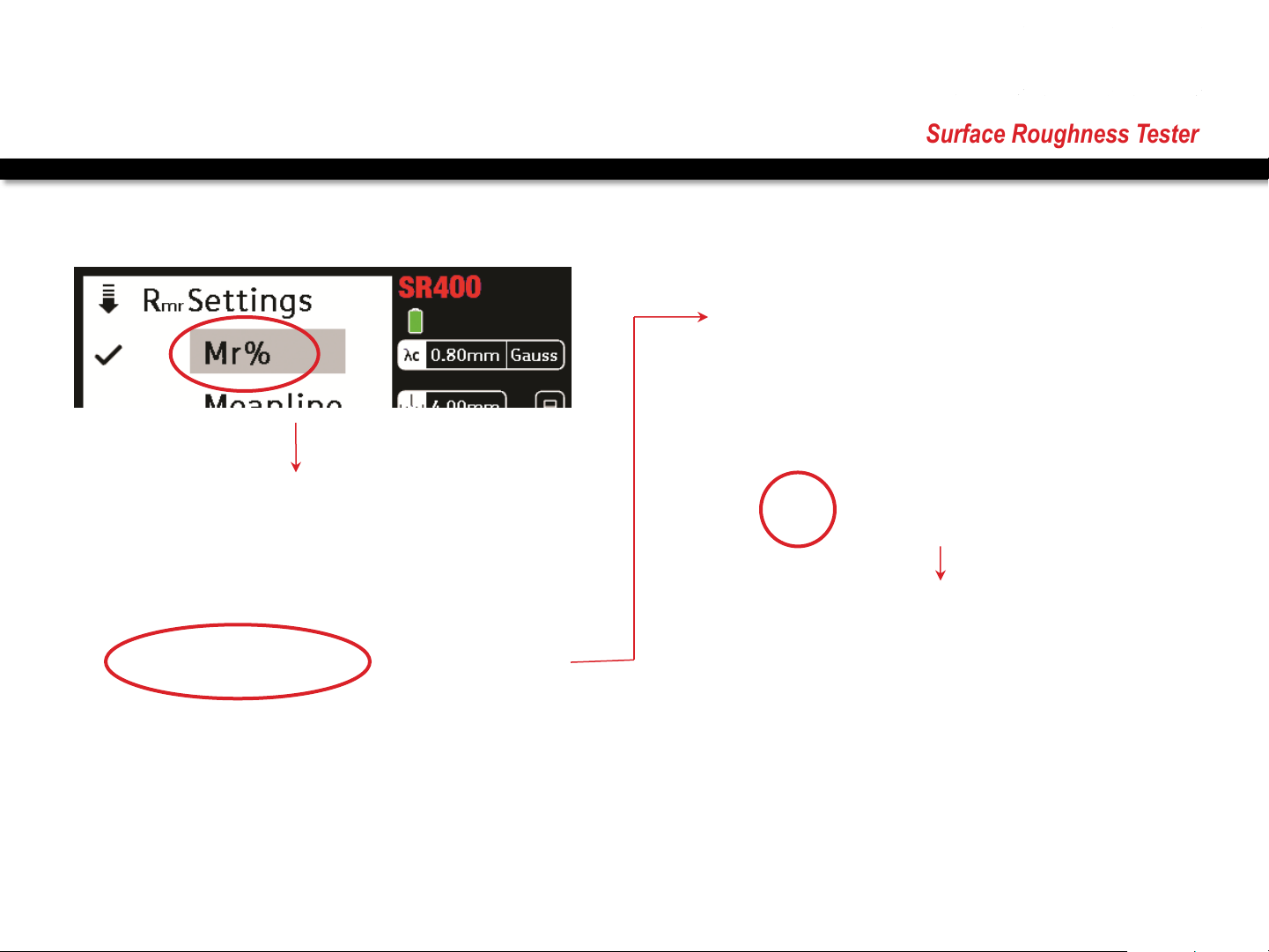

Parameter Setting – “Mr%”
Tap “Mr%” and then the “Offset” box to adjust the
setting.
Tap “+/-” icon to select between positive and negative.
Instructions
Instruction Menu

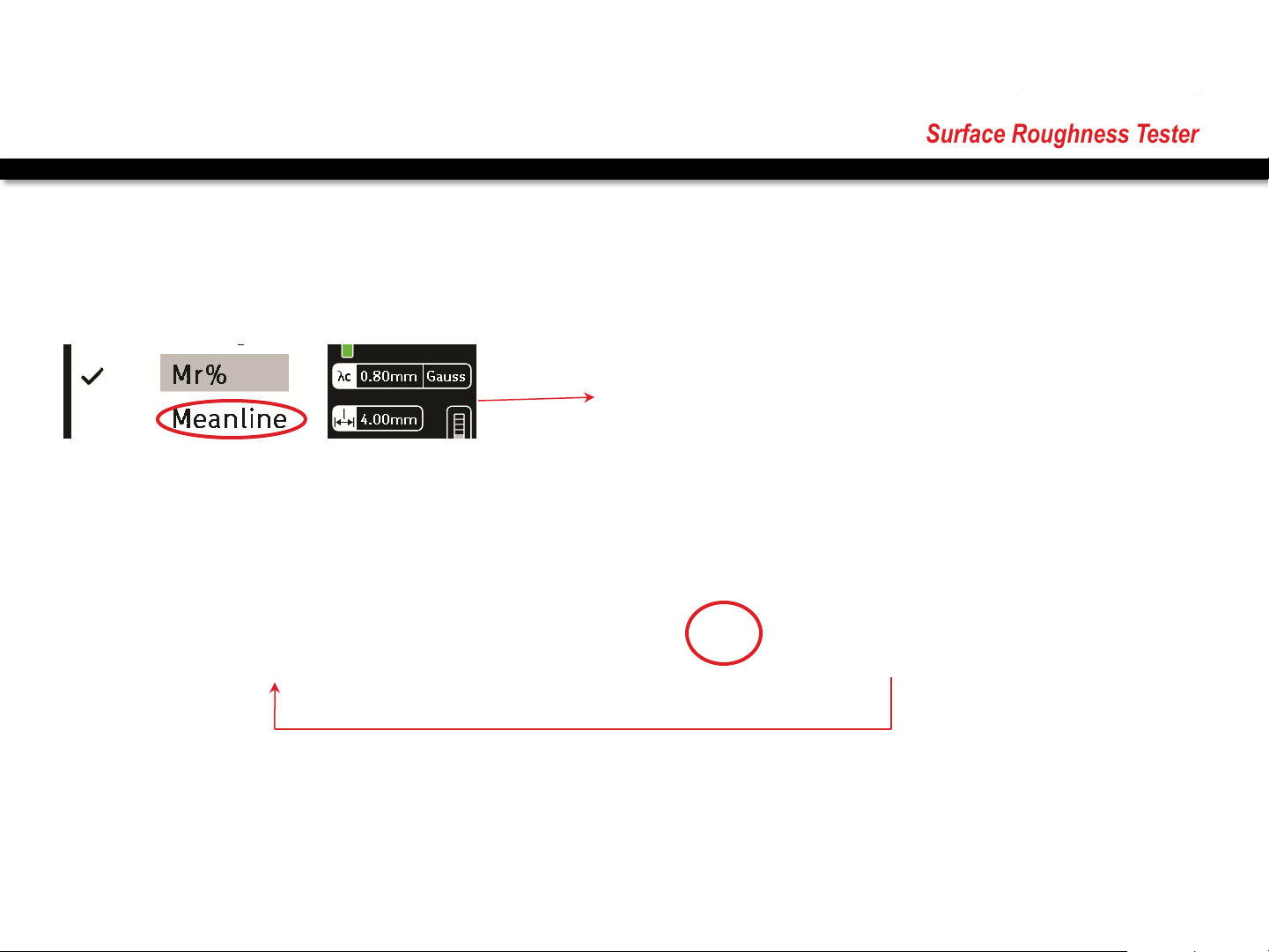

Parameter Setting – “Meanline”
SR300 and SR400 Surface Roughness Tester
Tap “Meanline” to adjust the setting.
Tap “+/-” icon to select between positive and negative.
Instructions
Instruction Menu
Parameter Setting – “Rpc”
SR300 and SR400 Surface Roughness Tester
Tap “ISO 4287” and then the second “Settings icon to adjust
the “Rcp Bandwidth”.
Instructions
Instruction Menu
Units
Tap “Units” to select between “Metric” and “English”.
SR300 and SR400 Surface Roughness Tester
Instructions
Instruction Menu

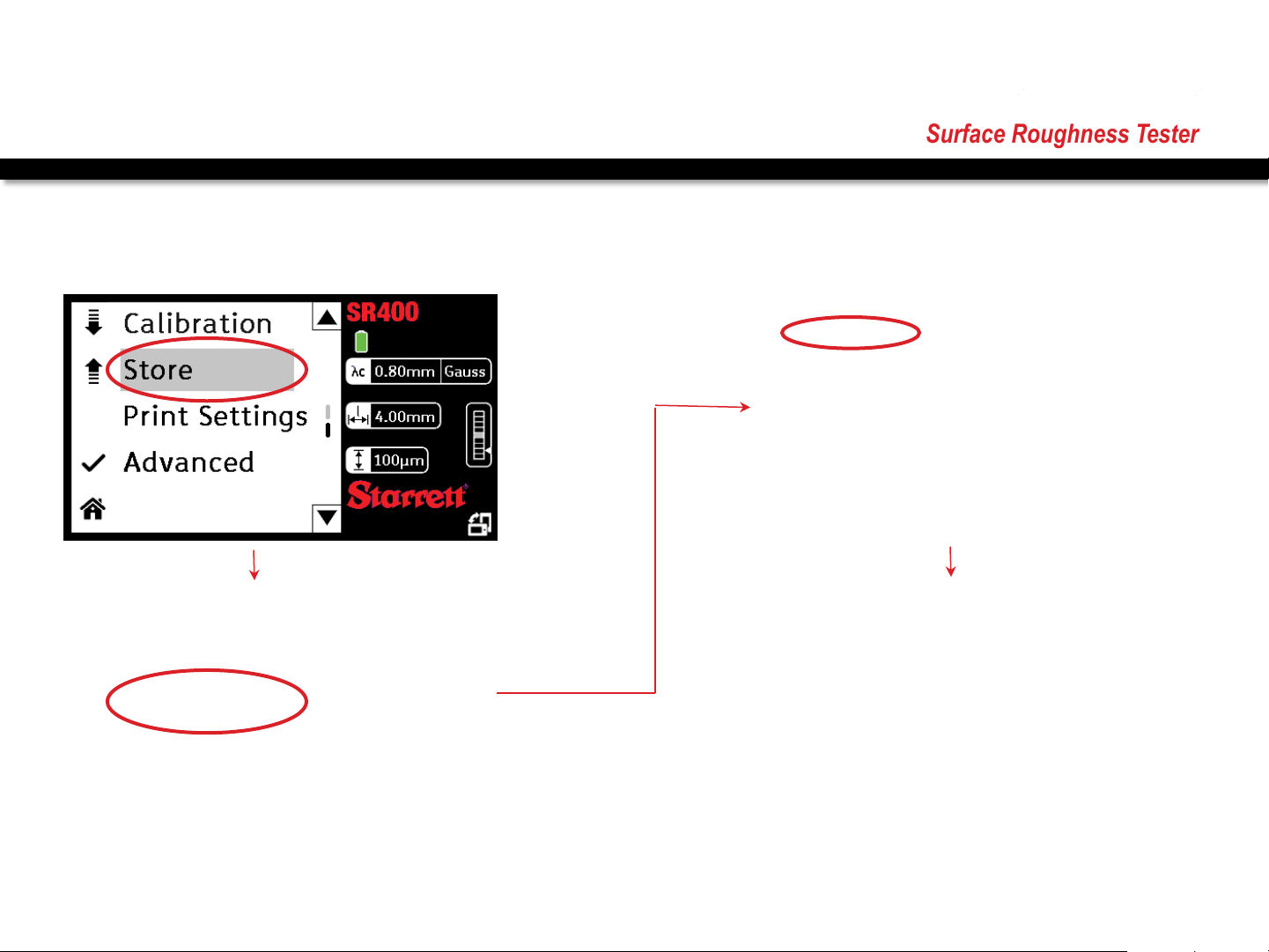

Storage
SR300 and SR400 Surface Roughness Tester
Tap “Store” and then “Store Mode” to select which storage
option you require.
Instructions
Instruction Menu
SR300 and SR400 Surface Roughness Tester
New Batch
Tap “Store” and then “New Batch” to create a new batch.
Enter a “Batch Name” and tap “Save”
• The Name must be 5 digits or less.
Instructions
Instruction Menu
SR300 and SR400 Surface Roughness Tester
Keyboard
Tap “Keyboard” icon to switch between the two keyboard values.
Tap “Number” or “Symbol” icons to enter either
numbers or symbols in the “Batch Name”.
Instructions
Instruction Menu

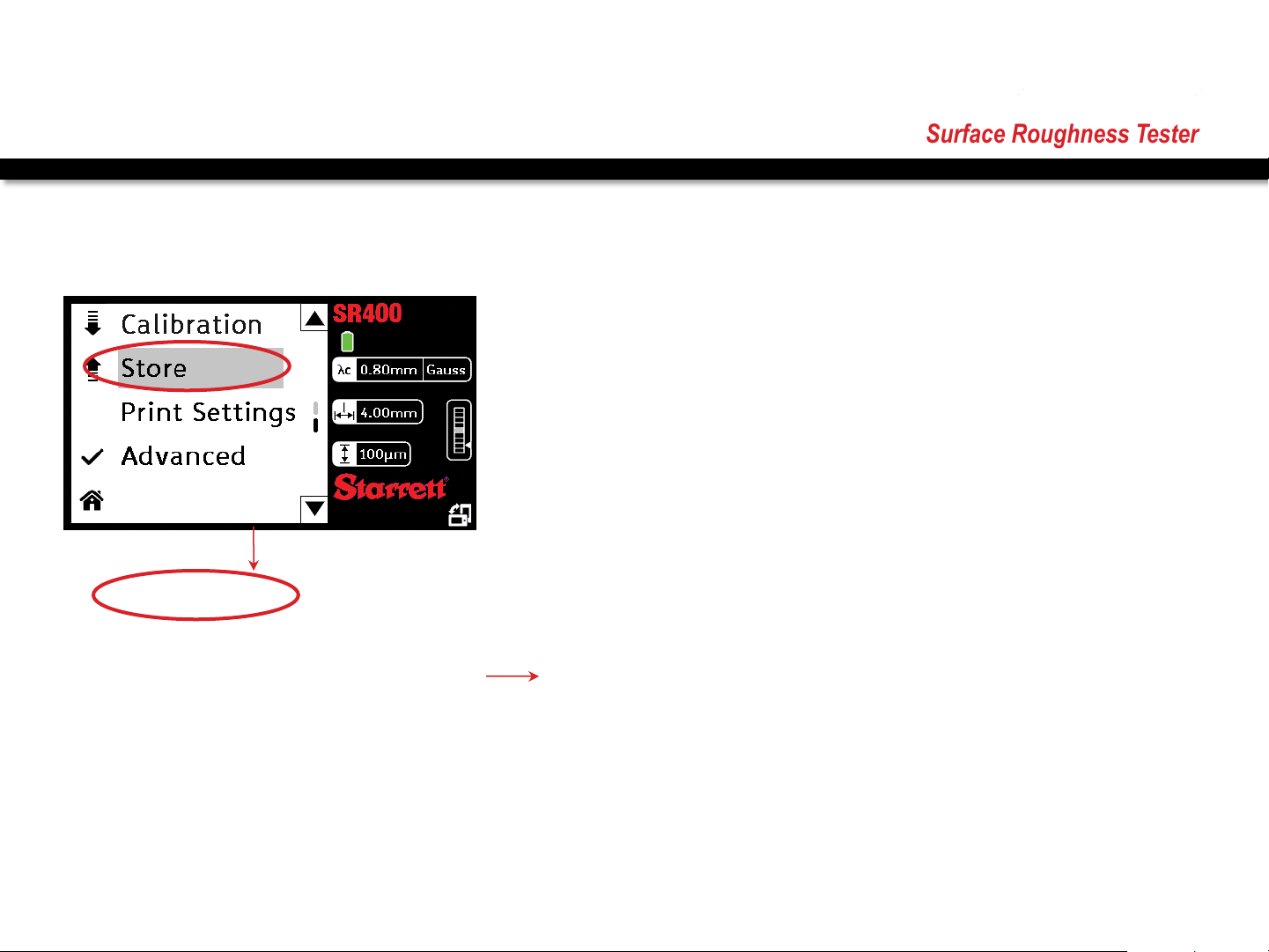

View Batch
Tap “Store” and then “View Batch” to view all saved data.
SR300 and SR400 Surface Roughness Tester
Tap the “Batch Name” to view the data in more detail.
Instructions
Instruction Menu
SR300 and SR400 Surface Roughness Tester
Delete Batch
Tap “Store” and then “Delete Batch” and then select a batch.
Tap the “Trash” icon to delete the selected batch. Tap the “Trash” icon again to confirm the deletion of the batch.
Instructions
Instruction Menu
SR300 and SR400 Surface Roughness Tester
Print Batch
Tap “Store” and then “Print Batch” to view all saved batches.
Tap the “Batch Name” and then the “Print” icon
to print the batch.
Instructions
Instruction Menu

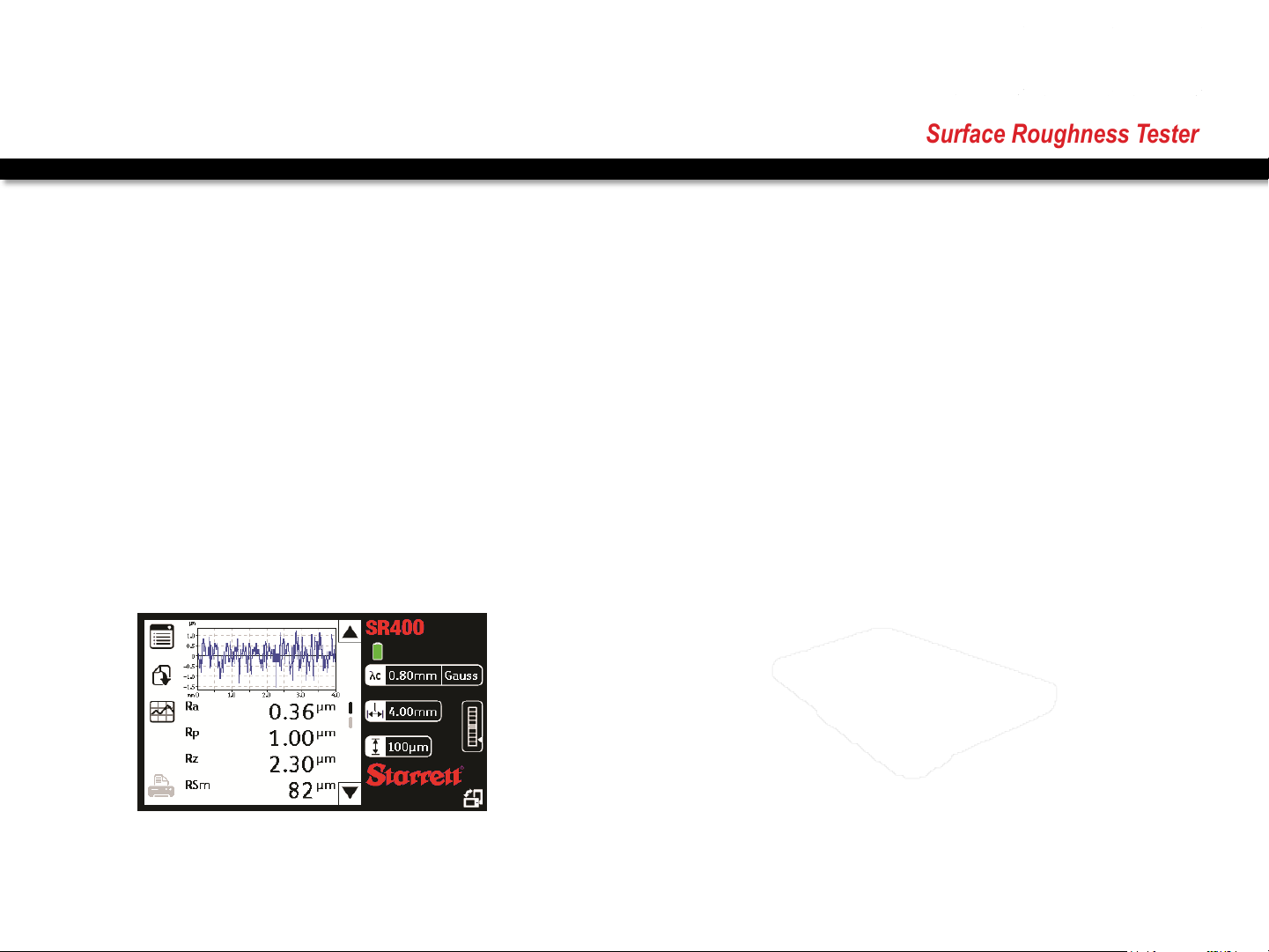

Print
Tap “Print Settings” to select your required printing options.
SR300 and SR400 Surface Roughness Tester
This icon shows that a printer is connected
to the device.
Tap the “Printer” icon on the home screen to print the
measurement.
Instructions
Instruction Menu
SR300 and SR400 Surface Roughness Tester
Language
Tap “Advanced” and then “Language” to select which
language you require.
Instructions
Instruction Menu
SR300 and SR400 Surface Roughness Tester
Sleep Timer - Battery
Tap “Advanced then “Power Saving” and then “Sleep Timer”.
Select “Battery” and set a time as the battery sleep timer.
Instructions
Instruction Menu
SR300 and SR400 Surface Roughness Tester
Sleep Timer - Charging
Tap “Advanced” then “Power Saving” and then “Sleep Timer”.
Select “Charging” and set a time as the charging sleep timer.
Instructions
Instruction Menu
Brightness
Tap “Advanced” then “Power Saving” and then select “Brightness”.
Set the brightness to the percentage you require.
SR300 and SR400 Surface Roughness Tester
Instructions
Instruction Menu
SR300 and SR400 Surface Roughness Tester
Battery Level
Tap “Advanced” then “Power Saving” and then select “Battery Level” to view the current
battery level of your device.
Instructions
Instruction Menu
SR300 and SR400 Surface Roughness Tester
Stylus Return
Tap “Advanced” and then “Stylus Return” to select which
option you require.
Instructions
Instruction Menu
SR300 and SR400 Surface Roughness Tester
Set Zero
Tap “Advanced” and then “Set Zero”. Then place unit on a flat
surface and press measure. This will center the gage range.
Loading...
