Starrett SR300, SR400 User Manual
Contents
SR300 and SR400 Surface Roughness Tester
SR300 and SR400 Overview
Talyprofile
Pick-Ups
Starrett Products
Instrument Overview
SR300 and SR400 Accessories
System Information
Instructions
SR300 and SR400 Surface Roughness Tester
SR300 AND SR400 OVERVIEW
SR300 and SR400 Surface Roughness Tester
SR300 and SR400 Surface Roughness Tester
These new editions of Starrett Surface Roughness Testers incorporate a large
display with the simplest of menu structures and the most up-to-date
parameters. Their mechanical rigidity and styli have a firm reputation for
reliable and repeatable surface finish measurements across a wide range of
applications.
The SR Surface Roughness Tester comes in two variants: the SR300 is our
standard offering, while the SR400 offers extended measurement range and
analysis capability.

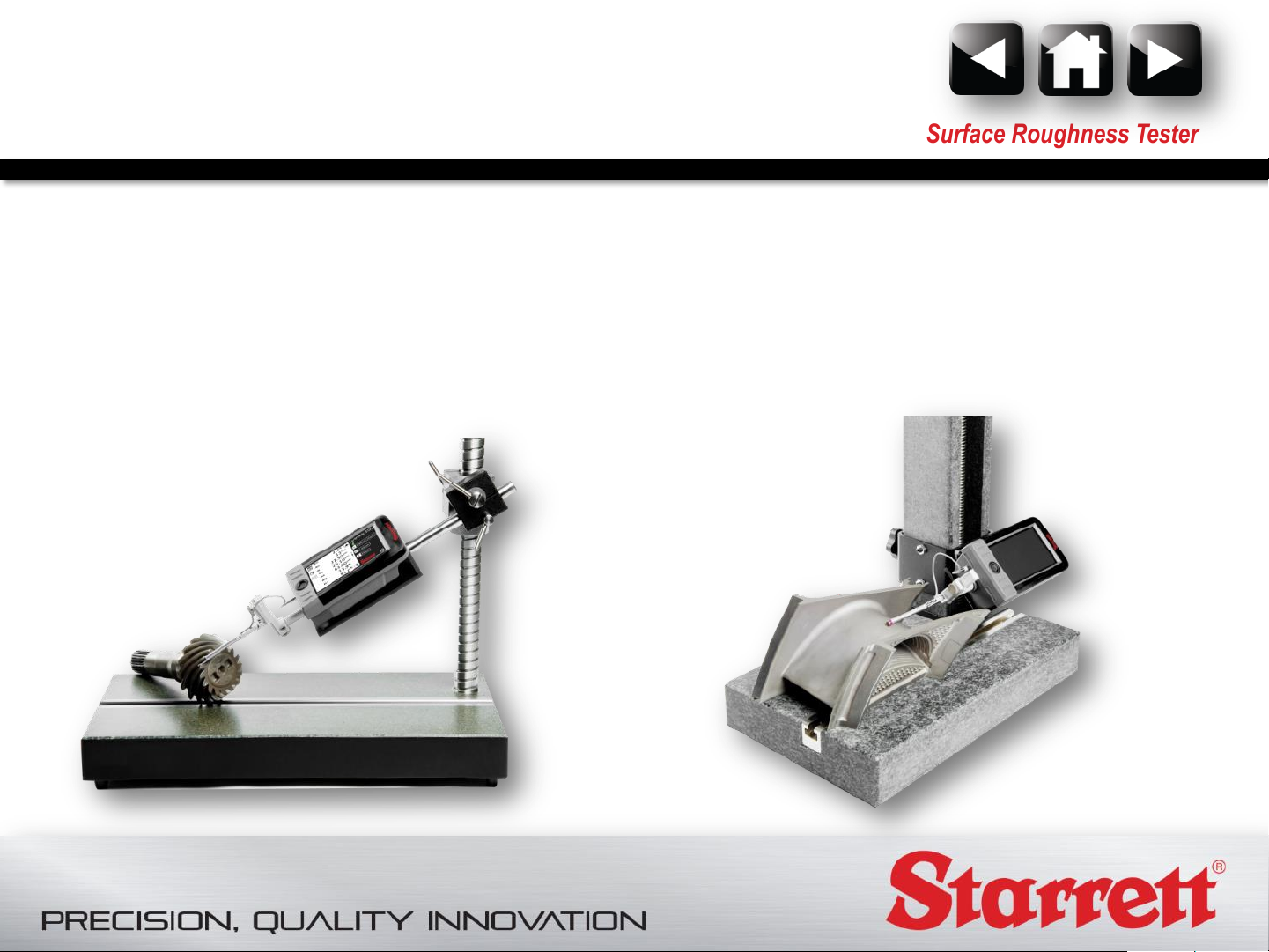

The SR300 and 400 are battery powered and offers total portability with a
built-in memory capacity (holds up to 100 readings). The instrument can be
used either freestanding (on horizontal, vertical or even inverted surfaces) or
with bench mounted fixtures for batch measurement and laboratory
applications.
SR300 and SR400 Surface Roughness Tester
SR300 and SR400 Surface Roughness Tester
Durable
• High impact rubberized molding IP44 rated
• Recessed, Mylar protected high durability
touch screen
• Solid steel drive mechanism
• Robust anti-wear gears and bearings

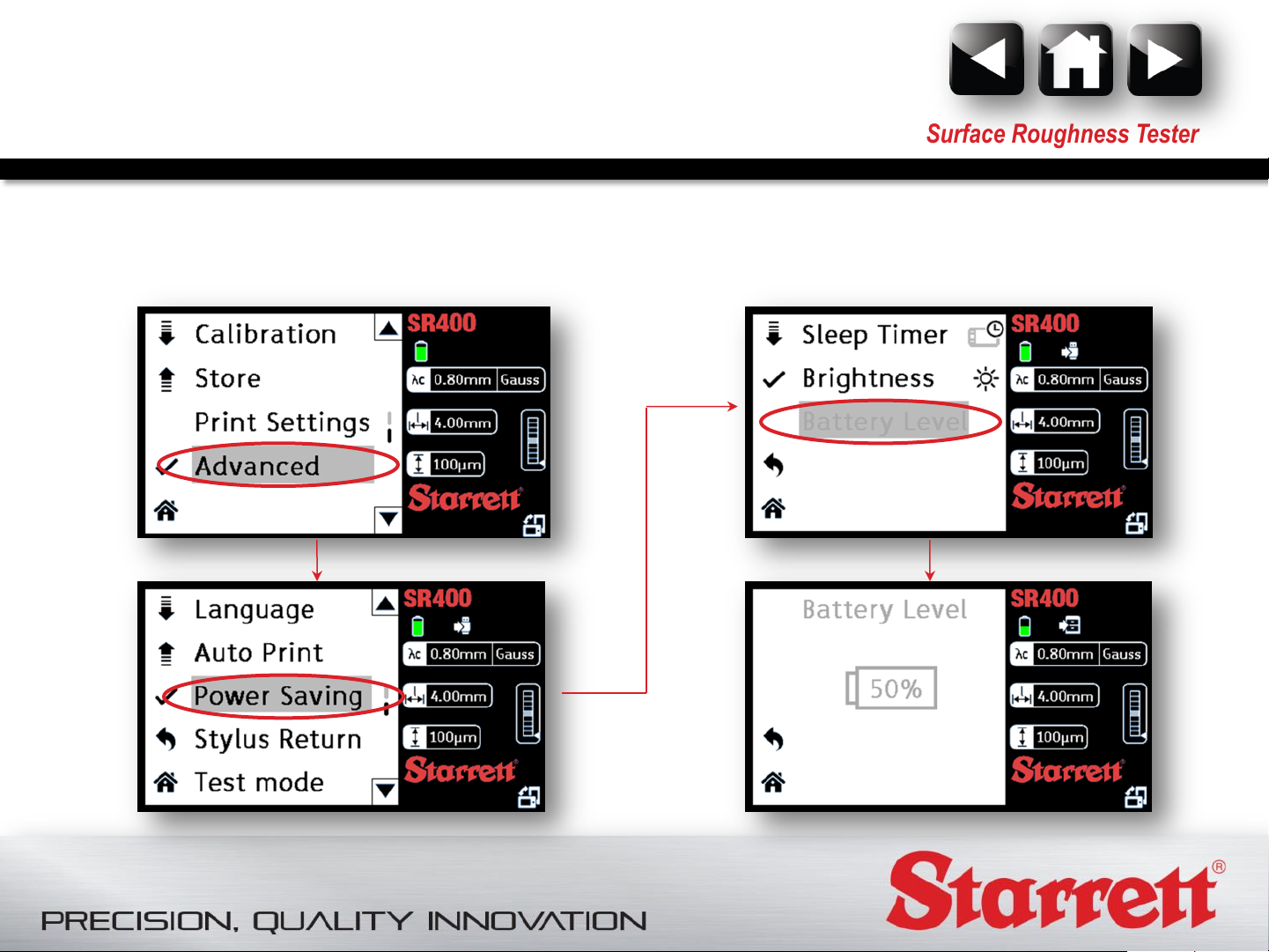

• Heavy-duty Li-Poly battery
– 2000 measurements
– 5000 hours standby
Versatile
• Unique 50mm stylus lift/lower
– Simple setup on any surface
• Multiple pickups available
– Small bore, groove, o-ring, etc.
• Measure in any orientation
– Even upside down
• Evaluation length up to 25mm
• Anti-slip V-feet for flat or curved parts
SR300 and SR400 Surface Roughness Tester
SR300 and SR400 Surface Roughness Tester
User-Friendly
• 4.3” daylight readable display
• Operation in any orientation
– Settings always on display
• Colour touch screen interface
– Up to 7 results on each page
• Single button measurement
• InstantOnTM < 1 second restart
Connectivity
• Standard USB Charging (PC or Mains)
• Storage of results internal or USB key
– 100 internal, >10,000 on USB
• USB to PC for advanced analysis
– Includes free Talyprofile software
• USB remote Settings and Measurement

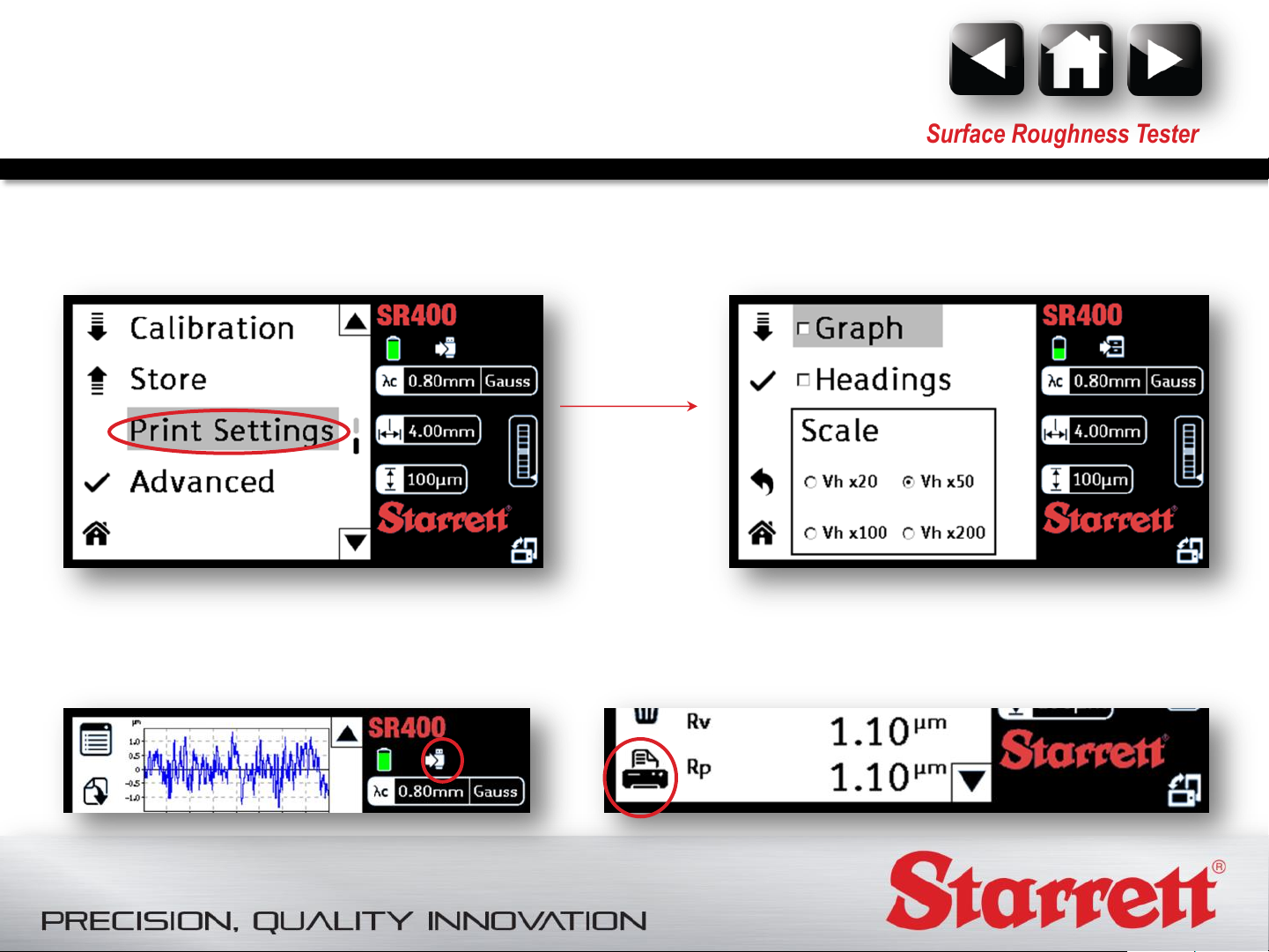

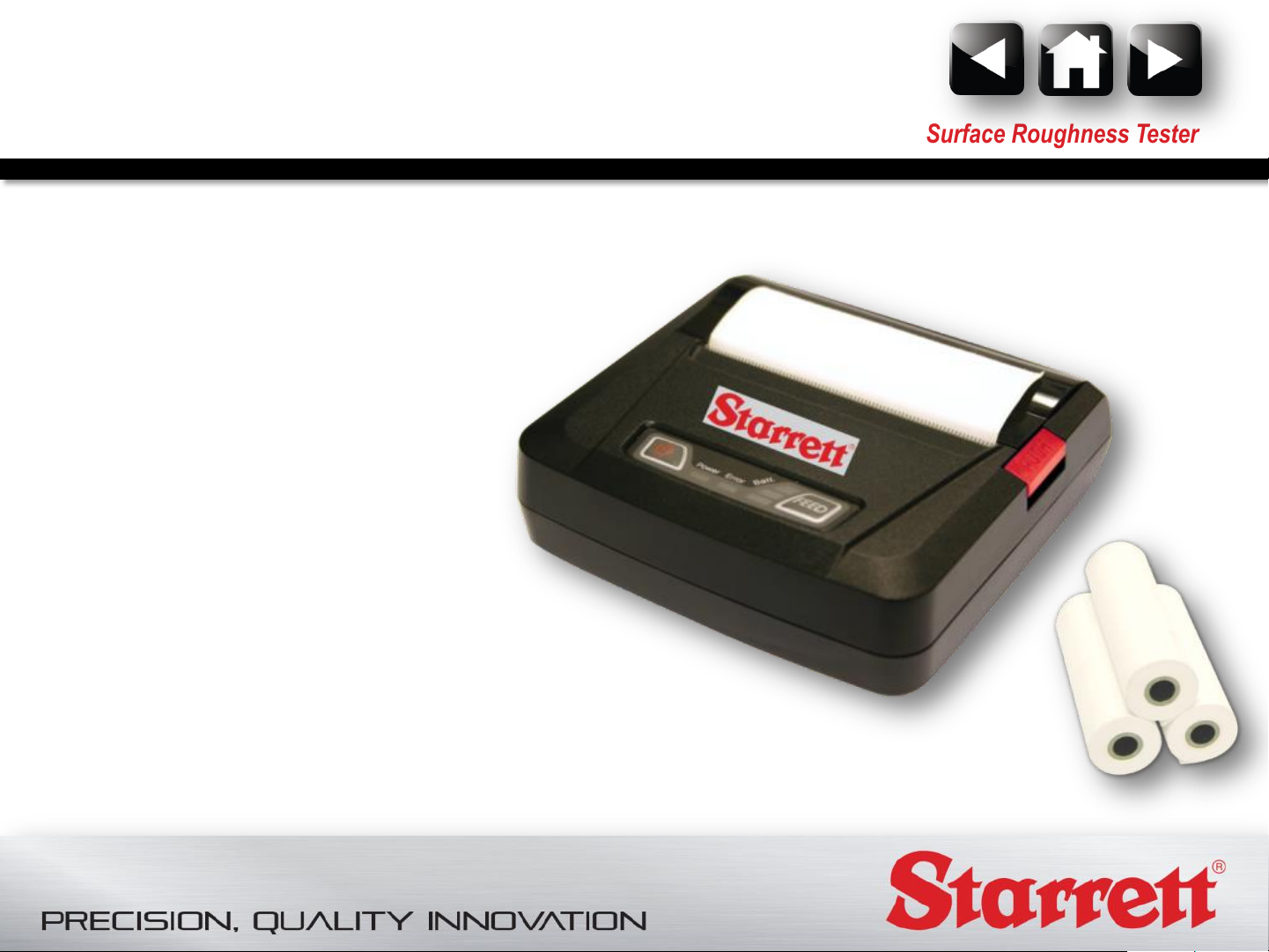

• Standard USB Printing (ESC/POS)
SR300 and SR400 Surface Roughness Tester
SR300 and SR400 Surface Roughness Tester
Measuring Flat or
Cylindrical Surfaces
Lift Lower Mechanism
0 to 60mm of Height
Extended Pick-Up Measure
Right-Angles
Built in Memory
as Standard
Traverse Length = 25mm
SR300 and SR400 Surface Roughness Tester
SR300 and SR400 Surface Roughness Tester
Function Button
• Turn the Device On
• Make a Measurement
USB Mini Port
• Connect to PC
• Charge Device
Touch Screen
USB Type A Port
• Connect Printer
• Connect External Memory
SR300 and SR400 Surface Roughness Tester
Parameter Options
Fast Measurement
Intuitive Menu Structure
Unique Stylus Lift Mechanism for Total Flexibility
Long Traverse Length and Extended
Comprehensive Range of Accessory and Pick
Storage of Up
Powerful Software Option
World Class Technical Support
SR300 and SR400 Surface Roughness Tester
to Suit Your Application
Cycle
Pick-Up Reach
-Up Options
to 100 Readings
SR300 and SR400 Surface Roughness Tester
INSTRUMENT OVERVIEW
Instrument Overview
SR300 and SR400 Surface Roughness Tester

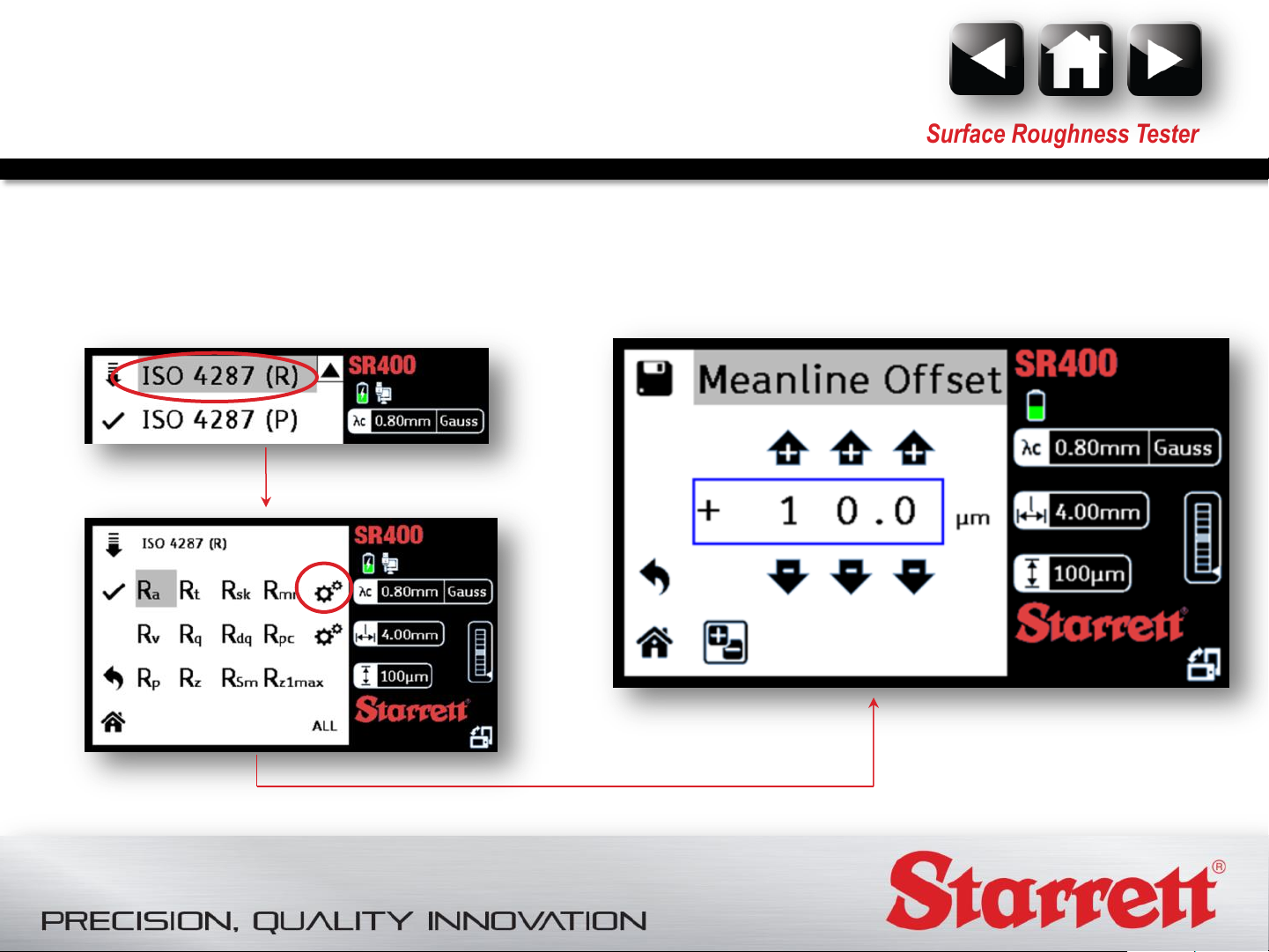

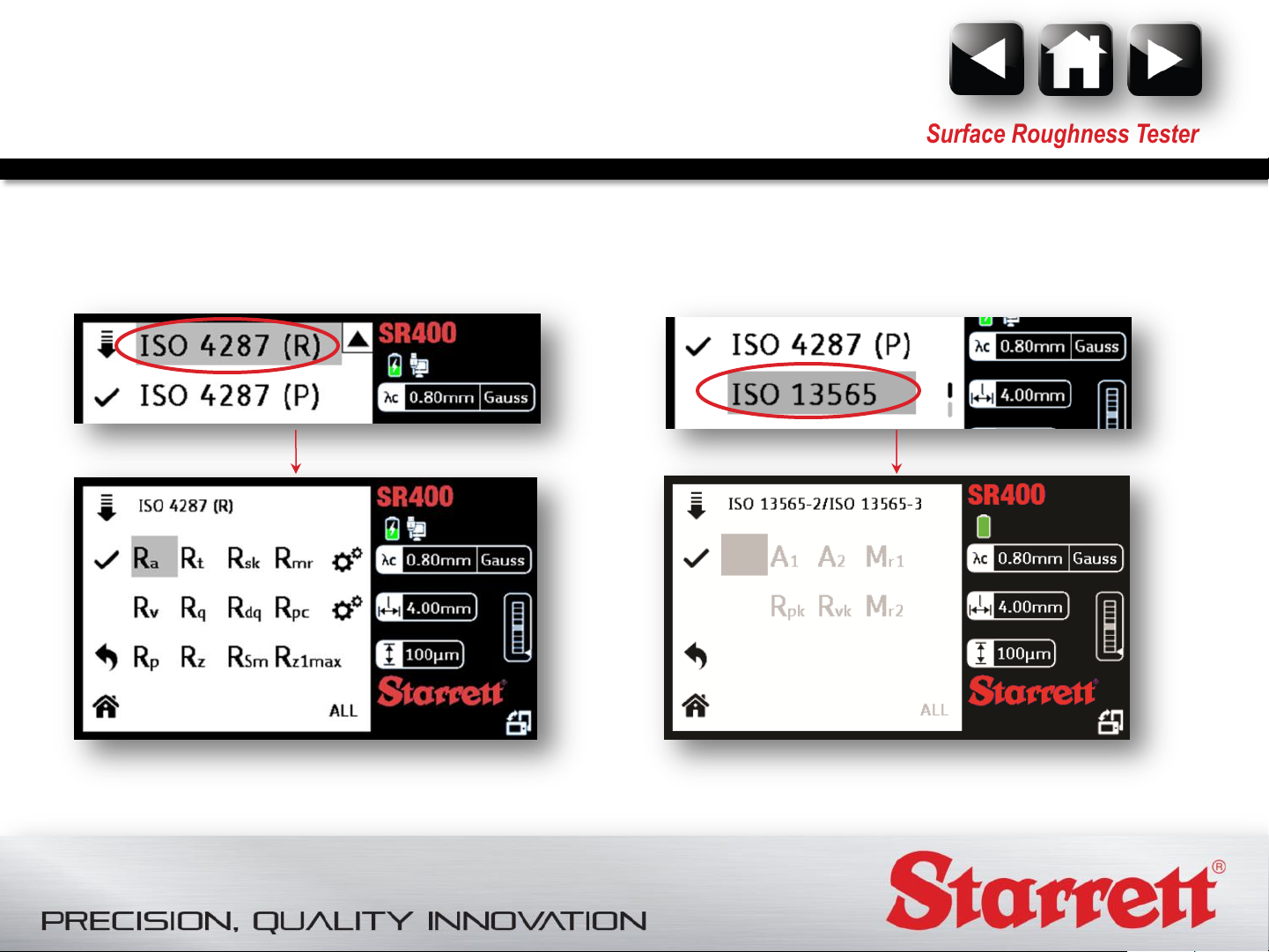

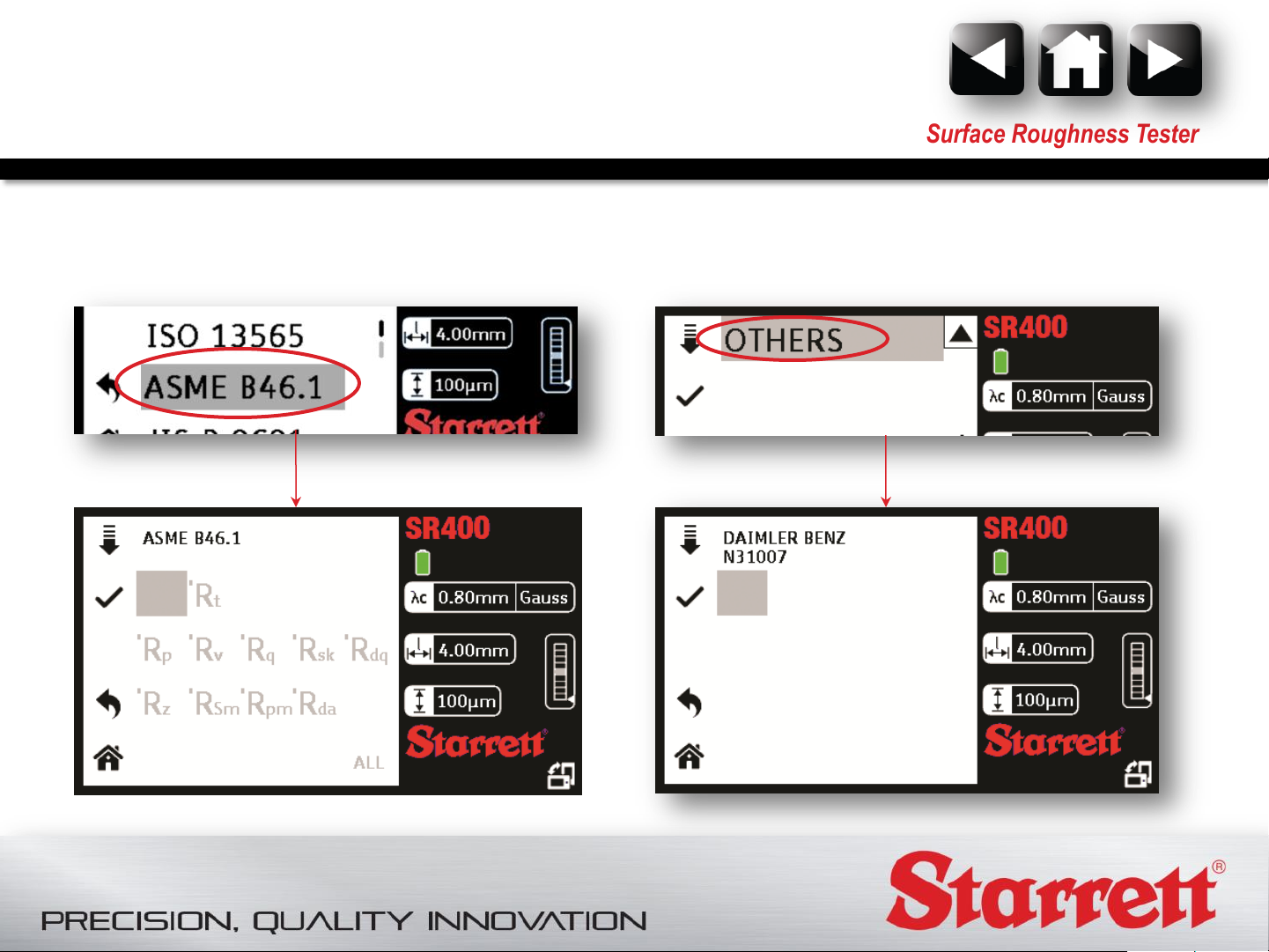

Parameter Options to Suit Your Application
Amplitude Parameters
Measures the vertical characteristics
of the surface deviations:
• Ra (Arithmetic Mean Deviation)
• Rsk (Skewness)
• Rz (Average peak to valley
height)
• Rt (Total height of profile)
• Rp (Max profile peak height)
• Rz1max (Max peak to valley
height)
Spacing Parameters
Measures the horizontal
characteristics of the surface
deviations:
• RPc (Peak count)
• RSm (Mean width of profile
elements)
The above parameters cover the most common requirements to check
lubrication, feed rates, stresses, friction and wear properties.
Additional parameters can be analysed with the addition of Talyprofile software.
The SR300/SR400 can calculate up to 22 parameters
according to your measurement application including:
Hybrid Parameters
Combinations of spacing and
amplitude parameters:

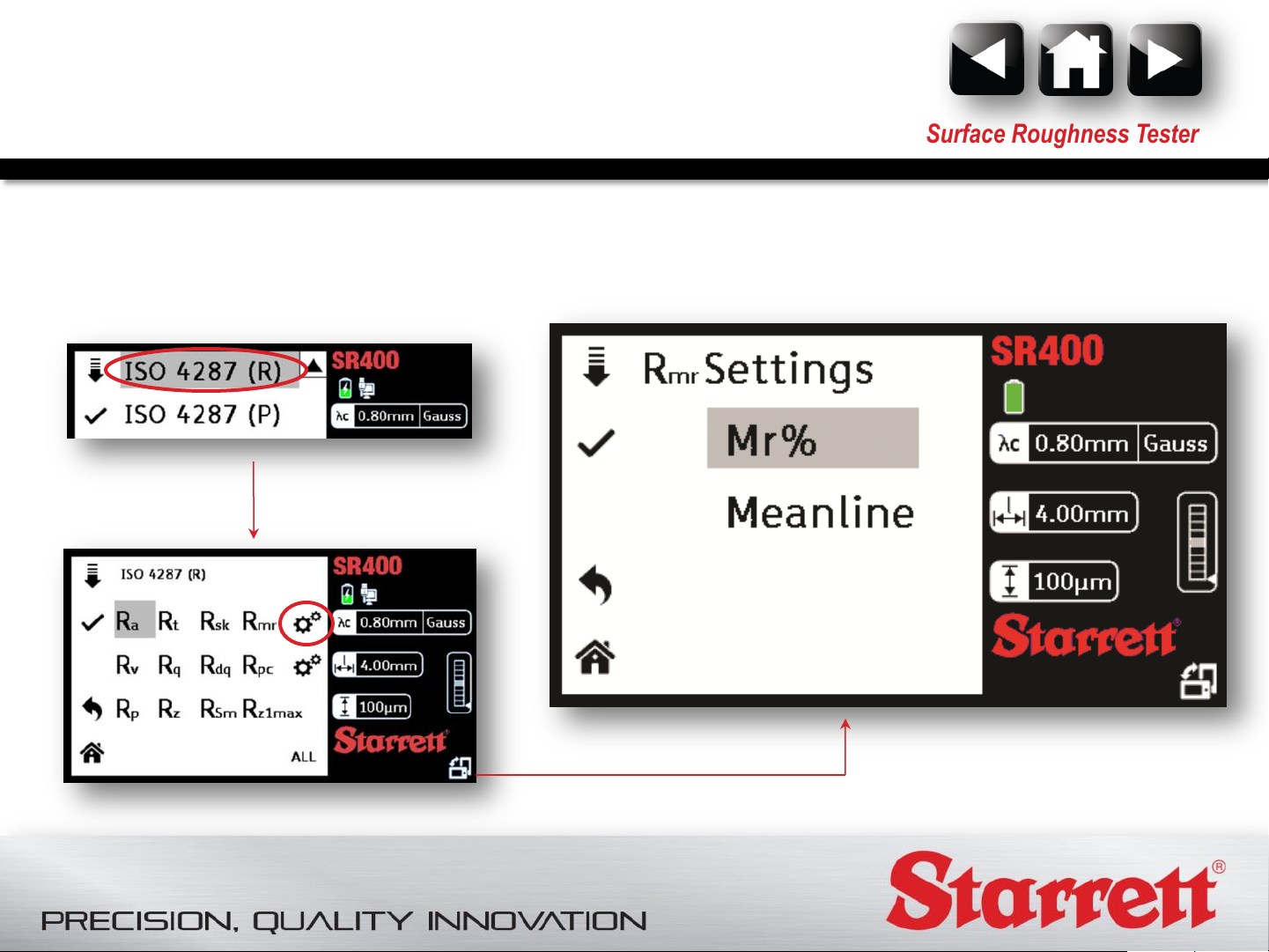

• Rmr (Material Ratio)
• Rda - R Delta a (Arithmetic
Mean Slope)
Instrument Overview
SR300 and SR400 Surface Roughness Tester

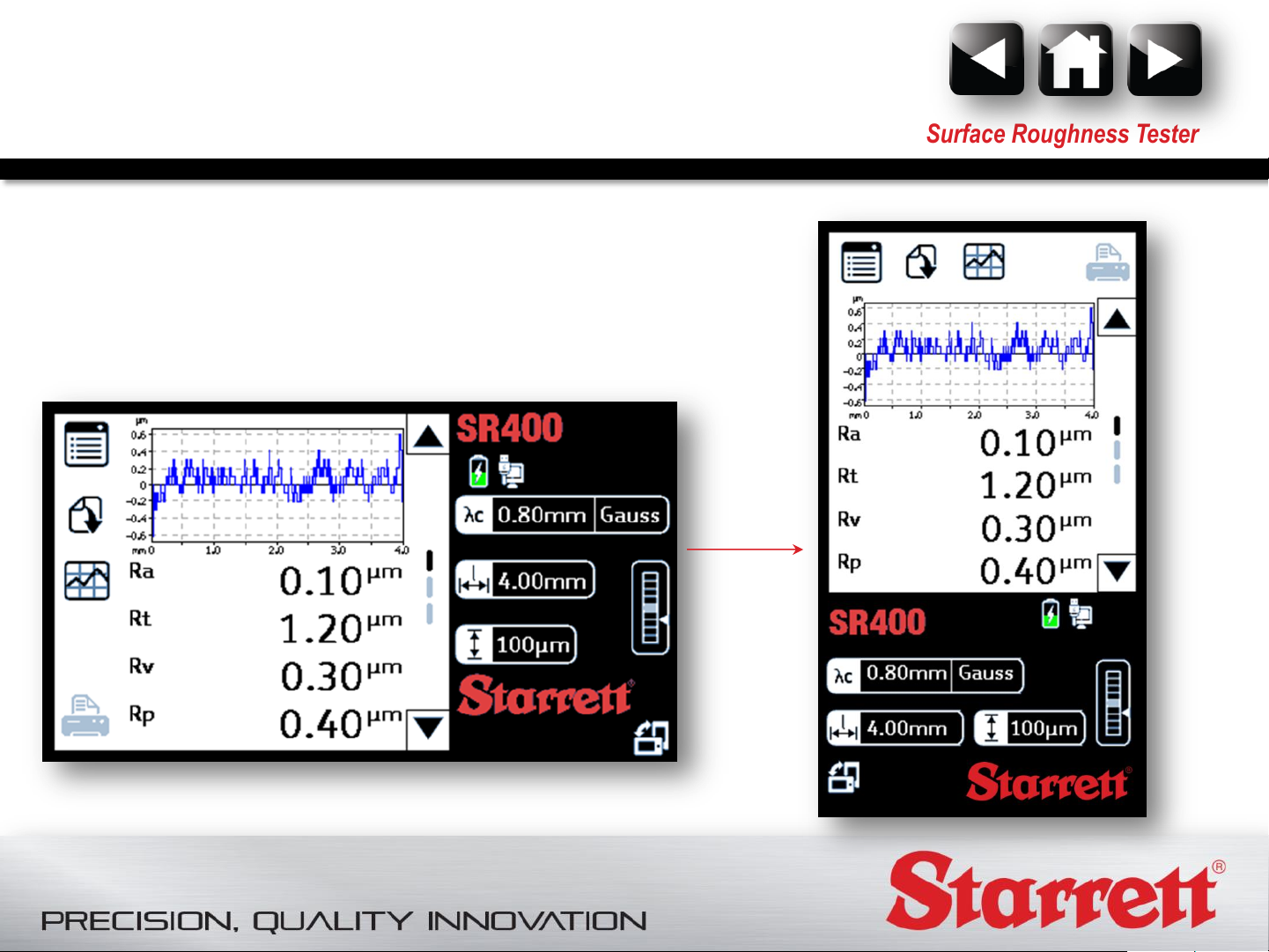

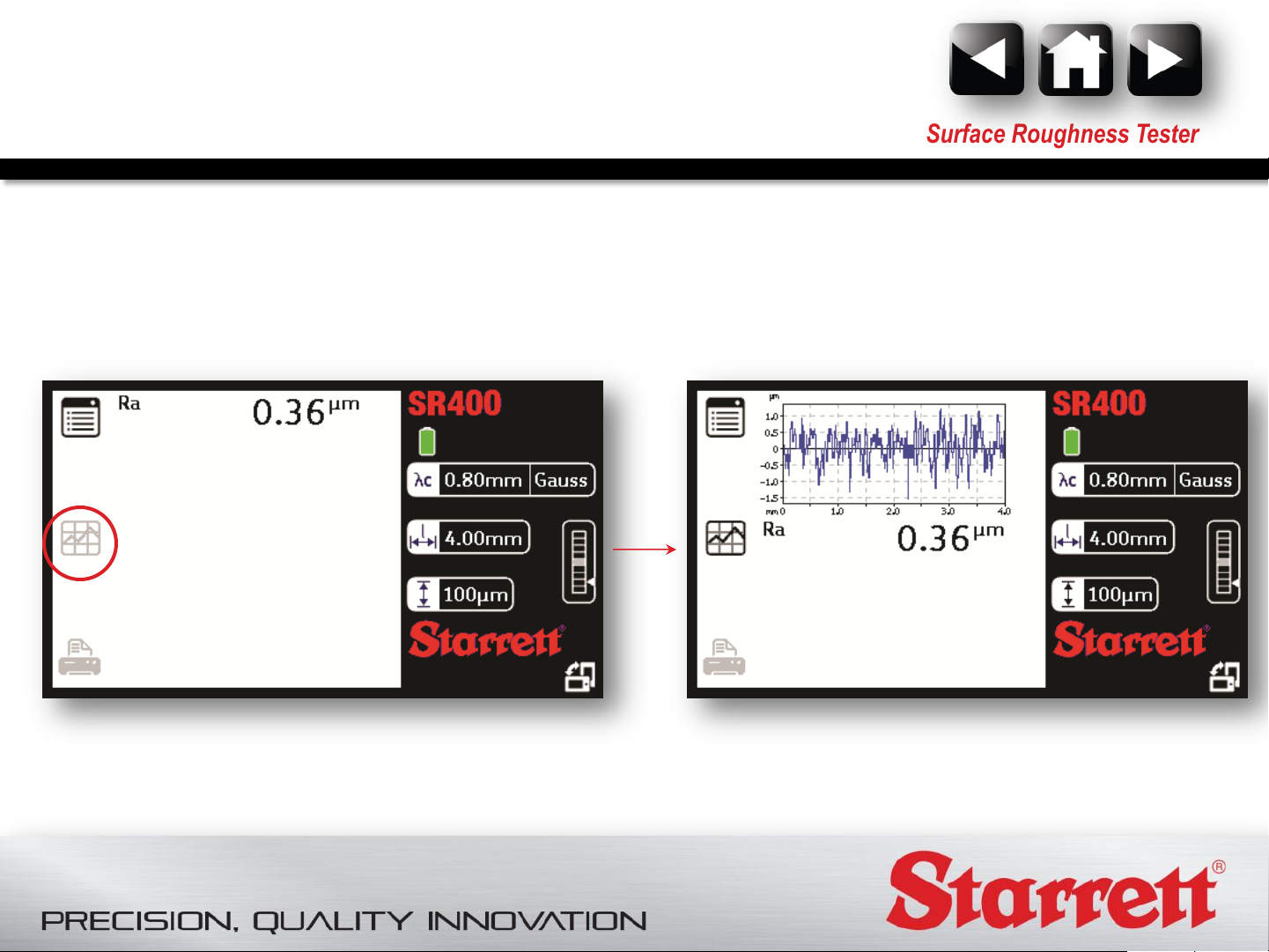

Fast Measurement Cycle
The SR300/SR400 incorporates the
latest electronics for very fast analysis results are calculated and displayed
even before the traverse unit returns.
This fast processing, combined with
intuitive menu buttons, greatly reduces
measurement cycles.
Powerful Software Options
The SR300/SR400 includes Type A
USB and USB mini ports which allow
connection to a printer or exportation of
results to a PC for further analysis using
the optional Talyprofile software. By
setting the SR300/SR400 to 'Data
Dump' mode, measurements can be
instigated directly from the Talyprofile
software.

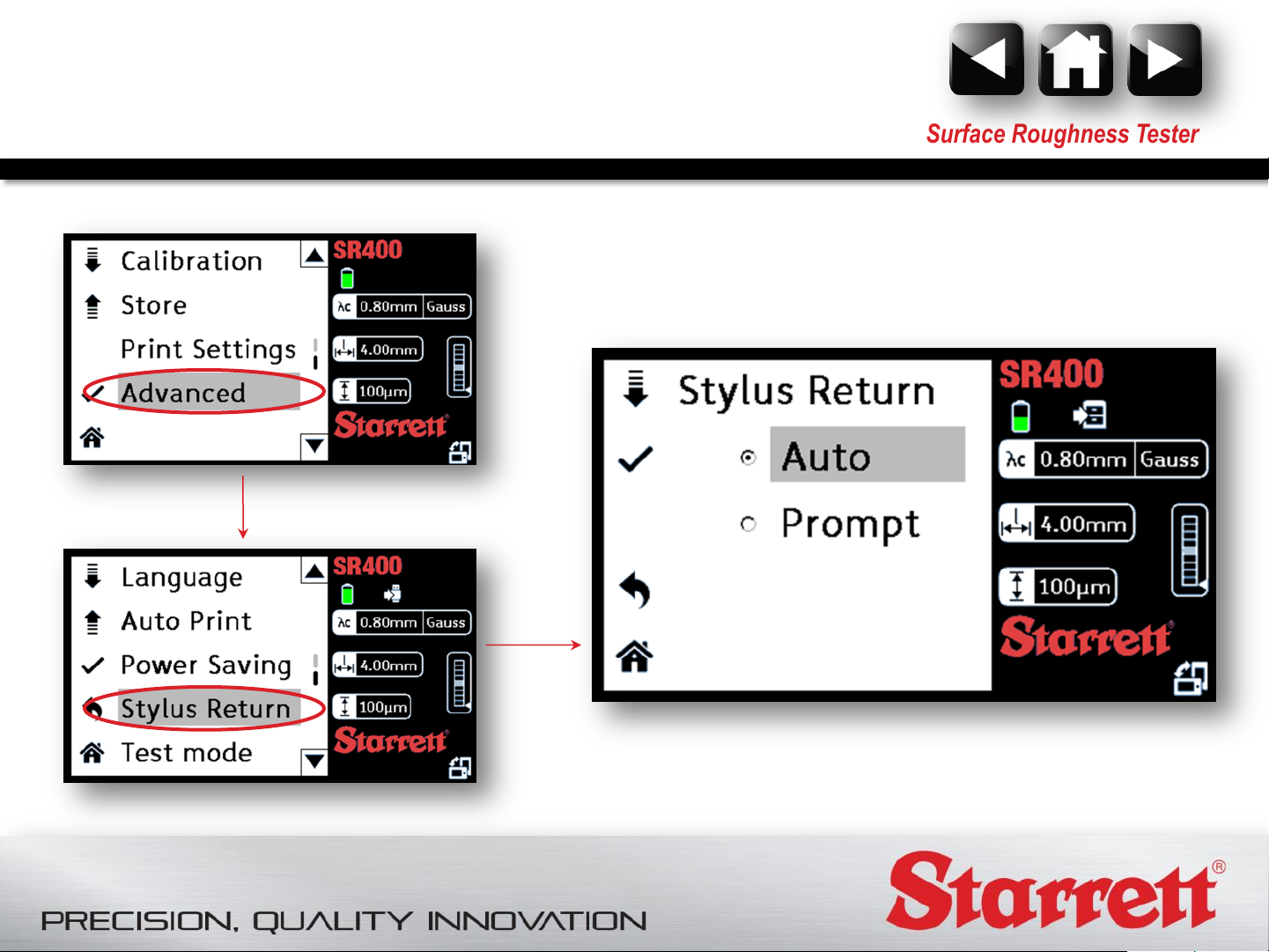

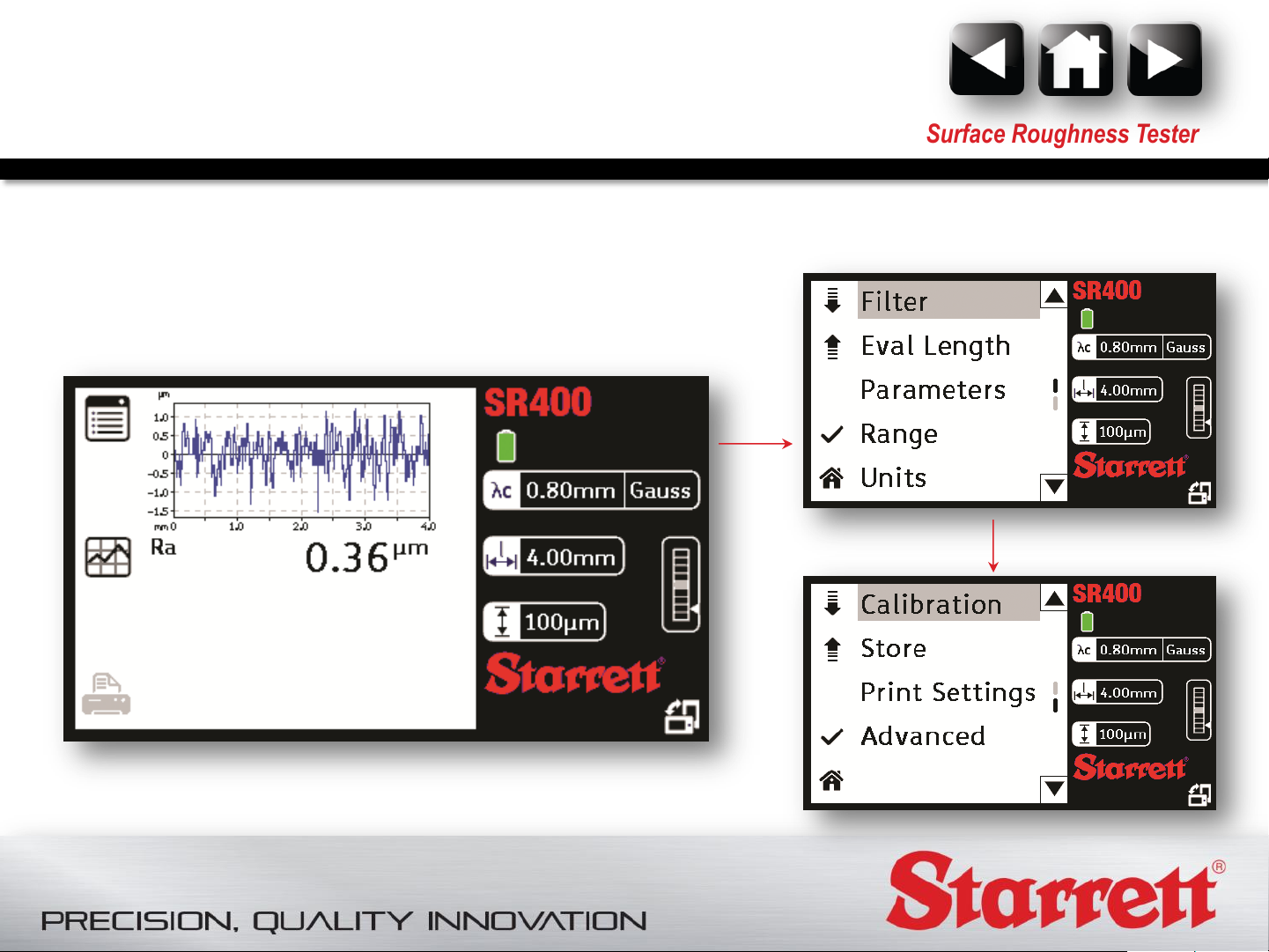

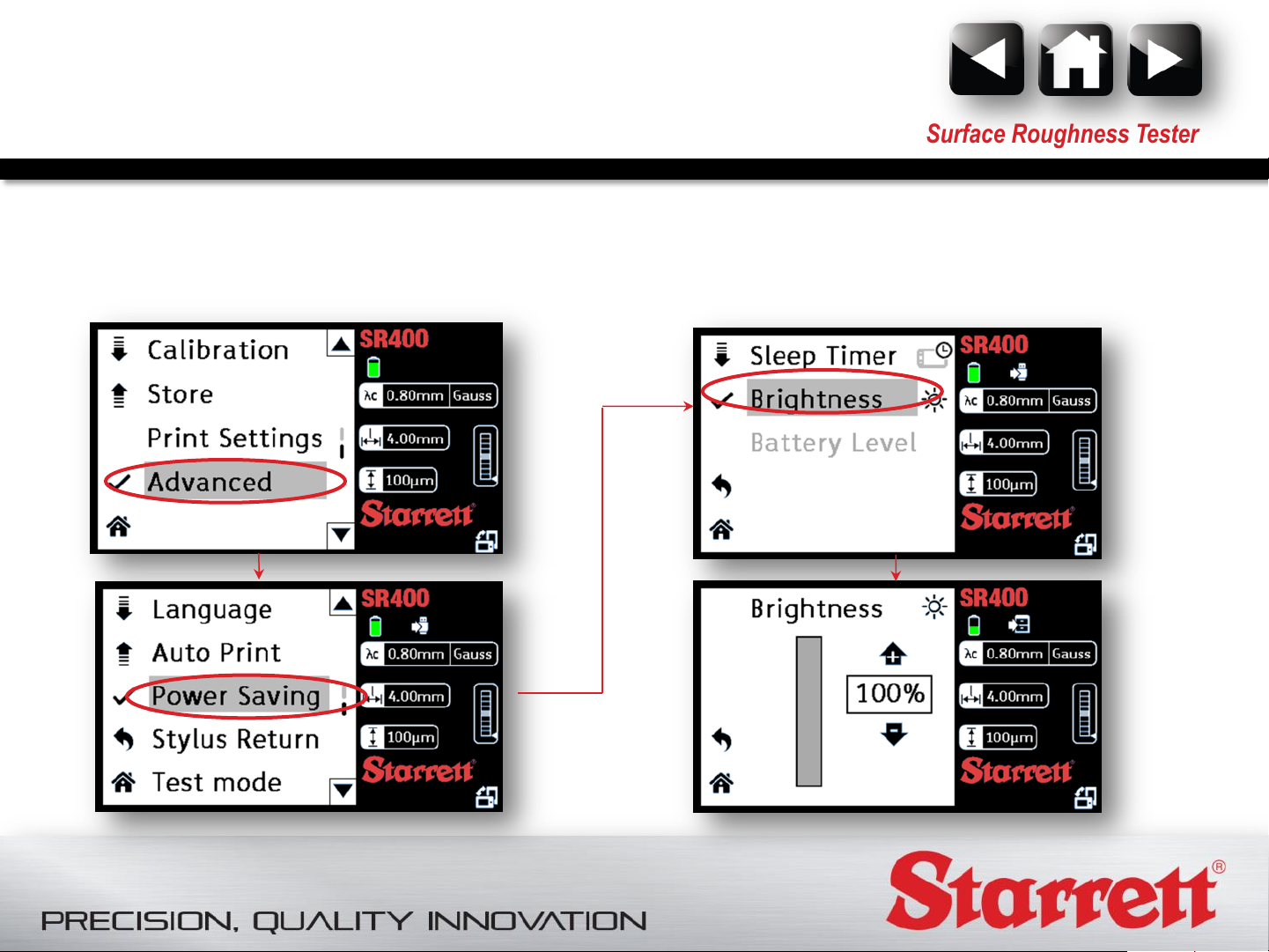

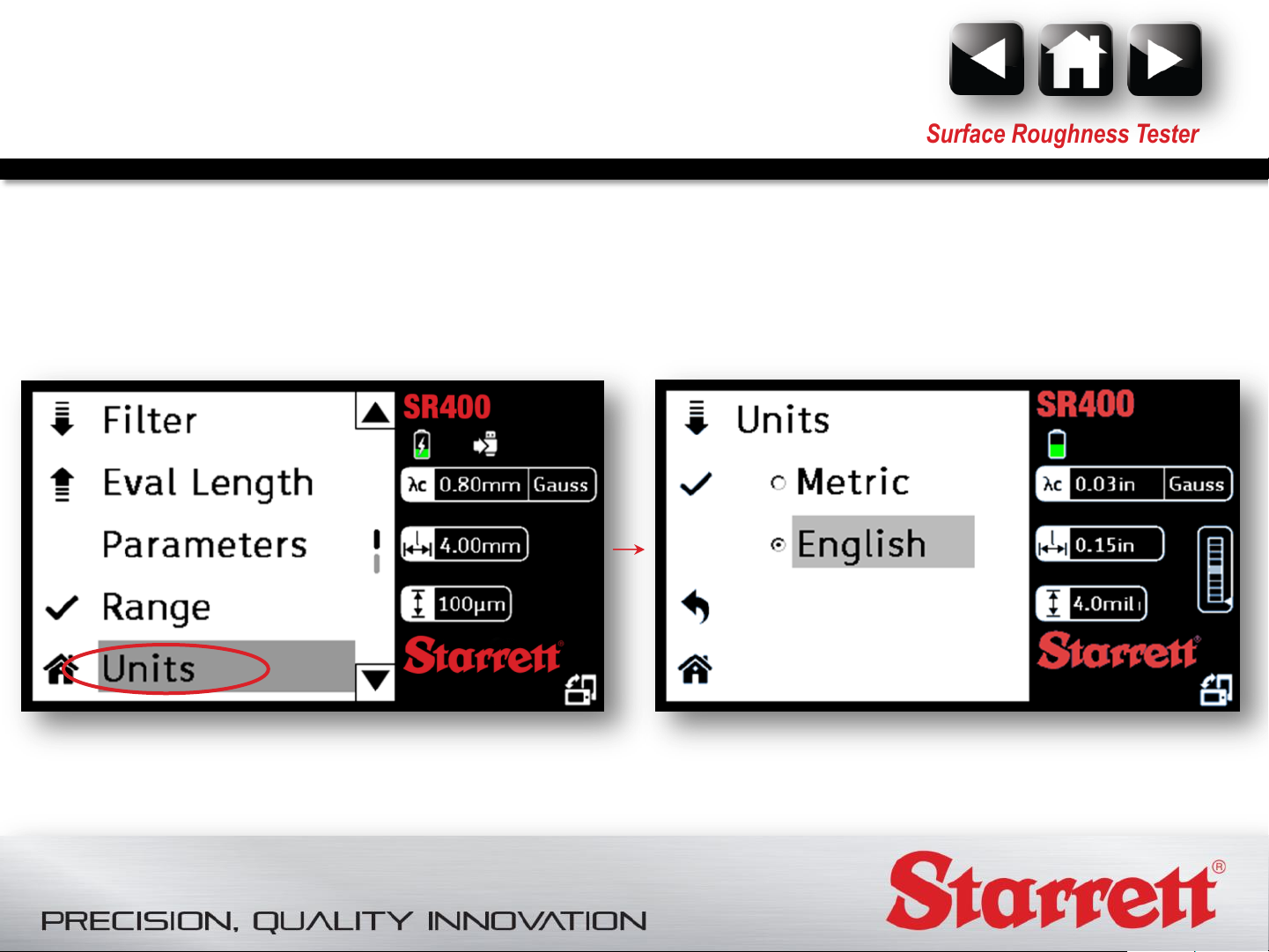

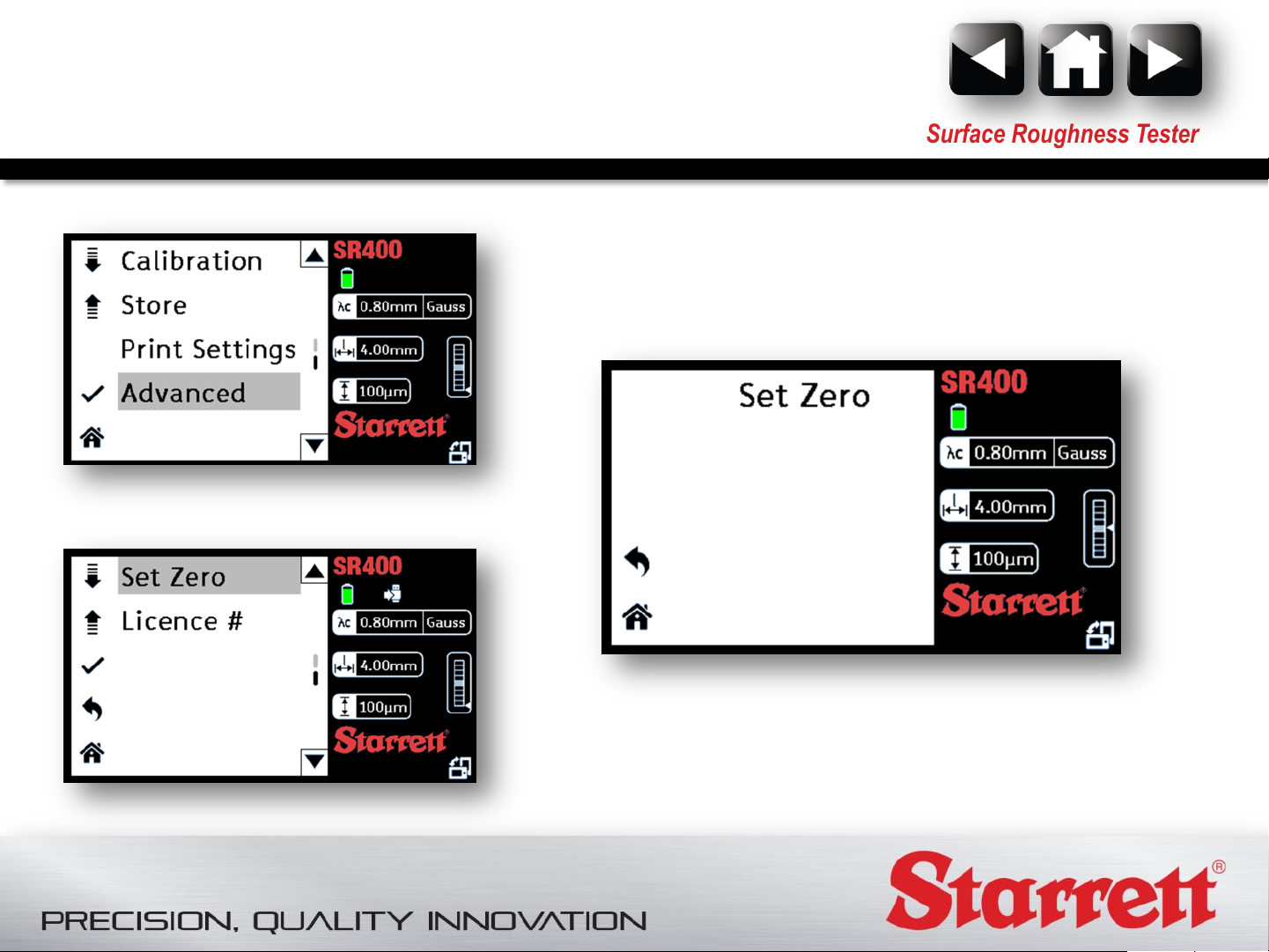

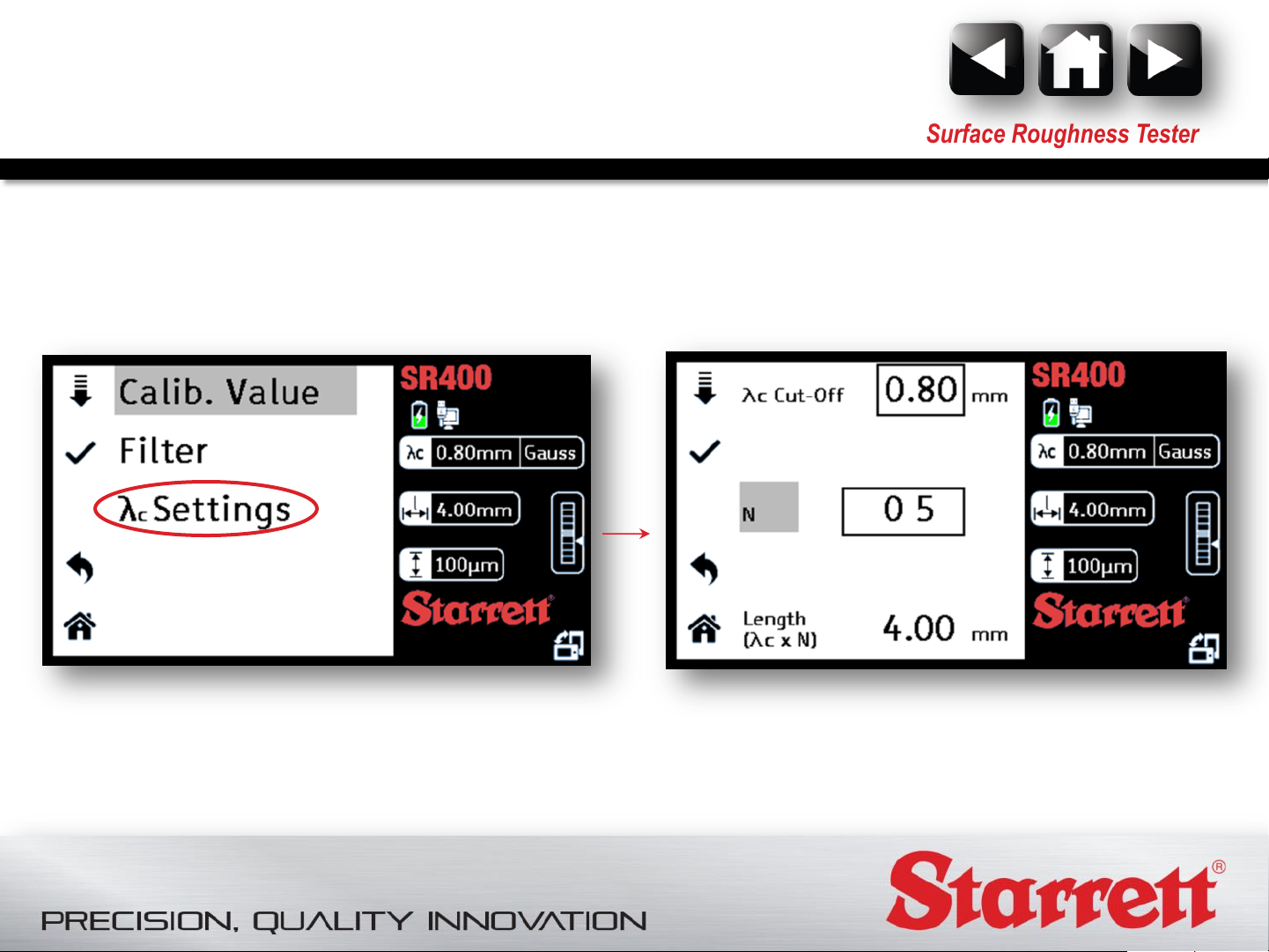

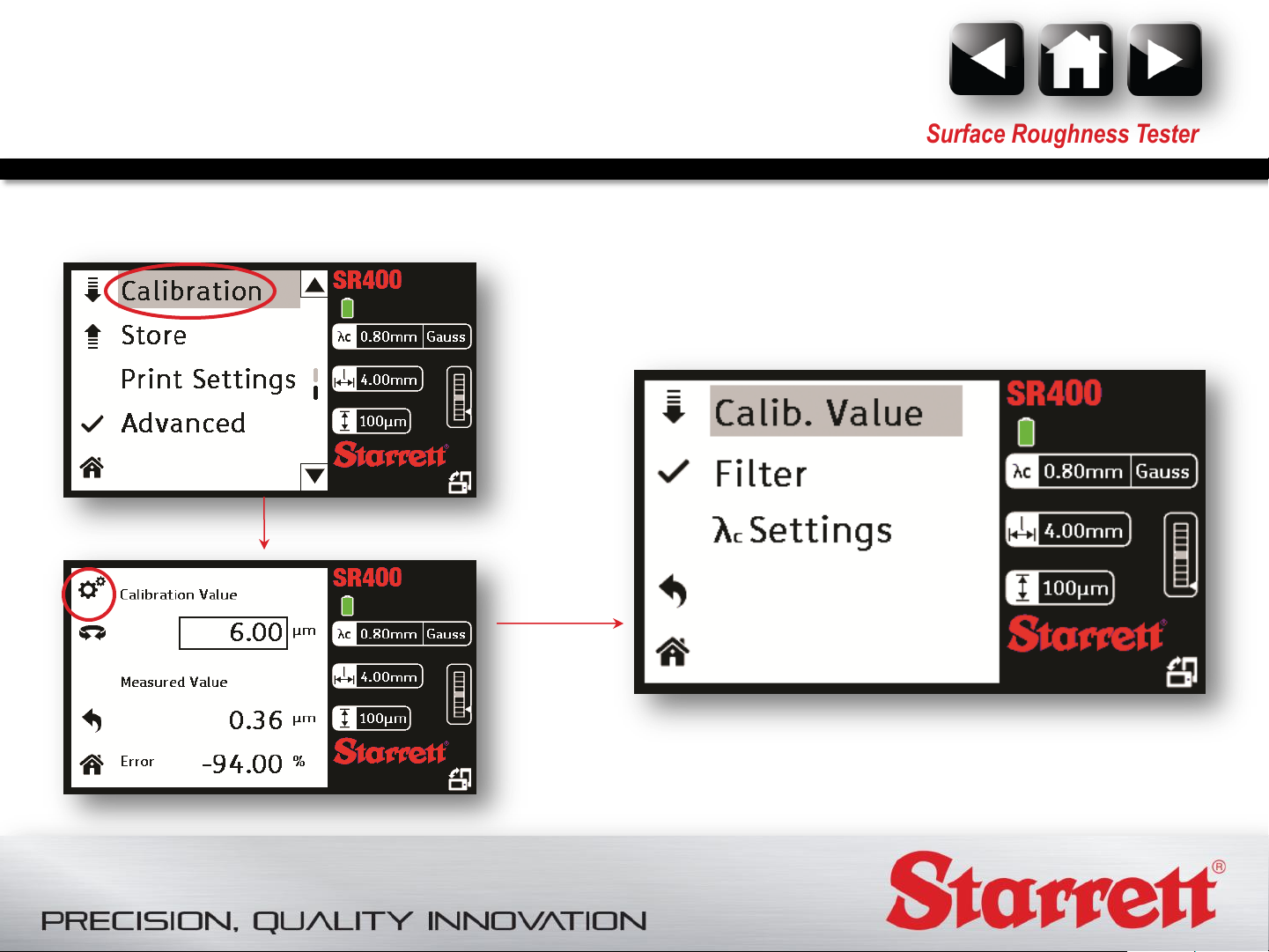

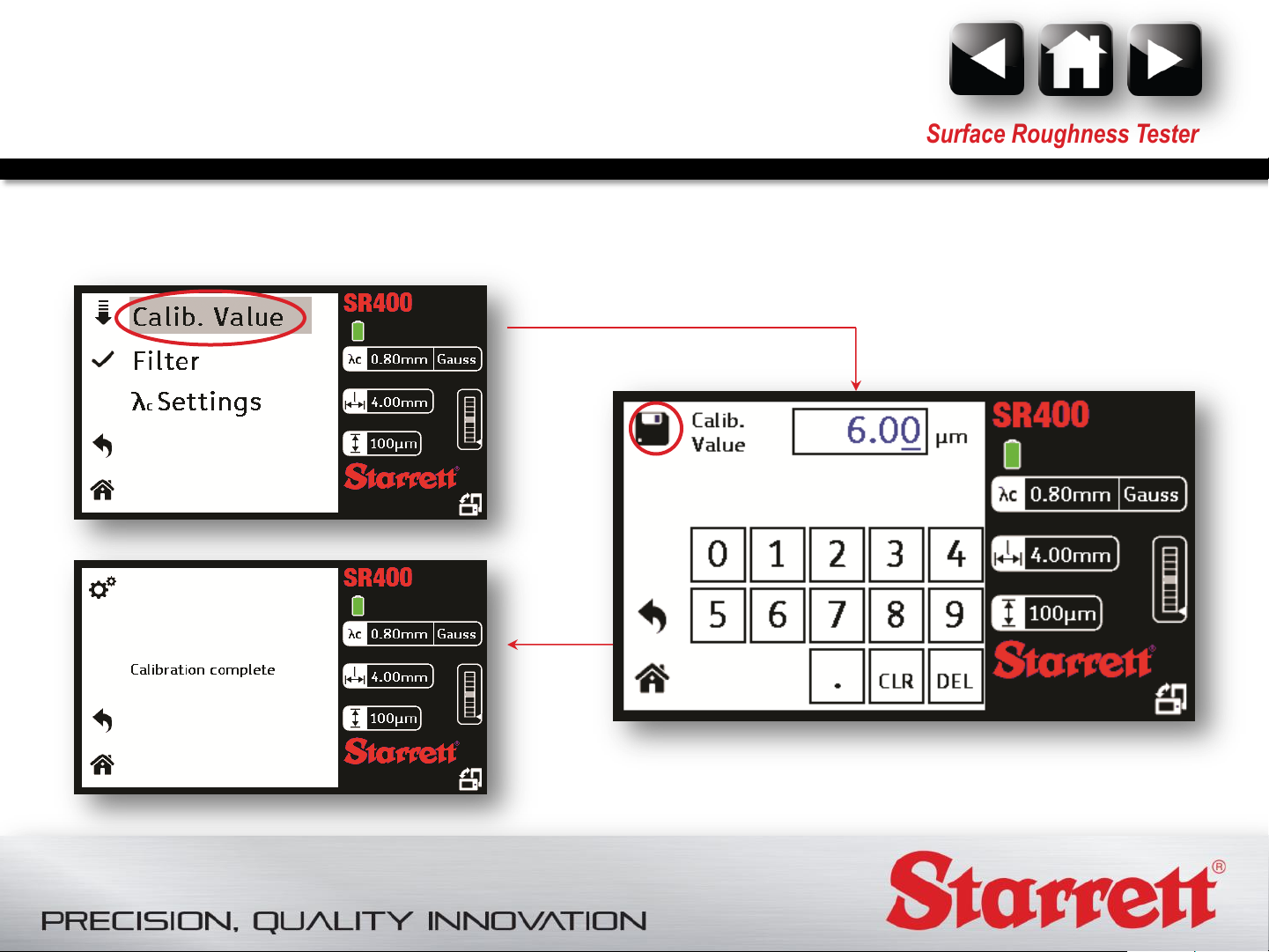

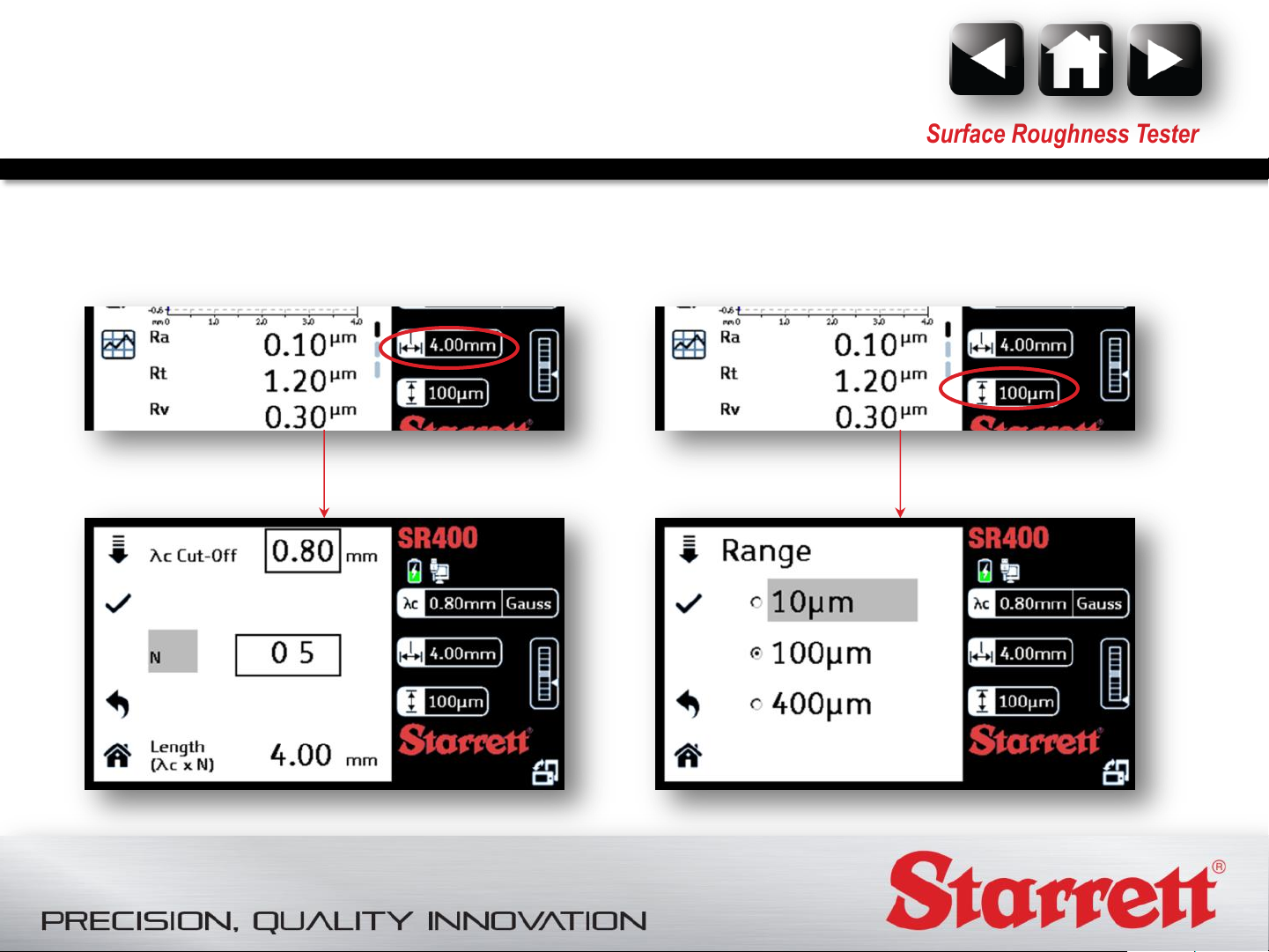

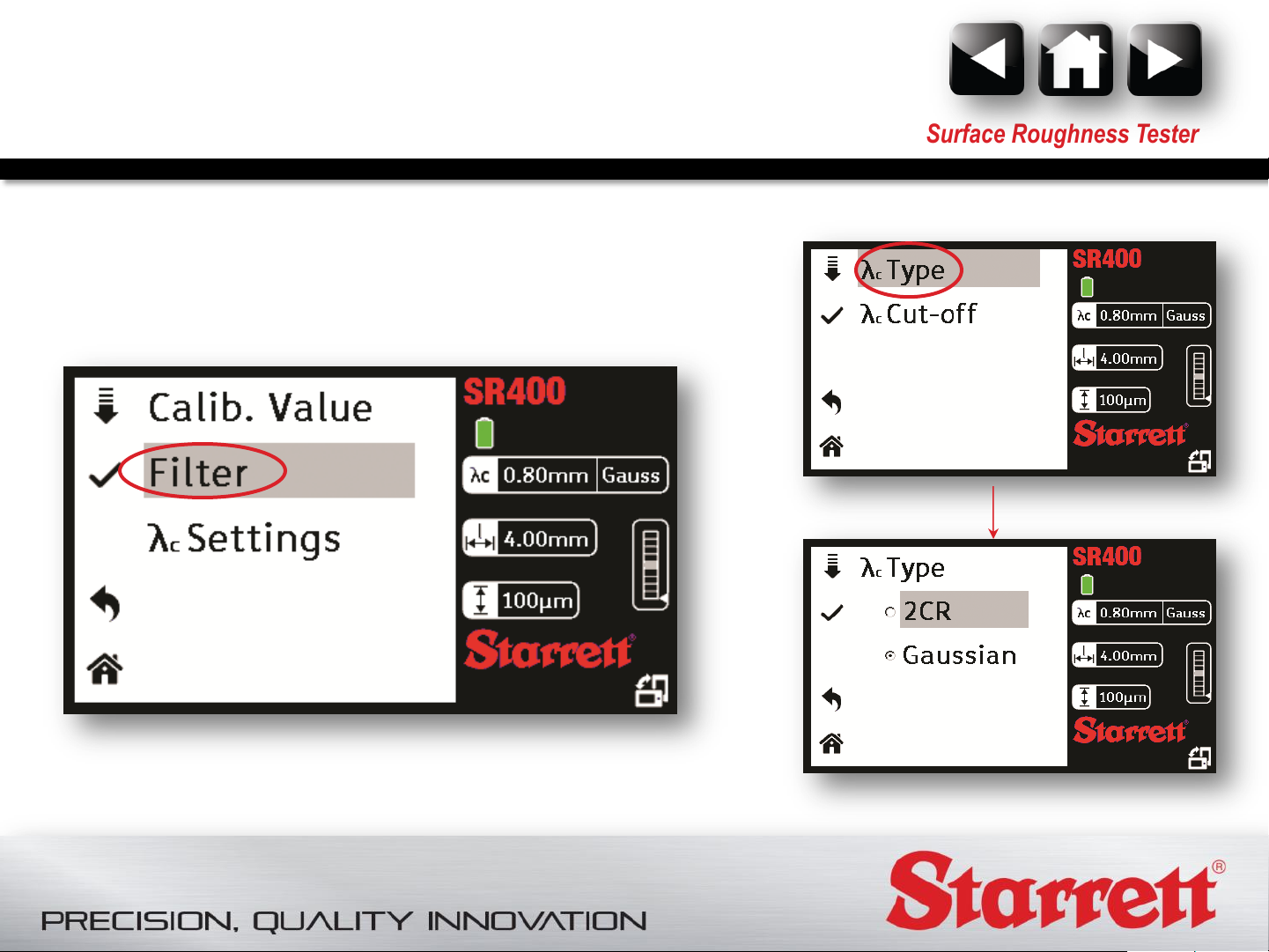

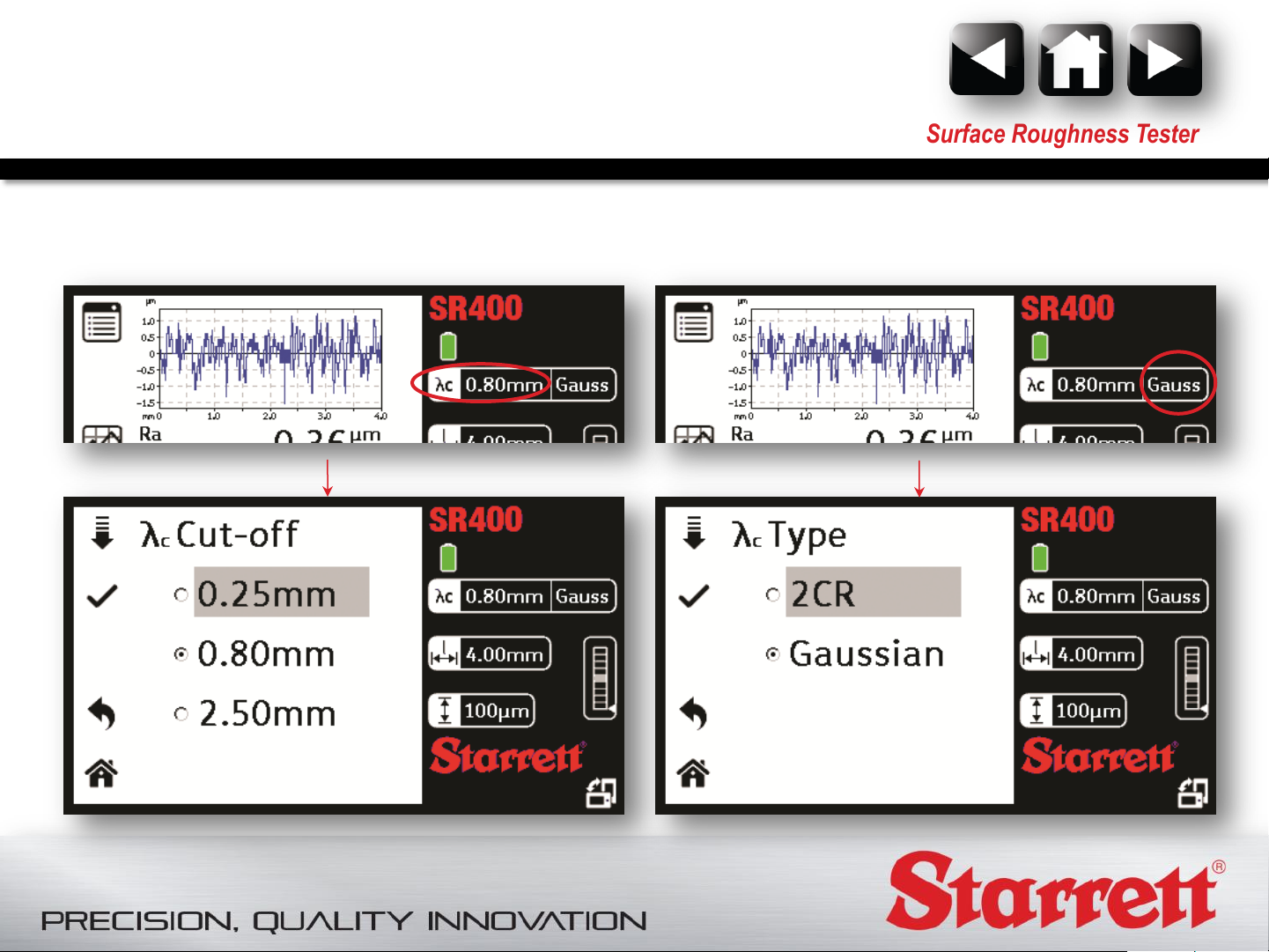

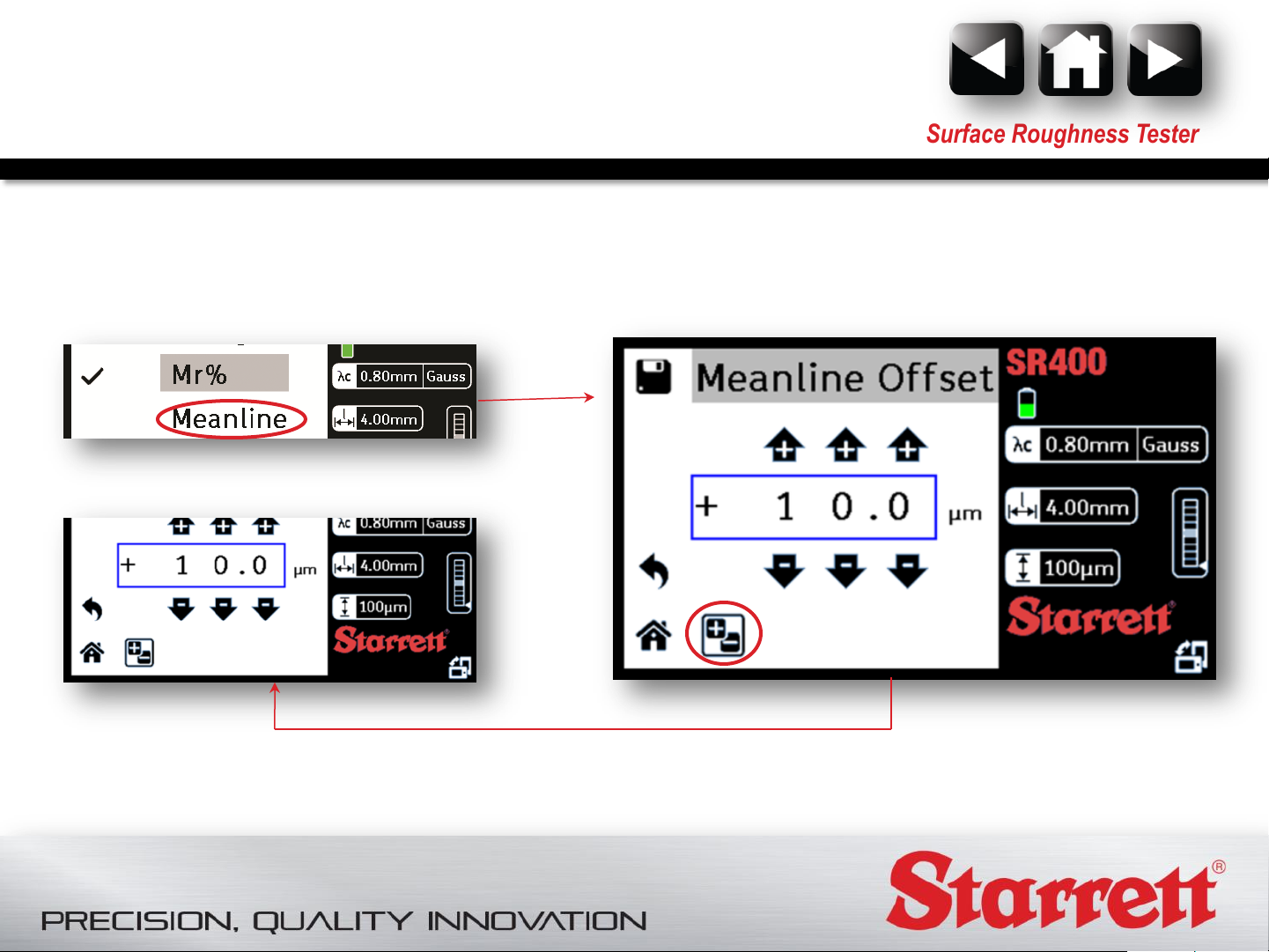

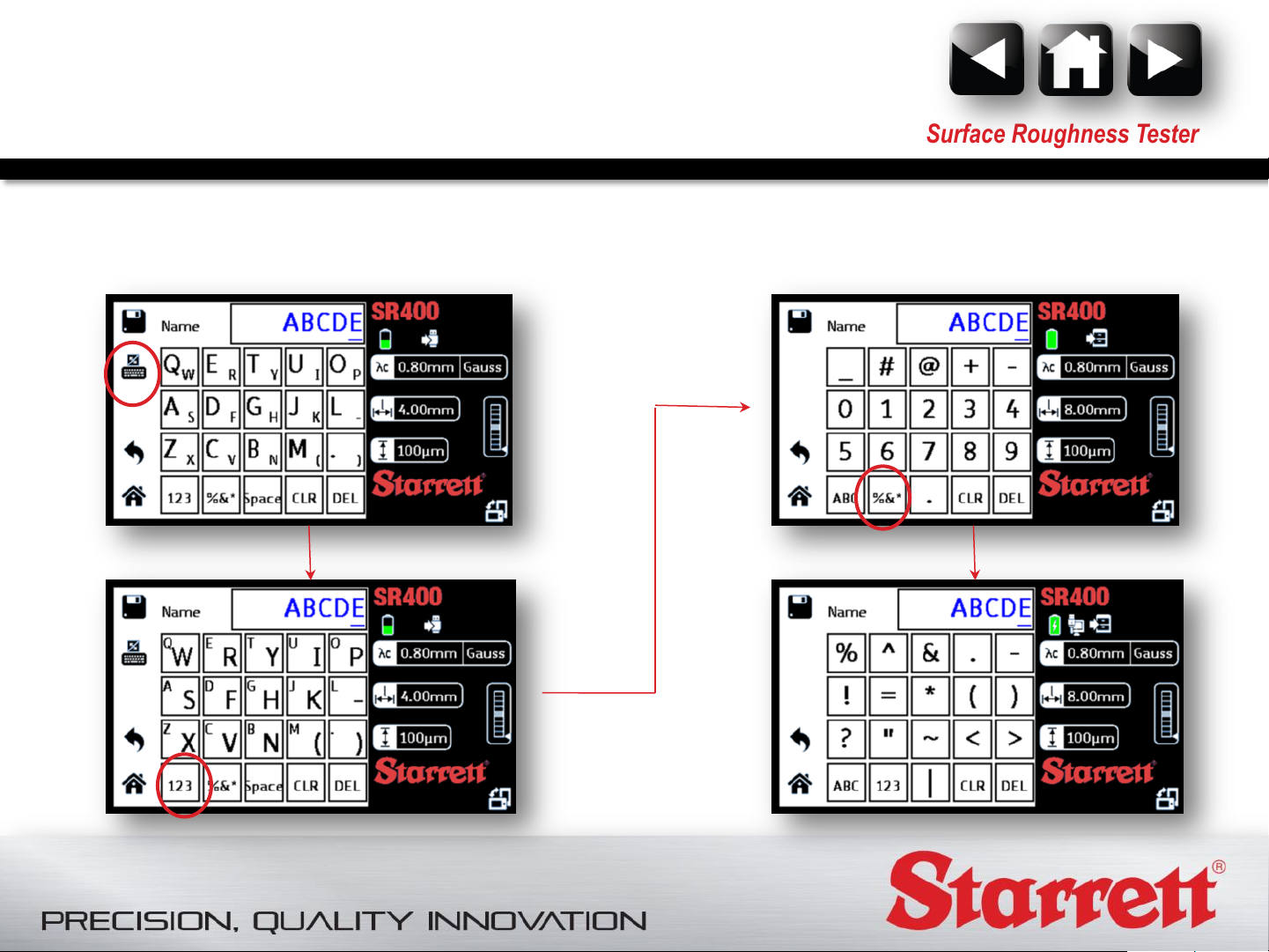

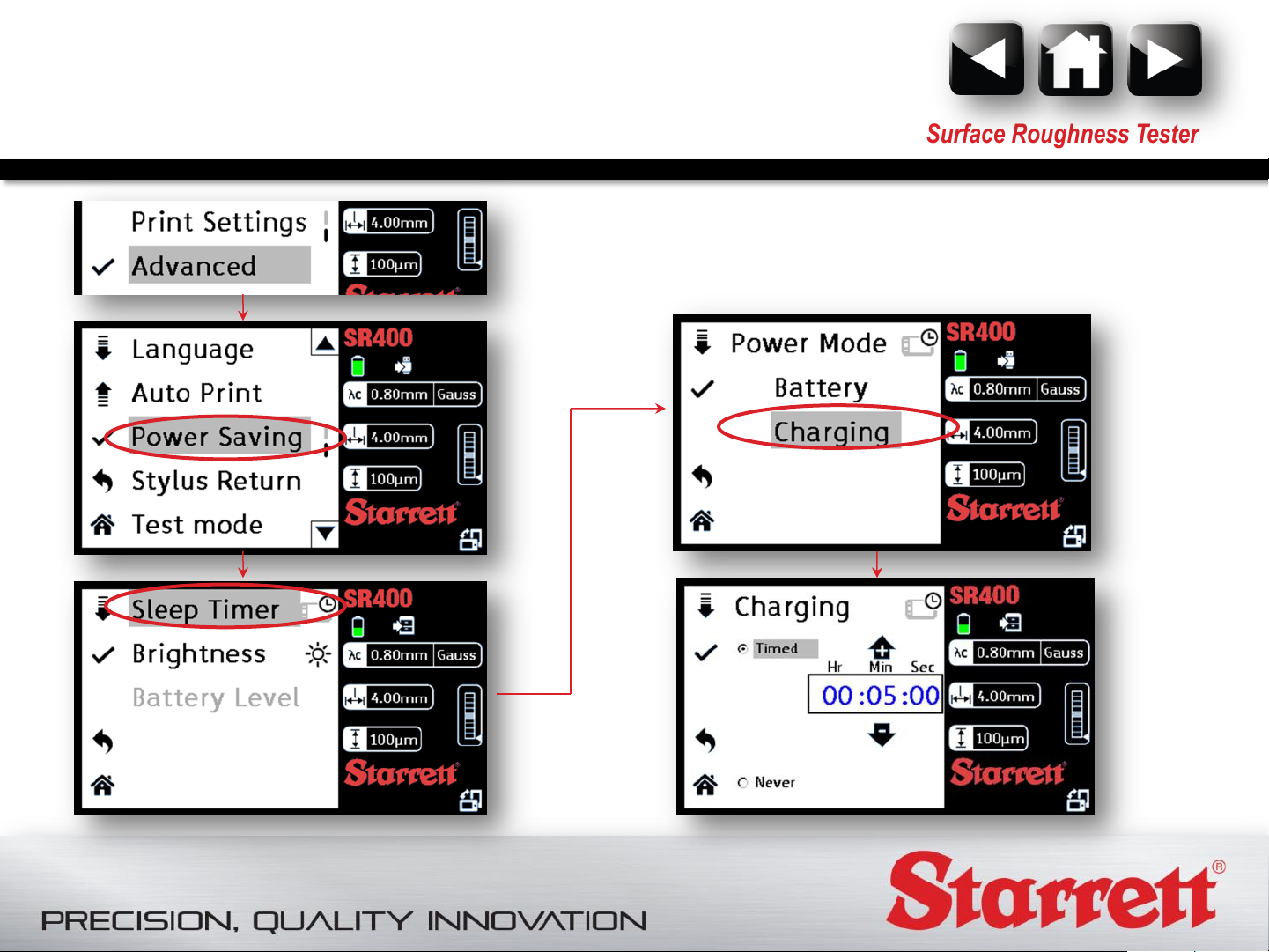

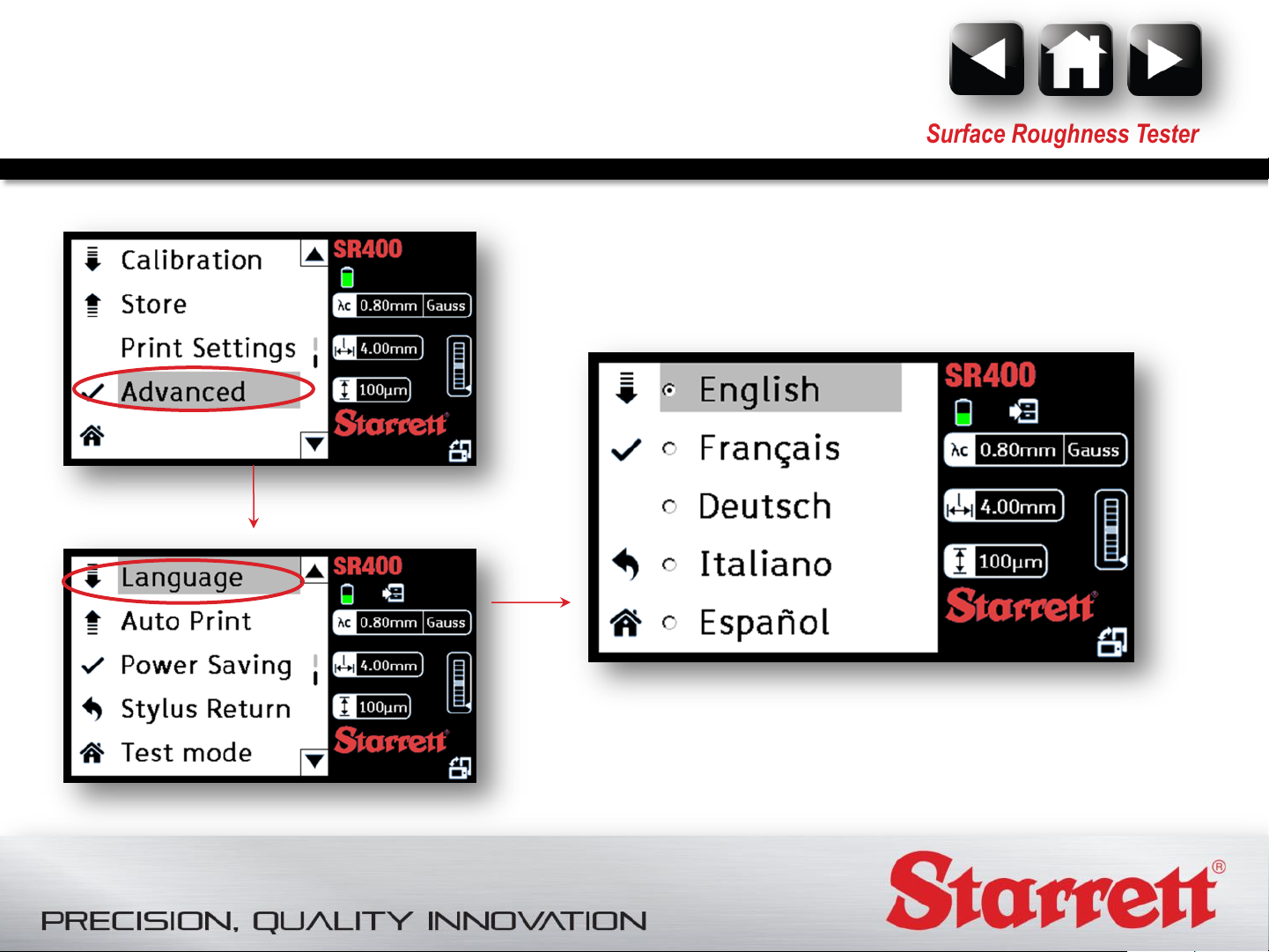

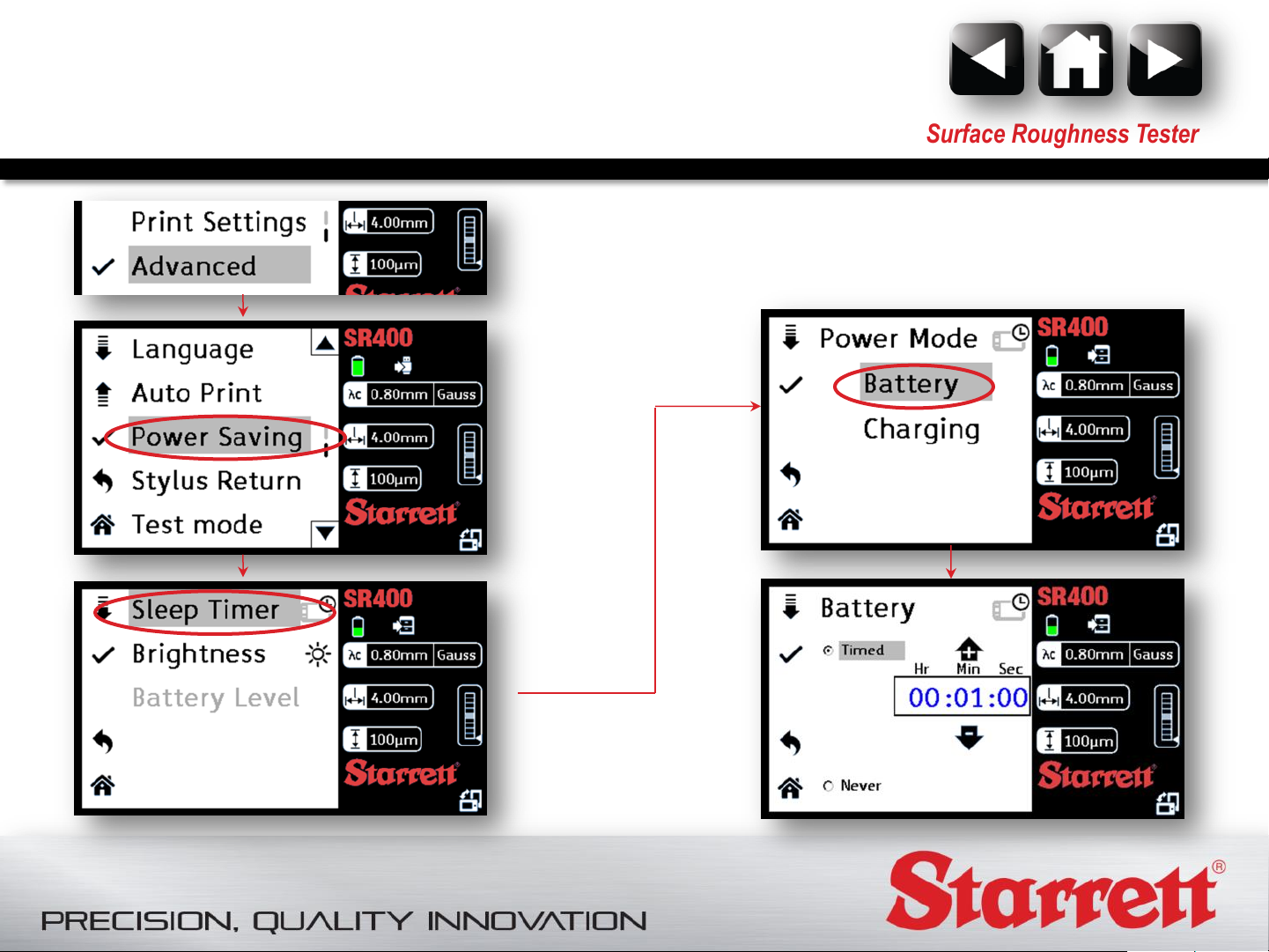

Intuitive Menu Structure
The SR300/SR400 incorporates a large LCD screen which allows full
menu and measurement results to be displayed. Using only two buttons
the user can scroll through the menus and make selections intuitively
before pressing the MEASURE key. All selections are saved for future
measurements. All the measurement criteria and results are displayed
clearly on the screen ready to print or export to a PC.
Instrument Overview
SR300 and SR400 Surface Roughness Tester

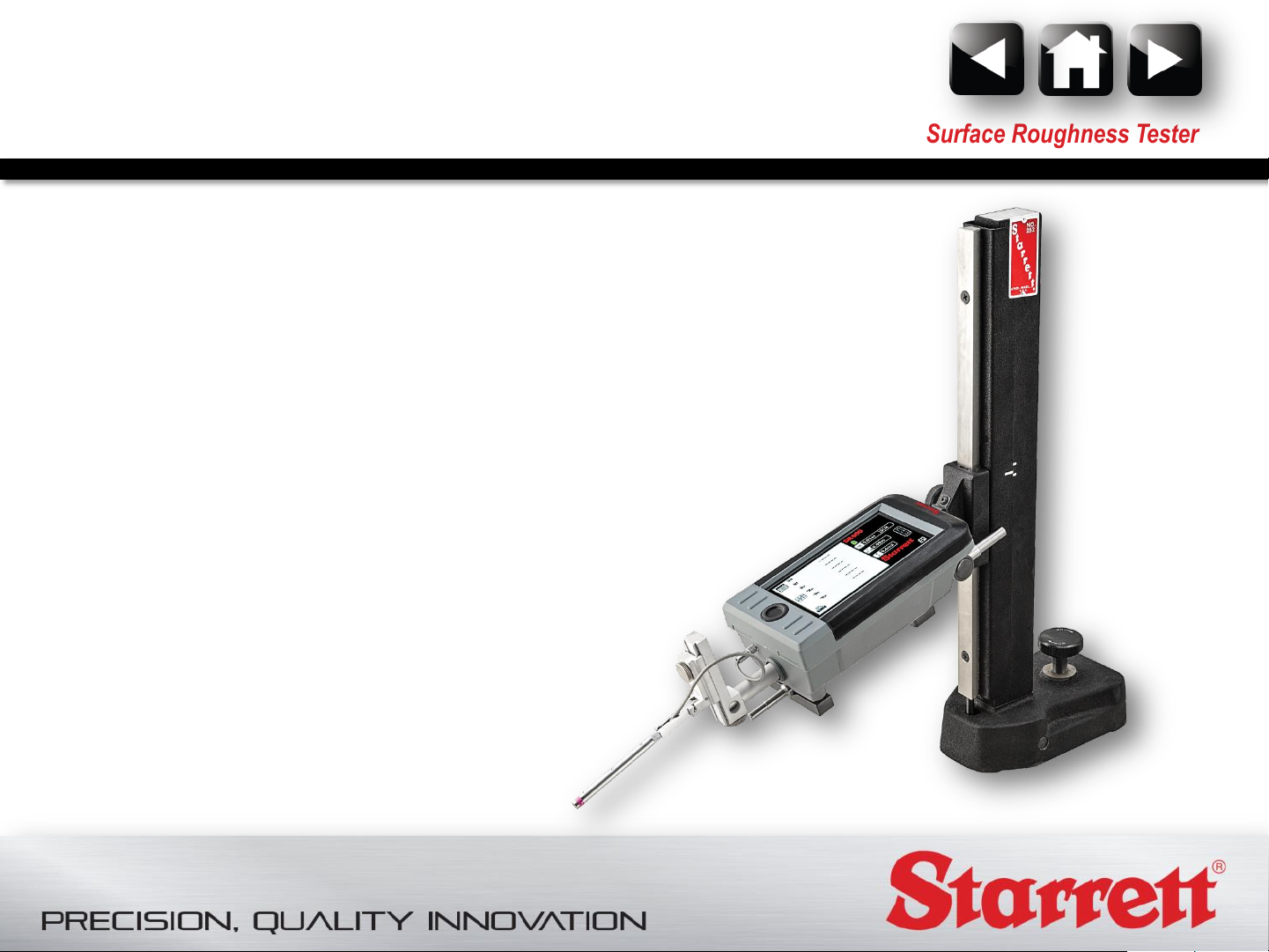

Unique Stylus Lift Mechanism
The SR300/SR400 has a uniquely engineered stylus lift
mechanism which allows a vertical adjustment of 50mm and
rotation of the pick-up to different measuring positions, including
right angle or inverted measurements. These adjustments to the
height and position of the gauge allow areas and features of a
part to be easily measured without additional fixtures. This
feature saves the operator a huge amount of set up time and
allows total flexibility. Typical applications where the stylus lift is
invaluable include the measurement of steps, bores, grooves and
lands.

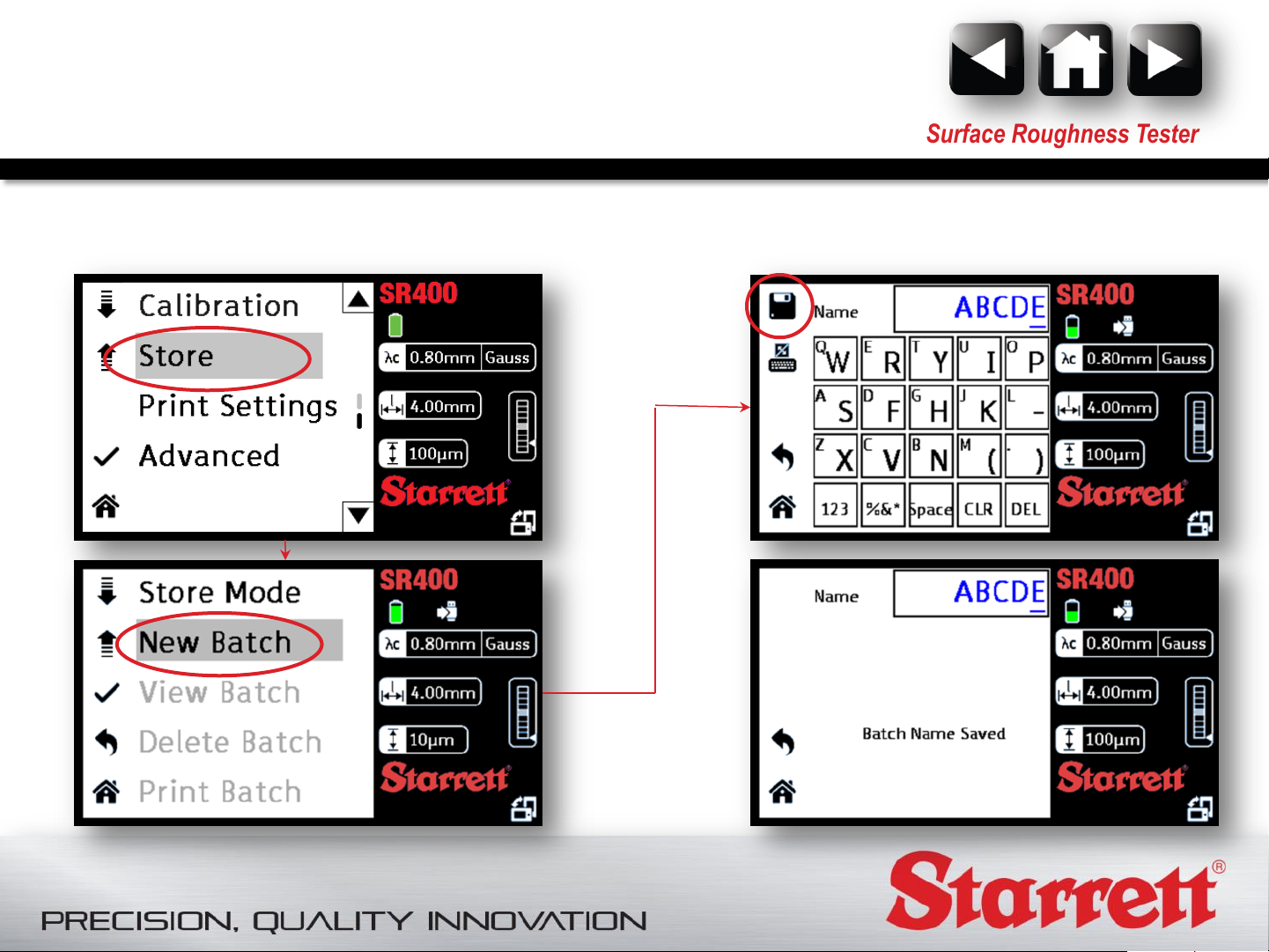

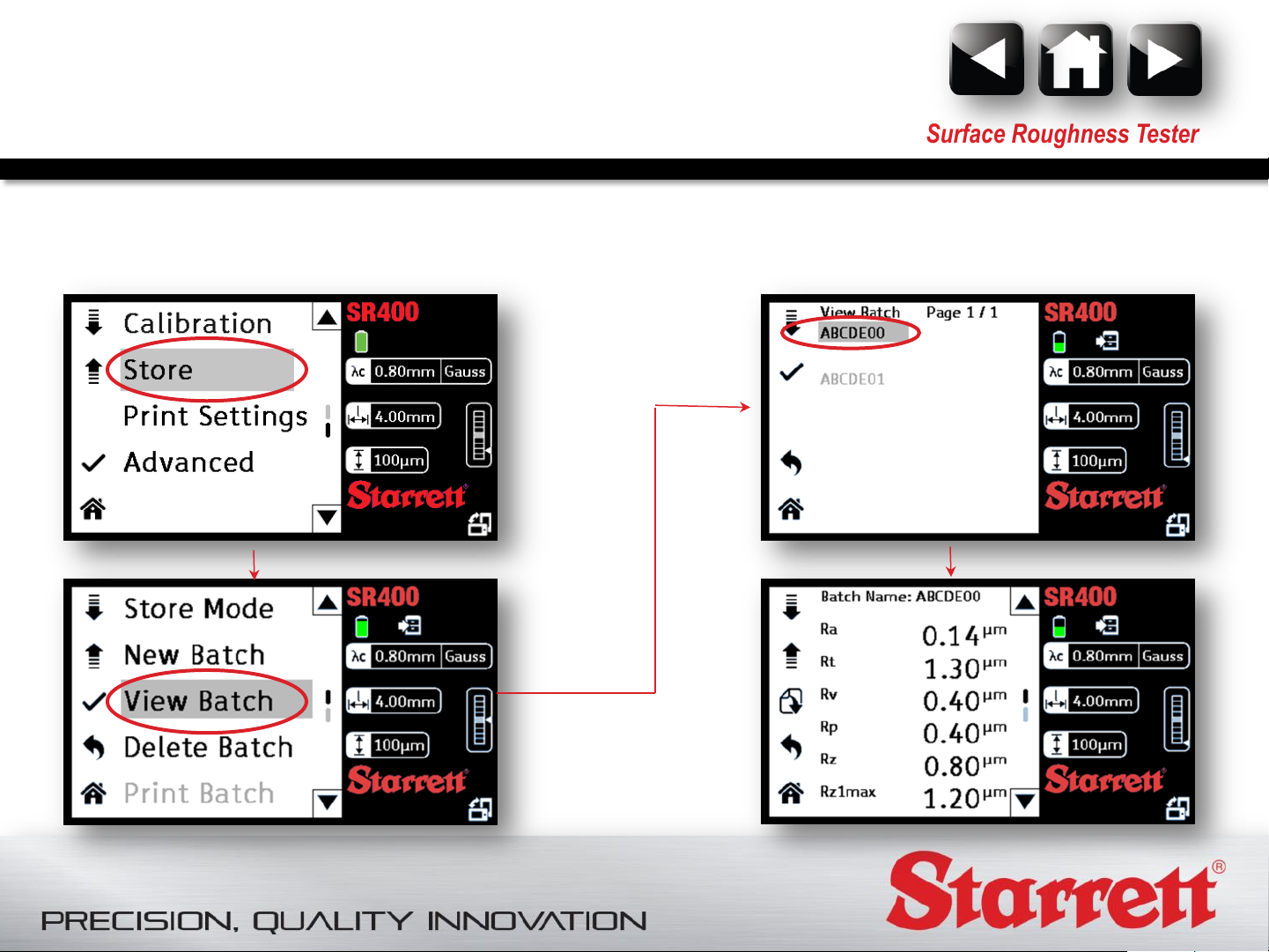

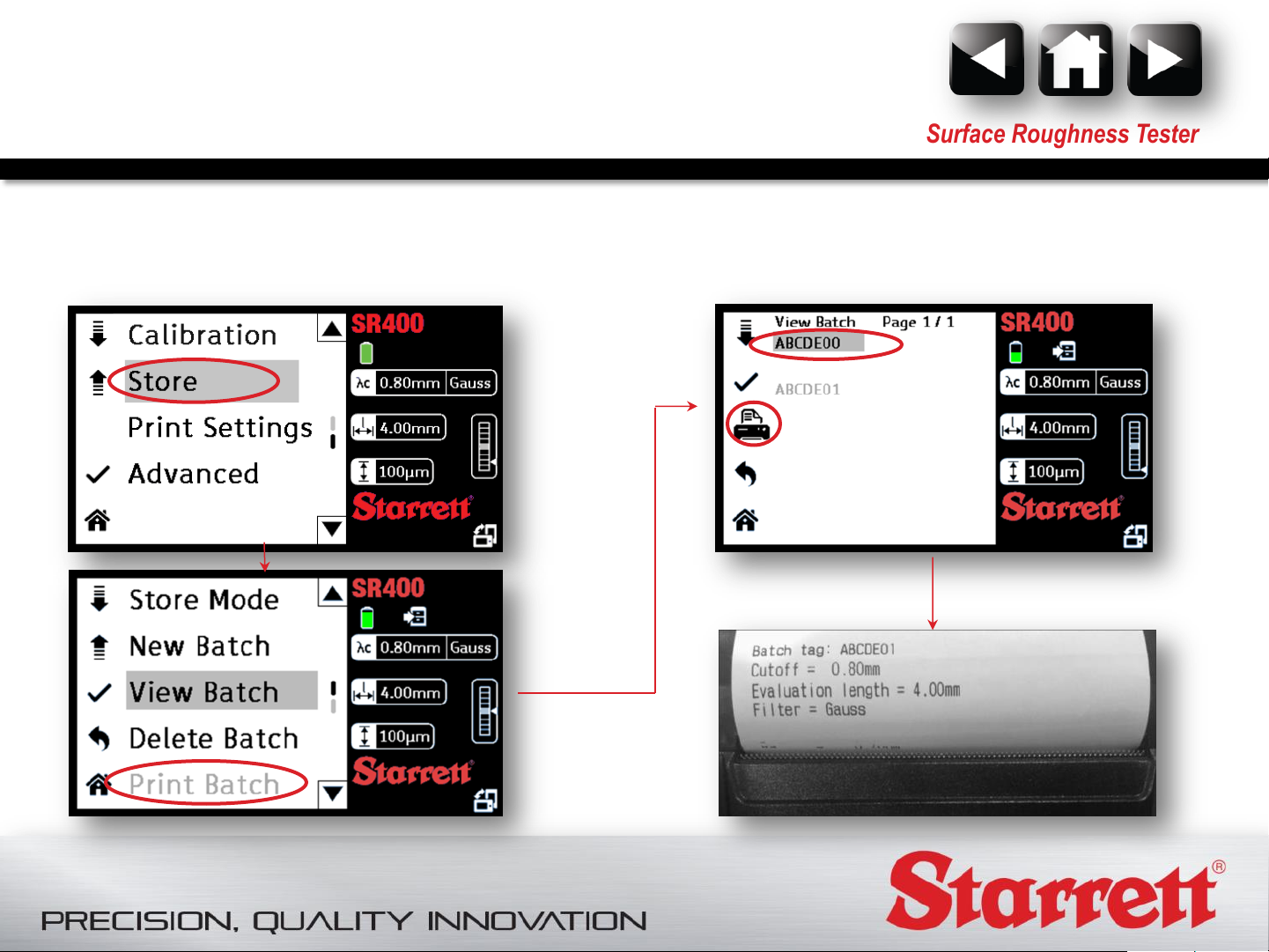

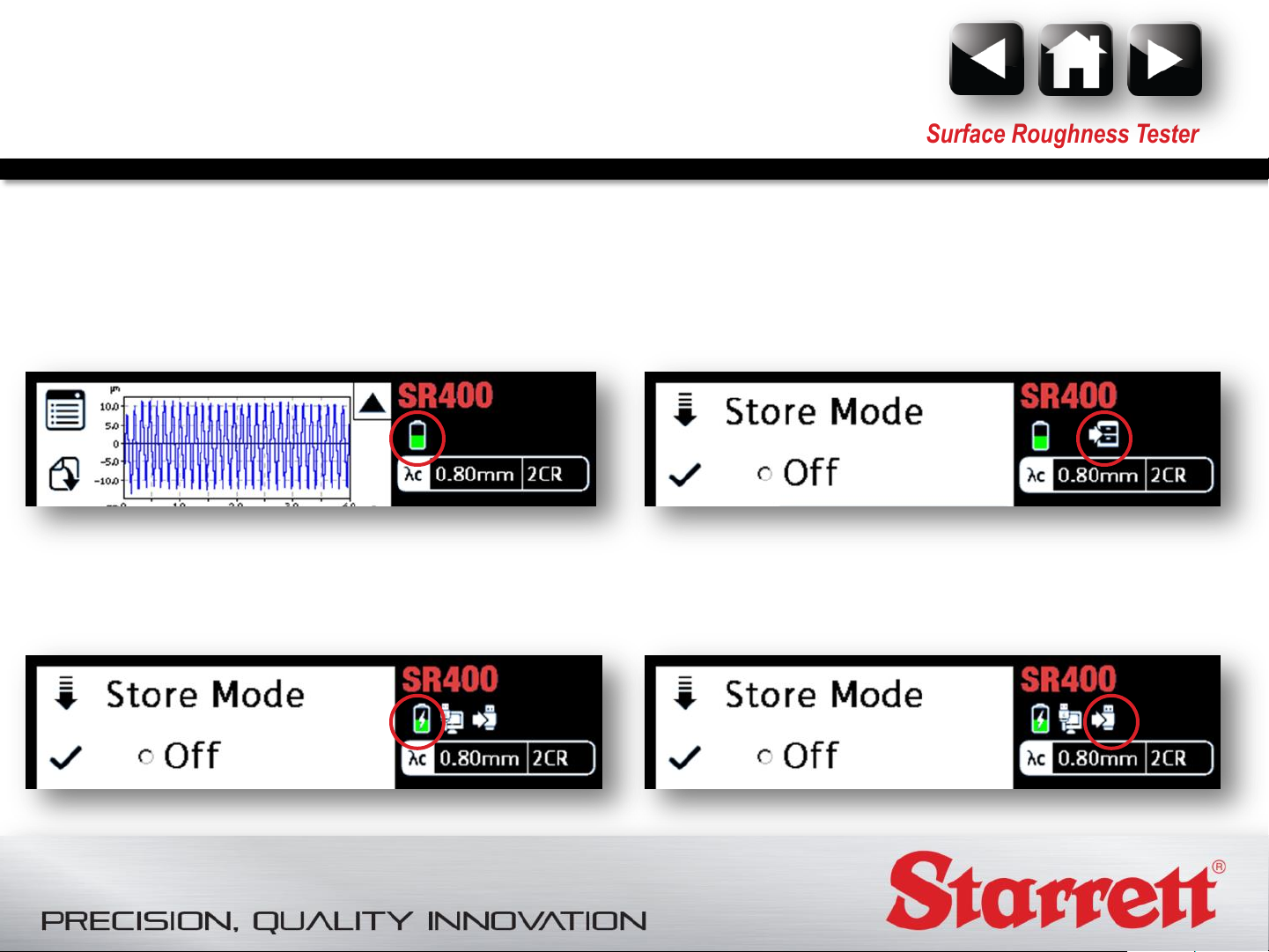

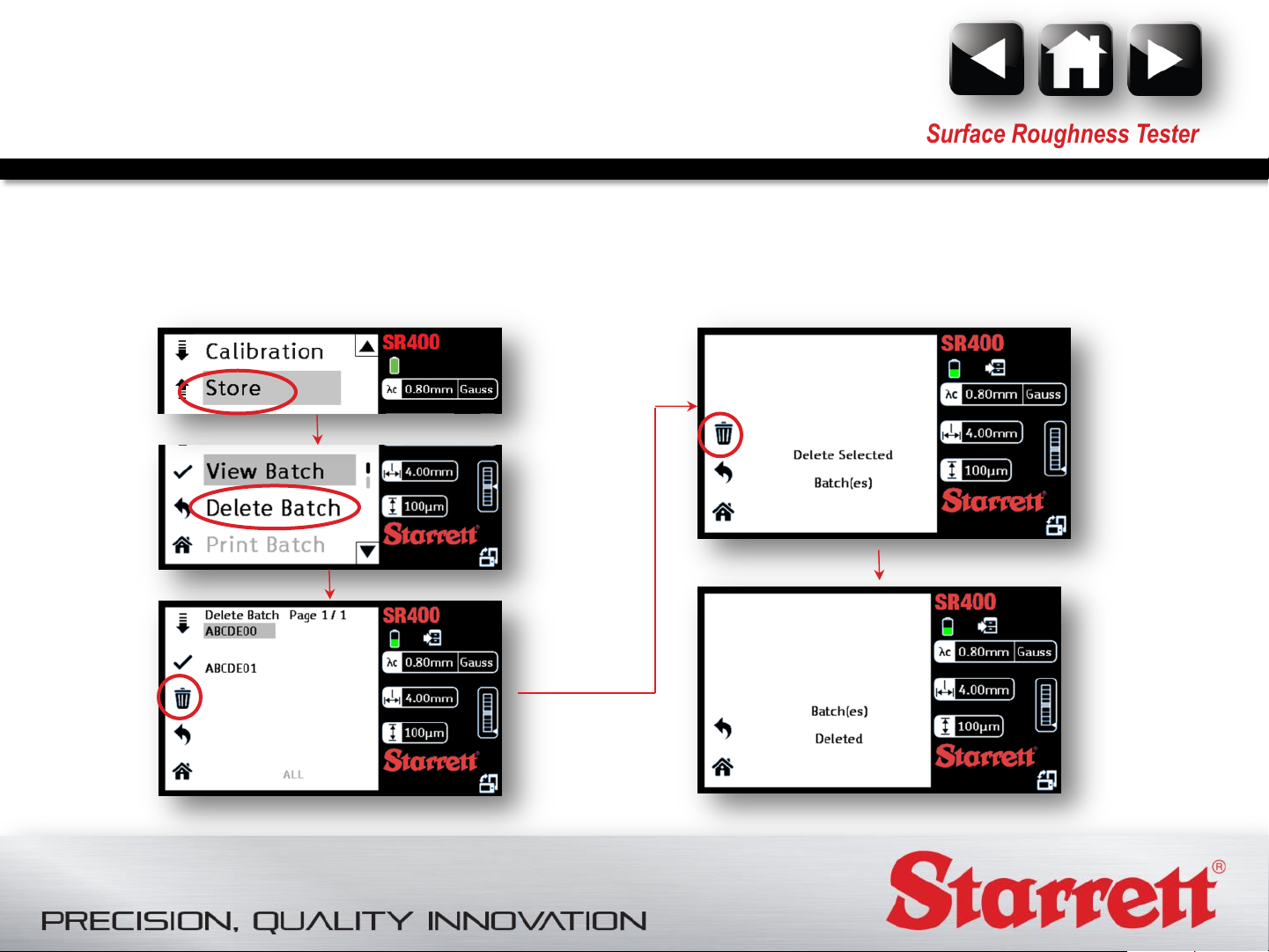

Built-in Memory/Storage
No PC or printer cables in your way while you
measure – the SR300/SR400 is now truly
portable: Take your surface roughness tester
wherever you need to take measurements,
save as many batch readings as you need
(max 100 measurements) then download to
your PC or printer at your convenience.

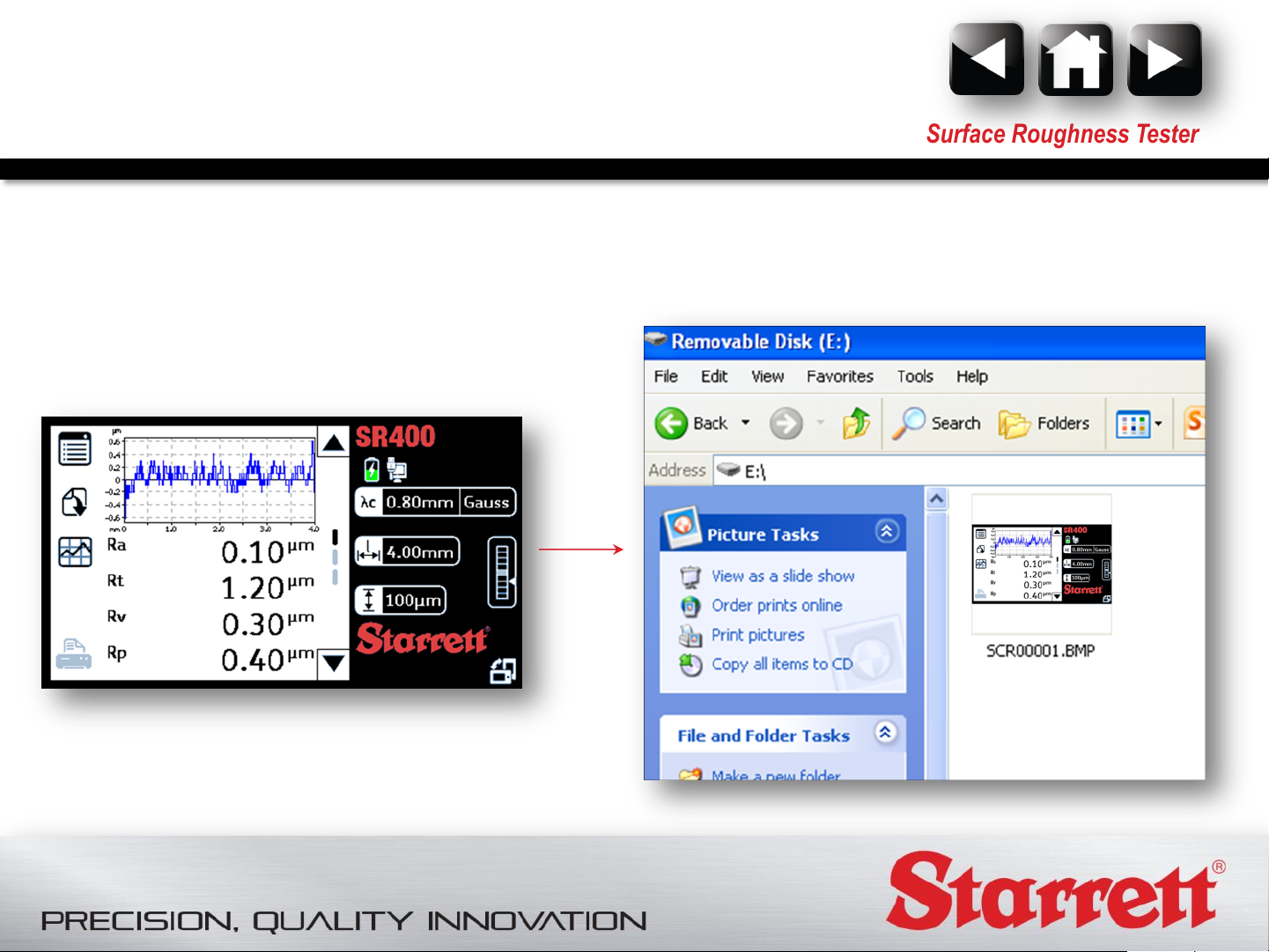

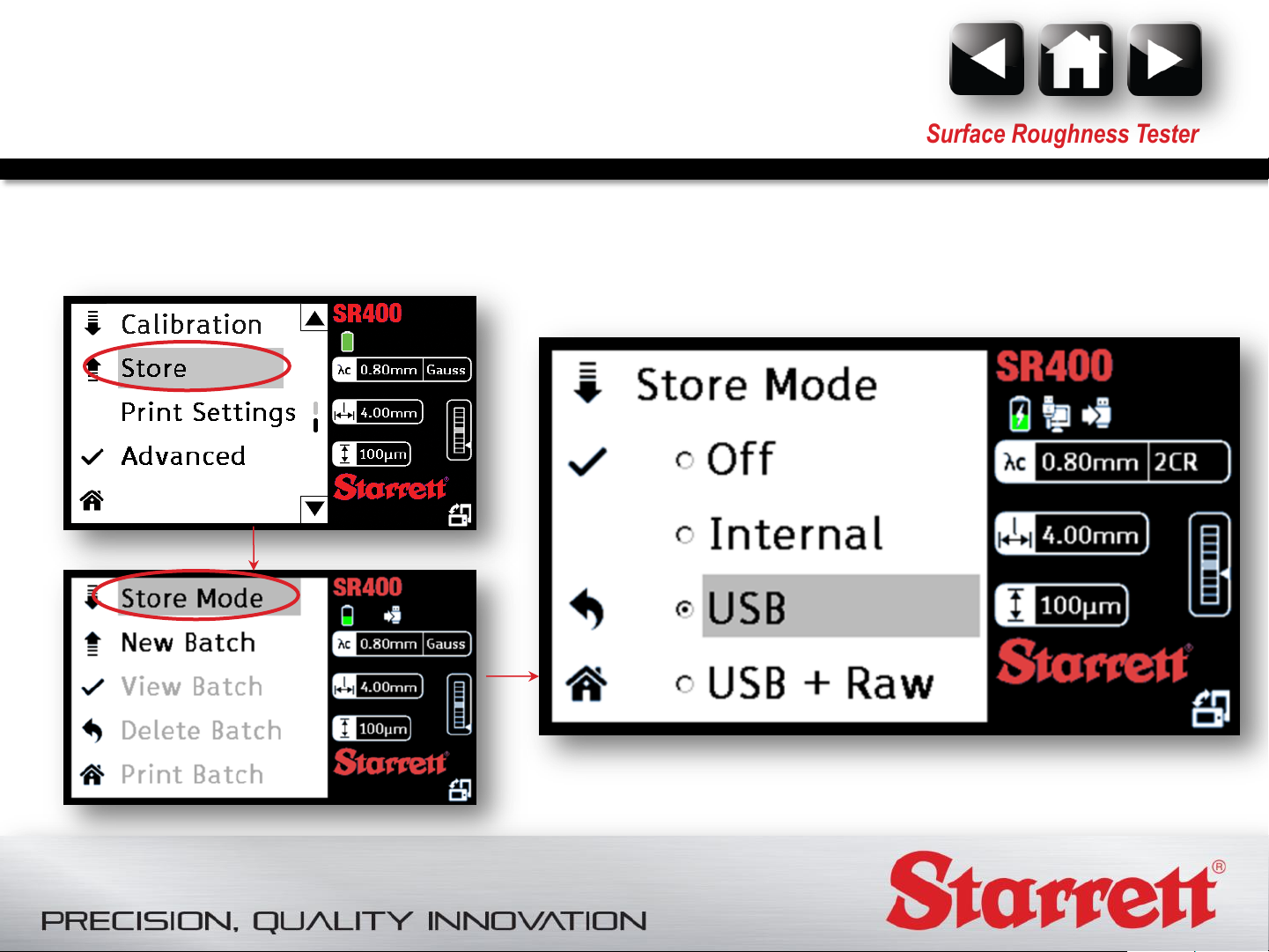

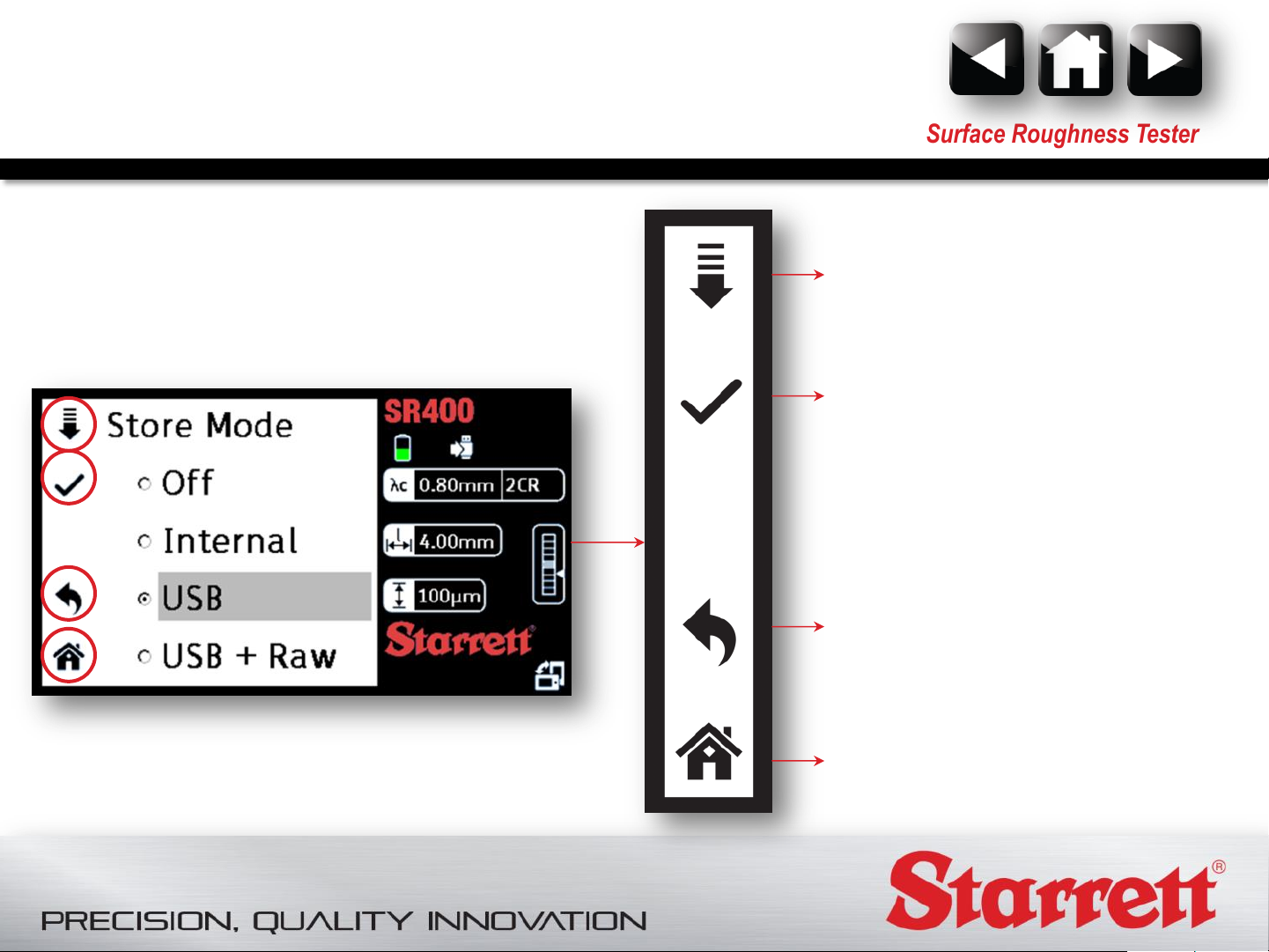

External Memory
Storage is expandable with a standard
USB stick. The 4 GB USB stick provided
with the unit is capable of storing over
64,000 screen shots and/or
measurements
Instrument Overview
SR300 and SR400 Surface Roughness Tester
Long Traverse Length and Extended
Pick-Up Reach
The SR300/SR400 can traverse up to 25mm (or as little
as 0.25mm) depending on your component. In addition,
the stylus length and pick-up configuration give a long
reach, making it an ideal instrument for features such
as large and narrow bores. Optional extension rods
extend the pick-up further.

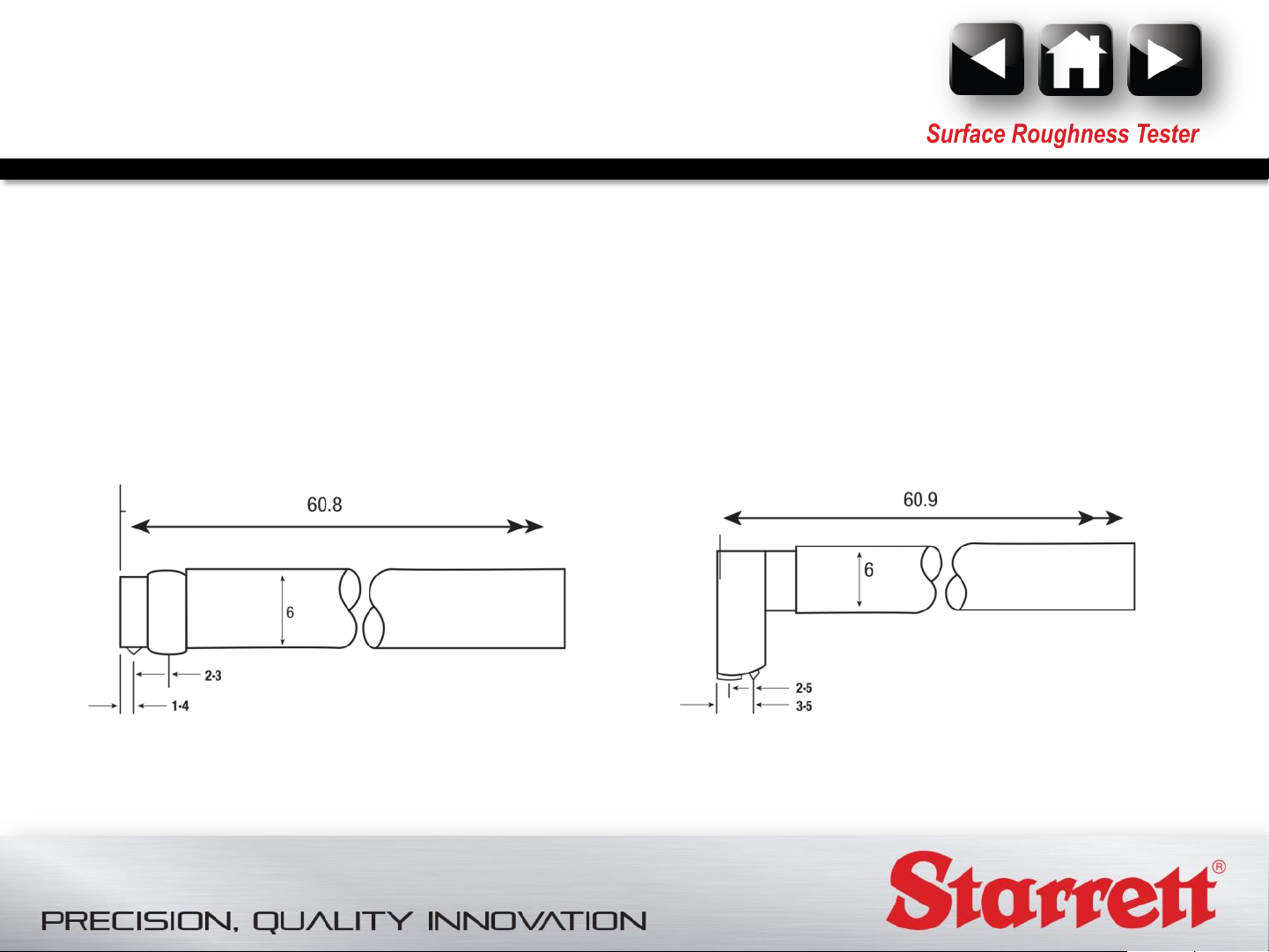

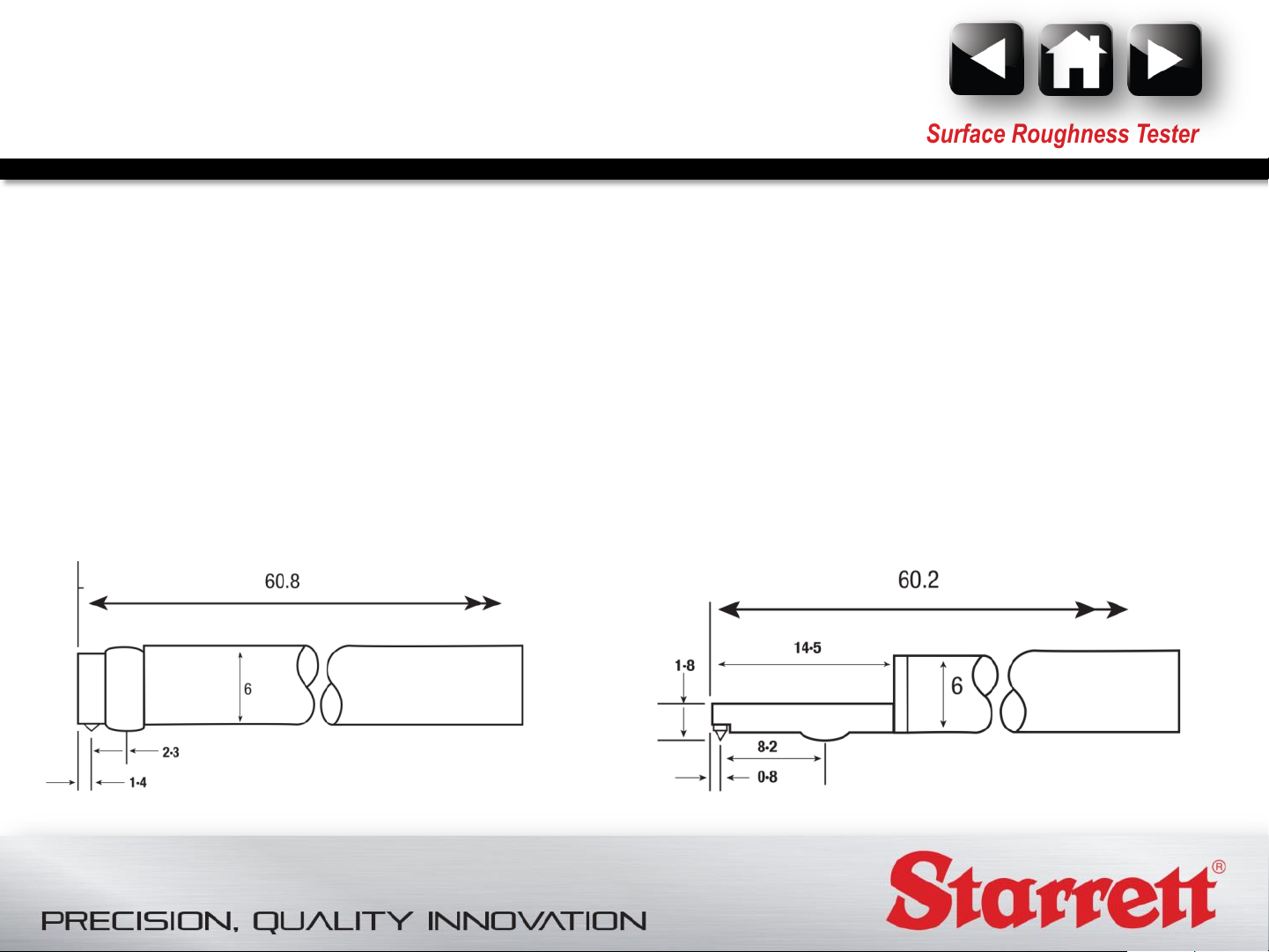

Comprehensive Range of Accessories
and Pick-Ups
Starrett has developed an extensive range of pick-ups
and accessories to suit the varied measurement needs
of our customers. In addition to the pick-ups shown on
page 6 our applications department regularly designs
and manufactures pick-ups and fixtures for specific
requirements.
SR300 and SR400 Surface Roughness Tester
TALYPROFILE
Talyprofile
Advanced Surface Finish Analysis
Talyprofile is a dedicated software package
designed for use with workshop or laboratory
instruments.
Three versions are available:
• Talyprofile “Silver” has all functions typically
used for a shop floor inspection.
• Talyprofile “Gold” has complete laboratory
analysis functions.
• Talyprofile “Lite” is a free download, available
SR300 and SR400 Surface Roughness Tester
from ‘talyprofile.com’
• Click the button below to open the website.
Talyprofile.com
Talyprofile
General Features
Modules
Acquisition interface
Basic set of file formats
Can be used without
V6
Desktop publishing and template
File
Manage parametric profiles
V6
Management of non
Minidocs
V5
Series of profiles
Statistics
V5
Table of results
V5
Template of document on all data
Third party plug
Tolerance limits
SR300 and SR400 Surface Roughness Tester
Gold Silver
for workshop profilers
USB dongle
formats of 2D profilers
-measured points
enabled
enabled
-ins
document
of a folder
Lite
CT ACT
CT ACT
ACT
STA
STA
STA
Key
Included
Available in Optional Module(s)
STA Statistics
CT Contour
ACT Advanced Contour
(pass/fail)
Talyprofile
Interface
Modules
Analysis workflow
Document pages
File explorer and favorite folders
Interactive bank
Languages:
Masterpages
Operators on Profiles
Modules
Filtering
Filtering by direct edition of the FFT
Filtering by threshold of the FFT
Form
Join two profiles
Leveling
Resampling
Retouch profile
Symmetries
Thresholding
Zoom
SR300 and SR400 Surface Roughness Tester
Gold Silver Lite
V5
viewer V5
V5
of studiables
EN, FR, DE, ES, IT, PL, JP, CH, KR
V5
Gold Silver Lite
V5
removal
points
Key
Included
Available in Optional Module(s)
STA Statistics
CT Contour
ACT Advanced Contour
Talyprofile
Studies on Profiles
Modules
Abbott
Advanced options
Area
Averaged
Contour
Distance measurement
Fractal analysis
Frequency Spectrum
Graphical
Morphological envelopes
Profile curve
Profile
R&W motifs (ISO
Rk
Roughness and waviness profile curves
Step height measurement
Waviness
SR300 and SR400 Surface Roughness Tester
Gold Silver Lite
-Firestone curve/depth distribution
in contour analysis V6
of a hole/peak
power spectrum density
analysis CT ACT
study of Rk parameters
parameters study
12085)
calculation profiles
ACT
Key
Included
Available in Optional Module(s)
STA Statistics
CT Contour
ACT Advanced Contour
parameters of groups A and/or B
Talyprofile
Parameters
Silver
Modules
2D (P+R)
2D (P+R) parameters, Group B: old parameters
2D parameters, Group C: automotive
Operators
Modules
Profile
Studies on Series of Profiles
Modules
Profile
SR300 and SR400 Surface Roughness Tester
Gold
parameters, Group A: ISO 4287
on Series of Profiles Gold Silver
extraction
Gold Silver
curves of the series
Lite
Lite
Lite
Key
Included
Available in Optional Module(s)
STA Statistics
CT Contour
ACT Advanced Contour
Talyprofile
Operators
Modules
Profile
Studies on Surfaces
Modules
Pseudo
Studies of the Statistical Module
Modules
Box plot
V5
Histogram
V5
Scatter plot
V5
Table of statistical
V5
Trend plot
V5
SR300 and SR400 Surface Roughness Tester
on Surfaces Gold Silver
extraction
Gold Silver
-color image
Gold Silver
parameters
Lite
Lite
Lite
STA
STA
STA
STA
STA
Key
Included
Available in Optional Module(s)
STA Statistics
CT Contour
ACT Advanced Contour
Talyprofile
SR300 and SR400 Surface Roughness Tester
Time-Saving Templates
A 'template' can be created whereby a
sequence of analytical functions can be
saved and applied to future
measurements, turning detailed
reporting tasks into routine documents.
Full Compatibility
Surface finish results from other Starrett
surface roughness instruments can be
imported to Talyprofile software,
allowing a uniform report style to be
used throughout your workshop or
Desktop Publishing Facility
Talyprofile offers a comprehensive desk top publishing function which
allows professional presentation of measurement results and profiles.
Graphs, profiles and results can be arranged and printed from within the
Talyprofile software or copied into other word-processing documents
giving complete flexibility in reporting.
laboratory.
Talyprofile
SR300 and SR400 Surface Roughness Tester
Talyprofile Parameters
Roughness Parameters
Obtained by Filtering: Ra, Rq, Rt, Rp, Ry, Rku, Rsk, RSm, Rz,
RΔq, RTp, RHTp, Rlo, Rλq, RPC, RzJIS, R3z.
Waviness Parameters
Obtained by Filtering: Wa, Wq, Wt,Wp, Wv, Wku, Wsk, WSm,
Wz, WzJIS, Wλq, WΔq, WTp, WHTp, WLo, WPC, W3z.
(only with Gold version and instruments with straightness datum)
Parameters on the Raw Profile
Unfiltered: Pa, Pq, Pt, Pp, Pv, Pku, Psk, PSm, Pz,
PΔq, Pλq, PTp, PHTp, PLo, PPc.
Parameters Obtained by Double Filtering
DIN 4776: Rk, Rpk, Rvk, MR1, MR2, A1, A2, Rvk.
(only with Gold version)
Parameters Obtained by the Motifs Method
"R&W": R, AR, Pt, Rx, SR, SAR, Nr, Kr, W, AW, Wte,
Wx, SW, SAW, Nw, Kw, Rke, Rpke, Rvke, Trc, HTrc.
(only with Gold version
Talyprofile
SR300 and SR400 Surface Roughness Tester
Outstanding Graphics
The software is visually advanced and provides clear
on screen profile images. Talyprofile allows the user to
take a basic measurement and create a full
measurement report using the software's detailed
analysis options and desktop publishing function
In Depth Analysis
Profiles can be levelled and zoomed to remove unwanted
features or defects from the analysis. Distance
measurement between features and areas of a profile are
easily implemented and the information can be displayed
graphically and numerically. Step height and the area of a
hole or peak can also be displayed.
Loading...
