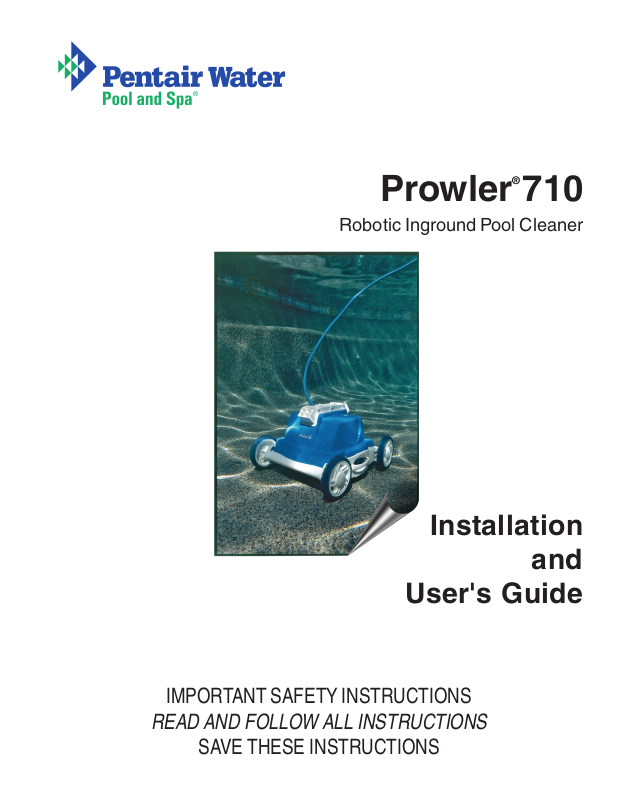

Sta-Rite Prowler 710 Installation Manual

®

Prowler 710

Robotic Inground Pool Cleaner

Installation

User's Guide

IMPORTANT SAFETY INSTRUCTIONS

READ AND FOLLOW ALL INSTRUCTIONS

SAVE THESE INSTRUCTIONS

and

Customer Service

If you have questions about ordering Pentair Water Pool and Spa ("Pentair") replacement parts
and pool products, please use the following contact information:

Customer Service (8 A.M. to

Phone: [phone]

Fax: [phone]

5 P.M. — Eastern and Pacific Times)

Technical Support

Sanford, North Carolina (8 A.M. to 5 P.M. — Eastern Time)

Phone: [phone]

Fax: [phone]

Moorpark, California (8 A.M. to 5 P.M. — Pacific Time)

Phone: [phone] (Ext. 6312)

Fax: [phone]

Web site

visit

www.pentairpool.com

or

www.staritepool.com

to find information about Pentair products

Protected by U.S. Patent Numbers 6,412,133, 6,742,613 and 6,971,136.

© 2011 Pentair Water Pool and Spa, Inc. All rights reserved.

This document is subject to change without notice.

1620 Hawkins Ave., Sanford, NC 27330 • [phone]
10951 West Los Angeles Ave., Moorpark, CA 93021 • [phone]

Trademarks and Disclaimers. Prowler® and Pentair Water Pool and Spa® are trademarks and/or registered trademarks of Pentair Water Pool and
Spa, Inc and/or its affiliated companies in the United States and/or other countries. Unless noted, names and brands of others that may be used in
this document are not used to indicate an affiliation or endorsement between proprietors of these names and brands and Pentair Water Pool and Spa,
Inc. Those names and brands may be the trademarks or registered trademarks of those parties or others.

P/N P12153 Rev. C 3/30/11

Contents

Important Warning and Safety Instructions .........................................................................ii

General Installation Information ........................................................................................... iii

Warranty Information ........................................................................................................... iv

Section 1: Introduction ..................................................................................................... 1

i

Prowler

Prowler

®

710 Overview ........................................................................................... 1

®

710 Features ............................................................................................ 2

Section 2: Installation ....................................................................................................... 3

Cleaner Components ............................................................................................... 3

How your Prowler

Setting-up your Prowler

®

710 Cleaner Works .................................................................. 4

®

710 Cleaner ..................................................................... 5

Power Supply (Transformer) .................................................................................... 5

Pool Cleaner with Floating Cable ............................................................................. 5

Power Supply Set-Up ..............................................................................................6

Cleaner Placement .................................................................................................. 7

Adjusting the Timing Cycle ......................................................................................8

Operating the Digital 90 Second Timer .................................................................... 9

Cleaning Motion ....................................................................................................... 10

Cleaner Removal ..................................................................................................... 10

Changing/Cleaning the Filter Bag ............................................................................11

In/Off-Season Storage ............................................................................................. 12

Section 3: Troubleshooting .............................................................................................. 14

Section 4: Replacement Parts ..........................................................................................17

Prowler

Prowler

Prowler

®

710 Exploded View ...................................................................................17

®

710 Dimensions ........................................................................................ 17

®

710 Replacement Parts List ..................................................................... 18

Prowler ® 710 Installation and User’s Guide

ii

IMPORTANT WARNING AND SAFETY INSTRUCTIONS

Important Notice:

Attention Installer:

this product. This information should be given to the owner and/or operator of this equipment after installation of the
pool cleaner.

Attention User:

pool cleaner. Please retain it for future reference. Consult Pentair with any questions regarding this equipment.

WARNING —

This guide contains important information about the installation, operation and safe use of

This manual contains important information that will help you in operating and maintaining this

Before installing this product, read and follow all warning notices and instructions which are
included. Failure to follow safety warnings and instructions can result in severe injury, death,
or property damage. Call [phone] for additional free copies of these instructions.

Consumer Information and Safety

The Prowler® 710 pool cleaners are designed and manufactured to provide many years of safe and reliable service when
installed, operated and maintained according to the information in this manual. Throughout the manual, safety warnings
and cautions are identified by the “ “ symbol. Be sure to read and comply with all of the warnings and cautions.

DANGER — Risk of electrical shock or electrocution.

The electrical supply to this product must be installed in accordance with the National Electrical
Code and all applicable local codes and ordinances. Improper installation will create an electrical
hazard which could result in death or serious injury to pool or spa users, installers, or others due
to electrical shock, and may also cause damage to property.

Always disconnect the power to the cleaner before servicing. Failure to do so could result in death
or serious injury to serviceman, pool users or others due to electrical shock. Read and follow the
specific instructions inside this guide.

WARNING —

WARNING —

WARNING —

CAUTION —

CAUTION —

CAUTION —

Prowler ® 710 Installation and User’s Guide

Hazardous suction. Do not play with cleaner or cable or apply to body. Can trap and tear hair
or body parts. Cable can trip or entangle swimmers which could result in drowning.

Do not allow swimmers in the pool while pool cleaner is operating. Cable can trip or entangle
swimmers which could result in drowning.

To reduce the risk of injury, do not let children use or play with pool cleaner.

Before installing the cleaner in a gunite pool or a pool that is partially or completely tiled, repair
loose tiles and tighten any loose light rings.

Before installing the cleaner, understand cleaner coverage: The cleaner was not designed to
automatically clean steps or to work under a solar cover. It was also not designed to do initial
cleanup for a new pool installation.

The unit must be supplied through a residual current device (RCD) having a rated operating
current not exceeding 30mA.

•

The connection to the branch circuit should be consistent with the local and National Electrical Code.

•

Mishandling the unit can result in leakage of lubricants.

•

If the supply cord is damaged, it must be replaced by a licensed or certified electrician or a
qualified pool serviceman in order to avoid hazards.

GENERAL INSTALLATION INFORMATION

Pre-installation check list

Before installing your cleaner, review and understand all warnings and safety information in this guide. Failure to
follow these instructions or improper installation of the cleaner can result in damage to the pool finish or the vinyl
liner, Pentair Water Pool and Spa, Inc. disclaims any liability for repairs or replacement to any of these structures

or components of the customer’s pool.

Before installing the cleaner in a vinyl liner pool:

Check liner closely for signs of deterioration or damage from age, chemicals, pool wall damage, etc. If any
damage is found, have a qualified pool professional make all the necessary repairs. Also, if there are stones,
roots, etc., under the liner, remove them before installing the cleaner.

Before installing the cleaner in a gunite pool or a pool that is partially or completely tiled:

Repair loose tiles and tighten any loose light rings.

iii

Before installing the cleaner, clean your filter system:

Make sure you have cleaned the filter, including backwashing, rinsing, and emptying all baskets. A clean
system is necessary for proper cleaner operation and coverage.

Before installing the cleaner, fill the hose with water:

Always make sure the cleaner head is submerged and the hose is full of water before connecting the hose to
the filtration system (whether through a skimmer or dedicated wall fitting). Air in the system can damage the
pump through dry running and overheating.

Before installing the cleaner, understand cleaner coverage:

The cleaner is designed to rid your pool of debris in approximately 4-6 hours. Less time could be needed,
depending on the pool size. The cleaner was not designed to automatically clean steps or swimouts or to
work under a solar cover. It was also not designed to do initial cleanup for a new pool or when opening your
pool for the season.

AFTER installing the cleaner, make sure the cleaner is operating correctly :

The cleaner may need some minor adjustments to make sure it is operating properly so there is no damage
to the pool finish. Certain vinyl liner patterns are particularly susceptible to surface wear, pattern removal, ink
rubbing off of, or serious scratches to the pattern caused by objects coming into contact with the vinyl surface,
including automatic pool cleaners. Pentair Water Pool and Spa, Inc. is not responsible for any pattern removal,
abrasions or markings on vinyl liners.

Prowler ® 710 Installation and User’s Guide

iv

WARRANTY INFORMATION

Limited Warranty Terms & Conditions

Before installing your cleaner, review and understand all warnings, safety and warranty information in this guide. Failure to follow these
instructions or improper installation of the cleaner can result in damage to the pool finish or the vinyl liner, Pentair Water Pool and Spa, Inc.

disclaims any liability for repairs or replacement to any of these structures or components of the customer’s pool.

The Cleaner manufacturer, Pentair Water Pool and Spa, Inc. (“Manufacturer”), hereby provides the following limited warranty to the

purchaser (“Customer”): WHICH IS SUBJECT ONLY TO THE FOLLOWING CONDITIONS AND EXCLUSIONS:

This limited warranty does not include replacement of parts which become discolored due to exposure to sunlight or chemicals, or parts

which, even if worn, do not affect performance of the cleaner. Nicks, scratches, fading, discoloration, etc. are cosmetic conditions that
do not affect mechanical performance. Both Manufacturer and Pentair Water Pool and Spa’s dealer reserve the right to deny

any and all warranty claims made for worn parts if the wear does not negatively affect mechanical performance of the
cleaner.

The Cleaner is designed to function in a properly designed, constructed and maintained pool. This limited warranty does not extend in the

circumstances where the pool’s design, construction or maintenance is defective, substandard or inappropriate for the Cleaner’s
operation.

Deterioration, discoloration or brittleness of any pool finish can be caused over time separately by, or in combination with, age, an

imbalance in water chemistry, improper installation, and other factors. Customer hereby disclaims any and all claims, and releases
Manufacturer from any and all claims for damages to any pool plaster or vinyl liner in Customer’s pool by reason of the use and/or
operation of the Cleaner.

Under no circumstances shall Manufacturer be liable for any loss or damage, whether direct, consequential or incidental, arising out of the

use or inability to use the Cleaner or the Hose in Customer’s pool.

This limited warranty does not apply to any injury, loss, damage, defect, or malfunction of the Cleaner or failure to function resulting from

any failure to operate or maintain the Cleaner in accordance with the directions contained in the Installation and Operation Manual or
operating instructions provided by Pentair Water Pool and Spa or any injury, loss, damage, defect, or malfunction, or failure to function
resulting from any accident, acts of God, alterations in the Cleaner by anyone other than Manufacturer; or misuse, unreasonable use,
tampering, abuse, acts, omissions, failure or negligence by anyone other than Manufacturer including but not limited to such damages
or injuries to parts resulting from improper installation, or damage to pump parts resulting from running the pump dry (e.g., interruption
in or inadequate supply of water to internal pump parts due to loss of prime, or obstruction in lines or otherwise); or damage, defect or
malfunction resulting from defects in, failure or malfunction of, or negligence, abuse, or misuse with respect to equipment other than the
Cleaner; or any damage or loss of any nature whatsoever and personal injury caused due to the presence of a foreign object in or about
the pool.

Disclaimer of Liability
About Your Pool and Prowler® 710

There are a multitude of factors that contribute to the life of your pool. The Prowler

will have no impact on pool life.

Please be aware that over time, deterioration, discoloration and brittleness of any pool finish can be caused separately by, or in combination

with, age, an imbalance in pool water chemistry, improper installation and other factors. A robotic pool cleaner, such as Prowler®710, will
not remove or cause wear on “good” pool plaster. In fact, the opposite is true–pool plaster will eventually cause wear on the cleaner.

The same situation holds true for vinyl-lined in-ground swimming pools, because vinyl liners are also affected by the environment and

factors such as pool water chemistry, sunlight and the pool’s surroundings. Therefore over time, vinyl can become brittle and weak. In
addition, vinyl-lined pools are affected by the workmanship, composition and installation of the liner and the workmanship and quality of
construction of the supporting walls and pool base. These are all factors which can contribute to liner failure. The existence of any of

these type of conditions in your pool is not caused by the use or operation of the Prowler
for repairs or replacement to any of these structures or components of the customer’s pool.

®

710 robotic pool cleaner is a very passive product that

®

710. The manufacturer disclaims any liability

The pool owner must assume all responsibility for the condition and maintenance of the pool’s surface, water and deck.

Prowler ® 710 Installation and User’s Guide

Section 1

Introduction

The Prowler® 710 Overview

Automatically clean your pool in 60 to 90 minutes or less

The fastest and most effective robotic cleaner in its class, the Prowler® 710 features true “plug and play”
convenience. It operates totally independently of your pool’s circulation system to cover and clean any dimension,
form, or shape of inground pool up to 50 feet in length. A Jet Drive propulsion system with a single, powerful
motor drives the cleaner and enables the cleaner to roll along floors, up inclines to the waterline so long as there
is an adequate floor-to-wall angle (most vinyl lined pools) or radius of about 6 inches – from beginning of
radius to end – (most hard surface pools) in 60 to 90 minutes or less.

Scrubs, vacuums and filters your entire pool

The Prowler 710 works while you relax, freeing you from the drudgery of manual pool cleaning and
the drawbacks of more cumbersome and costly automatic cleaners. The Prowler 710 has a patented
built-in pump motor which powers the hydroscrubbing jets (jet streams of water). The hydroscrubbing
jets stir up dirt and debris for easy vacuuming by the cleaners’ suction power without any attention
from you. Plus, the Prowler 710 won’t get stuck by ladders and other underwater obstacles.

1

Prowler® 710

Prowler® 710 Installation and User’s Guide

2

General Features

The Prowler® 710 features three-way cleaning performance:

• Dual pressure wash jets lift sand, silt and algae off floors and walls – including surface pores where
brushes can’t reach.

• Powerful vacuum action removes fine particles and larger debris.

• Internal filtration system removes contaminants and bacteria as small as two microns.

• No installation, no booster pump, no hoses, and fully automatic.

Additional Features:

Time and energy-saving features:

• Reduces your filtration system’s run time up to 25%.

• Independently filters algae and bacteria.

• Cleans and hydroscrubs along floors, up inclines to the waterline so long as there is an adequate floor-to­wall angle (most vinyl lined pools) or radius of about 6 inches – from beginning of radius to end – (most
hard surface pools).

• Vacuums all types of debris.

• Cleans any shape or type of pool in 60 to 90 minutes or less.

• Entire cleaner and key components are certified to UL standards for safety by ETL.

• Filter bag provides more than three times the capacity of other cleaners to greatly extend the time
between cleanings.

Prowler® 710 Installation and User’s Guide

Section 2

Set-up

The following general information describes how to set-up your Prowler® 710 robotic pool cleaner. Carefully
read the following so that you are fully aware of all the capabilities and features this cleaner has to offer.

NOTE: Before setting up this product, read and follow all warning notices and instructions starting
on page ii.

Introducing the Prowler® 710 Cleaner

Congratulations on your purchase of the Prowler® 710, a fully automatic, "robotic" in-ground pool cleaner
with the most powerful water propulsion system available.

Prowler® 710 robotic pool cleaner includes the following:

• Cleaning Unit & Cable

3

• Power Supply

• Fine Filter Bag

• Mesh Filter Bag

Prowler® 710 Installation and User’s Guide
