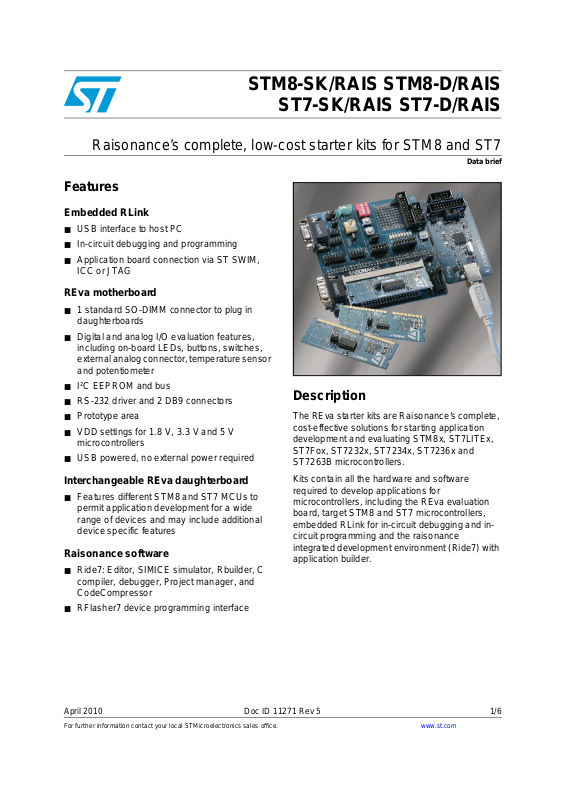

ST STM8S-32, STM8-128, STM8S-8, ST7FLIT1B, ST7FLITU0 User Manual

...
STM8-SK/RAIS STM8-D/RAIS
ST7-SK/RAIS ST7-D/RAIS
Raisonance’s complete, low-cost starter kits for STM8 and ST7
Features
USB interface to host PC
In-circuit debugging and programming
Application board connection via ST SWIM,
ICC or JTAG
REva motherboard
1 standard SO-DIMM connector to plug in
daughterboards
Digital and analog I/O evaluation features,
including on-board LEDs, buttons, switches, external analog connector, temperature sensor and potentiometer
I²C EEPROM and bus
RS-232 driver and 2 DB9 connectors
Prototype area
VDD settings for 1.8 V, 3.3 V and 5 V
microcontrollers
USB powered, no external power required
Description
The REva starter kits are Raisonance’s complete, cost-effective solutions for starting application development and evaluating STM8x, ST7LITEx, ST7Fox, ST7232x, ST7234x, ST7236x and ST7263B microcontrollers.
Data brief
Interchangeable REva daughterboard
Features different STM8 and ST7 MCUs to
permit application development for a wide range of devices and may include additional device specific features
Raisonance software
Ride7: Editor, SIMICE simulator, Rbuilder, C
Kits contain all the hardware and software required to dev elop applications for microcontrollers, including the REva evaluati on board, target STM8 and ST7 microcontrollers, embedded RLink for in-circuit debugging and in­circuit programming and the raisonance integrated de velopment environment (Ride7) with application builder.
compiler, debugger, Project manager, and CodeCompressor
RFlasher7 device programming interface
April 2010 Doc ID 11271 Rev 5 1/6
For further information contact your local STMicroelectronics sales office .
www.st.com
6
Architecture STM8-SK/RAIS STM8-D/RAIS ST7-SK/RAIS ST7-D/RAIS

Architecture

Embedded RLink: In-circuit debugging and prog ramming tool that uses SWIM for the
STM8, in-circuit communication (ICC) for the ST7 and supports the JTAG protocol. It interfaces with the host PC via a USB connection.
REva mother board: Universal evaluation board designed for quick and easy evaluation of a complete range of features (I/Os, ADC, SPI, CAN, I2C...) for a variety of STM8 and ST7s. It is powered from the RLink’s USB connection to the host PC.
REva daughterboards: Interchangeable boards featuring different STM8 and ST7 microcontrollers, make it easy to evaluate and develop applications for a complete range of MCUs from a single evaluation platform. All boards have a clock source selection jumper, and an oscillator footprint. See Table 1 and Table 2 for details.
Raisonance’s software: RLink can be driven by Raisonance’s Ride7 or RFlasher7.
Ride7: Drives the RLink and offers seamless control of software development tools
(project manager, editor, compiler, assembler, linker, debugger, etc.) from an intuitive graphical interface. It offers full integration of the relevant C/C++ toolsets, project management, code editor and SIMICE instruction set simulator. Ride7 includes:
RBuilder allows users to rapidly configure device peripherals in a GUI and
generate the C source code f or peripherals a t the clic k of a b utton without writing a
single line of code – SIMICE simulator – Raisonance STM8 and ST7 C compiler – High-level language debugging – Project manager – Color syntax highlighting editor – Free downloads of evaluation versions with unlimited debugging from
www.raisonance.com
The optional CodeCompressor allows post-link optimization of the entire
applications code using optimizations like in-lining, factorizing and peepholing,
which can reduce application code by 5 to 15%.
RFlasher7: Raisonance’s easy-to-use device programming interface drives RLink and
allows users to erase, program, view and verify microcontroller memory. RFlasher7 also includes automated mode for automatic execu tion of programming sequences for mass programming and project mode that allows users to save their programming configurations. In this oper ating mode , tasks become intuitiv e and can be achie v ed with only a few clicks such as:
Flash memory erasing and programming, – Flash or RAM memory dumping, – blank check, programming verifications, – mass programming process.
2/6 Doc ID 11271 Rev 5
STM8-SK/RAIS STM8-D/RAIS ST7-SK/RAIS ST7-D/RAIS REva starter kits

REva starter kits

REva boards can be purchased in the starter kit format, as shown in Table 1. REva standalone daughterboards are also available independently from
STMicroelectronics, as shown in Table 2.

Table 1. Raisonance starter kits for the STM8 and ST7

Starter kit
(order code)
STM8/128-SK/RAIS
ST7FLITE-SK/RAIS
ST7232X-SK/RAIS
ST72F34X-SK/RAIS
ST2F36X-SK/RAIS ST72361
ST2F63B-SK/RAIS ST7263B
1. All kits have a clock source selection jumper, and an oscillator footprint unless stated otherwise.
Daughterboard
ID marking
STM8S105 STM8S103/5 STM8S105C6 LQFP48 STM8S208RB STM8S207/8 STM8S208RB LQFP64 STM8S903 STM8S903 STM8S903K3 LQFP32 ST7LITEU0 ST7Ultralite0 ST7FLITEU0 DIP16 ST7LITE0 ST7FLITE0 ST7FLITE09Y0 SO16 ST7LITE1B ST7FLIT1xB ST7FLIT19BF1 SO20 ST7LITE3 ST7FLITE3 ST7FLITE39F2 SO20 ST72321B ST72321 ST72F321BAR9 LQFP64 ST72325 ST72324/5 ST72F325AR9 LQFP64 ST72345 ST7234x ST72F345C4 LQFP48 ST72264 ST7226x ST72F264G2 S028
Additional features
Clock source selection jumper USB mini-B connector
24 MHz oscillator
(1)
MCU family
supported
ST72361 ST7256X
ST7260 ST7263B
MCU device
ST72F361AR9 LQFP64
ST72F63BH6 LQFP48
MCU
package
Doc ID 11271 Rev 5 3/6
Ordering information STM8-SK/RAIS STM8-D/RAIS ST7-SK/RAIS ST7-D/RAIS

Table 2. Raisonance standalone daughterboards for the STM8 and ST7

Standalone
daughterboard
(order code)
STM8S/32-D/RAIS STM8S105 STM8S103/5 STM8S105C6 LQFP48 STM8/128-D/RAIS STM8S208RB STM8S207/8 STM8S208RB LQFP64 STM8S/8-D/RAIS STM8S903 STM8S903 STM8S903K3 LQFP32 ST7FLIT1B-D/RAIS ST7LITE1B ST7FLIT1xB ST7FLIT19BF1 SO20 ST7FLITU0-D/RAIS ST7LITEU0 ST7Ultralite0 ST7FLITEU0 DIP16 ST7FLITUS-D/RAIS ST7LITEUS5 ST7UltraliteS ST7FLITEUS DIP16 ST7FLI49-D/RAIS ST7FLI49 ST7FLITE4 ST7FLITE49K2 LQFP32 ST7FLI49M-D/RAIS ST7LITE4M ST7FLITE4M ST7FLI49MK1 LQFP32 ST72321B-D/RAIS ST72321B ST72321 ST72F321BAR9 LQFP64 ST72325-D/RAIS ST72325 ST72324/25 ST72F325AR9 LQFP64 ST72345-D/RAIS ST72345 ST7234x ST72F345C4 LQFP48 ST7FOXA0-D/RAIS ST7FOXA0 ST7FOXA0 ST7FOXA0 DIP16 ST7FOXK2-D/RAIS ST7FOXK2 ST7FOXK2 ST7FOXK2 LQFP32
1. All kits have a clock source selection jumper, and an oscillator footprint unless stated otherwise.
Daughterboard
ID marking
Additional features
(1)
MCU family
supported
MCU device
MCU
package

Ordering information

REva starter kits and Raisonance development tools can be ordered from Raisonan ce or from your nearest ST Distributor or sales office.
REva starter kits based on the same mother/daughterboard design, with embedded RLink, driven by Ride software are also available for the STM32, STR7 and STR9 ARM® core­based microcontrollers and for the µPSD microcontrollers. For more information refer to www.st.com/mcu.
For more information, documentation and downloads, p lease refer to www.raisonance.com. For more information about which microcontrollers are supported, refer to www.raisonance.com or the STMicroelectronics microcontroller support site, www.st.com.
4/6 Doc ID 11271 Rev 5
STM8-SK/RAIS STM8-D/RAIS ST7-SK/RAIS ST7-D/RAIS Revision history

Revision history

Table 3. Document revision history

Date Revision Changes
01-Mar-2005 1 Initial release. 24-Aug-2005 2 Added part number ST7232x-SK/RAIS and ST7LITE1B daughterboard.
21-June-2006 3
21-Jul-2008 4
09-Apr-2010 5 Added STM8S105 and STM8S903 daughterboards to Table 1 and Table 2.
Added part number ST72F34X-SK/RAIS, ST72F36X-SK/RAIS and ST72F63B­SK/RAIS.
Added daughterboard features to Table 1. Added STM8 microcontroller family to supported devices.
Updated the Raisonance’s software paragraph, replaced Table 1 with Tables 1 and 2, and reformatted the document.
Doc ID 11271 Rev 5 5/6
