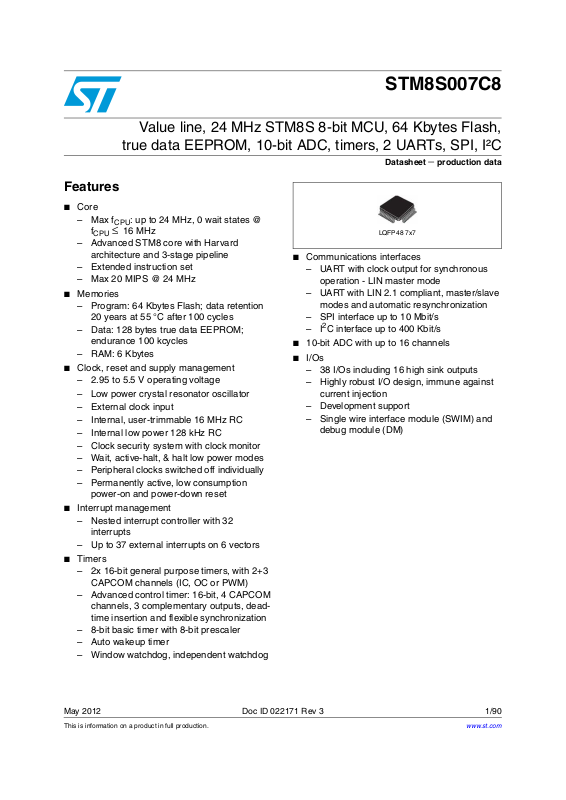

ST STM8S007C8 User Manual

Download

Value line, 24 MHz STM8S 8-bit MCU, 64 Kbytes Flash,

LQFP48 7x7

true data EEPROM, 10-bit ADC, timers, 2 UARTs, SPI, I²C

Features

■ Core

–Max f

CPU

– Advanced STM8 core with Harvard

architecture and 3-stage pipeline – Extended instruction set – Max 20 MIPS @ 24 MHz

■ Memories

– Program: 64 Kbytes Flash; data retention

20 years at 55 °C after 100 cycles – Data: 128 bytes true data EEPROM;

endurance 100 kcycles – RAM: 6 Kbytes

■ Clock, reset and supply management

– 2.95 to 5.5 V operating voltage – Low power crystal resonator oscillator – External clock input – Internal, user-trimmable 16 MHz RC – Internal low power 128 kHz RC

– Clock security system with clock monitor – Wait, active-halt, & halt low power modes – Peripheral clocks switched off individually – Permanently active, low consumption

power-on and power-down reset

■ Interrupt management

– Nested interrupt controller with 32

interrupts – Up to 37 external interrupts on 6 vectors

■ Timers

– 2x 16-bit general purpose timers, with 2+3

CAPCOM channels (IC, OC or PWM) – Advanced control timer: 16-bit, 4 CAPCOM

channels, 3 complementary outputs, dead-

time insertion and flexible synchronization – 8-bit basic timer with 8-bit prescaler – Auto wakeup timer – Window watchdog, independent watchdog

: up to 24 MHz, 0 wait states @

CPU

≤ 16 MHz

STM8S007C8

Datasheet − production data

■ Communications interfaces

– UART with clock output for synchronous

operation - LIN master mode

– UART with LIN 2.1 compliant, master/slave

modes and automatic resynchronization

– SPI interface up to 10 Mbit/s

–I

C interface up to 400 Kbit/s

■ 10-bit ADC with up to 16 channels

■ I/Os

– 38 I/Os including 16 high sink outputs – Highly robust I/O design, immune against

current injection – Development support – Single wire interface module (SWIM) and

debug module (DM)

May 2012 Doc ID 022171 Rev 3 1/90

This is information on a product in full production.

www.st.com
