STM8S003K3 STM8S003F3

LQFP32 7x7

TSSOP20

UFQFPN20 3x3

Value line, 16 MHz STM8S 8-bit MCU, 8 Kbytes Flash, 128 bytes

data EEPROM, 10-bit ADC, 3 timers, UART, SPI, I²C

Interrupt management

Nested interrupt controller with 32 interrupts

•

Up to 27 external interrupts on 6 vectors

•

Timers

Advanced control timer: 16-bit, 4 CAPCOM

•

channels, 3 complementary outputs, dead-time insertion and flexible synchronization

16-bit general purpose timer, with 3 CAPCOM

•

channels (IC, OC or PWM)

8-bit basic timer with 8-bit prescaler

Features

Core

16 MHz advanced STM8 core with Harvard

•

architecture and 3-stage pipeline

Extended instruction set

•

Memories

Program memory: 8 Kbytes Flash; data retention

•

20 years at 55 °C after 100 cycles

RAM: 1 Kbytes

•

Data memory: 128 bytes of true data EEPROM;

•

endurance up to 100 000 write/erase cycles

Clock, reset and supply management

2.95 to 5.5 V operating voltage

•

Flexible clock control, 4 master clock sources:

•

Low power crystal resonator oscillator

External clock input

Internal, user-trimmable 16 MHz RC

Internal low power 128 kHz RC

Clock security system with clock monitor

•

Power management:

•

Low power modes (wait, active-halt, halt)

Switch-off peripheral clocks individually

•

Auto wake-up timer

•

Window watchdog and independent watchdog

•

timers

Communications interfaces

UART with clock output for synchronous

•

operation, Smartcard, IrDA, LIN master mode

SPI interface up to 8 Mbit/s

•

I2C interface up to 400 Kbit/s

•

Analog to digital converter (ADC)

10-bit, ±1 LSB ADC with up to 5 multiplexed

•

channels, scan mode and analog watchdog

I/Os

Up to 28 I/Os on a 32-pin package including 21

•

high sink outputs

Highly robust I/O design, immune against current

•

injection

Development support

Embedded single wire interface module (SWIM)

•

for fast on-chip programming and non intrusive debugging

Permanently active, low consumption power-on

•

and power-down reset

June 2012

DocID018576 Rev 3

1/100

www.st.com

STM8S003K3 STM8S003F3Contents

1 Introduction ..............................................................................................................7

2 Description ...............................................................................................................8

3 Block diagram ..........................................................................................................9

4 Product overview ...................................................................................................10

4.1 Central processing unit STM8 .....................................................................................10

4.2 Single wire interface module (SWIM) and debug module (DM) ..................................10

4.3 Interrupt controller .......................................................................................................11

4.4 Flash program memory and data EEPROM ................................................................11

4.5 Clock controller ............................................................................................................12

4.6 Power management ....................................................................................................13

4.7 Watchdog timers ..........................................................................................................13

4.8 Auto wakeup counter ...................................................................................................14

4.9 Beeper ........................................................................................................................14

4.10 TIM1 - 16-bit advanced control timer .........................................................................14

4.11 TIM2 - 16-bit general purpose timer ..........................................................................15

4.12 TIM4 - 8-bit basic timer ..............................................................................................15

4.13 Analog-to-digital converter (ADC1) ............................................................................15

4.14 Communication interfaces .........................................................................................16

4.14.1 UART1 ...............................................................................................16

4.14.2 SPI .....................................................................................................17

4.14.3 I²C ......................................................................................................17

5 Pinout and pin description ...................................................................................18

5.1 STM8S003K3 LQFP32 pinout and pin description ......................................................18

5.2 STM8S003F3 TSSOP20/UFQFPN20 pinout and pin description ...............................21

5.2.1 STM8S003F3 TSSOP20 pinout and pin description ............................21

5.2.2 STM8S003F3 UFQFPN20 pinout ........................................................22

5.2.3 STM8S003F3 TSSOP20/UFQFPN20 pin description ..........................22

5.3 Alternate function remapping .......................................................................................24

6 Memory and register map .....................................................................................25

6.1 Memory map ................................................................................................................25

6.2 Register map ...............................................................................................................26

6.2.1 I/O port hardware register map ............................................................26

6.2.2 General hardware register map ..........................................................27

6.2.3 CPU/SWIM/debug module/interrupt controller registers .....................36

7 Interrupt vector mapping ......................................................................................39

8 Option bytes ...........................................................................................................41

8.1 Alternate function remapping bits ................................................................................43

DocID018576 Rev 32/100

ContentsSTM8S003K3 STM8S003F3

9 Electrical characteristics ......................................................................................46

9.1 Parameter conditions ...................................................................................................46

9.1.1 Minimum and maximum values ...........................................................46

9.1.2 Typical values .......................................................................................46

9.1.3 Typical curves ......................................................................................46

9.1.4 Loading capacitor .................................................................................46

9.1.5 Pin input voltage ...................................................................................46

9.2 Absolute maximum ratings ..........................................................................................47

9.3 Operating conditions ....................................................................................................49

9.3.1 VCAP external capacitor ......................................................................50

9.3.2 Supply current characteristics ..............................................................51

9.3.3 External clock sources and timing characteristics ...............................60

9.3.4 Internal clock sources and timing characteristics .................................62

9.3.5 Memory characteristics ........................................................................64

9.3.6 I/O port pin characteristics ...................................................................66

9.3.7 Reset pin characteristics ......................................................................74

9.3.8 SPI serial peripheral interface ..............................................................77

9.3.9 I2C interface characteristics .................................................................80

9.3.10 10-bit ADC characteristics ..................................................................81

9.3.11 EMC characteristics ...........................................................................85

10 Package information ...........................................................................................89

10.1 32-pin LQFP package mechanical data ....................................................................89

10.2 20-pin TSSOP package mechanical data ..................................................................90

10.3 20-lead UFQFPN package mechanical data .............................................................92

11 Thermal characteristics .......................................................................................94

11.1 Reference document .................................................................................................94

11.2 Selecting the product temperature range ..................................................................94

12 Ordering information ...........................................................................................96

13 STM8 development tools ....................................................................................97

13.1 Emulation and in-circuit debugging tools ...................................................................97

13.2 Software tools ............................................................................................................97

13.2.1 STM8 toolset ......................................................................................98

13.2.2 C and assembly toolchains ................................................................98

13.3 Programming tools ....................................................................................................98

14 Revision history ...................................................................................................99

3/100DocID018576 Rev 3

STM8S003K3 STM8S003F3List of tables

List of tables

Table 1. STM8S003xx value line features ................................................................................................8

Table 2. Peripheral clock gating bit assignments in CLK_PCKENR1/2 registers ..................................13

Table 3. TIM timer features ....................................................................................................................15

Table 4. Legend/abbreviations for pinout tables ...................................................................................18

Table 5. LQFP32 pin description ............................................................................................................19

Table 6. STM8S003F3 pin description ...................................................................................................22

Table 7. I/O port hardware register map ................................................................................................26

Table 8. General hardware register map ...............................................................................................27

Table 9. CPU/SWIM/debug module/interrupt controller registers .........................................................36

Table 10. Interrupt mapping ...................................................................................................................39

Table 11. Option bytes ...........................................................................................................................99

Table 12. Option byte description ...........................................................................................................41

Table 13. STM8S003K3 alternate function remapping bits for 32-pin devices ......................................43

Table 14. STM8S003F3 alternate function remapping bits for 20-pin devices ......................................44

Table 15. Voltage characteristics ...........................................................................................................47

Table 16. Current characteristics ...........................................................................................................47

Table 17. Thermal characteristics ..........................................................................................................48

Table 18. General operating conditions .................................................................................................49

Table 19. Operating conditions at power-up/power-down ......................................................................50

Table 20. Total current consumption with code execution in run mode at VDD= 5 V .............................51

Table 21. Total current consumption with code execution in run mode at VDD= 3.3 V ..........................52

Table 22. Total current consumption in wait mode at VDD= 5 V ............................................................53

Table 23. Total current consumption in wait mode at VDD= 3.3 V .........................................................53

Table 24. Total current consumption in active halt mode at VDD= 5 V ..................................................54

Table 25. Total current consumption in active halt mode at VDD= 3.3 V ...............................................54

Table 26. Total current consumption in halt mode at VDD= 5 V .............................................................55

Table 27. Total current consumption in halt mode at VDD= 3.3 V ..........................................................55

Table 28. Wakeup times .........................................................................................................................56

Table 29. Total current consumption and timing in forced reset state ....................................................57

Table 30. Peripheral current consumption .............................................................................................57

Table 31. HSE user external clock characteristics .................................................................................60

Table 32. HSE oscillator characteristics .................................................................................................61

Table 33. HSI oscillator characteristics ..................................................................................................62

Table 34. LSI oscillator characteristics ...................................................................................................64

Table 35. RAM and hardware registers ..................................................................................................64

Table 36. Flash program memory and data EEPROM ...........................................................................65

Table 37. I/O static characteristics .........................................................................................................66

Table 38. Output driving current (standard ports) ..................................................................................68

Table 39. Output driving current (true open drain ports) ........................................................................68

Table 40. Output driving current (high sink ports) ..................................................................................69

Table 41. NRST pin characteristics ........................................................................................................74

Table 42. SPI characteristics ..................................................................................................................78

Table 43. I2C characteristics ..................................................................................................................80

Table 44. ADC characteristics ................................................................................................................82

Table 45. ADC accuracy with R Table 46. ADC accuracy with R

Table 47. EMS data ................................................................................................................................86

< 10 kΩ , VDD= 5 V .........................................................................82

AIN

< 10 kΩ R

AIN

, VDD= 3.3 V ..............................................................83

AIN

DocID018576 Rev 34/100

List of tablesSTM8S003K3 STM8S003F3

Table 48. EMI data .................................................................................................................................86

Table 49. ESD absolute maximum ratings .............................................................................................87

Table 50. Electrical sensitivities .............................................................................................................88

Table 51. 32-pin low profile quad flat package mechanical data ............................................................89

Table 52. 20-pin, 4.40 mm body, 0.65 mm pitch mechanical data .........................................................91

Table 53. 20-lead ultra thin fine pitch quad flat no-lead package (3x3) mechanical data ......................92

Table 54. Thermal characteristics ..........................................................................................................94

Table 55. Document revision history ......................................................................................................99

5/100DocID018576 Rev 3

STM8S003K3 STM8S003F3List of figures

List of figures

Figure 1. Block diagram ...........................................................................................................................9

Figure 2. Flash memory organization ....................................................................................................12

Figure 3. STM8S003K3 LQFP32 pinout ................................................................................................18

Figure 4. STM8S003F3 TSSOP20 pinout ..............................................................................................21

Figure 5. STM8S003F3 UFQFPN20-pin pinout .....................................................................................22

Figure 6. Memory map ...........................................................................................................................25

Figure 7. Pin loading conditions .............................................................................................................46

Figure 8. Pin input voltage .....................................................................................................................47

Figure 9. f

CPUmax

Figure 10. External capacitor C Figure 11. Typ I Figure 12. Typ I Figure 13. Typ I Figure 14. Typ I Figure 15. Typ I Figure 16. Typ I

Figure 17. HSE external clock source ....................................................................................................61

Figure 18. HSE oscillator circuit diagram ...............................................................................................62

Figure 19. Typical HSI frequency variation vs VDD@ 4 temperatures ..................................................63

Figure 20. Typical LSI frequency variation vs VDD@ 4 temperatures ...................................................64

Figure 21. Typical VILand VIHvs VDD@ 4 temperatures ......................................................................67

Figure 22. Typical pull-up resistance vs VDD@ 4 temperatures ............................................................67

Figure 23. Typical pull-up current vs VDD@ 4 temperatures .................................................................68

Figure 24. Typ. VOL@ VDD= 5 V (standard ports) ................................................................................70

Figure 25. Typ. VOL@ VDD= 3.3 V (standard ports) .............................................................................70

Figure 26. Typ. VOL@ VDD= 5 V (true open drain ports) ......................................................................71

Figure 27. Typ. VOL@ VDD= 3.3 V (true open drain ports) ...................................................................71

Figure 28. Typ. VOL@ VDD= 5 V (high sink ports) ................................................................................72

Figure 29. Typ. VOL@ VDD= 3.3 V (high sink ports) .............................................................................72

Figure 30. Typ. VDD- VOH@ VDD= 5 V (standard ports) .......................................................................73

Figure 31. Typ. VDD- VOH@ VDD= 3.3 V (standard ports) ...................................................................73

Figure 32. Typ. VDD- VOH@ VDD= 5 V (high sink ports) .......................................................................74

Figure 33. Typ. VDD- VOH@ VDD= 3.3 V (high sink ports) ....................................................................74

Figure 34. Typical NRST VILand VIHvs VDD@ 4 temperatures ...........................................................76

Figure 35. Typical NRST pull-up resistance vs VDD@ 4 temperatures .................................................76

Figure 36. Typical NRST pull-up current vs VDD@ 4 temperatures ......................................................77

Figure 37. Recommended reset pin protection ......................................................................................77

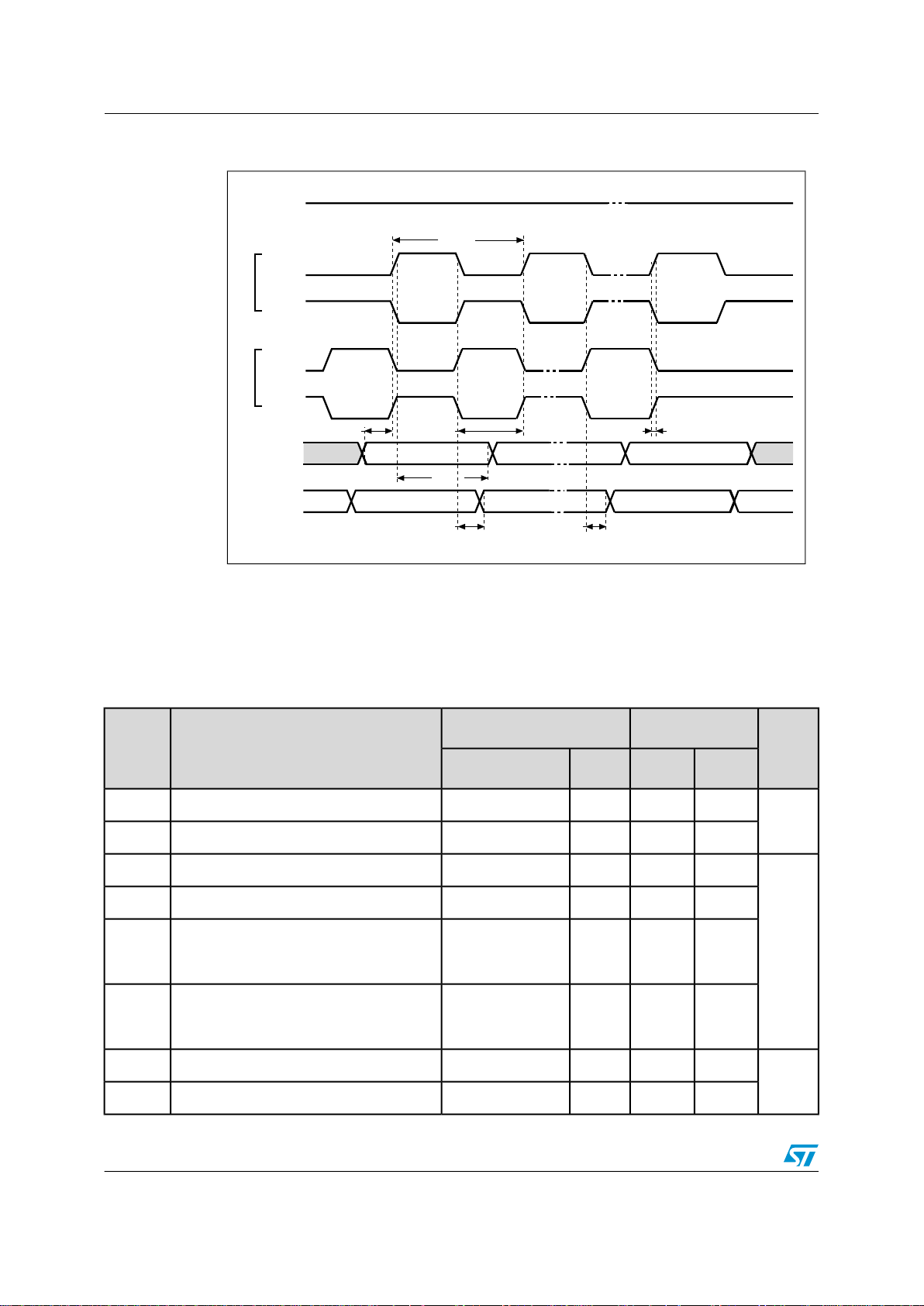

Figure 38. SPI timing diagram - slave mode and CPHA = 0 ..................................................................79

Figure 39. SPI timing diagram - slave mode and CPHA = 1 ..................................................................79

Figure 40. SPI timing diagram - master mode

Figure 41. Typical application with I2C bus and timing diagram ............................................................84

Figure 42. ADC accuracy characteristics ...............................................................................................84

Figure 43. Typical application with ADC ................................................................................................85

Figure 44. 32-pin low profile quad flat package (7 x 7) ..........................................................................89

Figure 45. 20-pin, 4.40 mm body, 0.65 mm pitch ...................................................................................90

Figure 46. 20-lead ultra thin fine pitch quad flat no-lead package outline (3x3) ....................................92

Figure 47. STM8S003x value line ordering information scheme ...........................................................96

versus V

DD(RUN)

DD(WFI)

................................................................................................................50

.......................................................................................................50

EXT

vs. VDDHSE user external clock, f vs. f vs. VDDHSI RC osc, f

HSE user external clock, VDD= 5 V ....................................................58

CPU

= 16 MHz .................................................................59

CPU

vs. VDDHSE user external clock, f vs. f vs. VDDHSI RC osc, f

HSE user external clock, VDD= 5 V .....................................................60

CPU

= 16 MHz .................................................................60

CPU

(1)

...................................................................................80

= 16 MHz .............................................58

CPU

= 16 MHz ..............................................59

CPU

DocID018576 Rev 36/100

IntroductionSTM8S003K3 STM8S003F3

Introduction1

This datasheet contains the description of the device features, pinout, electrical characteristics, mechanical data and ordering information.

For complete information on the STM8S microcontroller memory, registers and peripherals,

•

please refer to the STM8S microcontroller family reference manual (RM0016).

For information on programming, erasing and protection of the internal Flash memory

•

please refer to the STM8S Flash programming manual (PM0051).

For information on the debug and SWIM (single wire interface module) refer to the STM8

•

SWIM communication protocol and debug module user manual (UM0470).

For information on the STM8 core, please refer to the STM8 CPU programming manual

•

(PM0044).

7/100DocID018576 Rev 3

STM8S003K3 STM8S003F3Description

Description2

The STM8S003x value line 8-bit microcontrollers feature 8 Kbytes Flash program memory, plus integrated true data EEPROM. The STM8S microcontroller family reference manual (RM0016) refers to devices in this family as low-density. They provide the following benefits: performance, robustness, and reduced system cost.

Device performance and robustness are ensured by integrated true data EEPROM supporting up to 100000 write/erase cycles, advanced core and peripherals made in a state-of-the art technology, a 16 MHz clock frequency, robust I/Os, independent watchdogs with separate clock source, and a clock security system.

The system cost is reduced thanks to high system integration level with internal clock oscillators, watchdog and brown-out reset.

Full documentation is offered as well as a wide choice of development tools.

Table 1: STM8S003xx value line features

STM8S003F3STM8S003K3Device

2032Pin count

1628Maximum number of GPIOs (I/Os)

1627Ext. interrupt pins

True data EEPROM (bytes)

Peripheral set

(1)

Without read-while-write capability.

77Timer CAPCOM channels

23Timer complementary outputs

54A/D converter channels

1221High sink I/Os

8K8KLow density Flash program memory (bytes)

1K1KRAM (bytes)

128

(1)

128

(1)

Multipurpose timer (TIM1), SPI, I2C, UART window WDG,independent WDG, ADC, PWM timer (TIM2), 8-bit timer (TIM4)

DocID018576 Rev 38/100

XTAL 1-16MHz

RC int. 16MHz

RC int. 128kHz

STM8 core

Debug/SWIM

SPI

UART1

16-bit general purpose

AWU timer

Reset block

Reset

POR

BOR

Clock controller

Detector

Clock to peripherals and core

8 Mbit/s

LIN master

Address and databus

Window WDG

8-Kbyte

1-Kbyte

ADC1

4 CAPCOM

Reset

400 Kbit/s

Single wire

debug interf.

SPI emul.

channels +3

program

Flash

16-bit advanced

control timer (TIM1)

8-bit basic timer

RAM

Up to

Beeper

1/2/4 kHz

beep

Independent WDG

(TIM4)

3 CAPCOM channels

Up to

complementary outputs

timer (TIM2)

Up to 5

channels

I2C

128-byte

data EEPROM

Block diagramSTM8S003K3 STM8S003F3

Block diagram3

Figure 1: Block diagram

9/100DocID018576 Rev 3

STM8S003K3 STM8S003F3Product overview

Product overview4

The following section intends to give an overview of the basic features of the device functional modules and peripherals.

For more detailed information please refer to the corresponding family reference manual (RM0016).

Central processing unit STM84.1

The 8-bit STM8 core is designed for code efficiency and performance.

It contains 6 internal registers which are directly addressable in each execution context, 20 addressing modes including indexed indirect and relative addressing and 80 instructions.

Architecture and registers

Harvard architecture

•

3-stage pipeline

•

32-bit wide program memory bus - single cycle fetching for most instructions

•

X and Y 16-bit index registers - enabling indexed addressing modes with or without offset

•

and read-modify-write type data manipulations

8-bit accumulator

•

24-bit program counter - 16-Mbyte linear memory space

•

16-bit stack pointer - access to a 64 K-level stack

•

8-bit condition code register - 7 condition flags for the result of the last instruction

•

Addressing

20 addressing modes

•

Indexed indirect addressing mode for look-up tables located anywhere in the address

•

space

Stack pointer relative addressing mode for local variables and parameter passing

•

Instruction set

80 instructions with 2-byte average instruction size

•

Standard data movement and logic/arithmetic functions

•

8-bit by 8-bit multiplication

•

16-bit by 8-bit and 16-bit by 16-bit division

•

Bit manipulation

•

Data transfer between stack and accumulator (push/pop) with direct stack access

•

Data transfer using the X and Y registers or direct memory-to-memory transfers

•

Single wire interface module (SWIM) and debug module (DM)4.2

The single wire interface module and debug module permits non-intrusive, real-time in-circuit debugging and fast memory programming.

DocID018576 Rev 310/100

Product overviewSTM8S003K3 STM8S003F3

SWIM

Single wire interface module for direct access to the debug module and memory programming. The interface can be activated in all device operation modes. The maximum data transmission speed is 145 bytes/ms.

Debug module

The non-intrusive debugging module features a performance close to a full-featured emulator. Beside memory and peripherals, also CPU operation can be monitored in real-time by means of shadow registers.

R/W to RAM and peripheral registers in real-time

•

R/W access to all resources by stalling the CPU

•

Breakpoints on all program-memory instructions (software breakpoints)

•

Two advanced breakpoints, 23 predefined configurations

•

Interrupt controller4.3

Nested interrupts with three software priority levels

•

32 interrupt vectors with hardware priority

•

Up to 27 external interrupts on 6 vectors including TLI

•

Trap and reset interrupts

•

Flash program memory and data EEPROM4.4

8 Kbytes of Flash program single voltage Flash memory

•

128 bytes of true data EEPROM

•

User option byte area

•

Write protection (WP)

Write protection of Flash program memory and data EEPROM is provided to avoid unintentional overwriting of memory that could result from a user software malfunction.

There are two levels of write protection. The first level is known as MASS (memory access security system). MASS is always enabled and protects the main Flash program memory, the data EEPROM, and the option bytes.

To perform in-application programming (IAP), this write protection can be removed by writing a MASS key sequence in a control register. This allows the application to modify the content of the main program memory and data EEPROM, or to reprogram the device option bytes.

A second level of write protection, can be enabled to further protect a specific area of memory known as UBC (user boot code). Refer to the figure below.

The size of the UBC is programmable through the UBC option byte, in increments of 1 page (64-byte block) by programming the UBC option byte in ICP mode.

This divides the program memory into two areas:

Main program memory: 8 Kbytes minus UBC

•

User-specific boot code (UBC): Configurable up to 8 Kbytes

•

The UBC area remains write-protected during in-application programming. This means that the MASS keys do not unlock the UBC area. It protects the memory used to store the boot

11/100DocID018576 Rev 3

UBC area

Program memory area

Remains write protected during IAP

Write access possible for IAP

Option bytes

Programmable bytes(1 page)

up to 8 Kbytes (in 1 page steps)

area from 64

Low density Flash program memory (8 Kbytes)

Data EEPROM (128 bytes)

STM8S003K3 STM8S003F3Product overview

program, specific code libraries, reset and interrupt vectors, the reset routine and usually the IAP and communication routines.

Figure 2: Flash memory organization

Read-out protection (ROP)

The read-out protection blocks reading and writing from/to the Flash program memory and the data EEPROM in ICP mode (and debug mode). Once the read-out protection is activated, any attempt to toggle its status triggers a global erase of the program memory. Even if no protection can be considered as totally unbreakable, the feature provides a very high level of protection for a general purpose microcontroller.

Clock controller4.5

The clock controller distributes the system clock (f to the core and the peripherals. It also manages clock gating for low power modes and ensures clock robustness.

Features

Clock prescaler: To get the best compromise between speed and current consumption

•

the clock frequency to the CPU and peripherals can be adjusted by a programmable prescaler.

Safe clock switching: Clock sources can be changed safely on the fly in run mode

•

through a configuration register. The clock signal is not switched until the new clock source is ready. The design guarantees glitch-free switching.

Clock management: To reduce power consumption, the clock controller can stop the

•

clock to the core, individual peripherals or memory.

Master clock sources: Four different clock sources can be used to drive the master

•

clock:

1-16 MHz high-speed external crystal (HSE)

Up to 16 MHz high-speed user-external clock (HSE user-ext)

16 MHz high-speed internal RC oscillator (HSI)

128 kHz low-speed internal RC (LSI)

MASTER

) coming from different oscillators

DocID018576 Rev 312/100

Bit

Product overviewSTM8S003K3 STM8S003F3

Startup clock: After reset, the microcontroller restarts by default with an internal 2 MHz

•

clock (HSI/8). The prescaler ratio and clock source can be changed by the application program as soon as the code execution starts.

Clock security system (CSS): This feature can be enabled by software. If an HSE clock

•

failure occurs, the internal RC (16 MHz/8) is automatically selected by the CSS and an interrupt can optionally be generated.

Configurable main clock output (CCO): This outputs an external clock for use by the

•

application.

Table 2: Peripheral clock gating bit assignments in CLK_PCKENR1/2 registers

Peripheral clock

ADCPCKEN23ReservedPCKEN27UART1PCKEN13TIM1PCKEN17

AWUPCKEN22ReservedPCKEN26ReservedPCKEN12ReservedPCKEN16

ReservedPCKEN21ReservedPCKEN25SPIPCKEN11TIM2PCKEN15

ReservedPCKEN20ReservedPCKEN24I2CPCKEN10TIM4PCKEN14

clock

BitPeripheral

clock

BitPeripheral

clock

BitPeripheral

Power management4.6

For efficent power management, the application can be put in one of four different low-power modes. You can configure each mode to obtain the best compromise between lowest power consumption, fastest start-up time and available wakeup sources.

Wait mode: In this mode, the CPU is stopped, but peripherals are kept running. The

•

wakeup is performed by an internal or external interrupt or reset.

Active halt mode with regulator on: In this mode, the CPU and peripheral clocks are

•

stopped. An internal wakeup is generated at programmable intervals by the auto wake up unit (AWU). The main voltage regulator is kept powered on, so current consumption is higher than in active halt mode with regulator off, but the wakeup time is faster. Wakeup is triggered by the internal AWU interrupt, external interrupt or reset.

Active halt mode with regulator off: This mode is the same as active halt with regulator

•

on, except that the main voltage regulator is powered off, so the wake up time is slower.

Halt mode: In this mode the microcontroller uses the least power. The CPU and peripheral

•

clocks are stopped, the main voltage regulator is powered off. Wakeup is triggered by external event or reset.

Watchdog timers4.7

The watchdog system is based on two independent timers providing maximum security to the applications.

Activation of the watchdog timers is controlled by option bytes or by software. Once activated, the watchdogs cannot be disabled by the user program without performing a reset.

13/100DocID018576 Rev 3

STM8S003K3 STM8S003F3Product overview

Window watchdog timer

The window watchdog is used to detect the occurrence of a software fault, usually generated by external interferences or by unexpected logical conditions, which cause the application program to abandon its normal sequence.

The window function can be used to trim the watchdog behavior to match the application perfectly.

The application software must refresh the counter before time-out and during a limited time window.

A reset is generated in two situations:

1. Timeout: At 16 MHz CPU clock the time-out period can be adjusted between 75 µs up to 64 ms.

2. Refresh out of window: The downcounter is refreshed before its value is lower than the one stored in the window register.

Independent watchdog timer

The independent watchdog peripheral can be used to resolve processor malfunctions due to hardware or software failures.

It is clocked by the 128 kHZ LSI internal RC clock source, and thus stays active even in case of a CPU clock failure

The IWDG time base spans from 60 µs to 1 s.

Auto wakeup counter4.8

Used for auto wakeup from active halt mode

•

Clock source: Internal 128 kHz internal low frequency RC oscillator or external clock

•

LSI clock can be internally connected to TIM1 input capture channel 1 for calibration

•

Beeper4.9

The beeper function outputs a signal on the BEEP pin for sound generation. The signal is in the range of 1, 2 or 4 kHz.

The beeper output port is only available through the alternate function remap option bit AFR7.

TIM1 - 16-bit advanced control timer4.10

This is a high-end timer designed for a wide range of control applications. With its complementary outputs, dead-time control and center-aligned PWM capability, the field of applications is extended to motor control, lighting and half-bridge driver

16-bit up, down and up/down autoreload counter with 16-bit prescaler

•

Four independent capture/compare channels (CAPCOM) configurable as input capture,

•

output compare, PWM generation (edge and center aligned mode) and single pulse mode output

Synchronization module to control the timer with external signals

•

Break input to force the timer outputs into a defined state

•

Three complementary outputs with adjustable dead time

•

DocID018576 Rev 314/100

Product overviewSTM8S003K3 STM8S003F3

Encoder mode

•

Interrupt sources: 3 x input capture/output compare, 1 x overflow/update, 1 x break

•

TIM2 - 16-bit general purpose timer4.11

16-bit autoreload (AR) up-counter

•

15-bit prescaler adjustable to fixed power of 2 ratios 1…32768

•

3 individually configurable capture/compare channels

•

PWM mode

•

Interrupt sources: 3 x input capture/output compare, 1 x overflow/update

•

TIM4 - 8-bit basic timer4.12

8-bit autoreload, adjustable prescaler ratio to any power of 2 from 1 to 128

•

Clock source: CPU clock

•

Interrupt source: 1 x overflow/update

•

Table 3: TIM timer features

Timer

Counter size (bits)

16TIM1

16TIM2

8TIM4

Prescaler

Any integer from 1 to 65536

Any power of 2 from 1 to 32768

Any power of 2 from 1 to 128

Counting mode

CAPCOM channels

Complem. outputs

Ext. trigger

Yes34Up/down

No03Up

No00Up

Timer synchronization/ chaining

Analog-to-digital converter (ADC1)4.13

The STM8S003xx products contain a 10-bit successive approximation A/D converter (ADC1) with up to 5 external multiplexed inputs channels and the following features:

Input voltage range: 0 to V

•

Conversion time: 14 clock cycles

•

Single and continuous and buffered continuous conversion modes

•

Buffer size (n x 10 bits) where n = number of input channels

•

Scan mode for single and continuous conversion of a sequence of channels

•

Analog watchdog capability with programmable upper and lower thresholds

•

Analog watchdog interrupt

•

15/100DocID018576 Rev 3

STM8S003K3 STM8S003F3Product overview

External trigger input

•

Trigger from TIM1 TRGO

•

End of conversion (EOC) interrupt

•

Communication interfaces4.14

The following communication interfaces are implemented:

UART1: Full feature UART, synchronous mode, SPI master mode, Smartcard mode, IrDA

•

mode, single wire mode, LIN2.1 master capability

SPI : Full and half-duplex, 8 Mbit/s

•

I²C: Up to 400 Kbit/s

•

UART14.14.1

Main features

One Mbit/s full duplex SCI

•

SPI emulation

•

High precision baud rate generator

•

Smartcard emulation

•

IrDA SIR encoder decoder

•

LIN master mode

•

Single wire half duplex mode

•

Asynchronous communication (UART mode)

Full duplex communication - NRZ standard format (mark/space)

•

Programmable transmit and receive baud rates up to 1 Mbit/s (f

•

following any standard baud rate regardless of the input frequency

Separate enable bits for transmitter and receiver

•

Two receiver wakeup modes:

•

Address bit (MSB)

Idle line (interrupt)

Transmission error detection with interrupt generation

•

Parity control

•

Synchronous communication

Full duplex synchronous transfers

•

SPI master operation

•

8-bit data communication

•

Maximum speed: 1 Mbit/s at 16 MHz (f

•

LIN master mode

Emission: Generates 13-bit synch break frame

•

Reception: Detects 11-bit break frame

•

CPU

/16)

/16) and capable of

CPU

DocID018576 Rev 316/100

Product overviewSTM8S003K3 STM8S003F3

SPI4.14.2

Maximum speed: 8 Mbit/s (f

•

Full duplex synchronous transfers

•

Simplex synchronous transfers on two lines with a possible bidirectional data line

•

Master or slave operation - selectable by hardware or software

•

CRC calculation

•

1 byte Tx and Rx buffer

•

Slave/master selection input pin

•

I²C4.14.3

I²C master features:

•

Clock generation

Start and stop generation

I²C slave features:

•

Programmable I2C address detection

Stop bit detection

MASTER

/2) both for master and slave

Generation and detection of 7-bit/10-bit addressing and general call

•

Supports different communication speeds:

•

Standard speed (up to 100 kHz)

Fast speed (up to 400 kHz)

17/100DocID018576 Rev 3

C_SCL/(T) PB4

TIM1_ETR/AIN3/(HS) PB3

TIM1_CH3N/ AIN2/(HS)PB2

TIM1_CH2N/ AIN1/(HS) PB1

TIM1_CH1N/AIN0/(HS) PB0

PB7

PB6

C_SDA/ (T) PB5

32 31 30 29 28 27 26 25

24 23 22 21 20 19 18 17

9 10 11 12 13 14 15

1 2 3 4 5 6 7 8

VCAP

[SPI_NSS] TIM2_CH3/(HS)PA3

PF4

NRST

OSCIN/PA1

OSCOUT/PA2

PC3 (HS)/TIM1_CH3 PC2 (HS)/TIM1_CH2

PC1 (HS)/TIM1_CH1/UART1_CK PE5 (HS)/SPI_NSS

PC7 (HS)/SPI_MISO PC6 (HS)/SPI_MOSI PC5 (HS)/SPI_SCK PC4 (HS)/TIM1_CH4/CLK_CCO

PD3 (HS)/TIM2_CH2/ADC_ETR

PD2 (HS) [TIM2_CH3]

PD1 (HS)/SWIM

PD0 (HS)/ TIM1_BKIN [CLK_CCO]

PD7 (HS)/TLI [TIM1_CH4]

PD6 (HS)/UART1_RX

PD5 (HS)/UART1_TX

PD4 (HS)/BEEP/TIM2_CH1

STM8S003K3 STM8S003F3Pinout and pin description

Pinout and pin description5

Table 4: Legend/abbreviations for pinout tables

I= Input, O = Output, S = Power supplyType

Output speed

configuration

Reset state

STM8S003K3 LQFP32 pinout and pin description5.1

InputLevel

CM = CMOS

HS = High sinkOutput

O1 = Slow (up to 2 MHz)

O2 = Fast (up to 10 MHz)

O3 = Fast/slow programmability with slow as default state after reset

O4 = Fast/slow programmability with fast as default state after reset

float = floating, wpu = weak pull-upInputPort and control

Output

T = True open drain, OD = Open drain, PP = Push pull

Bold X (pin state after internal reset release).

Unless otherwise specified, the pin state is the same during the reset phase and after the internal reset release.

Figure 3: STM8S003K3 LQFP32 pinout

DocID018576 Rev 318/100

Pinout and pin descriptionSTM8S003K3 STM8S003F3

1. (HS) high sink capability.

2. (T) True open drain (P-buffer and protection diode to VDDnot implemented).

3. [ ] alternate function remapping option (if the same alternate function is shown twice, it

indicates an exclusive choice not a duplication of the function).

Table 5: LQFP32 pin description

Pin no.

name

PA1/ OSCI

TIM2_CH3 [SPI_NSS]

(2)

Type

OutputInput

Ext.

wpufloating

interrupt

High sink

(1)

PPODSpeed

Main function (after reset)

ResetXI/ONRST1

Port A1XXO1XXXI/O

Port A2XXO1XXXI/OPA2/ OSCOUT3

Digital groundSV

1.8 V regulator capacitorSVCAP5

Digital power supplySV

Port A3XXO3HSXXXI/OPA3/

Port F4XXO1XXI/OPF48

Default alternate function

Resonator/ crystal in

Resonator/ crystal out

Timer 2 channel 3

Alternate function after remap [option bit]

SPI master/ slave select [AFR1]

TIM1_ETR

TIM1_CH3N

Port B7XXO1XXXI/OPB79

Port B6XXO1XXXI/OPB610

O1XXI/OPB5/ I2C_SDA11

O1XXI/OPB4/ I2C_SCL12

(3)

Port B3XXO3HSXXXI/OPB3/AIN3/

Port B2XXO3HSXXXI/OPB2/AIN2/

I2C dataPort B5

I2C clockPort B4

Analog input 3/ Timer 1 external trigger

Analog input 2/ Timer 1 inverted channel 3

19/100DocID018576 Rev 3

STM8S003K3 STM8S003F3Pinout and pin description

Pin no.

name

TIM1_CH2N

TIM1_CH1N

SPI_NSS

TIM1_CH1/ UART1_CK

TIM1_CH2

Type

OutputInput

Ext.

wpufloating

interrupt

High sink

(1)

PPODSpeed

Main function (after reset)

Port B1XXO3HSXXXI/OPB1/AIN1/

Port B0XXO3HSXXXI/OPB0/AIN0/

Port E5XXO3HSXXXI/OPE5/

Port C1XXO3HSXXXI/OPC1/

Port C2XXO3HSXXXI/OPC2/

Default alternate function

Analog input 1/ Timer 1 inverted channel 2

Analog input 0/ Timer 1 inverted channel 1

SPI master/slave select

Timer 1 channel 1 UART1 clock

Timer 1 channel 2

Alternate function after remap [option bit]

TIM1_CH3

TIM1_CH4/ CLK_CCO

TIM1_BKIN [CLK_CCO]

(4)

[TIM2_CH3]

Port C3XXO3HSXXXI/OPC3/

Port C4XXO3HSXXXI/OPC4/

Port C6XXO3HSXXXI/OPC6/ PI_MOSI23

Port C7XXO3HSXXXI/OPC7/ PI_MISO24

Port D0XXO3HSXXXI/OPD0/

Port D1XXO4HSXXXI/OPD1/ SWIM

Port D2XXO3HSXXXI/OPD2

Timer 1 channel 3

Timer 1 channel 4 /configurable clock output

SPI clockPort C5XXO3HSXXXI/OPC5/ SPI_SCK22

SPI master out/slave in

SPI master in/ slave out

Timer 1 - break input

SWIM data interface

Configurable clock output [AFR5]

Timer 2 channel 3[AFR1]

DocID018576 Rev 320/100

20 19 18 17 16 15 14 13

1 2 3 4 5 6 7 8

UART1_CK/TIM2_CH1/BEEP/(HS)PD4

NRST

VCAP

OSCOUT/PA2

PD3 (HS)/AIN4/TIM2_CH2/ADC_ETR

PD1(HS)/SWIM

PB4 (T)/I2C_SCL [ADC_ETR]

PC3 (HS)/TIM1_CH3 [TLI] [TIM1_CH1N]

PC4 (HS)/TIM1_CH4/CLK_CCO/AIN2/[TIM1_CH2N]

PC5 (HS)/SPI_SCK [TIM2_CH1]

12 11

9 10

[SPI_NSS] TIM2_CH3/(HS) PA3

PD2 (HS)/AIN3/[TIM2_CH3]

OSCIN/PA1

PB5 (T)/I2C_SDA [TIM1_BKIN]

UART1_TX/AIN5/(HS) PD5 UART1_RX/AIN6/(HS) PD6

PC6 (HS)/SPI_MOSI [TIM1_CH1]

PC7 (HS)/SPI_MISO [TIM1_CH2]

Pinout and pin descriptionSTM8S003K3 STM8S003F3

Pin no.

name

TIM2_CH2/ ADC_ETR

TIM2_CH1

Type

OutputInput

Ext.

wpufloating

interrupt

High sink

(1)

PPODSpeed

Main function (after reset)

Port D3XXO3HSXXXI/OPD3/

Default alternate function

Timer 2 channel 2/ADC external trigger

Port D4XXO3HSXXXI/OPD4/BEEP/

Timer 2 channel

Alternate function after remap [option bit]

1/BEEP output

UART1_TX

Port D5XXO3HSXXXI/OPD5/

Port D6XXO3HSXXXI/OPD6/

UART1_RX

Port D7XXO3HSXXXI/OPD7/ TLI

[TIM1_CH4]

UART1 data transmit

UART1 data receive

Top level interrupt

Timer 1 channel 4 [AFR6]

(1)

I/O pins used simultaneously for high current source/sink must be uniformly spaced around the package. In addition, the total driven current must respect the absolute maximum ratings (see Electrical characteristics). (2)

When the MCU is in Halt/Active-halt mode, PA1 is automatically configured in input weak pull-up and cannot be used for waking up the device. In this mode, the output state of PA1 is not driven. It is recommended to use PA1 only in input mode if Halt/Active-halt is used in the application. (3)

In the open-drain output column, "T" defines a true open-drain I/O (P-buffer, weak pull-up, and protection diode to VDDare not implemented). (4)

The PD1 pin is in input pull-up during the reset phase and after internal reset release.

STM8S003F3 TSSOP20/UFQFPN20 pinout and pin description5.2

STM8S003F3 TSSOP20 pinout and pin description5.2.1

Figure 4: STM8S003F3 TSSOP20 pinout

1. HS high sink capability.

21/100DocID018576 Rev 3

6 7 8

16171819

VCAP

OSCOUT/PA2

OSCIN/PA1

[SPI_NSS] TIM2_CH3/(HS) PA3

NRST

PD4 (HS)/BEEP / TIM2_CH1/UART1_CK

PD5(HS)/AIN5/UART1_TX

PD3 (HS)/AIN4/TIM2_CH2/ADC_ETR

PD2(HS)/AIN3/{TIM2_CH3]

PC4(HS)/TIM1_CH4/CLK_CCO/AIN2/[TIM1_CH2N]

PC5 (HS)/SPI_SCK [TIM2_CH1]

PC6(HS)/SPI_MOSI [TIM1_CH1]

PC7(HS)/SPI_MISO[TIM1_CH2]

PD1(HS)/SWIM

[TIM1_BKIN] I

C_SDA/(T)PB5

PD6(HS)/AIN6/UART1_RX

[ADC_ETR] I

C_SCL/(T)PB4

STM8S003K3 STM8S003F3Pinout and pin description

2. (T) True open drain (P-buffer and protection diode to VDDnot implemented).

3. [ ] alternate function remapping option (If the same alternate function is shown twice, it

indicates an exclusive choice not a duplication of the function).

STM8S003F3 UFQFPN20 pinout5.2.2

Figure 5: STM8S003F3 UFQFPN20-pin pinout

Pin no.

1. HS high sink capability.

2. (T) True open drain (P-buffer and protection diode to VDDnot implemented).

3. [ ] alternate function remapping option (if the same alternate function is shown twice, it

indicates an exclusive choice not a duplication of the function).

STM8S003F3 TSSOP20/UFQFPN20 pin description5.2.3

181

TIM2_ CH1/ UART1 _CK

Table 6: STM8S003F3 pin description

OutputInput

TypePin name

wpufloatingUFQFPN20TSSOP20

DocID018576 Rev 322/100

Ext. interr.

High sink

(1)

PPODSpeed

XXO3HSXXXI/OPD4/ BEEP/

Main function (after reset)

Port D4

Default alternate function

Timer 2 channel 1/BEEP output/

Alternate function after remap [option bit]

Pinout and pin descriptionSTM8S003K3 STM8S003F3

Pin no.

OutputInput

TypePin name

192

203

UART1 _TX

UART1 _RX

(2)

OSCOUT

SVCAP58

wpufloatingUFQFPN20TSSOP20

Ext. interr.

High sink

(1)

Main function (after

PPODSpeed

reset)

Port

XXO3HSXXXI/OPD5/ AIN5/

Port

XXO3HSXXXI/OPD6/ AIN6/

ResetXI/ONRST14

Port

XXO1XXXI/OPA1/ OSCIN

Port

XXO1XXXI/OPA2/

Digital groundSV

1.8 V regulator capacitor

Default alternate function

UART1 clock

Analog input 5/ UART1 data transmit

Analog input 6/ UART1 data receive

Resonator/ crystal in

Resonator/ crystal out

Alternate function after remap [option bit]

710

811

912

1013

1114

1215

CH3 [SPI_ NSS]

SDA [TIM1_ BKIN]

SCL

TIM1_CH3 [TLI] [TIM1_ CH1N]

CLK_CCO/ TIM1_ CH4/AIN2/[TIM1_ CH2N]

SPI_SCK [TIM2_ CH1]

O1XXI/OPB5/ I2C_

(3)

O1XXI/OPB4/ I2C_

Digital power supplySV

Port

XXO3HSXXXI/OPA3/ TIM2_

Port

XXO3HSXXXI/OPC3/

Port

XXO3HSXXXI/OPC4/

XXO3HSXXXI/OPC5/

Timer 2 channel 3

I2C dataPort

I2C clockPort

Timer 1 channel 3

Configurable clock output/Timer 1 - channel 4/Analog input 2

SPI clockPort

SPI master/ slave select [AFR1]

Timer 1 break input [AFR4]

ADC external trigger [AFR4]

Top level interrupt [AFR3] Timer 1 - inverted channel 1 [AFR7]

Timer 1 inverted channel 2 [AFR7]

Timer 2 channel 1 [AFR0]

23/100DocID018576 Rev 3

STM8S003K3 STM8S003F3Pinout and pin description

Ext. interr.

OutputInput

High sink

(1)

PPODSpeed

XXO3HSXXXI/OPC6/

XXO3HSXXXI/OPC7/

XXO4HSXXXI/OPD1/

XXO3HSXXXI/OPD2/AIN3/[TIM2_

XXO3HSXXXI/OPD3/ AIN4/

Main function (after reset)

Port C6

Port C7

Port D1

Port D2

Port D3

Default alternate function

SPI master out/slave in

SPI master in/ slave out

SWIM data interface

Analog input 3

Analog input 4/ Timer 2 channel 2/ADC external trigger

Alternate function after remap [option bit]

Timer 1 channel 1 [AFR0]

Timer 1 channel 2 [AFR0]

Timer 2 channel 3 [AFR1]

Pin no.

TypePin name

1316

1417

1518

1619

1720

(1)

I/O pins used simultaneously for high current source/sink must be uniformly spaced around the package. In addition, the total driven current must respect the absolute maximum ratings. (2)

When the MCU is in halt/active-halt mode, PA1 is automatically configured in input weak pull-up and cannot be used for waking up the device. In this mode, the output state of PA1 is not driven. It is recommended to use PA1 only in input mode if halt/active-halt is used in the application. (3)

In the open-drain output column, "T" defines a true open-drain I/O (P-buffer, weak pull-up, and protection diode to VDDare not implemented). (4)

The PD1 pin is in input pull-up during the reset phase and after internal reset release.

SPI_MOSI [TIM1_ CH1]

SPI_MISO [TIM1_ CH2]

(4)

SWIM

CH3]

TIM2_ CH2/ ADC_ ETR

wpufloatingUFQFPN20TSSOP20

Alternate function remapping5.3

As shown in the rightmost column of the pin description table, some alternate functions can be remapped at different I/O ports by programming one of eight AFR (alternate function remap) option bits. When the remapping option is active, the default alternate function is no longer available.

To use an alternate function, the corresponding peripheral must be enabled in the peripheral registers.

Alternate function remapping does not effect GPIO capabilities of the I/O ports (see the GPIO section of the family reference manual, RM0016).

DocID018576 Rev 324/100

0x00 9FFF

Flash program memory

(8 Kbytes)

0x00 0000

RAM

0x00 03FF

(1 Kbyte)

513 bytes stack

Reserved

0x00 A000

0x02 7FFF

0x00 47FF

0x00 8000

32 interrupt vectors

0x00 807F

GPIO and periph. reg.

0x00 5000

0x00 57FF

0x00 5800

0x00 7FFF

0x00 480B

0x00 4FFF

0x00 7EFF

CPU/SWIM/debug/ITC

registers

0x00 7F00

Reserved

Option bytes

0x00 480A

0x00 4800

0x00 0800

0x00 8080

Reserved

0x00 407F

Data EEPROM

0x00 4000

Reserved

Memory and register mapSTM8S003K3 STM8S003F3

Memory and register map6

Memory map6.1

Figure 6: Memory map

25/100DocID018576 Rev 3

STM8S003K3 STM8S003F3Memory and register map

Register map6.2

I/O port hardware register map6.2.1

Table 7: I/O port hardware register map

0x00 5000

0x00 5005

0x00 500A

Port A

Port B

Port C

Reset status

0x00Port A data output latch registerPA_ODR

(1)

Port A input pin value registerPA_IDR0x00 5001

0xXX

0x00Port A data direction registerPA_DDR0x00 5002

0x00Port A control register 1PA_CR10x00 5003

0x00Port A control register 2PA_CR20x00 5004

0x00Port B data output latch registerPB_ODR

(1)

Port B input pin value registerPB_IDR0x00 5006

0xXX

0x00Port B data direction registerPB_DDR0x00 5007

0x00Port B control register 1PB_CR10x00 5008

0x00Port B control register 2PB_CR20x00 5009

0x00Port C data output latch registerPC_ODR

(1)

Port C input pin value registerPB_IDR0x00 500B

0xXX

0x00Port C data direction registerPC_DDR0x00 500C

0x00 500F

0x00 5014

Port D

Port E

0x00Port C control register 1PC_CR10x00 500D

0x00Port C control register 2PC_CR20x00 500E

0x00Port D data output latch registerPD_ODR

(1)

Port D input pin value registerPD_IDR0x00 5010

0xXX

0x00Port D data direction registerPD_DDR0x00 5011

0x02Port D control register 1PD_CR10x00 5012

0x00Port D control register 2PD_CR20x00 5013

0x00Port E data output latch registerPE_ODR

(1)

Port E input pin value registerPE_IDR0x00 5015

0xXX

0x00Port E data direction registerPE_DDR0x00 5016

0x00Port E control register 1PE_CR10x00 5017

DocID018576 Rev 326/100

Memory and register mapSTM8S003K3 STM8S003F3

0x00 5019

Port F

(1)

Depends on the external circuitry.

General hardware register map6.2.2

Port F input pin value registerPF_IDR0x00 501A

Table 8: General hardware register map

Reset status

0x00Port E control register 2PE_CR2Port E0x00 5018

0x00Port F data output latch registerPF_ODR

0xXX

0x00Port F data direction registerPF_DDR0x00 501B

0x00Port F control register 1PF_CR10x00 501C

0x00Port F control register 2PF_CR20x00 501D

Reset status

(1)

0x00 5059

0x00 5061

Reserved area (60 bytes)0x00 501E to

Flash0x00 505A

0x00Flash control register 1FLASH_CR1

0x00Flash control register 2FLASH_CR20x00 505B

0xFFFlash complementary control register 2FLASH_NCR20x00 505C

0x00Flash protection registerFLASH _FPR0x00 505D

0xFFFlash complementary protection registerFLASH _NFPR0x00 505E

FLASH _IAPSR0x00 505F

0x00Flash in-application programming status

Reserved area (2 bytes)0x00 5060 to

FLASH _PUKRFlash0x00 5062

0x00Flash program memory unprotection

27/100DocID018576 Rev 3

STM8S003K3 STM8S003F3Memory and register map

0x00 509F

0x00 50B2

0x00 50BF

Reset status

Reserved area (1 byte)0x00 5063

0x00Data EEPROM unprotection registerFLASH_DUKRFlash0x00 5064

Reserved area (59 bytes)0x00 5065 to

0x00External interrupt control register 1EXTI_CR1ITC0x00 50A0

0x00External interrupt control register 2EXTI_CR20x00 50A1

Reserved area (17 bytes)0x00 50A2 to

(1)

Reset status registerRST_SRRST0x00 50B3

0xXX

Reserved area (12 bytes)0x00 50B4 to

0x01Internal clock control registerCLK_ICKRCLK0x00 50C0

0x00External clock control registerCLK_ECKR0x00 50C1

Reserved area (1 byte)0x00 50C2

0xE1Clock master status registerCLK_CMSRCLK0x00 50C3

0xE1Clock master switch registerCLK_SWR0x00 50C4

0xXXClock switch control registerCLK_SWCR0x00 50C5

0x18Clock divider registerCLK_CKDIVR0x00 50C6

0xFFPeripheral clock gating register 1CLK_PCKENR10x00 50C7

0x00Clock security system registerCLK_CSSR0x00 50C8

0x00Configurable clock control registerCLK_CCOR0x00 50C9

0xFFPeripheral clock gating register 2CLK_PCKENR20x00 50CA

DocID018576 Rev 328/100

Memory and register mapSTM8S003K3 STM8S003F3

0x00 50D0

50DF

Reset status

0x00HSI clock calibration trimming registerCLK_HSITRIMR0x00 50CC

SWIM clock control registerCLK_SWIMCCR0x00 50CD

0bXXXX XXX0

ReservLK ed area (3 bytes)0x00 50CE to

0x7FWWDG control registerWWDG_CRWWDG0x00 50D1

0x7FWWDR window registerWWDG_WR0x00 50D2

Reserved area (13 bytes)0x00 50D3 to 00

(2)

IWDG key registerIWDG_KRIWDG0x00 50E0

0xXX

0x00IWDG prescaler registerIWDG_PR0x00 50E1

0x00 50EF

0x00 50FF

0xFFIWDG reload registerIWDG_RLR0x00 50E2

Reserved area (13 bytes)0x00 50E3 to

0x00AWU control/status register 1AWU_CSR1AWU0x00 50F0

AWU_APR0x00 50F1

0x3FAWU asynchronous prescaler buffer

0x00AWU timebase selection registerAWU_TBR0x00 50F2

0x1FBEEP control/status registerBEEP_CSRBEEP0x00 50F3

Reserved area (12 bytes)0x00 50F4 to

0x00SPI control register 1SPI_CR1SPI0x00 5200

0x00SPI control register 2SPI_CR20x00 5201

29/100DocID018576 Rev 3

STM8S003K3 STM8S003F3Memory and register map

0x00 520F

Reset status

0x00SPI interrupt control registerSPI_ICR0x00 5202

0x02SPI status registerSPI_SR0x00 5203

0x00SPI data registerSPI_DR0x00 5204

0x07SPI CRC polynomial registerSPI_CRCPR0x00 5205

0xFFSPI Rx CRC registerSPI_RXCRCR0x00 5206

0xFFSPI Tx CRC registerSPI_TXCRCR0x00 5207

Reserved area (8 bytes)0x00 5208 to

0x00I2C control register 1I2C_CR1I2C0x00 5210

0x00I2C control register 2I2C_CR20x00 5211

0x00I2C frequency registerI2C_FREQR0x00 5212

0x00I2C Own address register lowI2C_OARL0x00 5213

0x00I2C Own address register highI2C_OARH0x00 5214

Reserved0x00 5215

0x00I2C data registerI2C_DR0x00 5216

0x00I2C status register 1I2C_SR10x00 5217

0x00I2C status register 2I2C_SR20x00 5218

0x0XI2C status register 3I2C_SR30x00 5219

0x00I2C interrupt control registerI2C_ITR0x00 521A

0x00I2C Clock control register lowI2C_CCRL0x00 521B

DocID018576 Rev 330/100

Memory and register mapSTM8S003K3 STM8S003F3

0x00 522F

Reset status

0x00I2C Clock control register highI2C_CCRH0x00 521C

0x02I2C TRISE registerI2C_TRISER0x00 521D

0x00I2C packet error checking registerI2C_PECR0x00 521E

Reserved area (17 bytes)0x00 521F to

0xC0UART1 status registerUART1_SRUART10x00 5230

0xXXUART1 data registerUART1_DR0x00 5231

0x00UART1 baud rate register 1UART1_BRR10x00 5232

0x00UART1 baud rate register 2UART1_BRR20x00 5233

0x00 523F

0x00UART1 control register 1UART1_CR10x00 5234

0x00UART1 control register 2UART1_CR20x00 5235

0x00UART1 control register 3UART1_CR30x00 5236

0x00UART1 control register 4UART1_CR40x00 5237

0x00UART1 control register 5UART1_CR50x00 5238

0x00UART1 guard time registerUART1_GTR0x00 5239

0x00UART1 prescaler registerUART1_PSCR0x00 523A

Reserved area (21 bytes)0x00 523B to

0x00TIM1 control register 1TIM1_CR1TIM10x00 5250

0x00TIM1 control register 2TIM1_CR20x00 5251

31/100DocID018576 Rev 3

STM8S003K3 STM8S003F3Memory and register map

Reset status

0x00TIM1 slave mode control registerTIM1_SMCR0x00 5252

0x00TIM1 external trigger registerTIM1_ETR0x00 5253

0x00TIM1 interrupt enable registerTIM1_IER0x00 5254

0x00TIM1 status register 1TIM1_SR10x00 5255

0x00TIM1 status register 2TIM1_SR20x00 5256

0x00TIM1 event generation registerTIM1_EGR0x00 5257

0x00TIM1 capture/compare mode register 1TIM1_CCMR10x00 5258

0x00TIM1 capture/compare mode register 2TIM1_CCMR20x00 5259

0x00TIM1 capture/compare mode register 3TIM1_CCMR30x00 525A

0x00TIM1 capture/compare mode register 4TIM1_CCMR40x00 525B

0x00TIM1 capture/compare enable register 1TIM1_CCER10x00 525C

0x00TIM1 capture/compare enable register 2TIM1_CCER20x00 525D

0x00TIM1 counter highTIM1_CNTRH0x00 525E

0x00TIM1 counter lowTIM1_CNTRL0x00 525F

0x00TIM1 prescaler register highTIM1_PSCRH0x00 5260

0x00TIM1 prescaler register lowTIM1_PSCRL0x00 5261

0xFFTIM1 auto-reload register highTIM1_ARRH0x00 5262

0xFFTIM1 auto-reload register lowTIM1_ARRL0x00 5263

0x00TIM1 repetition counter registerTIM1_RCR0x00 5264

DocID018576 Rev 332/100

Memory and register mapSTM8S003K3 STM8S003F3

Reset status

0x00TIM1 capture/compare register 1 highTIM1_CCR1H0x00 5265

0x00TIM1 capture/compare register 1 lowTIM1_CCR1L0x00 5266

0x00TIM1 capture/compare register 2 highTIM1_CCR2H0x00 5267

0x00TIM1 capture/compare register 2 lowTIM1_CCR2L0x00 5268

0x00TIM1 capture/compare register 3 highTIM1_CCR3H0x00 5269

0x00TIM1 capture/compare register 3 lowTIM1_CCR3L0x00 526A

0x00TIM1 capture/compare register 4 highTIM1_CCR4H0x00 526B

0x00TIM1 capture/compare register 4 lowTIM1_CCR4L0x00 526C

0x00TIM1 break registerTIM1_BKR0x00 526D

0x00 52FF

0x00TIM1 dead-time registerTIM1_DTR0x00 526E

0x00TIM1 output idle state registerTIM1_OISR0x00 526F

Reserved area (147 bytes)0x00 5270 to

0x00TIM2 control register 1TIM2_CR1TIM20x00 5300

Reserved0x00 5301

Reserved0x00 5302

0x00TIM2 Interrupt enable registerTIM2_IER0x00 5303

0x00TIM2 status register 1TIM2_SR10x00 5304

0x00TIM2 status register 2TIM2_SR20x00 5305

0x00TIM2 event generation registerTIM2_EGR0x00 5306

33/100DocID018576 Rev 3

STM8S003K3 STM8S003F3Memory and register map

Reset status

0x00TIM2 capture/compare mode register 1TIM2_CCMR10x00 5307

0x00TIM2 capture/compare mode register 2TIM2_CCMR20x00 5308

0x00TIM2 capture/compare mode register 3TIM2_CCMR30x00 5309

0x00TIM2 capture/compare enable register 1TIM2_CCER10x00 530A

0x00TIM2 capture/compare enable register 2TIM2_CCER20x00 530B

0x00TIM2 counter highTIM2_CNTRH0x00 530C

0x00TIM2 counter lowTIM2_CNTRL0x00 530D

0x00TIM2 prescaler registerTIM2_PSCR0x00 530E

0xFFTIM2 auto-reload register highTIM2_ARRH0x00 530F

0x00 533F

0xFFTIM2 auto-reload register lowTIM2_ARRL0x00 5310

0x00TIM2 capture/compare register 1 highTIM2_CCR1H0x00 5311

0x00TIM2 capture/compare register 1 lowTIM2_CCR1L0x00 5312

0x00TIM2 capture/compare reg. 2 highTIM2_CCR2H0x00 5313

0x00TIM2 capture/compare register 2 lowTIM2_CCR2L0x00 5314

0x00TIM2 capture/compare register 3 highTIM2_CCR3H0x00 5315

0x00TIM2 capture/compare register 3 lowTIM2_CCR3L0x00 5316

Reserved area (43 bytes)0x00 5317 to

0x00TIM4 control register 1TIM4_CR1TIM40x00 5340

Reserved0x00 5341

DocID018576 Rev 334/100

Memory and register mapSTM8S003K3 STM8S003F3

0x00 53DF

Reset status

Reserved0x00 5342

0x00TIM4 interrupt enable registerTIM4_IER0x00 5343

0x00TIM4 status registerTIM4_SR0x00 5344

0x00TIM4 event generation registerTIM4_EGR0x00 5345

0x00TIM4 counterTIM4_CNTR0x00 5346

0x00TIM4 prescaler registerTIM4_PSCR0x00 5347

0xFFTIM4 auto-reload registerTIM4_ARR0x00 5348

Reserved area (153 bytes)0x00 5349 to

0x00 53F3

0x00 53FF

0x00ADC data buffer registersADC _DBxRADC10x00 53E0 to

Reserved area (12 bytes)0x00 53F4 to

0x00ADC control/status registerADC _CSRADC10x00 5400

0x00ADC configuration register 1ADC_CR10x00 5401

0x00ADC configuration register 2ADC_CR20x00 5402

0x00ADC configuration register 3ADC_CR30x00 5403

0xXXADC data register highADC_DRH0x00 5404

0xXXADC data register lowADC_DRL0x00 5405

0x00ADC Schmitt trigger disable register highADC_TDRH0x00 5406

0x00ADC Schmitt trigger disable register lowADC_TDRL0x00 5407

35/100DocID018576 Rev 3

STM8S003K3 STM8S003F3Memory and register map

Reset status

0x03ADC high threshold register highADC_HTRH0x00 5408

0xFFADC high threshold register lowADC_HTRL0x00 5409

0x00ADC low threshold register highADC_LTRH0x00 540A

0x00ADC low threshold register lowADC_LTRL0x00 540B

ADC_AWSRH0x00 540C

0x00ADC analog watchdog status register

high

0x00ADC analog watchdog status register lowADC_AWSRL0x00 540D

ADC _AWCRH0x00 540E

0x00ADC analog watchdog control register

high

ADC_AWCRL0x00 540F

0x00ADC analog watchdog control register

low

Reserved area (1008 bytes)0x00 5410 to

0x00 57FF

(1)

Depends on the previous reset source.

(2)

Write only register.

CPU/SWIM/debug module/interrupt controller registers6.2.3

Table 9: CPU/SWIM/debug module/interrupt controller registers

0x00 7F00

(1)

CPU

Reset statusRegister nameRegister labelBlockAddress

0x00AccumulatorA

0x00Program counter extendedPCE0x00 7F01

0x00Program counter highPCH0x00 7F02

0x00Program counter lowPCL0x00 7F03

0x00X index register highXH0x00 7F04

0x00X index register lowXL0x00 7F05

DocID018576 Rev 336/100

Memory and register mapSTM8S003K3 STM8S003F3

Reset statusRegister nameRegister labelBlockAddress

0x00Y index register highYH0x00 7F06

0x00Y index register lowYL0x00 7F07

0x03Stack pointer highSPH0x00 7F08

0xFFStack pointer lowSPL0x00 7F09

0x28Condition code registerCCR0x00 7F0A

0x00 7F0B to 0x00 7F5F

0x00 7F70

0x00 7F78 to 0x00 7F79

0x00 7F81 to 0x00 7F8F

Reserved area (85 bytes)

0x00Global configuration registerCFG_GCRCPU0x00 7F60

0xFFInterrupt software priority register 1ITC_SPR1

0xFFInterrupt software priority register 2ITC_SPR20x00 7F71

0xFFInterrupt software priority register 3ITC_SPR30x00 7F72

0xFFInterrupt software priority register 4ITC_SPR40x00 7F73

ITC

0xFFInterrupt software priority register 5ITC_SPR50x00 7F74

0xFFInterrupt software priority register 6ITC_SPR60x00 7F75

0xFFInterrupt software priority register 7ITC_SPR70x00 7F76

0xFFInterrupt software priority register 8ITC_SPR80x00 7F77

Reserved area (2 bytes)

0x00SWIM control status registerSWIM_CSRSWIM0x00 7F80

Reserved area (15 bytes)

0x00 7F90

DM_BK1RE

DM_BK2RE0x00 7F93

0xFFDM breakpoint 1 register extended

byte

0xFFDM breakpoint 1 register high byteDM_BK1RH0x00 7F91

0xFFDM breakpoint 1 register low byteDM_BK1RL0x00 7F92

0xFFDM breakpoint 2 register extended

byte

0xFFDM breakpoint 2 register high byteDM_BK2RH0x00 7F94

0xFFDM breakpoint 2 register low byteDM_BK2RL0x00 7F95

0x00DM debug module control register 1DM_CR10x00 7F96

0x00DM debug module control register 2DM_CR20x00 7F97

37/100DocID018576 Rev 3

STM8S003K3 STM8S003F3Memory and register map

Reset statusRegister nameRegister labelBlockAddress

0x00 7F9F

(1)

Accessible by debug module only

DM_CSR10x00 7F98

0x10DM debug module control/status

DM_CSR20x00 7F99

0x00DM debug module control/status

0xFFDM enable function registerDM_ENFCTR0x00 7F9A

Reserved area (5 bytes)0x00 7F9B to

DocID018576 Rev 338/100

Interrupt vector mappingSTM8S003K3 STM8S003F3

Interrupt vector mapping7

Table 10: Interrupt mapping

IRQ no.

block

DescriptionSource

Port A external interruptsEXTI03

Wakeup from halt mode

(1)

Yes

active-halt mode

(1)

Vector addressWakeup from

0x00 8000YesYesResetRESET

0x00 8004--Software interruptTRAP

0x00 8008--External top level interruptTLI0

0x00 800CYes-Auto wake up from haltAWU1

0x00 8010--Clock controllerCLK2

0x00 8014Yes

0x00 8018YesYesPort B external interruptsEXTI14

0x00 801CYesYesPort C external interruptsEXTI25

0x00 8020YesYesPort D external interruptsEXTI36

0x00 8024YesYesPort E external interruptsEXTI47

0x00 8028--Reserved8

0x00 802C--Reserved9

0x00 8030YesYesEnd of transferSPI10

TIM1

ADC1

0x00 8034--TIM1 update/ overflow/ underflow/

trigger/ break

0x00 8038--TIM1 capture/ compareTIM112

0x00 803C--TIM2 update/ overflowTIM213

0x00 8040--TIM2 capture/ compareTIM214

0x00 8044--Reserved15

0x00 8048--Reserved16

0x00 804C--Tx completeUART117

0x00 8050--Receive register DATA FULLUART118

0x00 8054YesYesI2C interruptI2C19

0x00 8058--Reserved20

0x00 805C--Reserved21

0x00 8060--ADC1 end of conversion/ analog

watchdog interrupt

39/100DocID018576 Rev 3

STM8S003K3 STM8S003F3Interrupt vector mapping

IRQ

block

no.

(1)

Except PA1

DescriptionSource

Wakeup from halt mode

active-halt mode

Vector addressWakeup from

0x00 8064--TIM4 update/ overflowTIM423

0x00 8068--EOP/WR_PG_DISFlash24

Reserved

0x00 806C to 0x00 807C

DocID018576 Rev 340/100

Option bytesSTM8S003K3 STM8S003F3

Option bytes8

Option bytes contain configurations for device hardware features as well as the memory protection of the device. They are stored in a dedicated block of the memory. Except for the ROP (read-out protection) byte, each option byte has to be stored twice, in a regular form (OPTx) and a complemented one (NOPTx) for redundancy.

Option bytes can be modified in ICP mode (via SWIM) by accessing the EEPROM address shown in the table below.

Option bytes can also be modified ‘on the fly’ by the application in IAP mode, except the ROP option that can only be modified in ICP mode (via SWIM).

Refer to the STM8S Flash programming manual (PM0051) and STM8 SWIM communication protocol and debug module user manual (UM0470) for information on SWIM programming procedures.

Table 11: Option bytes

Addr.

0x4800

0x4801

0x4803

0x4805h

0x4807

0x4809

Option name

protection (ROP)

code(UBC)

function remapping (AFR)

option

startup

byte no.

Option bitsOption

01234567

AFR6AFR7OPT2Alternate

ReservedOPT3Miscell.

ReservedNOPT30x4806

ReservedNOPT40x4808

TRIM

NHSI TRIM

LSI_ ENHSI

NLSI_ EN

EXT CLKReservedOPT4Clock

NEXT CLK

IWDG _HW

NIWDG _HW

SEL

WUSEL

WWDG _HW

NWWDG _HW

NPRSC1NCKA

_HALT

G_HALT

SC0

Factory default setting

0x00ROP [7:0]OPT0Read-out

0x00UBC [7:0]OPT1User boot

0xFFNUBC [7:0]NOPT10x4802

0x00AFR0AFR1AFR2AFR3AFR4AFR5

0xFFNAFR0NAFR1NAFR2NAFR3NAFR4NAFR5NAFR6NAFR7NOPT20x4804

0x00WWDG

0xFFNWW

0x00PRS C0PRS C1CKAWU

0xFFNPR

0x00HSECNT [7:0]OPT5HSE clock

0xFFNHSECNT [7:0]NOPT50x480A

OPT0

Table 12: Option byte description

DescriptionOption byte no.

ROP[7:0] Memory readout protection (ROP)

0xAA: Enable readout protection (write access via SWIM protocol)

41/100DocID018576 Rev 3

STM8S003K3 STM8S003F3Option bytes

DescriptionOption byte no.

Note: Refer to the family reference manual (RM0016) section on Flash/EEPROM memory readout protection for details.

OPT1

OPT2

OPT3

UBC[7:0] User boot code area

0x00: no UBC, no write-protection

0x01: Page 0 defined as UBC, memory write-protected

0x02: Pages 0 to 1 defined as UBC, memory write-protected.

Page 0 and 1 contain the interrupt vectors.

...

0x7F: Pages 0 to 126 defined as UBC, memory write-protected

Other values: Pages 0 to 127 defined as UBC, memory write-protected

Note: Refer to the family reference manual (RM0016) section on Flash write protection for more details.

AFR[7:0]

Refer to following section for alternate function remapping decriptions of bits [7:2] and [1:0] respectively.

HSITRIM:High speed internal clock trimming register size

0: 3-bit trimming supported in CLK_HSITRIMR register

1: 4-bit trimming supported in CLK_HSITRIMR register

LSI_EN:Low speed internal clock enable

0: LSI clock is not available as CPU clock source

1: LSI clock is available as CPU clock source

IWDG_HW: Independent watchdog

0: IWDG Independent watchdog activated by software

1: IWDG Independent watchdog activated by hardware

WWDG_HW: Window watchdog activation

0: WWDG window watchdog activated by software

1: WWDG window watchdog activated by hardware

WWDG_HALT: Window watchdog reset on halt

DocID018576 Rev 342/100

DescriptionOption byte no.

0: No reset generated on halt if WWDG active

1: Reset generated on halt if WWDG active

Option bytesSTM8S003K3 STM8S003F3

OPT4

OPT5

EXTCLK: External clock selection

0: External crystal connected to OSCIN/OSCOUT

1: External clock signal on OSCIN

CKAWUSEL:Auto wake-up unit/clock

0: LSI clock source selected for AWU

1: HSE clock with prescaler selected as clock source for for AWU

PRSC[1:0] AWU clock prescaler

0x: 16 MHz to 128 kHz prescaler

10: 8 MHz to 128 kHz prescaler

11: 4 MHz to 128 kHz prescaler

HSECNT[7:0]:HSE crystal oscillator stabilization time

0x00: 2048 HSE cycles

0xB4: 128 HSE cycles

0xD2: 8 HSE cycles

0xE1: 0.5 HSE cycles

Alternate function remapping bits8.1

Table 13: STM8S003K3 alternate function remapping bits for 32-pin devices

Option byte no.

OPT2

Description

AFR7 Alternate function remapping option 7

Reserved.

AFR6 Alternate function remapping option 6

0: AFR6 remapping option inactive: Default alternate function

1: Port D7 alternate function = TIM1_CH4.

AFR5 Alternate function remapping option 5

0: AFR5 remapping option inactive: Default alternate function

(1)

(2)

43/100DocID018576 Rev 3

STM8S003K3 STM8S003F3Option bytes

Option byte no.

Description

(1)

1: Port D0 alternate function = CLK_CCO.

AFR[4:2] Alternate function remapping options 4:2

Reserved.

AFR1 Alternate function remapping option 1

0: AFR1 remapping option inactive: Default alternate functions

1: Port A3 alternate function = SPI_NSS; port D2 alternate function = TIM2_CH3.

AFR0 Alternate function remapping option 0

Reserved.

(1)

Do not use more than one remapping option in the same port. It is forbidden to enable

both AFR1 and AFR0.

(2)

Refer to pinout description.

Table 14: STM8S003F3 alternate function remapping bits for 20-pin devices

DescriptionOption byte no.

(2)

OPT2

AFR7 Alternate function remapping option 7

0: AFR7 remapping option inactive: Default alternate functions

(1)

1: Port C3 alternate function = TIM1_CH1N; port C4 alternate function = TIM1_CH2N.

AFR6 Alternate function remapping option 6

Reserved.

AFR5 Alternate function remapping option 5

Reserved.

AFR4 Alternate function remapping option 4

0: AFR4 remapping option inactive: Default alternate functions

(1)

1: Port B4 alternate function = ADC_ETR; port B5 alternate function = TIM1_BKIN.

AFR3 Alternate function remapping option 3

0: AFR3 remapping option inactive: Default alternate function

(1)

1: Port C3 alternate function = TLI.

AFR2 Alternate function remapping option 2

DocID018576 Rev 344/100

Option bytesSTM8S003K3 STM8S003F3

DescriptionOption byte no.

Reserved

AFR1 Alternate function remapping option 1

(2)

0: AFR1 remapping option inactive: Default alternate functions

(1)

1: Port A3 alternate function = SPI_NSS; port D2 alternate function = TIM2_CH3.

AFR0 Alternate function remapping option 0

0: AFR0 remapping option inactive: Default alternate functions

(1)

1: Port C5 alternate function = TIM2_CH1; port C6 alternate function = TIM1_CH1; port C7 alternate function = TIM1_CH2.

(1)

Refer to pinout description.

(2)

Do not use more than one remapping option in the same port. It is forbidden to enable

both AFR1 and AFR0.

(2)

45/100DocID018576 Rev 3

50 pF

STM8 pin

STM8S003K3 STM8S003F3Electrical characteristics

Electrical characteristics9

Parameter conditions9.1

Unless otherwise specified, all voltages are referred to VSS.

Minimum and maximum values9.1.1

Unless otherwise specified the minimum and maximum values are guaranteed in the worst conditions of ambient temperature, supply voltage and frequencies by tests in production on 100 % of the devices with an ambient temperature at TA= 25 °C and TA= T the selected temperature range).

Data based on characterization results, design simulation and/or technology characteristics are indicated in the table footnotes and are not tested in production. Based on characterization, the minimum and maximum values refer to sample tests and represent the mean value plus or minus three times the standard deviation (mean ± 3 Σ).

Typical values9.1.2

Unless otherwise specified, typical data are based on TA= 25 °C, VDD= 5 V. They are given only as design guidelines and are not tested.

Amax

(given by

Typical ADC accuracy values are determined by characterization of a batch of samples from a standard diffusion lot over the full temperature range, where 95% of the devices have an error less than or equal to the value indicated (mean ± 2 Σ).

Typical curves9.1.3

Unless otherwise specified, all typical curves are given only as design guidelines and are not tested.

Loading capacitor9.1.4

The loading conditions used for pin parameter measurement are shown in the following figure.

Figure 7: Pin loading conditions

Pin input voltage9.1.5

The input voltage measurement on a pin of the device is described in the following figure.

DocID018576 Rev 346/100

STM8 pin

DDx

- V

Electrical characteristicsSTM8S003K3 STM8S003F3

Figure 8: Pin input voltage

Absolute maximum ratings9.2

Stresses above those listed as ‘absolute maximum ratings’ may cause permanent damage to the device. This is a stress rating only and functional operation of the device under these conditions is not implied. Exposure to maximum rating conditions for extended periods may affect device reliability.

Table 15: Voltage characteristics

Supply voltage

(1)

6.5-0.3

UnitMaxMinRatingsSymbol

DDx

SSx

ESD

- VDD|

- VSS|

Input voltage on true open drain pins

Input voltage on any other pin

(2)

Variations between different power pins

Variations between all the different ground pins

Electrostatic discharge voltage

(2)

6.5VSS- 0.3

VDD+ 0.3VSS- 0.3

See "Absolute maximum ratings

(electrical sensitivity)"

(1)

All power (VDD) and ground (VSS) pins must always be connected to the external power supply

(2)

cannot be respected, the injection current must be limited externally to the I

must never be exceeded. This is implicitly insured if VINmaximum is respected. If VINmaximum

INJ(PIN)

value. A positive injection is induced by VIN>VDDwhile a negative injection is induced by VIN<VSS. For true open-drain pads, there is no positive injection current, and the corresponding VINmaximum must always be respected

Table 16: Current characteristics

VDD

RatingsSymbol

Total current into VDDpower lines (source)

(2)

Max

(1)

Unit

mA100

47/100DocID018576 Rev 3

STM8S003K3 STM8S003F3Electrical characteristics

RatingsSymbol

VSS

Total current out of VSSground lines (sink)

Output current sunk by any I/O and control pin

(2)

Output current source by any I/Os and control pin

INJ(PIN)

(3) (4)

Injected current on NRST pin

Injected current on OSCIN pin

Injected current on any other pin

ΣI

INJ(PIN)

(1)

Data based on characterization results, not tested in production.

(2)

All power (VDD) and ground (VSS) pins must always be connected to the external supply.

(3)

Total injected current (sum of all I/O and control pins)

must never be exceeded. This is implicitly insured if VINmaximum is respected. If VINmaximum

INJ(PIN)

cannot be respected, the injection current must be limited externally to the I

(5)

INJ(PIN)

value. A positive

Max

- 20

± 4

± 20

(1)

Unit

injection is induced by VIN>VDDwhile a negative injection is induced by VIN<VSS. For true open-drain pads, there is no positive injection current, and the corresponding VINmaximum must always be respected

(4)

ADC accuracy vs. negative injection current: Injecting negative current on any of the analog input pins should be avoided as this significantly reduces the accuracy of the conversion being performed on another analog input. It is recommended to add a Schottky diode (pin to ground) to standard analog pins which may potentially inject negative current. Any positive injection current within the limits specified for I

INJ(PIN)

(5)

and ΣI

INJ(PIN)

in the I/O port pin characteristics section does not affect the ADC accuracy.

When several inputs are submitted to a current injection, the maximum ΣI

INJ(PIN)

is the absolute sum of the positive and negative injected currents (instantaneous values). These results are based on characterization with ΣI

INJ(PIN)

maximum current injection on four I/O port pins of the device.

STG

Table 17: Thermal characteristics

UnitValueRatingsSymbol

-65 to +150Storage temperature rangeT °C

150Maximum junction temperatureT

DocID018576 Rev 348/100

Electrical characteristicsSTM8S003K3 STM8S003F3

Operating conditions9.3

Table 18: General operating conditions

UnitMaxMinConditionsParameterSymbol

CPU

VCAP

(3)

(1)

: capacitance of

EXT

external capacitor

ESR of external

capacitor

ESL of external

capacitor

Power dissipation at TA= 85 °C

for suffix 6

version

Junction temperature range for suffix 6

at 1 MHz

Maximum power dissipationAmbient temperature for 6 suffix

(2)

MHz160Internal CPU clock frequencyf

V5.52.95Standard operating voltageV

nF3300470

Ω0.3-

nH15-

238-TSSOP20

220-UFQFPN20

330-LQFP32

85-40

°C

105-40

(1)

Care should be taken when selecting the capacitor, due to its tolerance, as well as the parameter dependency on temperature, DC bias and frequency in addition to other factors. The parameter maximum value must be respected for the full application range.

(2)

This frequency of 1 MHz as a condition for VCAP parameters is given by design of internal regulator.

(3)

To calculate P value for T

Dmax(TA

given in the previous table and the value for ΘJAgiven in Thermal characteristics.

Jmax

), use the formula P

Dmax

=(T

- TA)/ΘJA(see Thermal characteristics ) with the

Jmax

49/100DocID018576 Rev 3

8 4

2.95

4.0

5.0

5.5

CPU

(MHz)

Functionality guaranteed

@TA-40 to 85 °C

Supply voltage

Functionality not guaranteed in this area

Rleak

ESR ESL

STM8S003K3 STM8S003F3Electrical characteristics

VDD

Figure 9: f

CPUmax

versus V

Table 19: Operating conditions at power-up/power-down

(1)

UnitMaxTypMinConditionsParameterSymbol

∞2VDDrise time rate

μs/V

∞2VDDfall time rate

TEMP

IT+

IT-

HYS(BOR)

(1)

Reset is always generated after a t

delay. The application must ensure that VDDis still above the

TEMP

minimum ooperating voltage (VDDmin) when the t

VCAP external capacitor9.3.1

Stabilization for the main regulator is achieved connecting an external capacitor C V

pin. C

CAP

the series inductance to less than 15 nH.

is specified in the Operating conditions section. Care should be taken to limit

EXT

Figure 10: External capacitor C

delay has elapsed.

TEMP

EXT

ms1.7VDDrisingReset release delayt

2.852.72.6Power-on reset thresholdV V

2.82.652.5Brown-out reset thresholdV

mV70Brown-out reset hysteresisV

to the

EXT

1. ESR is the equivalent series resistance and ESL is the equivalent inductance.

DocID018576 Rev 350/100

Electrical characteristicsSTM8S003K3 STM8S003F3

Supply current characteristics9.3.2

The current consumption is measured as described in Pin input voltage.

Total current consumption in run mode9.3.2.1

The MCU is placed under the following conditions:

All I/O pins in input mode with a static value at VDDor VSS(no load)

•

All peripherals are disabled (clock stopped by peripheral clock gating registers) except if

•

explicitly mentioned.

Subject to general operating conditions for VDDand TA.

Table 20: Total current consumption with code execution in run mode at VDD= 5 V

Max

2.352HSE user ext. clock (16 MHz)

21.7HSI RC osc. (16 MHz)

(1)

= f

CPU

16 MHz

MASTER

TypConditionsParameterSymbol

2.3HSE crystal osc. (16 MHz)

Unit

DD(RUN)

Supply current

in run mode,

code executed

from RAM

Supply current

in run mode,

code executed

from Flash

Supply current

in run mode,

code executed

from Flash

= f

CPU

MASTER

125 kHz

= f

CPU

MASTER

15.625 kHz

= f

CPU

MASTER

128 kHz

= f

CPU

MASTER

16 MHz

= f

CPU

MASTER

2 MHz

= f

CPU

MASTER

125 kHz

= f

CPU

MASTER

15.625 kHz

/128 =

(2)

0.86HSE user ext. clock (16 MHz)f

0.870.7HSI RC osc. (16 MHz)

0.580.46HSI RC osc. (16 MHz/8)

0.550.41LSI RC osc. (128 kHz)

4.5HSE crystal osc. (16 MHz)

4.754.3HSE user ext. clock (16 MHz)

4.53.7HSI RC osc. (16 MHz)

1.050.84HSI RC osc. (16 MHz/8)

0.90.72HSI RC osc. (16 MHz)

0.580.46HSI RC osc. (16 MHz/8)

= f

CPU

128 kHz

MASTER

0.570.42LSI RC osc. (128 kHz)

51/100DocID018576 Rev 3

STM8S003K3 STM8S003F3Electrical characteristics

(1)

Data based on characterization results, not tested in production.

(2)

Default clock configuration measured with all peripherals off.

Table 21: Total current consumption with code execution in run mode at VDD= 3.3 V

DD(RUN)

Supply current

in run mode,

code executed

from RAM

Supply current

in run mode,

code executed

from Flash

CPU

= f

MASTER

16 MHz

CPU

= f

MASTER

128 = 125 kHz

CPU

= f

MASTER

128 = 15.625 kHz

CPU

= f

MASTER

128 kHz

CPU

= f

MASTER

16 MHz

CPU

= f

MASTER

2 MHz

CPU

= f

MASTER

128 = 125 kHz

(2)

TypConditionsParameterSymbol

Max

(1)

Unit

1.8HSE crystal osc. (16 MHz)

2.32HSE user ext. clock (16 MHz)

21.5HSI RC osc. (16 MHz)

0.81HSE user ext. clock (16 MHz)f

0.870.7HSI RC osc. (16 MHz)

0.580.46HSI RC osc. (16 MHz/8)

0.550.41LSI RC osc. (128 kHz)

4HSE crystal osc. (16 MHz)

4.73.9HSE user ext. clock (16 MHz)

4.53.7HSI RC osc. (16 MHz)

1.050.84HSI RC osc. (16 MHz/8)

0.90.72HSI RC osc. (16 MHz)

= f

CPU

MASTER

128 = 15.625 kHz

= f

CPU

MASTER

HSI RC osc. (16 MHz/8)

128 kHz

(1)

Data based on characterization results, not tested in production.

(2)

Default clock configuration measured with all peripherals off.

DocID018576 Rev 352/100

0.580.46

0.570.42LSI RC osc. (128 kHz)

Total current consumption in wait mode9.3.2.2

Table 22: Total current consumption in wait mode at VDD= 5 V

Electrical characteristicsSTM8S003K3 STM8S003F3

CPU

= f

MASTER

16 MHz

DD(WFI)

Supply

current in

= f

CPU

125 kHz

MASTER

/128 =

wait mode

CPU

= f

MASTER

/128 =

15.625 kHz

CPU

= f

MASTER

128 kHz

(1)

Data based on characterization results, not tested in production.

(2)

Default clock configuration measured with all peripherals off.

Table 23: Total current consumption in wait mode at VDD= 3.3 V

(2)

TypConditionsParameterSymbol

Max

(1)

Unit

1.6HSE crystal osc. (16 MHz)

1.31.1HSE user ext. clock (16 MHz)

1.10.89HSI RC osc. (16 MHz)

0.880.7HSI RC osc. (16 MHz) mA

0.570.45HSI RC osc. (16 MHz/8)

0.540.4LSI RC osc. (128 kHz)

DD(WFI)

Supply current

in wait mode

= f

CPU

MASTER

16 MHz

= f

CPU

MASTER

125 kHz

= f

CPU

MASTER

15.625 kHz

= f

CPU

MASTER

128 kHz

/ 128 =

HSE crystal osc.

(16 MHz)

HSE user ext. clock

(16 MHz)

HSI RC osc.

(16 MHz)

HSI RC osc.

(16 MHz)

HSI RC osc.

(16 MHz/8)

(2)

LSI RC osc.

(128 kHz)

TypConditionsParameterSymbol

1.1

Max

1.31.1

1.10.89

0.880.7

0.570.45

0.540.4

(1)

Unit

53/100DocID018576 Rev 3

(1)

Data based on characterization results, not tested in production.

(2)

Default clock configuration measured with all peripherals off.

Total current consumption in active halt mode9.3.2.3

Table 24: Total current consumption in active halt mode at VDD= 5 V

STM8S003K3 STM8S003F3Electrical characteristics

DD(AH)

ParameterSymbol

Supply current in active halt mode

Conditions

Main voltage regulator

(2)

(MVR)

Off

(3)

Operating modeOn

Power-down modeOn

Operating mode

Power-down mode

Clock sourceFlash mode

HSE crystal osc.

(16 MHz)

LSI RC osc.

(128 kHz)

HSE crystal osc.

(16 MHz)

LSI RC osc.

(128 kHz)

LSI RC osc.

(128 kHz)

LSI RC osc.

(128 kHz)

Typ

1030

970

Max at 85 °C

(1)

260200

200150

8566

2010

Unit

μA

(1)

Data based on characterization results, not tested in production

(2)

Configured by the REGAH bit in the CLK_ICKR register.

(3)

Configured by the AHALT bit in the FLASH_CR1 register.

Table 25: Total current consumption in active halt mode at VDD= 3.3 V

Conditions

Main voltage regulator

(2)

(MVR)

(3)

Operating modeOn

DocID018576 Rev 354/100

DD(AH)

ParameterSymbol

Supply current in active halt mode

Clock sourceFlash mode

HSE crystal osc. (16 MHz)

Typ

Max at 85 °C

(1)

Unit

μA550

Conditions

Main voltage regulator

(2)

(MVR)

(3)

Operating mode

DD(AH)

ParameterSymbol

Supply current in active halt mode

DD(AH)

Power-down

mode

DD(AH)

Supply current in

DD(AH)

active halt mode

Off

DD(AH)

(1)

Data based on characterization results, not tested in production

(2)

Configured by the REGAH bit in the CLK_ICKR register.

(3)

Configured by the AHALT bit in the FLASH_CR1 register.

Operating mode

Power-down

mode

Clock sourceFlash mode

LSI RC osc.

(128 kHz)

HSE crystal osc. (16 MHz)

LSI RC osc.

(128 kHz)

Electrical characteristicsSTM8S003K3 STM8S003F3

Typ

970

Max at 85 °C

260200

200150

8066LSI RC osc.

1810

(1)

Unit

μA

Total current consumption in halt mode9.3.2.4

Table 26: Total current consumption in halt mode at VDD= 5 V

Supply current in halt mode

DD(H)

(1)

Data based on characterization results, not tested in production

Table 27: Total current consumption in halt mode at VDD= 3.3 V

DD(H)

Supply current in halt mode

Flash in operating mode, HSI clock after wakeup

Flash in power-down mode, HSI clock after wakeup

Flash in operating mode, HSI clock after wakeup

TypConditionsParameterSymbol

Max at 85

(1)

°C

Unit

7563

μA

206.0

Max at 85

TypConditionsParameterSymbol

°C

(1)

Unit

μA7560

55/100DocID018576 Rev 3

STM8S003K3 STM8S003F3Electrical characteristics

Max at 85

TypConditionsParameterSymbol

°C

(1)

Unit

Flash in power-down mode, HSI clock after wakeup

(1)

Data based on characterization results, not tested in production

Low power mode wakeup times9.3.2.5

Table 28: Wakeup times

WU(WFI)

WU(AH)

Wakeup time from

wait mode to run

(3)

Wakeup time active

halt mode to run

(3)

mode

Wakeup time active

halt mode to run

(3)

mode

Wakeup time active

halt mode to run

(3)

mode

0 to 16 MHz

= f

CPU

MASTER

MVR voltage

regulator

(4)

MVR voltage

regulator

(4)

MVR voltage

regulator

(4)

off

= 16 MHzmode

Flash in operating

(5)

mode

Flash in

power-down

(5)

Flash in operating

(5)

mode

HSI

(after

wakeup)

HSI

(after

wakeup)mode

HSI

(after

wakeup)

TypConditionsParameterSymbol

0.56f

(6)

174.5

Max

See note

(6)

(1)

Unit

(2)

μs

Wakeup time active

halt mode to run

(3)

mode

MVR voltage

regulator

(4)

off

Flash in

power-down

Wakeup time from

WU(H)

(1)

Data guaranteed by design, not tested in production.

(2)

WU(WFI)

halt mode to run

(3)

mode

= 2 x 1/f

master

+ x 1/f

CPU.

DocID018576 Rev 356/100

(5)

HSI

(after

wakeup)mode

52Flash in operating mode

54Flash in power-down mode

(6)

(3)

Measured from interrupt event to interrupt vector fetch.

(4)

Configured by the REGAH bit in the CLK_ICKR register.

(5)

Configured by the AHALT bit in the FLASH_CR1 register.

(6)

Plus 1 LSI clock depending on synchronization.

Total current consumption and timing in forced reset state9.3.2.6

Table 29: Total current consumption and timing in forced reset state

Electrical characteristicsSTM8S003K3 STM8S003F3

DD(R)

(2)

state

RESETBL

Reset pin release to

vector fetch

(1)

Data guaranteed by design, not tested in production.

(2)

Characterized with all I/Os tied to VSS.

Current consumption of on-chip peripherals9.3.2.7

Subject to general operating conditions for VDDand TA.

DD(TIM1)

HSI internal RC/f

TIM1 supply current

CPU

= f

MASTER

= 16 MHz, VDD= 5 V

Table 30: Peripheral current consumption

(1)

210

TypConditionsParameterSymbol

Max

(1)

Unit

400VDD= 5 VSupply current in reset

μA

300VDD= 3.3 V

μs150

UnitTyp.ParameterSymbol

DD(TIM2)

DD(TIM4)

DD(UART1)

DD(SPI)

DD(I2C)

DD(ADC1)

TIM2 supply current

TIM4 timer supply current

UART1 supply current

SPI supply current

I2C supply current

(1)

(2)

ADC1 supply current when converting

(3)

130

120

1000

μA

57/100DocID018576 Rev 3

STM8S003K3 STM8S003F3Electrical characteristics

(1)

Data based on a differential IDDmeasurement between reset configuration and timer counter running

at 16 MHz. No IC/OC programmed (no I/O pads toggling). Not tested in production.

(2)

Data based on a differential IDDmeasurement between the on-chip peripheral when kept under reset and not clocked and the on-chip peripheral when clocked and not kept under reset. No I/O pads toggling. Not tested in production.

(3)

Data based on a differential IDDmeasurement between reset configuration and continuous A/D conversions. Not tested in production.

Current consumption curves9.3.2.8

The following figures show typical current consumption measured with code executing in RAM.

Figure 11: Typ I

DD(RUN)

vs. VDDHSE user external clock, f

CPU

= 16 MHz

Figure 12: Typ I

DD(RUN)

DocID018576 Rev 358/100

vs. f

HSE user external clock, VDD= 5 V

CPU

Electrical characteristicsSTM8S003K3 STM8S003F3

Figure 13: Typ I

Figure 14: Typ I

DD(WFI)

DD(RUN)

vs. VDDHSI RC osc, f

CPU

vs. VDDHSE user external clock, f

= 16 MHz

CPU

59/100DocID018576 Rev 3

STM8S003K3 STM8S003F3Electrical characteristics

Figure 15: Typ I

Figure 16: Typ I

DD(WFI)

vs. f

HSE user external clock, VDD= 5 V

CPU

vs. VDDHSI RC osc, f

CPU

= 16 MHz

HSE_ext

HSEH

HSEL

LEAK_HSE

External clock sources and timing characteristics9.3.3

HSE user external clock

Subject to general operating conditions for VDDand TA.

Table 31: HSE user external clock characteristics

User external clock source frequency

(1)

OSCIN input pin high level voltageV

OSCIN input pin low level voltageV

OSCIN input leakage currentI

DocID018576 Rev 360/100

VSS< VIN< V

UnitMaxMinConditionsParameterSymbol

MHz160

VDD+ 0.3 V0.7 x V

0.3 x V

μA+1-1

(1)

HSEH

HSEL

External clock source

OSCIN

HSE

STM8

Data based on characterization results, not tested in production.

Figure 17: HSE external clock source

HSE crystal/ceramic resonator oscillator

The HSE clock can be supplied with a 1 to 16 MHz crystal/ceramic resonator oscillator. All the information given in this paragraph is based on characterization results with specified typical external components. In the application, the resonator and the load capacitors have to be placed as close as possible to the oscillator pins in order to minimize output distortion and start-up stabilization time. Refer to the crystal resonator manufacturer for more details (frequency, package, accuracy...).

Electrical characteristicsSTM8S003K3 STM8S003F3

HSE

(1)

DD(HSE)

SU(HSE)

External high speed

oscillator frequency

Feedback resistorR

Recommended load

capacitance

HSE oscillator power

consumption

Oscillator

transconductance

(4)

Table 32: HSE oscillator characteristics

(2)

C = 20 pF,

= 16 MHz

OSC

C = 10 pF,

=16 MHz

OSC

VDDis stabilizedStartup timet

6 (startup)

1.6 (stabilized)

6 (startup)

1.2 (stabilized)

UnitMaxTypMinConditionsParameterSymbol

MHz161

kΩ220

pF20

(3)

mA/V5

ms1

61/100DocID018576 Rev 3

OSCOUT

OSCIN

HSE

to core

STM8

Resonator

Consumption

control

Resonator

STM8S003K3 STM8S003F3Electrical characteristics

(1)

C is approximately equivalent to 2 x crystal Cload.

(2)

The oscillator selection can be optimized in terms of supply current using a high quality resonator with

small Rmvalue. Refer to crystal manufacturer for more details

(3)

Data based on characterization results, not tested in production.

(4)

SU(HSE)

is the start-up time measured from the moment it is enabled (by software) to a stabilized 16 MHz oscillation is reached. This value is measured for a standard crystal resonator and it can vary significantly with the crystal manufacturer.

Figure 18: HSE oscillator circuit diagram

HSE oscillator critical gmequation

mcrit

= (2 × Π × f

)2× Rm(2Co + C)

HSE

Rm: Notional resistance (see crystal specification)

Lm: Notional inductance (see crystal specification)

Cm: Notional capacitance (see crystal specification)

Co: Shunt capacitance (see crystal specification)

CL1= CL2= C: Grounded external capacitance

gm>> g

mcrit

Internal clock sources and timing characteristics9.3.4

Subject to general operating conditions for VDDand TA.

High speed internal RC oscillator (HSI)

Table 33: HSI oscillator characteristics

UnitMaxTypMinConditionsParameterSymbol

HSI

Frequencyf

DocID018576 Rev 362/100

MHz16

Electrical characteristicsSTM8S003K3 STM8S003F3

UnitMaxTypMinConditionsParameterSymbol

ACC

HSI

Accuracy of HSI

oscillator

Accuracy of HSI

oscillator (factory

User-trimmed with

CLK_HSITRIMR register for

given VDDand T

conditions

(1)

VDD= 5 V,

-40 °C ≤ TA≤ 85 °C

calibrated)

su(HSI)

HSI oscillator

wakeup time

including

calibration

DD(HSI)

HSI oscillator

power

consumption

(1)

Refer to application note.

(2)

Data based on characterization results, not tested in production.

(3)

Guaranteed by design, not tested in production.

170

5-5

1.0

250

(3)

(2)

μs

μA

Figure 19: Typical HSI frequency variation vs VDD@ 4 temperatures

63/100DocID018576 Rev 3

Low speed internal RC oscillator (LSI)

Subject to general operating conditions for VDDand TA.

Table 34: LSI oscillator characteristics

STM8S003K3 STM8S003F3Electrical characteristics

UnitMaxTypParameterSymbol

LSI

su(LSI)

DD(LSI)

Frequencyf

LSI oscillator wake-up timet

LSI oscillator power consumptionI

Figure 20: Typical LSI frequency variation vs VDD@ 4 temperatures

kHz128

μs7

μA5

Memory characteristics9.3.5

RAM and hardware registers

Table 35: RAM and hardware registers

UnitMinConditionsParameterSymbol

(1)

Minimum supply voltage without losing data stored in RAM (in halt mode or under reset)

Data retention mode

(1)

Halt mode (or reset)

or in hardware registers (only in halt mode). Guaranteed by design, not tested in production.

(2)

Refer to the Operating conditions section for the value of V

DocID018576 Rev 364/100

IT-max

(2)

Flash program memory and data EEPROM

Table 36: Flash program memory and data EEPROM

ConditionsParameterSymbol

Min

(1)

Electrical characteristicsSTM8S003K3 STM8S003F3

UnitMaxTyp

prog

erase

RET

Operating voltage (all modes, execution/

write/erase)

Standard programming time

(including erase) for

byte/word/block (1 byte/

4 bytes/64 bytes)

Fast programming time for

1 block (64 bytes)

Erase time for 1 block

(64 bytes)

Erase/write cycles

(2)

(program memory)

Erase/write cycles

(2)

(data memory)

Data retention (program

memory) after 100 erase/write cycles at TA= 85 °C

Data retention (data

memory) after 10 k erase/write cycles at TA= 85 °C

≤ 16 MHz

CPU

TA= 85 °C

= 55°C

RET

100

100 k

V5.52.95

6.66

3.333

cycles

years

Data retention (data

memory) after 100 k erase/write cycles at TA=

RET

= 85°C

85 °C

Supply current (Flash

programming or erasing

mA2

for 1 to 128 bytes)

65/100DocID018576 Rev 3

STM8S003K3 STM8S003F3Electrical characteristics

(1)

Data based on characterization results, not tested in production.

(2)

The physical granularity of the memory is 4 bytes, so cycling is performed on 4 bytes

even when a write/erase operation addresses a single byte.

I/O port pin characteristics9.3.6

General characteristics

Subject to general operating conditions for VDDand TAunless otherwise specified. All unused pins must be kept at a fixed voltage: using the output mode of the I/O for example or an external pull-up or pull-down resistor.

Table 37: I/O static characteristics

UnitMaxTypMinConditionsParameterSymbol

hys

tR, t

lkg

lkg ana

lkg(inj)

Input low level voltage

VDD= 5 V

-0.3 V

0.3 x

VDD+

0.3

(2)

125

mV700

kΩ805530

(2)

0.7 x V

Input high level voltage

Hysteresis

Pull-up resistor

Rise and fall time

(10 % - 90 %)

(1)

VDD= 5 V, VIN= V

Fast I/Os

Load = 50 pF

Standard and high sink I/Os

Load = 50 pF

Digital input leakage current

Analog input leakage current

Leakage current in adjacent I/O

VSS≤ VIN≤V

VSS≤ VIN≤ V

Injection current ±4 mA

(2)

±1

±250

(2)

±1

(2)

μA

(1)

Hysteresis voltage between Schmitt trigger switching levels. Based on characterization results, not

tested in production.

(2)

Data based on characterisation results, not tested in production.

DocID018576 Rev 366/100

Electrical characteristicsSTM8S003K3 STM8S003F3

Figure 21: Typical VILand VIHvs VDD@ 4 temperatures

Figure 22: Typical pull-up resistance vs VDD@ 4 temperatures

67/100DocID018576 Rev 3

STM8S003K3 STM8S003F3Electrical characteristics

Figure 23: Typical pull-up current vs VDD@ 4 temperatures

Table 38: Output driving current (standard ports)

UnitMaxMinConditionsParameterSymbol

Output low level with 8 pins sunk

IIO= 10 mA,

VDD= 5 V

Output low level with 4 pins sunk

IIO= 4 mA,

VDD= 3.3 V

Output high level with 8 pins sourced

IIO= 10 mA,

VDD= 5 V

Output high level with 4 pins sourced

IIO= 4 mA,

VDD= 3.3 V

(1)

Data based on characterization results, not tested in production

Table 39: Output driving current (true open drain ports)

Output low level with 2 pins sunk

2.8

2.1

IIO= 10 mA, VDD= 5 V

IIO= 10 mA, VDD=

3.3 V

(1)

1 .0

1.5

2.0

1.0

(1)

UnitMaxConditionsParameterSymbol

DocID018576 Rev 368/100

Electrical characteristicsSTM8S003K3 STM8S003F3

UnitMaxConditionsParameterSymbol

(1)

Data based on characterization results, not tested in production

Output low level with 2 pins sunk

Table 40: Output driving current (high sink ports)

Output low level with 8 pins sunk

Output low level with 4 pins sunk

IIO= 10 mA,

VDD= 5 V

IIO= 10 mA,

VDD= 3.3 V

Output low level with 4 pins sunk

IIO= 20 mA,

VDD= 5 V

Output high level with 8 pins sourced

IIO= 10 mA,

VDD= 5 V

Output high level with 4 pins sourced

IIO= 10 mA,

VDD= 3.3 V

IIO= 20 mA, VDD= 5 V

4.0

(1)

2.1

2.0

1.0

1.5

(1)

UnitMaxMinConditionsParameterSymbol

V0.8

(1)

Output high level with 4 pins sourced

IIO= 20 mA,

VDD= 5 V

(1)

Data based on characterization results, not tested in production

3.3

(1)

69/100DocID018576 Rev 3

STM8S003K3 STM8S003F3Electrical characteristics

Figure 24: Typ. VOL@ VDD= 5 V (standard ports)

Figure 25: Typ. VOL@ VDD= 3.3 V (standard ports)

DocID018576 Rev 370/100

Electrical characteristicsSTM8S003K3 STM8S003F3

Figure 26: Typ. VOL@ VDD= 5 V (true open drain ports)

Figure 27: Typ. VOL@ VDD= 3.3 V (true open drain ports)

71/100DocID018576 Rev 3

STM8S003K3 STM8S003F3Electrical characteristics

Figure 28: Typ. VOL@ VDD= 5 V (high sink ports)

Figure 29: Typ. VOL@ VDD= 3.3 V (high sink ports)

DocID018576 Rev 372/100

Electrical characteristicsSTM8S003K3 STM8S003F3

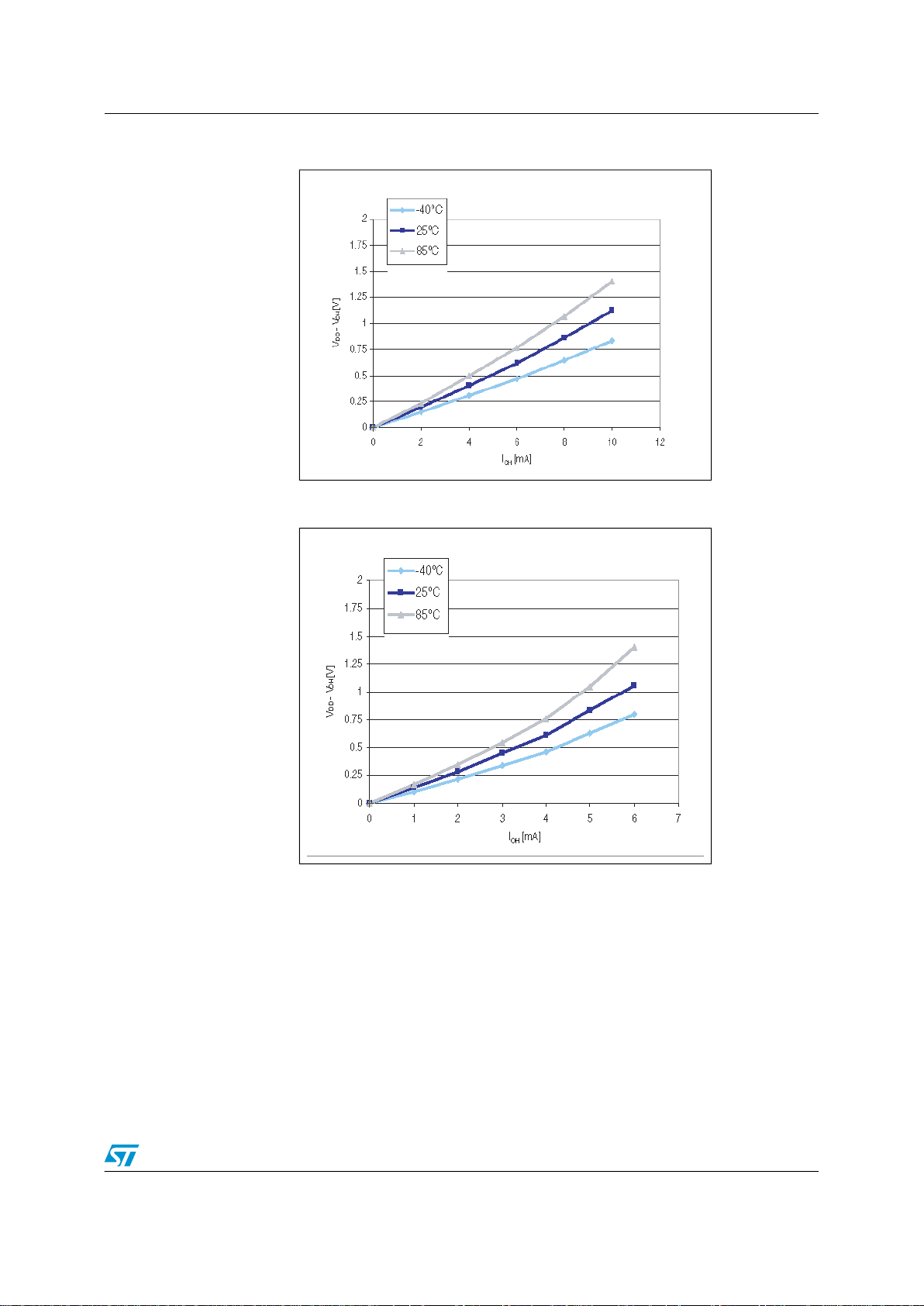

Figure 30: Typ. VDD- VOH@ VDD= 5 V (standard ports)

Figure 31: Typ. VDD- VOH@ VDD= 3.3 V (standard ports)

73/100DocID018576 Rev 3

STM8S003K3 STM8S003F3Electrical characteristics

Figure 32: Typ. VDD- VOH@ VDD= 5 V (high sink ports)

Figure 33: Typ. VDD- VOH@ VDD= 3.3 V (high sink ports)

IL(NRST)

Reset pin characteristics9.3.7

Subject to general operating conditions for VDDand TAunless otherwise specified.

Table 41: NRST pin characteristics

NRST input low

DocID018576 Rev 374/100

-0.3 V

UnitMaxTypMinConditionsParameterSymbol

V0.3 x V

IH(NRST)

OL(NRST)

PU(NRST)

I FP(NRST)

IN FP(NRST)

level voltage

(1)

NRST input high

level voltage

(1)

NRST output low

level voltage

(1)

NRST pull-up

resistor

(2)

NRST input filtered

(3)

pulse

NRST input not

filtered pulse

(3)

IOL=2 mA

500

Electrical characteristicsSTM8S003K3 STM8S003F3

UnitMaxTypMinConditionsParameterSymbol

VDD+ 0.30.7 x V

0.5

kΩ805530

OP(NRST)

(1)

Data based on characterization results, not tested in production.

(2)

The RPUpull-up equivalent resistor is based on a resistive transistor

(3)

Data guaranteed by design, not tested in production.

NRST output

(3)

pulse

μs

75/100DocID018576 Rev 3

STM8S003K3 STM8S003F3Electrical characteristics

Figure 34: Typical NRST VILand VIHvs VDD@ 4 temperatures

Figure 35: Typical NRST pull-up resistance vs VDD@ 4 temperatures

DocID018576 Rev 376/100

0.1 µF

External

reset

circuit

STM8

Filter

Internal reset

NRST

(optional)

Electrical characteristicsSTM8S003K3 STM8S003F3

Figure 36: Typical NRST pull-up current vs VDD@ 4 temperatures

The reset network shown in the following figure protects the device against parasitic resets. The user must ensure that the level on the NRST pin can go below V

IL(NRST)

max. (see

#unique_55/CD662 ), otherwise the reset is not taken into account internally.

For power consumption sensitive applications, the external reset capacitor value can be reduced to limit the charge/discharge current. If NRST signal is used to reset external circuitry, attention must be taken to the charge/discharge time of the external capacitor to fulfill the external devices reset timing conditions. Minimum recommended capacity is 10 nF.

Figure 37: Recommended reset pin protection

SPI serial peripheral interface9.3.8

Unless otherwise specified, the parameters given in the following table are derived from tests performed under ambient temperature, f t

MASTER

= 1/f

MASTER

Refer to I/O port characteristics for more details on the input/output alternate function characteristics (NSS, SCK, MOSI, MISO).

frequency and VDDsupply voltage conditions.

77/100DocID018576 Rev 3

Table 42: SPI characteristics

STM8S003K3 STM8S003F3Electrical characteristics

SCK

c(SCK)

SCK

c(SCK)

r(SCK)

f(SCK)

su(NSS)

h(NSS)

w(SCKH)

w(SCKL)

su(MI)

su(SI)

h(MI)

h(SI)

a(SO)

dis(SO)

(3)

(3) (4)

(3) (5)

(3)

ParameterSymbol

frequency

1/ t

SCK

c(SCK)

fall time

time

access time

disable time

Conditions

Master modeSPI clock

SPI clock frequencyf

Capacitive load: C = 30 pFSPI clock rise and

Slave modeNSS setup timet

Master modeSCK high and low

Slave modeData output

(1)

4 x

MASTER

70Slave modeNSS hold timet

SCK

2 - 15

5Master modeData input setup

5Slave mode

7Master modeData input hold

10Slave mode

(2)

SCK

2 +15

3 x

MASTER

UnitMaxMin

MHz80

MHz7

v(SO)

v(MO)

h(SO)

h(MO)

(3)

Data output valid

time

Data output valid

time

Data output hold

time

Data output hold

time

Slave mode

(after enable edge)

Master mode

(after enable edge)

Slave mode

(after enable edge)

Master mode

(after enable edge)

DocID018576 Rev 378/100

(2)

ai14134

SCK Input

CPHA=0

MOSI

INPUT

MISO

OUT PUT

CPHA=0

MSB O UT

MSB IN

BIT6 OUT

LSB IN

LSB OUT

CPOL=0

CPOL=1

BIT1 IN

NSSinput

SU(NSS)

c(SCK)

h(NSS)

a(SO)

w(SCKH)

w(SCKL)

v(SO)

h(SO)

r(SCK)

f(SCK)

dis(SO)

su(SI)

h(SI)

ai14135

SCK Input

CPHA=1

MOSI

INPUT

MISO

OUT PUT

CPHA=1

MSB O UT

MSB IN

BIT6 OUT

LSB IN

LSB OUT

CPOL=0

CPOL=1

BIT1 IN

SU(NSS)

c(SCK)

h(NSS)

a(SO)

w(SCKH)

w(SCKL)

v(SO)

h(SO)

r(SCK)

f(SCK)

dis(SO)

su(SI)

h(SI)

NSS input

Electrical characteristicsSTM8S003K3 STM8S003F3

(1)

Parameters are given by selecting 10 MHz I/O output frequency.

(2)

Data characterization in progress.

(3)

Values based on design simulation and/or characterization results, and not tested in

production.

(4)

Min time is for the minimum time to drive the output and the max time is for the maximum

time to validate the data.

(5)

Min time is for the minimum time to invalidate the output and the max time is for the

maximum time to put the data in Hi-Z.

Figure 38: SPI timing diagram - slave mode and CPHA = 0

Figure 39: SPI timing diagram - slave mode and CPHA = 1

1. Measurement points are made at CMOS levels: 0.3 VDD and 0.7 VDD.

79/100DocID018576 Rev 3

ai14136b

SCK intput

CPHA=0

MOSI

OUTUT

MISO

INPUT

CPHA=0

MSBIN

MSB OUT

BIT6 IN

LSB OUT

LSB IN

CPOL=0

CPOL=1

BIT1 OUT

NSSinput

c(SCK)

w(SCKH)

w(SCKL)

r(SCK)

f(SCK)

h(MI)

High

SCK output

CPHA=1

CPOL=0

CPOL=1

su(MI)

v(MO)

h(MO)

STM8S003K3 STM8S003F3Electrical characteristics

Figure 40: SPI timing diagram - master mode

(1)

w(SCLL)

w(SCLH)

su(SDA)

h(SDA)

r(SDA)

r(SCL)

f(SDA)

f(SCL)

h(STA)

su(STA)

1. Measurement points are made at CMOS levels: 0.3 VDD and 0.7 VDD.

I2C interface characteristics9.3.9

Table 43: I2C characteristics

ParameterSymbol

SDA data hold timet

Standard mode I2C

(2)

Min

(3)

DocID018576 Rev 380/100

Max

(2)

Fast mode I2C

(2)

Min

Max

1.34.7SCL clock low timet

0.64.0SCL clock high timet

100250SDA setup timet

(4)

900

3001000SDA and SCL rise time

300300SDA and SCL fall time

0.64.0START condition hold timet

0.64.7Repeated START condition setup timet

(2)

(3)

(1)

Unit

μs

f(SDA)

r(SDA)

su(SDA)th(SDA)

f(SCL)

r(SCL)

w(SCLL)

w(SCLH)

h(STA)

su(STO)

su(STA)tw(STO:STA)

SDA

SCL

4.7kΩ SDA

SCL

100Ω

4.7kΩ

I2C bus

START

STOP

REPEATED

START

STM8S

ai17490

Electrical characteristicsSTM8S003K3 STM8S003F3

(2)

(1)

Unit

su(STO)

w(STO:STA)

ParameterSymbol

STOP to START condition time

Standard mode I2C

(2)

Min

Max

Fast mode I2C

Min

(2)

0.64.0STOP condition setup timet

Max

(bus free)

(1)

MASTER

(2)

Data based on standard I2C protocol requirement, not tested in production

(3)

The maximum hold time of the start condition has only to be met if the interface does not stretch the

, must be at least 8 MHz to achieve max fast I2C speed (400kHz)

low time

(4)

The device must internally provide a hold time of at least 300 ns for the SDA signal in order to bridge

the undefined region of the falling edge of SCL

Figure 41: Typical application with I2C bus and timing diagram

μs1.34.7

pF400400Capacitive load for each bus lineC

1. Measurement points are made at CMOS levels: 0.3 x VDD and 0.7 x VDD.

10-bit ADC characteristics9.3.10

Subject to general operating conditions for VDD, f

MASTER

, and TAunless otherwise specified.

81/100DocID018576 Rev 3

Table 44: ADC characteristics

STM8S003K3 STM8S003F3Electrical characteristics

UnitMaxTypMinConditionsParameterSymbol

ADC

AIN

ADC

(1)

STAB

CONV

Conversion voltage range

Internal sample and hold capacitor

(including sampling time, 10-bit resolution)

(1)

ADC

= 4 MHzMinimum sampling timet

= 6 MHz

= 4 MHzMinimum total conversion time

= 6 MHz

41VDD=2.95 to 5.5 VADC clock frequencyf

MHz

61VDD=4.5 to 5.5 V

pF3

0.75f

μs

0.5f

μs7Wake-up time from standbyt

μs3.5f

μs2.33f

1/f

ADC

(1)

During the sample time the input capacitance C

(3 pF max) can be charged/discharged

AIN

by the external source. The internal resistance of the analog source must allow the capacitance to reach its final voltage level within tS.After the end of the sample time tS, changes of the analog input voltage have no effect on the conversion result. Values for the sample clock tSdepend on programming.

|ET|

Table 45: ADC accuracy with R

(2)

< 10 kΩ , VDD= 5 V

AIN

= 2 MHzTotal unadjusted error

ADC

= 4 MHz

ADC

(1)

TypConditionsParameterSymbol

UnitMax

3.51.6f

42.2f

LSB

4.52.4f

2.51.1f

|EO|

(2)

= 6 MHz

ADC

= 2 MHzOffset error

ADC

DocID018576 Rev 382/100

Electrical characteristicsSTM8S003K3 STM8S003F3

(1)

TypConditionsParameterSymbol

UnitMax

|EG|

|ED|

|EL|

(2)

ADC

= 4 MHz

= 6 MHz

= 2 MHzGain error

= 4 MHz

= 6 MHz

= 2 MHzDifferential linearity error

= 4 MHz

= 6 MHz

= 2 MHzIntegral linearity error

= 4 MHz

31.5f

31.8f

31.5f

32.1f

42.2f

1.50.7f

1.50.6f

20.8f

= 6 MHz

ADC

(1)

Data based on characterization results, not tested in production.

(2)

ADC accuracy vs. negative injection current: Injecting negative current on any of the

20.8f

analog input pins should be avoided as this significantly reduces the accuracy of the conversion being performed on another analog input. It is recommended to add a Schottky diode (pin to ground) to standard analog pins which may potentially inject negative current. Any positive injection current within the limits specified for I

INJ(PIN)

and ΣI

INJ(PIN)

in the I/O

port pin characteristics section does not affect the ADC accuracy.

|ET|

|EO|

Table 46: ADC accuracy with R

(2)

ADC

< 10 kΩ R

AIN

= 2 MHzTotal unadjusted error

= 4 MHz

= 2 MHzOffset error

, VDD= 3.3 V

AIN

TypConditionsParameterSymbol

(1)

UnitMax

3.51.6f

41.9f

LSB

2.51f

83/100DocID018576 Rev 3

STM8S003K3 STM8S003F3Electrical characteristics

(1)

TypConditionsParameterSymbol

UnitMax

= 4 MHz

ADC

|EG|

|ED|

|EL|

(1)

Data based on characterization results, not tested in production.

(2)

ADC accuracy vs. negative injection current: Injecting negative current on any of the

(2)

ADC

= 2 MHzGain error

= 4 MHz

= 2 MHzDifferential linearity error

= 4 MHz

= 2 MHzIntegral linearity error

= 4 MHz

2.51.5f

31.3f

32f

10.7f

1.50.7f

1.50.6f

20.8f

INJ(PIN)

and ΣI

INJ(PIN)

in I/O port

pin characteristics does not affect the ADC accuracy.

Figure 42: ADC accuracy characteristics

1. Example of an actual transfer curve.

2. The ideal transfer curve

DocID018576 Rev 384/100

STM8

10-bit A/D

conversion

AIN

AINx

0.6 V

± 1 µA

ADC

Electrical characteristicsSTM8S003K3 STM8S003F3

3. End point correlation line

ET= Total unadjusted error: maximum deviation between the actual and the ideal transfer curves.

EO= Offset error: deviation between the first actual transition and the first ideal one.

EG= Gain error: deviation between the last ideal transition and the last actual one.

ED= Differential linearity error: maximum deviation between actual steps and the ideal one.

EL= Integral linearity error: maximum deviation between any actual transition and the end point correlation line.

Figure 43: Typical application with ADC

EMC characteristics9.3.11

Susceptibility tests are performed on a sample basis during product characterization.

Functional EMS (electromagnetic susceptibility)9.3.11.1

While executing a simple application (toggling 2 LEDs through I/O ports), the product is stressed by two electromagnetic events until a failure occurs (indicated by the LEDs).

FESD: Functional electrostatic discharge (positive and negative) is applied on all pins of

•

the device until a functional disturbance occurs. This test conforms with the IEC 61000-4-2 standard.

FTB: A burst of fast transient voltage (positive and negative) is applied to VDDand V

•

through a 100 pF capacitor, until a functional disturbance occurs. This test conforms with the IEC 61000-4-4 standard.

A device reset allows normal operations to be resumed. The test results are given in the table below based on the EMS levels and classes defined in application note AN1709 (EMC design guide for STMicrocontrollers).

Designing hardened software to avoid noise problems9.3.11.2

EMC characterization and optimization are performed at component level with a typical application environment and simplified MCU software. It should be noted that good EMC performance is highly dependent on the user application and the software in particular.

Therefore it is recommended that the user applies EMC software optimization and prequalification tests in relation with the EMC level requested for his application.

85/100DocID018576 Rev 3

STM8S003K3 STM8S003F3Electrical characteristics

Prequalification trials

Most of the common failures (unexpected reset and program counter corruption) can be recovered by applying a low state on the NRST pin or the oscillator pins for 1 second.

To complete these trials, ESD stress can be applied directly on the device, over the range of specification values. When unexpected behavior is detected, the software can be hardened to prevent unrecoverable errors occurring. See application note AN1015 (Software techniques for improving microcontroller EMC performance).

Table 47: EMS data

ConditionsParameterSymbol

Level/ class

FESD

Voltage limits to be applied on any I/O pin to induce a functional

VDD= 3.3 V, TA= 25 °C, f

MASTER

= 16 MHz

(HSI clock), conforming to IEC 61000-4-2

2/B

(1)

disturbance

EFTB

Fast transient voltage burst limits to be applied through 100 pF on V

and VSSpins to induce a

VDD= 3.3 V, TA= 25 °C ,f

MASTER

= 16 MHz

(HSI clock),conforming to IEC 61000-4-4

4/A

(1)

functional disturbance

(1)

Data obtained with HSI clock configuration, after applying HW recommendations described

in AN2860 (EMC guidelines for STM8S microcontrollers).

Electromagnetic interference (EMI)9.3.11.3

Based on a simple application running on the product (toggling 2 LEDs through the I/O ports), the product is monitored in terms of emission. This emission test is in line with the norm SAE IEC 61967-2 which specifies the board and the loading of each pin.

Table 48: EMI data

Conditions

Max f

ParameterSymbol

General conditions

Monitored frequency band

HSE/fCPU

16 MHz/

8 MHz

Peak level

EMI

VDD= 5 V

TA= 25 °C

LQFP32 package

DocID018576 Rev 386/100

0.1 MHz to

30 MHz

30 MHz to

(1)

Unit

16 MHz/

16 MHz

dBμV

Conditions

Electrical characteristicsSTM8S003K3 STM8S003F3

Max f

ParameterSymbol

General conditions

Monitored frequency band

HSE/fCPU

16 MHz/

8 MHz

Conforming to

130 MHz

(1)

Unit

16 MHz/

16 MHz

SAE IEC 61967-2

130 MHz to

1 GHz

SAE EMI level

(1)

Data based on characterisation results, not tested in production.

SAE EMI level

2.52.5

Absolute maximum ratings (electrical sensitivity)9.3.11.4

Based on three different tests (ESD, DLU and LU) using specific measurement methods, the product is stressed to determine its performance in terms of electrical sensitivity. For more details, refer to the application note AN1181.

Electrostatic discharge (ESD)9.3.11.5

Electrostatic discharges (a positive then a negative pulse separated by 1 second) are applied to the pins of each sample according to each pin combination. The sample size depends on the number of supply pins in the device (3 parts*(n+1) supply pin). One model can be simulated: Human body model. This test conforms to the JESD22-A114A/A115A standard. For more details, refer to the application note AN1181.

Table 49: ESD absolute maximum ratings

(1)

UnitMaximum

ESD(HBM)

ESD(CDM)

(Human body model)

ClassConditionsRatingsSymbol

value

TA= 25°C, conforming toElectrostatic discharge

JESD22-A114voltage

4000A

TALQFP32 package =Electrostatic discharge

25°C, conforming tovoltage

1000IV

SD22-C101(Charge device model)

87/100DocID018576 Rev 3

STM8S003K3 STM8S003F3Electrical characteristics

(1)

Data based on characterization results, not tested in production

Static latch-up9.3.11.6

Two complementary static tests are required on 10 parts to assess the latch-up performance:

A supply overvoltage (applied to each power supply pin)

•

A current injection (applied to each input, output and configurable I/O pin) are performed

•

on each sample.

This test conforms to the EIA/JESD 78 IC latch-up standard. For more details, refer to the application note AN1181.

Table 50: Electrical sensitivities

ConditionsParameterSymbol

Static latch-up classLU

(1)

Class description: A Class is an STMicroelectronics internal specification. All its limits are higher than the JEDEC specifications, that means when a device belongs to class A it exceeds the JEDEC standard. B class strictly covers all the JEDEC criteria (international standard).

Class

ATA= 25 °C

ATA= 85 °C

(1)

DocID018576 Rev 388/100

5V_ME

A1 K

ccc

D D1 D3

E1 E

Pin 1 identification

Package informationSTM8S003K3 STM8S003F3

Package information10

In order to meet environmental requirements, ST offers these devices in different grades of ECOPACK®packages, depending on their level of environmental compliance. ECOPACK specifications, grade definitions and product status are available at: www.st.com. ECOPACK is an ST trademark.

32-pin LQFP package mechanical data10.1

Figure 44: 32-pin low profile quad flat package (7 x 7)

Table 51: 32-pin low profile quad flat package mechanical data

mmDim.

inches

(1)

MaxTypMinMaxTypMin

0.06301.600A

0.00590.00200.1500.050A1

0.05710.05510.05311.4501.4001.350A2

0.01770.01460.01180.4500.3700.300b

0.00790.00350.2000.090c

0.36220.35430.34659.2009.0008.800D

0.28350.27560.26777.2007.0006.800D1

89/100DocID018576 Rev 3

YA_ME

EE1

aaa

STM8S003K3 STM8S003F3Package information

mmDim.

inches

(1)

0.22055.600D3

0.22055.600E3

0.03150.800e

0.03941.000L1

(1)

Values in inches are converted from mm and rounded to 4 decimal digits

MaxTypMinMaxTypMin

0.36220.35430.34659.2009.0008.800E

0.28350.27560.26777.2007.0006.800E1

0.02950.02360.01770.7500.6000.450L

7.0°3.5°0.0°7.0°3.5°0.0°k

0.00390.100ccc

20-pin TSSOP package mechanical data10.2

Figure 45: 20-pin, 4.40 mm body, 0.65 mm pitch

DocID018576 Rev 390/100

Package informationSTM8S003K3 STM8S003F3

Table 52: 20-pin, 4.40 mm body, 0.65 mm pitch mechanical data

mmDim.

inches

(1)

MaxTypMinMaxTypMin

0.04721.200A

0.00590.00200.1500.050A1

0.04130.03940.03151.0501.0000.800A2

0.01180.00750.3000.190b

0.00790.00350.2000.090c

0.25980.25590.25206.6006.5006.400D

0.25980.25200.24416.6006.4006.200E

0.17720.17320.16934.5004.4004.300E1

0.02560.650e

0.02950.02360.01770.7500.6000.450L

0.03941.000L1

8.0°0.0°8.0°0.0°k

(1)

Values in inches are converted from mm and rounded to 4 decimal digits

0.00390.100aaa

91/100DocID018576 Rev 3

103_A0A5_ME

1620

ddd

TOP VIEW

SIDE VIEW

BOTTOMVIEW

Pin 1

STM8S003K3 STM8S003F3Package information

20-lead UFQFPN package mechanical data10.3

Figure 46: 20-lead ultra thin fine pitch quad flat no-lead package outline (3x3)

1. Drawing is not to scale.

Table 53: 20-lead ultra thin fine pitch quad flat no-lead package (3x3) mechanical data

mmDim.

inches

(1)

MaxTypMinMaxTypMin

0.11813.000D

0.11813.000E

0.02360.02170.01970.6000.5500.500A

0.00200.00080.00000.0500.0200.000A1

0.00600.152A3

0.01970.500e

0.02360.02170.01970.6000.5500.500L1

0.01570.01380.01180.4000.3500.300L2

0.00590.150L3

0.00790.200L4

DocID018576 Rev 392/100

0.01180.00980.00710.3000.2500.180b

Package informationSTM8S003K3 STM8S003F3

mmDim.

inches

(1)

0.00200.050ddd

(1)

Values in inches are converted from mm and rounded to 4 decimal digits.

MaxTypMinMaxTypMin

93/100DocID018576 Rev 3

STM8S003K3 STM8S003F3Thermal characteristics

Thermal characteristics11

The maximum chip junction temperature (T

Operating conditions.

The maximum chip-junction temperature, T the following equation:

= T

Jmax

Where:

Amax

•

ΘJAis the package junction-to-ambient thermal resistance in °C/W

•

Dmax

•

INTmax

•

power.

I/Omax

•

Where: P VOH/IOHof the I/Os at low and high level in the application.

Symbol

+ (P

Amax

is the maximum ambient temperature in °C

is the sum of P

is the product of IDDandVDD, expressed in Watts. This is the maximum chip internal

represents the maximum power dissipation on output pins

I/Omax

TSSOP20 - 4.4 mm

x ΘJA)

Dmax

and P

INTmax

=Σ (VOL*IOL) + Σ((VDD-VOH)*IOH), taking into account the actual VOL/I

Table 54: Thermal characteristics

(1)

I/Omax

) must never exceed the values given in

J max

, in degrees Celsius, may be calculated using

Jmax

(PDmax = P

INTmax

+ P

I/Omax

)

OL and

UnitValueParameter

°C/W84Thermal resistance junction-ambient

(1)

Thermal resistances are based on JEDEC JESD51-2 with 4-layer PCB in a natural

convection environment.

Thermal resistance junction-ambientΘ

UFQFPN20 - 3 x 3 mm

LQFP32 - 7 x 7 mm

60Thermal resistance junction-ambient

Reference document11.1

JESD51-2 integrated circuits thermal test method environment conditions - natural convection (still air). Available from www.jedec.org.

Selecting the product temperature range11.2

When ordering the microcontroller, the temperature range is specified in the order code.

DocID018576 Rev 394/100

Thermal characteristicsSTM8S003K3 STM8S003F3

The following example shows how to calculate the temperature range needed for a given application.

Assuming the following application conditions:

Maximum ambient temperature T

•

= 8 mA, VDD= 5 V

DDmax

•

Maximum 20 I/Os used at the same time in output at low level with

•

IOL= 8 mA, VOL= 0.4 V

= 75 °C (measured according to JESD51-2)

Amax

INTmax =

Amax P

Dmax =

•

Thus: P

Jmax

This is within the range of the suffix 6 version parts (-40 < TJ< 105 °C).

In this case, parts must be ordered at least with the temperature range suffix 6.

8 mA x 5 V = 400 mW

400

Dmax

for LQFP32 can be calculated as follows, using the thermal resistance ΘJA:

= 75 °C + (60 °C/W x 464 mW) = 75 °C + 27.8 °C = 102.8 °C

64 mW

mW +

= 464 mW

95/100DocID018576 Rev 3

Pin count K = 32 pins F = 20 pins

Example:

Sub-family type 00x = Value line 003 sub-family

Family type S = Standard

Temperature range 6 = -40 °C to 85 °C

Program memory size 3 = 8 Kbytes

Packing No character = Tray or tube TR = Tape and reel

Package pitch Blank = 0.5 or 0.65 mm(

C = 0.8 mm

(2)

STM8 S 003 K 3 T 6 TR

Product class STM8 microcontroller

Package type 1

P = TSSOP

T = LQFP

U = UFQFPN

STM8S003K3 STM8S003F3Ordering information

Ordering information12

Figure 47: STM8S003x value line ordering information scheme

1. TSSOP and UFQFPN package.

2. LQFP package.

For a list of available options (e.g. package, packing) and orderable part numbers or for further information on any aspect of this device, please go to www.st.com or contact the ST Sales Office nearest to you.

DocID018576 Rev 396/100

STM8 development toolsSTM8S003K3 STM8S003F3

STM8 development tools13

Development tools for the STM8 microcontrollers include the full-featured STice emulation system supported by a complete software tool package including C compiler, assembler and integrated development environment with high-level language debugger. In addition, the STM8 is to be supported by a complete range of tools including starter kits, evaluation boards and a low-cost in-circuit debugger/programmer.

Emulation and in-circuit debugging tools13.1

The STice emulation system offers a complete range of emulation and in-circuit debugging features on a platform that is designed for versatility and cost-effectiveness. In addition, STM8 application development is supported by a low-cost in-circuit debugger/programmer.

The STice is the fourth generation of full featured emulators from STMicroelectronics. It offers new advanced debugging capabilities including profiling and coverage to help detect and eliminate bottlenecks in application execution and dead code when fine tuning an application.

In addition, STice offers in-circuit debugging and programming of STM8 microcontrollers via the STM8 single wire interface module (SWIM), which allows non-intrusive debugging of an application while it runs on the target microcontroller.

For improved cost effectiveness, STice is based on a modular design that allows you to order exactly what you need to meet your development requirements and to adapt your emulation system to support existing and future ST microcontrollers.

STice key features

Occurrence and time profiling and code coverage (new features)

•

Advanced breakpoints with up to 4 levels of conditions

•

Data breakpoints

•

Program and data trace recording up to 128 KB records

•

Read/write on the fly of memory during emulation

•

In-circuit debugging/programming via SWIM protocol

•

8-bit probe analyzer

•

1 input and 2 output triggers

•

Power supply follower managing application voltages between 1.62 to 5.5 V

•

Modularity that allows you to specify the components you need to meet your development

•

requirements and adapt to future requirements

Supported by free software tools that include integrated development environment (IDE),

•

programming software interface and assembler for STM8.

Software tools13.2

STM8 development tools are supported by a complete, free software package from STMicroelectronics that includes ST Visual Develop (STVD) IDE and the ST Visual Programmer (STVP) software interface. STVD provides seamless integration of the Cosmic and Raisonance C compilers for STM8, which are available in a free version that outputs up to 16 Kbytes of code.

97/100DocID018576 Rev 3

STM8S003K3 STM8S003F3STM8 development tools

STM8 toolset13.2.1

STM8 toolset with STVD integrated development environment and STVP programming software is available for free download at www.st.com/mcu. This package includes:

ST Visual Develop – Full-featured integrated development environment from ST, featuring

Seamless integration of C and ASM toolsets

•

Full-featured debugger

•

Project management

•

Syntax highlighting editor

•

Integrated programming interface

•

Support of advanced emulation features for STice such as code profiling and coverage

•

ST Visual Programmer (STVP) – Easy-to-use, unlimited graphical interface allowing read, write and verify of your STM8 microcontroller’s Flash program memory, data EEPROM and option bytes. STVP also offers project mode for saving programming configurations and automating programming sequences.

C and assembly toolchains13.2.2

Control of C and assembly toolchains is seamlessly integrated into the STVD integrated development environment, making it possible to configure and control the building of your application directly from an easy-to-use graphical interface.

Available toolchains include:

Cosmic C compiler for STM8 – Available in a free version that outputs up to 16 Kbytes

•

of code. For more information, see www.cosmic-software.com.

Raisonance C compiler for STM8 – Available in a free version that outputs up to

•

16 Kbytes of code. For more information, see www.raisonance.com.

STM8 assembler linker – Free assembly toolchain included in the STVD toolset, which

•

allows you to assemble and link your application source code.

Programming tools13.3

During the development cycle, STice provides in-circuit programming of the STM8 Flash microcontroller on your application board via the SWIM protocol. Additional tools are to include a low-cost in-circuit programmer as well as ST socket boards, which provide dedicated programming platforms with sockets for programming your STM8.

For production environments, programmers will include a complete range of gang and automated programming solutions from third-party tool developers already supplying programmers for the STM8 family.

DocID018576 Rev 398/100

Revision historySTM8S003K3 STM8S003F3

Revision history14

Table 55: Document revision history

ChangesRevisionDate

Initial revision.112-Jul-2011

209-Jan-2012

Added NRWand t

for data EEPROM in Table 36:

RET

Flash program memory and data EEPROM.

Updated RPUin Table 41: NRST pin characteristics and

Table 37: I/O static characteristics.

Updated notes related to V

in Table 18: General

CAP

operating conditions.

312-Jun-2012

Updated temperature condition for factory calibrated ACC

in Table 33: HSI oscillator characteristics.

HSI

Changed SCK input to SCK output in Figure 40: SPI

timing diagram - master mode(1)

Modified Figure 46: 20-lead ultra thin fine pitch quad flat

no-lead package outline (3x3) to add package top view.

99/100DocID018576 Rev 3

STM8S003K3 STM8S003F3

Please Read Carefully

Information in this document is provided solely in connection with ST products. STMicroelectronics NV and its subsidiaries (“ST”) reserve the right to make changes, corrections, modifications or improvements, to this document, and the products and services described herein at anytime, without notice.

All ST products are sold pursuant to ST’s terms and conditions of sale.

Purchasers are solely responsible for the choice, selection and use of the ST products and services described herein, and ST assumes no liability whatsoever relating to the choice, selection or use of the ST products and services described herein.

No license, express or implied, by estoppel or otherwise, to any intellectual property rights is granted under this document. If any part of this document refers to any third party products or services it shall not be deemed a license grant by ST for the use of such third party products or services, or any intellectual property contained therein or considered as a warranty covering the use in any manner whatsoever of such third party products or services or any intellectual property contained therein.

UNLESS OTHERWISE SET FORTH IN ST’S TERMS AND CONDITIONS OF SALE ST DISCLAIMS ANY EXPRESS OR IMPLIED WARRANTY WITH RESPECT TO THE USE AND/OR SALE OF ST PRODUCTS INCLUDING WITHOUT LIMITATION IMPLIED WARRANTIES OF MERCHANTABILITY, FITNESS FOR A PARTICULAR PURPOSE (AND THEIR EQUIVALENTS UNDER THE LAWS OF ANY JURISDICTION), OR INFRINGEMENT OF ANY PATENT, COPYRIGHT OR OTHER INTELLECTUAL PROPERTY RIGHT.

UNLESS EXPRESSLY APPROVED IN WRITING BY TWO AUTHORIZED ST REPRESENTATIVES, ST PRODUCTS ARE NOT RECOMMENDED, AUTHORIZED OR WARRANTED FOR USE IN MILITARY, AIR CRAFT, SPACE, LIFE SAVING, OR LIFE SUSTAINING APPLICATIONS, NOR IN PRODUCTS OR SYSTEMS WHERE FAILURE OR MALFUNCTION MAY RESULT IN PERSONAL INJURY, DEATH, OR SEVERE PROPERTY OR ENVIRONMENTAL DAMAGE. ST PRODUCTS WHICH ARE NOT SPECIFIED AS "AUTOMOTIVE GRADE" MAY ONLY BE USED IN AUTOMOTIVE APPLICATIONS AT USER’S OWN RISK.

Resale of ST products with provisions different from the statements and/or technical features set forth in this document shall immediately voidany warranty granted by ST for the ST product or service described herein and shall not create or extend in any manner whatsoever, any liability of ST.

ST and the ST logo are trademarks or registered trademarks of ST in various countries.

Information in this document supersedes and replaces all information previously supplied.

The ST logo is a registered trademark of STMicroelectronics. All other names are the property of their respective owners.

STMicroelectronics group of companies

Australia - Belgium - Brazil - Canada - China - Czech Republic - Finland - France - Germany - Hong Kong - India - Israel

- Italy - Japan - Malaysia - Malta - Morocco - Philippines - Singapore - Spain - Sweden - Switzerland - United Kingdom United States of America

www.st.com

DocID018576 Rev 3100/100

ST STM8S003K3, STM8S003F3 User Manual

Specifications and Main Features

Frequently Asked Questions

User Manual

Contents

IntroductionSTM8S003K3 STM8S003F3

STM8S003K3 STM8S003F3Description

Block diagramSTM8S003K3 STM8S003F3

STM8S003K3 STM8S003F3Product overview

Central processing unit STM84.1

Single wire interface module (SWIM) and debug module (DM)4.2

Interrupt controller4.3

Flash program memory and data EEPROM4.4

Clock controller4.5

Power management4.6

Watchdog timers4.7

Auto wakeup counter4.8

Beeper4.9

TIM1 - 16-bit advanced control timer4.10

TIM2 - 16-bit general purpose timer4.11

TIM4 - 8-bit basic timer4.12

Analog-to-digital converter (ADC1)4.13

Communication interfaces4.14

UART14.14.1

STM8S003K3 STM8S003F3Pinout and pin description

STM8S003K3 LQFP32 pinout and pin description5.1

STM8S003F3 TSSOP20/UFQFPN20 pinout and pin description5.2

STM8S003F3 TSSOP20 pinout and pin description5.2.1

STM8S003F3 UFQFPN20 pinout5.2.2

STM8S003F3 TSSOP20/UFQFPN20 pin description5.2.3

Alternate function remapping5.3

Memory and register mapSTM8S003K3 STM8S003F3

Memory map6.1

Register map6.2

I/O port hardware register map6.2.1

General hardware register map6.2.2

CPU/SWIM/debug module/interrupt controller registers6.2.3

Interrupt vector mappingSTM8S003K3 STM8S003F3

Option bytesSTM8S003K3 STM8S003F3

Alternate function remapping bits8.1

STM8S003K3 STM8S003F3Electrical characteristics

Parameter conditions9.1

Minimum and maximum values9.1.1

Typical values9.1.2

Typical curves9.1.3

Loading capacitor9.1.4

Pin input voltage9.1.5

Absolute maximum ratings9.2

Operating conditions9.3

VCAP external capacitor9.3.1

Supply current characteristics9.3.2

Total current consumption in run mode9.3.2.1

Total current consumption in wait mode9.3.2.2

Total current consumption in active halt mode9.3.2.3

Total current consumption in halt mode9.3.2.4

Low power mode wakeup times9.3.2.5

Total current consumption and timing in forced reset state9.3.2.6

Current consumption of on-chip peripherals9.3.2.7

Current consumption curves9.3.2.8

External clock sources and timing characteristics9.3.3

Internal clock sources and timing characteristics9.3.4

Memory characteristics9.3.5

I/O port pin characteristics9.3.6

Reset pin characteristics9.3.7

SPI serial peripheral interface9.3.8

I2C interface characteristics9.3.9

10-bit ADC characteristics9.3.10

EMC characteristics9.3.11

Functional EMS (electromagnetic susceptibility)9.3.11.1

Designing hardened software to avoid noise problems9.3.11.2

Electromagnetic interference (EMI)9.3.11.3

Absolute maximum ratings (electrical sensitivity)9.3.11.4

Electrostatic discharge (ESD)9.3.11.5

Static latch-up9.3.11.6

Package informationSTM8S003K3 STM8S003F3

32-pin LQFP package mechanical data10.1

20-pin TSSOP package mechanical data10.2

20-lead UFQFPN package mechanical data10.3

STM8S003K3 STM8S003F3Thermal characteristics

Reference document11.1
