STA8088FG

Fully Integrated GPS/Galileo/Glonass/QZSS Receiver

with embedded RF and in-package Flash

Features

■STMicroelectronics® 3rd generation positioning receiver with 32 Tracking channels and 2 fast acquisition channels compatible with GPS, Galileo and Glonass systems

■Embedded RF Front-End with separate GPS/Galieo/QZSS and Glonass IF outputs

■Embedded low noise amplifier

■-162 dBm indoor sensitivity (tracking mode)

■Fast TTFF < 1 s in Hot start and 35 s in Cold Start

■High performance ARM946 MCU (up to 208 MHz)

■256 Kbyte embedded SRAM

■In-Package SQI Flash Memory (16 Mbits)

■Real Time Clock (RTC) circuit

■32-bit Watch-dog timer

■3 UARTs

■1 I2C master/slave interface

■1 Synchronous Serial Port (SSP, Motorola-SPI supported) or 1 External SQI Flash interface

■USB2.0 dual-role full speed (12 MHz) with integrated physical layer transceiver

■2 Controller Area Network (CAN)

■2 channels ADC (10 bits)

■3 Embedded 1.8 V voltage regulators

■I/O level selectable 1.8 V or 3.3 V

■Operating Condition:

–VDD12: 1.2 V ±10%

–VDD18/RF18: 1.8 V ±5%

–VLPVR 1.62 V to 3.6 V

–VddIO: 1.8 V ±5%; 3.3 V ±10%

Data brief − preliminary data

VFQFPN56

(7x7x0.85mm)

■Package:

–VFQFPN56 (7 x 7 x 0.85 mm) 0.4 mm pitch

■Ambient temperature range: -40/+85°C

Description

STA8088FG is a single die standalone positioning receiver IC working on multiple constellations (GPS/Galileo/Glonass/QZSS).

The minimum BOM make STA8088FG the ideal solution for low-cost and small footprint products such handheld computers, cameras, data loggers, and sports accessories.

The device is offered with a complete GNSS firmware which performs all GNSS operations including tracking, acquisition, navigation and data output with no need of external memories

March 2012

Doc ID 022731 Rev 2

1/17

This is preliminary information on a new product now in development or undergoing evaluation. Details are subject to	www.st.com
change without notice. For further information contact your local STMicroelectronics sales office.

Contents	STA8088FG

Contents

1	Overview . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .		. 5
2	Pin description . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .		. 6
	2.1	Block diagram . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .	6
	2.2	VFQFPN56 pin configuration . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .	7
	2.3	Power supply pins . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .	8
	2.4	Main function pins . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .	9
	2.5	Test/emulated dedicated pins . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .	10
	2.6	RF front-end pins . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .	10
	2.7	Port 0 pins . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .	10

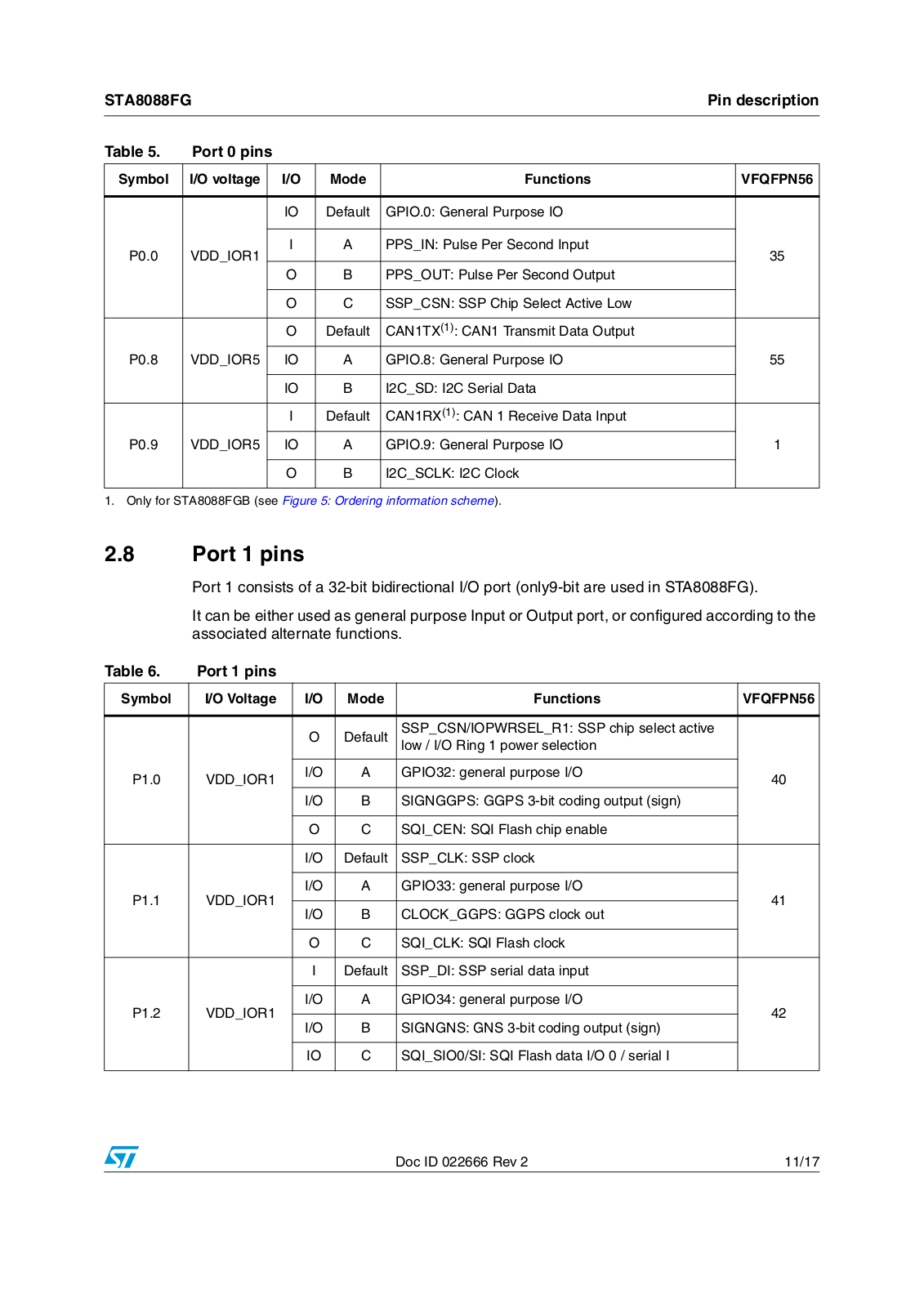

	2.8	Port 1 pins . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .	11
3	Package and packing information . . . . . . . . . . . . . . . . . . . . . . . . . . . . .		13

3.1 ECOPACK® packages . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13 3.2 VFQFPN56 7 x 7 x 0.85 mm package information . . . . . . . . . . . . . . . . . . 13

4	Ordering information . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .	15
5	Revision history . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .	16

2/17	Doc ID 022666 Rev 2

STA8088FG	List of tables

List of tables

Table 1. Power supply pins. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8 Table 2. Main function pins. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9 Table 3. Test/emulated dedicated pins. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10 Table 4. RF front-end pins . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10 Table 5. Port 0 pins. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11 Table 6. Port 1 pins . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11 Table 7. VFQFPN56 package dimensions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13 Table 8. Document revision history . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16

Doc ID 022666 Rev 2

3/17

List of figures	STA8088FG

List of figures

Figure 1. STA8088FG system block diagram . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6 Figure 2. VFQFPN56 connection diagram - with CAN (bottom view) . . . . . . . . . . . . . . . . . . . . . . . . . 7 Figure 3. VFQFPN56 connection diagram - no CAN (bottom view). . . . . . . . . . . . . . . . . . . . . . . . . . . 8 Figure 4. VFQFPN56 7 x 7 x 0.85 mm package dimension. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14 Figure 5. Ordering information scheme . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15

4/17	Doc ID 022666 Rev 2

STA8088FG	Overview

1 Overview

STA8088FG is a highly integrated System-On-Chip device designed for positioning systems applications.

The low power consumption and minimum BOM make STA8088FG the ideal solution for low-cost and battery-operated portable products such handheld, computers, cameras, data loggers and sports accessories, as well as automotive application.

It combines a high performance ARM946 microprocessor with embedded enhanced peripherals and I/O capabilities with ST next generation triple-constellation positioning engine. The RF front-end and base band processor are able to support GPS/Galileo and Glonass navigation systems. The device is offered with a complete firmware which performs all positioning operations including tracking, acquisition, navigation and data output with no need of external memories.

It also provides clock generation via PLL, backup logic with real time clock and it supports USB2.0 standard at full speed, (12 Mbps) with on-chip PHY.

STA8088FG is software compatible with the ARM processor family. The device is power supplied with 1.8V and uses three on-chip voltage regulators to internally supply the RF front-end, core logic and the backup logic. In order to reduce the power consumption the chip can be directly powered with 1.2 V bypassing the embedded voltage regulators which will be put in power down mode.

I/O lines are compatible with 1.8 V and 3.3 V.

The chip, using STMicroelectronics CMOSRF Technology, is housed in a VFQFPN-56 (7 x 7 x 0.85 mm) package with stacked 16 Mbit Flash memory.

Doc ID 022666 Rev 2

5/17

Pin description	STA8088FG

2 Pin description

2.1Block diagram

Figure 1. STA8088FG system block diagram

TCM WITCHABLES I/D x16KB8

CLOCK_GEN

G3RF IP

G3 Base Band

ADC

LNA

OSCI

CKX2

Acq

32 Trk

26MHz

GALGPS IF

GALGPS

Section

RAMs

Channels

1.8V 1.2V

PLL

DCREG

APB

2 Fast Acq

ADC

PG_650x

Bridge

Channel

Glonass IF

GLONASS

Section

SPI IF

FRC_DPLL

AHB

RIOSC47

SQI

USB

IOs

CAN0

CAN1

UART

UART1

UART2

SSP

I2C

Rx-Tx

Rx - Tx

ROM

JTAG

APB

16KB

Bridge2

THSENS

EFT

GPIO

MTU

ADC

REGMAP

VIC

BK_domain

SARADC

Test controller

64KHIGH SPEED D – TCM 8

RAM 8KB

SYS CTRL

PWR, RST & CLK

AD10SA1M_18

I-Cache

CTRL

DC_LN_1V8TO1V2

ARM 946

16KB

APB

D-Cache

Bridge1

APB

HPREG

LPREG

8KB

OSCI32

ISO

DCREG

HIGH SPEED I - TCM

RTC

OSCI32_LJ_1V8

CELL

OSCI32

BKREG

64KB

GAPGCFT00542

6/17	Doc ID 022666 Rev 2
