Bluetooth® technology class-2 module
Features
■ Bluetooth® radio
– Fully embedded Bluetooth® v3.0 with
profiles
– Class 2 module
– Complete RF ready module
– 128-bit encryption security
– Integrated antenna
– Multipoint capability
■ ST micro Cortex-M3 microprocessor up to
72 MHz
■ Memory
– 256 kb Flash memory
– 48 kb RAM memory
■ Data rate
– 1.5 Mbps maximum data rate
■ Serial interface
– UART up to 2.0 Mbps
– SPI interface
■ General I/O
– 7 general purpose I/Os
– 1 LPO input
■ User interface
– AT2 command set (abSerial)
– Firmware upgrade over UART
■ FCC and Bluetooth® qualified
■ EPL (end product listing) fulfilled
■ Single voltage supply: 2.5 V typical
■ Micro-sized form factor: 11.6 x 13.5 x 2.9 mm
■ Operating temperature range: -40 °C to 85 °C.
SPBT2632C2A
Datasheet − production data
August 2012 Doc ID 022833 Rev 4 1/27
This is information on a product in full production.
www.st.com
27
Contents SPBT2632C2A
Contents
1 Description . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6
2 RoHS compliance . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7
3 Applications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7
4 Software architecture . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8
4.1 Lower layer stack . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8
4.2 Upper layer stack: Amp'ed UP . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8
4.3 AT command set: abSerial . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8
4.4 Bluetooth firmware implementation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9
5 Hardware specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10
5.1 Recommended operating conditions . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10
5.2 Absolute maximum ratings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10
5.3 High speed CPU mode current consumption . . . . . . . . . . . . . . . . . . . . . . 11
5.4 Standard CPU mode current consumption . . . . . . . . . . . . . . . . . . . . . . . . 11
5.5 I/O operating characteristics . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12
5.6 Selected RF characteristics . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12
5.7 Pin assignment . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13
5.8 Pin placement . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14
5.9 Layout drawing . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14
6 Hardware block diagram . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15
7 Hardware design . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16
7.1 Module reflow installation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16
7.2 GPIO interface . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17
7.3 UART interface . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17
7.4 PCB layout guidelines . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18
7.5 Reset circuit . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19
7.5.1 External reset circuit . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19
7.5.2 Internal reset circuit . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19
2/27 Doc ID 022833 Rev 4
SPBT2632C2A Contents
7.6 External LPO input circuit . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20
7.7 Apple iOS CP reference design . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21
8 Regulatory compliance . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23
9 Ordering information . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 25
10 Revision history . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 26
Doc ID 022833 Rev 4 3/27
List of tables SPBT2632C2A
List of tables
Table 1. Recommended operating conditions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10
Table 2. Absolute maximum ratings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10
Table 3. High speed CPU mode current consumption . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11
Table 4. Standard CPU mode current consumption . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11
Table 5. I/O operating characteristics . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12
Table 6. Selected RF characteristics . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12
Table 7. Pin assignment . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13
Table 8. Soldering. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16
Table 9. System configuration variables . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20
Table 10. Ordering information . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 25
Table 11. Document revision history . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 26
4/27 Doc ID 022833 Rev 4
SPBT2632C2A List of figures
List of figures
Figure 1. FW architecture . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9

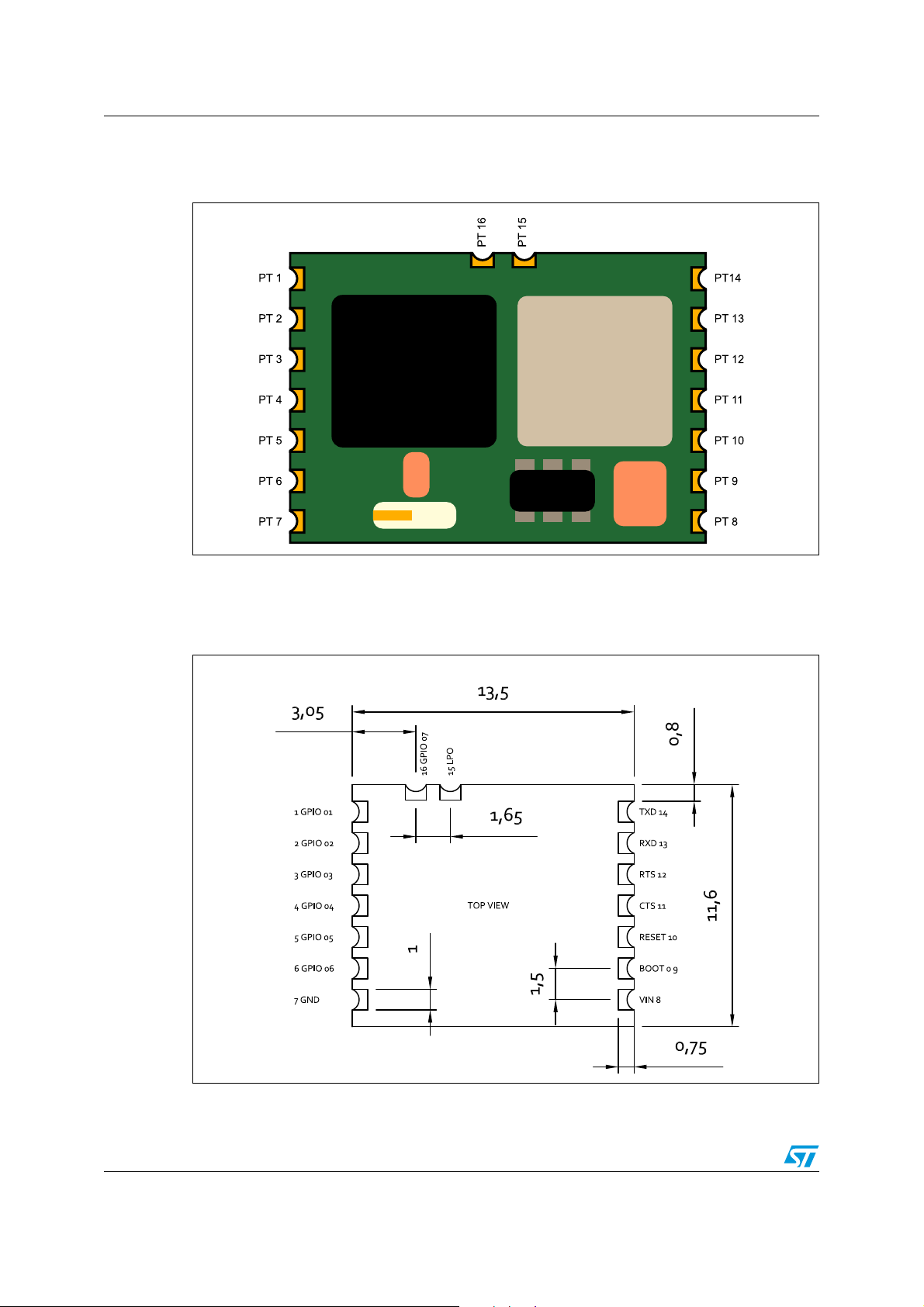

Figure 2. Pin placement . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14
Figure 3. Layout drawing . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14
Figure 4. SPBT2632C2A.AT2 module block diagram . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15
Figure 5. Soldering profile . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17
Figure 6. Connection to host device . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17
Figure 7. Typical RS232 circuit . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18
Figure 8. PCB layout guidelines . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18
Figure 9. External reset circuit . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19
Figure 10. Internal reset circuit . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19
Figure 11. External LPO circuit . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20
Figure 12. BT module . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21
Figure 13. Co-processor . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21
Figure 14. Power switch. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22
Doc ID 022833 Rev 4 5/27
Description SPBT2632C2A
1 Description
The SPBT2632C2A.AT2 is an easy to use Bluetooth module, compliant with Bluetooth v3.0.
The module is the smallest form factor available which provides a complete RF platform.
The SPBT2632C2A.AT2 enables electronic devices with wireless connectivity, not requiring
any RF experience or expertise for integration into the final product. The
SPBT2632C2A.AT2 module, being a certified solution, optimizes the time to market of the
final applications.
The module is designed for maximum performance in a minimal space including fast speed
UART and 7 general purpose I/O lines, several serial interface options, and up to 1.5 Mbps
data throughput.
Optimized design allows the integration of a complete working Bluetooth modem, including
antenna, in the minimum possible size; only an additional external LPO (low power
oscillator) is required to enable low power mode capability.
The SPBT2632C2A.AT2 is a surface mount PCB module that provides fully embedded,
ready to use Bluetooth wireless technology. The reprogrammable Flash memory contains
embedded firmware for serial cable replacement using the Bluetooth SPP profile.
Embedded Bluetooth AT2 command firmware is a friendly interface, which realizes a simple
control for cable replacement, enabling communication with most Bluetooth enabled
devices, provided that the devices support the SPP profile. The SPBT2632C2A.AT2 ,
supporting iAP profile, provides communication with Android, smartphone, and Apple
Bluetooth enabled devices.
®
iOS
An Apple authentication IC is required to exchange data with an Apple device or access an
Apple device application. The AT2 FW includes the Bluetooth SPP profile capable of
recognizing the Apple authentication chip.
Customers using the Apple authentication IC must register as developers to become an
Apple certified MFI member. License fees may apply, for additional information visit:
http://developer.apple.com/programs/which-program/index.html.
Certified MFI developers developing electronic accessories that connect to the iPod
iPhone
®
, and iPad® gain access to technical documentation, hardware components,
®
,
technical support and certification logos.
Customized firmware for peripheral device interaction, power optimization, security, and
other proprietary features may be supported and can be ordered pre-loaded and configured.
6/27 Doc ID 022833 Rev 4
SPBT2632C2A RoHS compliance
2 RoHS compliance
ST modules are RoHS compliant and comply with ECOPACK® norms.
3 Applications
● Serial cable replacement
● M2M industrial control
● Service diagnostic
● Data acquisition equipment
● Machine control
● Sensor monitoring
● Security system
● Mobile health.
Doc ID 022833 Rev 4 7/27
Software architecture SPBT2632C2A
4 Software architecture
4.1 Lower layer stack
● Bluetooth v3.0
● Device power modes: active, sleep and deep sleep
● Wake on Bluetooth feature optimized power consumption of host CPU
● Authentication and encryption
● Encryption key length from 8 bits to 128 bits
● Persistent Flash memory for BD address and user parameter storage
● All ACL (asynchronous connection less) packet types
● Multipoint capability
● Sniff mode: fully supported to maximum allowed intervals
● Master slave switch supported during connection and post connection
● Dedicated inquiry access code for improved inquiry scan performance
● Dynamic packet selection channel quality driven data rate to optimize link performance
● Dynamic power control
● 802.11b co-existence AFH.
4.2 Upper layer stack: Amp'ed UP
● SPP, IAP, SDAP and GAP protocols
● RFComm, SDP, and L2CAP supported
● Multipoint with simultaneous slaves.
4.3 AT command set: abSerial
Please see command list reported in the SPBT2532C2.AT datasheet, Appendix D, for
details.
The complete command list including the iAP commands will be reported in the user
manual UM1547.
8/27 Doc ID 022833 Rev 4
SPBT2632C2A Software architecture
!-V
I!0
4.4 Bluetooth firmware implementation
Figure 1. FW architecture
Doc ID 022833 Rev 4 9/27
Hardware specifications SPBT2632C2A
5 Hardware specifications
General conditions (VIN = 2.5 V and 25 °C).
5.1 Recommended operating conditions
Table 1. Recommended operating conditions
Rating Min. Typical Max. Unit
Operating temperature range -40 - 85 °C
Supply voltage V
Signal pin voltage - 2.1 - V
RF frequency 2400 - 2483.5 MHz
IN
5.2 Absolute maximum ratings
Table 2. Absolute maximum ratings
Rating Min. Typical Max. Unit
Storage temperature range -55 - +105 °C
Supply voltage, V
I/O pin voltage, V
RF input power - - -5 dBm
IN
IO
2.1 2.5 3.6 V
-0.3 - + 5.0 V
-0.3 - + 5.5 V
10/27 Doc ID 022833 Rev 4
SPBT2632C2A Hardware specifications
5.3 High speed CPU mode current consumption
● High speed CPU mode
– CPU 32 MHz
– UART supports up to 921 Kbps
– Data throughput up to 1.5 Mbps
– Shallow sleep enabled.
Table 3. High speed CPU mode current consumption
Modes (typical power consumption) Avg. Unit
ACL data 115 K baud UART at max. throughput (master) 23 mA
ACL data 115 K baud UART at max. throughput (slave) 27.5 mA
Connection, no data traffic, master 9.1 mA
Connection, no data traffic, slave 11.2 mA
Connection 375 ms sniff (external LPO required) 490 µA
Standby, without deep sleep 8.6 mA
Standby, with deep sleep, no external LPO 1.7 mA
Standby, with deep sleep, with external LPO 70 µA
Page/inquiry scan, with deep sleep, no external LPO 2.7 mA
Page/inquiry scan, with deep sleep, with external LPO 520 µA
Bluetooth power down / CPU standby, no external LPO 25 µA
5.4 Standard CPU mode current consumption
● Standard CPU mode
–CPU 8 MHz
– UART supports up to 115 Kbps
– Data throughput up to 200 Kbps
– Shallow sleep enabled.
Table 4. Standard CPU mode current consumption
Modes (typical power consumption) Avg. Unit
ACL data 115 K baud UART at max. throughput (master) 16.7 mA
ACL data 115 K baud UART at max. throughput (slave) 18 mA
Connection, no data traffic, master 4.9 mA
Connection, no data traffic, slave 7.0 mA
Connection 375 ms sniff (external LPO required) 490 µA
Standby, without deep sleep 4.2 mA
Standby, with deep sleep, no external LPO 1.7 mA
Doc ID 022833 Rev 4 11/27
Hardware specifications SPBT2632C2A
Table 4. Standard CPU mode current consumption (continued)
Modes (typical power consumption) Avg. Unit
Standby, with deep sleep, with external LPO 70 µA
Page/inquiry scan, with deep sleep, no external LPO 2.6 mA
Page/inquiry scan, with deep sleep, with external LPO 520 µA
Bluetooth power-down / CPU standby, no external LPO 25 µA
5.5 I/O operating characteristics
Table 5. I/O operating characteristics
Symbol Parameter Min. Max. Unit Conditions
V
IL
V
IH
V
OL
V
OH
I
OL
I
OH
R
PU
R
PD
Low-level input voltage - 0.6 V VIN, 2.1 V
High-level input voltage 1.4 - V VIN, 2.1 V
Low-level output voltage - 0.4 V VIN, 2.1 V
High-level output voltage 1.8 - V VIN, 2.1 V
Low -level output current - 4.0 mA VOL = 0.4 V
High-level output current - 4.0 mA VOH = 1.8 V
Pull-up resistor 80 120 kΩ Resistor turned on
Pull-down resistor 80 120 kΩ Resistor turned on
5.6 Selected RF characteristics
Table 6. Selected RF characteristics
Parameters Conditions Typical
Antenna load 50 ohm
Radio receiver
Sensitivity level BER < .001 with DH5 -86 dBm
Maximum usable level BER < .001 with DH1 0 dBm
(1)
Unit
Input VSWR 2.5:1
Radio transmitter
Maximum output power 50 Ω load 0 dBm
Initial carrier frequency tolerance 0 kHz
20 dB bandwidth for modulated carrier 935 kHz
1. RF characteristics can be influenced by physical characteristics of final application.
12/27 Doc ID 022833 Rev 4
SPBT2632C2A Hardware specifications
5.7 Pin assignment
Table 7. Pin assignment
Name Type Pin# Description ALT function
(1)
UART interface
RXD I 13 Receive data ADC 3 Y
TXD O 14 Transmit data ADC 2 Y
RTS O 12 Request to send (active low)
CTS I 11 Clear to send (active low)
ADC 0 I2C clock/aux UART
Rx
2
ADC 1 I
C data/aux UART
Tx
Boot loader
Boot 0 I 9 Boot 0
Power and ground
Vin 8 V
in
GND 7 GND
Reset
RESETN I 10 Reset input (active low for 5 ms)
LPO
5 V
tolerant
Y
Y
2.5 V
max.
LPO I 15 LPO input
GPIO - general purpose input/output
GPIO [1] I/O 1 General purpose input/output SPI MISO Y
GPIO [2] I/O 2 General purpose input/output SPI MOSI/I2S_SD Y
GPIO [3] I/O 3 General purpose input/output SPI SCLK/I2S_CK Y
GPIO [4] I/O 4 General purpose input/output SPI SS/I2S_WS Y
GPIO [5] I/O 5 General purpose input/output Y
GPIO [6] I/O 6 General purpose input/output DAC Y
GPIO [7] I/O 16 General purpose input/output ADC 4 Y
1. Please note that the usage of ALT function is dependant upon the firmware that is loaded into the module,
and is beyond the scope of this document. The AT command interface uses the main UART by default.
Doc ID 022833 Rev 4 13/27
Hardware specifications SPBT2632C2A
!-V
MILLIMETERS
3IZEMMXMMXMM
HEIGHTTOLERANCEMM
!-V
5.8 Pin placement
Figure 2. Pin placement
5.9 Layout drawing
Figure 3. Layout drawing
14/27 Doc ID 022833 Rev 4
SPBT2632C2A Hardware block diagram
%DWWHU\RU6XSSO\
5HJXODWRU
$QWHQQD
+RVW&RQWUROOHU
,QWHUIDFH
67/&
%3
)LOWHU
/32
&ORFN
,6
3&0
.)ODVK
.5$0
8$57
$50&RUWH[0&8
670
*3,2
8$57
!-V
6 Hardware block diagram
Figure 4. SPBT2632C2A.AT2 module block diagram
Doc ID 022833 Rev 4 15/27
Hardware design SPBT2632C2A
7 Hardware design
The SPBT2632C2A module without AT2 command embedded FW supports UART, SPI, I2C
and GPIO hardware interfaces. Note that the usage of these interfaces is dependent upon
the firmware that is loaded into the module, and is beyond the scope of this document. The
AT2 command interface uses the main UART by default.
Note: 1 All unused pins should be left floating; do not ground.
2 All GND pins must be well grounded.
3 The area around the module should be free of any ground planes, power planes, trace
routings, or metal for 6 mm from the antenna in all directions.
4 Traces should not be routed underneath the module.
7.1 Module reflow installation
The SPB2632C2A is a surface mount Bluetooth module supplied on a 16-pin, 6-layer PCB.
The final assembly recommended reflow profiles are indicated here below.
The soldering phase must be executed with care: In order to avoid undesired melting
phenomenon, particular attention must be paid to the setup of the peak temperature.
The following are some suggestions for the temperature profile based on IPC/JEDEC JSTD-020C, July 2004 recommendations.
Table 8. Soldering
Profile feature PB-free assembly
Average ramp-up rate (T
Preheat:
– Temperature min. (T
– Temperature max. (T
–Time (t
Time maintained above:
– Temperature T
– Temperature T
Peak temperature (T
Time within 5 °C of actual peak temperature (T
Ramp-down rate 6 °C/sec
Time from 25 °C to peak temperature 8 minutes max.
min. to ts max.)(ts)
s
L
L
) 240 + 0 °C
P
to TP) 3 °C/sec max
SMAX
min.)
S
max.)
S
) 10-20 sec
P
150 °C
200 °C
60-100 sec
217 °C
60-70 sec
16/27 Doc ID 022833 Rev 4
SPBT2632C2A Hardware design
!-V
"LUETOOTH
-ODULE
(OST
!-V
Figure 5. Soldering profile
7.2 GPIO interface
All GPIOs are capable of sinking and sourcing 4 mA of I/O current. GPIO [1] to GPIO [7] are
internally pulled down with 100 kΩ (nominal) resistors.
7.3 UART interface
The UART is compatible with the 16550 industry standard. Four signals are provided with
the UART interface. The TXD and RXD pins are used for data while the CTS and RTS pins
are used for flow control.
Figure 6. Connection to host device
Doc ID 022833 Rev 4 17/27
Hardware design SPBT2632C2A
!-V
SURROUNDING
!-V
Figure 7. Typical RS232 circuit
7.4 PCB layout guidelines
Figure 8. PCB layout guidelines
18/27 Doc ID 022833 Rev 4
SPBT2632C2A Hardware design
2%3%4
!-V
2%3%4
!-V
7.5 Reset circuit
Two types of system reset circuits are detailed below.
7.5.1 External reset circuit
Figure 9. External reset circuit
Note: RPU ranges from 30 kΩ
to 50 kΩ internally.
7.5.2 Internal reset circuit
Figure 10. Internal reset circuit
Note: 1 R
2R
ranges from 30 kΩ to 50 kΩ internally.
PU
should be from 1 kΩ to 10 kΩ.
RST
Doc ID 022833 Rev 4 19/27
Hardware design SPBT2632C2A
+(Z
OS
CILLATOR
55
'0)/
'0)/
'0)/
'0)/
'0)/
'0)/
'.$
6).
"//4
2%3% 4
#43
243
28$
48$
,0/
'0)/
30"4#!!4
!-V
7.6 External LPO input circuit
An optional low power oscillator input may be added to allow Deep sleep and Sniff modes.
● LPO parameters:
– Frequency: 32.768 kHz
– Tolerance: 150 ppm
– Voltage levels
–Low: 0.5 V
– High: 1.8 V
– Input capacitance: 2.5 pF maximum
● Configurations:
– Use two configuration variables: UseExtLPO and AllowSniff.
Table 9. System configuration variables
Variable Name Default Description
Var37 UseExtLPO True
Var43 AllowSniff True Enables Sniff mode.
True when a 32.768 kHz low power oscillator is present, and false
if not present
Figure 11. External LPO circuit
20/27 Doc ID 022833 Rev 4
SPBT2632C2A Hardware design
!-V
!-V
7.7 Apple iOS CP reference design
The figures below give an indicative overview of what the hardware concept looks like. A
specific MFI co-processor layout is available for licensed MFI developers from the MFI
program.
Figure 12. BT module
Figure 13. Co-processor
Doc ID 022833 Rev 4 21/27
Hardware design SPBT2632C2A
!-V
Figure 14. Power switch
22/27 Doc ID 022833 Rev 4
SPBT2632C2A Regulatory compliance
8 Regulatory compliance
● FCC and IC
– This module has been tested and found to comply with the FCC part 15 and IC
RSS-210 rules. These limits are designed to provide reasonable protection
against harmful interference in approved installations. This equipment generates,
uses, and can radiate radio frequency energy and, if not installed and used in
accordance with the instructions, may cause harmful interference to radio
communications.
However, there is no guarantee that interference may not occur in a particular
installation.
This device complies with part 15 of the FCC rules. Operation is subject to the
following two conditions: (1) This device may not cause harmful interference, and
(2) this device must accept any interference received, including interference that
may cause undesired operation.
Modifications or changes to this equipment not expressly approved by the part
responsible for compliance may render void the user's authority to operate this
equipment.
– Modular approval, FCC and IC
FCC ID: X3ZBTMOD4
IC: 8828A-MOD4
In accordance with FCC part 15, the SPBT2632C2A.AT2 is listed above as a
modular transmitter device.
– Label instructions
When integrating the SPBT2632C2A.AT2 into the final product, it must be ensured
that the FCC labelling requirements, as specified below, are satisfied. Based on
the Public Notice from FCC, the product into which the ST transmitter module is
installed must display a label referring to the enclosed module. The label should
use wording such as the following:
Contains Transmitter Module
FCC ID: X3ZBTMOD4
IC: 8828A-MOD4
Any similar wording that expresses the same meaning may be used.
● BQB
– BQB qualified design, QD ID: B019224
– Product type: End Product
– TGP version: Core 3.0
– Core spec version: 3.0
– Product descriptions: Bluetooth module, spec V3.0
Doc ID 022833 Rev 4 23/27
Regulatory compliance SPBT2632C2A
● CE
– CE Expert opinion: 0448-ARAM00003
– Measurements have been performed in accordance with (report available on
request):
– EN 300 328 V 1.7.1 (2006-10)
– EN 301 489-17 V 2.1.1 (2009)
– EN60950-1:2006 +A11:2009+A1:2010
(a)
(b)
(c)
CE certified:
a. EN 300 328 V 1.7.1 (2006-10): “electromagnetic compatibility and radio spectrum Matters (ERM); Wideband
transmission systems; data transmission equipment operating in the 2.4 GHZ ISM band and using wideband
modulation techniques; harmonized EN covering essential requirements under article 3.2 of the R&TTE
directive”.
b. EN 301 489-17 V 2.1.1 (2009): “electromagnetic compatibility and radio spectrum Matters (ERM);
electromagnetic compatibility (EMC) standard for radio equipment and services; part 17: specific condition for
2.4 GHz wideband transmission systems and 5 GHz high performance RLAN equipment”.
c. EN60950-1:2006 +A11:2009+A1:2010: “Information technology equipment - safety”.
24/27 Doc ID 022833 Rev 4
SPBT2632C2A Ordering information
9 Ordering information
Table 10. Ordering information
Order code Description
SPBT2632C2A.AT2 Class 2 OEM Bluetooth antenna module
Doc ID 022833 Rev 4 25/27
Revision history SPBT2632C2A
10 Revision history
Table 11. Document revision history
Date Revision Changes
03-Apr-2012 1 First release.
16-Apr-2012 2 Modified: Section 8
– Document status promoted from preliminary data to
12-Jun-2012 3
production data
– Modified: Figure 1
07-Aug-2012 4
– Added: notes in Ta bl e 6 and 7
– Modified: Section 7
26/27 Doc ID 022833 Rev 4
SPBT2632C2A
Please Read Carefully:
Information in this document is provided solely in connection with ST products. STMicroelectronics NV and its subsidiaries (“ST”) reserve the
right to make changes, corrections, modifications or improvements, to this document, and the products and services described herein at any
time, without notice.
All ST products are sold pursuant to ST’s terms and conditions of sale.
Purchasers are solely responsible for the choice, selection and use of the ST products and services described herein, and ST assumes no
liability whatsoever relating to the choice, selection or use of the ST products and services described herein.
No license, express or implied, by estoppel or otherwise, to any intellectual property rights is granted under this document. If any part of this
document refers to any third party products or services it shall not be deemed a license grant by ST for the use of such third party products
or services, or any intellectual property contained therein or considered as a warranty covering the use in any manner whatsoever of such
third party products or services or any intellectual property contained therein.
UNLESS OTHERWISE SET FORTH IN ST’S TERMS AND CONDITIONS OF SALE ST DISCLAIMS ANY EXPRESS OR IMPLIED
WARRANTY WITH RESPECT TO THE USE AND/OR SALE OF ST PRODUCTS INCLUDING WITHOUT LIMITATION IMPLIED
WARRANTIES OF MERCHANTABILITY, FITNESS FOR A PARTICULAR PURPOSE (AND THEIR EQUIVALENTS UNDER THE LAWS
OF ANY JURISDICTION), OR INFRINGEMENT OF ANY PATENT, COPYRIGHT OR OTHER INTELLECTUAL PROPERTY RIGHT.
UNLESS EXPRESSLY APPROVED IN WRITING BY TWO AUTHORIZED ST REPRESENTATIVES, ST PRODUCTS ARE NOT
RECOMMENDED, AUTHORIZED OR WARRANTED FOR USE IN MILITARY, AIR CRAFT, SPACE, LIFE SAVING, OR LIFE SUSTAINING
APPLICATIONS, NOR IN PRODUCTS OR SYSTEMS WHERE FAILURE OR MALFUNCTION MAY RESULT IN PERSONAL INJURY,
DEATH, OR SEVERE PROPERTY OR ENVIRONMENTAL DAMAGE. ST PRODUCTS WHICH ARE NOT SPECIFIED AS "AUTOMOTIVE
GRADE" MAY ONLY BE USED IN AUTOMOTIVE APPLICATIONS AT USER’S OWN RISK.
Resale of ST products with provisions different from the statements and/or technical features set forth in this document shall immediately void
any warranty granted by ST for the ST product or service described herein and shall not create or extend in any manner whatsoever, any
liability of ST.
ST and the ST logo are trademarks or registered trademarks of ST in various countries.
Information in this document supersedes and replaces all information previously supplied.
The ST logo is a registered trademark of STMicroelectronics. All other names are the property of their respective owners.
© 2012 STMicroelectronics - All rights reserved
STMicroelectronics group of companies
Australia - Belgium - Brazil - Canada - China - Czech Republic - Finland - France - Germany - Hong Kong - India - Israel - Italy - Japan -
Malaysia - Malta - Morocco - Philippines - Singapore - Spain - Sweden - Switzerland - United Kingdom - United States of America
www.st.com
Doc ID 022833 Rev 4 27/27
Loading...
