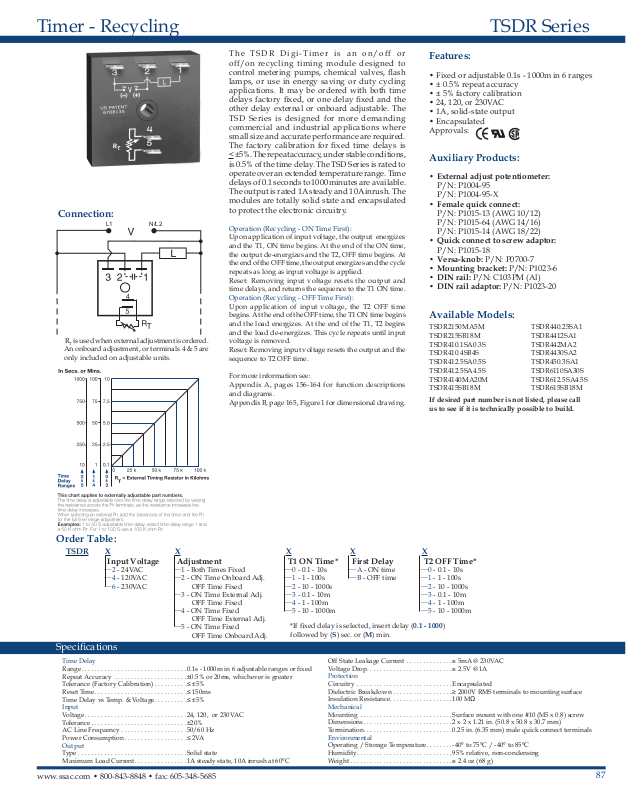

SSAC TSDR Series Data Sheet
TSDR SeriesTimer - Recycling
Connection:
RT is used when external adjustment is ordered.
An onboard adjustment, or terminals 4 & 5 are
only included on adjustable units.
L1 N/L2
The TSDR Digi-Timer is an on/off or
off/on recycling timing module designed to
control metering pumps, chemical valves, ash
lamps, or use in energy saving or duty cycling
applications. It may be ordered with both time
delays factory xed, or one delay xed and the
other delay external or onboard adjustable. The
TSD Series is designed for more demanding
commercial and industrial applications where
small size and accurate performance are required.
The factory calibration for xed time delays is
< ±5%. The repeat accuracy, under stable conditions,
is 0.5% of the time delay. The TSD Series is rated to
operate over an extended temperature range. Time
delays of 0.1 seconds to 1000 minutes are available.
The output is rated 1A steady and 10A inrush. The
modules are totally solid state and encapsulated
to protect the electronic circuitry.
Operation (Recycling - ON Time First):
Upon application of input voltage, the output energizes
and the T1, ON time begins. At the end of the ON time,
the output de-energizes and the T2, OFF time begins. At
the end of the OFF time, the output energizes and the cycle
repeats as long as input voltage is applied.
Reset: Removing input voltage resets the output and
time delays, and returns the sequence to the T1 ON time.
Operation (Recycling - OFF Time First):
Upon application of input voltage, the T2 OFF time
begins. At the end of the OFF time, the T1 ON time begins
and the load energizes. At the end of the T1, T2 begins
and the load de-energizes. This cycle repeats until input
voltage is removed.
Reset: Removing input voltage resets the output and the
sequence to T2 OFF time.
For more information see:
Appendix A, pages 156-164 for function descriptions
and diagrams.
Appendix B, page 165, Figure 1 for dimensional drawing.
Features:
• Fixed or adjustable 0.1s - 1000m in 6 ranges
• ± 0.5% repeat accuracy
• ± 5% factory calibration
• 24, 120, or 230VAC
• 1A, solid-state output
• Encapsulated
Approvals:
Auxiliary Products:
• External adjust potentiometer:
P / N: P 10 04 - 95
P/N: P1004-95-X
• Female quick connect:
P / N : P 1 01 5 - 1 3 ( AW G 1 0 / 12 )
P / N : P 1 01 5 - 6 4 ( AW G 1 4 / 16 )
P /N : P 1 0 1 5- 1 4 ( A W G 18 / 2 2 )
• Quick connect to screw adaptor:
P/N: P1015-18
• Versa-knob: P/N: P0700-7
• Mounting bracket: P/N: P1023-6
• DIN rail: P/N: C103PM (Al)
• DIN rail adaptor: P/N: P1023-20
Available Models:
TSDR2150MA5M
TSDR215SB18M
TSDR410.1SA0.3S
TSDR410.4SB4S
TSDR412.5SA0.5S
TSDR412.5SA4.5S
TSDR4140MA20M
TSDR415SB18M
If desired part number is not listed, please call
us to see if it is technically possible to build.
TSDR440.25SA1
TSDR4412SA1
TSDR442MA2
TSDR4430SA2
TSDR450.3SA1
TSDR6110SA30S
TSDR612.5SA4.5S
TSDR615SB18M
Order Table:
TSDR
X
Input Voltage
─2 - 24VAC
─4 - 120VAC
─6 - 230VAC
X
Adjustment
─1 - Both Times Fixed
─2 - ON Time Onboard Adj.
OFF Time Fixed
─3 - ON Time External Adj.
OFF Time Fixed
─4 - ON Time Fixed
OFF Time External Adj.
─5 - ON Time Fixed
OFF Time Onboard Adj.
X
T1 ON Time*
─0 - 0.1 - 10s
─1 - 1 - 100s
─2 - 10 - 1000s
─3 - 0.1 - 10m
─4 - 1 - 100m
─5 - 10 - 1000m
*If xed delay is selected, insert delay (0.1 - 1000)
followed by (S) sec. or (M) min.
Specications
Time Delay
Range ................................0.1s - 1000m in 6 adjustable ranges or xed
Repeat Accuracy ......................±0.5% or 20ms, whichever is greater
Tolerance (Factory Calibration) ..........≤ ±5%
Reset Time ............................≤ 150ms
Time Delay vs Temp. & Voltage ..........≤ ±5%
Input
Voltage ...............................24, 120, or 230VAC
Tolerance .............................±20%
AC Line Frequency ....................50/60 Hz
Power Consumption ...................≤ 2VA
Output
Type .................................Solid state
Maximum Load Current ................1A steady state, 10A inrush at 60°C
X
First Delay
─A - ON time
─B - OFF time
Off State Leakage Current ..............≅ 5mA @ 230VAC
Voltage Drop ..........................≅ 2.5V @ 1A
Protection
Circuitry .............................Encapsulated
Dielectric Breakdown ..................≥ 2000V RMS terminals to mounting surface
Insulation Resistance ...................100 MΩ
Mechanical
Mounting ............................Surface mount with one #10 (M5 x 0.8) screw
Dimensions ...........................2 x 2 x 1.21 in. (50.8 x 50.8 x 30.7 mm)
Termination ...........................0.25 in. (6.35 mm) male quick connect terminals
Environmental
Operating / Storage Temperature ........-40° to 75°C / -40° to 85°C
Humidity .............................95% relative, non-condensing
Weight ...............................≅ 2.4 oz (68 g)
X
T2 OFF Time*
─0 - 0.1 - 10s
─1 - 1 - 100s
─2 - 10 - 1000s
─3 - 0.1 - 10m
─4 - 1 - 100m
─5 - 10 - 1000m
