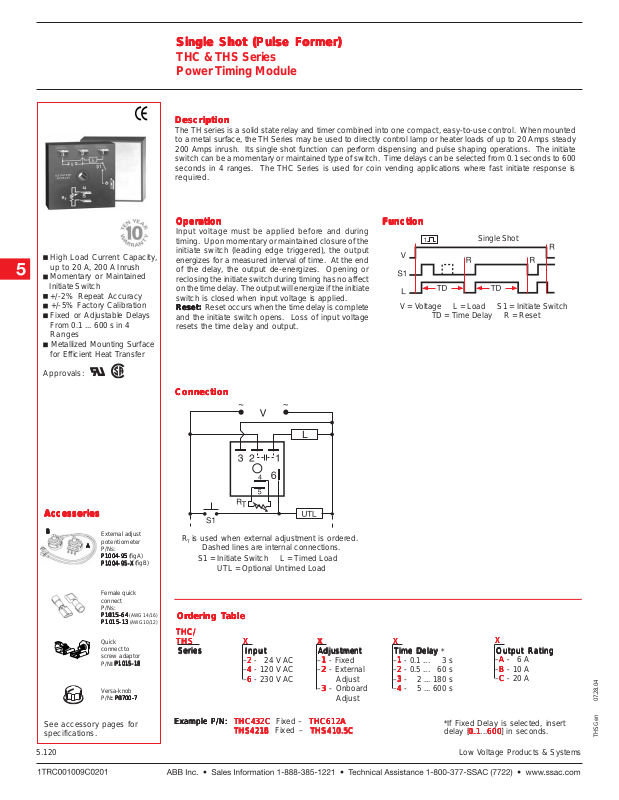

Single Shot (Pulse Former)Single Shot (Pulse Former)
Single Shot (Pulse Former)
Single Shot (Pulse Former)Single Shot (Pulse Former)
THC & THS Series
Power Timing Module
DescriptionDescription
Description
DescriptionDescription
The TH series is a solid state relay and timer combined into one compact, easy-to-use control. When mounted
to a metal surface, the TH Series may be used to directly control lamp or heater loads of up to 20 Amps steady
200 Amps inrush. Its single shot function can perform dispensing and pulse shaping operations. The initiate
switch can be a momentary or maintained type of switch. Time delays can be selected from 0.1 seconds to 600
seconds in 4 ranges. The THC Series is used for coin vending applications where fast initiate response is
required.
High Load Current Capacity,
up to 20 A, 200 A Inrush
Momentary or Maintained
Initiate Switch
+/-2% Repeat Accuracy
+/-5% Factory Calibration
Fixed or Adjustable Delays
From 0.1 ... 600 s in 4
Ranges
Metallized Mounting Surface
for Efficient Heat Transfer
Approvals:
AccessoriesAccessories
Accessories
AccessoriesAccessories
BB
B
BB
External adjust
potentiometer
AA
A
AA
P/Ns:
P1004-95P1004-95
P1004-95
P1004-95P1004-95
P1004-95-XP1004-95-X
P1004-95-X
P1004-95-XP1004-95-X
(fig A)
(fig B)
OperationOperation
Operation
OperationOperation
Input voltage must be applied before and during
timing. Upon momentary or maintained closure of the
initiate switch (leading edge triggered), the output
energizes for a measured interval of time. At the end
of the delay, the output de-energizes. Opening or
reclosing the initiate switch during timing has no affect
on the time delay. The output will ener gize if the initiate
switch is closed when input voltage is applied.
Reset:Reset:
Reset: Reset occurs when the time delay is complete
Reset:Reset:
and the initiate switch opens. Loss of input voltage
resets the time delay and output.
ConnectionConnection
Connection
ConnectionConnection
RT is used when external adjustment is ordered.
Dashed lines are internal connections.
S1 = Initiate Switch L = Timed Load
UTL = Optional Untimed Load
FunctionFunction
Function
FunctionFunction
Single Shot
V = Voltage L = Load S1 = Initiate Switch
TD = Time Delay R = Reset
Female quick
connect
P/Ns:
P1015-64 P1015-64
P1015-64
(AWG 14/16)
P1015-64 P1015-64
P1015-13 P1015-13
P1015-13
(AWG 10/12)
P1015-13 P1015-13
Quick
connect to
screw adaptor
: P1015-18: P1015-18
P/N
: P1015-18
: P1015-18: P1015-18
Versa-knob
: P0700-7: P0700-7
P/N
: P0700-7
: P0700-7: P0700-7
See accessory pages for
specifications.
OrOr
dering Tdering T
Or
dering T
OrOr
dering Tdering T
THC/ THC/
THC/
THC/ THC/
THSTHS
THS
THSTHS
SeriesSeries
Series
SeriesSeries
Example P/N:Example P/N:
Example P/N:
Example P/N:Example P/N:
ableable
able
ableable
XX
X
XX
InputInput
Input
InputInput
22
–
2 - 24 V AC
22
4 4
–
4 - 120 V AC
4 4
6 6
–
6 - 230 V AC
6 6
THC432C THC432C
THC432C Fixed –
THC432C THC432C
THS421B THS421B
THS421B Fixed –
THS421B THS421B
XX
X
XX
AdjustmentAdjustment
Adjustment
AdjustmentAdjustment
11
–
1 - Fixed
11
2 2
–
2 - External
2 2
Adjust
3 3
–
3 - Onboard
3 3
Adjust
THC612A THC612A
THC612A
THC612A THC612A
THS410.5C THS410.5C
THS410.5C
THS410.5C THS410.5C
XX
X
XX
Time DelayTime Delay
Time Delay *
Time DelayTime Delay
11
–
1 - 0.1 ... 3 s
11
22
–
2 - 0.5 ... 60 s
22
33
–
3 - 2 ... 180 s
33
44
–
4 - 5 ... 600 s
44
XX
X
XX
Output RatingOutput Rating
Output Rating
Output RatingOutput Rating
AA
–
A - 6 A
AA
BB
–
B - 10 A
BB
CC
–
C - 20 A
CC
*If Fixed Delay is selected, insert
0.10.1
delay [
600600
0.1...
600] in seconds.
0.10.1
600600
Low Voltage Products & Systems5.120
THSGen 07.28.04
Page 2
Single Shot (Pulse Former)Single Shot (Pulse Former)
Single Shot (Pulse Former)
Single Shot (Pulse Former)Single Shot (Pulse Former)
THC & THS Series
Power Timing Module
Technical Data Technical Data
Technical Data
Technical Data Technical Data
Time DelayTime Delay
Time Delay
Time DelayTime Delay
Range 0.1 ... 600 s in 4 adjustable ranges or fixed
Repeat Accuracy +/-2% or 20 ms, whichever is greater
Tolerance (Factory Calibration) ≤ +/- 5%
Reset Time ≤ 150 ms
Initiate Time ≤ 20 ms
Time Delay vs. Temperature & Voltage ≤ +/-10%
InputInput
Input
InputInput
Voltage 24, 120, or 230 V AC
Tolerance +/-15%
Line Frequency 50 ... 60 Hz
Power Consumption ≤
OutputOutput
Output
OutputOutput
Type Solid state
Form Normally Open, closed during timing
Maximum Load Currents Output Steady State Inrush**
Minimum Load Current 100 mA
Voltage Drop ≅ 2.5 V at rated current
OFF State Leakage Current ≅ 5 mA at 230 V AC
ProtectionProtection
Protection
ProtectionProtection
Circuitry Encapsulated
Dielectric Breakdown ≥ 2000 V RMS terminals to mounting surface
Insulation Resistance ≥100 MΩ
MechanicalMechanical
Mechanical
MechanicalMechanical
Mounting ** Surface mount with one #10 (M5 x 0.8) screw
Package 2 x 2 x 1.51 in. (50.8 x 50.8 x 38.4 mm)
Termination 0.25 in. (6.35 mm) male quick connect terminals
EnvironmentalEnvironmental
Environmental
EnvironmentalEnvironmental
Operating Temperature -20°C ... +60°C
Storage Temperature -40°C ... +85°C
Humidity 95% relative, non-condensing
Weight ≅ 3.9 oz (111 g)
2 VA
A 6 A 60 A
B 10 A 100 A
C 20 A 200 A
** **
* *Must be bolted to a metal surface using
** **
the included heat sink compound. The
maximum mounting surface temperature is
90°C. Inrush: Non-repetitive for 16 ms.
Mechanical ViewMechanical View
Mechanical View
Mechanical ViewMechanical View
Fixed & External AdjustFixed & External Adjust
Fixed & External Adjust
Fixed & External AdjustFixed & External Adjust
Onboard AdjustOnboard Adjust
Onboard Adjust
Onboard AdjustOnboard Adjust
THSGen 07.28.04
Inches (Millimeters)
Low Voltage Products & Systems 5.121
