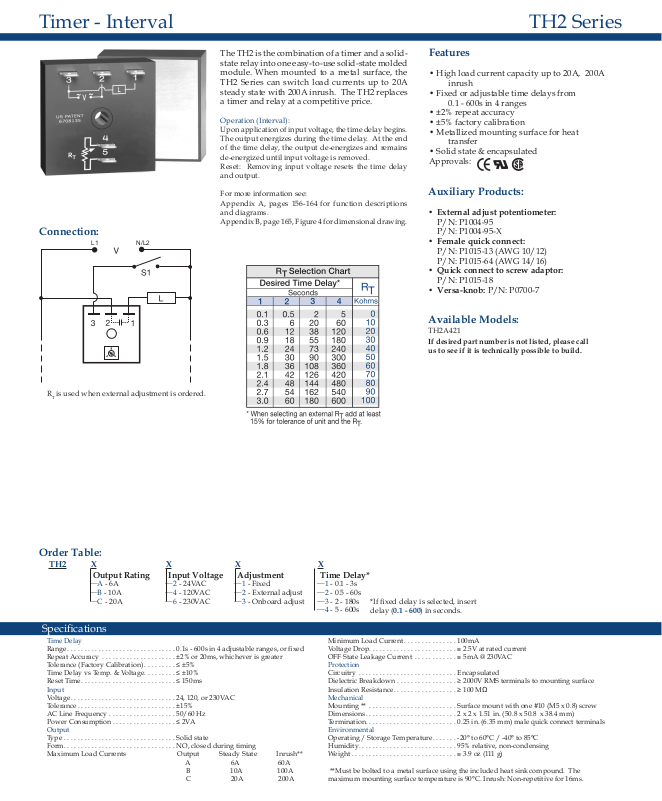

SSAC TH2 Series Data Sheet
TH2 SeriesTimer - Interval
L1 N/L2
Connection:
The TH2 is the combination of a timer and a solidstate relay into one easy-to-use solid-state molded
module. When mounted to a metal surface, the
TH2 Series can switch load currents up to 20A
steady state with 200A inrush. The TH2 replaces
a timer and relay at a competitive price.
Operation (Interval):
Upon application of input voltage, the time delay begins.
The output energizes during the time delay. At the end
of the time delay, the output de-energizes and remains
de-energized until input voltage is removed.
Reset: Removing input voltage resets the time delay
and output.
For more information see:
Appendix A, pages 156-164 for function descriptions
and diagrams.
Appendix B, page 165, Figure 4 for dimensional drawing.
Features
• High load current capacity up to 20A, 200A
inrush
• Fixed or adjustable time delays from
0.1 - 600s in 4 ranges
• ±2% repeat accuracy
• ±5% factory calibration
• Metallized mounting surface for heat
transfer
• Solid state & encapsulated
Approvals:
Auxiliary Products:
• External adjust potentiometer:
P / N: P 10 0 4- 9 5
P/N: P1004-95-X
• Female quick connect:
P / N : P1 0 1 5 - 1 3 (A W G 1 0 / 12 )
P / N : P1 0 1 5 - 6 4 (A W G 1 4 / 16 )
• Quick connect to screw adaptor:
P/N: P1015-18
• Versa-knob: P/N: P0700-7
Available Models:
TH2A421
If desired part number is not listed, please call
us to see if it is technically possible to build.
RT is used when external adjustment is ordered.
Order Table:
TH2
X
Output Rating
─A - 6A
─B - 10A
─C - 20A
X
Input Voltage
─2 - 24VAC
─4 - 120VAC
─6 - 230VAC
X
Adjustment
─1 - Fixed
─2 - External adjust
─3 - Onboard adjust
Specications
Time Delay
Range ...............................0.1s - 600s in 4 adjustable ranges, or xed
Repeat Accuracy .....................±2% or 20ms, whichever is greater
Tolerance (Factory Calibration) .........≤ ±5%
Time Delay vs Temp. & Voltage .........≤ ±10%
Reset Time ...........................≤ 150ms
Input
Voltage ..............................24, 120, or 230VAC
Tolerance ............................±15%
AC Line Frequency ...................50/60 Hz
Power Consumption ..................≤ 2VA
Output
Type ................................Solid state
Form ................................NO, closed during timing
Maximum Load Currents Output Steady State Inrush**
A 6A 60A
B 10A 100A
C 20A 200A
X
Time Delay*
─1 - 0.1 - 3s
─2 - 0.5 - 60s
─3 - 2 - 180s
─4 - 5 - 600s
Minimum Load Current ...............100mA
Voltage Drop .........................≅ 2.5V at rated current
OFF State Leakage Current ............≅ 5mA @ 230VAC
Protection
Circuitry ............................Encapsulated
Dielectric Breakdown .................≥ 2000V RMS terminals to mounting surface
Insulation Resistance ..................≥ 100 MΩ
Mechanical
Mounting ** .........................Surface mount with one #10 (M5 x 0.8) screw
Dimensions ..........................2 x 2 x 1.51 in. (50.8 x 50.8 x 38.4 mm)
Termination ..........................0.25 in. (6.35 mm) male quick connect terminals
Environmental
Operating / Storage Temperature .......-20° to 60°C / -40° to 85°C
Humidity ............................95% relative, non-condensing
Weight ..............................≅ 3.9 oz (111 g)
**Must be bolted to a metal surface using the included heat sink compound. The
maximum mounting surface temperature is 90°C. Inrush: Non-repetitive for 16ms.
*If xed delay is selected, insert
delay (0.1 - 600) in seconds.
