Spraytech 0551090, 0551080 User Manual

EPX2355

SprayTECH

1770 Fernbrook Lane Minneapolis, MN 55447

Technical Assistance: 1-800-292-4637

Order Entry: 1-800-443-4500

Fax: 1-800-525-9501

www.spraytechinc.com

Piston Pump

Model Numbers: 0551080 Upright Cart, Complete 0551090 Low Boy Cart, Complete

Owner’s Manual

Printed in the U. S. A.

Table of Contents

WARNING

CAUTION

WARNING

Safety Precautions.................................................................2

Specifications .........................................................................3

General Description ...............................................................4

Operation ................................................................................4

Setup ....................................................................................4

Preparing to Paint.................................................................4

Painting.................................................................................5

Pressure Relief Procedure ...................................................6

Spraying ..................................................................................6

Spraying Technique ..............................................................6

Practice.................................................................................6

Cleanup ...................................................................................7

Cleaning the Spray Tip.........................................................7

Maintenance............................................................................7

General Repair and Service Notes.......................................7

Replacing the PRIME/SPRAY Valve.....................................8

Replacing the Filters.............................................................8

Replacing the Motor Assembly.............................................9

Replacing the Gears.............................................................9

Replacing the Transducer...................................................10

Servicing the Fluid Section.................................................10

Troubleshooting ...................................................................12

Parts List...............................................................................18

Main Assembly....................................................................18

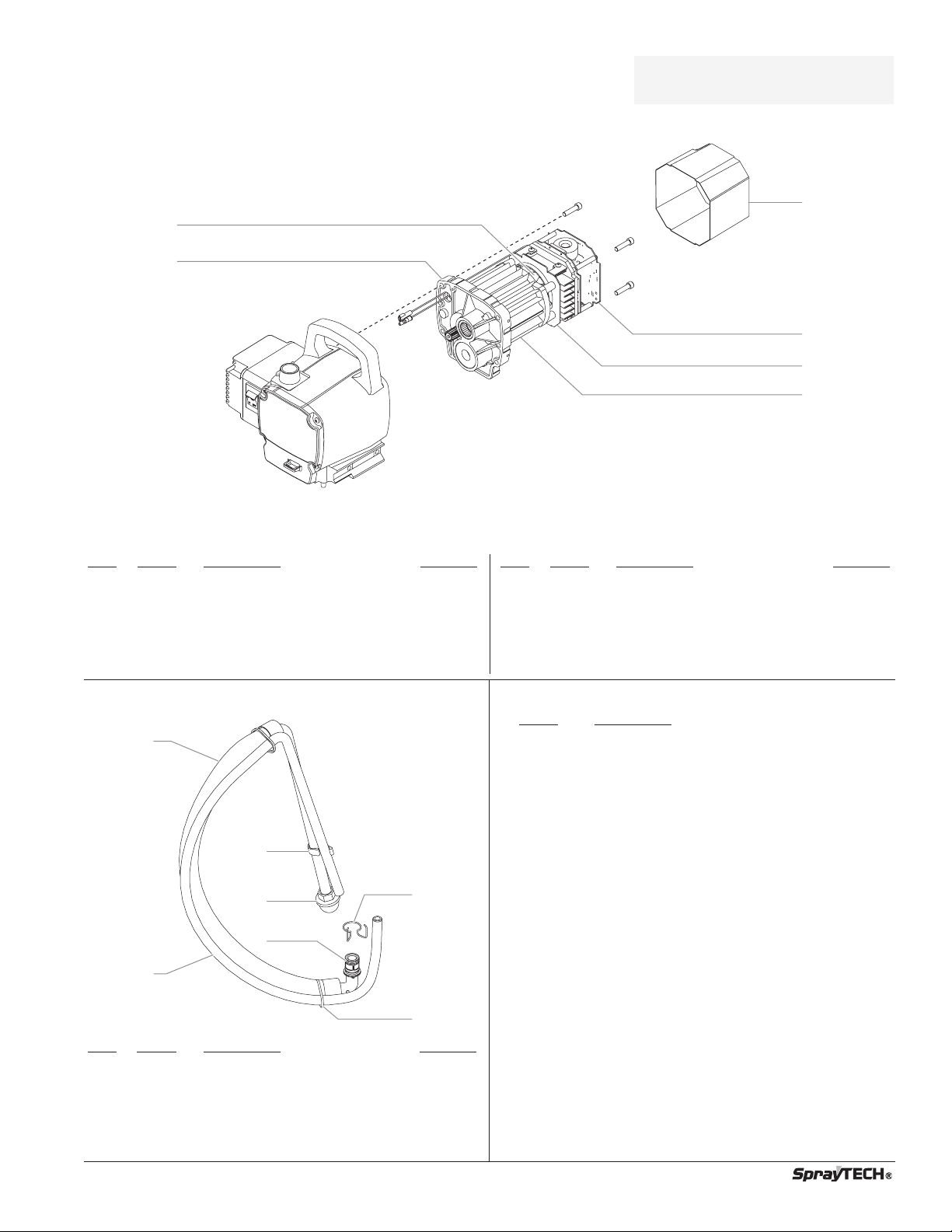

Motor Assembly ..................................................................19

Suction Set Assembly.........................................................19

Labels .................................................................................19

Gear Box Assembly............................................................20

Upright Cart Assembly........................................................21

Fluid Section Assembly ......................................................22

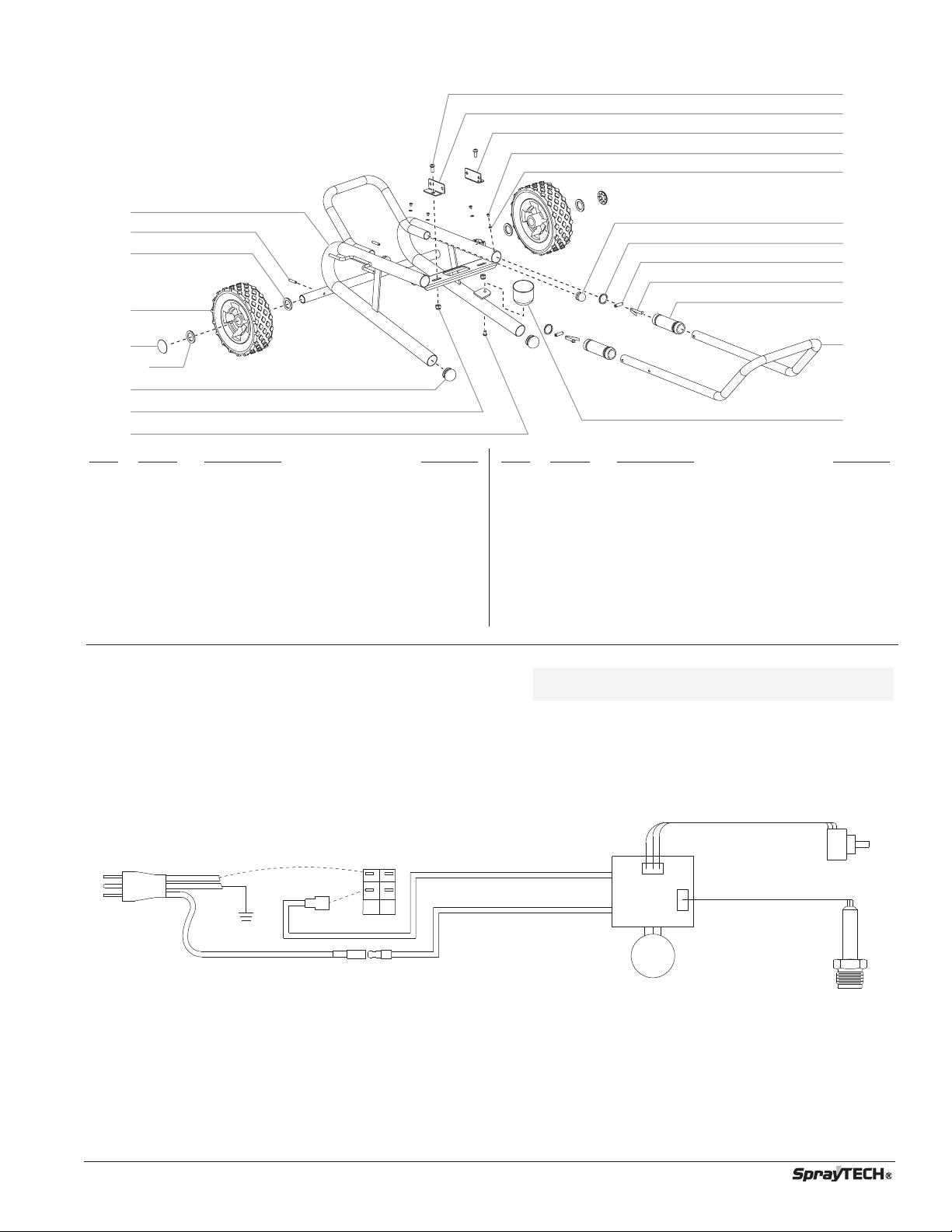

Low Boy Cart Assembly......................................................23

Electrical Schematic ...........................................................23

Limited Warranty..................................................................24

Safety Precautions

This manual contains information that must be read and understood before using the equipment. When you come to an area that has one of the following symbols, pay particular attention and make certain to heed the safeguard.

This symbol indicates a potential hazard that may cause serious injury or loss of life. Important safety information will follow.

This symbol indicates a potential hazard to you or to the equipment. Important information that tells how to prevent damage to the equipment or how to avoid causes of minor injuries will follow.

NOTE: Notes give important information which should

HAZARD: Injection injury - A

DO NOT TREAT AN INJECTION INJURY AS A SIMPLE CUT! Injection can lead to amputation. See a physician immediately.

The maximum operating range of the sprayer is 3100 PSI/

21.4 MPa fluid pressure. PREVENTION:

be given special attention.

high pressure fluid stream produced by this equipment can pierce the skin and underlying tissues, leading to serious injury and possible amputation. See a physician immediately.

• NEVER aim the gun at any part of the body.

• NEVER allow any part of the body to touch the fluid stream. DO NOT allow body to touch a leak in the fluid hose.

• NEVER put hand in front of the gun. Gloves will not provide protection against an injection injury.

• ALWAYS lock gun trigger, shut pump off, and release all pressure before servicing, cleaning tip or guard, changing tip, or leaving unattended. Pressure will not be released by turning off the motor. The PRIME/SPRAY valve handle must be turned to PRIME to relieve the pressure. Refer to the PRESSURE RELIEF PRESSURE described in the pump manual.

• ALWAYS keep tip guard in place while spraying. The tip guard provides some protection but is mainly a warning device.

• ALWAYS remove the spray tip before flushing or cleaning the system.

• Paint hose can develop leaks from wear, kinking and abuse. A leak can inject material into the skin. Inspect the hose before each use.

• NEVER use a spray gun without a working trigger lock and trigger guard in place.

• All accessories must be rated at or above the maximum operating pressure range of the airless sprayer. This includes spray tips, guns, extensions, and hose.

NOTE TO PHYSICIAN: Injection into the skin is a traumatic injury. It is

important to treat the injury as soon as possible. DO NOT delay treatment to research toxicity. Toxicity is a concern with some coatings injected directly into the blood stream. Consultation with a plastic surgeon or reconstructive hand surgeon may be advisable.

HAZARD: EXPLOSION AND FIRE - Solvent and paint

PREVENTION:

• Provide extensive exhaust and fresh air introduction to

•

• Do not smoke in spray area.

• Fire extinguisher must be present and in good working

• Place pump at least 25 feet (7.6 m) from the spray object

• The equipment and objects in and around the spray area

• Use only conductive or grounded high-pressure fluid hose.

• Power cord must be connected to a grounded circuit.

• Always flush unit into separate metal container, at low

• Follow material and solvent manufacturer's warnings and

• Use extreme caution when using materials with a

• Plastic can cause static sparks. Never hang plastic to

• Use lowest possible pressure to flush equipment.

fumes can explode or ignite. Severe injury and/or property damage can occur.

keep the air within the spray area free from accumulation of flammable vapors.

Avoid all ignition sources such as static electricity sparks, electrical appliances, flames, pilot lights, hot objects, and sparks from connecting and disconnecting power cords or working light switches.

order.

in a well ventilated area (add more hose if necessary). Flammable vapors are often heavier than air. Floor area must be extremely well ventilated. The pump contains arcing parts that emit sparks and can ignite vapors.

must be properly grounded to prevent static sparks.

Gun must be grounded through hose connections.

pump pressure, with spray tip removed. Hold gun firmly against side of container to ground container and prevent static sparks.

instructions.

flashpoint below 70° F (21° C). Flashpoint is the temperature at which a fluid can produce enough vapors to ignite.

enclose spray area. Do not use plastic drop cloths when spraying flammable materials.

GAS ENGINE (WHERE APPLICABLE)

CAUTION

Grounded Outlet

Grounding Pin

Cover for grounded outlet box

Always place sprayer outside of structure in fresh air solvents away from engine exhaust. Never fill fuel tank with a running or hot engine. Hot surface can ignite spilled fuel. Always attach ground wire from pump to a grounded object. Refer to engine owner’s manual for complete safety information.

HAZARD: EXPLOSION HAZARD DUE TO INCOMPATIBLE

PREVENTION:

• Do not use materials containing bleach or chlorine.

• Do not use halogenated hydrocarbon solvents such as

• Contact your coating supplier about the compatibility of

HAZARD: HAZARDOUS VAPORS - Paints, solvents,

PREVENTION:

• Use a respirator or mask if vapors can be inhaled. Read

• W

• Wear protective clothing as required by coating

HAZARD: GENERAL - Can cause severe injury or

PREVENTION:

• Read all instructions and safety precautions before

• Follow all appropriate local, state, and national codes

• The United States Government Safety Standards have

• Use only manufacturer authorized parts. User assumes

• Before each use, check all hoses for cuts, leaks, abrasion

• All hoses, swivels, guns, and accessories must be

• Do not spray outdoors on windy days.

• Wear clothing to keep paint off skin and hair.

• Always unplug cord from outlet before working on

MATERIALS - will cause severe injury or property damage.

bleach, mildewcide, methylene chloride and 1,1,1 trichloroethane. They are not compatible with aluminum.

material with aluminum.

insecticides, and other materials can be harmful if inhaled or come in contact with body. Vapors can cause severe nausea, fainting, or poisoning.

all instructions supplied with the mask to be sure it will provide the necessary protection.

ear protective eyewear.

manufacturer.

property damage.

operating equipment.

governing ventilation, fire prevention, and operation.

been adopted under the Occupational Safety and Health Act (OSHA). These standards, particularly part 1910 of the General Standards and part 1926 of the Construction Standards, should be consulted.

all risks and liabilities when using parts that do not meet the minimum specifications and safety devices of the pump manufacturer

or bulging of cover. Check for damage or movement of couplings. Immediately replace hose if any of those conditions exist. Never repair a paint hose. Replace with a grounded high-pressure hose.

pressure rated at or above the maximum operating pressure range of the airless sprayer.

equipment.

. Keep all

Grounding Instructions

This product must be grounded. In the event of an electrical short circuit, grounding reduces the risk of electric shock by providing an escape wire for the electric current. This product is equipped with a cord having a grounding wire with an appropriate grounding plug. The plug must be plugged into an outlet that is properly installed and grounded in accordance with all local codes and ordinances.

DANGER — Improper installation of the grounding plug can result in a risk of electric shock. If repair or replacement of the cord or plug is necessary, do not connect the green grounding wire to either flat blade terminal. The wire with insulation having a green outer surface with or without yellow stripes is the grounding wire and must be connected to the grounding pin.

Check with a qualified electrician or serviceman if the grounding instructions are not completely understood, or if you are in doubt as to whether the product is properly grounded. Do not modify the plug provided. If the plug will not fit the outlet, have the proper outlet installed by a qualified electrician.

Use only a 3-wire extension cord that has a 3-blade grounding plug and a 3-slot receptacle that will accept the plug on the product. Make sure your extension cord is in good condition. When using an extension cord, be sure to use one heavy enough to carry the current your product will draw in line voltage resulting in loss of power and overheating. A 12 gauge cord is recommended. If an extension cord is to be used outdoors, it must be marked with the suffix WA after the cord type designation. For example, a designation of SJTW-A would indicate that the cord would be appropriate for outdoor use.

. An undersized cord will cause a drop

Specifications

Gallons per minute (GPM)...............0.70 (2.65 LPM)

Maximum tip sizes ...........................0.026”

Maximum pressure ..........................3100 PSI (21.4 MPa)

Power...............................................1.7 HP PMDC motor,

Weight..............................................60 lbs. (27.2 kg)

Maximum hose length......................300’ (91.4 m)

120VAC

General Description

CAUTION

WARNING

Pressure Control Knob

ON/OFF Switch

PRIME/SPRAY Valve

Outlet Fitting

Pail Hook

Oil Cup

Siphon

Tube

Return Hose

Filter

CAUTION

Priming and

Cleaning Zone

(minimum PSI)

0 = OFF

(0 PSI)

Pressure Control Knob

8 = 3100 PSI (maximum PSI)

Pressure Control Knob

ON/OFF Switch

CAUTION

This airless sprayer is a precision power tool used for spraying many types of materials. Read and follow this Owner’s Manual carefully for proper operating instructions, maintenance, and safety information.

Operation

Always use a minimum 12 gauge, three-wire extension cord with a grounded plug. Never remove the third prong or use an adapter.

Preparing a New Sprayer

If this sprayer is new, it is shipped with test fluid in the fluid section to prevent corrosion during shipment and storage. This fluid must be cleaned out of the system thoroughly with mineral spirits before spraying paint.

Always keep the trigger lock on the spray gun in the locked position while preparing the system.

Place the siphon tube into a container of mineral spirits.

2. Place the return hose into a metal waste container.

3. Move the PRIME/SPRAY valve down to the PRIME position.

4. Turn on the unit by moving the ON/OFF switch to the ON position.

This equipment produces a fluid stream at extremely high pressure. Read and understand the warnings in the Safety Precautions section at the front of this manual before operating this equipment.

Setup

Perform the following procedure before plugging in the power cord of an electric sprayer.

1. Ensure that the siphon tube and the return hose are attached and secure.

2. Using a wrench, attach a minimum of 50’ of 1/4” nylon airless spray hose to the outlet fitting on the sprayer. Tighten securely.

3. Attach an airless spray gun to the spray hose. Using two wrenches (one on the gun and one on the hose), tighten securely.

NOTE: Do not attach the tip to the spray gun yet.

Make sure all airless hoses and spray guns are electrically grounded and rated at or above the maximum operating pressure range of the airless sprayer.

4. Make sure the pressure control knob is in the “0” (OFF) position.

5. Make sure the ON/OFF switch is in its OFF position.

6. Fill the oil cup with approximately one tablespoon of separating oil (P/N 0279920).

Never operate unit for more than ten seconds without fluid. Operating this unit without fluid will cause unnecessary wear to the packings.

7. Make sure the electrical service is 120V, 15 amp minimum.

8. Plug the power cord into a properly grounded outlet at least 25’ from the spray area.

Remove the tip if it is already attached.

5. Set the pressure to minimum by turning the pressure control knob to the “1” or “2” position.

6. Allow the sprayer to run for 15–30 seconds to flush the test fluid out through the return hose and into the waste container.

7. Turn off the unit by moving the ON/OFF switch to the OFF position.

Preparing to Paint

Before painting, it is important to make sure that the fluid in the system is compatible with the paint that is going to be used.

NOTE: Incompatible fluids and paint may cause the

Always keep the trigger lock on the spray gun in the locked position while preparing the system.

1. Place the siphon tube into a container of the appropriate

valves to become stuck closed, which would require disassembly and cleaning of the sprayer’s fluid section.

solvent. Examples of the appropriate solvent are water for latex paint or mineral spirits for oil-based paints.

Place the return hose into a metal waste container.

3. Move the PRIME/SPRAY valve down to the

WARNING

Pressure Control Knob

ON/OFF Switch

PRIME position.

NOTE: Hold the return hose in the waste

container when moving the PRIME/SPRAY valve to PRIME in case the sprayer is pressurized.

4. Turn on the sprayer by moving the ON/OFF switch to the ON position.

5. Set the pressure to minimum by turning the pressure control knob to the “1” or “2” position.

6. Allow the sprayer to run for 15–30 seconds to flush the old solvent out through the return hose and into the metal waste container.

7. Turn off the sprayer by moving the ON/OFF switch to the OFF position.

NOTE: Make sure that the spray gun does not have a

tip or tip guard installed.

8. Move the PRIME/SPRAY valve up to the SPRAY position.

9. Turn on the sprayer.

10. Unlock the gun by turning the gun trigger lock to the unlocked position.

3. Set the pressure to minimum by turning the pressure control knob to the “1” or “2” position.

6. Allow the sprayer to run until paint is coming through the return hose into the metal waste container.

7. Turn off the sprayer by moving the ON/OFF switch to the OFF position.

8. Remove the return hose from the waste container and place it in its operating position above the container of paint.

9. Move the PRIME/SPRAY valve up to the SPRAY position.

10. Turn on the sprayer.

11. Unlock the gun by turning the gun trigger lock to the unlocked position.

Ground the gun by holding it against the edge of the metal container while flushing. Failure to do so may lead to a static electric discharge, which may cause a fire.

11. T

rigger the gun into the metal waste container until the old solvent is gone and fresh solvent is coming out of the gun.

12. Lock the gun by turning the gun trigger lock to the locked position.

13. Set down the gun and increase the pressure by turning the pressure control knob slowly clockwise to the “4” or “5” position.

14. Check the entire system for leaks. If leaks occur, turn the unit off and follow the “Pressure Relief Procedure” in this manual before tightening any fittings or hoses.

15. Follow the “Pressure Relief Procedure” in this manual before changing from solvent to paint.

Be sure to follow the pressure relief procedure when shutting the unit down for any purpose, including servicing or adjusting any part of the spray system, changing or cleaning spray tips, or preparing for cleanup.

Painting

1. Place the siphon tube into a container of paint.

2. Place the return hose into a metal waste container.

4. Move the PRIME/SPRAY valve down to the PRIME position.

NOTE: Hold the return hose in the waste

5. Turn on the sprayer by moving the ON/OFF switch to the

container when moving the PRIME/SPRAY valve to PRIME in case the sprayer is pressurized.

ON position.

Ground the gun by holding it against the edge of the metal container while flushing. Failure to do so may lead to a static electric discharge, which may cause a fire.

12. Trigger the gun into the metal waste container until all air and solvent is flushed from the spray hose and paint is flowing freely from the gun.

13. Lock the gun by turning the gun trigger lock to the locked position.

14.

Turn off the sprayer.

15. Attach tip guard and tip to the gun as instructed by the tip guard or tip manuals.

POSSIBLE INJECTION HAZARD. Do not spray without the tip guard in place. Never trigger the gun unless the tip is in either the spray or the unclog position. the gun trigger lock before removing, replacing or cleaning tip.

16. Turn on the sprayer.

17. Increase the pressure by turning the pressure control knob slowly clockwise and test the spray pattern on a piece of cardboard. Adjust the pressure control knob until the spray from the gun is completely atomized. Try to keep the pressure control knob at the lowest setting that maintains good atomization.

NOTE: Turning the pressure up higher then needed to

atomize the paint will cause premature tip wear and additional overspray.

Always engage

Pressure Relief Procedure

Heavy Coat

Do not flex wrist while spraying.

Light Coat Light Coat

Keep stroke smooth and at an even speed.

Even coat throughout

Approximately

10 to 12 inches

WARNING

Good spray pattern

Paint tailing pattern

Proper way to trigger the spray gun

Approximately

10 to 12 inches

Keep stroke

even

Start stroke End strokePull trigger Release triggerKeep steady

Approximately

10 to 12 inches

Right way

Wrong way

1. Lock the gun by turning the gun trigger lock to the locked position.

2. Turn off the sprayer by moving the ON/OFF switch to the OFF position.

3. Turn the pressure control knob to the “0” (OFF) position.

4. Unlock the gun by turning the gun trigger lock to the unlocked position.

5. Hold the metal part of the gun firmly to the side of a metal container to ground the gun and avoid a build up of static electricity.

6. Trigger the gun to remove any pressure that may still be in the hose.

7. Lock the gun by turning the gun trigger lock to the locked position.

8. Move the PRIME/SPRAY valve down to the PRIME position.

Spraying

Keep the spray gun perpendicular to the surface, otherwise one end of the pattern will be thicker than the other.

The spray gun should be triggered by turning it on and off with each stroke. This will save paint and avoid paint buildup at the end of the stroke. Do not trigger the gun during the middle of a stroke. This will result in an uneven spray and splotchy coverage.

NOTE: When spraying block filler, mastics or high

solid coating, remove the gun filter and high pressure filter screens.

Spraying Technique

The key to a good paint job is an even coating over the entire surface. This is done by using even strokes. Keep your arm moving at a constant speed and keep the spray gun at a constant distance from the surface. The best spraying distance is 10 to 12 inches between the spray tip and the surface.

Keep the spray gun at right angles to the surface. This means moving your entire arm back and forth rather than just flexing your wrist.

Overlap each stroke by about 30%. This will ensure an even coating.

When you stop painting, lock the gun trigger lock, turn the pressure control knob counterclockwise to its lowest setting and set the PRIME/SPRAY valve to PRIME. Turn the ON/OFF switch to the OFF position and unplug the sprayer.

Practice

1. Be sure that the paint hose is free of kinks and clear of objects with sharp cutting edges.

2. Set the pressure to minimum by turning the pressure control knob to the “1” or “2” position.

3. Move the PRIME/SPRAY valve up to the SPRAY position.

4. Turn the pressure control knob clockwise to its highest setting. The paint hose should stiffen as paint begins to flow through it.

5. Unlock the gun trigger lock.

6. Trigger the spray gun to bleed air out of the hose.

7. When paint reaches the spray tip, spray a test area to check the spray pattern.

8. Use the lowest pressure setting necessary to get a good spray pattern. If the pressure is set too high, the spray pattern will be too light. If the pressure is set too low, tailing will appear or the paint will spatter out in gobs rather than in a fine spray.

Cleanup

WARNING

CAUTION

WARNING

CAUTION

WARNING

CAUTION

Do not use gasoline to clean the sprayer.

Special cleanup instructions for use with flammable solvents:

• Always flush spray gun preferably outside and at least one hose length from spray pump.

If collecting flushed solvents in a one gallon metal

• container, place it into an empty five gallon container, then flush solvents.

• Area must be free of flammable vapors.

• Follow all cleanup instructions.

The sprayer, hose, and gun should be cleaned thoroughly after daily use. Failure to do so permits material to build up, seriously affecting the performance of the unit.

12. Trigger the gun into the metal waste container until the paint is flushed out of the hose and solvent is coming out of the gun.

13. Continue to trigger the spray gun into the waste container until the solvent coming out of the gun is clean.

NOTE: For long-term or cold weather storage, pump

mineral sprits through the entire system.

14. Follow the “Pressure Relief Procedure” found in the Operation section of this manual.

15. Unplug the sprayer and store in a clean, dry area.

Do not store the sprayer under pressure.

Cleaning the Spray Tip

1. Flush the gun with solvent immediately after the work is completed.

2. Oil the sliding pins to prevent them from seizing up.

Should the spray tip become clogged, reverse the spray tip with the lever and pull the trigger. Once the obstruction comes out of the spray tip, release the trigger, reverse the spray tip back to the spray pattern setting, and resume spraying.

Always spray at minimum pressure with the gun nozzle tip removed when using mineral spirits or any other solvent to clean the sprayer, hose, or gun. Static electricity buildup may result in a fire or explosion in the presence of flammable vapors.

1. Follow the “Pressure Relief Procedure” found in the Operation section of this manual.

2. Remove the gun tip and tip guard and clean with a brush using the appropriate solvent.

3. Place the siphon tube into a container of the appropriate solvent. Examples of the appropriate solvent are water for latex paint or mineral spirits for oil-based paints.

Place the return hose into a metal waste container.

5. Move the PRIME/SPRAY valve down to its PRIME position.

NOTE: Hold the return hose in the waste

6. Turn on the sprayer by moving the

7. Set the pressure to minimum by turning

8. Allow the solvent to circulate through the

9. Turn off the sprayer by moving the ON/OFF switch to the

10. Move the PRIME/SPRAY valve up to its

11. Turn on the sprayer.

Ground the gun by holding it against the edge of the metal container while flushing. Failure to do so may lead to a static electric discharge, which may cause a fire.

container when moving the PRIME/SPRAY valve to PRIME in case the sprayer is pressurized.

ON/OFF switch to the ON position.

the pressure control knob to the “1” or “2” position.

sprayer and flush the paint out of the return hose into the metal waste container.

OFF position.

SPRAY position.

Do not attempt to clean the tip with your finger. Do not use a needle or other sharp pointed instrument to

clean the tip. The hard tungsten carbide is brittle and can be chipped.

Maintenance

Before proceeding, follow the Pressure Relief Procedure outlined previously in this manual. Additionally, follow all other warnings to reduce the risk of an injection injury, injury from moving parts or electric shock. Always unplug the sprayer before servicing!

General Repair and Service Notes

1. Before repairing any part of the sprayer, read the instructions carefully, including all warnings.

Never pull on a wire to disconnect it. Pulling on a wire could loosen the connector from the wire.

2. Test your repair before regular operation of the sprayer to be sure that the problem is corrected. If the sprayer does not operate properly everything was done correctly. Refer to the Troubleshooting section to help identify other possible problems.

3. Make sure that the service area is well ventilated in case solvents are used during cleaning. Always wear protective eyewear while servicing. Additional protective equipment may be required depending on the type of cleaning solvent. Always contact the supplier of solvents for recommendations.

4. If you have any further questions concerning your SprayTECH Airless Sprayer, call SprayTECH:

Technical Service...................................1-800-292-4637

Fax ................................................1-800-525-9501

, review the repair procedure to determine if

Replacing the PRIME/SPRAY Valve

Filter Spring

Adapter

Filter Support Spring

Filter Seal

Pump Manifold

Filter

Filter Housing

Dowel Pin

Groove Pin

Valve Stem

Gasket

Pump Manifold

Valve Housing

Assembly

Valve

Handle

Cam Base

Part Number

Application Filter

Type

Color of Filter Body

0089960 Synthetic resin,

enamels, clean varnishes, stains azures

Extrafine red

0089959 Base coat enamels,

primer enamels, fillers, marking paints, textured enamels

Fine yellow

0089958 Emulsions,

latex paints, acrylic paints

Medium white

0089957 Heavy bodied latex,

blockfillers, elastometrics

Coarse green

Gun Housing

Filter

Handle

Handle Seal

Perform the following procedure using PRIME/SPRAY valve replacement kit P/N 0507690.

1. Drive the groove pin out of the valve handle.

2. Remove the valve handle and the cam base.

3. Using a wrench, loosen and remove the valve housing assembly from the pump manifold.

4. Make sure the gasket is in place and thread the new valve housing assembly into the pump manifold. Tighten securely with a wrench.

5. Place the cam base over the valve housing assembly. Lubricate the cam base with grease and line up the cam with the pump manifold using the dowel pin.

6. Line up the hole on the valve stem with the hole in the valve handle.

7. Insert the groove pin into the valve handle and through the valve stem to secure the valve handle in position.

Gun Filter

1. Pull the bottom of the trigger guard forward so that it comes loose from the handle assembly.

2. Loosen and remove the handle assembly from the gun head.

3. Pull the old filter out of the gun head.

4. Slide the new filter, tapered end first, into the gun head.

5. Make sure the handle seal is in position and thread the handle assembly into the gun head until secure.

6. Snap the trigger guard back onto the handle assembly.

Gun Filter Chart

Replacing the Filters

Pump Filter

1. Loosen and remove the filter housing by hand. Pull the filter out of the pump manifold.

2. Slip the filter off of the filter support spring.

3. Inspect the filter. Based on inspection, clean or replace the filter.

4. Inspect the filter seal. Based on inspection, clean or replace the filter seal.

5. Slide the new or cleaned filter over the filter support spring with the adapter in place. Push the filter into the center of the pump manifold.

6. Slide the filter housing over the filter and thread it into the pump manifold until secure.

NOTE: The filter housing should be hand-tightened,

but make sure the filter housing is seated fully into the pump manifold.

NOTE: For more detail, part number information, and an

assembly drawing, please see the G-10 XL Airless Spray Gun Owner's Manual (P/N 0296237).

+ 16 hidden pages
