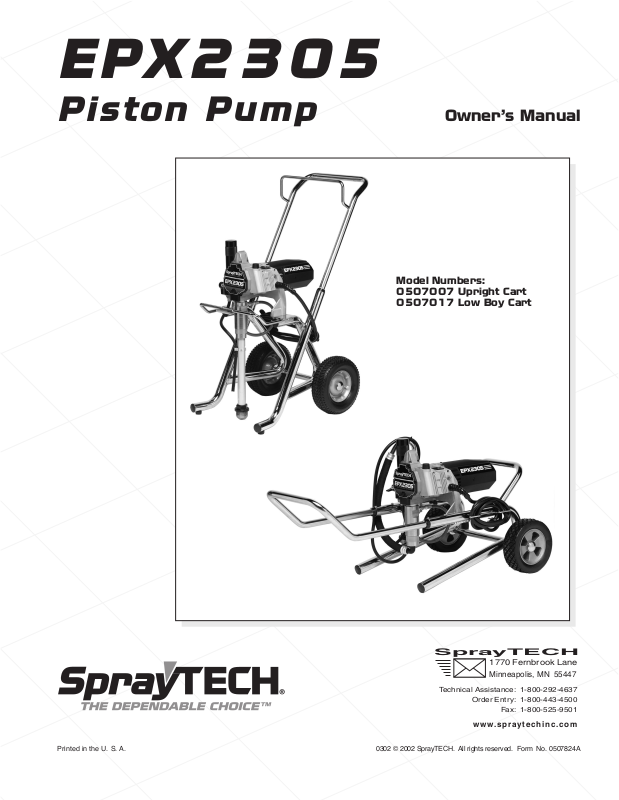

EPX2305

Piston Pump

Owner’s Manual

Model Numbers: 0507007 Upright Cart 0507017 Low Boy Cart

Printed in the U. S. A.

SprayTECH

1770 Fernbrook Lane Minneapolis, MN 55447

Technical Assistance: 1-800-292-4637

Order Entry: 1-800-443-4500

Fax: 1-800-525-9501

www.spraytechinc.com

Table of Contents

CAUTION

WARNING

Safety Precautions.................................................................2

Français ..............................................................................14

Español...............................................................................16

General Description ...............................................................4

Operation ................................................................................4

Setup ....................................................................................4

Preparing to Paint.................................................................4

Painting.................................................................................5

Pressure Relief Procedure ...................................................5

Spraying ..................................................................................6

Spraying Technique ..............................................................6

Practice.................................................................................6

Cleanup ...................................................................................6

Maintenance............................................................................7

General Repair and Service Notes.......................................7

Replacing the PRIME/SPRAY Valve.....................................7

Replacing the Filters.............................................................8

Replacing the Motor Assembly.............................................8

Replacing the Gears.............................................................9

Replacing the Transducer.....................................................9

Servicing the Fluid Section.................................................10

Troubleshooting ...................................................................12

Parts List...............................................................................18

Main Assembly....................................................................18

Drive Assembly...................................................................19

Suction Set Assembly (Low Boy) .......................................19

Labels .................................................................................19

Fluid Section Assembly ......................................................20

Upright Cart Assembly........................................................21

Filter Assembly ...................................................................21

Pressure Control Assembly ................................................22

Low Boy Cart Assembly......................................................22

PRIME/SPRAY Assembly ...................................................23

Electrical Schematic ...........................................................23

Accessories ........................................................................23

Limited Warranty..................................................................24

Safety Precautions

This manual contains information that must be read and understood before using the equipment. When you come to an area that has one of the following symbols, pay particular attention and make certain to heed the safeguard.

This symbol indicates a potential hazard that may cause serious injury or loss of life. Important safety information will follow.

This symbol indicates a potential hazard to you or to the equipment. Important information that tells how to prevent damage to the equipment or how to avoid causes of minor injuries will follow.

NOTE: Notes give important information which should

be given special attention.

WARNING

HAZARD: Injection injury - A high pressure fluid stream

produced by this equipment can pierce the skin and underlying tissues, leading to serious injury and possible amputation. See a physician immediately.

DO NOT TREAT AN INJECTION INJURY AS A SIMPLE CUT! Injection can lead to amputation. See a physician immediately.

The maximum operating range of the sprayer is 3200 PSI/221BAR fluid pressure.

PREVENTION:

• NEVER aim the gun at any part of the body.

• NEVER allow any part of the body to touch the fluid stream. DO NOT allow body to touch a leak in the fluid hose.

• NEVER put hand in front of the gun. Gloves will not provide protection against an injection injury.

•ALWAYS lock gun trigger, shut pump off, and release all pressure before servicing, cleaning tip or guard, changing tip, or leaving unattended. Pressure will not be released by turning off the motor. The PRIME/SPRAY valve handle must be turned to PRIME to relieve the pressure. Refer to the PRESSURE RELIEF PRESSURE described in the pump manual.

•ALWAYS keep tip guard in place while spraying. The tip guard provides some protection but is mainly a warning device.

•ALWAYS remove the spray tip before flushing or cleaning the system.

• Paint hose can develop leaks from wear, kinking and abuse. A leak can inject material into the skin. Inspect the hose before each use.

• NEVER use a spray gun without a working trigger lock and trigger guard in place.

• All accessories must be rated at or above 3200 PSI/221 BAR. This includes spray tips, guns, extensions, and hose.

NOTE TO PHYSICIAN: Injection into the skin is a traumatic injury. It is

important to treat the injury as soon as possible. DO NOT delay treatment to research toxicity. Toxicity is a concern with some coatings injected directly into the blood stream. Consultation with a plastic surgeon or reconstructive hand surgeon may be advisable.

HAZARD: EXPLOSION AND FIRE - Solvent and paint

fumes can explode or ignite. Severe injury and/or property damage can occur.

PREVENTION:

• Provide extensive exhaust and fresh air introduction to keep the air within the spray area free from accumulation of flammable vapors.

•Avoid all ignition sources such as static electricity sparks, electrical appliances, flames, pilot lights, hot objects, and sparks from connecting and disconnecting power cords or working light switches.

•Do not smoke in spray area.

• Fire extinguisher must be present and in good working order.

• Place pump at least 20 feet (6.1 m) from the spray object in a well ventilated area (add more hose if necessary). Flammable vapors are often heavier than air. Floor area must be extremely well ventilated. The pump contains arcing parts that emit sparks and can ignite vapors.

• The equipment and objects in and around the spray area must be properly grounded to prevent static sparks.

• Use only conductive or grounded high-pressure fluid hose. Gun must be grounded through hose connections.

• Power cord must be connected to a grounded circuit.

• Always flush unit into separate metal container, at low pump pressure, with spray tip removed. Hold gun firmly against side of container to ground container and prevent static sparks.

• Follow material and solvent manufacturer's warnings and instructions.

• Use extreme caution when using materials with a flashpoint below 70° F (21° C). Flashpoint is the temperature at which a fluid can produce enough vapors to ignite.

• Plastic can cause static sparks. Never hang plastic to enclose spray area. Do not use plastic drop cloths when spraying flammable materials.

• Use lowest possible pressure to flush equipment.

GAS ENGINE (WHERE APPLICABLE)

CAUTION

Always place sprayer outside of structure in fresh air. Keep all solvents away from engine exhaust. Never fill fuel tank with a running or hot engine. Hot surface can ignite spilled fuel. Always attach ground wire from pump to a grounded object. Refer to engine owner’s manual for complete safety information.

HAZARD: EXPLOSION HAZARD DUE TO INCOMPATIBLE

MATERIALS - will cause severe injury or property damage.

PREVENTION:

• Do not use materials containing bleach or chlorine.

• Do not use halogenated hydrocarbon solvents such as bleach, mildewcide, methylene chloride and 1,1,1 trichloroethane. They are not compatible with aluminum.

• Contact your coating supplier about the compatibility of material with aluminum.

HAZARD: HAZARDOUS VAPORS - Paints, solvents,

insecticides, and other materials can be harmful if inhaled or come in contact with body. Vapors can cause severe nausea, fainting, or poisoning.

PREVENTION:

• Use a respirator or mask if vapors can be inhaled. Read all instructions supplied with the mask to be sure it will provide the necessary protection.

•Wear protective eyewear.

•Wear protective clothing as required by coating manufacturer.

HAZARD: GENERAL - Can cause severe injury or

property damage.

PREVENTION:

• Read all instructions and safety precautions before operating equipment.

• Follow all appropriate local, state, and national codes governing ventilation, fire prevention, and operation.

• The United States Government Safety Standards have been adopted under the Occupational Safety and Health Act (OSHA). These standards, particularly part 1910 of the General Standards and part 1926 of the Construction Standards, should be consulted.

• Use only manufacturer authorized parts. User assumes all risks and liabilities when using parts that do not meet the minimum specifications and safety devices of the pump manufacturer.

• Before each use, check all hoses for cuts, leaks, abrasion or bulging of cover. Check for damage or movement of couplings. Immediately replace hose if any of those conditions exist. Never repair a paint hose. Replace with a grounded high-pressure hose.

• All hoses, swivels, guns, and accessories must be pressure rated at or above 3200PSI/221 BAR.

• Do not spray outdoors on windy days.

•Wear clothing to keep paint off skin and hair.

• Always unplug cord from outlet before working on equipment.

Grounding Instructions

This product must be grounded. In the event of an electrical short circuit, grounding reduces the risk of electric shock by providing an escape wire for the electric current. This product is equipped with a cord having a grounding wire with an appropriate grounding plug. The plug must be plugged into an outlet that is properly installed and grounded in accordance with all local codes and ordinances.

DANGER — Improper installation of the grounding plug can result in a risk of electric shock. If repair or replacement of the cord or plug is necessary, do not connect the green grounding wire to either flat blade terminal. The wire with insulation having a green outer surface with or without yellow stripes is the grounding wire and must be connected to the grounding pin.

Check with a qualified electrician or serviceman if the grounding instructions are not completely understood, or if you are in doubt as to whether the product is properly grounded. Do not modify the plug provided. If the plug will not fit the outlet, have the proper outlet installed by a qualified electrician.

Grounded Outlet

Grounding Pin

Cover for grounded outlet box

Use only a 3-wire extension cord that has a 3-blade grounding plug and a 3-slot receptacle that will accept the plug on the product. Make sure your extension cord is in good condition. When using an extension cord, be sure to use one heavy enough to carry the current your product will draw. An undersized cord will cause a drop in line voltage resulting in loss of power and overheating. A 12 gauge cord is recommended. If an extension cord is to be used outdoors, it must be marked with the suffix WA after the cord type designation. For example, a designation of SJTW-A would indicate that the cord would be appropriate for outdoor use.

General Description

WARNING

CAUTION

This airless sprayer is a precision power tool used for spraying many types of materials. Read and follow this instruction manual carefully for proper operating instructions, maintenance, and safety information.

ON/OFF

Switch

Pressure

Control

Knob

Filter

Oil Cup

PRIME/

SPRAY

Valve

Fluid

Section

Return

Hose

Siphon

Tube

Motor

Circuit Breaker

Always use a minimum 12 gauge, three-wire extension cord with a grounded plug. Never remove the third prong or use an adapter.

Preparing a New Sprayer

If this unit is new, it is shipped with test fluid in the fluid section to prevent corrosion during shipment and storage. This fluid must be thoroughly cleaned out of the system with mineral spirits before you begin spraying.

Always keep the trigger lock on the spray gun in the locked position while preparing the system.

1. Place the siphon tube into a container of mineral spirits.

2. Place the return hose into a metal waste container.

3. Set the pressure to minimum by turning the pressure control knob fully counterclockwise.

Pressure Control Knob

Operation

This equipment produces a fluid stream at extremely high pressure. Read and understand the warnings in the Safety Precautions section at the front of this manual before operating this equipment.

Setup

Perform the following procedure before plugging in the power cord of an electric unit.

1. Ensure that the siphon tube/suction set and the return hose are attached and secure.

2. Using a wrench, attach a minimum of 50’ of 1/4” nylon airless spray hose to the unit. Tighten securely.

3. Attach an airless spray gun to the spray hose. Using two wrenches (one on the gun and one on the hose), tighten securely.

NOTE: Do not attach the tip to the spray gun yet.

Remove the tip if it is already attached.

Make sure all airless hoses and spray guns are electrically grounded and rated for at least 3200 psi (221 bar) fluid pressure.

4. Make sure the pressure control knob is turned fully counterclockwise to its lowest pressure setting.

5. Fill the oil cup with approximately one tablespoon of separating oil (P/N 0279920).

CAUTION

Never operate unit for more than ten seconds without fluid. Operating this unit without fluid will cause unnecessary wear to the packings.

6. Make sure the electrical service is 120V, 15 amp minimum.

7. Plug the power cord into a properly grounded outlet at least 25’ from the spray area.

ON/OFF Switch

4. Move the PRIME/SPRAY valve down to the PRIME position.

5. Turn the unit on by moving the ON/OFF switch to the ON position.

6. Allow the sprayer to run for 15–30 seconds to flush the test fluid out through the return hose and into the waste container.

7. Turn the unit off by moving the ON/OFF switch to the OFF position.

PRIME/SPRAY Val ve

Preparing to Paint

Before painting, it is important to make sure that the fluid in the system is compatible with the paint that is going to be used.

NOTE: Incompatible fluids and paint may cause the

valves to become stuck closed, which would require disassembly and cleaning of the sprayer’s fluid section.

CAUTION

Always keep the trigger lock on the spray gun in the locked position while preparing the system.

1. Place the siphon tube into a container of the appropriate solvent. Examples of the appropriate solvent are water for latex paint or mineral spirits for oil-based paints.

2. Place the return hose into a metal waste container.

3. Set the pressure to minimum by turning the pressure control knob fully counterclockwise.

4. Move the PRIME/SPRAY valve down to the PRIME position.

5. Turn the unit on by moving the ON/OFF switch to the ON position.

6. Allow the sprayer to run for 15–30 seconds to flush the old solvent out through the return hose and into the metal waste container.

7. Turn the unit off by moving the ON/OFF switch to the OFF position.

NOTE: Make sure that the spray gun does not have a

tip or tip guard installed.

8. Move the PRIME/SPRAY valve up to the SPRAY position.

PRIME/SPRAY Val ve

WARNING

9. Turn the unit on.

10. Unlock the gun by turning the gun trigger lock to the unlocked position.

Ground the gun by holding it against the edge of the metal container while flushing. Failure to do so may lead to a static electric discharge, which may cause a fire.

11.Trigger the gun into the metal waste container until the old solvent is gone and fresh solvent is coming out of the gun.

12. Lock the gun by turning the gun trigger lock to the locked position.

13. Set down the gun and increase the pressure by turning the pressure control knob slowly clockwise.

14. Check the entire system for leaks. If leaks occur, turn the unit off and follow the “Pressure Relief Procedure” in this manual before tightening any fittings or hoses.

15. Follow the “Pressure Relief Procedure” in this manual before changing from solvent to paint.

Be sure to follow the pressure relief procedure when shutting the unit down for any purpose, including servicing or adjusting any part of the spray system, changing or cleaning spray tips, or preparing for cleanup.

Painting

1. Place the siphon tube into a container of paint.

2. Place the return hose into a metal waste container.

3. Set the pressure to minimum by turning the pressure control knob fully counterclockwise.

Pressure Control Knob

ON/OFF Switch

4. Move the PRIME/SPRAY valve down to the PRIME position.

5. Turn the unit on by moving the ON/OFF switch to the ON position.

6. Allow the sprayer to run until paint is coming through the return hose into the metal waste container.

7. Turn the unit off by moving the ON/OFF switch to the OFF position.

8. Remove the return hose from the waste container and place it in its operating position above the container of paint.

9. Move the PRIME/SPRAY valve up to the SPRAY position.

10. Turn the unit on.

11. Unlock the gun by turning the gun trigger lock to the unlocked position.

Ground the gun by holding it against the edge of the metal container while flushing. Failure to do so may lead to a static electric discharge, which may cause a fire.

12. Trigger the gun into the metal waste container until all air and solvent is flushed from the spray hose and paint is flowing freely from the gun.

13. Lock the gun by turning the gun trigger lock to the locked position.

14. Turn the unit off.

15. Attach tip guard and tip to the gun as instructed by the tip guard or tip manuals.

POSSIBLE INJECTION HAZARD. Do not spray without the tip guard in place. Never trigger the gun unless the tip is in either the spray or the unclog position. Always engage the gun trigger lock before removing, replacing or cleaning tip.

16. Turn the unit on.

17. Increase the pressure by turning the pressure control knob slowly clockwise and test the spray pattern on a piece of cardboard. Adjust the pressure control knob until the spray from the gun is completely atomized. Try to keep the pressure control knob at the lowest setting that maintains good atomization.

NOTE: Turning the pressure up higher then needed to

atomize the paint will cause premature tip wear and additional overspray.

Pressure Relief Procedure

WARNING

1. Lock the gun by turning the gun trigger lock to the locked position.

2. Turn the unit off by moving the ON/OFF switch to the OFF position.

3. Set the pressure to minimum by turning the pressure control knob fully counterclockwise.

4. Unlock the gun by turning the gun trigger lock to the unlocked position.

5. Hold the metal part of the gun firmly to the side of a metal container to ground the gun and avoid a build up of static electricity.

6. Trigger the gun to remove any pressure that may still be in the hose.

7. Lock the gun by turning the gun trigger lock to the locked position.

8. Move the PRIME/SPRAY valve down to the PRIME position.

Spraying

NOTE: When spraying block filler, mastics or high

solid coating, remove the gun filter and high pressure filter screens.

Spraying Technique

The key to a good paint job is an even coating over the entire surface. This is done by using even strokes. Keep your arm moving at a constant speed and keep the spray gun at a constant distance from the surface. The best spraying distance is 10 to 12 inches between the spray tip and the surface.

Even coat throughout

The spray gun should be triggered by turning it on and off with each stroke. This will save paint and avoid paint buildup at the end of the stroke. Do not trigger the gun during the middle of a stroke. This will result in an uneven spray and splotchy coverage.

Proper way to trigger the spray gun

Keep stroke

even

Approximately

10 to 12 inches

Approximately

10 to 12 inches

Keep stroke smooth and at an even speed.

Keep the spray gun at right angles to the surface. This means moving your entire arm back and forth rather than just flexing your wrist.

Light Coat Light Coat

Do not flex wrist while spraying.

Keep the spray gun perpendicular to the surface, otherwise one end of the pattern will be thicker than the other.

Approximately

10 to 12 inches

Heavy Coat

Start stroke End strokePull trigger Release triggerKeep steady

Overlap each stroke by about 30%. This will ensure an even coating.

When you stop painting, lock the gun trigger lock, turn the pressure control knob counterclockwise to its lowest setting and set the PRIME/SPRAY valve to PRIME. Turn the ON/OFF switch to the OFF position and unplug the sprayer.

Practice

1. Be sure that the paint hose is free of kinks and clear of objects with sharp cutting edges.

2. Turn the pressure control knob counterclockwise to its to its lowest setting.

3. Move the PRIME/SPRAY valve up to the SPRAY position.

4. Turn the pressure control knob clockwise to its highest setting. The paint hose should stiffen as paint begins to flow through it.

5. Unlock the gun trigger lock.

6. Trigger the spray gun to bleed air out of the hose.

7. When paint reaches the spray tip, spray a test area to check the spray pattern.

8. Use the lowest pressure setting necessary to get a good spray pattern. If the pressure is set too high, the spray pattern will be too light. If the pressure is set too low, tailing will appear or the paint will spatter out in gobs rather than in a fine spray.

Good spray pattern

Paint tailing pattern

PRIME/SPRA Val ve

Cleanup

Right way

Wrong way

WARNING

Special cleanup instructions for use with flammable solvents:

•Always flush spray gun preferably outside and at least one hose length from spray pump.

• If collecting flushed solvents in a one gallon metal container, place it into an empty five gallon container, then flush solvents.

• Area must be free of flammable vapors.

• Follow all cleanup instructions.

CAUTION

The sprayer, hose, and gun should be cleaned thoroughly after daily use. Failure to do so permits material to build up, seriously affecting the performance of the unit.

Always spray at minimum pressure with the gun nozzle tip

WARNING

CAUTION

WARNING

CAUTION

WARNING

removed when using mineral spirits or any other solvent to clean the sprayer, hose, or gun. Static electricity buildup may result in a fire or explosion in the presence of flammable vapors.

1. Follow the “Pressure Relief Procedure” found in the Operation section of this manual.

2. Remove the gun tip and tip guard and clean with a brush using the appropriate solvent.

3. Place the siphon tube into a container of the appropriate solvent. Examples of the appropriate solvent are water for latex paint or mineral spirits for oil-based paints.

4. Place the return hose into a metal waste container.

5. Set the pressure to minimum by turning the pressure control knob fully counterclockwise.

6. Move the PRIME/SPRAY valve down to its PRIME position.

7. Turn the unit on by moving the ON/OFF switch to the ON position.

8. Allow the solvent to circulate through the unit and flush the paint out of the return hose into the metal waste container.

9. Turn the unit off by moving the ON/OFF switch to the OFF position.

10. Move the PRIME/SPRAY valve up to its SPRAY position.

11.Turn the unit on.

Ground the gun by holding it against the edge of the metal container while flushing. Failure to do so may lead to a static electric discharge, which may cause a fire.

12. Trigger the gun into the metal waste container until the paint is flushed out of the hose and solvent is coming out of the gun.

13. Continue to trigger the spray gun into the waste container until the solvent coming out of the gun is clean.

NOTE: For long-term or cold weather storage, pump

mineral sprits through the entire system.

14. Follow the “Pressure Relief Procedure” found in the Operation section of this manual.

15. Unplug the unit and store in a clean, dry area.

Do not store the unit under pressure.

ON/OFF

Pressure Control Knob

Switch

Cleaning the Spray Tip

1. Flush the gun with solvent immediately after the work is completed.

2. Oil the sliding pins to prevent them from seizing up.

Should the spray tip become clogged, reverse the spray tip with the lever and pull the trigger. Once the obstruction comes out of the spray tip, release the trigger, reverse the spray tip back to the spray pattern setting, and resume spraying.

Maintenance

Before proceeding, follow the Pressure Relief Procedure outlined previously in this manual. Additionally, follow all other warnings to reduce the risk of an injection injury, injury from moving parts or electric shock. Always unplug the sprayer before servicing!

General Repair and Service Notes

1. Before repairing any part of the sprayer, read the instructions carefully, including all warnings.

Never pull on a wire to disconnect it. Pulling on a wire could loosen the connector from the wire.

2. Test your repair before regular operation of the sprayer to be sure that the problem is corrected. If the sprayer does not operate properly, review the repair procedure to determine if everything was done correctly. Refer to the Troubleshooting section to help identify other possible problems.

3. Make certain that the service area is well ventilated in case solvents are used during cleaning. Always wear protective eyewear while servicing. Additional protective equipment may be required depending on the type of cleaning solvent. Always contact the supplier of solvents for recommendations.

4. If you have any further questions concerning your SprayTECH Airless Sprayer, call SprayTECH:

Technical Service...................................1-800-292-4637

Fax ................................................1-800-525-9501

Replacing the PRIME/SPRAY Valve

Perform the following procedure using PRIME/SPRAY valve replacement kit P/N 0507690.

1. Drive the groove pin out of the valve handle.

2. Remove the valve handle and the cam base.

3. Using a wrench, loosen and remove the valve housing assembly.

4. Make sure the gasket is in place and thread the new valve housing assembly into the filter block. Tighten securely with a wrench.

5. Place the cam base over the valve housing assembly. Lubricate the cam base with grease and line up the cam with the filter block using the dowel pin.

6. Line up the hole on the valve stem with the hole in the valve handle.

7. Insert the groove pin into the valve handle and through the valve stem to secure the valve handle in position.

Dowel Pin

Gasket

Valve Housing

Assembly

Cam Base

Filter Housing

Do not attempt to clean the tip with your finger. Do not use a needle or other sharp pointed instrument to

clean the tip. The hard tungsten carbide is brittle and can be chipped.

Valve

Handle

Valve Stem

Groove Pin

Replacing the Filters

Pump Filter

1. Loosen and remove the filter body by hand.

2. Slip the filter off of the core spring.

3. Inspect the filter. Based on inspection, clean or replace the filter.

4. Inspect the o-ring. Based on inspection, clean or replace the o-ring.

5. Slide the new or cleaned filter over the core spring. Push the filter into the center of the filter housing.

6. Slide the filter body over the filter and thread it into the filter housing until secure.

NOTE: The filter body

should be handtightened, but make sure it is seated fully into the filter housing.

Gun Filter

1. Pull the trigger guard forward so that it comes loose from the handle.

2. Unscrew the handle from the housing and remove the old filter.

3. Slide the new filter, taper end first, into the gun housing.

4. Replace the handle, washer and spring. Screw the handle into the housing until handtight. Replace the trigger guard.

Choosing the Correct Spray Gun Filter

Use the proper gun filter based on the type of material being applied as shown below.

Part no. Application Filter

0089960 Synthetic resin,

0089959 Base coat enamels,

0089958 Emulsions,

0089957 Filler paints,

enamels, clean varnishes, stains azures

primer enamels, fillers, marking paints, textured enamels

latex paints, acrylic paints

large area surfaces

NOTE: For more detail, part number information, and

assembly drawings at larger scale, please see the G-10 2-Finger/4-Finger Airless Spray Gun Owner's Manuals (P/N 0297076 or P/N 0508832).

type

Extrafine 0.084 mm red

Fine 0.140 mm yellow

Medium 0.315 mm white

Coarse 0.560 mm green

Filter Body

Filter

Core

Spring

O-ring

Filter

Housing

Mesh number

Gun Housing

Filter

Handle

Color of Filter body

Replacing the Motor Assembly

1. Perform the Pressure Relief Procedure and unplug the unit.

2. For Upright cart units, remove the return hose from the clamp on the siphon tube. Unscrew the siphon tube from the inlet valve housing.

3. For Low Boy cart units, remove the retaining ring from the bottom of the inlet valve housing using a snap ring pliers. Remove the suction set assembly.

4. Loosen and remove the high-pressure hose from the nipple on the back of the fluid section and from the bottom of the filter assembly.

5. Loosen and remove the six front cover screws. Remove the front cover.

6. Loosen and remove the three motor shroud screws. Remove the motor shroud.

7. Slide the baffle off of the end of the motor.

NOTE: Before removing the baffle, note the location of

Front Cover

8. Loosen and remove the four pressure control assembly

9. At the pressure control assembly:

10. Set aside the pressure control assembly.

11. Loosen and remove the two filter assembly screws. Lift

12. Loosen and remove the transducer from the filter housing.

13. Loosen and remove the two filter bracket screws.

14. Loosen and remove the four pump mounting screws. Lift

the baffle on the motor so it can be positioned in the same spot during reassembly.

Motor Shroud

Motor Shroud Screw

Filter

Assembly

Tr ansducer

Gear Box

Housing

Baffle

Front Cover Screw

Pressure Control Assembly

Pressure Control Assembly Screw

Filter

Adapter Plate

Bracket

Filter

Assembly

Screw

Filter

Bracket

Screw

Cart

Pump Mounting Screw

screws. Carefully pull the pressure control assembly off of the gear box housing.

a. Disconnect the red wire and black wire coming from the

motor.

b. Disconnect the phone jack-style connector on the black

wire coming from the transducer.

the filter assembly off of the filter bracket.

Do not pull the transducer wire out of the gear box housing.

Remove the filter bracket from the adapter plate.

the pump off of the cart and place face down on a work bench.

+ 17 hidden pages
