MANOMETERS
840080, 840081, 840082,
840083 and 840085
INSTRUCTION MANUAL
Page 2
CONTENTS
Title Page
1. Introduction .......................................................................... 2
2. Panel Description ................................................................. 3
3. Instructions
3-A. General Instructions .................................................. 3-4
3-B. Zero Setting .............................................................. 4
3-C. Calibration ................................................................. 4-5
3-D. Auto Power Off .......................................................... 5
3-E. Battery Replacement ................................................ 5
3-F. USB Output ............................................................... 5
3-G. Optional Accessories ................................................ 5
3-H. Screen Examples ...................................................... 6
3-I. Troubleshooting ........................................................ 6
4. Specifications
4-A. Model Range and Resolution .................................. 7
4-B. General Specifications ............................................. 7
4-C. Calibration Reference Point ...................................... 7
5. Warranty ............................................................................. 8
1. INTRODUCTION
Ideal for measuring low differential pressure in clean rooms, test and
balance, medical equipment, HVAC, pneumatic systems and computer
peripherals. Model 840085 reads gauge pressure and differential pressure
(Imperial and Metric) in 5 units of measure: bar, psi, inH
mbar. All other models have 11 units of measure: bar, mmHg, ozin
psi, inH
O, kPa, ftH2O, inHg, cmH2O, and mbar. Features include a large
2
O, mmH2O, and
2
2
, kgcm2,
backlight display, max-min, hold, and auto power off functions. The USB
port enables communication with a computer. High accuracy of ±0.3% fs at
25ºC, repeatability: ±0.2% (max ±0.5%) FSO, and combined linearity and
hysteresis: ±0.2 (Max ±1.0%) FSO.
CAUTION: During the Zero Setting (page 4). Make sure the tube is
disconnected and do not apply pressure to the connector. Doing so can
cause permanent damage to the unit, which is not covered by the warranty.
2
Page 3

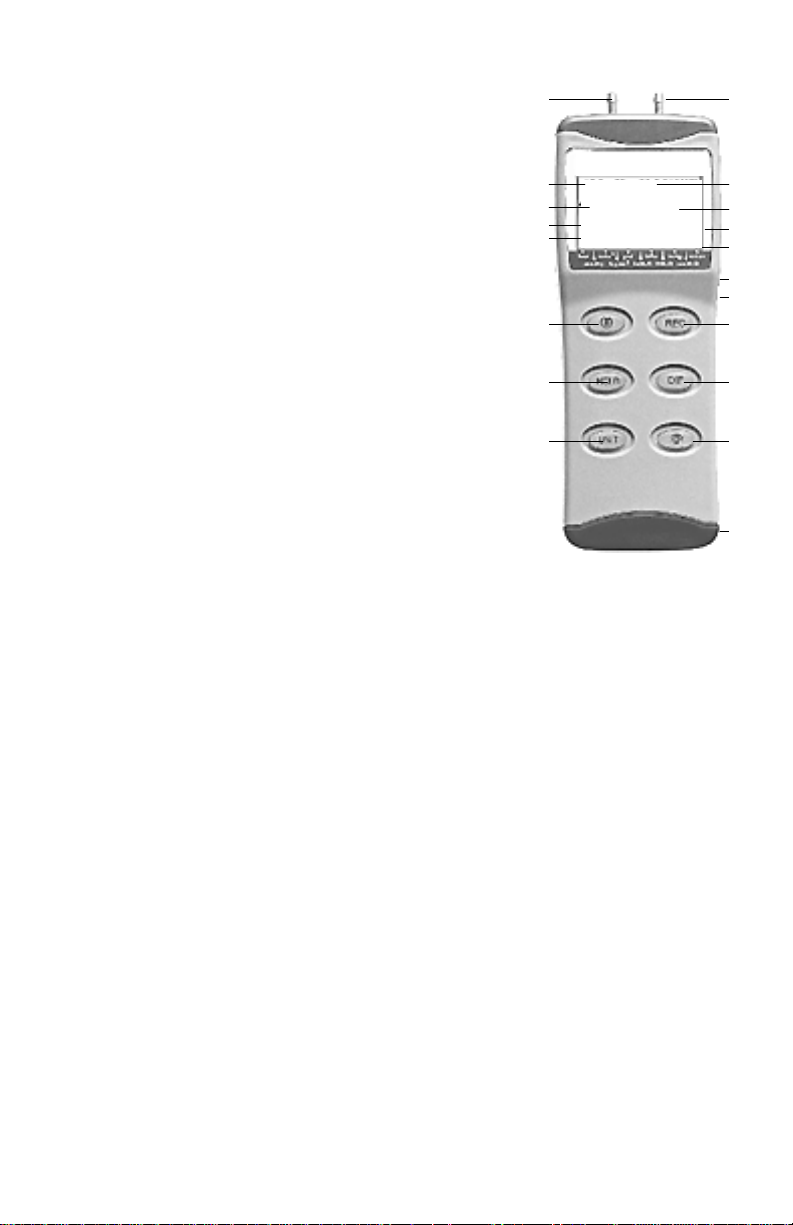

2. PANEL DESCRIPTION (Fig. A)
1. "-" Negative pressure hose plug.
2. HOLD Freezes pressure reading.
3. "-" Minus pressure display.
4. REC starts/displays max/min pressure.
5. MAX MIN pressure recorded.
6. BAT Low Battery Indicator
7. On/Off button
8. Hold button freezes pressure reading.
9. Unit button cycles through pressure readings.
10. "+" Positive pressure hose plug.
11. DIF Differential pressure mode.
12. Primary Data Screen.
13. H/M/S 88:88:88 Hr/Min/Sec.
14. Pressure unit indicator.
5/6
1
2
3
4
7
8
9
HOLD DIF
-8.8.8.8
REC H/M/S
MAX MIN BAT
88:88:88
15. USB output port.
16. DC power input for AC adapter.
17. Rec button starts the relative clock.
18. Dif button displays relative zero.
19. Backlight button lights LCD for apx. 30 seconds.
20. Battery Compartment.
NOTE: Some functions shown on the display are not available.
3. INSTRUCTIONS
3-A. General Instructions
The Manometer measures “Gauge Pressure.” This combines Differential
pressure with a PSI measurement as referenced to ambient pressure. When
the manometer is first powered on, the entire LCD display flashes for
approximately 3 seconds. The LCD is divided into two distinct sections: One
large (Primary) top screen and one smaller section at the bottom-right of the
LCD (Relative Clock). The pressure measurements are constantly updated in
the 2 display areas. Check that the tubing is not leaking or damaged before
use. The start-up mode is programmable. The display will default to the mode
last used and the meter defaults to the setting used during the last operation.
Turn the unit on with the ON/OFF button.
Press the REC button once, and the relative clock starts in the lower right
screen. "REC" is displayed in the middle-left of the LCD (Pg 6, Fig B). The
DIF button will not operate at this time.
Press the REC button repeatedly to cycle through MAX (Pg 6, Fig C) and
MIN (Pg 6, Fig D) and back to the current pressure. To exit the record
mode, press and hold the REC button for 3 seconds.
10
11
12
13
14
15
16
17
18
19
20
3
Page 4
Press HOLD to freeze the pressure reading (Pg 6, Fig E). Press the
HOLD button again to release this setting.
Press the DIF button and "DIF" appears near the top of the LCD and the
display indicates the relative zero. Only the amount of the pressure
change will be indicated (Pg 6, Fig F). Press the DIF button again and
the unit returns to the normal mode.
Press the UNIT button repeatedly to cycle through the units of measure
indicated below the LCD display (Pg 6, Fig G and H)
Press the Backlight button and the LCD illuminates for approx. 30
seconds then turns off automatically.
Note: Differential Pressure is a measure of the difference between two
pressures, for example, use differential pressure sensor to measure gauge
pressure by leaving one process connection open to atmosphere and
connecting the second sensor port to your system.
3-B. Zero Setting
Do not apply pressure to the connector and disconnect the tube. Failure to
follow this procedure can cause damage and void the warranty. To set the
display to zero, turn the unit on and press the HOLD button for 2 seconds.
The LCD displays "o o o o" one at a time, from left to right. Next, the LCD
clears and displays a zero setting (Pg 6, Fig I).
3-C. Calibration
The meter is factory calibrated. Annual recalibration at a qualified meter
calibration facility is recommended. The following information is for the
calibration technician:
Use a standard manometer calibrator to calibrate this unit. Refer to the
Calibration Point Reference chart on page 7. The examples are for model
number 840083, with a pressure range from 0 to +100 PSI (positive pressure)
or from 0 to -100 PSI (Negative pressure). The meter must be attached to a
pressure source between 75.0 and 85.0.
Turn ON the unit (Make sure the manometer is in PSI mode)
Hold button for zero calibration.
Set the calibrator to 80.00 PSI.
Check manometer readings if it is not within specs (enter positive calibra-
tion mode by pressing POWER and REC buttons simultaneously).
80.00 PSI should be displayed on the LCD of the manometer and the
calibrator should have the same value.
Press the REC button to save the calibration point.
Press the UNIT button to return to normal mode and check readings
again compared the calibrator.
Turn OFF the manometer.
4
Page 5
Negative calibration.
Connect tube to the negative pressure connector.
Turn ON the manometer.
Hold button for ZERO calibration.
Set the calibrator to 80.00 PSI.
Check manometer readings. If it is not within specs, enter the calibration
mode by pressing POWER and REC buttons simultaneously.
Press UNIT button to enter negative calibration mode.
Press REC button to save calibration point.
Check the readings against the calibrator. Readings should be -80.00 PSI.
Turn OFF the manometer.
Calibration is complete.
Note: If you can not save by pressing the REC button, check that the
calibration pressure source is between 75.0 and 85.0; and that you entered the
correct positive pressure (+) or negative pressure (-).
3-D. Auto Power Off
This unit has a built-in Auto Power Off function to prolong battery life. The
meter will power off automatically if no buttons are pressed within 20 minutes.
To deactivate this feature, press On and Hold simultaneously before powering on the unit. The symbol "n" will appear in the middle of the screen, at which
time you can release the Hold button.
3-E. Battery Replacement
When the "BAT" icon appears on the right side of the LCD, open the battery
cover, install a fresh 9V battery and replace the cover. Remove the battery
during prolonged periods of non-use.
3-F. USB Output
The unit features a USB output via which can be utilized by user's specific
application. Connection procedures:
Connect the optional USB cable to the USB output port.
Plug the other end of the USB cable into computer's COM 1 or 2 port.
Install the optional USB Software according to the procedures in the soft-
ware package. Additional instructions are found in a separate Adobe PDF
file in the software. Be sure to set the baud rate to 2400.
3-G. Optional Accessories
~ 840027 AC Adaptor ~ 840089 Rubber Holster
~ 840054 USB Cable ~ 840090 Water Resistant Instrument Pouch
~ 840052 Software
5
Page 6
3-H. Screen Examples
Fig. B Fig. C Fig. D
14.3
REC H/M/S
▼
11.3
REC H/M/S
Min ▼
15.3
REC H/M/S
MAX ▼
Fig. E Fig. F Fig. G
HOLD
8.3
▼
DIF
0.0
▼
Fig. H Fig. I Fig. J
14.3
▼
_
0.0
▼
80.0
▼
CA
3-I. Troubleshooting
If the power is on, but there is no display, replace the battery or attach the
optional AC adaptor. Check that the tubing is tightly connected.
Error Code Action
BAT
Err.1
Err.2
Err.3
Replace the battery.
The pressure value exceeds the maximum range.
Measurement pressure is less than minimum range.
While in the DIF function, the differential pressure value is larger
than maximum display digit.
Err.4
During Zero Setting, make sure the tubing is disconnected with
no pressure applied to the connector. If you still receive this
error message after disconnecting the tubing, the sensor or
meter may be damaged.
E10L or
E2UL
While using the USB software, the pressure source is less than,
or over the range of the instrument.
NOTE: Exceeding maximum pressure will cause permanent sensor damage.
Before you connect the instruments to a pressure source, carefully check your
fittings and hoses.
6
Page 7
4. SPECIFICATIONS
4-A. Model Range and Resolution
Model
PSI: 2 0.004 5 0.003 15 0.01 30 0.02 100 0.1
inH²0: 55.4 0.01 138 0.1 415 0.3 830 0.5 2768 2
bar: 0.138 0.001 0.345 0.001 1.03 0.001 2.07 0.002 6.89 0.001
mbar: 138 0.1 345 0.2 1034 1 2068 2 6895 1
cmH²0:
(840085 is
in mmH20)
mmHg:
ozin²: 80 0.05 240 0.2 480 0.3 1600 1
kgcm²: 0.35 0.001 1.05 0.001 2.1 0.002 7.03 0.001
kPa: 34.5 0.02 183 0.1 207 0.2 684 0.1
ftH²O: 11.5 0.01 34.6 0.02 69.2 0.04 231 0.1
inHg: 10.2 0.007 30.54 0.02 61.08 0.04 203.6 0.1
max pres: 20 PSI 20 PSI 30 PSI 60 PSI 150 PSI
840085 840080 840081 840082 840083
Range Res Range Res Range Res Range Res Range Res
1410 0.01 352 0.2 1050 1 2110 2 7030 1
259 0.2 776 0.5 1550 1 5170 1
Not Applicable
4-B. General Specifications
Dimension 7 1/8” x 2 3/4” x 1” (182 x 72 x 30 mm)
Weight 5 oz (150 g)
PSI Range 0 ~ 2, 15, 30, or 100
Accuracy ±0.3% of full scale at ±25°C
Response time 0.5 seconds
Format Baud Rate : 2400 bit/sec, Data Bit : 8,
Stop Bit : 1 P XXXXX , P - XXXXX (unit)
Storage temperature range -4~140°F (-20 ~ 60°C)
Operating Humidity Max. 80% RH
Operating temperature 32 ~ 122°F (0 ~ 50°C)
Power One 9.0 volt battery or AC Adaptor
4-C. Calibration Point Reference
Model PSI Range Calibration Recommended
840085 0 ~ ±2 1.6 1.5 ~ 1.7
840080 0 ~ ±5 4.000 3.900 ~ 4.100
840081 0 ~ ±15 12.00 11.70 ~ 12.30
840082 0 ~ ±30 24.00 23.40 ~ 24.60
840083 0 ~ ±100 80.00 78.00 ~ 82.00
7
Page 8
5. WARRANTY
1 YEAR METER WARRANTY
Sper Scientific warrants this product against defects in materials and workmanship for a period of one (1) year from the date of purchase, and agrees to
repair or replace any defective unit without charge. If your model has since
been discontinued, an equivalent Sper Scientific product will be substituted if
available. This warranty does not cover probes, batteries, or damage resulting
from accident, misuse, or abuse of the product. In order to obtain warranty
service, simply ship the unit postage prepaid to:
SPER SCIENTIFIC LTD.
7720 East Redfield, Suite 7
Scottsdale, Arizona 85260
(480) 948-4448
Email: info@sperscientific.com
Website: www.sperscientific.com
Be sure to include your name, address, phone number, and a detailed
explanation of why you are returning the item.
Rev. 3/4/2010
8
Loading...
