SRS4210 INSTRUCTION MANUAL
SRS4210 BEDIENUNGSANLEITUNG
MANUEL D’UTILISATION SRS4210
MANUALE DI ISTRUZIONI SRS4210
NOTICE
All instructions, warranties and other collateral documents are subject to
change at the sole discretion of Horizon Hobby, Inc. For up-to-date product
literature, visit horizonhobby.com and click on the support tab for this
product.
MEANING OF SPECIAL LANGUAGE
The following terms are used throughout the product literature to indicate
various levels of potential harm when operating this product:
NOTICE: Procedures, which if not properly followed, create a possibility
of physical property damage AND a little or no possibility of injury.
CAUTION: Procedures, which if not properly followed, create the probability
of physical property damage AND a possibility of serious injury.
WARNING: Procedures, which if not properly followed, create the probability
of property damage, collateral damage, and serious injury OR create a high
probability of superficial injury.
Age Recommendation: Not for children under 14 years. This is not a toy.
WARNING: Read the ENTIRE instruction manual to become
familiar with the features of the product before operating. Failure to
operate the product correctly can result in damage to the product,
personal property and cause serious injury.
This is a sophisticated hobby product. It must be operated with caution
and common sense and requires some basic mechanical ability. Failure
to operate this Product in a safe and responsible manner could result in
injury or damage to the product or other property. This product is not intended for use by children without direct adult supervision. Do not attempt
disassembly, use with incompatible components or augment product in
any way without the approval of Horizon Hobby, Inc. This manual contains
instructions for safety, operation and maintenance. It is essential to
read and follow all the instructions and warnings in the manual, prior
to assembly, setup or use, in order to operate correctly and avoid
damage or serious injury.
WARNING AGAINST COUNTERFEIT PRODUCTS
Always purchase from a Horizon Hobby, Inc. authorized dealer to ensure
authentic high-quality Spektrum product. Horizon Hobby, Inc. disclaims all
support and warranty with regards, but not limited to, compatibility and
performance of counterfeit products or products claiming compatibility
with DSM or Spektrum.
NOTICE: This product is only intended for use with unmanned,
hobby-grade, remote-controlled vehicles and aircraft. Horizon Hobby
disclaims all liability outside of the intended purpose and will not
provide warranty service related thereto.
Warranty Registration
Visit www.spektrumrc.com/registration today to register your product.
WATERPROOF COMPONENT
Your new Spektrum™ receiver has been designed and built to allow you
to operate your vehicle in many wet conditions, including puddles, creeks,
wet grass, snow and even rain.
While waterproof, this component has not been designed to be immersed in
water for long periods of time and should NOT be treated like a submarine.
In addition, most metal parts, including any screws and nuts, as well as the
contacts in the electrical cables, will be susceptible to corrosion if additional
maintenance is not performed after running in wet conditions.
To maximize the long-term performance of your receiver and to keep the
warranty intact, it should only be used as described in the “Usage Conditions”
section of this manual. Additionally, the procedures described in the “Wet
Conditions Maintenance” section must be performed regularly if you choose
to run in wet conditions. If you are not willing to perform the additional care
and maintenance required, then you should not operate your vehicle in those
conditions.
CAUTION: Failure to exercise caution while using this product and
comply with the following precautions could result in product malfunction
and/or void the warranty.
General Precautions
Read through the wet conditions maintenance procedures and make sure
that you have all the tools you will need to properly maintain your receiver.
Do not operate your receiver where it could come in contact with salt water
(ocean water or water on salt-covered roads), contaminated or polluted
water. Salt water is very conductive and highly corrosive, so use caution.
Usage Conditions
Your receiver will operate successfully in any of the following, individual-usage
scenarios:
•
2 hours continuous operation in dew-covered (damp) grass or vegetation.
•
2 hours continuous operation in heavy fog (95% humidity, saturated air,
condensing water).
•
1 hour continuous operation in light rain (< 0.10 in / 2.5mm per hour).
•
15 minutes continuous operation in heavy rain (> 0.30 in / 7.6mm per hour).
•
1 hour continuous operation in light sleet (< 0.10 in / 2.5mm per hour).
•
1 hour continuous operation in light snow (< 0.25 in / 6.35mm per hour).
•
45 minutes continuous operation in standing or running fresh water (the
water level should always remain below the vehicle frame), or constant
splashing water, without any immersion of waterproof component(s).
EN
3
EN
•
5 minutes continuous operation in standing or running fresh water (the water
level should never rise higher than 0.5 in (about 10 mm) above the vehicle
frame), constant splashing water, or frequent, intermittent immersion of
waterproof component(s).
•
1 hour continuous operation in damp sand, dirt, mud or snow (the material
level should always be below the vehicle frame), constant splatter without
any immersion or coverage of waterproof component(s).
Furthermore, when appropriate maintenance procedures (as described below)
are performed promptly following exposure, the receiver will remain best
protected from corrosion or other long-term, water-related damage.
Wet Conditions Maintenance
•
Gently rinse the mud and dirt off the vehicle with a garden hose.
•
Remove the battery pack(s) and dry the contacts.
•
If you have an air compressor or a can of compressed air available,
blow off the receiver to help remove any water that may have gotten
into small crevices or corners. Dry any water that may be inside a
recessed connector housing.
•
Let the receiver air dry before you store it. Water may continue to seep
or evaporate out of tight areas for a few hours.
NOTICE: Never use a pressure washer to clean your vehicle.
NOTICE: The receiver is waterproofed for use in wet conditions. Make sure
the other components in your vehicle are waterproof or water-resistant
before driving in wet conditions.
AVC – ACTIVE VEHICLE CONTROL
AVC™ technology is the newest Spektrum™ RC innovation from Horizon
Hobby. This Spektrum stabilization system adds a whole new level of control
to your RC driving experience. AVC technology utilizes sensors to adjust
steering and throttle output, providing you with a more stable and
controlled driving experience.
NOTICE: You must use digital servos with the SR4210 receiver.
Using analog servos will reduce the performance of the system
and may cause analog servos to overheat.
4
SRS4210 INSTRUCTION MANUAL
The Spektrum™ SRS4210 DSMR™ Surface receiver is
compatible with all Spektrum DSMR transmitters and is also
backwards compatible with DSM2® transmitters. The SRS4210
receiver is NOT compatible with DSM® transmitters. For a complete
list of compatible transmitters, see the SRS4210 product page
on spektrumrc.com.

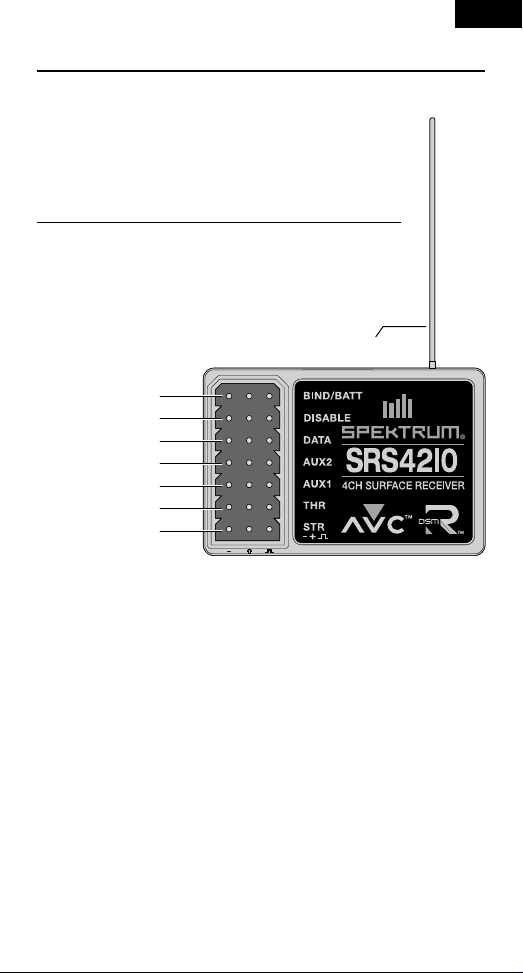

Specifications
Type: DSMR
Dimensions (LxWxH):
1.43 x 0.96 x 0.51 in
(36.3 x 24.4 x 13.0mm)
Channels:
2, 4 with AVC disabled
Bind/Battery Port
Disable Port
Data Port
Aux 2 Port
Aux 1 Port
Throttle Port
Steering Port
Aux channels
The Aux channels can operate as additional servo channels, or as a
power supply for a personal transponder. If AVC is active, only two channels,
Steering and Throttle, are operational. The Aux channels can be used to
power a personal transponder or lights.
If AVC is disabled (see DISABLING THE STABILITY ASSIST FUNCTION
to disable AVC), the Aux channels will operate as servo channels.
Weight: 10.9 g (0.39 oz)
Band: 2.4GHz
Voltage Range:
3.5–9.6V
Antenna
EN
5
EN
Receiver Connection and Installation
You must install the receiver in the vehicle before binding the transmitter
and receiver. The receiver can be mounted flat with the label up or on its
side. When you bind the receiver, the AVC system automatically detects the
orientation of the receiver. The receiver must be mounted completely flat
when in the label-up orientation or completely perpendicular when
mounted on its side. If the receiver is angled even slightly,
AVC may not function properly. If the orientation of the
receiver is changed after binding, you must then
rebind for AVC to fuction properly.
Install the Receiver in your vehicle using the included double-sided foam
servo tape. Foam servo tape will hold the receiver in place and help isolate
it from vibrations.
IMPORTANT: Do not use hook & loop material to install the SRS4210 receiver.
Using hook & loop material will affect the performance of the AVC system.
Mount the antenna up and away from the vehicle in an antenna tube.
The higher up the antenna is, the better signal it will receive.
NOTICE: Do not cut or modify the antenna.
Failsafe
In the unlikely event that the radio link is lost during use, the receiver will drive
the throttle channel to the neutral position. If the receiver is powered on prior
to turning on the transmitter, the receiver will enter the failsafe mode, driving
the throttle channel to the neutral position. When the transmitter is turned on,
normal control is resumed.
IMPORTANT: Failsafe activates only in the event that signal is lost from the
transmitter. Failsafe will NOT activate in the event that receiver battery power
decreases below the recommended minimums or power to the receiver is lost.
6

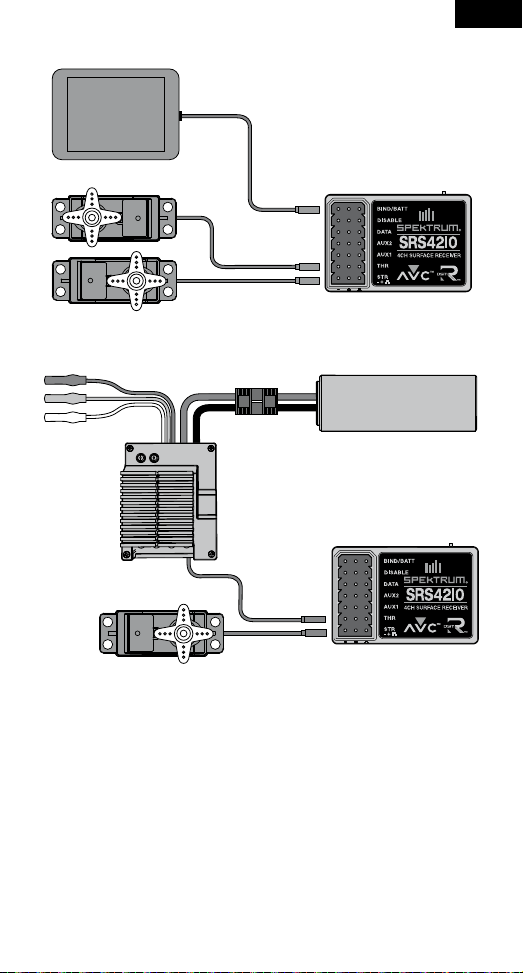

Powering the receiver with a separate receiver pack
Battery
EN
Throttle Servo
Steering Servo
Receiver
Powering the receiver with an ESC
Battery
To Motor
Steering
Servo
IMPORTANT: If you adjust the steering and throttle trim on your transmitter,
the receiver must be turned off and back on again in order to save the new
trim settings. Otherwise, AVC will not function properly.
Electronic
Speed
Control
Receiver
7
EN
Binding Receiver to Transmitter
In order to operate, the receiver must be bound to the transmitter. Binding
is the process of programming the receiver to recognize the GUID (Globally
Unique Identifier) code of a single specific transmitter. When areceiver is
bound to atransmitter/model memory, the receiver will only respond to
that specific transmitter/model memory.
Binding and Calibrating the Receiver
You must calibrate the receiver each time it is placed in bind mode.
IMPORTANT: The following sequence of steps must be followed in order
for AVC to function properly.
1. Insert the Bind Plug in the BIND port on the receiver.
2. Power on the receiver. The orange LED flashes, indicating the receiver
is in bind mode.
3. Center the ST TRIM and TH TRIM on the transmitter.
4. Put your transmitter in bind mode.
5. The bind process is complete when the orange LED on the receiver
is solid.
6. Pull the transmitter trigger to Full Throttle.
7. Push the transmitter trigger to Full Brake, then return the trigger to center.
8. Turn the transmitter steering wheel to Full Right.
9. Turn the transmitter steering wheel to Full Left, then return the steering
wheel to center. The orange LED flashes once.
10. Remove the bind plug once the calibration and binding process
is complete.
11. Power off the transmitter.
IMPORTANT: You must rebind the transmitter and receiver if you:
•
Change the servo reverse after binding
•
Change the travel after binding
•
Want to use the receiver with a different model memory
If you change the servo reversing or travel adjust after binding, AVC will not
work properly.
Disabling the Stability Assist Function
If you participate in organized racing, you may be required to turn AVC
technology off. To turn off AVC technology, insert a second Bind Plug
in the Disable port before binding.
IMPORTANT: You must calibrate the receiver each time it is placed in
bind mode. To activate AVC, see the steps in BINDING AND CALIBRATING
THE RECEIVER.
8
2.4GHZ TROUBLESHOOTING GUIDE
Problem Possible Cause Solution
The system will
not connect
The receiver
goes into failsafe mode a
short distance
away from the
transmitter
The receiver
stops responding during
operation
The front wheels
oscillate
The front wheels
turn the wrong
way when the
car slides/
rotates
The throttle
does not reduce
when the car
slides/rotates
Your transmitter and
receiver are too close
together
You are around metal
objects
The receiver is not
bound to the active
model memory
Your transmitter was
accidentally put into
bind mode and is no
longer bound to your
receiver
Check the receiver
antenna to be
sure it is not cut
or damaged
Inadequate battery
voltage
Loose or damaged
wires or connectors
between battery and
receiver
The steering gain
is set too high
The steering channel
was reversed after
calibration
The throttle channel
was reversed after
calibration
Move transmitter 1 to 3 meters
from receiver
Move to an area with less metal
Check model selected and
ensure you are bound to that
model
Rebind your transmitter
and receiver
Replace the receiver or contact
Horizon Product Support
Make sure your receiver antenna
is in an antenna tube and is
above the vehicle
Charge or replace the receiver
batteries. Spektrum receivers
require at least 3.5V to operate
(We recommend using a 6V
receiver pack). An inadequate
power supply can allow voltage
to momentarily drop below 3.5V
and cause the receiver to brown
out and reconnect
Check the wires and
connection between the battery
and receiver. Repair or replace
wires and/or connectors
Turn down the steering gain
Rebind and calibrate
Rebind and calibrate
EN
9
EN
1-YEAR LIMITED WARRANTY
What this Warranty Covers
Horizon Hobby, Inc., (Horizon) warrants to the original purchaser that the
product purchased (the “Product”) will be free from defects in materials and
workmanship for a period of 1 years from the date of purchase.
What is Not Covered
This warranty is not transferable and does not cover (i) cosmetic damage, (ii)
damage due to acts of God, accident, misuse, abuse, negligence, commercial
use, or due to improper use, installation, operation or maintenance, (iii) modification of or to any part of the Product, (iv) attempted service by anyone other
than a Horizon Hobby authorized service center, (v) Product not purchased
from an authorized Horizon dealer, or (vi) Product not compliant with applicable
technical regulations.
OTHER THAN THE EXPRESS WARRANTY ABOVE, HORIZON MAKES NO OTHER
WARRANTY OR REPRESENTATION, AND HEREBY DISCLAIMS ANY AND ALL
IMPLIED WARRANTIES, INCLUDING, WITHOUT LIMITATION, THE IMPLIED WARRANTIES OF NON-INFRINGEMENT, MERCHANTABILITY AND FITNESS FOR A
PARTICULAR PURPOSE. THE PURCHASER ACKNOWLEDGES THAT THEY ALONE
HAVE DETERMINED THAT THE PRODUCT WILL SUITABLY MEET THE REQUIREMENTS OF THE PURCHASER’S INTENDED USE.
Purchaser’s Remedy
Horizon’s sole obligation and purchaser’s sole and exclusive remedy shall be
that Horizon will, at its option, either (i) service, or (ii) replace, any Product
determined by Horizon to be defective. Horizon reserves the right to inspect
any and all Product(s) involved in a warranty claim. Service or replacement
decisions are at the sole discretion of Horizon. Proof of purchase is required for
all warranty claims. SERVICE OR REPLACEMENT AS PROVIDED UNDER THIS
WARRANTY IS THE PURCHASER’S SOLE AND EXCLUSIVE REMEDY.
Limitation of Liability
HORIZON SHALL NOT BE LIABLE FOR SPECIAL, INDIRECT, INCIDENTAL OR
CONSEQUENTIAL DAMAGES, LOSS OF PROFITS OR PRODUCTION OR COMMERCIAL LOSS IN ANY WAY, REGARDLESS OF WHETHER SUCH CLAIM IS
BASED IN CONTRACT, WARRANTY, TORT, NEGLIGENCE, STRICT LIABILITY OR
ANY OTHER THEORY OF LIABILITY, EVEN IF HORIZON HAS BEEN ADVISED OF
THE POSSIBILITY OF SUCH DAMAGES. Further, in no event shall the liability of
Horizon exceed the individual price of the Product on which liability is asserted.
As Horizon has no control over use, setup, final assembly, modification or
misuse, no liability shall be assumed nor accepted for any resulting damage
or injury. By the act of use, setup or assembly, the user accepts all resulting
liability. If you as the purchaser or user are not prepared to accept the liability
associated with the use of the Product, purchaser is advised to return the
Product immediately in new and unused condition to the place of purchase.
Law
These terms are governed by Illinois law (without regard to conflict of law
principals).This warranty gives you specific legal rights, and you may also
have other rights which vary from state to state. Horizon reserves the
right to change or modify this warranty at any time without notice.
WARRANTY SERVICES
Questions, Assistance, and Services
Your local hobby store and/or place of purchase cannot provide warranty
support or service. Once assembly, setup or use of the Product has been
started, you must contact your local distributor or Horizon directly. This will
enable Horizon to better answer your questions and service you in the event
that you may need any assistance. For questions or assistance, please visit
our website at www.horizonhobby.com, submit a Product Support Inquiry,
or call the toll free telephone number referenced in the Warranty and Service
Contact Information section to speak with a Product Support representative.
Inspection or Services
If this Product needs to be inspected or serviced and is compliant in
the country you live and use the Product in, please use the Horizon Online
Service Request submission process found on our website or call Horizon to
obtain a Return Merchandise Authorization (RMA) number. Pack the Product
securely using a shipping carton. Please note that original boxes may be
included, but are not designed to withstand the rigors of shipping without
additional protection. Ship via a carrier that provides tracking and insurance for
lost or damaged parcels, as Horizon is not responsible for merchandise until it
arrives and is accepted at our facility. An Online Service Request is available at
http://www.horizonhobby.com/content/_service-center_render-service-center.
If you do not have internet access, please contact Horizon Product Support
to obtain a RMA number along with instructions for submitting your product
for service. When calling Horizon, you will be asked to provide your complete
name, street address, email address and phone number where you can be
reached during business hours. When sending product into Horizon, please
include your RMA number, a list of the included items, and a brief summary
of the problem. A copy of your original sales receipt must be included for
warranty consideration. Be sure your name, address, and RMA number
are clearly written on the outside of the shipping carton.
EN
NOTICE: Do not ship LiPo batteries to Horizon. If you have any
issue with a LiPo battery, please contact the appropriate Horizon
Product Support office.
Warranty Requirements
For Warranty consideration, you must include your original sales
receipt verifying the proof-of-purchase date. Provided warranty condi-
tions have been met, your Product will be serviced or replaced free of charge.
Service or replacement decisions are at the sole discretion of Horizon.
Non-Warranty Service
Should your service not be covered by warranty, service will be
completed and payment will be required without notification or
estimate of the expense unless the expense exceeds 50% of the
retail purchase cost. By submitting the item for service you are agreeing
to payment of the service without notification. Service estimates are available
upon request. You must include this request with your item submitted for
service. Non-warranty service estimates will be billed a minimum of
11
EN
½ hour of labor. In addition you will be billed for return freight. Horizon accepts
money orders and cashier’s checks, as well as Visa, MasterCard, American
Express, and Discover cards. By submitting any item to Horizon for service,
you are agreeing to Horizon’s Terms and Conditions found on our website
http://www.horizonhobby.com/content/_service-center_render-service-center.
ATTENTION: Horizon service is limited to Product compliant in
the country of use and ownership. If received, a non-compliant
Product will not be serviced. Further, the sender will be responsible
for arranging return shipment of the un-serviced Product, through
a carrier of the sender’s choice and at the sender’s expense.
Horizon will hold non-compliant Product for a period of 60
days from notification, after which it will be discarded.
Warranty and Service Contact Information
Address
4105 Fieldstone Rd
Champaign, Illinois, 61822
USA
Units 1–4, Ployters Rd
Staple Tye, Harlow, Essex
CM18 7NS
United Kingdom
Christian-Junge-Straße 1
25337 Elmshorn, Germany
11 Rue Georges Charpak
77127 Lieusaint, France
Room 506, No. 97
Changshou Rd.
Shanghai, China 200060
Information
servicecenter.horizonhobby.com/
RequestForm/
www.quickbase.com/db/
Horizon Hobby Contact
Horizon Service Center
(Repairs and Repair Requests)
Horizon Product Support
Country of
Purchase
United States
of America
bghj7ey8c?a=GenNewRecord
888-959-2306
888-959-2306
sales@horizonhobby.co.uk
(Product Technical Assistance)
Sales sales@horizonhobby.com
Service/Parts/Sales:
United
+44 (0) 1279 641 097
Horizon Hobby Limited
Kingdom
+49 (0) 4121 2655 100
infofrance@horizonhobby.com
Sales: Horizon Hobby GmbH
Germany Horizon Technischer Service service@horizonhobby.de
France Service/Parts/Sales:
+33 (0) 1 60 18 34 90
info@horizonhobby.com.cn
+86 (021) 5180 9868
Horizon Hobby SAS
Horizon Hobby – China
China Service/Parts/Sales:
COMPLIANCE INFORMATION
FOR THE EUROPEAN UNION
Declaration of Conformity
(in accordance with ISO/IEC 17050-1)
No. HH2014022001
Product(s): SRS4210 DSMR AVC Surface Receiver
Item Number(s): SPMSRS4210
Equipment class: 1
The object of declaration described above is in conformity with
the requirements of the specifications listed below, following
the provisions of the European R&TTE directive 1999/5/EC:
EN 301 489-1 V1.9.2: 2012
EN 301 489-17 V2.1.1: 2009
Signed for and on behalf of:
Horizon Hobby, Inc.
Champaign, IL USA
Feb. 20, 2014
Instructions for Disposal of WEEE
by Users in the European Union
This product must not be disposed of with other waste. Instead, it is the
user’sresponsibility to dispose of their waste equipment by handing it over to
adesignated collection point for the recycling of waste electrical and electronic
equipment. The separate collection and recycling of your waste equipment at
the time of disposal will help to conserve natural resources and ensure that
it is recycled in amanner that protects human health and the environment.
For more information about where you can drop off your waste equipment for
recycling, please contact your local city office, your household waste disposal
service or where you purchased the product.
Robert Peak
Chief Financial Officer
Horizon Hobby, Inc.
EN
13
Loading...
