OPERATING & MAINTENANCE INSTRUCTIONS
U.S. Patents: 6,863,116, 9,259,769
Page 2
Thank you for purchasing this SpeedClean Mini-Split Bib® Kit & Mini-Split Bib® XL. We
appreciate your business and look forward to serving you in the future. As with all
Mini-Split Bib Kits
SpeedClean products, you can be assured that the finest quality components and
workmanship have gone into this unit.
Please take a few minutes to read the following Operating and Maintenance Instructions.
Please pay particular attention to the safety instructions and exercise caution when using
this product.
Mini-Split Bib Kits
Setup Instructions .................................................................................................................... 2
Maintenance and Storage .................................................................................................... 3
Limited Warranty ..................................................................................................................... 4
Mini-Split Bib Kits
1

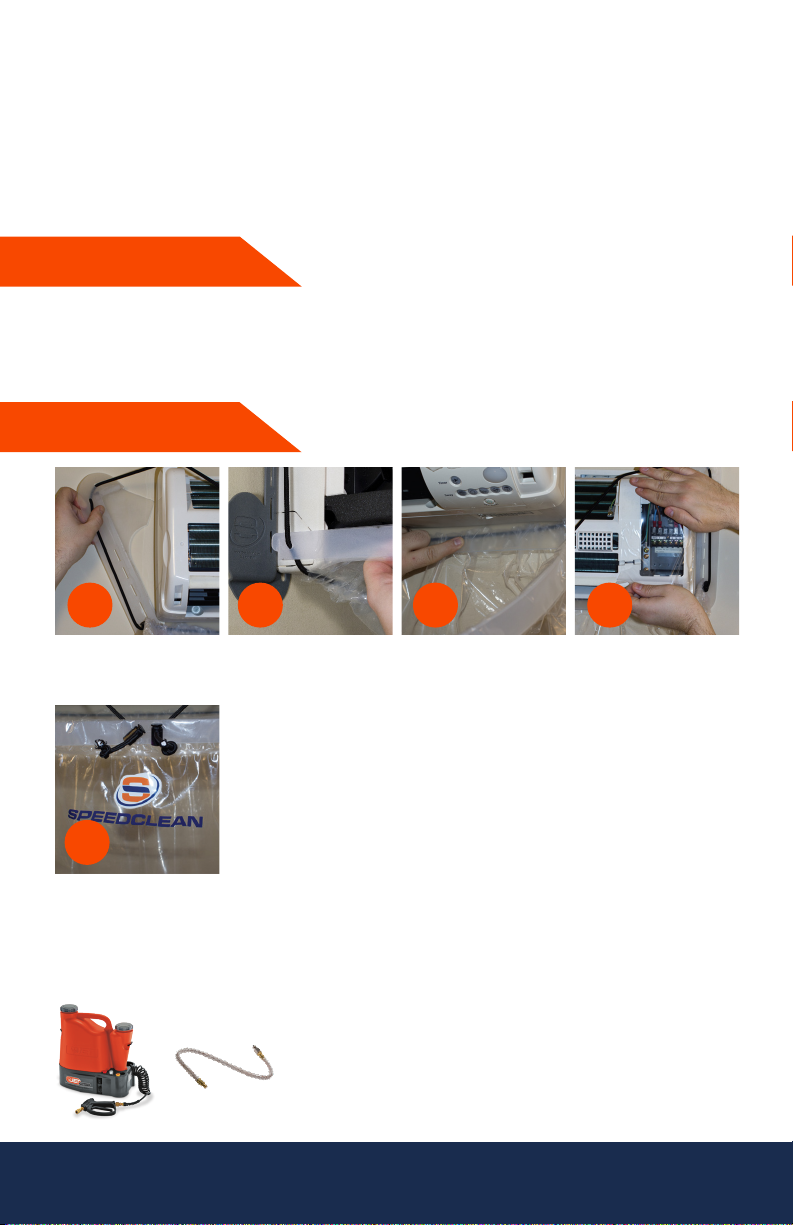

Slide bracket between wall
and corner on each side
of unit.
Hook the support rib into
each bracket.
Table of Contents
Setup Instructions
2
Slide deflector plate
between wall and bottom
of unit. Tuck plastic bib
behind deflector plate.
3
4
Cover exposed components
wth included adhesive wrap.
CAUTION
1. Disconnect power from unit.
2. Make sure the assembly is secure and the adjustable cord is tight.
There should be no slack in the adjustable cord.
3. While cleaning keep an eye on the water level in the 5 gallon
bucket so that it does not get too high and overflow.
5
Tighten bib kit by pulling on
adjustable cord. Place
end of bib hose in 5 gallon
bucket and start cleaning!
Prior to cleaning mini-split systems, please read all manufacturer’s directions for maintenance and
apply any cleaners per their specifically supplied directions.
4. Make sure the water is draining into the 5 gallon bucket properly;
any kinks in the bib hose should be addressed.
5. Dry and store Mini-Split Bib in bucket.
6. Use drop cloth under the cleaning area.
For best results, use with these products:
+
2
Mini -Split Bib K it & XL Operating and Maintenance Manual
The CoilJet® Coil Cleaner and CoilJet 0° flexible wand are
ideal for use with the Mini-Split Bib Kit. Wand is available in 12”
(8945-0-DEG-FW12) and 24” (8945-0-DEG-FLEX).
Page 3
Mini-Split Bib Kits
Parts List

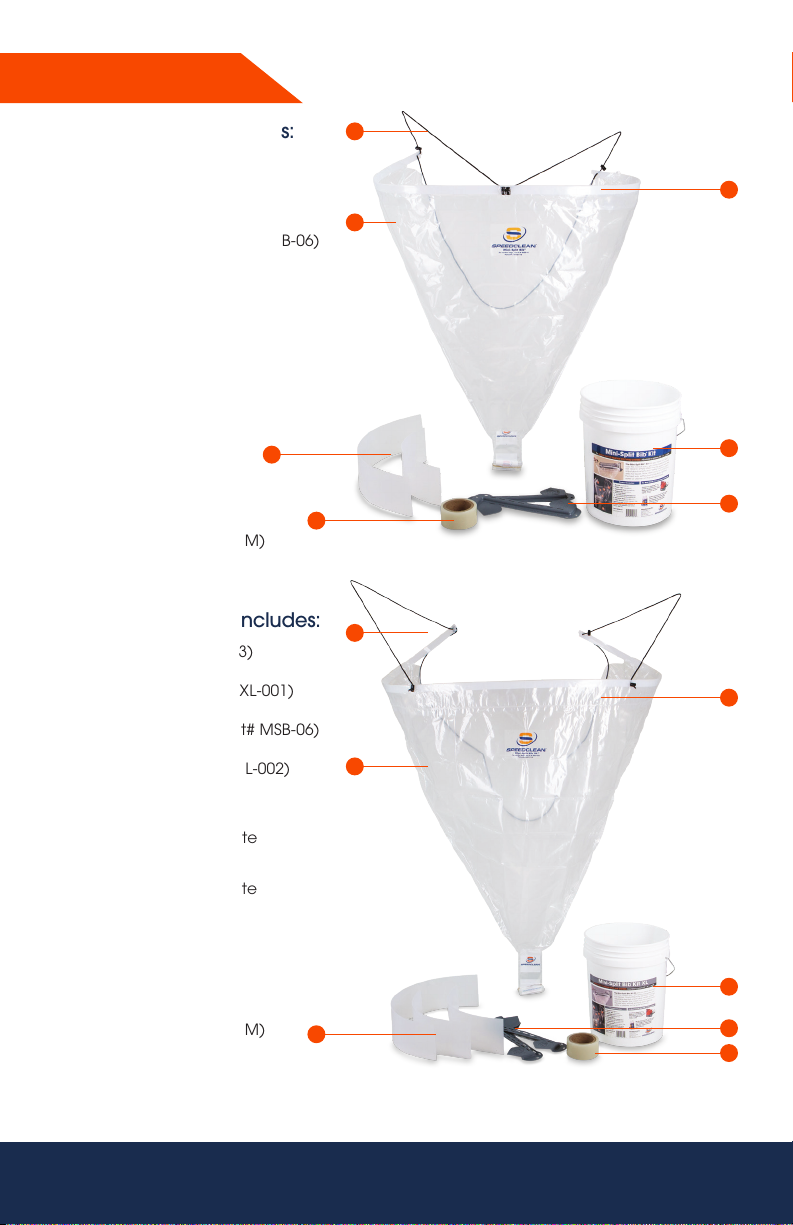

Mini-Split Bib® Kit Includes:
1. Bracket (Part# MSB-03)
2. Plastic “Bib” (Part# MSB-01)
3. Adjustable Cord (Part# MSB-06)
4. Support Rib (Part# MSB-02)
5. Deflector Plates
a. Short Deflector Plate
(Part# MSB-05-01)
b. Long Deflector Plate
(Part# MSB-05-02)
6. Adhesive Wrap
5
(Part# MSB-07-01)
7. 5 Gallon Bucket
6
(Part# BV-5-Bucket-70M)
Mini-Split Bib® Kit XL Includes:
1. Bracket (Part# MSB-03)
2. Plastic “Bib” (Part # BXL-001)
3. Adjustable Cord (Part# MSB-06)
3
4
2
7
1
Application Range: Up to 36” wide
3
4
4. Support Rib (Part # BXL-002)
5. Deflector Plates
a. Short Deflector Plate
(Part# MSB-05-01)
b. Long Deflector Plate
(Part# MSB-05-02)
6. Adhesive Wrap
(Part# MSB-07-01)
7. 5 Gallon Bucket
(Part# BV-5-Bucket-70M)
© 2018 All Rights Reser ved.
2
7
5
1
6
Application Range: 36” to 60” wide
3
Page 4
Mini-Split Bib Kits
Limited Warranty
SpeedClean warrants that this item is free from defects in material and workmanship.
SpeedClean, under this warranty, will repair or replace any parts that prove, upon
examination, to be defective. This warranty is valid for 30 days from date of purchase by
original purchaser. This warranty excludes unusual wear, abuse, unreasonable use, or damage
resulting from an accident.
For warranty information DO NOT contact the place of purchase. To obtain warranty service, a
proof of purchase is required. Contact SpeedClean Customer Service at (888) 700-3540.
PO Box 110301
Stamford, CT 06911-0301
(888) 700-3540
www.speedclean.com
SpeedyFoam
SpeedClean is a registered trademark of Crossford International.
SpeedClean reserves the right to improve products; contact the
factory for the latest configuration and uses.
®
CoilJet
®
CoilShot
®
P/N: MNL-M SB 0 818
