MODEL CJ-125
CoilJet Portable HVAC Coil Cleaning System
OPERATING AND MAINTENANCE
INSTRUCTIONS
CJ-125 Manual |
©2014 All Rights Reserved |
4/2014 |
Table of Contents |
|
Warranty.......................................................................................................................... |
2 |
Important Safety Instructions ....................................................................................... |
3 |
Assembly .......................................................................................................................... |
4 |
Parts Breakdown........................................................................................................ |
4 - 5 |
Operating Instructions ................................................................................................... |
6 |
Pre-Operation Checklist ................................................................................................. |
6 |
Charging the Battery ...................................................................................................... |
6 |
Changing the Battery ..................................................................................................... |
6 |
Normal Coil Cleaning Operation ................................................................................... |
6 |
Chemical Dilution Ratios............................................................................................... |
7 |
General Maintenance and Storage ................................................................................ |
7 |
Troubleshooting............................................................................................................... |
8 |

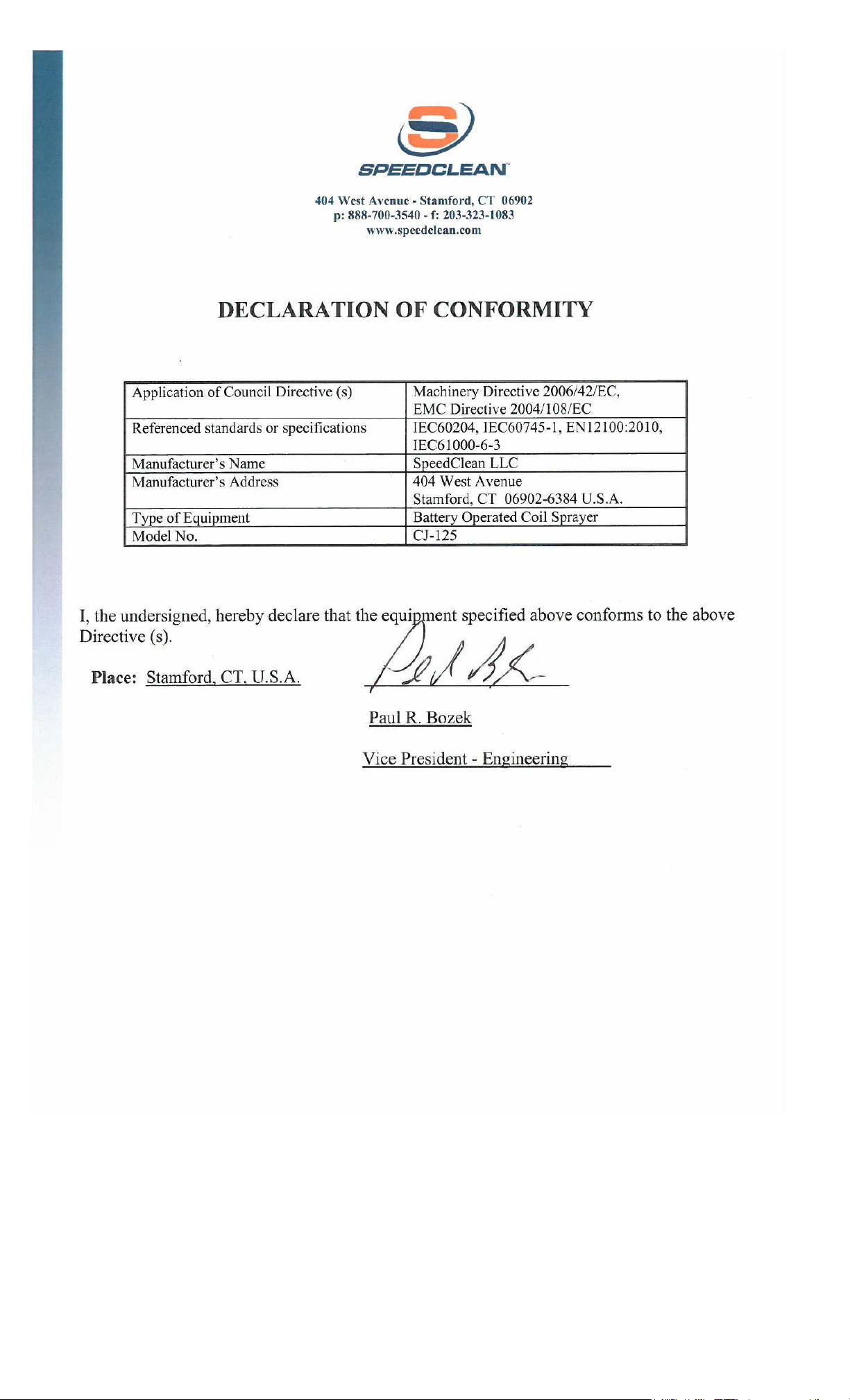

Declartion of Conformity………………………………………………………………9 español…………………………………………………………………….……………10
Warranty
This unit has been carefully tested and inspected at the factory and is warranted to be free from defects in material or workmanship. The company will, under this warranty, repair or replace any parts which prove, upon examination, to be defective. This warranty is valid for one year from date of purchase by original purchaser.
This warranty excludes accessories, unusual wear, abuse, damage resulting from accident, or unreasonable use of this machine. It is recommended that any repair be done by SpeedClean as improperly performed repairs will void the warranty.
For repairs or warranty information DO NOT contact the place of purchase. Call SpeedClean directly at the phone number below.
This warranty gives you specific legal rights and you may have other rights which vary from state to state.
To obtain warranty service, a proof of purchase is required and the unit must be returned freight prepaid. For repair or warranty information, contact SpeedClean Customer Service at:
404 West Avenue
Stamford, CT 06902
(888)700-3540
2
COILJET® is a registered trademark of Crossford International, LLC.
Important Safety Instructions
Read and understand all instructions before using the unit. Failure to follow all instructions listed below may result in electric shock, fire and/or serious personal injury.
SAVE THESE INSTRUCTIONS!!
Always check the unit, hoses, fittings, etc. before each use.
Do not fill with gasoline or any other flammable liquid. Do not operate in explosive atmospheres, such as in the presence of flammable liquids, gases or dust.
Make sure that there is adequate ventilation in the work area.
Stay alert, watch what you are doing and use common sense when operating this unit.
Keep bystanders, children, and visitors away while operating this unit.
Turn unit off and relieve pressure in the hose when done.
Do not use while tired or under the influence of drugs, alcohol, or medication.
Use only the supplied battery charger. Do not handle the charger with wet hands.
Do not use the unit while plugged into the battery charger.
Be careful – a fully filled unit is heavy!! Do not make any sudden movements when using this unit with the shoulder strap.
Do not overreach or stand on unstable support. Keep proper footing and balance at all times.
Wear rubber gloves, rubber boots, goggles or face-shield, etc. Detergents and chemicals may cause injuries to the eyes and skin. Protect yourself from direct skin contact with the chemicals and debris found in the coil cleaning environment.
Do not use any acid or cleaners that contain sodium or potassium hydroxide!! Call SpeedClean to check compatibility before using any chemical in the CoilJet®.
Do not mix chemicals!! Mixing incompatible chemicals may cause damage to the unit or cause dangerous, life-threatening chemical reactions.
Do not use the unit if it does not operate properly or has been damaged. Do not try to service the unit yourself - call SpeedClean for assistance. Service must be performed only by qualified repair personnel. Service performed by unqualified personnel could result in a risk of injury and voids the warranty.
Never point the spray gun at anyone. Do not direct stream at eyes or mouth.
Always turn machine off after use or when tank is empty. Running a water pump “dry” drains the battery and may cause damage.
Do not spray the unit with water or chemicals.
Do not allow the unit to freeze or leave in freezing temperatures.
Do not use water with a temperature of more than 140°F (60°C).
Use only approved accessories and replacement parts.
Follow maintenance procedures outlined in this manual.

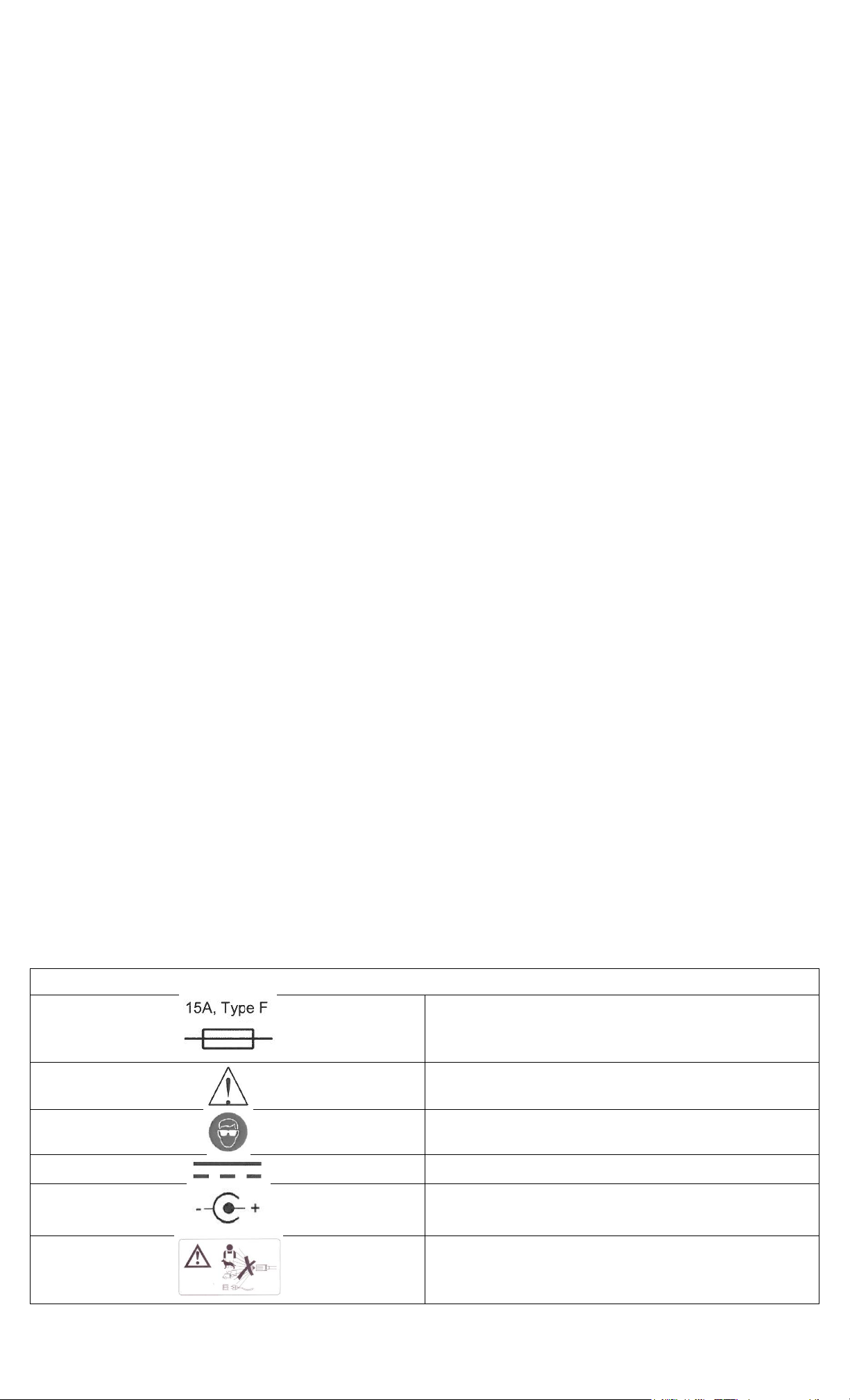

Guide to Graphical Symbols
Fuse; replace only with fuse of the same type and rating. (This is a 12V battery circuit using a Type F fuse rated 250V)
Read all instructions
Eye protection required
Direct Current (DC)
Charging Connector Polarity
High Pressure Output
Direct spray away from persons, pets equipment, and electrical outlets
3
Assembly
The CoilJet CJ-125 is shipped fully assembled. However, the battery leads need to be connected before first use. Open the battery door, remove the battery, and connect the leads – red wire to the positive terminal and black wire to the negative terminal.
Note: The battery should be fully charged before first use. When you first unpack the unit and connect the battery, plug the charger into a 120V AC outlet and charge the unit until the light on the battery charger is green.

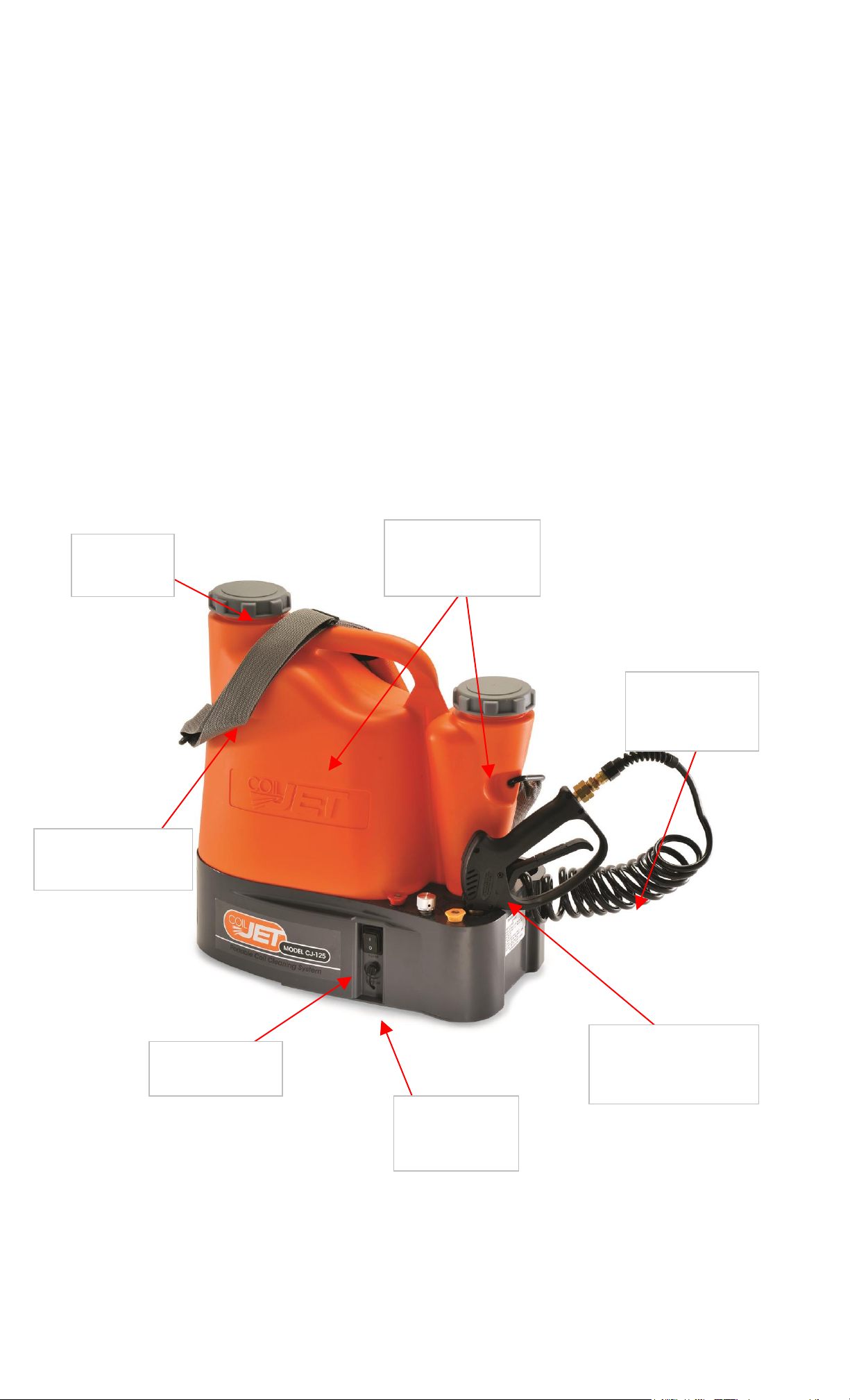

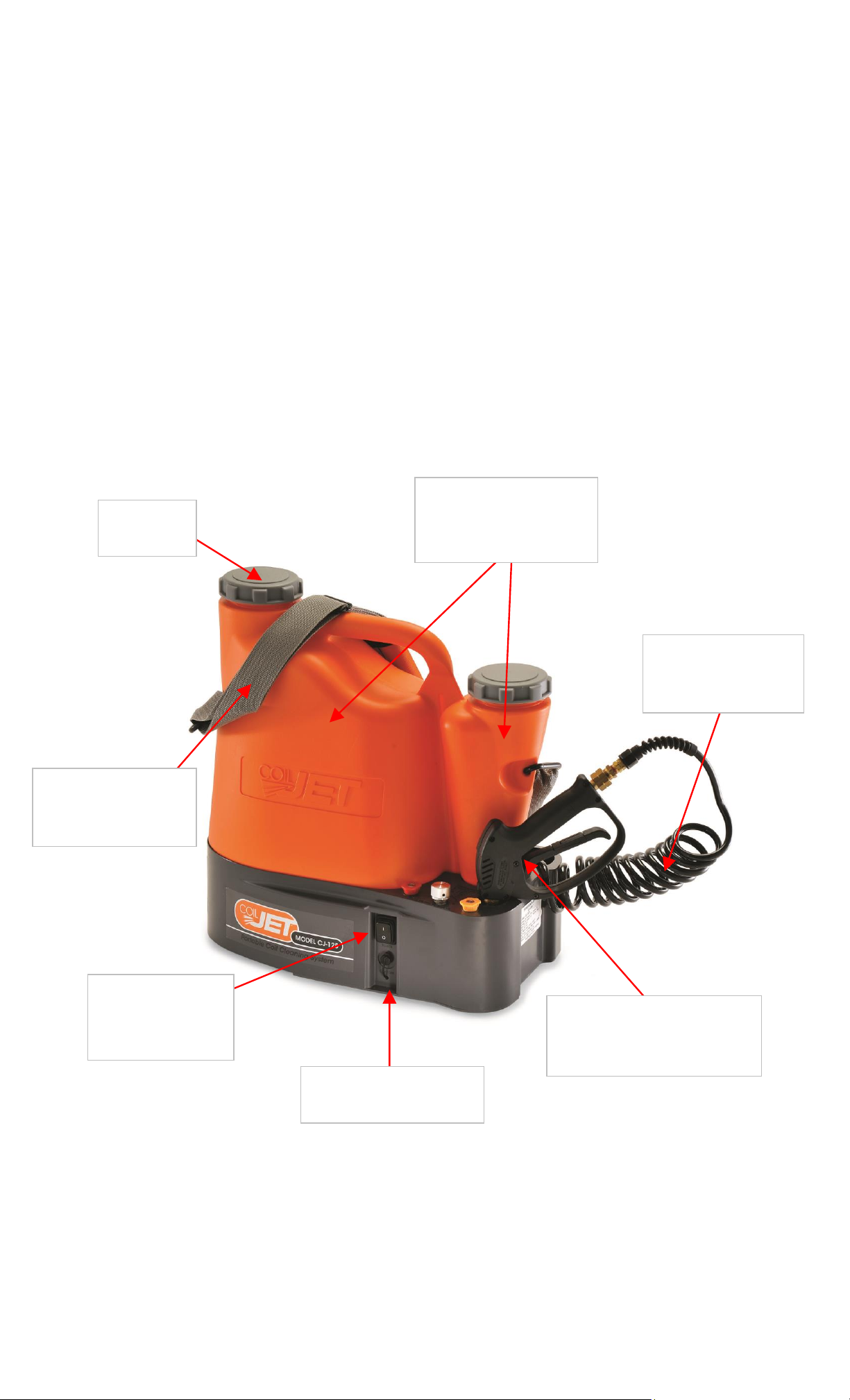

Parts Breakdown
9647-1-S
Cap
CJ2-14-S-ASSM
Shoulder Strap
CJ2-22
Power Switch
CJ2-01-S
Water/Chemical
Tank
8940
10 ft SelfCoiling Hose
8943-RB
Spray Gun with Quick Connect
Battery
Charging
Jack
4

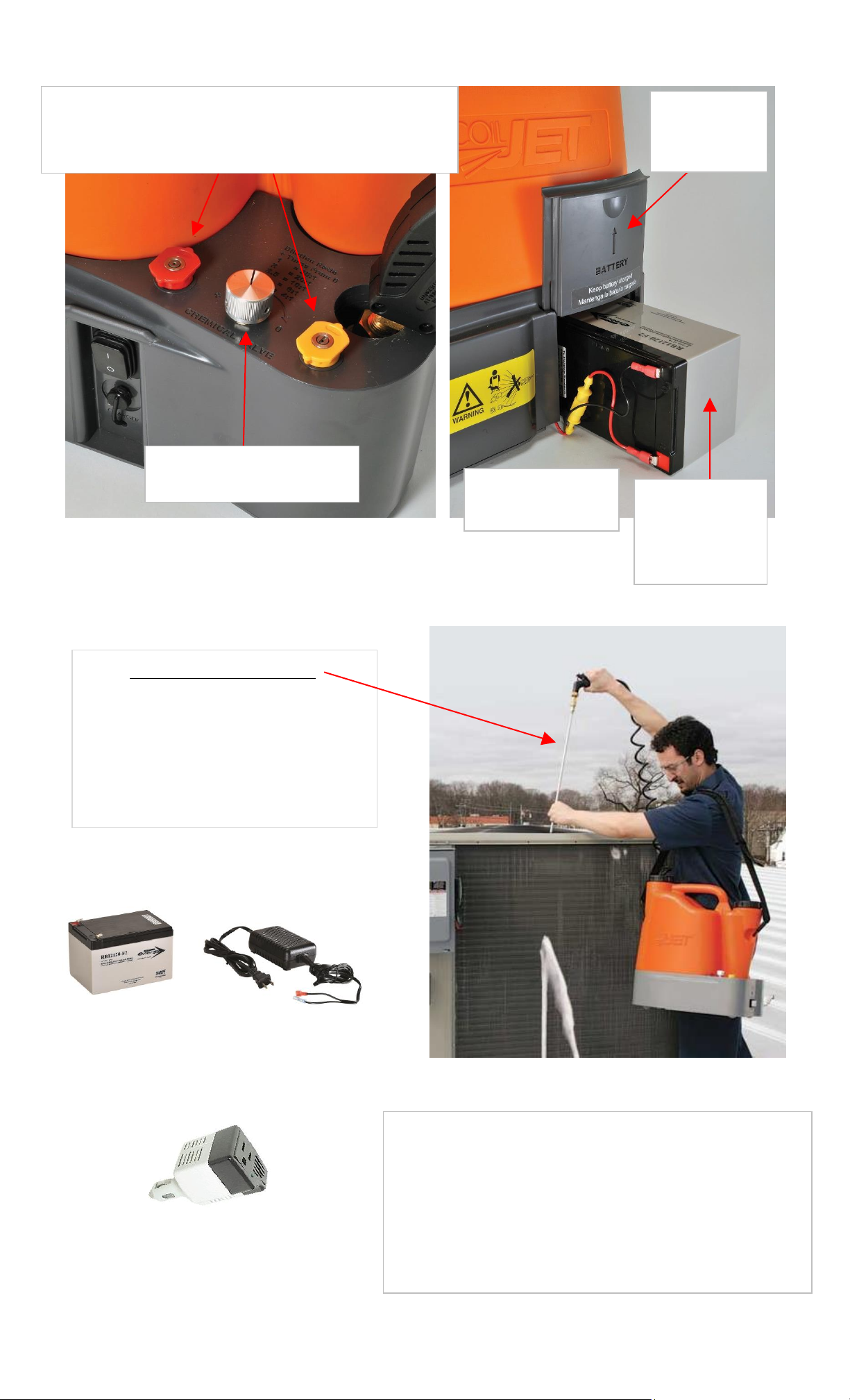

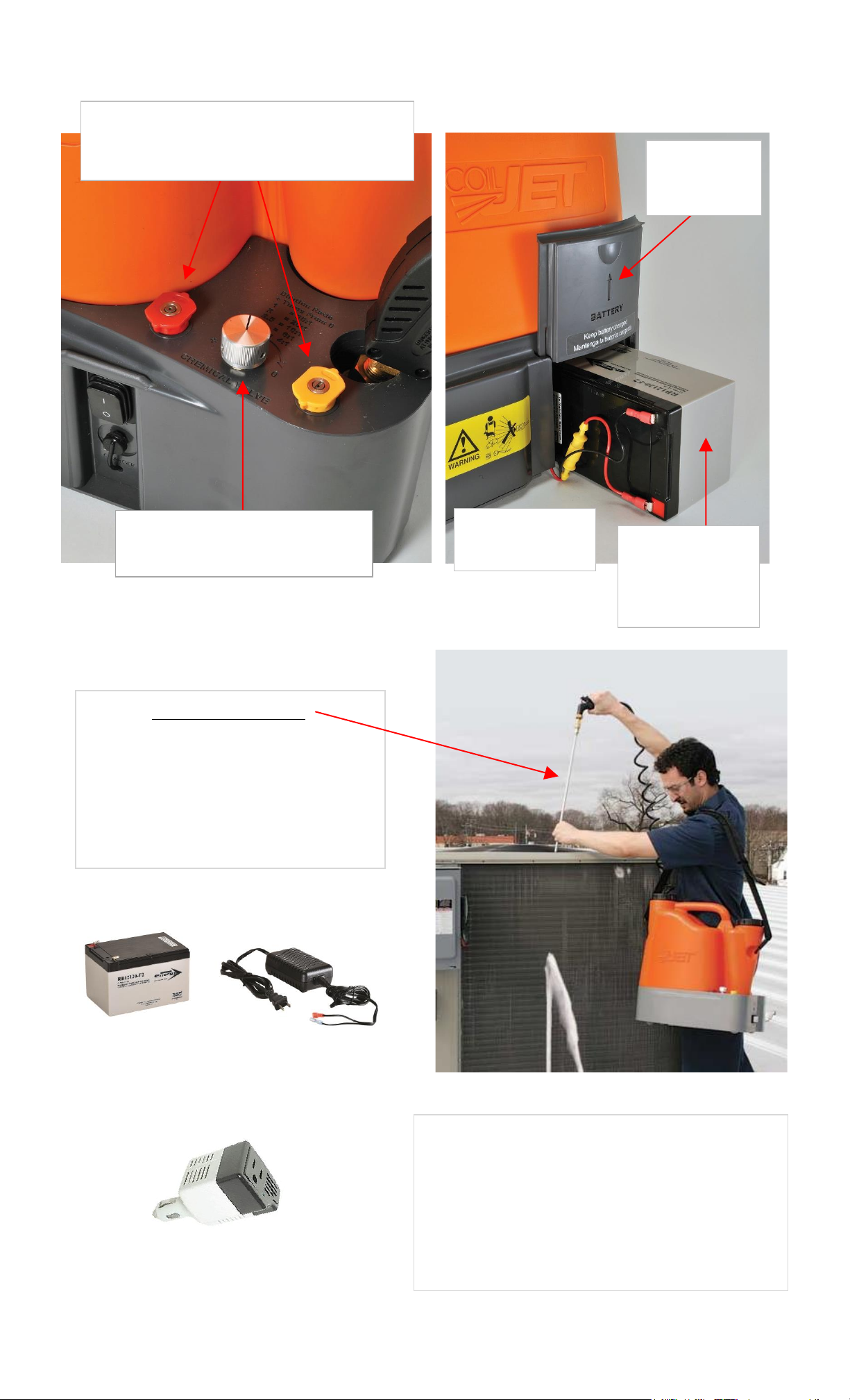

Parts Breakdown continued…
Spray Nozzles:
Red: Pinpoint Jet CJ-QDN-0004R
Yellow: 15° Rinsing CJ-QDN-1504Y CJ2-04-S
Battery
Door
|
|
|
Battery |
|
|
|
CJ2-VALVE-ASSEM |
|
|
|
|
|
CJ-9613 |
||||
|
Chemical Valve Assembly |
|
Compartment |
|
|
|
|
|
12V, 12 amp |
||
|
|
|
|
|
|
|
|
|
|
||
|
|
|
|
|
Rechargeable |
Common Optional Accessories |
|
|
Battery |
||
|
|
|
|||
|
|
|
|||
90º Spray Wands
8945-24 |
24” |
8945 |
36” |
8945-48 |
48” |
8945-60 |
60” |
8945-FLEX-24 |
Flexible 24” |
CJ125-KIT-SB
Battery and Charger Kit
|
|
*Not Shown |
|
|
|
CJ2-24 |
Battery Charger |
|
|
CJ2-06-S |
Motor/ Pump |
|
|
CJ2-07 |
Chemical Check Valve |
|
|
CJ2-07-1 |
Water Check Valve |
8944 12V Vehicle Adapter |
|
||
|
CJ2-17 |
15A Fuse |
|
for Battery Charger |
|
||
|
|
|
|
|
|
5 |
|
|
|
|
