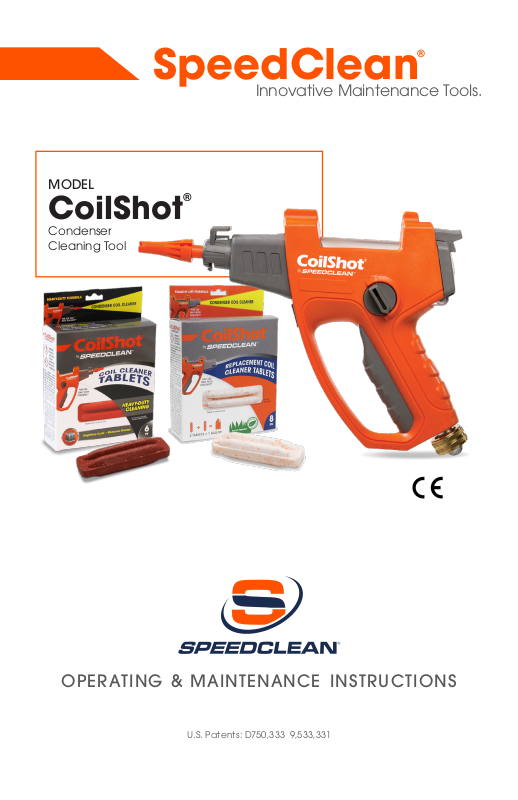

Page 1
SpeedClean
MODEL
CoilShot®
Condenser
Cleaning Tool
®
Innovative Maintenance Tools.
OPERATING & MAINTENANCE INSTRUCTIONS
U.S. Patents: D750,333 9,533,331
Page 2
Thank you for purchasing this SpeedClean Coilshot® Condenser Cleaning Tool. We
CoilShot
appreciate your business and look forward to serving you in the future. As with all
SpeedClean products, you can be assured that the finest quality components and
workmanship have gone into this unit.
Please take a few minutes to read the following Operating and Maintenance Instructions.
By carefully following these instructions, you will obtain years of trouble free service from
this product. Please pay particular attention to the safety instructions and exercise
caution when using this product.
®
CoilShot
Warranty ................................................................................................................................2
Features .................................................................................................................................3
Important Safety Instructions ................................................................................................3
Operating Instructions ..........................................................................................................4
Pre-Operation Checklist ...................................................................................................4
Normal Coil Cleaning Operation .....................................................................................4
Mixing Valve Chart ............................................................................................................5
General Maintenance and Storage ....................................................................................5
Troubleshooting .................................................................................................................5
Specifications ....................................................................................................................5
Spare Parts .............................................................................................................................6
Accessories ............................................................................................................................6
Coil Cleaner Tablets ..............................................................................................................7
CoilShot
This unit has been carefully tested and inspected and is warranted to be free from defects in
material or workmanship. The company will, under this warranty, repair or replace any parts
which prove, upon examination, to be defective. This warranty is valid 90 days from date of
purchase by original purchaser.
This warranty excludes accessories, unusual wear, abuse, damage resulting from an
accident, or unreasonable use of this machine. It is recommended that any repairs be done
by SpeedClean as improperly performed repairs will void the warranty.
For repairs or warranty information DO NOT contact the place of purchase. Call SpeedClean
Customer Service at (888) 700-3540.
To obtain warranty service a proof of purchase is required and the unit must be returned freight
prepaid. This warranty gives you specific legal rights, and you may also have other rights
which vary from state to state. SpeedClean reserves the right to improve products. Contact
the factory for the latest configuration and uses.
®
®
Table of Contents
Warranty
2
CoilShot® Operating and Maintenance Manual
Page 3
CoilShot
Introducing the future of coil cleaning! The new CoilShot® Condenser cleaning tool is
ergonomically designed for easy use, deep cleaning of coils and simple, quick attachment
to a standard garden hose. CoilShot uses a revolutionary tablet-based system that saves time
and helps complete tasks faster and more efficiently than bulky, heavy coil cleaners on the
market today. Simply attach to garden hose, insert tablet, then dial in your custom foaming
level to blast dirt and debris better than ever before.
®
Features
CoilShot
Read and understand all instructions before using the unit. Failure to follow all instructions listed
below may result in electric shock, fire and/or serious personal injury.
®
Important Safety Instructions
Save these Instructions!!
• Disconnect power from the unit being cleaned.
• Always check the unit, hoses, fittings, etc. before each use.
• Stay alert, watch what you are doing and use common sense when operating this unit.
• Keep bystanders, children, and visitors away while operating this unit.
• Turn water source off and relieve pressure in the hose when done.
• Do not use while tired or under the influence of drugs, alcohol, or medication.
• Do not overreach or stand on unstable support. Keep proper footing and balance at
all times.
• Wear rubber gloves, rubber boots, goggles or face-shield, etc. Detergents and
chemicals may cause injuries to the eyes and skin. Protect yourself from direct skin
contact with the chemicals and debris found in the coil cleaning environment.
• This unit is designed only for use with CoilShot® and CoilShot®-HD Tablets. Do not use with
any other chemicals.
• Do not use the unit if it does not operate properly or has been damaged. Do not try to
service the unit yourself — call SpeedClean for assistance. Service must be performed
only by qualified repair personnel. Service performed by unqualified personnel could
result in a risk of injury and voids the warranty.
• Never point the spray gun at anyone. Do not direct stream at eyes or mouth.
• Do not allow the unit to freeze or leave in freezing temperatures.
• Do not use water with a temperature of more than 100°F (38°C) or greater than 70 psi.
• For optimum performance, use a water source with 40-70 psi and 2.0-2.5 GPM.
• Use only approved accessories and replacement parts.
• Follow maintenance procedures outlined in this manual.
• Review the CoilShot and CoilShot-HD SDS before usage.
© 2018 All Rights Reserved.
3
Page 4
CoilShot
®
Operating Instructions
Pre-Operation Checklist
• Check spray nozzles and make sure orifice is not blocked or worn to excess.
• Check water hose for leaks or kinks.
• Check all connections, fittings, screws and fasteners.
• Check that there are enough tablets to completely clean all coils.

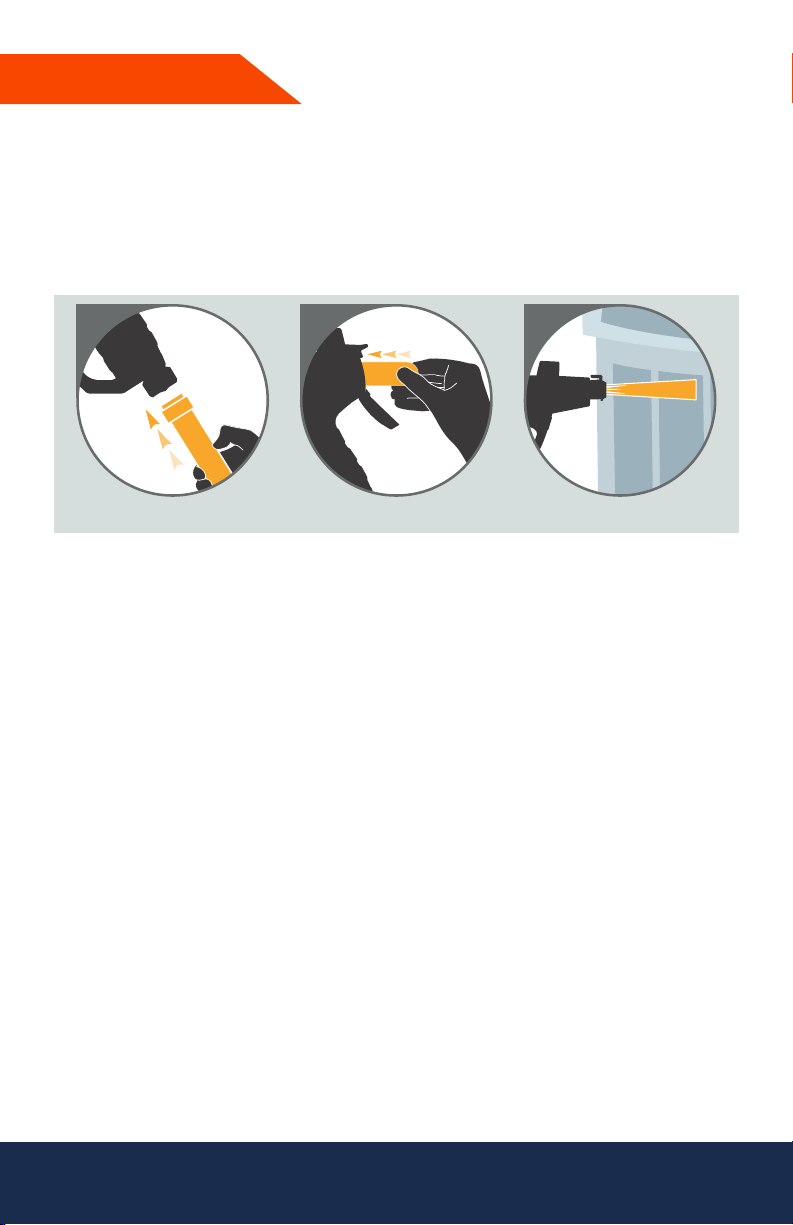

1
Attach hose
2
Insert tablet
3
Clean coils
Normal Coil Cleaning Operation
CAUTION: Turn off electrical power to unit being cleaned and wear appropriate P.P.E.
(Review the CoilShot and CoilShot-HD SDS before usage)
1. Connect a standard garden hose to the connection at the base of the gun. Note: Water
Pressure must be less than 70 psi and less than 100oF.
2. Install the nozzle at the tip of the gun, turn on the water source, squeeze the trigger and
pre-rinse the coil to be cleaned. Confirm that all of the connections are tight and that
there are no leaks.
3. Turn the water source off.
4. Insert the CoilShot® or CoilShot®-HD cleaning tablet into the back of the gun.
5. Make sure that the latch secures the door. Note: If using a new tablet from a sealed bag,
make sure to reseal the bag to ensure no moisture gets to unused tablets.
6. Adjust mixing valve to desired amount of chemical to be applied (see chart below).
7. Turn the water source back on. Confirm that all of the connections are still tight and that
there are no leaks.
8. Squeeze the trigger and spray the coil.
9. Turn off the water supply.
10. Allow chemical to dwell on the coil for 3-5 minutes.
11. Turn the water supply on.
12. Use tablet completely before rinsing.
13. Rinse the coil until the cleaner is removed.
14. Turn the water supply off and squeeze the trigger to release the pressure.
4
CoilShot® Operating and Maintenance Manual
Page 5

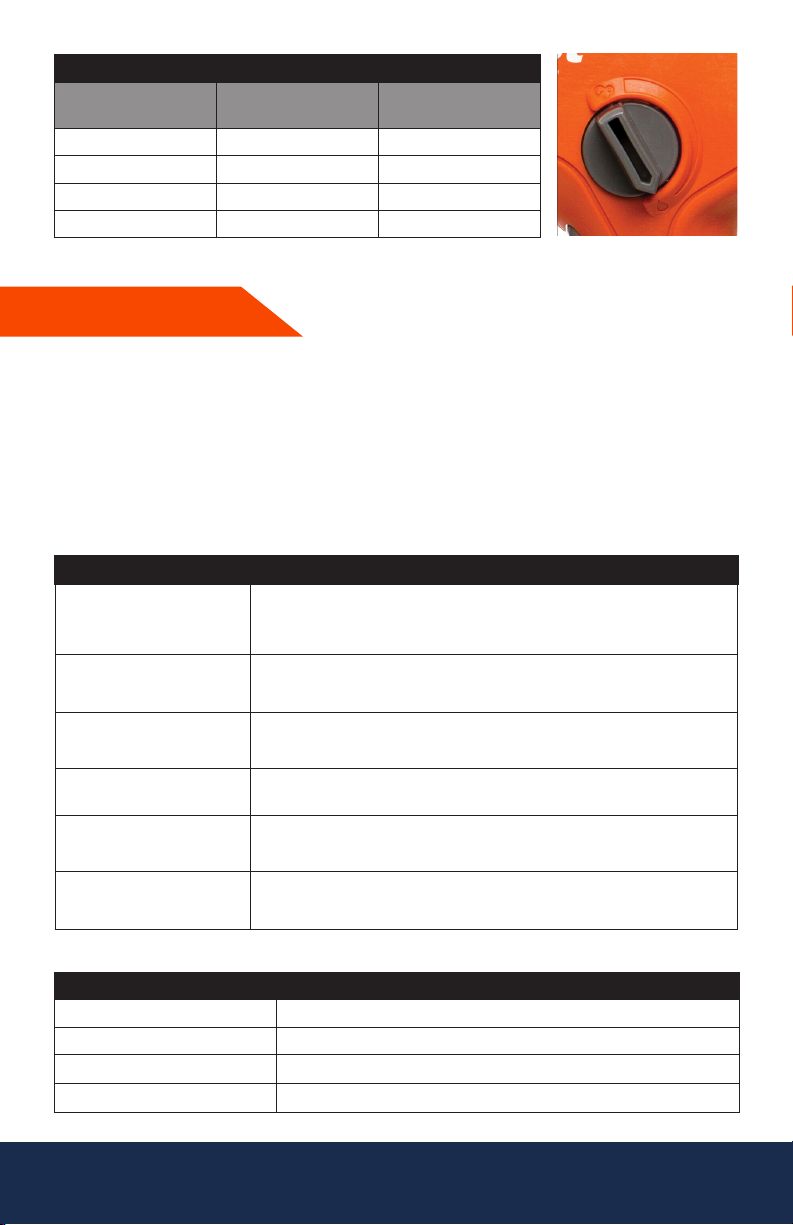

MIXING VALVE CHART
Dial Setting
Full Open 7 minutes 9 minutes
¾ 10 minutes 30 minutes
½ 14 minutes 45+ minutes
¼ 28 minutes 60+ minutes
Note: once the tablet comes in contact with the water, it will start to dissolve.
Estimated Dissolve
Time CoilShot
®
Estimated Dissolve
Time CoilShot®-HD
FULL OPEN
¾
½
¼
CoilShot
®
General Maintenance
and Storage
1. When done using the unit, run clean water through it to remove any chemical residue.
2. Protect unit from freezing temperatures. Do not store unit outdoors.
3. Before storing, remove all water from inside the gun. Do this by disconnecting the water
source, squeezing the trigger, and shaking the water out of it.
NOTE: When storing after use with CoilShot®-HD, rinse the gun with clean water for at least
2 minutes before storing.
Troubleshooting
ISSUE PROBABLE CAUSE
Water is not coming out • Make sure the garden hose is connected and water is turned on
Water is leaking from the
back of the gun
Water leaks from
the nozzle
Nozzle will not secure to
the tip of the gun
Chemical is not
coming out
Water leaks at the
hose connection
Specifications
COILSHOT
Maximum Input Pressure Up to 70 PSI @ 3.0 GPM
Hose Type Garden Hose
®
Dimensions 10” x 8” x 2.25”
Weight 1 lb.
and flows freely from the hose.
• Trigger is damaged and will not activate.
• O-ring in the door is broken or missing and needs to be replaced.
• Latch is broken or worn.
• The O-ring in the tip of the gun is broken and should be replaced.
• The trigger valve O-ring is damaged.
• The quick disconnect is worn and needs to be replaced.
• The mixing valve is closed and needs to be opened.
• The tablet has dissolved completely and needs to be replaced.
• The hose connector is damaged.
• The water seal is damaged.
© 2018 All Rights Reserved.
5
Page 6
CoilShot
2
1. SC-CS-LATCH
®
1

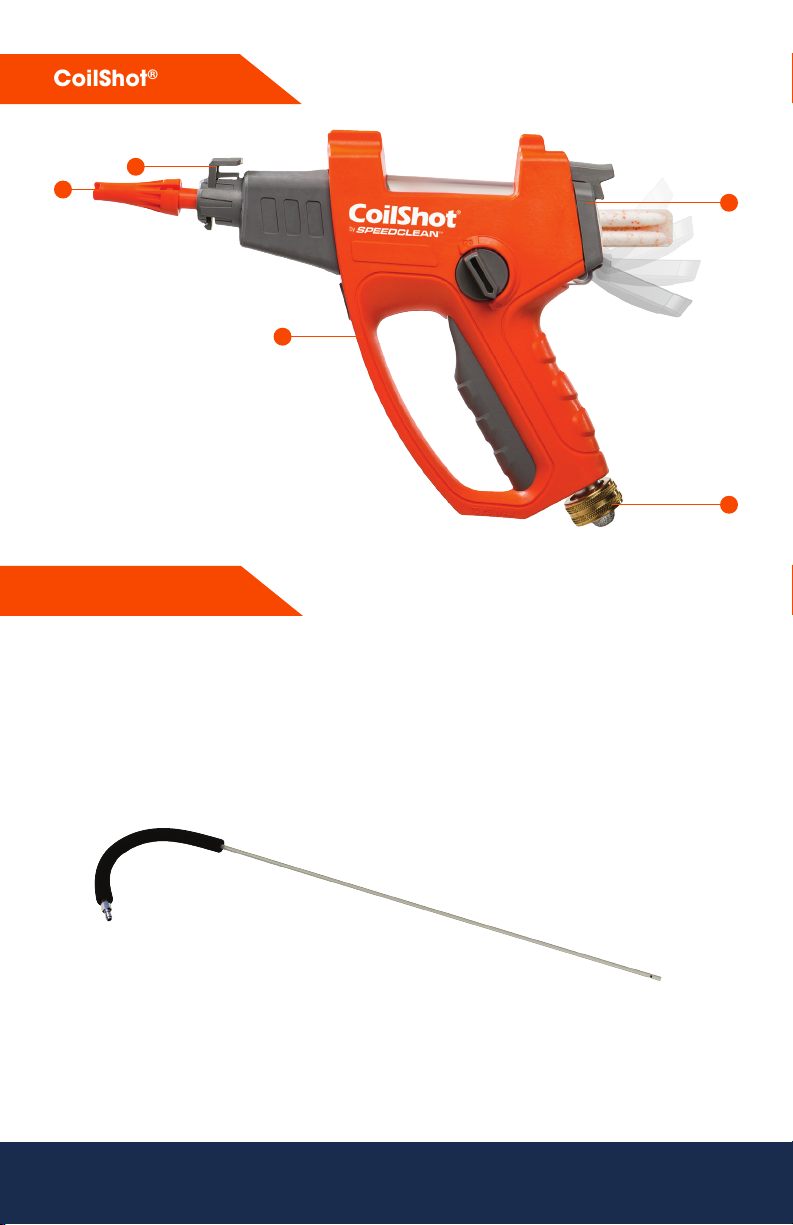

Spare Parts
4
2. SC-CS-NOZZLE
3. SC-CS-GRMT
4. SC-CS-DOOR
SC-CS-OR-DR (O-ring)
5. SC-CS-GH-NUT
803 (Screen Washer)
CoilShot
®
3
Accessories
SC-CS-WAND
Optional 3 foot wand for CoilShot® increases cleaning performance. The wand is specially
designed to quickly connect to CoilShot cleaning tool and clean coils from inside to outside.
The wand features a slim profile that fits between the grate so you don’t have to remove the
top fan and housing.
5
6
CoilShot® Operating and Maintenance Manual
Page 7
CoilShot
®
Coil Cleaner Tablets
SC-CS-TABS
CoilShot® Coil Cleaner Tablets, package
of 8. One tablet is equivalent to
approximately a ½ gallon of coil cleaner.
SC-CS-TABS-HD
CoilShot®-HD Heavy Duty Coil Cleaner
Tablets, package of 6. Cuts grease
and shines coils. Goggles and gloves
are mandatory for use of this product.
After use of complete tablet, rinse gun
for at least 2 minutes.
© 2018 All Rights Reserved.
3
Health
0
Fire
Special
0
Reactivity
7
Page 8
PO Box 110301
Stamford, CT 06911-0301
(888) 700-3540
www.speedclean.com
SpeedyFoam
CoilShot and SpeedClean are registered trademarks of Crossford International, SpeedClean reserves the right to
improve products; contact the factory for the latest configuration and uses.
®
