Page 1

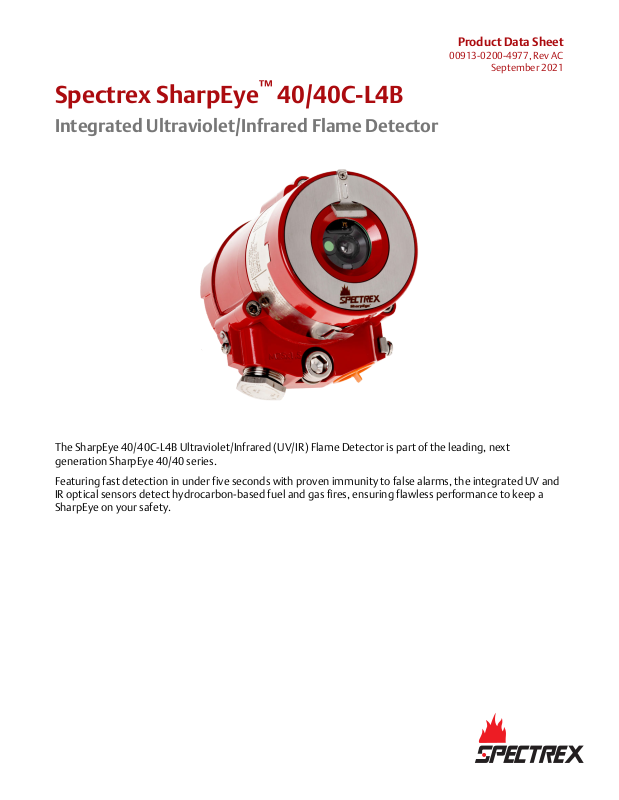

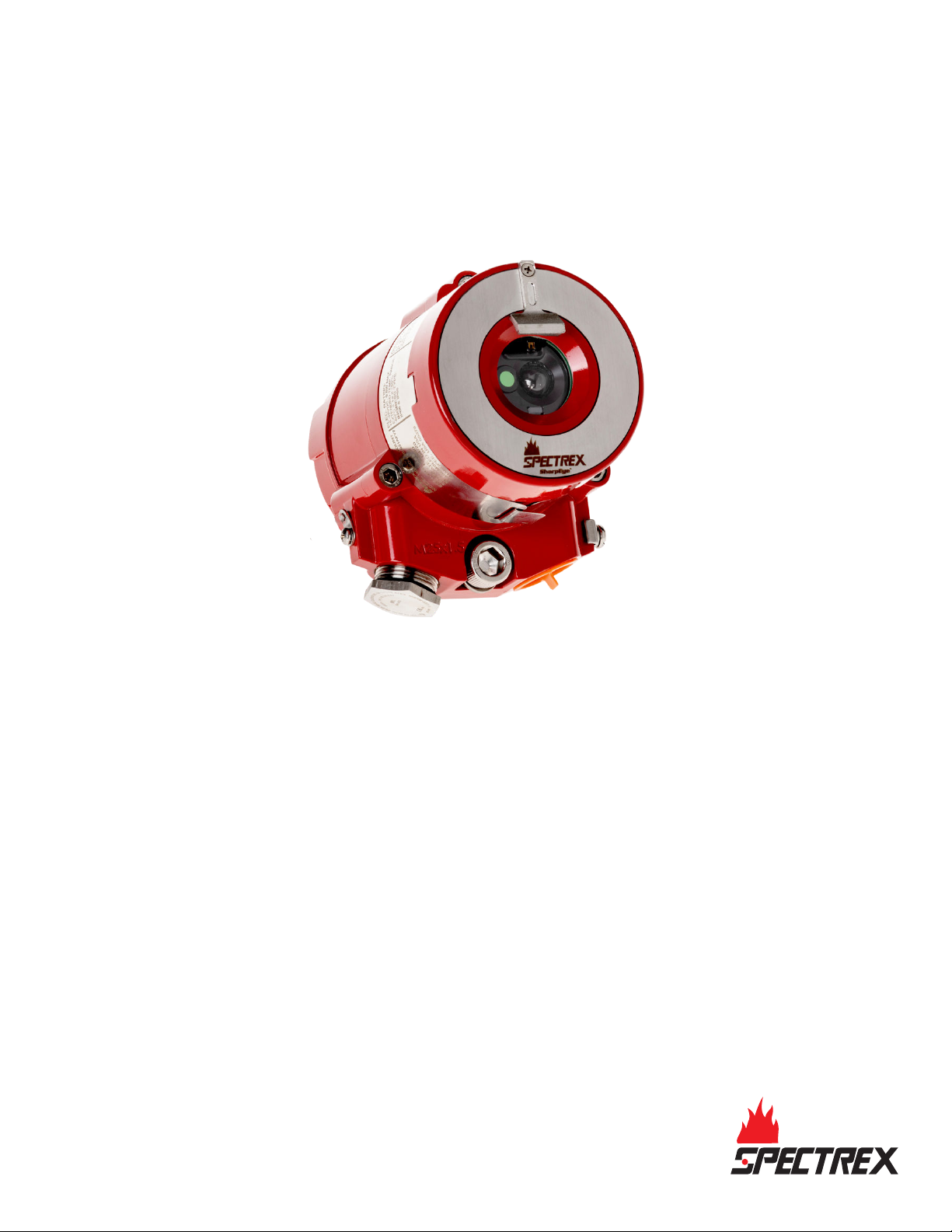

Spectrex SharpEye™ 40/40C-L4B

Integrated Ultraviolet/Infrared Flame Detector

Product Data Sheet

00913-0200-4977, Rev AC

September 2021

The SharpEye 40/40C-L4B Ultraviolet/Infrared (UV/IR) Flame Detector is part of the leading, next generation SharpEye 40/40 series.

Featuring fast detection in under five seconds with proven immunity to false alarms, the integrated UV and IR optical sensors detect hydrocarbon-based fuel and gas fires, ensuring flawless performance to keep a SharpEye on your safety.

Page 2

SharpEye 40/40C-L4B September 2021

Features and benefits

Integrating ultraviolet (UV) and infrared (IR) optical sensors for detection of hydrocarbon-based fuel and gas fires.

■

Fast detection under five sec

■

Proven false alarm immunity

■

Unparalleled reliability - 150,000 hours MTBF

■

Wide temperature range: -40 °F (-40 °C) to 167 °F (75 °C)

■

Worldwide and regionally certified for hazardous areas

■

Performance and reliability approved by recognizable certification bodies

■

SIL3 compatible

■

Enhanced durability backed up by with three-year warranty

■

Innovative UV and IR built-in test - continuously validating the optical integrity and the electronic circuitry

■

Multiple output options for maximum compatibility with standard infrastructures

■

Plug and play - factory calibrated for immediate use in any fire detection system

■

Universal wiring option for fast ordering process

■

Three sensitivity levels, adapting to any application

■

Heated optic for impeccable performance in challenging environmental conditions

■

Internal log event recorder to analyze past events

Contents

Features and benefits........................................................................................................................................................................ 2

Applications...................................................................................................................................................................................... 3

Ordering information........................................................................................................................................................................ 4

Specifications.................................................................................................................................................................................... 5

Approvals.......................................................................................................................................................................................... 8

2 Spectrex.net

Page 3

September 2021 SharpEye 40/40C-L4B

Applications

■

Oil and gas onshore and offshore installations and pipelines

■

Petrochemical and chemical plants

■

Storage tank farms

■

Aircraft hangars

■

Power generation facilities

■

Pharmaceutical industry

■

Printing industry

■

Warehouses

■

Automotive industry

■

Waste disposal facilities

■

Aerospace industry

■

Light industrial

SharpEye 40/40C-L4B 3

Page 4

SharpEye 40/40C-L4B September 2021

Ordering information

VIEW PRODUCT >

Model

Code Description

-L4B Ultraviolet/infrared (UV/IR)

Wiring

Code Description

-6 Universal

Operating temperature range

Code Description

4 -40 °F (-40 °C) to 167 °F (75 °C)

Electrical cable entries

Code

1 M25

2 ¾-in NPT

Description

Enclosure

Code

A Aluminum polyurethane painted

Description

Hazardous area approval

Code

B Inmetro (pending)

F FM, FMC, Canadian Standardization Association (CSA) for United States and Canada

C ATEC, IECEx

R EAC CU TR

4 Spectrex.net

Description

Page 5

September 2021 SharpEye 40/40C-L4B

Tilt mount

Code Description

Y Including tilt mount stainless steel 316

N Without tilt mount

Protective cover

Code Description

7 ABS plastic

8 Stainless steel 316

Accessories

Part number Description

FS-1200 Flame simulator (ex proof)

877090 Tilt mount

877670 Duct mount

789260-2 U-bolt/pole mount 2-in

789260-1 U-bolt/pole mount 3-in

794079 USB RS-485 harness kit

877650 Air shield

877263

877163 Protective cover

(1)

Supplied free of charge with the detector.

Protective cover (Plastic)

(Stainless steel)

Specifications

Table 1: Detection ranges

At highest sensitivity setting for 1 ft2 (0.1 m2) pan fire

Fuel Range (ft/m)

Gasoline (petrol) 93/28

n-Heptane 93/28

Diesel 70/21

JP5 fuel 70/21

Kerosene 70/21

SharpEye 40/40C-L4B 5

Page 6

SharpEye 40/40C-L4B September 2021

Table 1: Detection ranges (continued)

Fuel Range (ft/m)

Ethanol 95% 57/17

Isopropyl alcohol (IPA) 70/21

Methanol 57/17

Methane

Liquefied petroleum gas (LPG)

Polypropylene pellets 60/18

Office paper 33/10

Magnesium alloy 33/10

Gun powder (1.5 in² (10 cm²)) 93/28

Fireworks (10 pieces per test) 10/3

Cooking oil 70/21

Mineral oil (20w50) 70/21

Wood 33/10

(1)

60/18

Ethylene glycol 23/7

Butyl acrylate 70/21

Vinyl acetate 70/21

Flammable adhesive (flash point < 60 ° C) 70/21

Solvents 70/21

Oil paint 70/21

Jet fuel A1 70/21

(2)

Battery

(1)

30-in (0.75 m) high, 10-in (0.25 m) wide plume fire

(2)

One battery cell

75/23

Table 2: General specifications

Spectral response Ultraviolet: 0.185 to 0.260 μm

Infrared: 4.3 to 4.8 μm

Detection response time Standard response: Typically 5 sec

Sensitivity ranges 3 sensitivity ranges for 1 ft2 (0.1 m2) n-heptane pan fire

Field of view Horizontal: 100 °

Vertical: 95 °

Temperature range Operating: -40 °F (-40 °C) to 167 °F (75 °C)

Storage: -40 °F (-40 °C) to 167 °F (75 °C)

Humidity Non-condensing relative humidity up to 100%

Table 3: Electrical specifications

Operating voltage 24 Vdc nominal (18-32 Vdc)

6 Spectrex.net

Page 7

September 2021 SharpEye 40/40C-L4B

Table 3: Electrical specifications (continued)

Power consumption Standby: Maximum 3 W (8 W with heated window)

Alarm: Maximum 4.2 W (9.6 W with heated window)

Cable entries 2 x ¾-in - 14 NPT conduits or 2 x M25 x 1.5 mm ISO

Electrical input protection According to EN 50130

Electromagnetic compatibility EMI/RFI protected to EN61000-6-3 and EN 50130

Electrical interface The detector includes 17 terminals and one wiring option

Table 4: Outputs

Relays Alarm, fault, and auxiliary

SPST volt-free contacts rated 2A at 30 Vdc

Analog output Analog port malfunction: 0 V (< 0.5 V)

Normal: 2 V ± 0.3 V Alarm: 5 V ± 0.3 V

0-20 mA (stepped) Fault: 0 ± 1 mA

Built-in test (BIT) fault: 2 mA ± 0.3 mA Normal: 4 mA ± 0.3 mA Warning: 16 mA ± 0.3 mA Alarm: 20 mA ± 0.3 mA

HART® protocol HART communication on the 0-20 mA analog current (FSK)

used for maintenance, configuration changes, and asset management, available in mA source output wiring options

RS-485 RS-485 Modbus®-compatible communication link that can be

used in computer controlled installations

Table 5: Mechanical specifications

Enclosure options Heavy duty copper free aluminum (less than 1%), polyurethane

painted

Tilt mount Electropolished stainless steel 316

Dimensions Detector: 4 x 4.6 x 6.18 in (100.6 x 117 x 155 mm)

Weight Detector aluminum: 2.8 lb (1.3 kg)

Tilt mount: 2.5 lb (1.1 kg)

Water and dust IP66 and IP68 per EN 60529, NEMA® 250 6P

SharpEye 40/40C-L4B 7

Page 8

SharpEye 40/40C-L4B

Approvals

Hazardous area

September 2021

ATEX and IECEx

FM/FMC/CSA

TR CU (EAC)

In Metro

Performance

EN54-10 | FM3260

Reliability

IEC61508 - SIL3 (TUV)

Ex II 2GD Ex db eb IIC T4 Gb Ex tb IIIC T100 °C Db Ta = -40 °C to +75 °C IP66/IP68

Class I, Division 1, Groups B, C, and D, T4A Class II, III, Division 1, Groups E, F, and G, T4A Class I, Division 2, Groups A, B, C, and D, T4 Ta = -40 °C to +75 °C Type 6P; IP 66/68 6.6 ft (2 m) for 45 minutes

1Ex d e IIC T4 Gb Ex tb IIIC T100 °C Db Ta = -40 °C to +75 °C IP66/IP68

Pending
