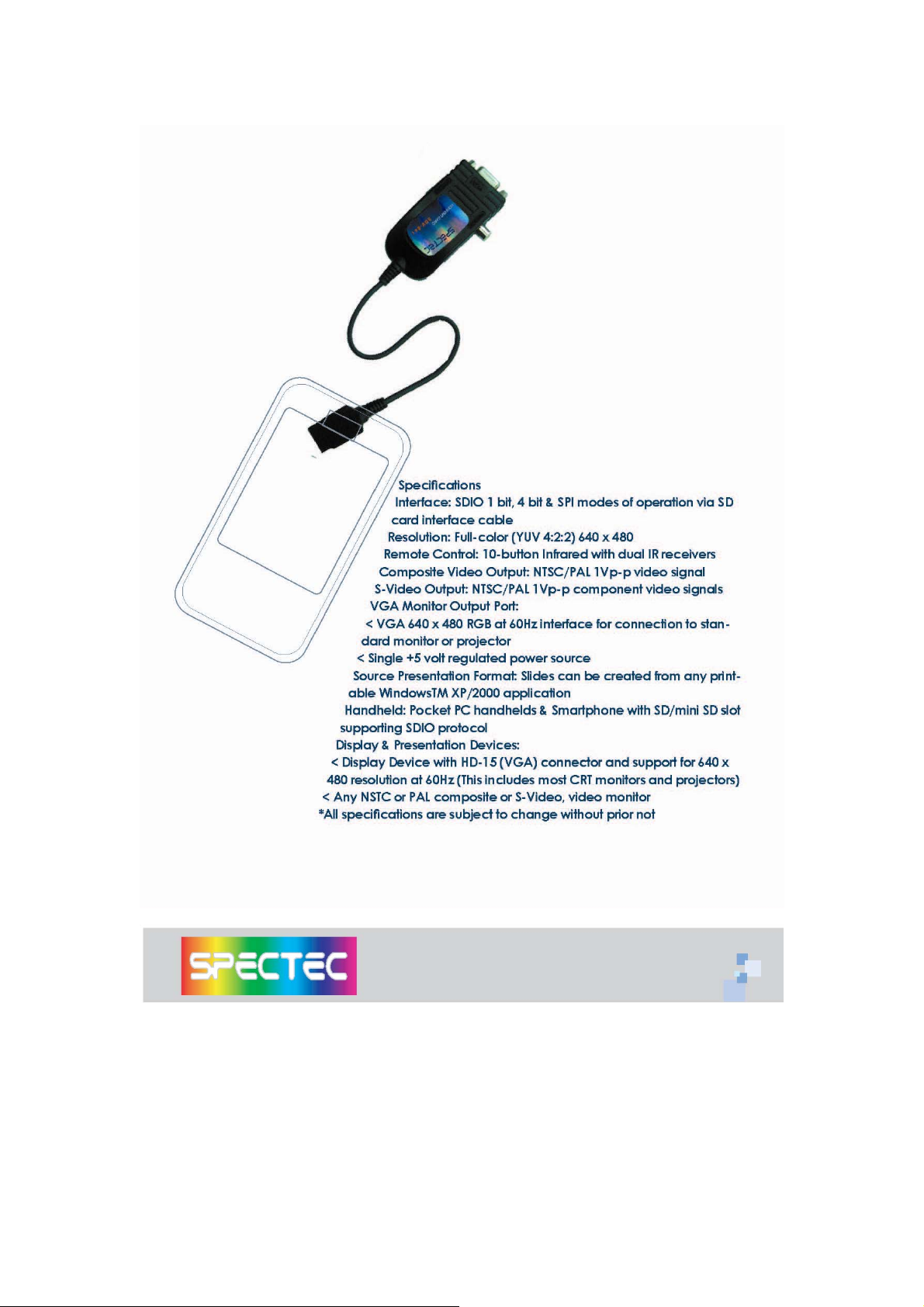

Spectec SDV-841, SDV-842 User Manual

Content

Inside Package……………………………………………………….
System and installation Requirement………………………………

Real Time Display Installation and Configuration

1. Driver Installation

2. Online registration

3. Start the program

4.Video out configuration

a. VGA output configuration

b. Video and S-video output configuration

5. Adjust your PDA screen with virtual display

6. About the Virtual Display function

1. Install the Real Time Display driver from the Installation CD

Click the Video-Out then Select the Real time display

It will automatically install the Driver, please c heck your mobile device
screen to see if additional steps are necessary to complete this installation.

2. Online registration

This new driver for SDV-841(IBS-Nyditot Virtual Display, Version 5.32) is shareware
for Window Mobile 5.0 only. It’s a 7 days trial version. If you are intend to use it for
the long term, please register the serial number on CD.

Please go to http://www.spectec.com.tw/ and Click tag.

Select Click here if you purchased a Nyditot Product online, if you already finish registration but
forgot Registration Code.

Select

Click here if you purchased a hardware product which includes a Nyditot Product, if you would

like to get Registration Code.

Registration procedure

The Registration Seed information can be found from “About” item of VirtualDisplay
application.
The Product key information can be found from back of installation CD package.
You msut finish installation above, then will receive an unique Registration Code via
E-mail. Please keep it in a safe place.

3. Start using the Video-Out

Go to StartÎProgramÎVirtual display

<Select VD Setting>

. Enter the registration code in the Box then click register

(figure 3.3)

4. Video out configuration

st

Select the display mode (1024x768 or 640x480)

1

.

Then tab external display

Select the output type then save the configuration.

Click OK, the PDA will reboot.

After restart the PDA, it will show a black screen. Just tag the (|) button.

Connect the VOTG power supply and plug in the adapter.

5. Adjust screen with virtual display.

Adjust.lnk

Configure the display to fit your screen.

To close this application just go to the configuration select disable virtual display.

Tag the center button.

7. About Virtual display function

About Configurations and Schemes

The Virtual Display Settings Applet allows you to create an unlimited
number of named configurations and schemes. A configuration consists
of a set of properties that define a virtual display. Properties include the
virtual width and height, orientation, zoom (e.g.. 100%, Fit to Display) and
several other characteristics. Likewise, schemes consists of a set of
system color and font properties. By grouping property values under a
configuration/scheme name, it is possible to quickly change multiple
properties by simply selecting a configuration/scheme.

For example, you might like to use a simple landscape mode on your

Pocket PC for reading eBooks. You could create a configuration named
"eBook Reading" with default width and height and rotated into a
landscape orientation. Another example might be web browsing. Most
web sites require a minimum horizontal resolution of 640 pixels in order to
display their content properly. You could create a configuration named
"Web Browsing" with a width of 640, height of 480 and rotated into a
landscape orientation. You might then choose to compress the virtual
display to fit the physical display allowing you to view the entire 640x480
page on your 320x240 display without panning.

The NVD setup program creates a number of sample configurations and
schemes to give you some ideas. You may modify, copy or delete any of
these configurations/schemes or you may create entirely new ones of
your own. There a two special virtual display configurations. The first,
"(Disable Virtual Display)" should be selected when you do not wish to
use any of NVD's features. This configuration restores your device's
video properties to their factory values. The second, "(Current
Configuration)" simply resets all of the properties to those of the current
virtual display mode, in case you change you mind and what to get back
where you started. The third, "(Standard Configuration)" sets the
properties to mimic those of the nominal factory settings. NVD is NOT
disabled in this case. Similarly there are two special schemes. "(Current
Scheme)" resets all of the properties to the current values for the system.
"(Standard Scheme)" restores your device to its factory color and font
properties.

Modifying Virtual Display Properties

The various properties for the virtual display configuration are organized into
five separate tabs. To modify and apply virtual display properties, follow the
steps below. Although it is not required, if you use the same property values
repeatedly you should save them to a named configuration.

1. Start the Virtual Display Settings Applet.

2. Select the Configuration Tab.

3. If you have already created a named configuration and wish to use it,
select the name from the Configuration drop down list. Selecting the
