Welcome
Thank you fo r pur cha sin g thi s network ca mer a!
This owner 's ma nua l is de signed to be a refe ren ce to ol fo r you r system.
Please read this manual carefully before operating the unit and retain it for future reference.
Should you require any technical assistance, cont act Speco Technologies Tech Support at
1-800-645-5516
Important Safeguards and Warning
1. Elec trica l safet y
All instal lat ion a nd op era tion here sh oul d con for m to lo cal electrica l saf ety c ode s.
Use a certif ied /li ste d 12V DC Class 2 pow er su ppl y or ad equ ate PoE switch.
Please not e: The pro duc t mus t be gr oun ded to reduce the r isk o f ele ctr ic sh ock.
Improper h and lin g and /or i nstallat ion c oul d run t he ri sk of fire or elect ric al sh ock .
2. Envi ronme nt
Do not expos e the u nit t o hea vy st ress, viol ent v ibr ati on or l ong-term expo sur e to wa ter
and humidi ty du rin g tra nsp ortation , sto rag e, an d/o r installatio n.
Do not insta ll ne ar so urc es of h eat.
Only insta ll th e pro duc t in en vironmen ts in sid e the s pec ification ope rat ing t emp era ture
and humidi ty ra nge .
Do not insta ll th e cam era n ear p ower lines , rad ar eq uip men t or other electr oma gne tic
radiatio n.
Do not block a ny ve nti lat ion o penings if a ny.
Use all the we ath erp roo fin g hardware r equ ire men t to mi nimize weathe r int rus ion .
3. Oper ation a nd Dail y Maint enanc e
Please shu t dow n the d evi ce an d then unplu g the p owe r cab le be fore you begin an y
maintena nce w ork .
Do not touch th e CMOS se nsor optic component . You can use a blower to clean the dust on
the le ns sur face .
Always use t he dr y sof t clo th to clean the dev ice . If th ere i s too m uch dust, use a clo th
Page 3
dampened w ith a s mal l qua nti ty of neutra l det ergent . Fin all y use t he dr y cloth to cle an
the device .
Please use a professional optical cleaning method to clean the enclosu re. Improper enclosure
cleaning ( suc h as us ing c lot h) may resul t in po or IR f unc tio nality and/or I R ref lec tio n.
The ground ing h ole s of th e pro duct are rec omm end ed to b e gro unded to furthe r enh anc e
the reliab ili ty of t he ca mer a.
The lens is an o pti cal d evi ce, p lease don' t tou ch or w ipe c ove r surface direc tly d uri ng
installa tio n and u se, p lea se refer to th e fol low ing m eth ods if dirt is foun d:
Stained wi th di rt: U se oi l-f ree soft bru sh or h air d rye r to re move it gently.
Stained wi th gr eas e or fi nge rprint: Us e oil -fr ee co tto n cloth or paper so ake d wit h alc ohol
or detergent to wipe f rom t he le ns ce nte r outward. Chan ge th e clo th an d wip e several
times if it is n ot cl ean e nou gh.
Warning
This camer a sho uld b e ins tal led by quali fie d per son nel o nly.
All the exam ina tio n and r epa ir work shou ld be d one b y qua lif ied personnel .
Any unauth ori zed c han ges o r modifica tio ns co uld v oid t he warranty.
Statement
.
This guide is for reference only.
Product, manuals and specifications may be mo dif ied w ith out p rio r not ice . Spe co
Tech nol ogi es re ser ves t he ri ght t o mod ify t hes e wit hou t not ice a nd wi tho ut in cur rin g
any obligation.
Speco Technologies is not liable for any loss caused by improper operation.
Note:
Before installation, check the pack age a nd ma ke su re th at al l com pon ent s are i ncl ude d.
Contact your rep or Speco customer service depa rtm ent i mme dia tel y if so met hin g is
broken or missing in the package.
Package
1
Page 4
Camera
Quick start guide
CD
Drill template
Screwdriver
4 Screws
(6.5×38mm)
7 Plastic screw anchors
Overview
Overview
2
3
5
6
(PA 4×25mm)
3 Screws
4
3 Screws
(PM 4×10mm)
1
2
3
8
7
4 Rubber o-rings
for screws
Ether net connec tor
1
Audio i nput conne ctor
2
Power c onnector
3
Mount ing base
4
Set scr ew
5
Micro phone
6
Micro S D card slot
7
Reset
8
Junction box
Page 5
r
to
c
ne
oof c on
r
ate r-p
W
Ext ernal m icrop hone
DC12V
* It is recommended to ins tall the wate r-proo f connector for outd oor ins tall atio ns.
Connecting Network Cable
1
2
3

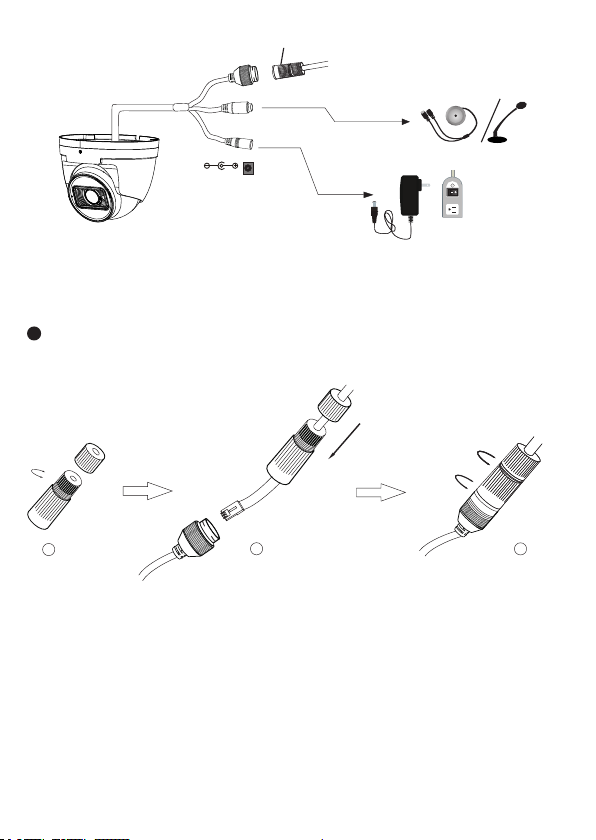

① Loosen th e nut from the main element.
② Run the net work cabl e (without RJ 45 connector) through both
element s. Then crimp the cable with RJ 45 connector.
③ Connect t he cable to the water-proof connector. Then t ighten th e
nut and the m ain cover.
Page 6
Installation
3
* Befor e you start, p lease make s ure tha t the w all or ce iling is str ong enough
to with stand thre e times the we ight of t he ca mera an d the juncti on box.
① Open the mo unting ba se and the upper cover of the junction box.
Mounting base
Upper cover
② Attach the drill template of the juncti on box to the p lace wher e you
want to ins tall the ju nction box and then rill the screw hole and calbe
hole on the w all accor ding to the drill template.
③ Install j unction b ox onto the wall by using the screws provided.
6.
4×
Rub ber o-r ing
5×
12
38m m
mm
Page 7
④ Loosen th e set screw t o disasse mble the camera. Then remove
the cover f rom the cam era unit to insert the SD card. Af ter that, i nstall
the cover b ack to the ca mera unit and fix it firmly with the screws.
(Note tha t the cover s hould not be installed unevenly .)
Set S cre w
Mou nti ng Ba se
Enc losur e
Cam era Uni t
Cov er
Ins ert a mic ro SD c ard
⑤ Fasten th e camera on to the junction box.
3×
6.6m m
PM 4× 10mm
⑥ Route the c ables thr ough the cable hole and connect the cables.
Then rein stall the u pper cover onto the junction box.
Page 8
⑦ Adju st the came ra to obtai n an optimu m angle. Before adjustment,
preview t he image of t he camera on a monitor. After tha t, tighte n the
set screw t o finish th e installation.
Set scr ew
Web Operation and Login
4
IP Scanner can search for the devi ce on the local network.
Page 9
● Operation
① Make sure that the camera and the PC are connected to the same
local network. The camera is set to DHCP by default.
② Install IP Scanner from the CD and r un it after installation. Or
download from https://www.specotech .com/ip-scanner/
O8FT 1M
5C:F 2:07: 34:68 :9A

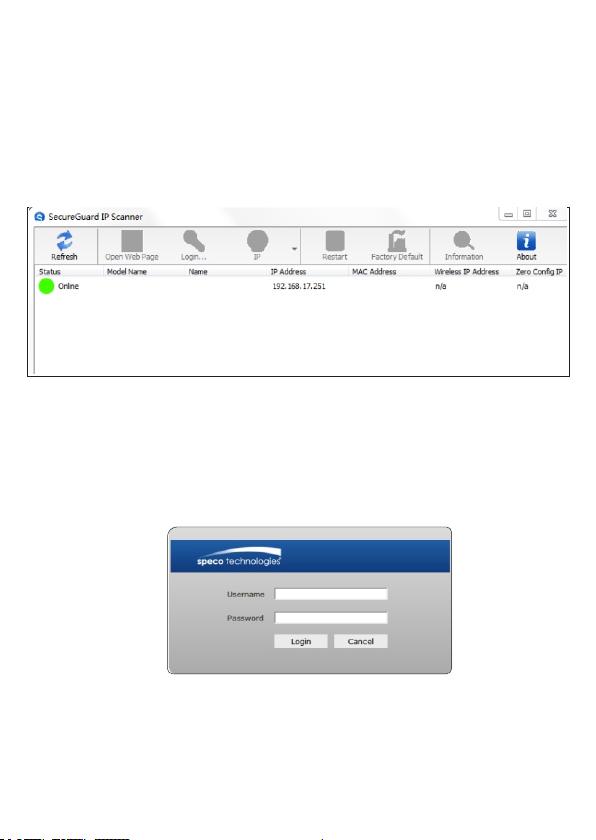

③ In the device list, you can view the IP address, model number, and
MAC addre ss of each de vice. Sel ect the applicable device and double
click to open up the web viewer. You can also manually ent er the IP
address i n the addre ss bar of the w eb browse r.
The login i nterfac e is shown above. Default user name is admin a nd
passw ord is 1234. Afte r l ogg ing in , f oll ow dir ect io ns t o in stall
applica ble plugi ns if prompted.
Loading...
