Flexible Intensifier® Technology Dome IP Camera
QUICK INSTALLATION GUIDE
O6FD4M
Please read this guide carefully before installation and operation of the product.
This installation should be made by a qualified service person and should conform to all local codes.
The lighting flash with an arrowhead symbol, within an equilateral triangle is
intended to alert the user to the presence of non-insulated dangerous voltage within
the product’s enclosure that may be of sufficient magnitude to constitute a risk of
electric shock to persons.
The exclamation point within an equilateral triangle is intended to alert the user to
the presence of important operating and maintenance (servicing) instructions in
the literature accompanying the appliance.
CAUTION
TO REDUCE THE RISK OF ELECTRIC SHOCK,
DO NOT REMOVE THE COVER (OR BACK).
NO USER SERVICEABLE PARTS INSIDE.
REFER SERVICING TO QUALIFIED PERSONNEL.
RISK OF ELECTRIC
SHOCK
DO NOT OPEN
CAUTION
Notice
Thank you for purchasing this product. This guide is designed to be a reference tool for the product. Please read
it carefully before operating the product and retain it for future reference. Should you require any technical
assistance, please contact Speco Technologies Technical Support.
INFORMATION
This equipment has been tested and found to comply with limits for a Class A digital device, pursuant to part 15
of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference when
the equipment is operated in a commercial environment. This equipment generates, uses, and can radiate radio
frequency energy and, if not installed and used in accordance with the instruction manual, may cause harmful
interference to radio communications. Operation of this equipment in a residential area is likely to cause
harmful interference in which case the user will be required to correct the interference at its own expense.
WARNING
Changes or modifications not expressly approved by the manufacturer could void the user’s authority to
operate the equipment.
CAUTION – To prevent electric shock and risk of the fire hazards
Do NOT use power source other than that specified.
Do NOT expose this appliance to rain or moisture.
1
PRECAUTIONS
Please read the manual carefully before the installation in order to set up the camera correctly and to obtain
the best picture quality.
Installation and services should only be carried out by an authorized personnel according to local safety
regulations.
If any liquid or solid matter gets into the housing, immediately disconnect the camera from power supply and
have it checked by your authorized dealer before reusing.
Avoid installing the camera in extremely hot or cold places.
If you are not a certified person, never try to dismantle the camera.
To avoid electric shock, never remove the screws or covers. There are no parts inside that need maintenance
by the user. All maintenance should be carried out by qualified personnel.
Avoid installing the camera in a place of high humidity.
Avoid installing the camera at a place exposed to gas or oil.
Don't point the camera directly at sunlight.
Please pay special attention to keep the unit from dropping or external shock during the process of
transportation or handling.
Never try to touch the camera with wet hands. It may cause an electric shock.
Do not expose the camera to radioactivity. It can cause a serious damage on the image sensor.
LIMITATION OF LIABILITY
This publication is provided “AS IS” without warranty of any kind, either express or implied, including but not
limited to, the implied warranties of merchantability, fitness for any particular purpose, or non-infringement of
the third party's right.
This publication could include technical inaccuracies or typographical errors. Changes are added to the
information herein, at any time, for the improvements of this publication and / or the corresponding product(s).
DISCLAIMER OF WARRANTY
In no event shall seller be liable to any party or any person, except for replacement or reasonable maintenance
of the product, for the cases, including but not limited to below :
(1) Any damage and loss, including without limitation, direct or indirect, special, consequential or
exemplary, arising out of or relating to the product.
(2) Personal injury or any damage caused by inappropriate use or negligent operation of the user.
(3) Unauthorized disassembly, repair or modification of the product by the user.
(4) Inconvenience or any loss when images are not displayed, due to any reason or cause
including any failure or problem of the product.
(5) Any problem, consequential inconvenience, or loss or damage, when combined with third party devices.
(6) Any claim or action for damages, brought by any person or organization, due to a violation of privacy when
the surveillance footage, for some reason, becomes public or is used for the purpose other than
surveillance.
2
CLASSIFICATION
Vandal Proof Armor Dome IP Camera
General
CPU
ARM Cortex-A9 816MHz CPU with L2 cache
Flash
2Gbit Flash Memory
SDRAM
8Gbit DDR3 Memory
Camera
Image Sensor
6.82 Mega 1/2.9" SONY STARVIS image sensor
Total Pixels
3096(H) x 2218(V) 6.87 Megapixel
Effective Pixels
3096(H) x 2202(V) 6.82 Megapixel
S/N Ratio
More than 50dB
Min. Illumination
0Lux (IR On)
IR Distance
40M
Day & Night
ICR Filter Changer
Lens
2.7 ~ 12mm Vari-focal Motorized Megapixel Lens
Video
Video Compression
H.265 / HEVC Main Profile Level 5.1 encoding
H.264 High profile @ Level 5.1 MJPEG
Resolutions
Up to 3072 x 2048 @ 20fps
Frame Rate
H.265 / H.264 Up to 20fps with 3072 x 2048,
H.265 / H.264 Up to 15fps with 640 x 360
H.264 / MJPEG Up to 5fps with 640 x 360
Video Streaming
Support multi stream with H.265, H.264, MJPEG
Adjustable frame rate
VBR / CBR
Image Setting
Brightness, Contrast, Sharpness
Day & Night
Auto White Balance
Auto Exposure
Privacy Mask
DSS, V-Flip, etc.
WDR, ATR
Video Output
BNC x1, 1.0Vp-p, 75 ohm Composite Video, NTSC / PAL
Audio
Audio Streaming
Two-way, full duplex
Audio Compression
G.711
Data / Sample Rate
64Kbps / 8KHz
1. PRODUCT OVERVIEW
Key Features
6.82 Mega pixel 1/2.9" SONY progressive scan CMOS image sensor for excellent image quality
Vandal Proof, fire resistant and tamper resistant
Perfect tool-free 3-Axis mechanism inside
Extended IR life cycle
Dust and Moisture free (IP67 Waterproof)
Triple Streaming of H.265, H.264 and M-JPEG
Supports image resolutions 6M (3072 x 2048)
Integrated motion detection with pre- and post-alarm image / video buffering
Supports CBR (Constant Bit Rate) and VBR (Variable Bit Rate) modes
Supports Tampering-Alarm in VA (Video Analytics) function
Controllable frame rate
Full Duplex Two-Way Audio Support
External Audio Line-input & Audio Line-output connector
External sensors or external alarm devices
Privacy Masking
Supports IEEE 802.3af Power over Ethernet injectors, mid- and end-spans
HTTPS supported (Hyper Text Transfer Protocol Secured)
Integrated E-Mail, FTP, DDNS and DHCP client
Specification
3
Audio Input /
Output
Password protection
User access log
HTTPS encryption
Supported Protocol
HTTP, HTTPS, DNS, RTSP, RTP, TCP, UDP, ICMP, DHCP
Intelligent Video
Motion detection (4 Separate blocks)
Alarm Trigger
Motion detection, External Input (NO / NC Type)
Video Buffer
5MB pre-alarm and post-alarm-180sec
Firmware Upgrade
Remote upgrade via network
API
CGI Interface document
Reset Bottom
1 x Factory Reset Button
Power Source
DC 12V / 1.5A, PoE (Power over Ethernet) : 802.3af
Power
Consumption
Net Weight
1200g
LED's
Power, Network Connection
Dimension(mm)
Ø130 x 99(mm) / Junction Box : Ø130 x 145(mm)
Operating
Temperature
Storage
Temperature
Software
Included Software
IP Scanner (Windows only)
Network Camera, Use Manual, External Power Adaptor
(Option)
Microphone input / 1x Line-In, Line-Output / 1x Line-Out
Network
Security
System
Integration
Max. 7.2W with IR On
Physical
-40 degree ~ 60 degree Celsius (-40F ~ 140F)
Environment
-20 degree ~ 60 degree Celsius (-4F ~ 140F)
Package Package Contents
※ Specifications are subject to change without prior notice for improvement.

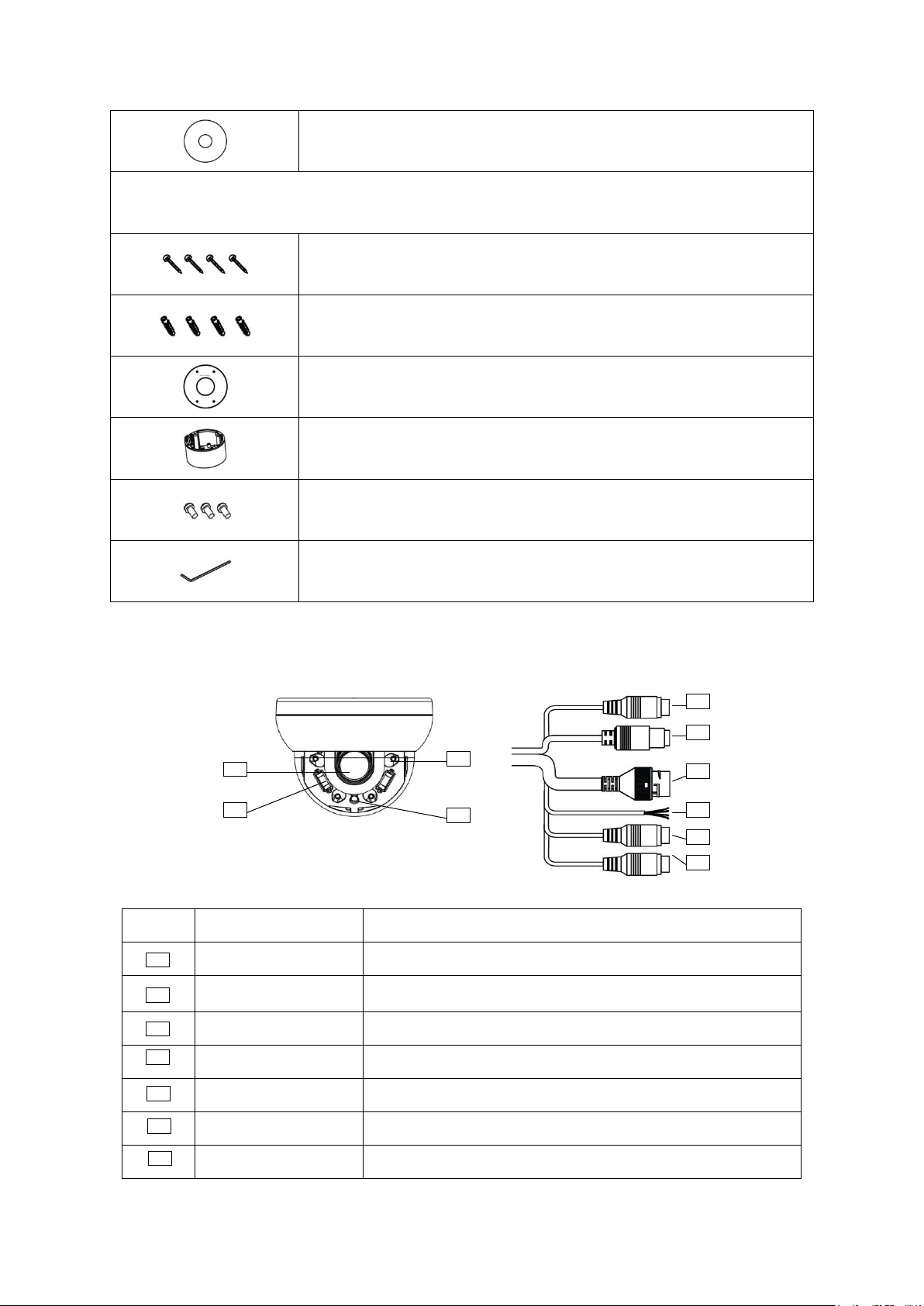

2. NAME AND FUNCTION OF EACH PART
2.1 Package Contents
APPEARANCE DESCRIPTION
IP Camera x 1
Installation Guide x 1
Drilling Template x 1
L-Wrench x 1
Tapping Screws (Ø4 x 30) x 3
Plastic Anchor x 3
4
CD x 1
Junction Box
Tapping Screws (Ø4 x 30) x 4
Plastic Anchor x 4
Silicone Template x 1
Junction Box x 1
Screw PH (M4 x 12) x 3
L-Wrench x 1
NO.
ITEM
DESCRIPTION
Power Connector
DC12V
Network and POE
Connector
POE (Power Over Ethernet) and LAN cable
Sensor In / Alarm Out
Sensor In / Alarm out
Audio-In
Audio in (Red)
Audio-Out
Audio Out (White)
IR LED
Infrared LED
Lens
2.7 ~ 12mm Motorized Megapixel Lens
7 1 2
3
4 5 6 7 4 5 2
3
1
6
8 9 10
2.2 Name and Function
5
luminance sensor
Control IR LED by sensing light
Video Output
CVBS Output (Yellow)
Heater
Resistors reduce condensation on front glass
Ceiling Tile
Drilling Template
Top Cover Ass'y
Camera Ass'y
Plastic Anchor x 3
Tapping Screw (4 x 30) x 3
L-Wrench
8
9
10

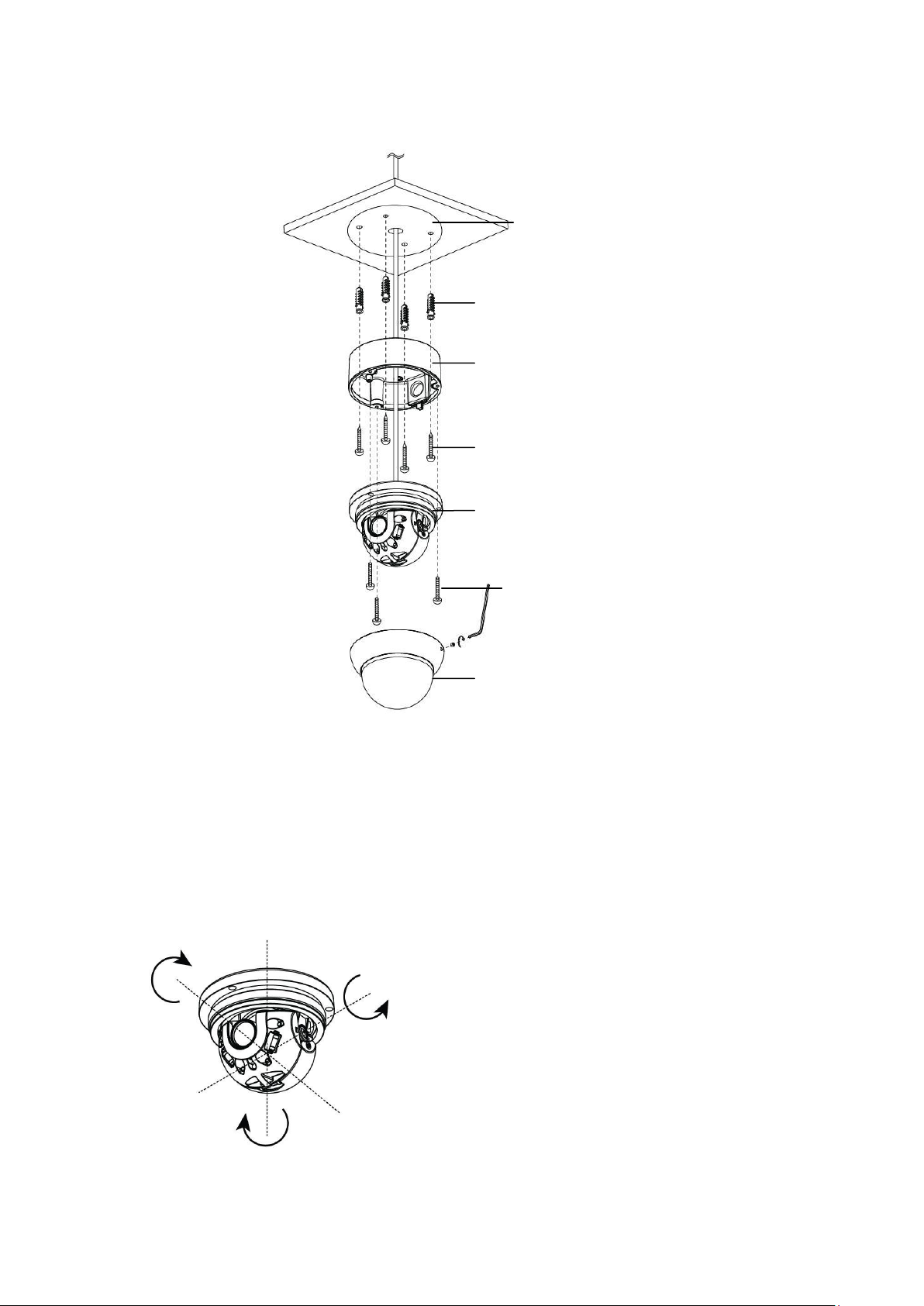

3. INSTALLATION
3.1 Installation overview
Ceiling
① Paste a Drilling Template on the ceiling or wall and drill screw points which will be dome for
installation.
② Fix the Surface Mounting Base by using Tapping Screws provided.
③ Fix the Flush mount Base on Surface Mounting Base.
④ Turn the camera Ass’y to the desired direction.
⑤ Turn the dome and shied cover to the camera direction.
⑥ Fix the Dome Cover Ass’y to the Flush mount Base by using Torx Screw and Torx L-Wrench.
6
Tilt 85°
Pan 345°
Rotate 180°
Tool-free 3-Axis mounting mechanism
Perfect Tri-axis!
Panning axis up to 345° degree.
Tilting axis up to 85° degree.
Rotation axis up to 180° degree.
No need to use a tool for adjustment!
All adjustments are done quick and
easy by hand!
Ceiling Tile
Drilling Template (Silicone)
Plastic Anchor x 4
Junction box
Tapping Screw (4 x 30) x 4
Camera Ass'y
PH (M4 x 12) x 3
L-Wrench
Top cover Ass'y
Ceiling_Junction Box
3.2 3-Axis Adjustment
7
LAN Switch Router Internet Remote Access
Local Access E-Mail / FTP
3.3 INSTALLATION EXAMPLE
3.3.1 Installation Example
3.3.2 Connecting to the Network
Open up IP Scanner.
IP Scanner can search for the device on the local network.
Please note that only devices that are on the same subnet can be discovered.
The device is set to DHCP mode by default.
In the device list, you can view the IP address, model number, and MAC address of each device. Select the
applicable device and double click to open up the web viewer.
3.3.3 Accessing the Camera’s Web Setup Page
1) Open the browser and enter the camera’s IP address in the address bar or double click the device in IP
Scanner.
8
Enter the IP
address here
2) Enter the user name and password when prompted.
3) Default user name is admin and password is 1234.
4) If prompted for installation of the Active-X plug-in, allow the installation. Active-X is needed to view video
from Internet Explorer.
9
4. DIMENSION (mm)
Ceiling
Ceiling_Junction Box
10
