Speco O3FD8M Installation Guide

Page 1
Flexible Intensifier® Technology Dome IP Camera
QUICK INSTALLATION GUIDE
O3FD8M
Please read this guide carefully before installation and operation of the product.
Page 2
electric shock to persons.
CAUTION
Notice
Thank you for purchasing this product. This guide is designed to be a reference tool for the product. Please read it carefully before operating the product and retain it for future reference. Should you require any technical assistance, please contact Speco Technologies Technical Support.
The lighting flash with an arrowhead symbol, within an equilateral triangle is
CAUTION
RISK OF ELECTRIC
SHOCK
DO NOT OPEN
TO REDUCE THE RISK OF ELECTRIC SHOCK,
DO NOT REMOVE THE COVER (OR BACK).
NO USER SERVICEABLE PARTS INSIDE.
REFER SERVICING TO QUALIFIED PERSONNEL.
intended to alert the user to the presence of non-insulated dangerous voltage within the product’s enclosure that may be of sufficient magnitude to constitute a risk of
The exclamation point within an equilateral triangle is intended to alert the user to the presence of important operating and maintenance (servicing) instructions in the literature accompanying the appliance.
INFORMATION
This equipment has been tested and found to comply with limits for a Class A digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference when the equipment is operated in a commercial environment. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instruction manual, may cause harmful interference to radio communications. Operation of this equipment in a residential area is likely to cause harmful interference in which case the user will be required to correct the interference at its own expense.
WARNING
Changes or modifications not expressly approved by the manufacturer could void the user’s authority to operate the equipment.
CAUTION –
Do NOT use power source other than that specified. Do NOT expose this appliance to rain or moisture.
Installation should be made by a qualified service person and should conform to all local codes.
To prevent electric shock and risk of the fire hazards
1
Page 3
PRECAUTIONS
Please read the manual carefully before the installation in order to set up the camera correctly and to obtain
the best picture quality.
Installation and services should only be carried out by an authorized personnel according to local safety
regulations.
If any liquid or solid matter gets into the housing, immediately disconnect the camera from power supply and
have it checked by your authorized dealer before reusing.
Avoid installing the camera in extremely hot or cold places. If you are not a certified person, never try to dismantle the camera.
To avoid electric shock, never remove the screws or covers. There are no parts inside that need maintenance by the user. All maintenance should be carried out by qualified personnel.
Avoid installing the camera in a place of high humidity. Avoid installing the camera at a place exposed to gas or oil. Don't point the camera directly at sunlight. Please pay special attention to keep the unit from dropping or external shock during the process of
transportation or handling.
Never try to touch the camera with wet hands. It may cause an electric shock. Do not expose the camera to radioactivity. It can cause a serious damage on the image sensor.
LIMITATION OF LIABILITY
This publication is provided “AS IS” without warranty of any kind, either express or implied, including but not limited to, the implied warranties of merchantability, fitness for any particular purpose, or non-infringement of the third party's right. This publication could include technical inaccuracies or typographical errors. Changes are added to the information herein, at any time, for the improvements of this publication and / or the corresponding product(s).
DISCLAIMER OF WARRANTY
In no event shall seller be liable to any party or any person, except for replacement or reasonable maintenance of the product, for the cases, including but not limited to below :
(1) Any damage and loss, including without limitation, direct or indirect, special, consequential or
exemplary, arising out of or relating to the product. (2) Personal injury or any damage caused by inappropriate use or negligent operation of the user. (3) Unauthorized disassembly, repair or modification of the product by the user. (4) Inconvenience or any loss when images are not displayed, due to any reason or cause
including any failure or problem of the product. (5) Any problem, consequential inconvenience, or loss or damage, when combined with third party devices. (6) Any claim or action for damages, brought by any person or organization, due to a violation of privacy when
the surveillance footage, for some reason, becomes public or is used for the purpose other than
surveillance.
2
Page 4
data cache
:
16kbyte,
MMU
)
Day &
Night
IR cut filter
Day & Night
Dynamic
IP
SPECO
DDNS
(Free of Charge)
1. PRODUCT OVERVIEW
Key Features
3.0 Mega pixel 1/2.8" SONY progressive scan CMOS image sensor for excellent image quality IP66 rated, weather resistant 2.9-12mm motorized lens with auto focus 3-axis design Support for corridor view (in H.264) Integrated motion detection with pre- and post-alarm image / video buffering Supports CBR (Constant Bit Rate) and VBR (Variable Bit Rate) modes Supports Tampering-Alarm Controllable frame rate Privacy Masking up to 8 areas Built-in standard PoE (802.3af) HTTPS support Integrated E-Mail, FTP, DDNS and DHCP client
Specifications
CLASSIFICATION SPEC
ARM1176JZF-STM ( 400 MHz, Instruction cache : 32kbyte,
General
Image Pickup
CPU
Flash 2Gbit Flash Memory SDRAM 2Gbit DDR3 Memory Image Sensor 3.1 Megapixel 1/2.8" SONY progressive scan CMOS image sensor Total Pixels 2065(H) x 1565(V) 3.23 Megapixel Effective Pixels 2065(H) x 1553(V) 3.21 Megapixel S/N Ratio More than 50dB Min. Illumination 0.01Lux IR Distance 65’ (4 Built-in High Power LED’s)
Video
Network
Lens Control DC Iris Lens Control Lens 2.9-12mm motorized lens Video Compression H.264/MJPEG Resolutions Up to 2048 x 1536
Frame rate
Video Streaming
Image Setting
Security
H.264 Up to 30fps with 2048 x 1536 MJPEG Up to 30fps with VGA resolution Support Multi Stream with H.264, MJPEG Adjustable Frame Rate VBR / CBR in H.264 Brightness, contrast, Sharpness
Auto White Balance Auto Exposure Privacy Mask DSS, 2DNR (On / Off), 3DNR (On / Off) Defog function Corridor-View, Mirror / V-Flip, etc. WDR (Low / Middle / High) Smart IR (Off / 0 ~ 15)
Password Protection User Access Log
3
Page 5
HTTPS Encryption
Supported Protocol HTTP, HTTPS, DNS, RTSP, RTP, TCP, UDP, ICMP, DHCP
System Integration
Intelligent Video Motion detection 12 x 12 blocks Alarm Trigger Motion detection Firmware Upgrade Remote Upgrade via Network Etc 1 x Factory Reset Button Memory Slot Micro SD
Physical
Power Source DC 12V / 1.5A, POE (Power Over Ethernet) : 802.3af Power Consumption Max. 8.5W Net Weight 1.3 lbs Dimensions (in) 4.78(Ø) x 3.79(H)
Environment
Operating Temperature -14F ~ 122F Storage Temperature -4F ~ 140F
Specifications are subject to change without prior notice
2. NAME AND FUNCTION OF EACH PART

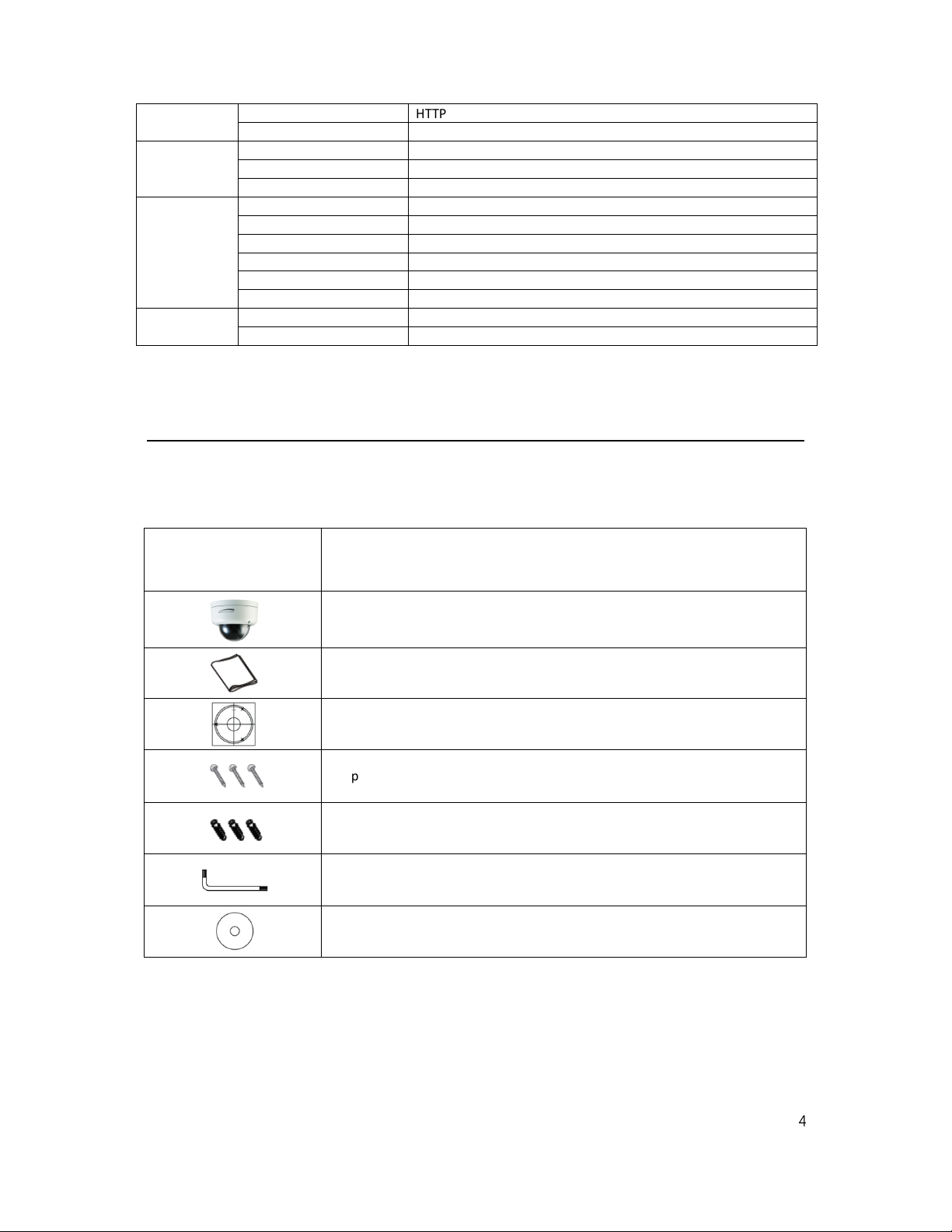

2.1 Package Contents
2.1.1 O3FD8M
APPEARANCE DESCRIPTION
IP Camera x 1
Installation Guide x 1
Drilling Template x 1
Tapping screw x 3
Plastic anchor x 3
Torx Wrench x 1
CD x 1
4
Page 6
2.2 Name and Function
5
6
4
3
NO. ITEM DESCRIPTION
DC12V
1
2
Power Connector
Network and POE Connector
 Caution : If O3FD8M is powered by PoE, do not plug in DC Jack with active DC power into
DC power connector.
POE (Power over Ethernet) and LAN cable
2
1
3
Micro SD Card Slot Up to SDXC, 64GB
Lens 2.9-12mm motorized lens
4
5
Illumination sensor Control IR LED by sensing light
6
IR LED Infrared Hi-power LED
5
Page 7
The front side of the
3. INSTALLATION
3.1 Adjust Pan, tilt and Rotation and the View Angle
Panning axis can be adjusted 360°
Tilting axis can be adjusted 10° ~ 90°
(at 0°, the image will catch part of the dome enclosure)
Rotating axis can be adjusted
between +180° (clockwise) and -180° (counter-clockwise) Do not rotate more 180° as this might cause the internal cables to twist and disconnect or break.
- How to adjust the Viewing Angle
a. Panning 360 degrees
Turn the pan base right or left to adjust the pan angle.
b. Tilting 90 degrees
Loosen the tilt lever on the right or left side of the camera board. Control the camera tilt angle and fasten the tilt lever again.
c. Rotation 180 degrees
Grasp the front side of the camera board and turn it right or left to set the exact angle of image.
Tilt 90°
Pan base
Pan 360
camera
°
Tilt lever
Rotation
180°
6
Page 8
3.2 How to Mount to Ceiling / Wall
Ceiling

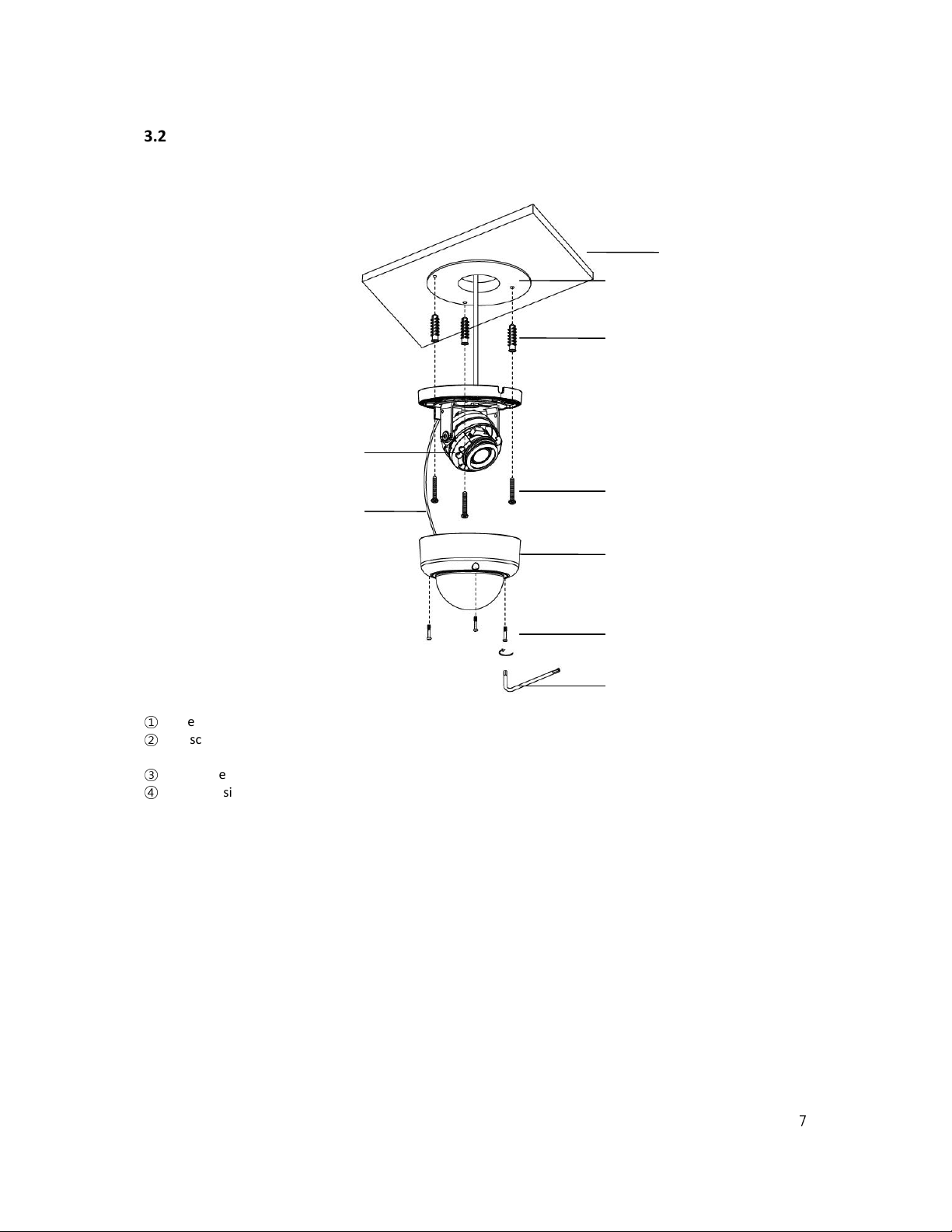

Camera Ass'y
Safety Wire
Ceiling Tile
Drilling template
Plastic Anchor x 3
Tapping Screw (4 x 30) x 3
Dome Cover Ass'y
Torx Screw (3 x 15) x 3
Torx L-Wrench
Paste the Drilling Template on the ceiling.
Drill screw points which will be done for installation. Fix the plastic anchors in the holes. (in case of masonry ceiling or wall)
Mount the camera set by using the Tapping Screws provided.
Set the position and angle of the cameras to a desired direction and assemble the dome cover.
7
Page 9
Tapping Screw
(6 x 50) x 4
Torx Screw

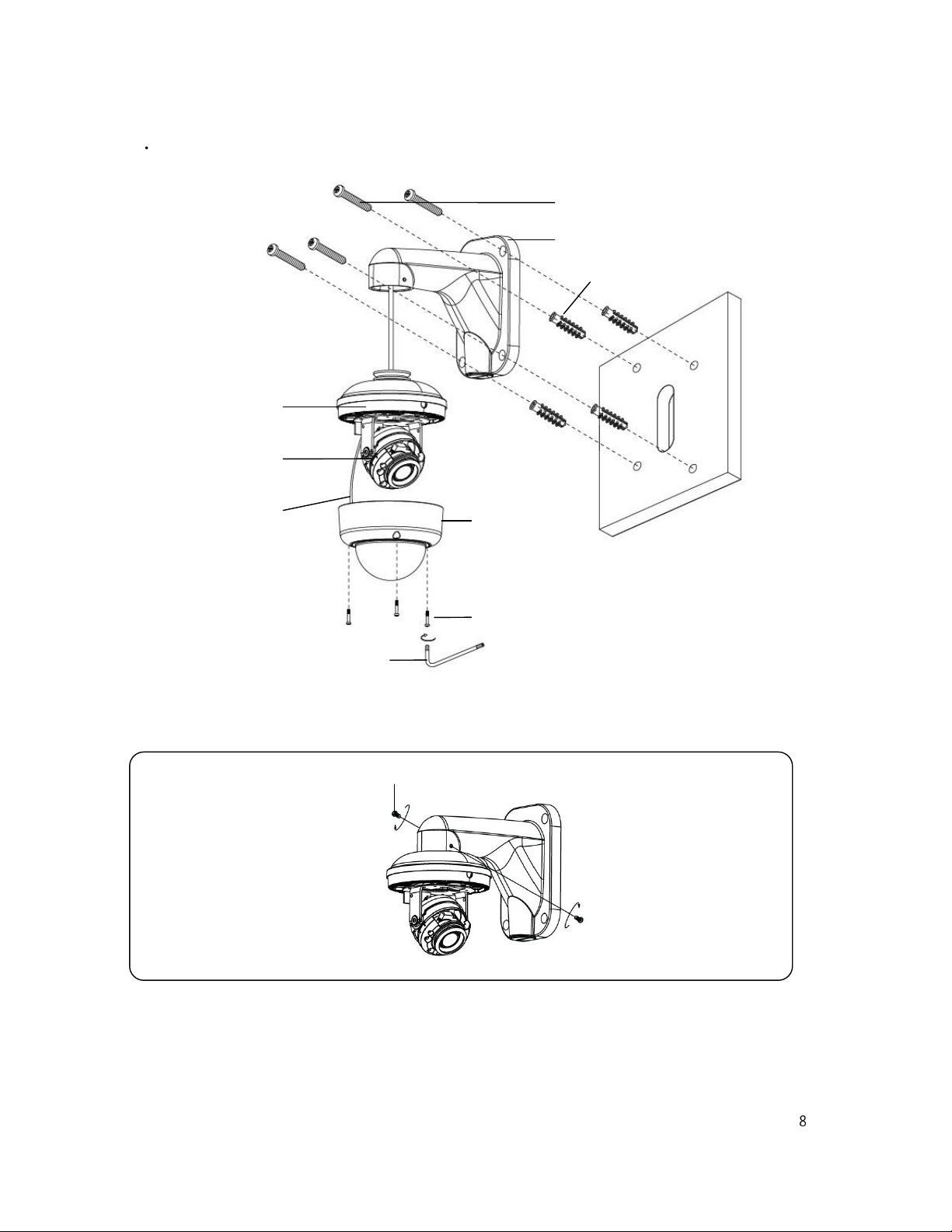

Wall Mount Bracket <Optional>
Adapter Plate
Camera Ass'y
Wall Mount Bracket
Plastic Anchor x 4
Safety Wire
Torx L-Wrench
Dome Cover Ass'y
(3 x 15) x 3
8
Page 10
IP Scanner can search for the device on the local network.
Please note that only devices that are on the same subnet can be discovered.
device is set to DHCP mode by default.
In the device list, you can view the IP address, model number, and MAC address of each device. Select the
applicable device and double click to open up the web viewer.
LAN Switch
Local Access E
Router Internet Remote Access
3.3 INSTALLATION EXAMPLE
3.3.1 Installation Example
3.3.2 Connecting to the Network
Open up IP Scanner.
The
-Mail / FTP
9
Page 11
3.3.3 Accessing the Camera or video server’s Homepage
1) Open the browser and input network camera address in the address bar or double click the device in IP
Scanner.
Input your IP address here
2) Please input your user name and password when prompted.
3) Default user name is
4) The first time you login to the camera, you will be notified that a ActiveX control is required to be installed.
You need to allow the installation of ActiveX.
admin
and password is
1234
.
4. DIMENSIONS (mm)
10
