O2T7 User’s Manual
Network Camera Manual
(O2T7)
O2T7 User’s Manual
D i r e c t i o n s
D i r e c t i o n s
D i r e c t i o n s D i r e c t i o n s
Be careful not to cause any physical damage by dropping or throwing the camera. Especially keep the
device out of reach from children.
Do not disassemble the camera. No after service is assumed when disassembled.
Use only the power adapter provided with the camera.
Be careful to prevent moisture or water penetration into the unit. Attention is needed when installing the
camera. The screw holes for the installation screws and pipe should be maintained water tight during the
whole life time of the product.
All of the electrical connection wires running into the unit should be prepared so that water from the outside
cannot flow into the unit through the surface of the wires. Penetration of moisture through the wire for an
extended period can cause malfunction of the unit or deteriorated image.
Note
This equipment has been tested and found to comply with the limits for a Class A digital device,
pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection
against harmful interference in a residential installation. This equipment generates, uses and can
radiate radio frequency energy and, if not installed and used in accordance with the instructions, may
cause harmful interference to radio communications. However, there is no guarantee that interference
will not occur in a particular installation. If this equipment does cause harmful interference to radio or
television reception, which can be determined by turning the equipment off and on, the user is
encouraged to try to correct the interference by one or more of the following measures:
Reorient or relocate the receiving antenna.
Increase the separation between the equipment and receiver.
Connect the equipment into and outlet on a circuit different from that to which the receiver is
connected
Consult the dealer or an experienced radio/TV technician for help.
Rev 1.0 (May. 2017)
O2T7 User’s Manual
Caution
Any changes or modifications in construction of this device which are not explicitly approved by the party
responsible for compliance could void the user’s authority to operate the equipment.
Revision History
Date Revision Details
May 10, 2017 1.0 First manual revision creation.
Rev 1.0 (May. 2017)
O2T7 User’s Manual
Contents
Contents .................................................................................................................................................................. 4
1. Introduction ..................................................................................................................................................... 5
1.1. Overview ................................................................................................................................................... 5
1.2. Specifications ............................................................................................................................................ 6
1.3. Applications of O2T7 ................................................................................................................................ 7
2. Product Description ......................................................................................................................................... 8
2.1. Contents ................................................................................................................................................... 8
2.2. Product Preview........................................................................................................................................ 8
2.3. Physical description .................................................................................................................................. 9
2.4. Functional Description ............................................................................................................................ 11
2.5. Accessories for installation ..................................................................................................................... 12
3. On Site Installation ........................................................................................................................................ 13
3.1. Installation .............................................................................................................................................. 13
4. Getting Started .............................................................................................................................................. 14
4.1. PC System Requirements ........................................................................................................................ 14
4.2. Quick Installation Guide ......................................................................................................................... 15
5. Troubleshooting ............................................................................................................................................. 19
5.1. No power is applied ................................................................................................................................ 19
5.2. Cannot connect to the camera ............................................................................................................... 20
5.3. Technical Assistance ............................................................................................................................... 21
Rev 1.0 (May. 2017)
O2T7 User’s Manual
1. Introduction
1.1. Overview
The O2T7 is a 2 megapixel, triple-codec (H.265, H.264, MJPEG) IP camera built with embedded software and
hardware technology. It enables real time transmission of synchronized video of up to 1080p and audio data.
Remote clients can connect to device for real time video/audio data through various client solutions running
on PCs and smartphones. Real time 2-way communication is available through the bidirectional audio
communication feature.
Intensifier® technology is an optimized solution for surveillance in low light conditions, achieved by using a
superior CMOS sensor with an ISP for low light sensitivity. Intensifier® is beneficial in poor lighting
environments, efficiently reducing noise and ghosting while maintaining a color image without the use of IR
LEDs.
Designed to be a stand-alone streaming audio & video transmission device, this camera can be applied to
various applications such as video security, remote video monitoring, remote education, video conference or
internet broadcasting system.
Integrated PoE (Power over Ethernet, IEEE 802.3af) will reduce the total cost of ownership by reducing on-site
wiring for installation.
Rev 1.0 (May. 2017)
O2T7 User’s Manual
1.2. Specifications
LENS
Lens Type C&CS Mount Lens
CAMERA
Image Sensor 1/2.8” 2 Megapixel Sony CMOS
Minimum Illumination COLOR : 0.05 lux F1.4 / BW : 0.0025 lux F1.4
Scanning Mode Progressive Scan
Dynamic Range 108dB (true WDR)
Electronic Shutter Auto
VIDEO
Compression Algorithm H.265, H.264, MJPEG
Compression Resolution 352X240, 640X360, 704X480, 1280x720, 1920x1080
Bitrate Control H.264-CBR /VBR (up to 12Mbps) / H.265 - CBR / VBR (up to 5Mbps)
Maximum Frame Rate 30fps @ 1080p + 30fps @ 720p + 30fps @ 4CIF Max Triple Streaming
Multi Stream 3 streams
AUDIO
Compression Algorithm G.726 (16KHz), G.711 μ – Law (8KHz)
INPUTS/OUTPUTS
Video Output 1 BNC
Audio Input 1 line in
Audio Output 1 line out
Alarm Input 1 TTL, NC/NO programmable, 4.3V (NC) or 0.3V (NO) threshold, 5 VDC
Alarm Output 1 relay out, NO only, 0.3A @ 125 VAC, 1A @ 30 VDC
Network Connectivity 10/100 Mbps Ethernet
CONNECTORS
Video Output BNC
Audio In/Out 3.5mm audio jack
Alarm In Wires
Alarm Out Wires
Ethernet Port RJ-45
GENERAL
Dimensions (Ø x H) 2.71”(W)X2.16”(H)X4.33”(D)
Unit Weight 0.99lbs
Operating Temperature 14°F to 122°F (-10°C to 50°C)
Operating Humidity 0% to 90%
Rev 1.0 (May. 2017)
O2T7 User’s Manual
Power Supply 12 VDC, PoE (Power over Ethernet) (IEEE 802.3af, Class 3)
Power Consumption Max. 3W
Approval FCC, CE
Specifications are subject to change without notice.
1.3. Applications of O2T7
Security surveillance (buildings, stores, manufacturing facilities, parking lots, banks, government facilities, military, etc.)
Remote monitoring (hospitals, education, traffic, public areas, etc.)
Teleconference (Bi-directional audio conference). Remote Learning, Internet broadcasting
Weather and environmental observation
Rev 1.0 (May. 2017)
O2T7 User’s Manual
netw o r k a n d a s s i g n I P a d d r e s s e s
PC software to v i e w a n d r e c o r d
video from the I P c a m e r a .
2. Product Description
2.1. Contents
The product package contains
:
Contents
Main Body
Tools and Mounting
Screws
CD
Quick Reference Guide
GPL License
2.2. Product Preview
Description Image
O2T7
Tapping Screw 2EA,
1/4
” Screw 1EA, Core 1EA
1EA
Remarks
O2T7
Box IP Camera
IP Scanner
® VMS
locate IP cameras on the
O2T7 User’s Manual
2.3. Physical description
2.3.1. External View
2.3.2. Dimensions
Figure 2-1. External view of O2T7
Figure 2-2. Dimensions
O2T7 User’s Manual
2.3.3. Connector information
1. Network Port 2. BNC Video Out 3. Power In
4. Ground 5. Audio In/Out 6. Alarm In/Out
Figure 2-3. Connector information
O2T7 User’s Manual
is powe r e d b y P o E, d o n o t p l u g i n D C J a c k w i t h a c t i v e D C p o w e r i n t o D C p o w e r
Connect external audio source or micro p h o n e .
with built in amplifier . A u d i o f r o m r e m o t e s i t e i s o u t p u t t h r o u g h L i n e o u t i n b i
45) wi t h s t a n d a r d P o E ( 8 0 2 . 3 a f ) .
sensor. Example s o f s e n s i n g d e v i c e s a r e i n f r a r e d s e n s o r , m o t i o n s e n s o r , h e a t / s m o k e s e n s o r ,
magnetic sensor, etc. Connect the two w i r e s o f t h e s e n s o r s t o “ S e n s o r I n ” . T h e s e n s o r t y p e ( N C / N O ) c a n b e s e t
admin page. Multiple sensor devi c e s c a n b e c o n
4. S EN S O R i n p u t a n d c o n n e c t i o n o f t h e s e n s o r
2.4. Functional Description
Power
Power input for supplying 12V 1
Caution: If the camera
connector.
Audio (MIC/LINE) IN
Audio (Line) In
Connect speakers
mode.
RJ-45 Ethernet (100Base-T ) /
100Mbps Ethernet connector (RJ-
SENSOR IN
Connect external alarm
-directional audio
in the
P h o t o C o u p l e r
+ 1 2 V
+ 1 2 V
+ 1 2 V + 1 2 V
G N D
G N D
G N D G N D
Figure 2-
S e n s o r 1 +
S e n s o r 1 +
S e n s o r 1 + S e n s o r 1 +
S e n s o r 1 -
S e n s o r 1 -
S e n s o r 1 - S e n s o r 1 -
nected in parallel.
N O / N C T y p e
N O / N C T y p e
N O / N C T y p e N O / N C T y p e
S e n s o r
S e n s o r
S e n s o r S e n s o r
D e v i c e
D e v i c e
D e v i c e D e v i c e
S e n s o r
S e n s o r
S e n s o r S e n s o r
P o w e r
P o w e r
P o w e r P o w e r
S u p p l y
S u p p l y
S u p p l y S u p p l y
O p e n C o l l e c t o r T y p e
O p e n C o l l e c t o r T y p e
O p e n C o l l e c t o r T y p e O p e n C o l l e c t o r T y p e
S e n s o r
S e n s o r
S e n s o r S e n s o r
D e v i c e
D e v i c e
D e v i c e D e v i c e
S e n s o r
S e n s o r
S e n s o r S e n s o r
P o w e r
P o w e r
P o w e r P o w e r
S u p p l y
S u p p l y
S u p p l y S u p p l y
O2T7 User’s Manual

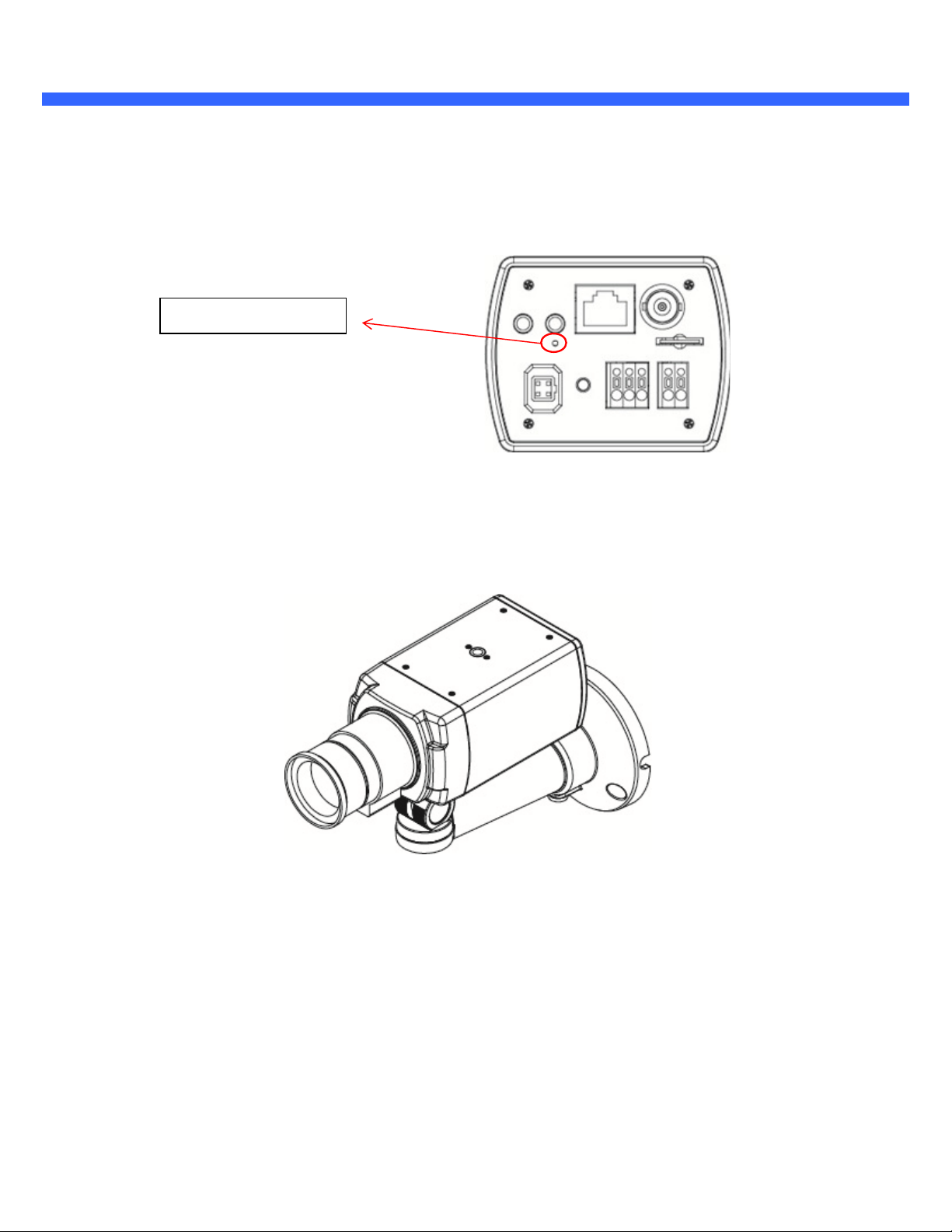

Factory Default Switch
A switch provided for returning the IP camera to factory default state. Unscrew the cover to access the switch.
Press the switch about 5 seconds while power is applied.
Factory default switch
Figure 2-5. Factory Default Switch
2.5. Accessories for installation
Figure 2-6. Accessories for installation of O2T7
O2T7 User’s Manual
3. On Site Installation
Use cables and conduits that are suitable for the installation. Close attention should be paid to the installation so that no
moisture is allowed to penetrate into the unit through the cables or conduits during the lifetime of the product. Products
that have internal parts exposed to moisture due to improper installation are not covered by warranty.
3.1. Installation
WARNING: You might need to reinforce the wall or ceiling. If the wall or ceiling is not strong enough to support the
camera, the camera might fall damaging the camera or causing injuries.
O2T7 User’s Manual
4. Getting Started
Brief information for the initial operation of O2T7 is provided in this chapter.
4.1. PC System Requirements
Audio/Video streaming data received from O2T7 can be displayed or stored in a PC running client programs. Minimum
requirements of the PC are described below:
Minimum Requirements Recommended Specifications
CPU Intel Core i3 Intel Core i5
Main Memory 2GB 4GB
Operating System* Windows XP Windows 7,8 (64bit)
Web Browser Internet Explorer 8 Internet Explorer 8 or higher
Graphic Card
Video RAM 256MB or more
Resolution 1920x1080
Network 100 Base-T Ethernet 100 Base-T Ethernet
* Operating Systems supported: Windows XP / Vista / 7 / 8
Video RAM 1GB
Resolution 1920x1080
Rev 1.0 (May. 2017)
O2T7 User’s Manual
4.2. Quick Installation Guide
1. Connect PC and O2T7 to network.
1) Prepare a PC to run programs for the installation and video connection
2) In the case of using PoE, connect the PC and O2T7 to the network using one of the following ways.
If your LAN Switch does not support standard PoE, connect O2T7 as shown in dotted line in Figure 4-1. The DC
power is applied through DC adapter.
Figure 4-1. Power and network connection
Rev 1.0 (May. 2017)
O2T7 User’s Manual
to discover IP cameras on t h e l o c a l n e t w o r k .
low to access the c a m e r a s e t t i n g s
Install IP Scanner on the PC that w i l l b e u s e d o n t h e s a m e l o c a l n e t w o r k a s t h e I P c a m e r a . I P S c a n n e r c
be found on the CD included in th e p a c k a g e o r d o w n l o a d e d f r o m s p e c o t e c h . c o m .
The available cameras on the loca l n e t w o r k w i l l s h o w a u t o m a t i c a l l y
click on the a p p l i c a b l e m o d e l t o l a u n c h t h e c a m e r a w e b v i e w e r
be set to Internet Explorer to view v i d e o )
The camera is set to DHCP mode ou t o f t h e b o x .
2. Install IP Scanner
IP Scanner is a utility
Follow the sequence be
i)
ii)
Run IP Scanner
iii)
iv)
Highlight and double-
an
owser must
O2T7 User’s Manual
When prompted, install a n d a l l o w t h e A c t i v e X c o n t r o l s
factory d e f a u l t o u t o f t h e b o x . F o r a m o r e s o p h i s t i c a t e d t a r g e t a p p l i c a t i o n ,
For video connection, ente r t h e I P a d d r e s s o f
accessed by clicking on “ S e t u p ” i n t h e
3. Remote video connection to O2T7
1) Connection through Web Viewer
The web viewer offers the
O2T7 in the Interne
to connect to the O2T7.
as:
[ e . g . ] P o r t 8 0
[ e . g . ] P o r t 8 0 8 0
Note :
as needed
The default login ID and password are admin
4. Additional settings
All parameters of the camera are set to
parameters can be changed through the
web viewer.
.
page. The settings page can be
O2T7 User’s Manual
O2T7 User’s Manual
5. Troubleshooting
5.1. No power is applied
In case of Standard PoE (Power over Ethernet)
Power supply through standard PoE is possible only when the following conditions are met.
1. Standard PoE is supported on the product.
2. The LAN switch supports standard PoE.
Make sure that both the IP camera and the LAN switch support standard PoE (IEEE 802.3af)
In case of DC adapter
If PoE is not applied, the power and network connection should be made through separate cables. Use the
DC adapter recommended by the provider. In case of replacing the DC power supply, make sure that the
power supply meets the power requirement of the IP camera to prevent damage or malfunction.
Rev 1.0 (May. 2017)
O2T7 User’s Manual
5.2. Cannot connect to the camera
Check the status of the network connection through PING test.
Try the following on your PC:
- Start > Run > Cmd > Ping IP address (Ex : Ping 172.16.42.51)
- If “Reply from ~” message is returned ( in the figure below) , the network connection is in normal state. Try
connection to the video again. If the problem persists, or refer to other trouble shooting notes.
- If “Request timed out” message is returned. ( in the figure below), the network connection or network
setting is not in normal state. Check the network cable and settings.
Rev 1.0 (May. 2017)
O2T7 User’s Manual
If you need any technical assistance, p l e a s e c o n t a c t
Description of the prob l e m
lease prov i d e t h e f o l l o w i n g
5.3. Technical Assistance
information.
1 .
1 .
Model name
1 . 1 .
2 .
2 .
MAC address
2 . 2 .
3 .
3 .
Purchase date
3 . 3 .
4 .
4 .
4 . 4 .
5 .
5 .
Error message
5 . 5 .
Speco’s technical support. P
