ONSIP 02T5
r
’
’
ss GGuuiidde
e
OONNSSIIPP OO22TT55 OOwwnneer
Rev.1.0 (Nov., 2011)
2
Note
This equipment has been tested and found to comply with the limits for a Class a digital device,
pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection
against harmful interference in a residential installation. This equipment generate, uses and can
radiate radio frequency energy and, if not installed and used in accordance with the instructions, may
cause harmful interference to radio communications. However, there is no guarantee that interference
will not occur in a particular installation. If this equipment does cause harmful interference to radio or
television reception, which can be determined by turning the equipment off and on, the user is
encouraged to try to correct the interference by one or more of the following measures:
Reorient or relocate the receiving antenna.
Increase the separation between the equipment and receiver.
Connect the equipment into and outlet on a circuit different from that to which the receiver is
connected
Consult the dealer or an experienced radio/TV technician for help.
Directions
Be careful not to cause any physical damage by dropping or throwing ONSIP O2T5. Especially keep the
device out of reach from children.
Do not disassemble ONSIP O2T5. No After Service is assumed when disassembled.
Use only the power adapter provided with ONSIP O2T5.
Be careful to prevent moisture or water penetration into the unit. Particular attention is needed when
installing ONSIP O2T5. The screw holes for the installation screws and pipe should be maintained water
tight during the whole life time of the product.
All the electrical connection wires running into the unit should be prepared so that water from the outside
cannot flow into the unit through the surface of the wires. Penetration of the moisture through the wire for
extended period can cause malfunction of the unit or deteriorated image.
r
’
’
ss GGuuiidde
e
OONNSSIIPP OO22TT55 OOwwnneer
Rev.1.0 (Nov., 2011)
3
Date
Revision
Details
2011-11-01
1.0
First manual revision creation.
Caution
Any changes or modifications to this device could void the warranty.
Revision History
r
’
’
ss GGuuiidde
e
OONNSSIIPP OO22TT55 OOwwnneer
Rev.1.0 (Nov., 2011)
4
’
’
ss GGuuiidde
e
r
Contents
Contents ........................................................................................... 4
1. Introduction ................................................................................... 5
1.1. Overview ................................................................................................... 5
1.2. Specification .............................................................................................. 6
1.3. Applications of ONSIP O2T5 ......................................................................... 8
2. Product Description......................................................................... 9
2.1. Contents ................................................................................................... 9
2.2. Product Preview ....................................................................................... 10
2.3. Physical description .................................................................................. 11
2.4. Functional Description ............................................................................... 12
3. On Site Installation ........................................................................ 16
3.1. Stand Bracket .......................................................................................... 16
4. Getting Started ............................................................................. 17
4.1. PC Requirement ....................................................................................... 17
4.2. Quick Installation Guide ............................................................................. 18
5. Trouble Shooting .......................................................................... 24
5.1. No power is applied ................................................................................... 24
5.2. Cannot connect to the Video ....................................................................... 25
5.3. Windows Vista or Windows 7 ...................................................................... 26
5.4. Technical Assistance ................................................................................. 29
OONNSSIIPP OO22TT55 OOwwnneer
Rev.1.0 (Nov., 2011)
5
’
’
ss GGuuiidde
e
r
1. Introduction
1.1. Overview
The ONSIP O2T5 is a state-of-the-art (Megapixel), multi-codec (H.264, MJPEG) IP camera (or network camera)
built with embedded software and hardware technology. It enables real time transmission of synchronized video
of up to 2 Megapixels and audio data. Remote clients can connect to ONSIP O2T5 for the real time video/audio
data through various client solutions running on PC, PDA or mobile phones. Real time 2-way communication is
available through bidirectional audio communication feature.
Designed to be a stand-alone streaming audio & video transmission device, ONSIP O2T5 can be applied to
various application area such as video security, remote video monitoring, distance education, video conference
or internet broadcasting system.
Embedded PoE (Power over Ethernet, IEEE 802.3af) will enable the owner to reduce TCO (Total Cost of
Ownership) by reducing on-site wiring works for the installation.
OONNSSIIPP OO22TT55 OOwwnneer
Rev.1.0 (Nov., 2011)
6
Category
Sub-Category
Details
Video
Compression
H.264/MJPEG
Resolution
**Refer to the datasheet.
Audio
(Bi-directional)
Up
32 Kbps G.726
Down
64 Kbps PCM
Network
Interface
RJ-45, 10/100 Mbps, PoE (802.3af)
Access network
Static, DHCP, PPP/PPPoE
Application
RTP, RTSP, SMTP, FTP, HTTP, SDP, NTP, DNS
I/O
RS-485
For providing RS-485 device
Sensor In 1 NC, NO Selectable
Relay Output
1
For alarm annunciation or
remote ON/OFF control (30V, 1A)
RS-232C
For factory use only
Mic/Line In
Selectable in Admin page
Line Out
1 V p-p output for amplified speaker
CVBS output
For temporal use during installation
Power Supply
PoE
Power over Ethernet (IEEE802.3af)
DC Adaptor
12V DC adaptor (2A)
Mounting
Stand Bracket
Motion Detection
3 zones
Arbitrary shape with independent sensitivity
Upgrade
Firmware upgrade over IP network
Administration
Remote administration over IP network
Client & Viewer
Web Viewer
Simple viewing over internet explorer
Speco-NVR
Standard CMS software
Dynamic IP support
DDNS support
Supported
Security
Video/Audio stream encryption
ID and Password protection
IP filtering for restricting administrative
access for audio and bi-audio
1.2. Specification
r
’
’
ss GGuuiidde
e
OONNSSIIPP OO22TT55 OOwwnneer
Rev.1.0 (Nov., 2011)
7
Time management
Sync to PC
Synchronize to PC
Manual
Manual time setting
Internet Time Server
Synchronize to Time Server
DLS
Day Light Saving
SDK support
Active-X
HTTP
r
’
’
ss GGuuiidde
e
OONNSSIIPP OO22TT55 OOwwnneer
Rev.1.0 (Nov., 2011)
8
’
’
ss GGuuiidde
e
r
1.3. Applications of ONSIP O2T5
Security surveillance (buildings, stores, manufacturing facilities, parking lots, banks, government facilities,
military, etc.)
Remote monitoring (hospitals, kindergartens, traffic, public areas, etc.)
Teleconference (Bi-directional audio conference). Remote Learning, Internet broadcasting
Weather and environmental observation
OONNSSIIPP OO22TT55 OOwwnneer
Rev.1.0 (Nov., 2011)
9
Contents
Description
Remarks
ONSIP O2T5
IP camera (ONSIP O2T5 ) main unit
Power Adaptor
Default built in standard PoE module
(IEEE802.3af)
12VDC Adaptor
(Optional item)
Mounting bracket
Standard mount bracket
Supported
CD
Software & User’s Guide
Quick Reference Guide
Quick installation guide
’
’
ss GGuuiidde
e
r
2. Product Description
2.1. Contents
The product package contains followings:
r
Rev.1.0 (Nov., 2011)
10
ONSIP O2T5
IP-Installer
CMS Software
(Speco-NVR)
Mega pixel IP Camera
PC software to allocate an IP
address to the IP Camera
PC software to view and record
the A/V streaming data transmitted
from IP camera.
(Simultaneous support of up to 64
IP cameras)
OONNSSIIPP OO22TT55 OOwwnneer
’
’
2.2. Product Preview
ss GGuuiidde
e
r
Rev.1.0 (Nov., 2011)
11
OONNSSIIPP OO22TT55 OOwwnneer
’
’
ss GGuuiidde
2.3. Physical description
2.3.1. External View
e
2.3.2. Rear panel
Figure 2-1. External view of ONSIP O2T5
Figure 2-2. Rear panel of ONSIP O2T5
OONNSSIIPP OO22TT55 OOwwnneer
Rev.1.0 (Nov., 2011)
12
Caution: If ONSIP O2T5 is powered by PoE, do not plug in DC Jack with active DC power
into DC power connector.
Pin
Description
Misc.
Red/Green LED will be lit with red momentarily and it will be lit with green after a while when
power is applied into ONSIP O2T5
’
’
ss GGuuiidde
e
r
2.4. Functional Description
DC 12V: Power input for supplying 12V DC power.
MIC/LINE IN
Connect external audio source or microphone.
Line Out
Connect speakers with built in amplifier. Audio from remote site is output through Line out in bi-directional
audio mode.
100Base-T
100Mbps Ethernet connector (RJ-45) with PoE standard (802.3af). 2 LEDs on the Ethernet connector
shows the status of ONSIP O2T5 as the followings:
- Status LED (Dual Color - Red/Green): It will be lit in green or red depending on the status.
Green: Green color indicates that the camera is in normal operation mode. Continuous green
indicates that data transmission is possible. Blinking green means that someone is
connected to ONSIP O2T5.
Red: Continuous or blinking red indicates that hardware is in abnormal condition.
- LINK/LAN LED (Orange)
It will be lit with orange color when network cabling is all right. Blinking orange color indicates that
normal data transmission is under way. Off state indicates that there is trouble in network connection.
RS-232C
3 Pins on the right of the connector are assigned for RS-232 port. Please note that leftmost pin is
numbered as 1.
r
Rev.1.0 (Nov., 2011)
13
1
Not used
2 Not used
3
RxD (Connect to TxD of the other end)
For debugging & factory use only.
4
TxD (RxD (Connect to RxD of the other end))
5
Ground of RS-232C
Pin
Description
Misc.
1
RS-485 Plus (+)
For providing RS485 signal to RS485 devices
2
RS-485 Minus (-)
For providing RS485 signal to RS485 devices
3
SNS IN (+)
Sensor In (+):
NC/NO selectable in admin mode
4
SNS IN (1)
Sensor In (-):
NC/NO selectable in admin mode
5
RLY OUT
Relay output: Closed circuit in alarm to indicate alarm
status
6
RLY OUT
7
CVBS OUT(+)
Composite output of analog video
8
CVBS OUT(-)
Ground connection for Composite output of analog
video
OONNSSIIPP OO22TT55 OOwwnneer
ALARM IN/OUT and Composite Video Output
’
’
ss GGuuiidde
e
Figure 2-3 Terminal block for the I/O Connection of ONSIP O2T5
Used for connecting P/T device, sensor, and composite video output. Pin assignments are as follows.
RS-485
Used for connecting Pan/Tilt devices having RS-485 interface standard.
OONNSSIIPP OO22TT55 OOwwnneer
Rev.1.0 (Nov., 2011)
14
Senso r
Device
Senso r
Power
Supp ly
NO/NCType
Senso r1-
Senso r1+
+12V
GND
Sensor
Device
Senso r
Power
Supp ly
Open CollectorType
Photo Coupler
Alarm
Out
Device
Relay1
Power
Supp ly(1 ~30
VDC/AC,1A )
Relay1
+
-
Relay Switch Power Supply
1V~30 VDC/ AC,1 A
Optional
Relay Switch
Alarm
Out
Device
Power
Supp ly(30V
~)
Relay
SNS IN
Examples of sensing devices are infrared sensors, motion sensors, heat/smoke sensors,
magnetic sensor, etc. Connect the two wires of the sensors to “SNS In”. The sensor type
(NC/NO) can be set in Administrative mode. 10mA can be flown into sensor device. Multiple
sensor devices can be connected in parallel.
r
’
’
ss GGuuiidde
e
Figure 2-4. SENSOR Input connection
RLY OUT
It is used for connecting external alarm generators such as sirens, flashing light, etc. When
activated, relay output configures a closed circuit.
A Relay output is provided for connecting alarm devices or for remote on/off devices such as light.
Relay is normal open and it will be closed upon alarm annunciation or remote on. The relay is
capable of switching 30V AC/DC, 2A.
Figure 2-5. RELAY Output connection
OONNSSIIPP OO22TT55 OOwwnneer
Rev.1.0 (Nov., 2011)
15
Restoring the factory default will erase all settings.
Factory Default Switch
A switch provided for returning the IP camera to factory default state. Press the switch for a few
seconds while power is applied.
r
’
’
ss GGuuiidde
e
Figure 2-6 Factory Default switch of ONSIP O2T5
OONNSSIIPP OO22TT55 OOwwnneer
Rev.1.0 (Nov., 2011)
16
1. Fix the mounting bracket and bracket
holder on the wall or the ceiling using
screws.
2. Insert the bolt on the bracket into the
bracket hole and rotate the bolt
clockwise to install the IP camera on
the bracket
3. Rotate the nut and lever clockwise to tighten.
’
’
ss GGuuiidde
e
r
3. On Site Installation
3.1.
SSttaanndd BBrraacckkeet
Please follow through the following procedures for the installation on the wall or ceiling.
t
OONNSSIIPP OO22TT55 OOwwnneer
Rev.1.0 (Nov., 2011)
17
Recommended
Remark
CPU
Pentium IV 3G above
Main Memory
1GB above
Operating System*
Windows XP
Web Browser
Internet Explorer 6.0 above
Graphic Card
64M above
Higher than 1600x1200
Network
100 Base-T Ethernet
’
’
ss GGuuiidde
e
r
4. Getting Started
Brief information for first time operation of ONSIP O2T5 is provided in this chapter.
4.1. PC Requirement
Audio/Video streaming data received from ONSIP O2T5 can be displayed or stored in a PC running client
programs. Minimum requirement of the PC is described below:
* Operating Systems supported: Windows 2000 Professional, Windows XP / Vista / 7
OONNSSIIPP OO22TT55 OOwwnneer
Rev.1.0 (Nov., 2011)
18
LAN switch with
standard POE
LAN switch
DC adaptor
’
’
ss GGuuiidde
e
r
4.2. Quick Installation Guide
1. Connect PC and ONSIP O2T5 to network.
1) Prepare a PC to run programs for the installation and video connection
(PC is needed to assign IP address to ONSIP O2T5)
2) In case of using PoE, connect the PC and ONSIP O2T5 to the network using one of the following ways.
If your LAN Switch does not support standard PoE, connect ONSIP O2T5 as shown in dotted line in
Figure 4-1. The DC power is applied through DC adaptor.
Figure 4-1. Power and network connection
r
Rev.1.0 (Nov., 2011)
19
Admin Page Button
IP installer
OONNSSIIPP OO22TT55 OOwwnneer
2. Install Speco-NVR
Speco-NVR is a multi-channel CMS program for to IP camera or Video server. Install Speco-NVR on remote PC
to connect to these products. It is needed to assign connection information to Speco-NVR program before
connection.
Insert the CD provided with product into the PC and install the Speco-NVR.
’
’
ss GGuuiidde
e
Figure 4-2. Speco-NVR
Follow the sequence below for setting the IP parameter
i) Run IP installer
ii) Click ① in IP installer window.> Double click on ② > Fill in ④ > make a selection in ⑤ > Fill the
parameters in ⑥
iii) Click on ⑨ to apply the settings.
iv) You can connect to admin page by clicking on ⑩.
OONNSSIIPP OO22TT55 OOwwnneer
Rev.1.0 (Nov., 2011)
20
Click on the field in ③ for sorting and rearranging the list.
Select network mode that best suits from the drop down list in ⑤. You can choose either Static
or ADSL and Auto (DHCP), respectively. If ADSL and Auto are selected, the fields in ⑥ is
deactivated.
In case of ADSL, fill the User Name and Password in ⑧ with the values provided by your ISP.
If DDNS service is needed, Check at the box and fill the empty field with hostname you want
in ⑦.
1 2 3 6 4
9 5 7
8
10
r
’
’
ss GGuuiidde
e
r
Rev.1.0 (Nov., 2011)
21
Note: Active-X module should be installed on your PC before actual connection. If your PC is
not connected to the internet, you cannot download Active-X module. Most convenient way of
installing the Active-X module is installing Speco-NVR which is available from the CD or our
web site.
Connection to Admin Page
Basic Control Buttons
Video Crop Control
[e.g.] Port 8080
[e.g.] Port 80
Can be omitted the
default port of 80
OONNSSIIPP OO22TT55 OOwwnneer
3. Remote video connection to ONSIP O2T5
1) Connection through Web Viewer
Web Viewer offers simplest way of video connection to ONSIP O2T5. For video connection, enter the
IP address of ONSIP O2T5 in the URL window of Internet Explorer as:
’
’
ss GGuuiidde
e
Figure 4-3. Web Viewer
Default ID and password of Admin Page are root, admin. For more detailed information, please refer to the
[Configuration_Guide] Guide.
r
Rev.1.0 (Nov., 2011)
22
Camera Assignment
Camera Assignment
Live view
Save
Example
Exit Program
Default ID/PW: admin/1234
OONNSSIIPP OO22TT55 OOwwnneer

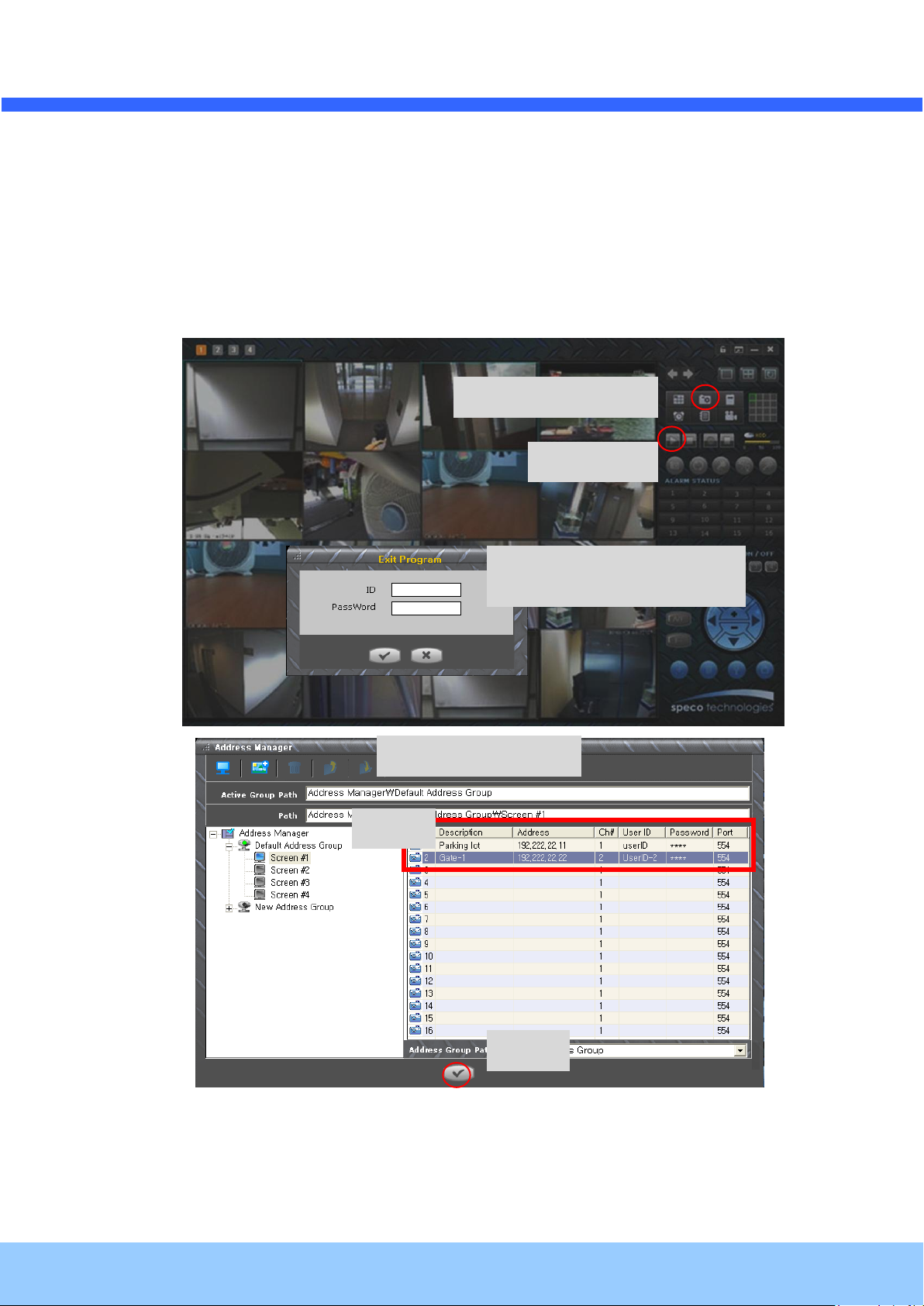

2) Connection through Speco-NVR
Speco-NVR is a multi-channel CMS program for to IP camera or Video server. Install Speco-NVR on
remote PC to connect to these products. It is needed to assign connection information to Speco-NVR
program before connection. Details for the Speco-NVR can be found in [Speco-NVR User’s Guide].
’
’
ss GGuuiidde
e
Figure 4-4. Speco-NVR
r
Rev.1.0 (Nov., 2011)
23
OONNSSIIPP OO22TT55 OOwwnneer
4. Additional settings through connection to the Admin Page
All the parameters of new IP camera follows factory default values. For more sophisticated target application it
is needed to change parameters. The admin page can be connected through
”http://IP_address:HTTP_port_number”/admin.htm
It is needed to enter ID and password of the administrator. Default ID and password are root, admin. It is highly
recommended to change the ID and password to prevent illegal access to the IP camera. For more detailed
information, please refer to the [Configuration_Guide] Guide.
’
’
ss GGuuiidde
e
OONNSSIIPP OO22TT55 OOwwnneer
Rev.1.0 (Nov., 2011)
24
’
’
ss GGuuiidde
e
r
5. Trouble Shooting
5.1. No power is applied
In case of Standard PoE (Power over Ethernet)
Power supply through standard PoE is possible only when the following conditions are met.
1. Standard PoE is supported on the product.
2. The LAN switch supports standard PoE.
Make sure that both the IP camera and the LAN switch support standard PoE (IEEE 802.3af)
In case of DC adaptor
If PoE is not applied, the power and network connection should be made through separate cables.
It is recommended to use DC adaptor supplied by Speco Technology for the feeding of the power.
In case of replacing the DC power supply, make sure that the power supply meets with the power
requirement of the IP camera to prevent damage or malfunction.
OONNSSIIPP OO22TT55 OOwwnneer
Rev.1.0 (Nov., 2011)
25
1
2
’
’
ss GGuuiidde
e
r
5.2. Cannot connect to the Video
Check the status of the network connection through PING test.
Try the following on your PC:
- Start > Run > Cmd > Ping IP address (Ex : Ping 172.16.42.51)
- If “Reply from ~” message is returned ( in the figure below), the network connection is in normal
state. Try connection to the video again. If the problem persists, or refer to other trouble shooting notes.
- If “Request timed out” message is returned ( in the figure below), the network connection or
network setting is not in normal state. Check the network cable and settings.
OONNSSIIPP OO22TT55 OOwwnneer
Rev.1.0 (Nov., 2011)
26
’
’
ss GGuuiidde
e
r
5.3. Windows Vista or Windows 7
Windows Vista and Windows 7 users need to configure UAC (User Access Control) and Privilege Level for
proper recording and still video capture in Speco-NVR and Web Viewer.
<Windows Vista>
1. UAC (User Access Control) configuration
1) Double-click “User Accounts” in control panel
2) Double-click “Turn User Account Control on or off”
3) Uncheck “Use UAC to help protect your computer”
2. Privilege Level Control
1) Select “NVR” icon on the desktop
2) Click right mouse button and select “Properties”
3) Check “Privilege Level” in “Compatibility” tab
OONNSSIIPP OO22TT55 OOwwnneer
Rev.1.0 (Nov., 2011)
27
r
’
’
ss GGuuiidde
e
<Windows 7>
1. UAC (User Access Control) configuration
1) Double-click “User Accounts” in control panel
2) Double-click “Change User Account Control setting”
3) Set to “Never notify”
r
Rev.1.0 (Nov., 2011)
28
OONNSSIIPP OO22TT55 OOwwnneer
2. Privilege Level Control
1) Select “NVR” icon on the desktop
2) Click right mouse button and select “properties”
3) Check “Privilege Level” in “Compatibility” tab
’
’
ss GGuuiidde
e
OONNSSIIPP OO22TT55 OOwwnneer
Rev.1.0 (Nov., 2011)
29
1. Model name
2. MAC address and Registration number
3. Purchase date
4. Description of the problem
5. Error message
’
’
ss GGuuiidde
e
r
5.4. Technical Assistance
If you need any technical assistance, please contact your dealer. For immediate service please provide the
following information.
Loading...
