Page 1
Quick Start Guide
2MP 4X PTZ IP Camera
O2P4X
Version 1.0.1
Page 2
i
Table of Contents
1 DEVICE CHECK ........................................................................................................... 1
1.1 Check Accessories ................................................................................................................................... 1
1.2 Check Device .......................................................................................................................................... 1
1.3 Installation Template .............................................................................................................................. 1
1.4 SD Card Slot and Reset Button ................................................................................................................ 2
2 DEVICE INSTALLATION ............................................................................................... 3
2.1 Component Installation .......................................................................................................................... 3
2.2 Installation Steps .................................................................................................................................... 4
2.2.1 Installation Environment ..................................................................................................................... 4
2.2.2 Installation Steps ................................................................................................................................. 4
3 IP SCANNER .............................................................................................................. 5
3.1 Overview ................................................................................................................................................ 5
3.2 Operation ............................................................................................................................................... 5
4 WEB OPERATION ...................................................................................................... 6
4.1 Login and Main Interface ........................................................................................................................ 6
5 APPENDIX
6 APPENDIX
7 APPENDIX
ⅠⅠⅠⅠ
SURGE PROTECTION ............................................................................... 7
ⅡⅡⅡⅡ
12V DC WIRE GAUGE AND TRANSMISSION DISTANCE REFERENCE ........... 8
ⅢⅢⅢⅢ
WIRE GAUGE REFERENCE ...................................................................... 9
Page 3
ii
Welcome
Thank you for purchasing this Network camera!
This manual is designed to be a reference tool for your system.
Please read this manual carefully before operating the unit and retain it for future reference.
Should you require any technical assistance, please contact Speco Technologies Technical
Support.
Page 4
iii
Important Safeguards and Warnings
1．．．．Electrical safety
All installation and operation here should conform to local electrical safety codes.
Use a certified/listed 12VDC Class 2 power supply only.
Please note: Do not connect two power supplying sources to the device at the same time;
it may result in device damage! The product must be grounded to reduce the risk of
electric shock.
Improper handling and/or installation could run the risk of fire or electrical shock.
2．．．．Environment
Heavy stress, violent vibration or exposure to water is not allowed during transportation,
storage and installation.
This product should be installed in a cool, dry place away from direct sunlight and heat
sources.
Do not install the product in extreme temperature conditions.
Do not expose the camera to electromagnetic radiation. Otherwise it may result in CMOS
sensor failure.
Do not block any ventilation openings.
Do not allow water and liquid intrusion into the camera.
3. Operation and Daily Maintenance
Please shut down the device and then unplug the power cable before you begin any
maintenance work.
Do not touch the CMOS sensor optic component. You can use a blower to clean the dust on
the lens surface.
Always use the dry soft cloth to clean the device. If there is too much dust, use a cloth
dampened with a small quantity of neutral detergent. Finally use the dry cloth to clean the
device.
Please use a professional optical cleaning method to clean the enclosure. Improper
enclosure cleaning (such as using cloth) may result in poor IR functionality and/or IR
reflection.
The grounding holes of the product are recommended to be grounded to further enhance
the reliability of the camera.
Dome cover is an optical device, please don’t touch or wipe cover surface directly during
installation and use, please refer to the following methods if dirt is found:
Stained with dirt
Use oil-free soft brush or hair dryer to remove it gently.
Stained with grease or fingerprint
Page 5
iv
Use oil-free cotton cloth or paper soaked with alcohol or detergent to wipe from the lens
center outward. Change the cloth and wipe several times if it is not clean enough.
Warning
This camera should be installed by qualified personnel only.
All the examination and repair work should be done by qualified personnel.
Any unauthorized changes or modifications could void the warranty.
Statement
This guide is for reference only.
Product, manuals and specifications may be modified without prior notice. Speco
Technologies reserves the right to modify these without notice and without incurring any
obligation.
Speco Technologies is not liable for any loss caused by improper operation.
Note:
Before installation, check the package and make sure that all components are included.
Keep the package material in case the camera needs to be sent back for service or repair.
Contact your rep or Speco customer service department immediately if something is broken
or missing in the package.
Page 6
1
1 Device Check
CD 1
1.1
Check Accessories
Before installation, check the package and make sure that all components are included.
Contact your rep or Speco customer service department immediately if something is broken
or missing in the package.
Accessory Name Amount
Network Camera Unit 1
Quick Start Guide 1
Junction Box 1
Installation Accessories Bag 1
1.2

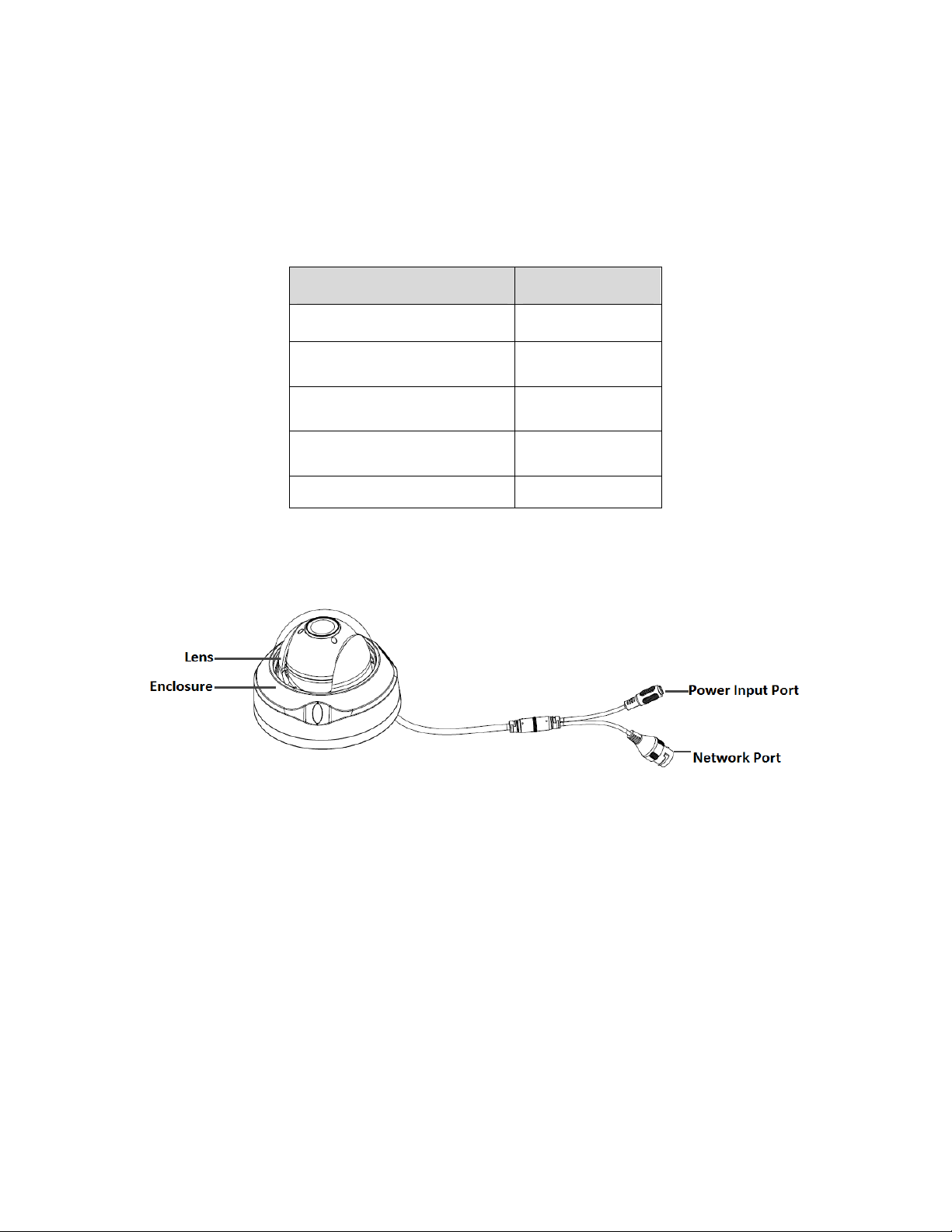

Check Device
Remove the device from the package. See Figure 1-1.
Figure 1-1

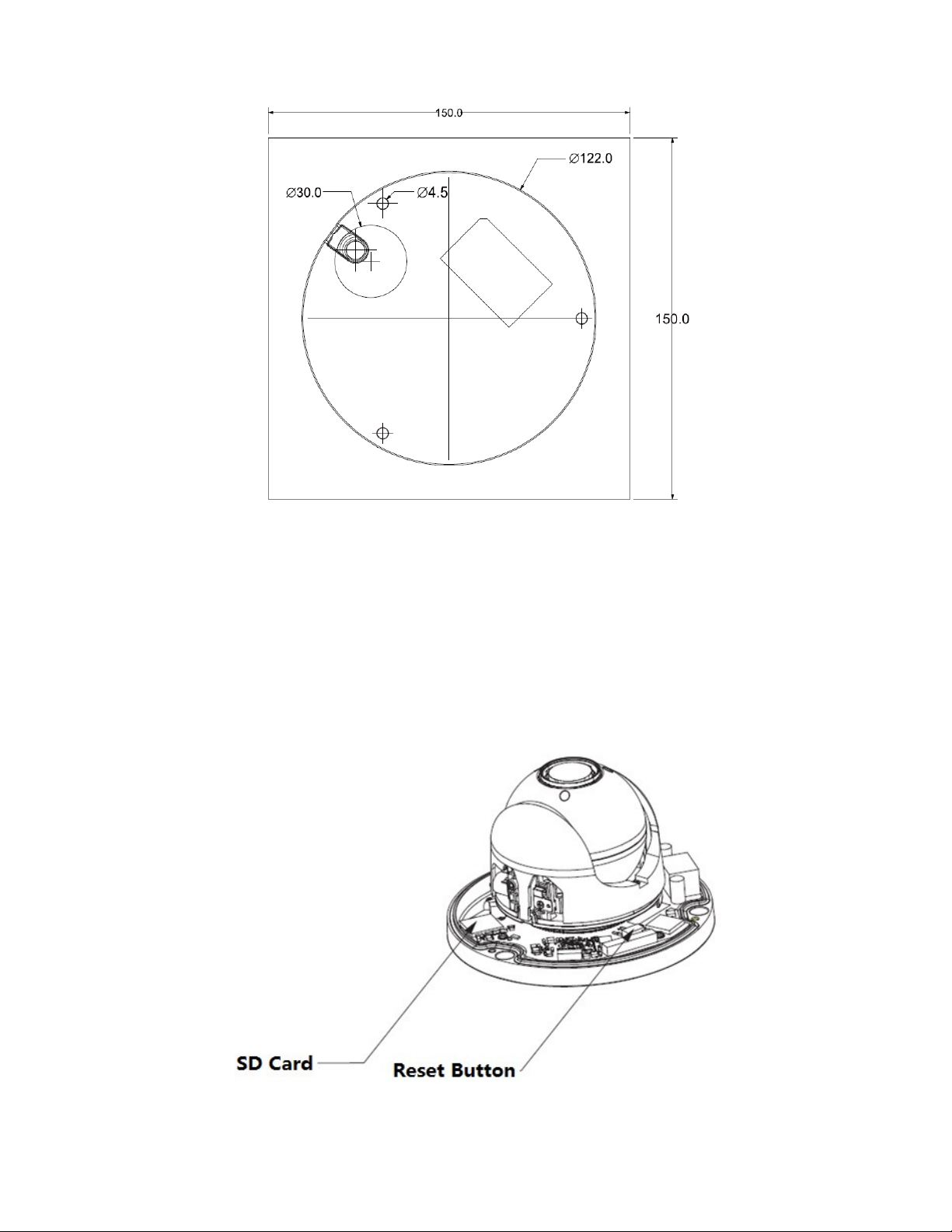

1.3 Installation Template
The installation template is used for drill hole positioning on the surface. See Figure 1-2.
Page 7
2
Figure 1-2
1.4 SD Card Slot and Reset Button
SD card slot and button are shown in Figure 1-3.
Please make sure the SD card is in a non read-write state when removing it. Otherwise, it
may result in data loss and SD card damage. The button is used for setting the device back
to a factory default state. Press and hold the reset button for more than 5 seconds to
activate factory default.
Figure 1-3
Page 8
3
2 Device Installation
2.1
Component Installation

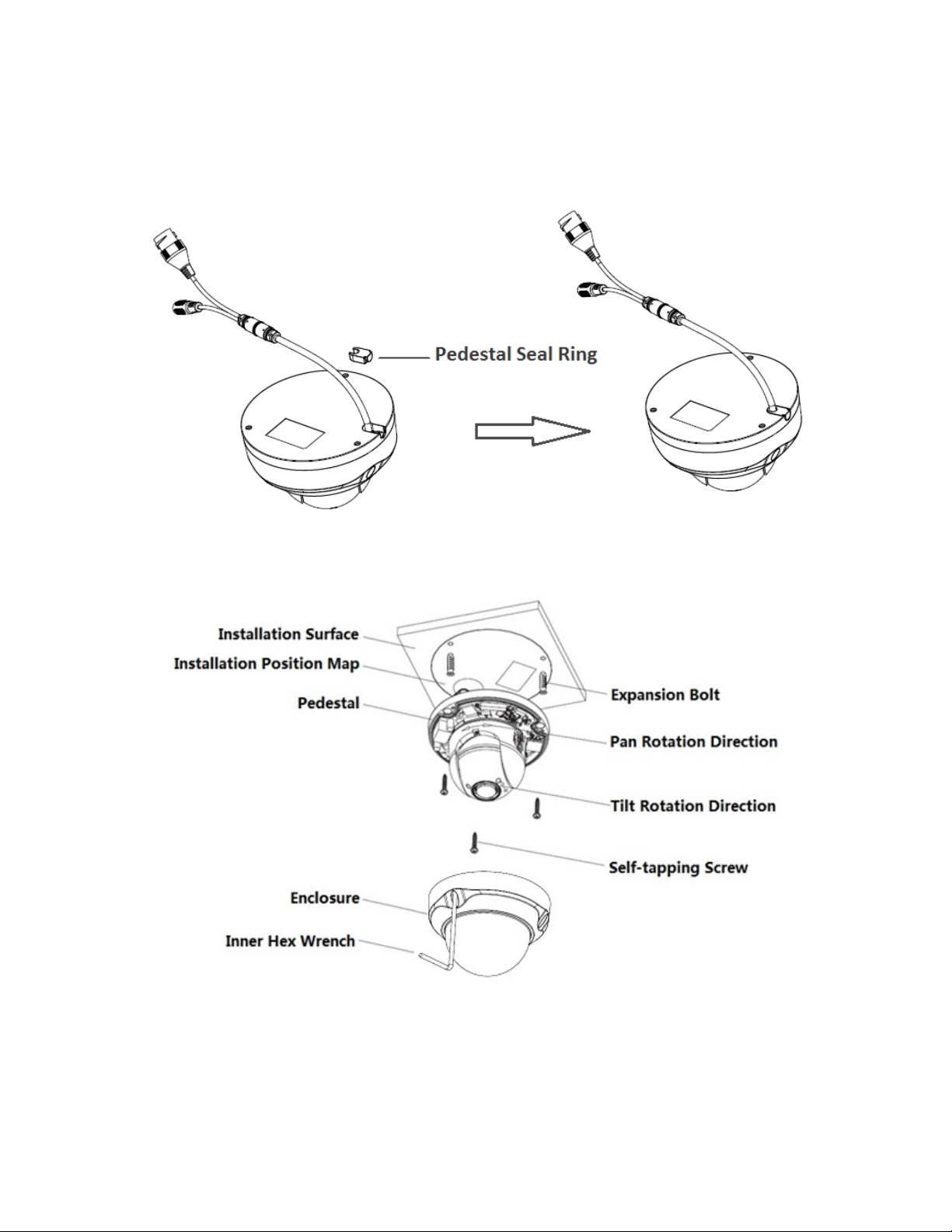

The installation of pedestal seal ring is shown in Figure 2-1.
The installation setup is shown in Figure 2-2.
Figure 2-1
Figure 2-2
Page 9
4
2.2 Installation Steps
2.2.1 Installation Environment
The ceiling mount speed dome can be installed on a hard surface ceiling in an indoor
environment. Before the installation, please make sure:
The ceiling is thick enough to install the expansion bolt.
The ceiling can sustain at least 8x the weight of the speed dome.
2.2.2 Installation Steps
Step 1
Install the default pedestal seal ring as shown in Figure 2-1.
Step 2
Confirm the installation position, drill holes on the ceiling according to the installation
template, and then put the three plastic expansion bolts into the holes.
Step 3
Unscrew three locking screws on the enclosure by using the hex wrench, and remove the
enclosure.
Step 4
Use the three self-tapping screws to fix the pedestal on the surface, and insert the screws
into the expansion bolts.
Step 5
Use the three locking screws to fix the dome enclosure on the pedestal.
Page 10
3 IP Scanner
search for the device on the local network.
Please note that only devices that are on the same subnet can be discovered.
In the device list, you can view the IP address, model number, and MAC address of each
. Select the applicable device and double click to open up the web viewer.
5
3.1
Overview
IP Scanner can
3.2 Operation

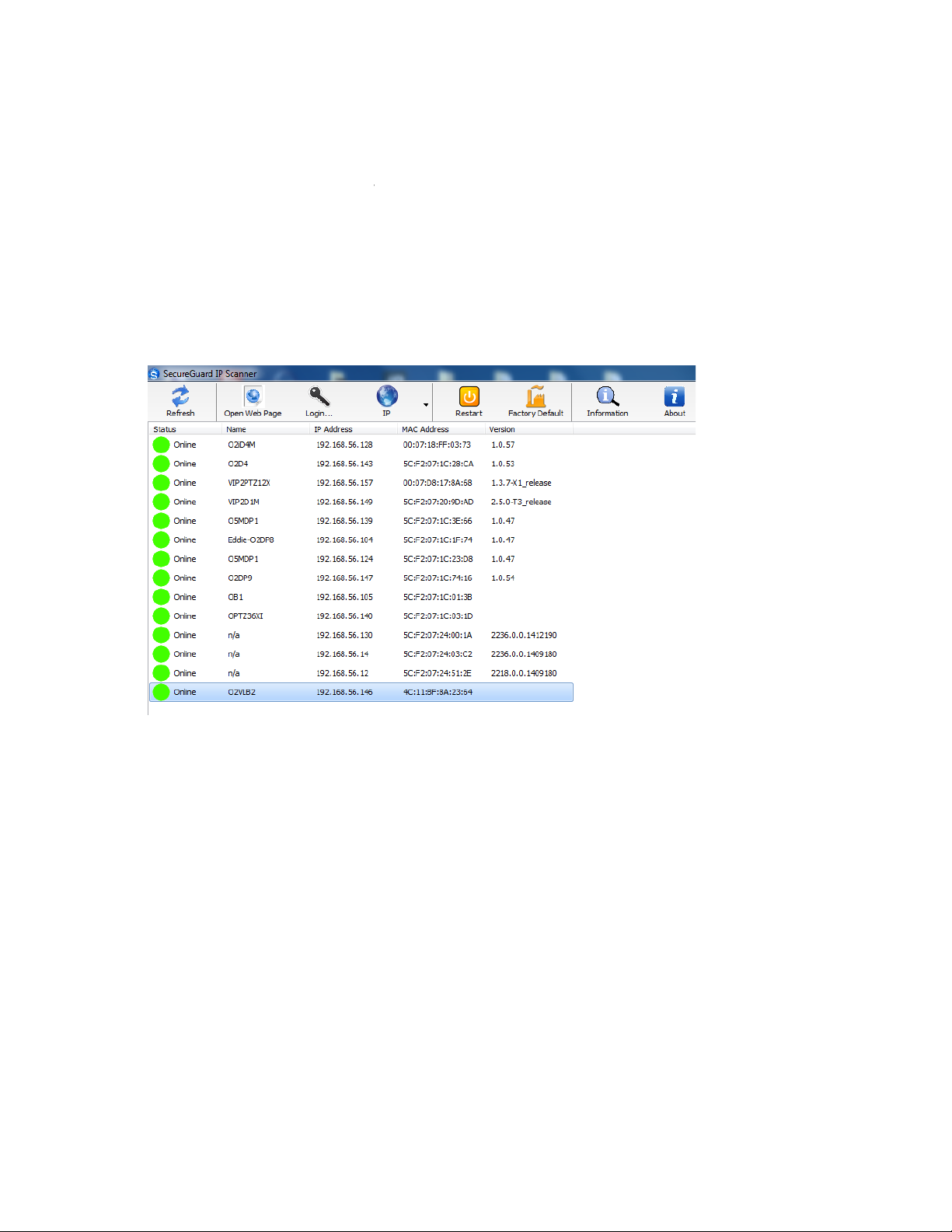

Open up IP Scanner.
Figure 3-1
device
Figure 3-1 IP Scanner
Page 11
4 Web Operation
This device supports viewing and management via a web browser on a PC.
Login and Main Interface

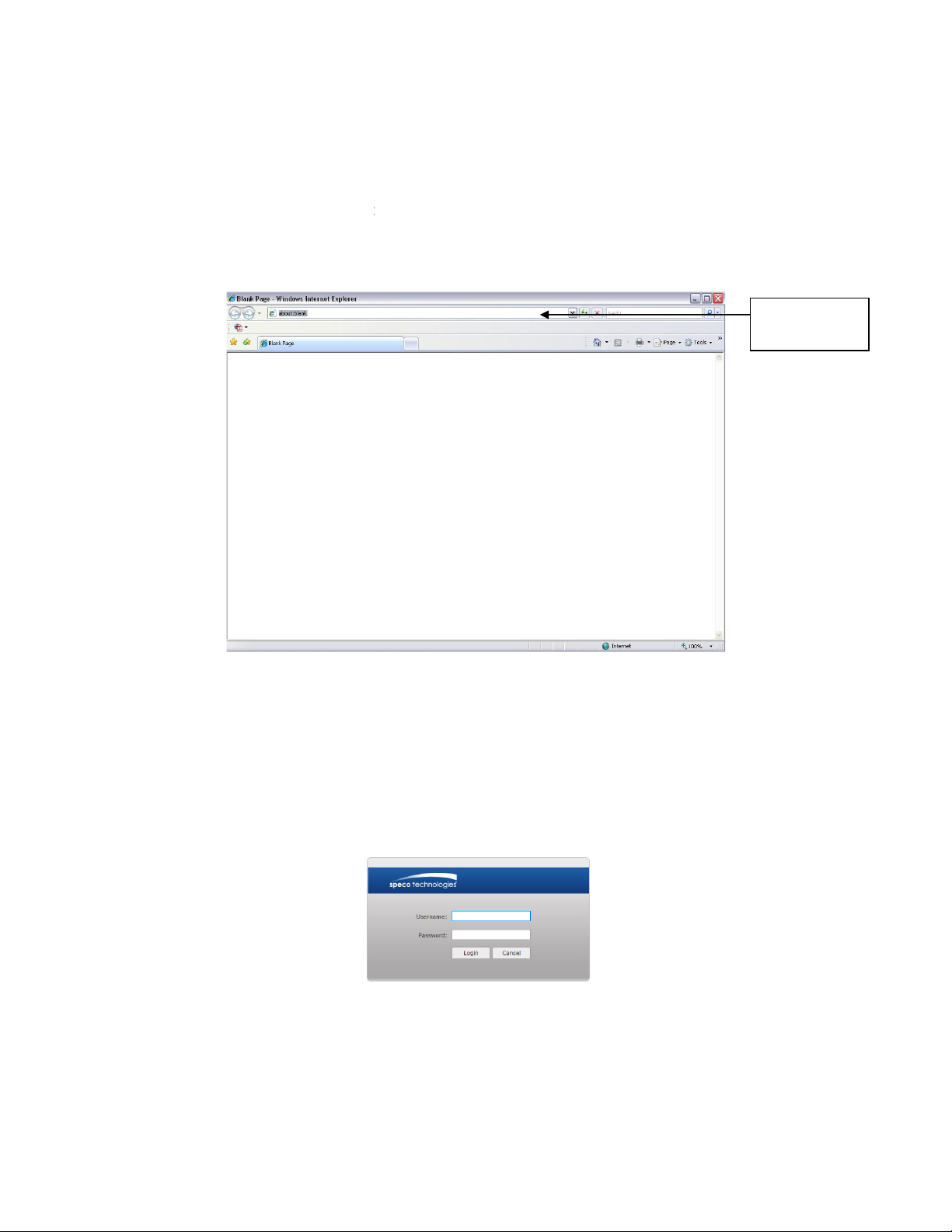

Open the browser and input network camera address in the address bar or double click the
Figure 4
The login interface is shown as below. See
Please input your user name and password.
and password is
Note: For security purposes, please change the password after initial login.
6
addre
ss here
4.1
device in IP Scanner. See
-1.
Input your IP
Default user name is
admin
Figure 4-1 IP address
Figure 4-2.
Figure 4-2 Web login
1234
.
Page 12
7
5 APPENDIX ⅠⅠⅠⅠ Surge Protection
This device uses TVS lighting protection technology. It can effectively prevent damages from
various pulse signals below 2000W, such as sudden lighting and surge. While maintaining
your local electrical safety code, you still need to take necessary precaution measures when
installing the speed dome in an outdoor environment.
The distance between the signal transmission cable and high-voltage device (or high-
voltage cable) shall be at least 50 meters (164 ft).
Outdoor cable layout shall go under the penthouse if possible.
For vast land, please use sealing steel tube under the land to implement cable layout
and connect one point to the earth. Open floor cable layout should not be used.
In areas prone to strong thunderstorms or near high sensitive voltage (such as near
high-voltage transformer substation), you need to install additional high-power
lightning protection device or lightning rod.
The lightning protection and earth of the outdoor device and cable shall be considered
under the lightning protection of the whole building and conform to your local national
or industry standard.
System shall adopt equal-potential wiring. The earth device shall meet anti-jamming
and at the same time conform to your local electrical safety code. The earth device shall
not short circuit to N (neutral) line of high voltage power grid or mixed with other wires.
When connecting the system to earth alone, the earth resistance shall not be more than
4Ω and earth cable cross-sectional area shall be below 25 mm^2.
Page 13
8
6 APPENDIX ⅡⅡⅡⅡ12V DC Wire Gauge and Transmission
Distance Reference
The recommended max transmission distance is under the following environments: The
wire diameter is fixed and the DC 12V power voltage loss rate is below 10%. For the device
being supplied the DC power, the max allowed voltage loss rate is 10%. All the wires listed in
the following sheet are copper wire. (Copper wire resistanceρ = 0.0175Ω ∗ mmଶ/m)
mm
Feet（m）
w
5
10
15
20 30.53（9.31） 47.71（14.54） 74.54（22.72）
25 24.43（7.45） 38.17（11.63） 59.63（18.18）
30 20.35（6.20） 31.80（9.69） 49.69（15.15）
35 17.45（5.32） 27.26（8.31） 42.60（12.98）
40 15.27（4.65） 23.85（7.27） 37.27（11.36） 95.41（29.08）
45 13.57（4.14） 21.20（6.46） 33.13（10.10） 84.81（28.85）
50 12.21（3.72） 19.08（5.82） 29.82（9.09） 76.33（23.27）
55 11.10（3.38） 17.35（5.29） 27.11（8.26） 69.39（21.15）
60 10.18（3.10） 15.90（4.85） 24.85（7.57） 63.61（19.39）
65
70 8.72（2.66） 13.63（4.15） 21.30（6.49） 54.52（16.62）
75 8.14（2.48） 12.72（3.88） 19.88（6.06） 50.89（15.51）
80 7.63（2.33） 11.93（3.64） 18.64（5.68） 47.71（14.54）
85 7.18（2.19） 11.23（3.42） 17.54（5.35） 44.90（13.69）
90 6.78（2.07） 10.60（3.23） 16.56（5.05） 42.41（12.93）
95 6.43（1.96） 10.04（3.06） 15.69（4.78） 40.17（12.25）
100
0.8000 1.000 1.250 2.000
122.13
（
37.23）
61.06
（
18.61）
40.71
（
12.41）
9.39（2.86） 14.68（4.47） 22.94（6.99） 58.72（17.90）
6.11（1.86） 9.54（2.91） 14.91（4.54） 38.17（11.63）
190.83
（
58.16）
95.41（29.08）
63.61（19.39） 99.39（30.29）
298.17
（
90.88）
149.08
（
45.44）
763.31
（
232.66）
381.66
（
116.33）
254.44
（
77.55）
190.83
（
58.16）
152.66
（
46.53）
127.22
（
38.78）
109.04
（
33.24）
Page 14
9
7 APPENDIX ⅢⅢⅢⅢ Wire Gauge Reference
Metric bare wire
diameter
（mm）
0.050 43 47 0.00196
0.060 42 46 0.00283
0.070 41 45 0.00385
0.080 40 44 0.00503
0.090 39 43 0.00636
0.100 38 42 0.00785
0.110 37 41 0.00950
0.130 36 39 0.01327
0.140 35 / 0.01539
0.160 34 37 0.02011
0.180 33 / 0.02545
0.200 32 35 0.03142
0.230 31 / 0.04115
0.250 30 33 0.04909
0.290 29 31 0.06605
0.330 28 30 0.08553
0.350 27 29 0.09621
0.400 26 28 0.1257
0.450 25 / 0.1602
0.560 24 24 0.2463
0.600 23 23 0.2827
0.710 22 22 0.3958
0.750 21 / 0.4417
0.800 20 21 0.5027
0.900 19 20 0.6362
1.000 18 19 0.7854
1.250 16 18 1.2266
1.500 15 / 1.7663
2.000 12 14 3.1420
2.500 / / 4.9080
3.000 / / 7.0683
AWG SWG Bare wire cross
section
（
mm
2
）
