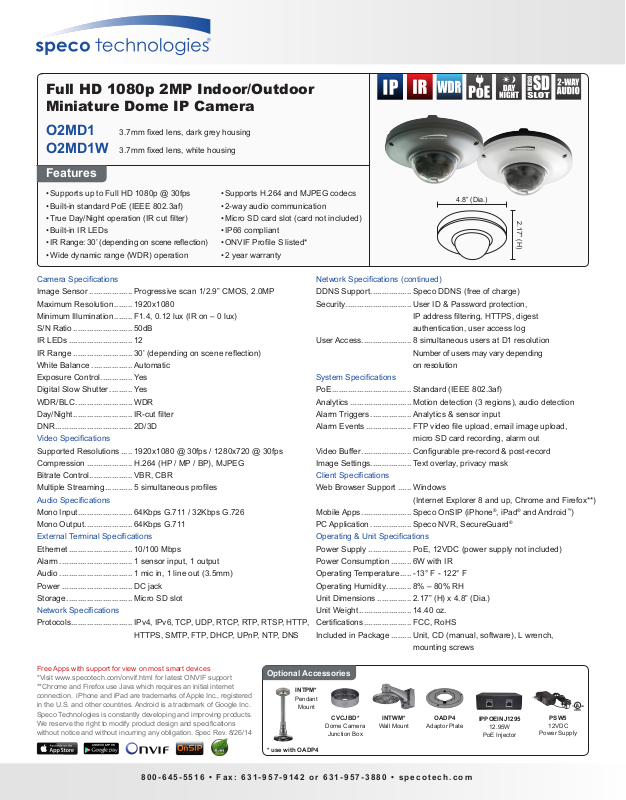

Speco O2MD1, O2MD1W Specsheet

Full HD 1080p 2MP Indoor/Outdoor

SD

Miniature Dome IP Camera

O2MD1 3.7mm xed lens, dark grey housing
O2MD1W 3.7mm xed lens, white housing

Features

MICRO

• Supports up to Full HD 1080p @ 30fps

• Built-in standard PoE (IEEE 802.3af)

• True Day/Night operation (IR cut lter)

• Built-in IR LEDs

• IR Range: 30’ (depending on scene reection)

• Wide dynamic range (WDR) operation

• Supports H.264 and MJPEG codecs

• 2-way audio communication

• Micro SD card slot (card not included)

• IP66 compliant

• ONVIF Prole S listed*

• 2 year warranty

Camera Specications

Image Sensor ................... Progressive scan 1/2.9” CMOS, 2.0MP

Maximum Resolution ........ 1920x1080

Minimum Illumination ........ F1.4, 0.12 lux (IR on – 0 lux)

S/N Ratio .......................... 50dB

IR LEDs ............................ 12

IR Range .......................... 30’ (depending on scene reection)

White Balance .................. Automatic

Exposure Control .............. Yes

Digital Slow Shutter .......... Ye s

WDR/BLC ......................... WDR

Day/Night .......................... IR-cut lter

DNR .................................. 2D/3D

Video Specications

Supported Resolutions ..... 1920x1080 @ 30fps / 1280x720 @ 30fps

Compression .................... H.264 (HP / MP / BP), MJPEG

Bitrate Control................... VBR, CBR

Multiple Streaming ............ 5 simultaneous proles

Audio Specications

Mono Input........................ 64Kbps G.711 / 32Kbps G.726

Mono Output ..................... 64Kbps G.711

External Terminal Specications

Ethernet ............................ 10/100 Mbps

Alarm ................................ 1 sensor input, 1 output

Audio ................................ 1 mic in, 1 line out (3.5mm)

Power ............................... DC jack

Storage ............................. Micro SD slot

Network Specications

Protocols........................... IPv4, IPv6, TCP, UDP, RTCP, RTP, RTSP, HTTP,

HTTPS, SMTP, FTP, DHCP, UPnP, NTP, DNS

4.8” (Dia.)

2.17” (H)

Network Specications (continued)

DDNS Support .................. Speco DDNS (free of charge)

Security............................. User ID & Password protection,

IP address ltering, HTTPS, digest

authentication, user access log

User Access...................... 8 simultaneous users at D1 resolution

Number of users may vary depending

on resolution

System Specications

PoE ................................... Standard (IEEE 802.3af)

Analytics ........................... Motion detection (3 regions), audio detection

Alarm Triggers .................. Analytics & sensor input

Alarm Events .................... FTP video le upload, email image upload,

micro SD card recording, alarm out

Video Buffer ...................... Congurable pre-record & post-record

Image Settings.................. Text overlay, privacy mask

Client Specications

Web Browser Support ...... Windows

(Internet Explorer 8 and up, Chrome and Firefox**)

Mobile Apps ...................... Speco OnSIP (iPhone®, iPad® and Android™)

PC Application .................. Speco NVR, SecureGuard

®

Operating & Unit Specications

Power Supply ................... PoE, 12VDC (power supply not included)

Power Consumption ......... 6W with IR

Operating Temperature ..... -13° F - 122° F

Operating Humidity ........... 8% – 80% RH

Unit Dimensions ............... 2.17” (H) x 4.8” (Dia.)

Unit Weight ....................... 14.40 oz.

Certications ..................... FCC, RoHS

Included in Package ......... Unit, CD (manual, software), L wrench,

mounting screws

Free Apps with support for view on most smart devices

*Visit www.specotech.com/onvif.html for latest ONVIF support
**Chrome and Firefox use Java which requires an initial internet
connection. iPhone and iPad are trademarks of Apple Inc., registered
in the U.S. and other countries. Android is a trademark of Google Inc.
Speco Technologies is constantly developing and improving products.
We reserve the right to modify product design and specications
without notice and without incurring any obligation. Spec Rev. 8/26/14

800-645-5516 • Fax: [phone] or 631-957-3880 • specotech.com

Optional Accessories

INTPM*

Pendant

Mount

CVCJBD*

Dome Camera

Junction Box

* use with OADP4

INTWM*

Wall Mount

OADP4

Adaptor Plate

IPPOEINJ1295

12.95W

PoE Injector

PSW5

12VDC

Power Supply
