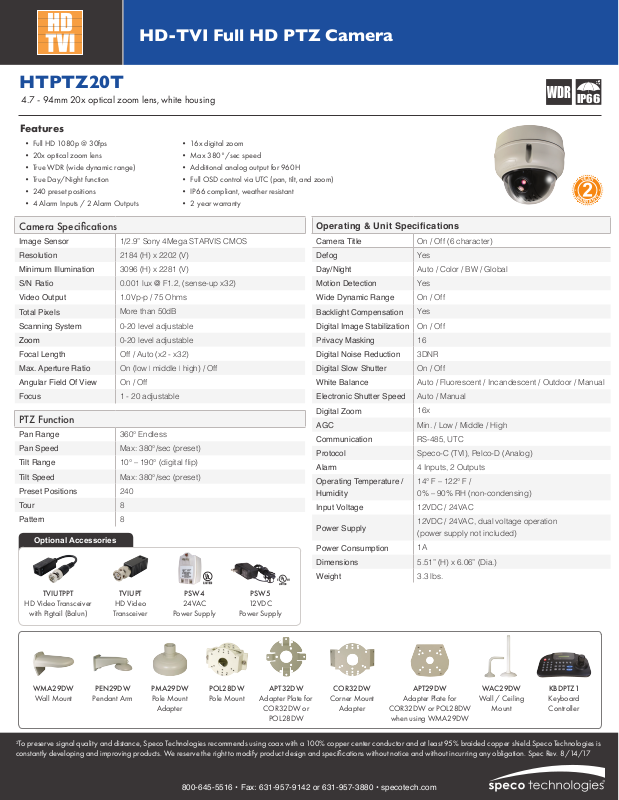

Speco HTPTZ20T Specsheet
HD-TVI Full HD PTZ Camera
IP6
6
HTPTZ20T
4.7 - 94mm 20x optical zoom lens, white housing
Features
• Full HD 1080p @ 30fps
• 20x optical zoom lens
• True WDR (wide dynamic range)
• True Day/Night function
• 240 preset positions
• 4 Alarm Inputs / 2 Alarm Outputs
• 16x digital zoom
• Max 380°/sec speed
• Additional analog output for 960H
• Full OSD control via UTC (pan, tilt, and zoom)
• IP66 compliant, weather resistant
• 2 year warranty
A
R
E
Y
W
Y
A
T
R
N
R
A
Camera Specifications
Image Sensor
Resolution
Minimum Illumination
S/N Ratio
Video Output
Total Pixels
Scanning System
Zoom
Focal Length
Max. Aperture Ratio On (low I middle I high) / Off
Angular Field Of View
Focus
1/2.9” Sony 4Mega STARVIS CMOS
2184 (H) x 2202 (V)
3096 (H) x 2281 (V)
0.001 lux @ F1.2, (sense-up x32)
1.0Vp-p / 75 Ohms
More than 50dB
0-20 level adjustable
0-20 level adjustable
Off / Auto (x2 - x32)
On / Off
1 - 20 adjustable
PTZ Function
Pan Range
Pan Speed
Tilt Range
Tilt Speed
Preset Positions
Tour
Pattern
Optional Accessories
TVIUTPPT
HD Video Transceiver
with Pigtail (Balun)
360° Endless
Max: 380°/sec (preset)
10° – 190° (digital ip)
Max: 380°/sec (preset)
240
8
8
TVIUPT
HD Video
Transceiver
Power Supply
PSW4
24VAC
PSW5
12VDC
Power Supply
Operating & Unit Specifications
Camera Title
Defog
Day/Night
Motion Detection
Wide Dynamic Range
Backlight Compensation
Digital Image Stabilization
Privacy Masking
Digital Noise Reduction
Digital Slow Shutter
White Balance
Electronic Shutter Speed
Digital Zoom
AGC
Communication
Protocol
Alarm
Operating Temperature /
Humidity
Input Voltage
Power Supply
Power Consumption
Dimensions
Weight
On / Off (6 character)
Yes
Auto / Color / BW / Global
Yes
On / Off
Yes
On / Off
16
3DNR
On / Off
Auto / Fluorescent / Incandescent / Outdoor / Manual
Auto / Manual
16x
Min. / Low / Middle / High
RS-485, UTC
Speco-C (TVI), Pelco-D (Analog)
4 Inputs, 2 Outputs
14° F – 122° F /
0% – 90% RH (non-condensing)
12VDC / 24VAC
12VDC / 24VAC, dual voltage operation
(power supply not included)
1A
5.51” (H) x 6.06” (Dia.)
3.3 lbs.
WMA29DW
Wall Mount
2
To preserve signal quality and distance, Speco Technologies recommends using coax with a 100% copper center conductor and at least 95% braided copper shield.Speco Technologies is
PEN29DW
Pendant Arm
PMA29DW
Pole Mount
Adapter
POL28DW
Pole Mount
APT32DW
Adapter Plate for
COR32DW or
POL28DW
COR32DW
Corner Mount
Adapter
APT29DW
Adapter Plate for
COR32DW or POL28DW
when using WMA29DW
WAC29DW
Wall / Ceiling
Mount
KBDPTZ1
Keyboard
Controller
constantly developing and improving products. We reserve the right to modify product design and specifications without notice and without incurring any obligation. Spec Rev. 8/14/17
800-645-5516 • Fax: 631-957-9142 or 631-957-3880 • specotech.com
