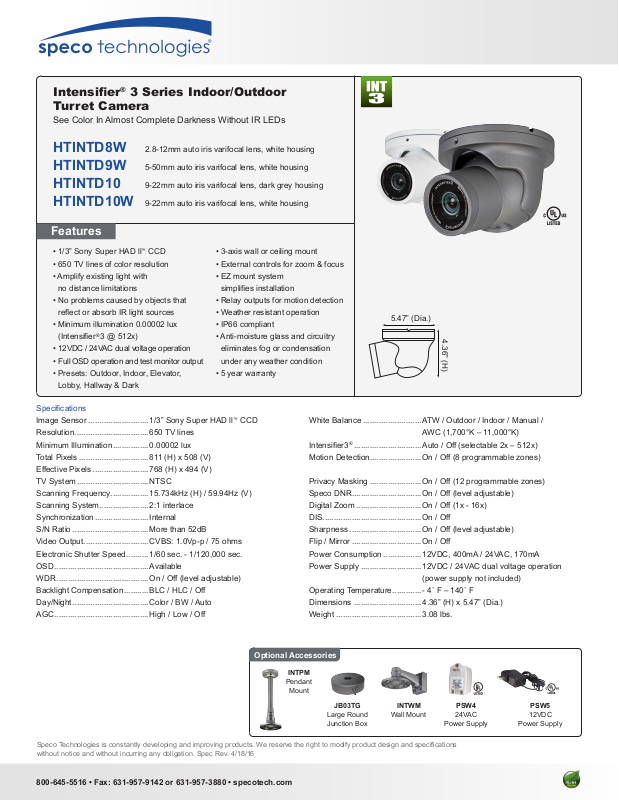

Speco HTINTD9W, HTINTD10W, HTINTD8W Specsheet
Intensier® 3 Series Indoor/Outdoor
Turret Camera
See Color In Almost Complete Darkness Without IR LEDs
HTINTD8W 2.8-12mm auto iris varifocal lens, white housing
HTINTD9W 5-50mm auto iris varifocal lens, white housing
HTINTD10 9-22mm auto iris varifocal lens, dark grey housing
HTINTD10W 9-22mm auto iris varifocal lens, white housing
Features
• 1/3” Sony Super HAD ll™ CCD
• 650 TV lines of color resolution
• Amplify existing light with
no distance limitations
• No problems caused by objects that
reect or absorb IR light sources
• Minimum illumination 0.00002 lux
(Intensier® 3 @ 512x)
• 12VDC / 24VAC dual voltage operation
• Full OSD operation and test monitor output
• Presets: Outdoor, Indoor, Elevator,
Lobby, Hallway & Dark
Specications
Image Sensor ...........................1/3” Sony Super HAD ll™ CCD
Resolution.................................650 TV lines
Minimum Illumination ................0.00002 lux
Total Pixels ...............................811 (H) x 508 (V)
Effective Pixels .........................768 (H) x 494 (V)
TV System ................................ NTSC
Scanning Frequency.................15.734kHz (H) / 59.94Hz (V)
Scanning System......................2:1 interlace
Synchronization ........................ Internal
S/N Ratio ..................................More than 52dB
Video Output .............................CVBS: 1.0Vp-p / 75 ohms
Electronic Shutter Speed ..........1/60 sec. - 1/120,000 sec.
OSD ..........................................Available
WDR ......................................... On / Off (level adjustable)
Backlight Compensation ...........BLC / HLC / Off
Day/Night ..................................Color / BW / Auto
AGC ..........................................High / Low / Off
• 3-axis wall or ceiling mount
• External controls for zoom & focus
• EZ mount system
simplies installation
• Relay outputs for motion detection
• Weather resistant operation
• IP66 compliant
• Anti-moisture glass and circuitry
eliminates fog or condensation
under any weather condition
• 5 year warranty
5.47” (Dia.)
4.36” (H)
White Balance ..........................ATW / Outdoor / Indoor / Manual /
AWC (1,700°K – 11,000°K)
Intensier3® ..............................Auto / Off (selectable 2x – 512x)
Motion Detection.......................On / Off (8 programmable zones)
Privacy Masking .......................On / Off (12 programmable zones)
Speco DNR...............................On / Off (level adjustable)
Digital Zoom .............................On / Off (1x - 16x)
DIS............................................On / Off
Sharpness ................................On / Off (level adjustable)
Flip / Mirror ...............................On / Off
Power Consumption .................12VDC, 400mA / 24VAC, 170mA
Power Supply ...........................12VDC / 24VAC dual voltage operation
(power supply not included)
Operating Temperature .............- 4˚ F – 140˚ F
Dimensions ..............................4.36” (H) x 5.47” (Dia.)
Weight ......................................3.08 lbs.
Optional Accessories
INTPM
Pendant
Mount
JB03TG
Large Round
Junction Box
Speco Technologies is constantly developing and improving products. We reserve the right to modify product design and specications
without notice and without incurring any obligation. Spec Rev. 4/18/16
800-645-5516 • Fax: 631-957-9142 or 631-957-3880 • specotech.com
INTWM
Wall Mount
Power Supply
PSW4
24VAC
PSW5
12VDC
Power Supply
