Speco HTINT70T, HT7250T, HTINT40T8, HTINT701T, HTINT591T User Manual
...
INSTRUCTION
MANUAL
Intensier T Series
HD-TVI Camera
HTINT70T, HTINT701T, HTINT702T
HTINT60T, HTINT601T
(Bullet Camera)
(Turret Camera)
HTINT591T
(Dome Camera)
HT7246T / HT7250T
(Dome Camera)
HTINT40T
(Miniature Camera)
Speco Technologies is constantly developing product improvements.
We reserve the right to modify product design and specifications without notice and without incurring any obligation.
Rev. 12/09/2016
Contents
◑
Contents ...................................................... 1
◑
Precautions ................................................. 2, 3
◑
Safety Instructions ...................................... 4
◑
Package Contents ....................................... 5
◑
Camera Installation ..................................... 6-12
◑
Lens Adjustment ......................................... 13-15
◑
Specications .............................................. 16-20
◑

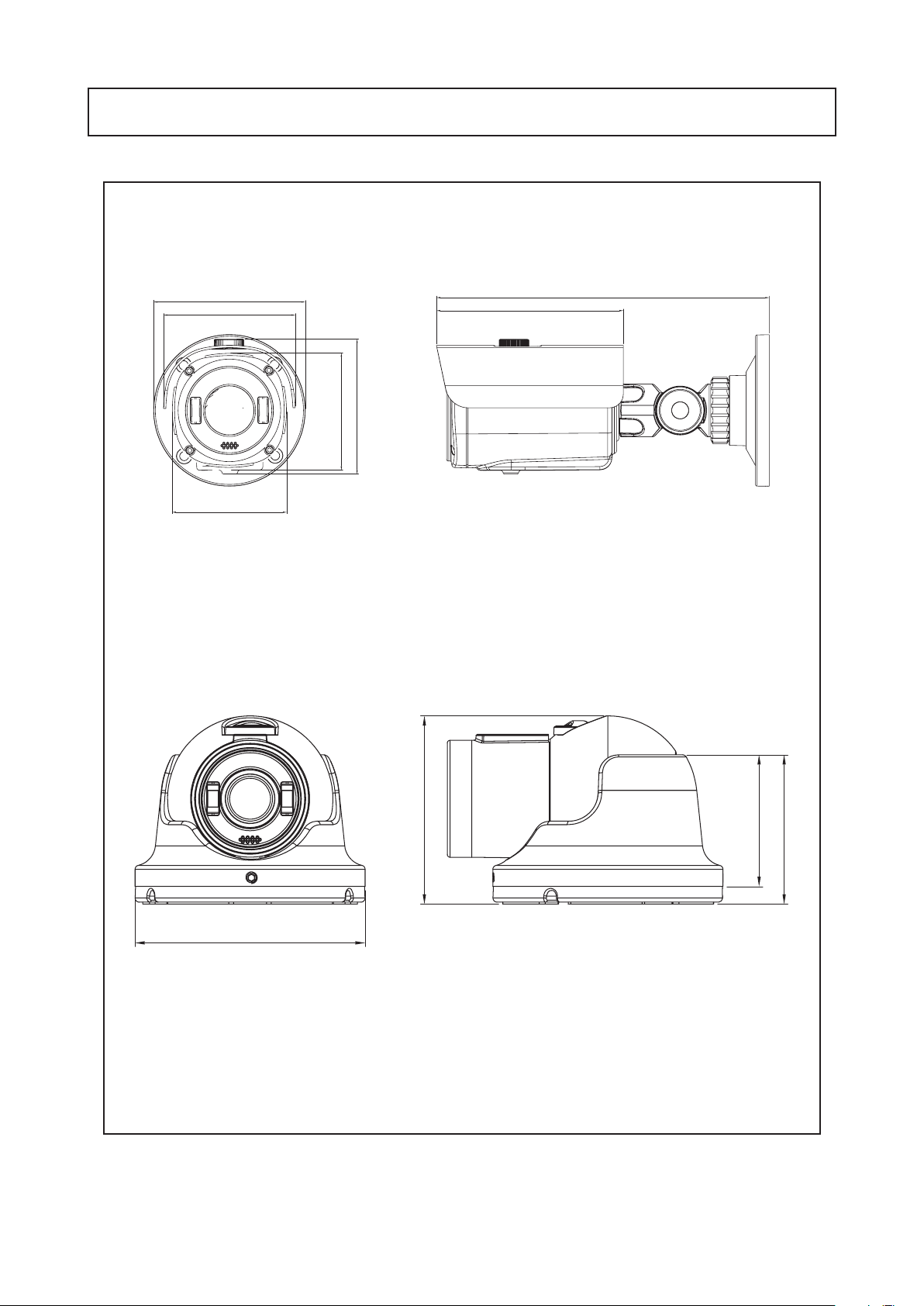

Camera Dimension ..................................... 21-23
◑
Features ...................................................... 24
◑
OSD Menu Details ...................................... 25- 40
◑
Trouble Shooting ......................................... 41
1
Precautions
Do not install the camera in
extreme temperature conditions.
Only use the camera under conditions
where temperatures are between
-10°C and +50°C. Be especially careful to
provide ventilation when operating under
high temperatures.
Never keep the camera pointed
directly at strong light.
Do not install the camera under
unstable lighting conditions.
Severe lighting change or flicker can
cause the camera to work improperly.
Do not drop the camera or subject
it to physical shocks.
Do not touch the front lens of the
camera.
This is one of the most important parts of
the camera. Be careful not to leave
fingerprints on the lens cover.
Do not expose the camera to
radioactivity.
It can cause malfunctions to occur.
* If the camera is exposed to spotlight or object reflecting strong light,
smear or blooming may occur.
* please check that the power satisfies the normal specification before
connecting the camera.
Housing damage can compromise
weatherproof ratings.
NOTE
If exposed to radioactivity the CCD
will fail.
2
3
Safety Instructions
Precautions for use
◑
This camera should be installed by qualied personnel only
◑
There are no user serviceable parts inside
◑
Do not disassemble this camera other than to make initial adjustments
◑
Use a UL approved regulated 24 volt AC or 12 volt DC power supply
◑
Use appropriate low voltage power cable to prevent re or electrical shock
◑
Please insure that your installation area can support the weight of the camera
Please handle this camera carefully :
◑
Do not use a strong or abrasive detergent when cleaning the camera
◑
Do not install near cooling or heating device
4
Package Contents
Please make sure that the following items are included in the Package:
1) HTINT70T, HTINT701T, HTINT702T
• 1 Video Test Connector, Power Jack
• 1 Focus Adjustment(HTINT70T)
• 1 Bracket Base
• 1 Wrench
• Set Screw
- 4 Tapping Screws 4x25
- 4 Hexagon Socket Screws M5x10
2) HTINT60T, HTINT601T
• 1 Video Test Connector, Power Jack
• 1 Wrenches
• Set Screw
- 3 Tapping Screws 4x25
3) HTINT591T
• 1 Video Test Connector, Power Jack
• 1 Chameleon Cover
• 1 Wrench
• Set Screw
- 3 Tapping Screws 3.5x20
4) HT7246T, HT7250T
• 1 Video Test Connector, Power Jack
• 1 Chameleon Cover
• 1 Wrench
• Set Screw
- 3 Tapping Screws 4x40
- 3 Plastic Anchor
5) HTINT40T
• 1 Video Test Connector, Power Jack
• Set Screw
- 2 Tapping Screws M3x10
- 2 Machine Screws M2x3
5
CAMERA INSTALLATION
CONNECT POWER CABLE
1. WHEN USING 12 VOLTS DC (constant voltage 500mA)
2. WHEN USING 24 VOLTS AC (40 Volt Amps)
3. CONNECT VIDEO CABLE
1) WHEN USING IT AS ANALOG OUTPUT,
CONNECT YELLOW COLOR BNC CABLE TO THE BNC JACK.
2) WHEN USING IT AS TVI OUTPUT,
CONNECT BLACK COLOR BNC CABLE TO THE BNC JACK.
DC 12V Powe r Supply
Power In put :R ED
Center : (+)
C V B S
T V I
LBACK:(-)
RED(+)
Power Supply
AC 24V
6
CAMERA INSTALLATION
Compatibility
1) HTINT70T, HTINT701T, HTINT702T
CVCJBB INTJBS INTCM
2) HTINT60T, HTINT601T
CVCJBD
Adaptor plate(60PLATE) with rubber
→
7
Compatibility
3) HTINT591T
CAMERA INSTALLATION
CVCJBD
Adaptor plate(59PLATE) with rubber
→
4) HT7246T, HT7250T
INTWM INTPM CVCJBD DFM
8
CAUTION : The installation instructions in this manual are for use by qualified service
personnel only. To reduce the risk of electric shock, do not perform any servicing other
than that contained in the operating instructions unless you are qualified to do so.
CAMERA INSTALLATION
1. HTINT70T, HTINT701T, HTINT702T
SCREW TS T1, 4X25, TH, SUS, 4EA
WALL
3AXIS BRACKET
SCREW M5X10, HEXAGON SOCKET, SUS, BK, 4EA
9
CAMERA INSTALLATION
2. HTINT60T, HTINT601T
BALL DOME BASE
SCREW TS T1, 4X25, TH, SUS, 3EA
BALL DOME
BALL DOME BODY
10
3. HTINT591T
CAMERA INSTALLATION
VANDAL DOME BASE
SCREW TS T1, 3.5X20, PH, SUS, 3EA
VANDAL DOME BODY
BODY OUTER COVER SPECO
11
4. HT7246T, HT7250T
CAMERA INSTALLATION
PLASTIC ANCHOR 6x30, 3EA
VANDAL DOME BASE ASSEMBLY
TAPPING SCREW 4X40, 3EA
VANDAL DOME BODY ASSEMBLY
BODY OUTER COVER
12
LENS ADJUSTMENT
1. HTINT70T, HTINT702T
Open the cap
Focus adjustment
Lock screw
Zoom adjustment
13
2. HTINT60T
LENS ADJUSTMENT
Zoom adjustment
Lock screw
Focus adjustment
14
