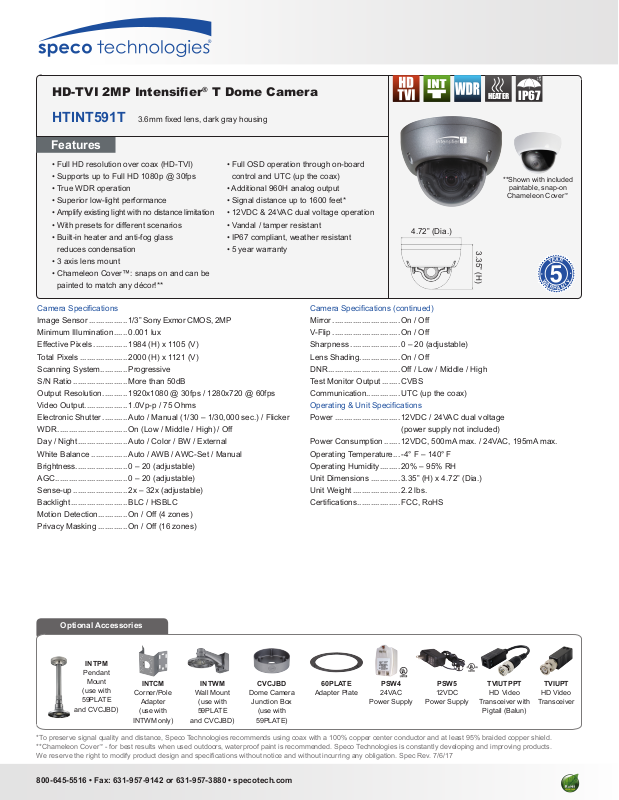

Speco HTINT591T Specsheet
HD-TVI 2MP Intensier® T Dome Camera
IP6
7
Y
E
A
R
W
A
R
R
A
N
T
Y
HTINT591T 3.6mm xed lens, dark gray housing
Features
HEATER
• Full HD resolution over coax (HD-TVI)
• Supports up to Full HD 1080p @ 30fps
• True WDR operation
• Superior low-light performance
• Amplify existing light with no distance limitation
• With presets for different scenarios
• Built-in heater and anti-fog glass
reduces condensation
• Full OSD operation through on-board
control and UTC (up the coax)
• Additional 960H analog output
• Signal distance up to 1600 feet*
• 12VDC & 24VAC dual voltage operation
• Vandal / tamper resistant
• IP67 compliant, weather resistant
• 5 year warranty
• 3 axis lens mount
• Chameleon Cover™: snaps on and can be
painted to match any décor!**
Camera Specications
Image Sensor ................. 1/3” Sony Exmor CMOS, 2MP
Minimum Illumination ...... 0.001 lux
Effective Pixels ............... 1984 (H) x 1105 (V)
Total Pixels ..................... 2000 (H) x 1121 (V)
Scanning System............ Progressive
S/N Ratio ........................ More than 50dB
Output Resolution ........... 1920x1080 @ 30fps / 1280x720 @ 60fps
Video Output ................... 1.0Vp-p / 75 Ohms
Electronic Shutter ........... Auto / Manual (1/30 – 1/30,000 sec.) / Flicker
WDR ............................... On (Low / Middle / High) / Off
Day / Night ...................... Auto / Color / BW / External
White Balance ................ Auto / AWB / AWC-Set / Manual
Brightness....................... 0 – 20 (adjustable)
AGC ................................ 0 – 20 (adjustable)
Sense-up ........................ 2x – 32x (adjustable)
Backlight ......................... BLC / HSBLC
Motion Detection............. On / Off (4 zones)
Privacy Masking ............. On / Off (16 zones)
**Shown with included
paintable, snap-on
Chameleon Cover
4.72” (Dia.)
3.35” (H)
Camera Specications (continued)
Mirror .............................. On / Off
V-Flip ..............................On / Off
Sharpness ...................... 0 – 20 (adjustable)
Lens Shading.................. On / Off
DNR ................................ Off / Low / Middle / High
Test Monitor Output ........ CVBS
Communication............... UTC (up the coax)
Operating & Unit Specications
Power ............................. 12VDC / 24VAC dual voltage
(power supply not included)
Power Consumption ....... 12VDC, 500mA max. / 24VAC, 195mA max.
Operating Temperature ... -4° F – 140° F
Operating Humidity ......... 20% – 95% RH
Unit Dimensions ............. 3.35” (H) x 4.72” (Dia.)
Unit Weight ..................... 2.2 lbs.
Certications ................... FCC, RoHS
™
Optional Accessories
INTPM
Pendant
Mount
(use with
59PLATE
and CVCJBD)
*To preserve signal quality and distance, Speco Technologies recommends using coax with a 100% copper center conductor and at least 95% braided copper shield.
**Chameleon Cover™ - for best results when used outdoors, waterproof paint is recommended. Speco Technologies is constantly developing and improving products.
We reserve the right to modify product design and specications without notice and without incurring any obligation. Spec Rev. 7/6/17
800-645-5516 • Fax: 631-957-9142 or 631-957-3880 • specotech.com
INTCM
Corner/Pole
Adapter
(use with
INTWM only)
INTWM
Wall Mount
(use with
59PLATE
and CVCJBD)
CVCJBD
Dome Camera
Junction Box
(use with
59PLATE)
60PLATE
Adapter Plate
PSW4
24VAC
Power Supply
PSW5
12VDC
Power Supply
TVIUTPPT
HD Video
Transceiver with
Pigtail (Balun)
TVIUPT
HD Video
Transceiver
