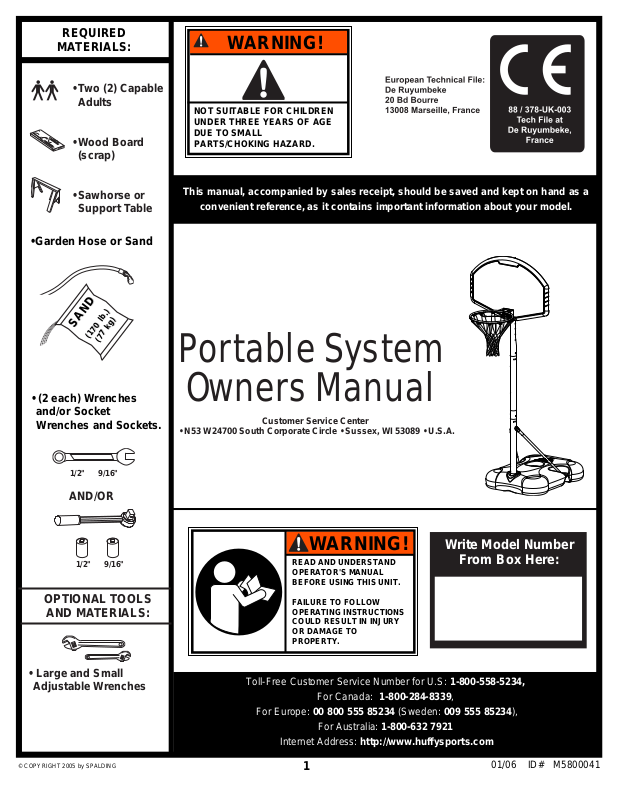

Spalding M5800041 User Manual

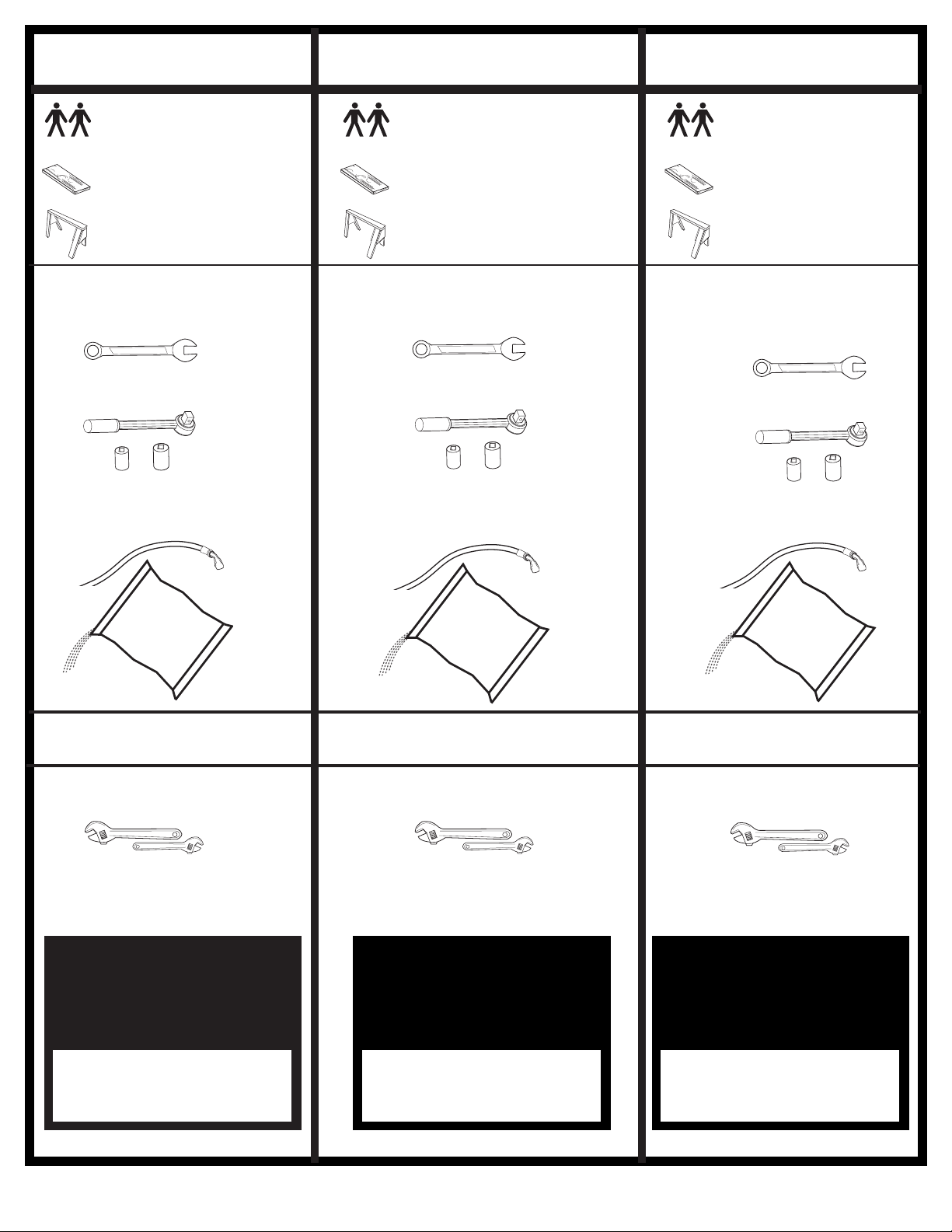

REQUIRED

MATERIALS:

•Two (2) Capable Adults

•Wood Board (scrap)

WARNING!

NOT SUITABLE FOR CHILDREN UNDER THREE YEARS OF AGE DUE TO SMALL PARTS/CHOKING HAZARD.

•Sawhorse or Support Table

•Garden Hose or Sand

SAND

(170 lb.)

(77 kg)

• (2 each) Wrenches and/or Socket Wrenches and Sockets.

1/2" 9/16"

This manual, accompanied by sales receipt, should be saved and kept on hand as a

convenient reference, as it contains important information about your model.

Por table System

Owners Manual

Customer Service Center

• N53 W24700 South Corporate Circle • Sussex, WI 53089 • U.S.A.

AND/OR

1/2" 9/16"

OPTIONAL TOOLS

AND MA

• Large and Small Adjustable W

TERIALS:

renches

WARNING!

READ AND UNDERSTAND OPERATOR'S MANUAL BEFORE USING THIS UNIT.

FAILURE TO FOLLOW OPERATING INSTRUCTIONS COULD RESULT IN INJURY OR DAMAGE TO PROPERTY.

Toll-Free Customer Service Number for U.S: 1-800-558-5234,

For Canada: 1-800-284-8339,

For Europe: 00 800 555 85234 (Sweden: 009 555 85234),

For Australia: 1-800-632 7921

Internet Address: http://www.huffysports.com

Write Model Number

From Box Here:

01/06 ID# M5800041

wner must ensure that all players know and follow these rules

for safe operation of the system.

WARNING

•

DO NOT HANG on the rim or any part of the system including backboard, support braces or net.

•

During play, especially when performing dunk type activities, keep player's face away from the backboard, rim and net. Serious injury could occur if teeth/face come in contact with backboard, rim or net.

•

Do not slide, climb, shake or play on base and/or pole.

•

After assembly is complete, fill system completely with water or sand. Never leave system in an upright position without filling base with weight, as system may tip over causing injuries.

•

When adjusting height or moving system, keep hands and fingers away from moving parts.

•

Do not allow children to move or adjust system.

•

During play, do not wear jewelry (rings, watches, necklaces, etc.). Objects may entangle in net.

•

Surface beneath the base must be smooth and free of gravel or other sharp objects. Punctures cause leakage and could cause system to tip over.

•

Keep organic material away from pole base. Grass, litter, etc. could cause corrosion and/or deterioration.

•

Check pole system for signs of corrosion (rust, pitting, chipping) and repaint with exterior enamel paint. If rust has penetrated through the steel anywhere, replace pole immediately.

•

Check system before each use for proper ballast, loose hardware, excessive wear and signs of corrosion and repair before use.

•

Check system before each use for instability.

•

Do not use system during windy and/or severe weather conditions; system may tip over. Place system in the storage position and/or in an area protected from the wind and free from personal property and/or overhead wires.

•

Never play on damaged equipment.

•

When moving system, use caution to keep mechanism from shifting.

•

Keep pole top covered with cap at all times.

•

Do not allow water in tank to freeze. During subfreezing weather add 2 gallons of non-toxic antifreeze, sand or empty tank completely and store. (Do not use salt.)

•

While moving system, do not allow anyone to stand or sit on base or have added ballasting on base.

•

Do not leave system unsupervised or play on system when wheels are engaged for moving.

•

Use Caution when moving system across uneven surfaces. System may tip over.

•

Use extreme caution if placing system on sloped surface. System may tip over more easily.

•

See instruction manual for proper installation and maintenance.

ead and understand warnings listed

below before using this product.

Failure to follow these warnings may result in serious injury and/or property damage.

ID#: 558200 05/05

MUNSELL NOTATION Hue Value Chroma

5.0 YR 6.0/15

Equiv. CIE Data (Y%) x y

30.05 0.5510 0.4214

Approx. PMS Color 13 parts yellow 3 parts Warm Red 1/4 part Black

Warning Area = Orange

Size = 4" x 6.5"

Corner Radius = 3/8"

Die Cut Label

3.25 Mil Vinyl

All Temp. Permanent Adhesive

1 Mil. Polypropolyne Overlaminate

Illustrator 8.0 = EPS

Backing + 1/16 Circumference

Rolls of 500

In the U.S.: 1-888-713-5488

In the U.S.: 1-800-558-5234 In Canada: 1-800-284-8339

In the U.S.: 1-800-334-9111

In the U.S.: 1-800-558-5234 In Canada: 1-800-284-8339

9-3/4" High 3" Wide PMS 021 for Warning

558170 07/05

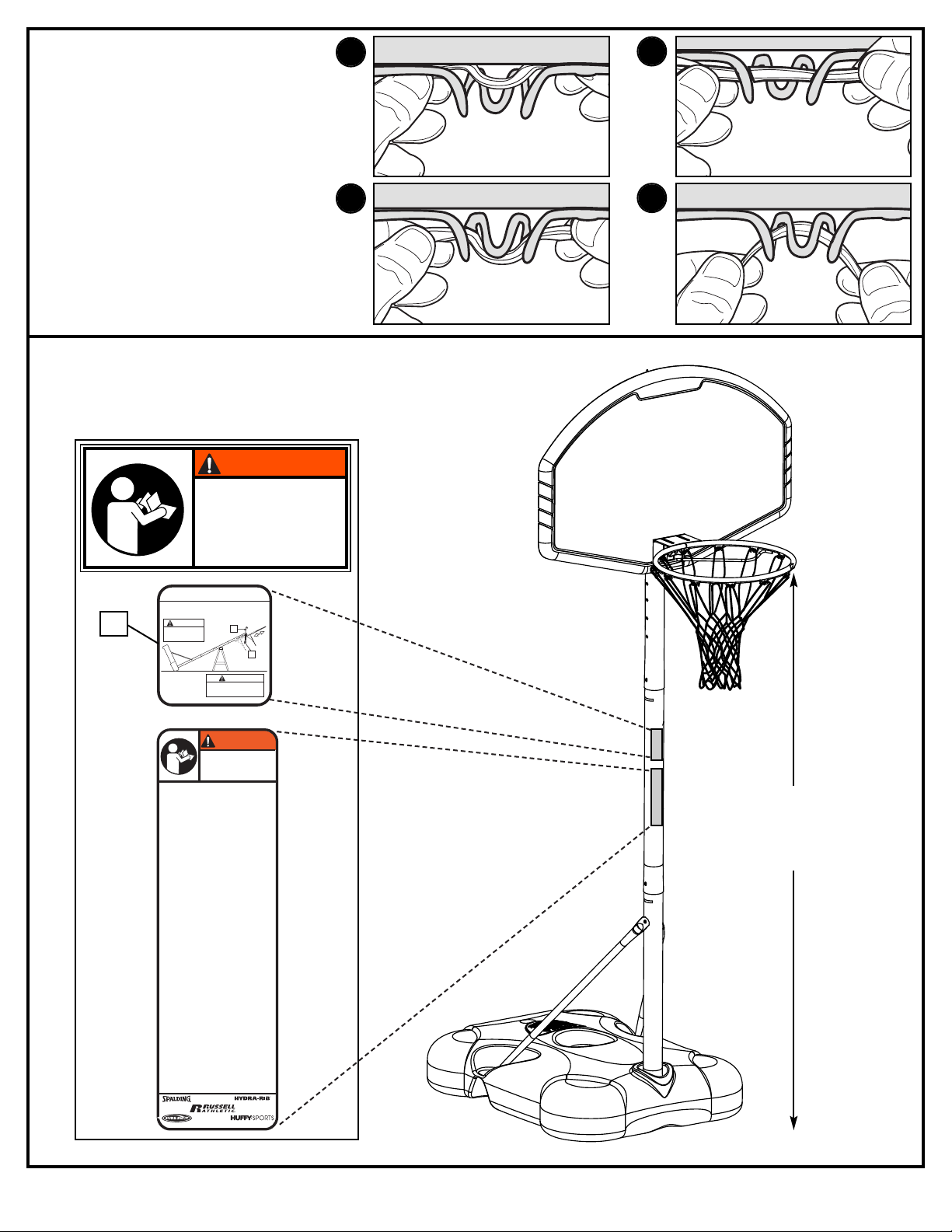

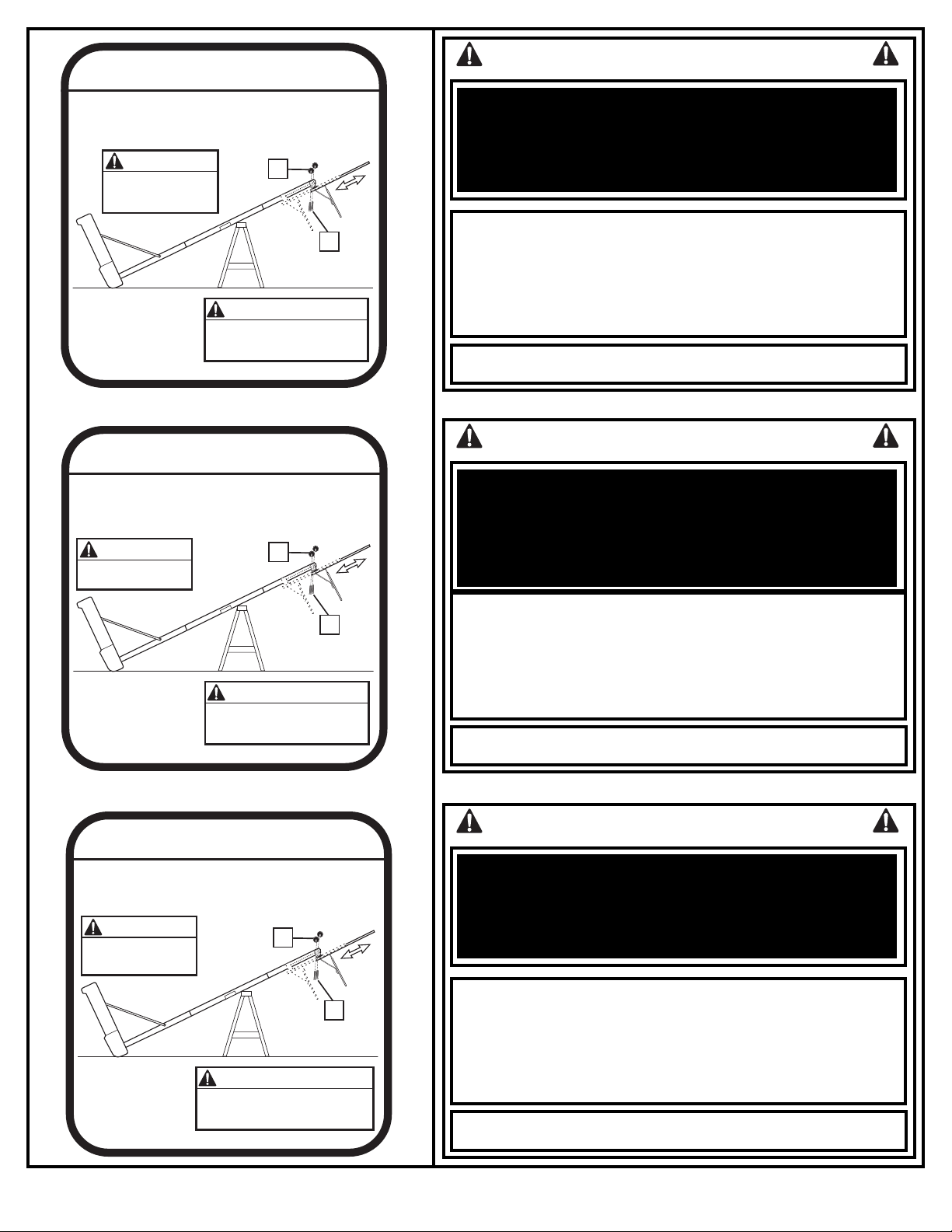

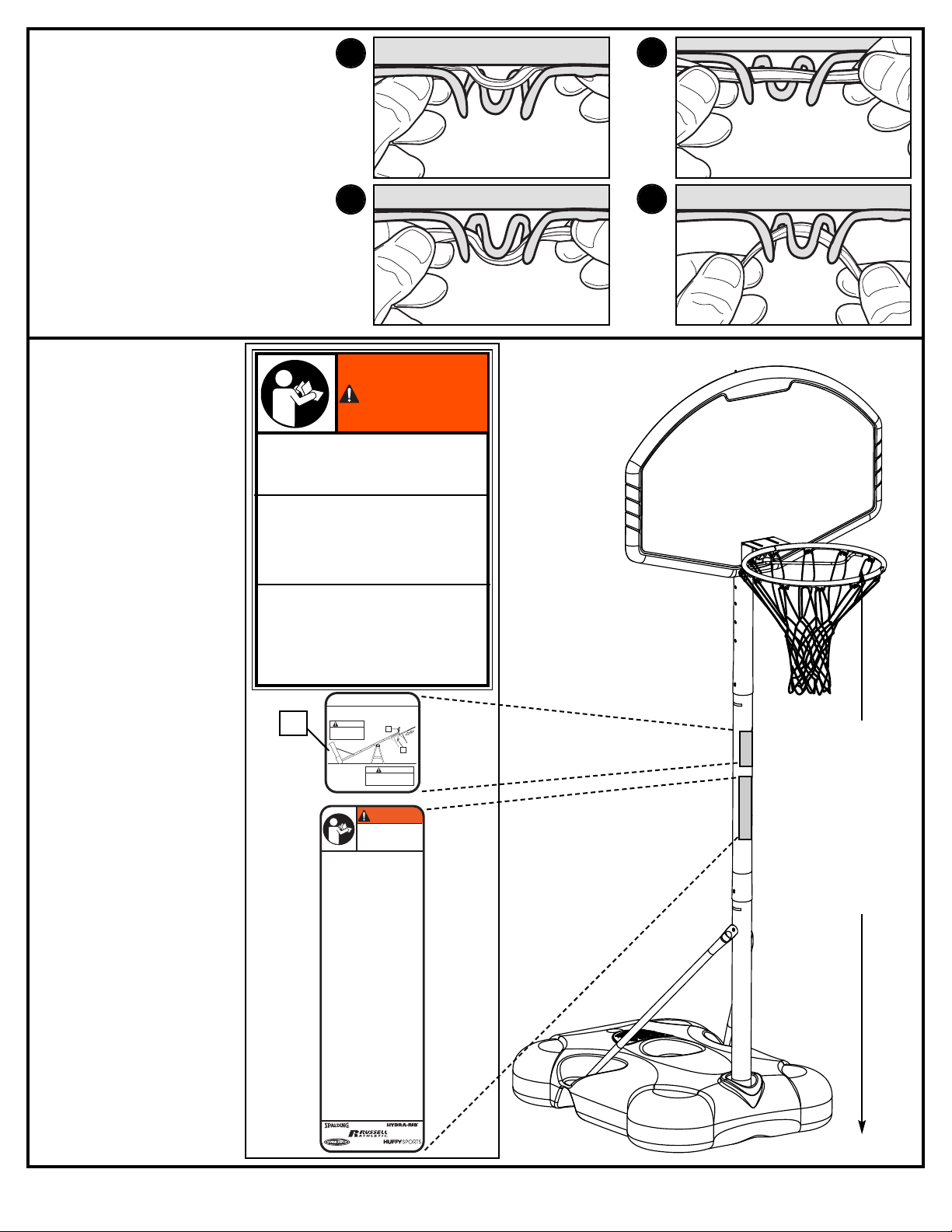

HEIGHT ADJUSTMENT

WARNING

Do not adjust height of system in upright position. System must be in down position to adjust

Rest unit on support table. Remove adjustment knobs (A) and carriage bolts (B) to extend or retract backboard and rim. Height adjustment from 4-1/2' - 6-1/2'.

WARNING

Backboard may rotate during height adjustment.

3-5/8" High 3" Wide PMS 021 for Warning

ID# M5800041 01/06

SAFETY INSTRUCTIONS

FAILURE TO FOLLOW THESE SAFETY INSTRUCTIONS MAY RESULT IN SERIOUS INJURY OR

PROPERTY DAMAGE AND WILL VOID WARRANTY.

Owner must ensure that all players know and follow these rules for safe operation of the system.

o ensure safety, do not attempt to assemble this system without following the instructions carefully. Proper

T and complete assembly, use, and supervision are essential for proper operation and to reduce the risk of

ccident or injury. A high probability of serious injury exists if this system is not installed, maintained, and

perated properly.

• If using a ladder during assembly, use extreme caution.

• Check base regularly for leakage. Slow leaks could cause the system to tip over unexpectedly

• Seat the pole sections properly (if applicable). Failure to do so could allow the pole sections to separate during play and/or during transport of the system.

• Climate, corrosion or misuse could result in system failure.

• If technical assistance is required, contact Customer Service.

• Minimum operational height is 4'-6" (1.37m) to the bottom of backboard.

Most injuries are caused by misuse and/or not following instructions.

Use caution when using this unit.

NOTICE TO ASSEMBLERS

Adult Assembly Required. Dispose of ALL packaging materials promptly. As with all children’s products,

periodically inspect for loose small parts.

Assembled unit MUST be filled with water at ALL times.

ALL basketball systems, including those used for DISPLAYS, MUST be assembled and ballasted with

sand or water according to instructions. Failure to follow instructions could result in SERIOUS INJUR

It is NOT acceptable to devise a makeshift weight system.

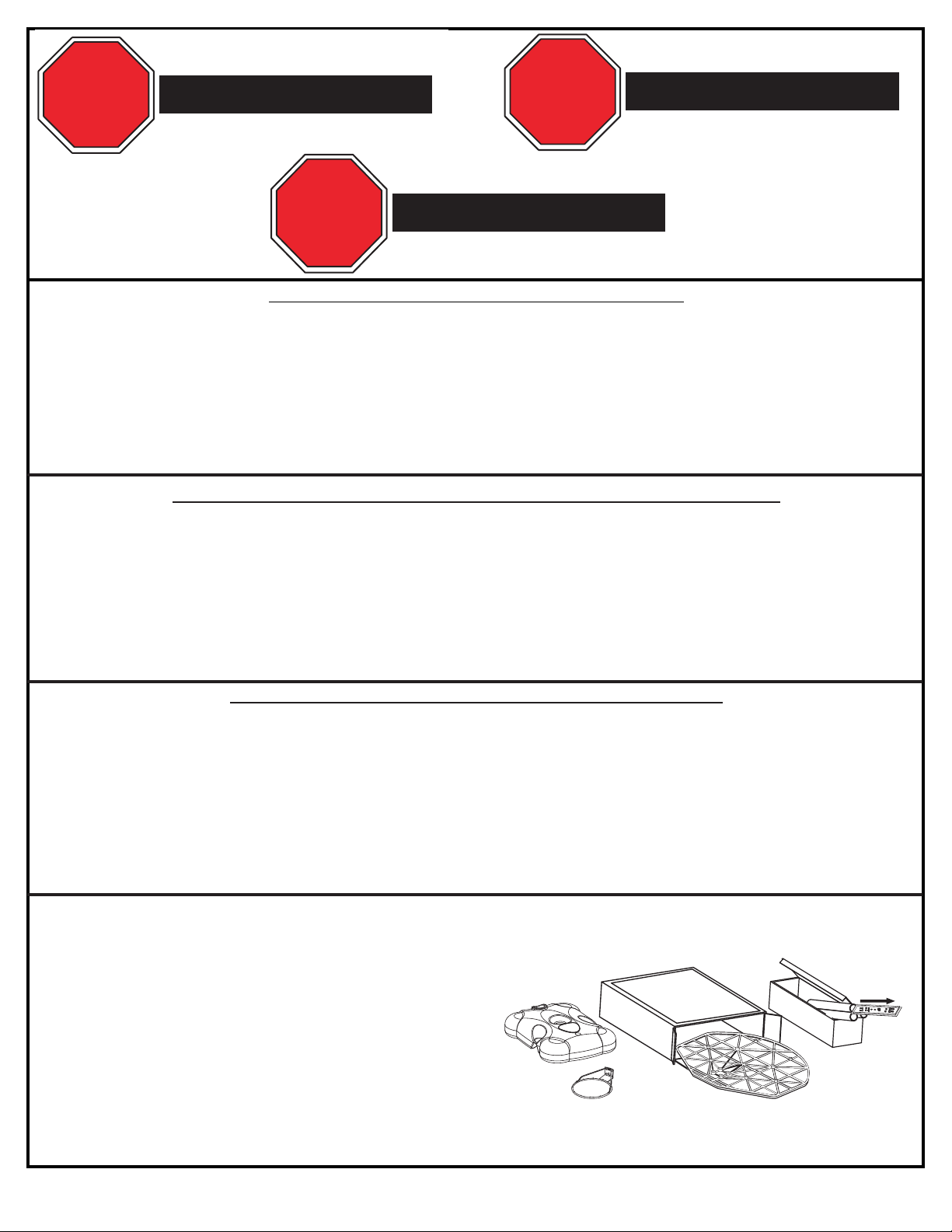

IMPORTANT!

Remove all contents from boxes.

Be sure to check inside pole sections;

hardware and additional parts are packed inside.

WARRANTY CARD:

Please remember to complete your product registration form either on-line at:

www.huffysports.com/customer_support/product_registration or mail-in the enclosed postcard.

01/06 ID# M5800041

Get to know the basic parts of your basketball system...

RIM

FRONT

TOP POLE

BACK

BACKBOARD

ELEVATOR

ASSEMBLY

MIDDLE POLE

BOTTOM POLE

BASE

STRUTS

ID# M5800041 01/06

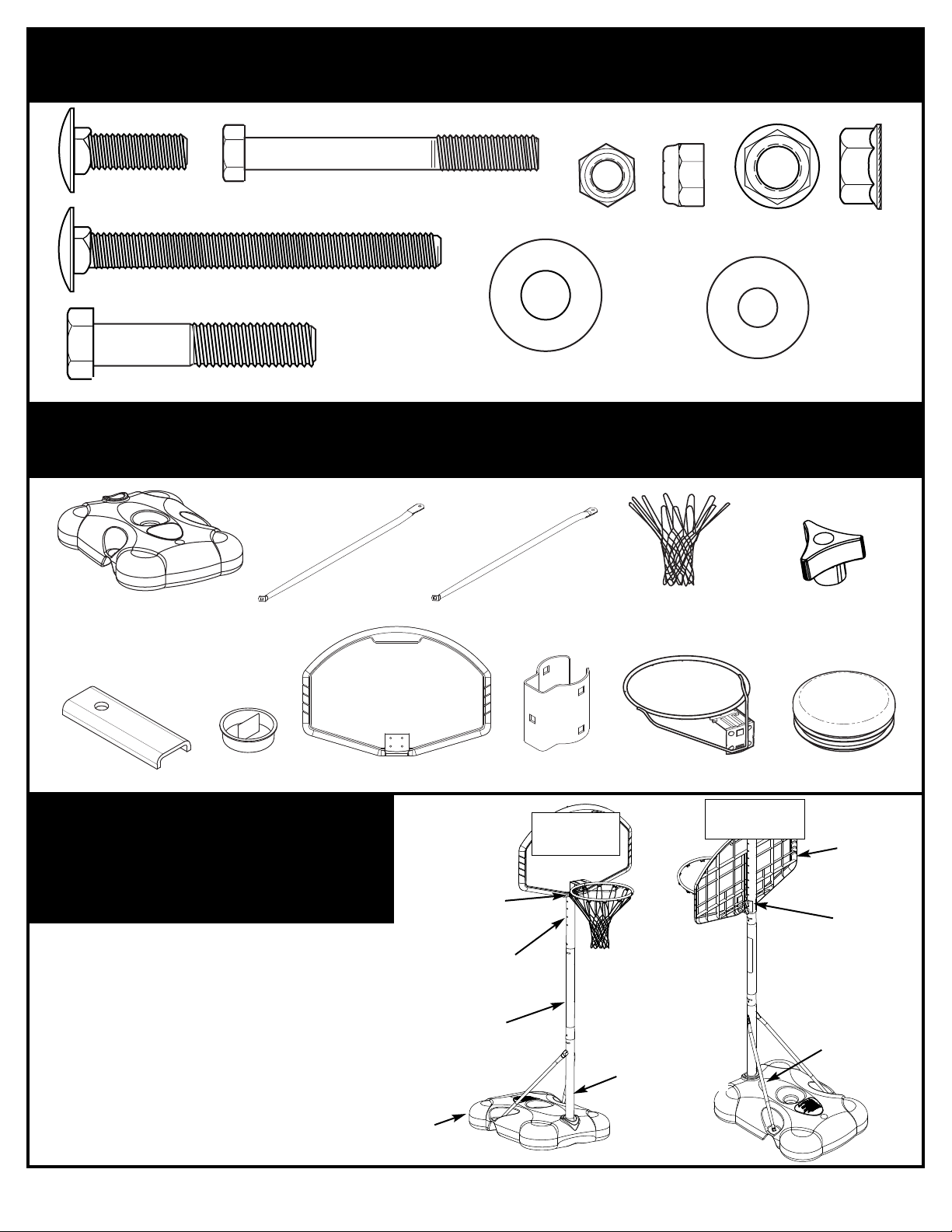

PARTS LIST

Silver

Item Qty. Part No. Description

1 1 20664903 Tank (Black) 2 1 918130 Top Pole Section 3 1 918133 Middle Pole Section with Label 4 1 918132 Bottom Pole Section 5 1 203099 Nut, Ny-Lock, 5/16-18 6 1 Net 7 1 20378701 Cap, Pole 8 3 203223 Bolt, Carriage, 5/16-18 x 1" Long 9 1 203617 Cap, Tank

10 1 203740 Bolt, Hex, 5/16-18 x 2.63" Long

11 2 201344 Knob, Plastic, 3-sided 12 1 Rim 13 1 Backboard 14 1 908134 Backboard Mounting Bracket 15 1 908129 Rim Bracket 16 2 203739 Bolt, Carriage 5/16-18 x 3.25" Long 17 4 203218 Washer, Flat, 5/16 18 1 203309 Washer, Flat, 1.0" O.D. 19 1 203679 Bolt, Hex, 3/8-16 x 2" Long 20 3 203100 Nut, Flange, 5/16-18 21 1 910454 Strut, Left 22 1 910255 Strut, Right 23 1 558170 Label, Height Adjustment

* You may have extra parts with this model.

01/06 ID# M5800041

#8 (3)

PPAARRTTSS IIDDEENNTTIIFFIIEERR

- Actual Size

#19 (1)

#10 (1)

#16 (2)

#5 (1)

#20 (3)

PARTS IDENTIFIER- Not Actual Size

#17 (4)

#18 (1)

#1 (1)

#11 (2)

#13 (1)

ID# M5800041 01/06

#21 (1) #22 (1)

#15 (1)

#14 (1)

#12 (1)

#6 (1)

#9 (1)

#7 (1)

SSEECCTTIIOONN AA:: AASSSSEEMMBBLLEE TTHHEE PPOOLLEESS

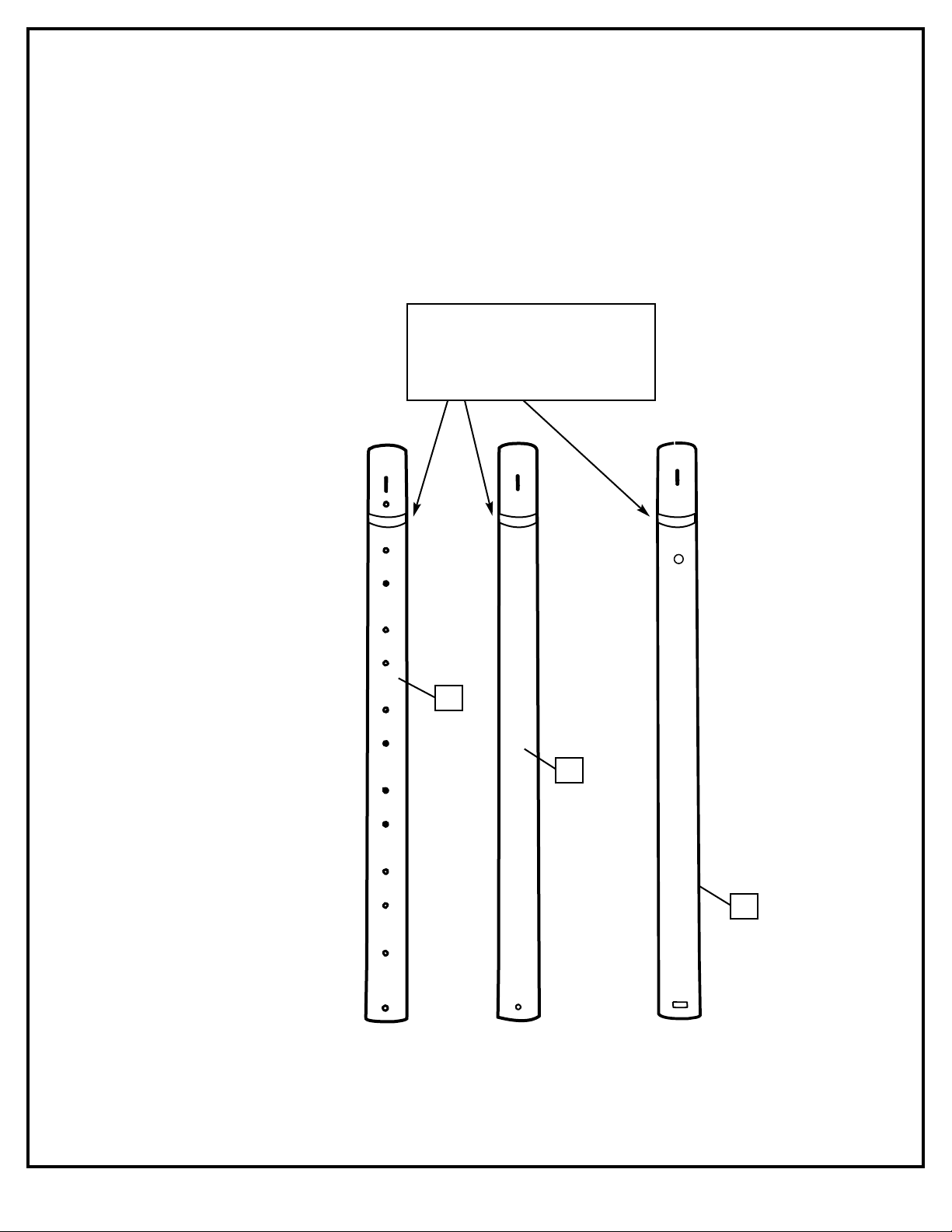

Correctly identify each pole section. Poles have an identification sticker

that will be used as a reference point in the next step.

Reference Stickers

TOP MIDDLE BOTTOM

01/06 ID# M5800041

IMPORTANT!

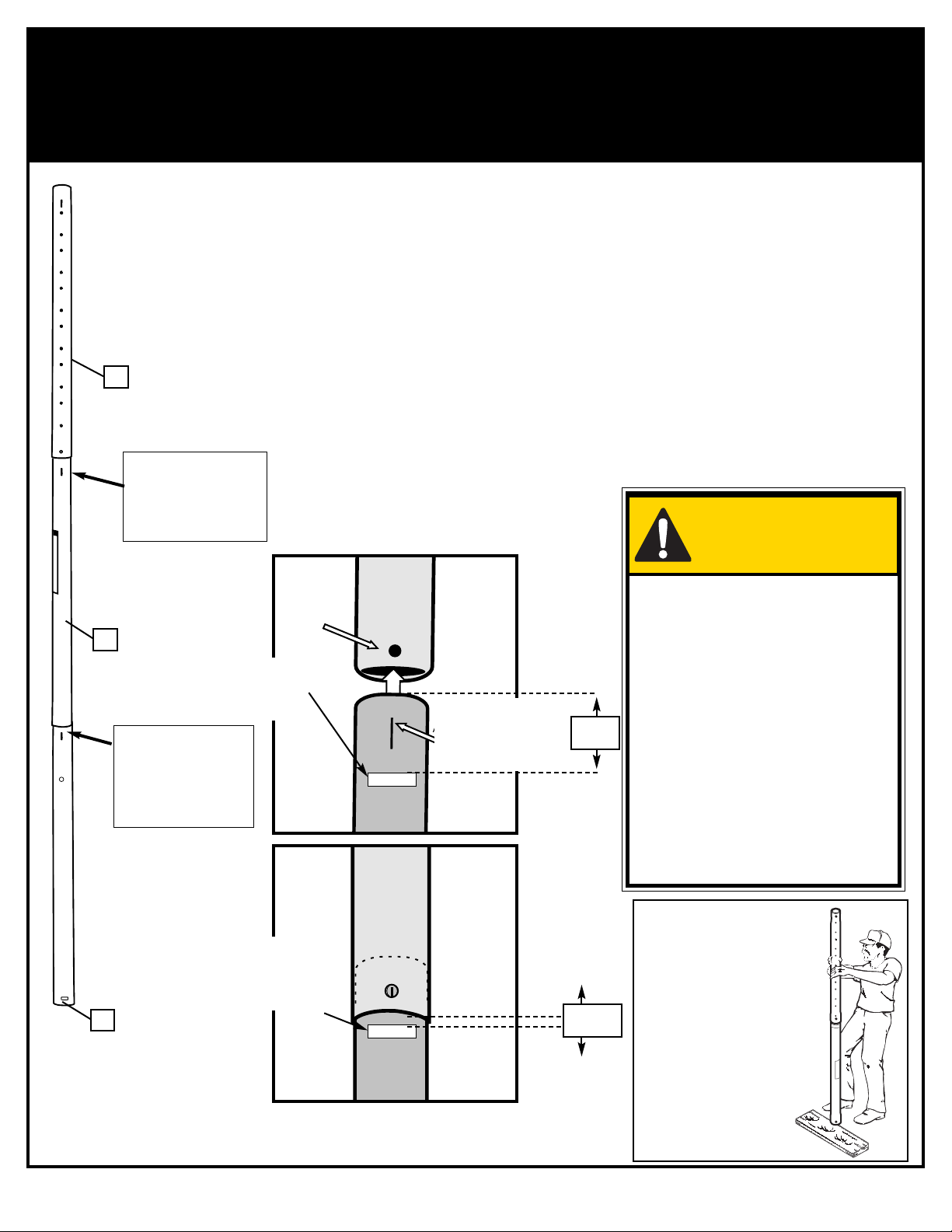

ONCE POLE SECTIONS ARE POUNDED TOGETHER- THEY CANNOT BE TAKEN APART

Align poles using alignment marks. First, pound top and

middle poles together by bouncing them on a scrap piece of wood on the ground as shown in FIG A. until they no longer move toward pole identification stickers. THEN add bottom pole section and pound together in the same way.

TOP

CAUTION!

THE IDENTIFICATION STICKER IS LOCATED 3-3/4" FROM THE END OF THE POLE. WHEN PROPERLY POUNDED TOGETHER, THE POLE SECTIONS SHOULD HAVE A 2-1/2" MINIMUM OVERLAP, LEAVING 1-1/4" BETWEEN THE OVERLAPPING POLE AND THE IDENTIFICATION STICKER.

alignment mark

FIG A.

scrap wood (Not Supplied)

IDENTIFICATION STICKER

middle pole

MIDDLE

3-1/2”

alignment mark

BOTTOM

1-1/4"

ID# M5800041 01/06

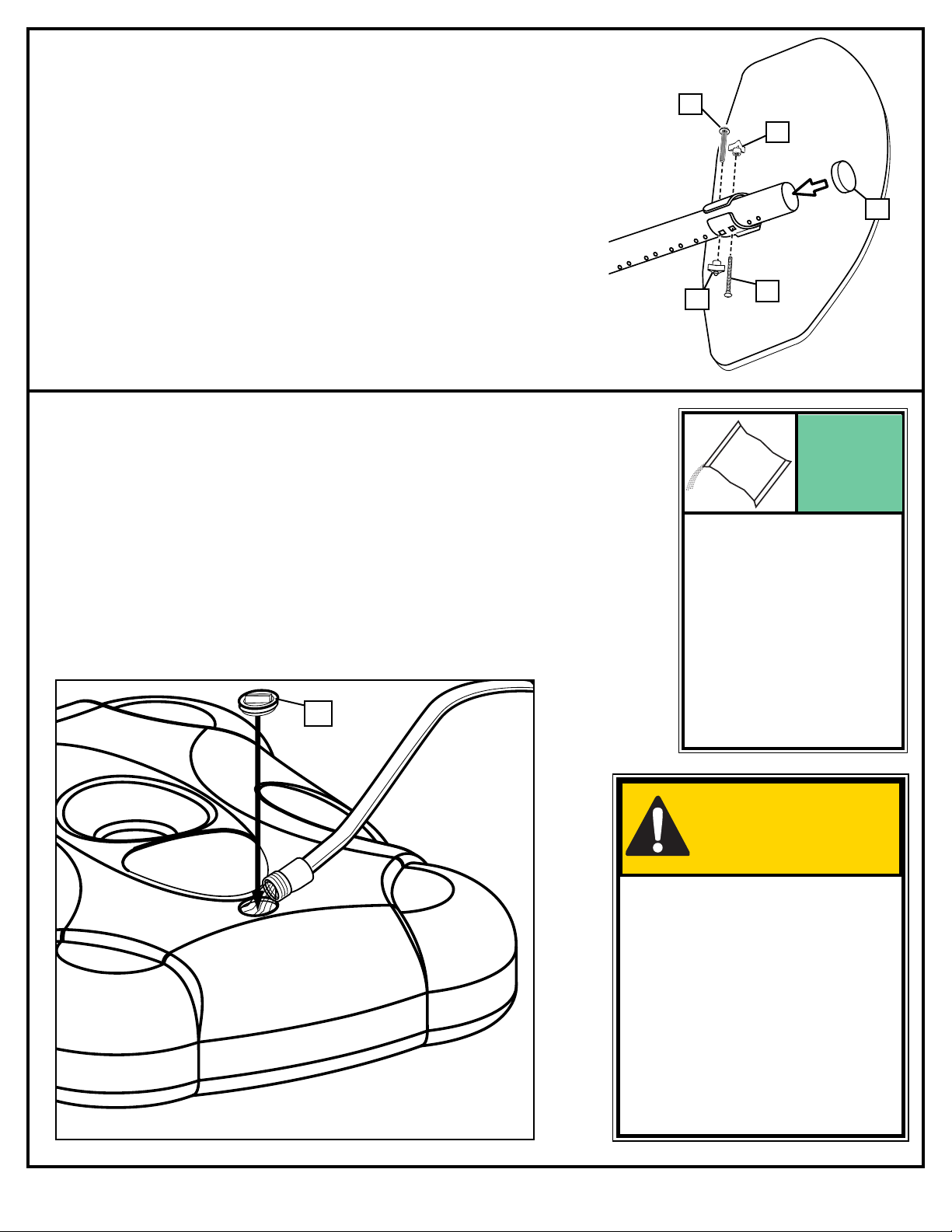

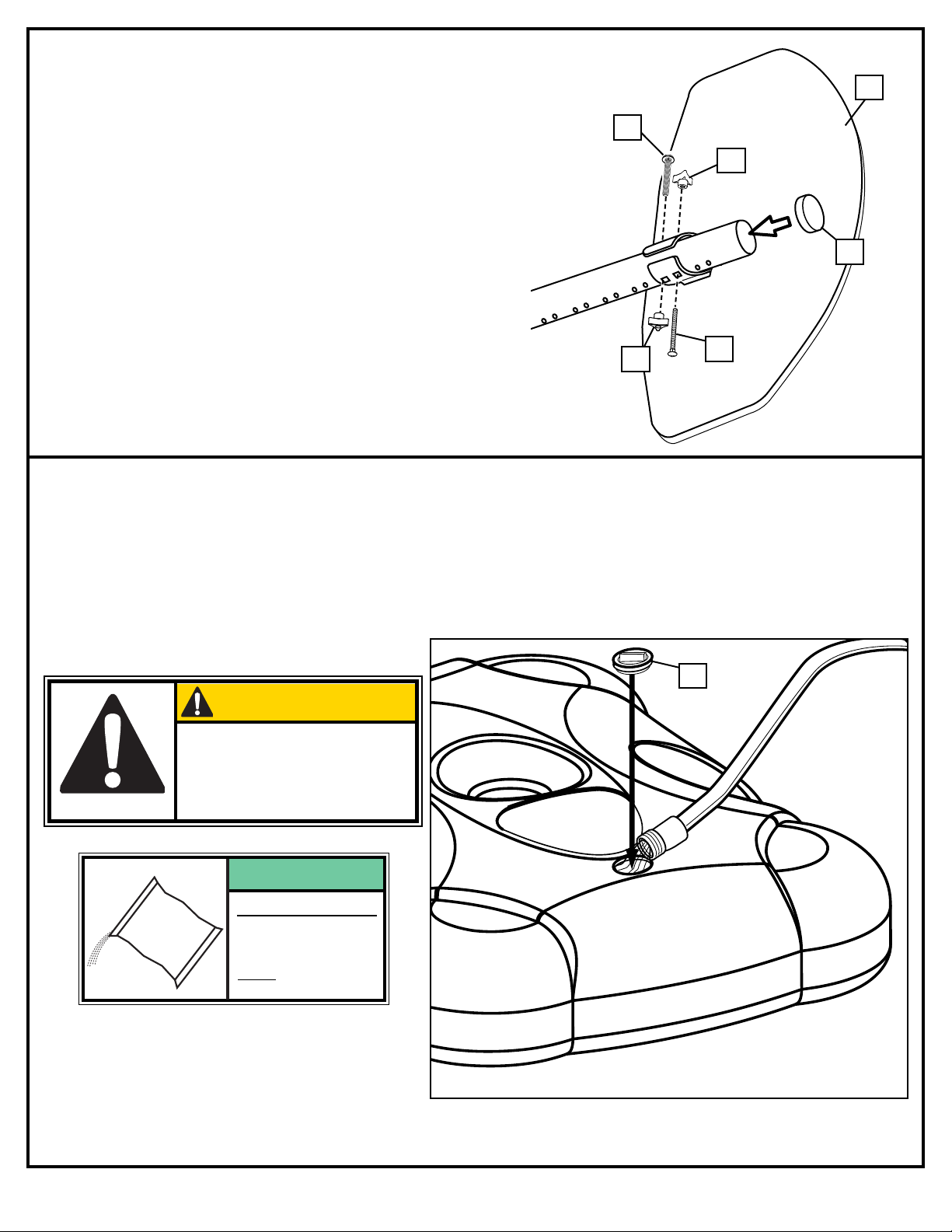

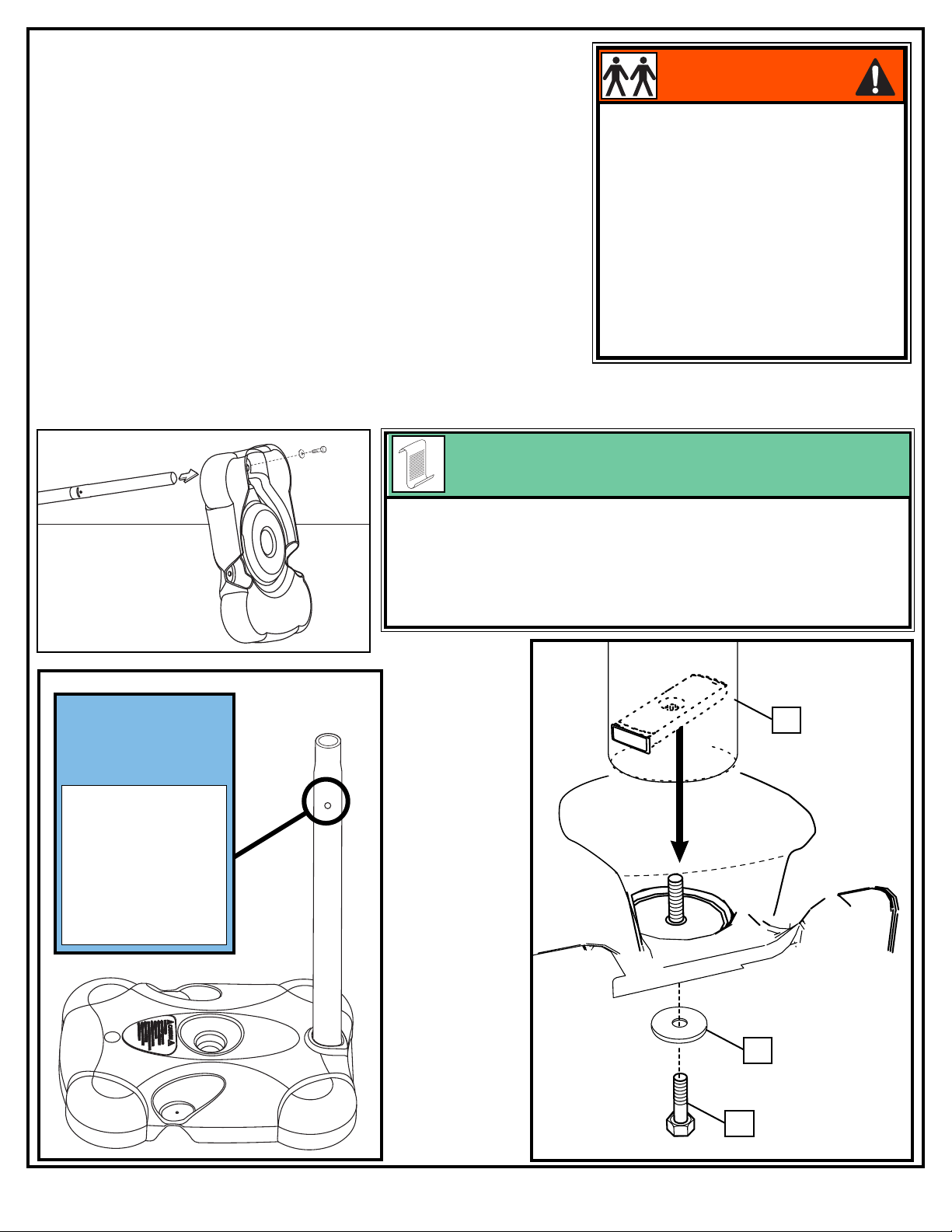

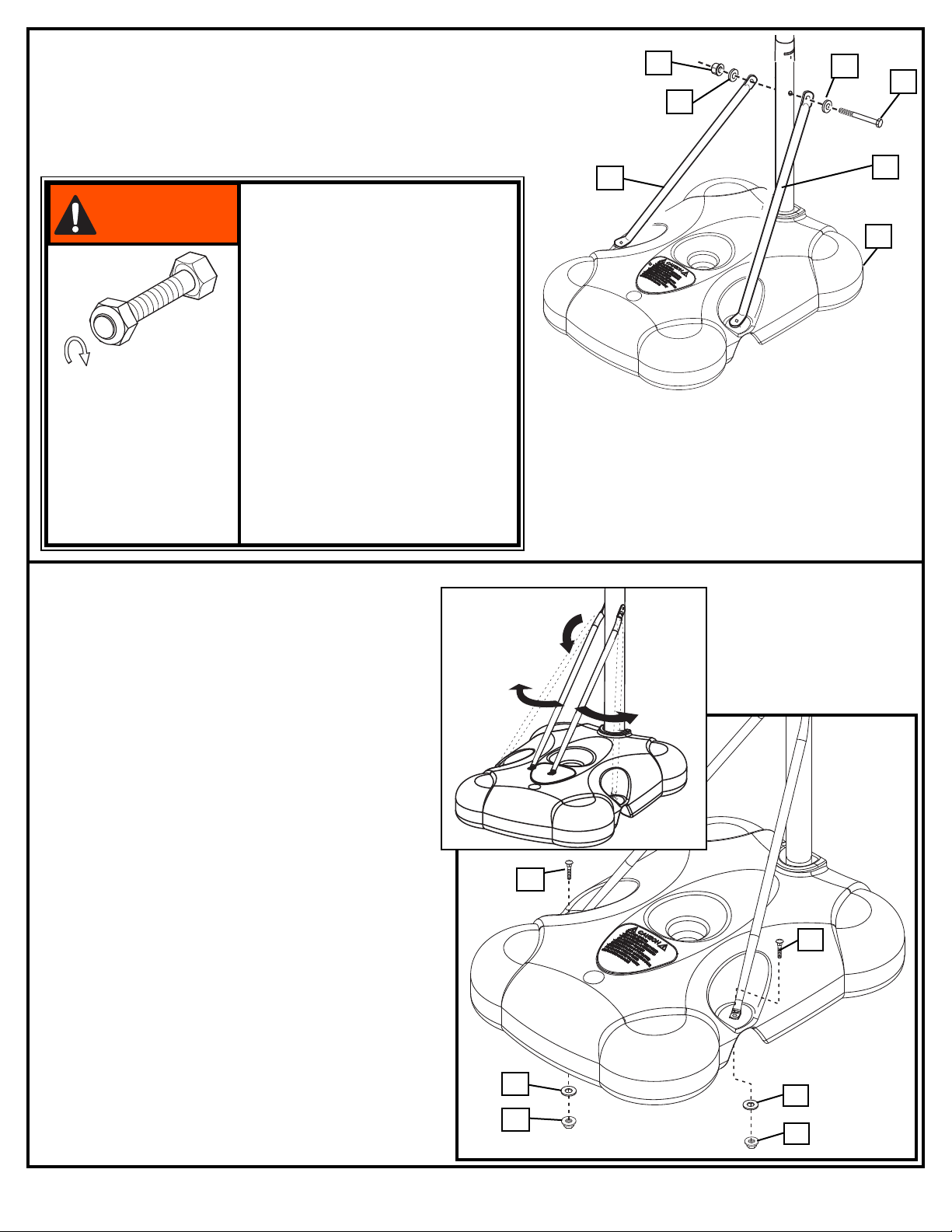

Attach pole assembly to tank as shown. Secure pole assembly to tank by turning the pole assembly clockwise as shown.

NOTE:

CAREFULLY TIPPING THE

SYSTEM FORWARD WILL

ALLOW EASIER ACCESS

TO UNDERSIDE OF BASE

WARNING!

TWO CAPABLE ADULTS REQUIRED FOR THIS PROCEDURE. FAILURE TO FOLLOW THIS WARNING COULD RESULT IN SERIOUS INJURY AND/OR PROPERTY DAMAGE.

IMPORTANT!:

NOTE

ORIENTATION

01/06 ID# M5800041
