SOYO™
2
SY-7IWM Motherboard
Socket 370 for Intel Pentium® & CeleronTM processors
Intel FW82810E AGP/PCI/AMR Motherboard
66/100/133 MHz Front Side Bus supported
Micro ATX Form Factor
Copyright © 2000 by Soyo Computer Inc.
Trademarks:
Soyo is the registered trademark of Soyo Computer Inc. All trademarks are the properties of
their owners.
Product Rights:
All names of the product and corporate mentioned in this publication are used for identification
purposes only. The registered trademarks and copyrights belong to their respective companies.
Copyright Notice:
All rights reserved. This manual has been copyrighted by Soyo Computer Inc. No part of this
manual may be reproduced, transmitted, transcribed, translated into any other language, or
stored in a retrieval system, in any form or by any means, such as by electronic, mechanical,
magnetic, optical, chemical, manual or otherwise, without permission in writing from Soyo
Computer Inc.
Disclaimer:
Soyo Computer Inc. makes no representations or warranties regarding the contents of this
manual. We reserve the right to amend the manual or revise the specifications of the product
described in it from time to time without obligation to notify any person of such revision or
amend. The information contained in this manual is provided to our customers for general use.
Customers should be aware that the personal computer field is subject to many patents. All of
our customers should ensure that their use of our products does not infringe upon any patents. It
is the policy of Soyo Computer Inc. to respect the valid patent rights of third parties and not to
infringe upon or to cause others to infringe upon such rights.
Restricted Rights Legend:
Use, duplication, or disclosure by the Government is subject to restrictions set forth in
subparagraph (c)(1)(ii) of the Rights in Technical Data and Computer Software clause at
252.277-7013.
About This Guide:
This Quick Start Guide can help system manufacturers and end users in setting up and installing
the Motherboard. Information in this guide has been carefully checked for reliability; however,
to the correctness of the contents there is no guarantee given. The information in this document
is subject to amend without notice.
For further information, please visit our Web Site on the Internet. The address is
"http://www.soyo.com.tw".
7IWM Serial - Version 1.1 - Edition: December 2000
* These specifications are subject to amend without notice
3
Introduction
LINE
11
Introduction
SY-7IWM
Quick Start Guide
Congratulations on your purchase of the
illustrates the steps for installing and setting up your new Motherboard.
This guide provides all users with the basic steps of Motherboard setting and operation. For
further information, please refer to the SY-7IWM Motherboard Users’ Guide that came with
your Motherboard.
SY-7IWM
Motherboard. This Quick Start Guide

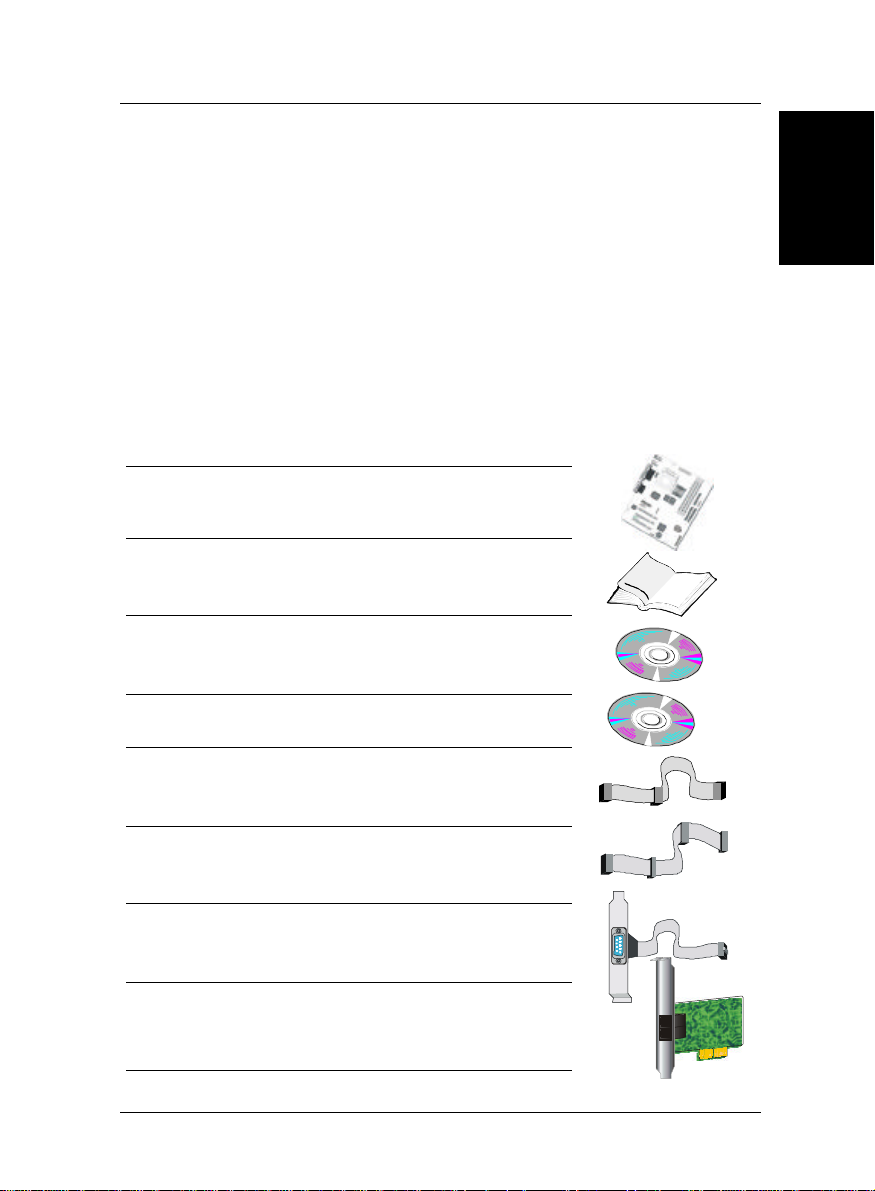

Unpacking
When unpacking the Motherboard, check for the following items:
u
The SY-7IWM FW82810E AGP/PCI/AMR Motherboard
u
This Quick Start Guide
u
The Installation CD-ROM
u
SOYO Bonus Pack CD-ROM
u
One IDE Device ATA 66 Flat Cable
u
One Floppy Disk Drive Flat Cable
u
Serial port flat cable with a 9-pin connector bracket
u Modem Riser Card (Optional)
PHONE
SY-7IWM Quick Start Guide
4
Introduction
PCI Slot #1
PCI Slot #3
3V
Lithium
1
1
1
FDC
ATX Power
Header
DIMM 1
DIMM 2
DIMM 3
PCI Slot #2
Intel
Fw82801
Intel
82802AB
IR1
SDRAM
SDRAM
1
CHAFAN
Speaker
Keylock
ACPI
_
+
_
+
_
+
_
+
Reset
PWRBT
CMOS Clear
USB 3
SDRAM
Intel
SY-7IWM Motherboard Layout
PS/2 KB
PS/2 Mouse
Connector
Connector
CPUFAN
1
USB 1
COM1
VGA
USB 2
PRT
Socket 370
COM2
JOYSTICK
LINE-OUT
LINE-IN
MIC JACK
Winbond
W83627HF
JP44
WOL
-AW
31
AMR
1
4
J9 CD-IN
CODEC
AC97
4
J10
AUX-IN
1
1
4
J11
PHONE-IN
®
FW82810E
5
1
4MB
(Optional)
Battery
JP5
3
1
Jumper
IDE 2 IDE 1
Power
LED
5
1
HDD
LED
LED
SY-7IWM
5
Introduction
Quick Start Guide
Key Features
Ø
Supports Intel® processors
- FSB 66MHz: Celeron(400-700MHz)
- FSB 100MHz: Pentium® III (500850MHz)
- FSB 133MHz: Pentium® III (533MHz-
1.13GHz)
Ø
Supports 66/100/133 MHz Front Side
Bus Frequency
Ø
Auto-detect CPU voltage
Ø
3D AGP Accelerator integrated into
Chipset
Ø
Easy CPU settings in BIOS with the
“SOYO COMBO Setup”
Ø
PC99, ACPI
Ø
Ultra DMA33/66 (ATA 33/66)
Ø
Supports Wake-On-LAN (WOL)
Ø
Supports ACPI Suspend Indicator
Ø
Power-on by modem, alarm, PS/2
Keyboard and Mouse
Ø
Power failure resume
Ø
Supports onboard hardware monitoring
and includes Hardware Doctor™ utility
*Because this board comes with software Audio (AC97) on board, the Audio function in AMR is not relevant.
If the user wants to use a Modem Riser card (MR) make sure to use a
mode MRs are
NOT
Supported.
Ø
Fan speed control
Ø
Battery Low voltage Detect
Ø
Support 7 sets of voltage monitoring
Ø
Supports multiple-boot function
Ø
Y2K Complaint
Ø
Supports Audio Modem Riser slot (AMR
1.0 compliant) *
Ø
3 x 32-bit bus master PCI slots
Ø
3 x USB ports onboard (USB2 and USB3
are shared and can not be used
simultaneously)
Ø
1 x IrDA port
Ø
ATX power connector
Ø
Hardware Random Number Generator
(RNG) for enabling enhanced platform
security
Ø
RTC hardware to handle Y2K Century
Rollover
Secondary
mode MR,
PRIMARY
SY-7IWM Quick Start Guide
6
Hardware
Installation
22
l
l
l
Follow the directions in this section which is designed to guide you through a quick and
correct method to install your new
refer to the SY-7IWM Motherboard User's guide and Technical Reference online manual on
in the CD-ROM package that came with your Motherboard.
Gather and prepare all necessary components to complete the installation successfully:
u
u
u
u
u
u
u
u
u
u
Installation
To avoid damage to your Motherboard, please follow these simple rules while
handling this equipment:
Before handling the Motherboard, ground yourself by touching on to an unpainted
portion of the system's metal chassis.
Remove the Motherboard from its anti-static packaging. Hold the motherboard by the
edges and avoid touching its components.
Check the Motherboard for damage. If any chip appears to be loose, press carefully
to seat it firmly in its socket.
SY-7IWM
CeleronTM Socker370 processor with built-in CPU cooling fan (boxed type)
SDRAM module(s)
Computer case with adequate power supply unit
Monitor
PS/2 Keyboard
Pointing Device (PS/2 Mouse)
Speaker(s) (optional)
Disk Drives: HDD, CD-ROM, Floppy drive…
External Peripherals: Printer, Plotter, and Modem (optional)
Internal Peripherals: Modem and LAN cards (optional)
Motherboard. For detailed information, please
Note: 1.
This Motherboard features one built-in VGA port and three built-in audio-stereo
ports. Therefor you do not need to install neither a VGA card nor a sound card.
2.
If you want to use an external speaker connected to "Line-out" port, please make
sure to use an "amplified speaker" that can generate proper output sound volume.
Loading...
