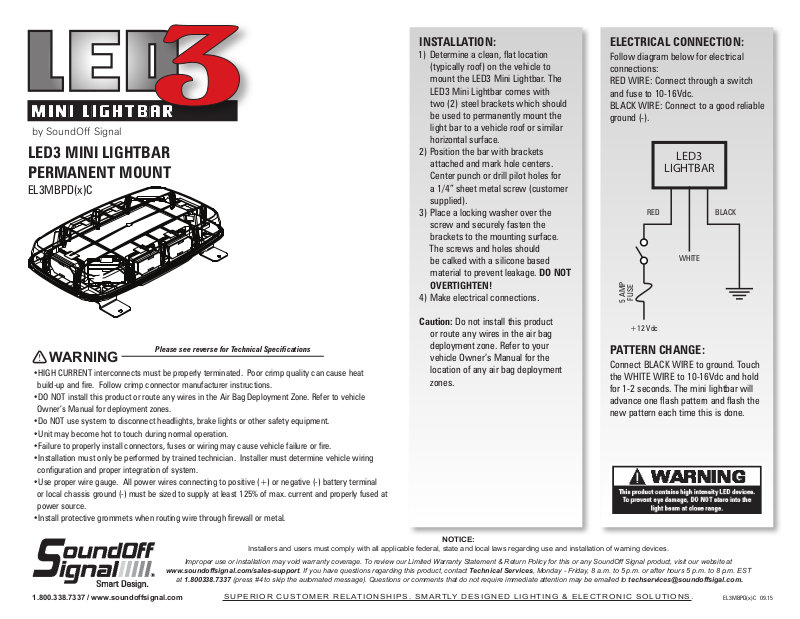

Soundoff Signal LED3 Mini Lightbar Owner's Manual
LED
Mini Lightbar
by SoundOff Signal
LED3 MINI LIGHTBAR
PERMANENT MOUNT
EL3MBPD(x)C
INSTALLATION:
1) Determine a clean, flat location
(typically roof) on the vehicle to
mount the LED3 Mini Lightbar. The
LED3 Mini Lightbar comes with
two (2) steel brackets which should
be used to permanently mount the
light bar to a vehicle roof or similar
horizontal surface.
2) Position the bar with brackets
attached and mark hole centers.
Center punch or drill pilot holes for
a 1/4” sheet metal screw (customer
supplied).
3) Place a locking washer over the
screw and securely fasten the
brackets to the mounting surface.
The screws and holes should
be calked with a silicone based
material to prevent leakage. DO NOT
OVERTIGHTEN!
4) Make electrical connections.
ELECTRICAL CONNECTION:
Follow diagram below for electrical
connections:
RED WIRE: Connect through a switch
and fuse to 10-16Vdc.
BLACK WIRE: Connect to a good reliable
ground (-).
LED3
LIGHTBAR
FUSE
5 AMP
RED
WHITE
BLACK
Please see reverse for Technical Specifications
WARNING
•HIGH CURRENT interconnects must be properly terminated. Poor crimp quality can cause heat
build-up and fire. Follow crimp connector manufacturer instructions.
•DO NOT install this product or route any wires in the Air Bag Deployment Zone. Refer to vehicle
Owner’s Manual for deployment zones.
•Do NOT use system to disconnect headlights, brake lights or other safety equipment.
•Unit may become hot to touch during normal operation.
•Failure to properly install connectors, fuses or wiring may cause vehicle failure or fire.
•Installation must only be performed by trained technician. Installer must determine vehicle wiring
configuration and proper integration of system.
•Use proper wire gauge. All power wires connecting to positive (+) or negative (-) battery terminal
or local chassis ground (-) must be sized to supply at least 125% of max. current and properly fused at
power source.
•Install protective grommets when routing wire through firewall or metal.
Installers and users must comply with all applicable federal, state and local laws regarding use and installation of warning devices.
Improper use or installation may void warranty coverage. To review our Limited Warranty Statement & Return Policy for this or any SoundOff Signal product, visit our website at
www.soundoffsignal.com/sales-support. If you have questions regarding this product, contact Technical Services, Monday - Friday, 8 a.m. to 5 p.m. or after hours 5 p.m. to 8 p.m. EST
at 1.800338.7337 (press #4 to skip the automated message). Questions or comments that do not require immediate attention may be emailed to techservices@soundoffsigal.com.
1.800.338.7337 / www.soundoffsignal.com
SUPERIOR CUSTOMER RELATIONSHIPS. SMARTLY DESIGNED LIGHTING & ELECTRONIC SOLUTIONS.
Caution: Do not install this product
or route any wires in the air bag
deployment zone. Refer to your
vehicle Owner’s Manual for the
location of any air bag deployment
zones.
NOTICE:
+12 Vdc
PATTERN CHANGE:
Connect BLACK WIRE to ground. Touch
the WHITE WIRE to 10-16Vdc and hold
for 1-2 seconds. The mini lightbar will
advance one flash pattern and flash the
new pattern each time this is done.
EL3MBPD(x)C 09.15
LED
Mini Lightbar
by SoundOff Signal
LED3 MINI LIGHTBAR
PERMANENT MOUNT
EL3MBPD(x)C
Replacement Parts & Accessories:
PMB3BKT Replacement Permanent Mount Bracket (each)
PMB3BRKT Replacement Permanent Mount Bracket (kit)
PMB3BMG Replacement Magnetic Foot (each)
PMB3MGKT Replacement Magnetic Mount (kit)
PMB3TDC Replacement Clear Dome
PMB3M-20(x) Replacement LED3 Module (see website for colors)
PMB3M-45(x) Replacement LED3 Corner Module (see website for colors)
TECHNICAL SPECIFICATIONS
Overall Dimensions: 14.25” L x 8.27” W x 2.93” H
Flash Patterns: 24 flash patterns
Input Voltage Range:
Current Consumption: <6 Amps
# of LEDs: 30 Generation 3 LEDs
Operating Temperature: -40º to +65º C
Cord Length: 125.75”
10 - 16 Vdc
Flash Patterns
FPM
Alternating Patterns
1. Warp 353
2. Quad 81
3. Quad2 67
4. Quint 71
5. Double2 95
6. Warp 1, 2, 3 variable
7. Progressive variable
8. Q-Switch variable
9. Intercycle variable
Solid Patterns FPM
10. Warp 176
11. Quad 41
12. Quad2 34
13. Quint 35
14. Double2 48
15. Warp 1, 2, 3 variable
16. Progressive variable
Rotating Patterns FPM
17. 1x1 Rotator 545
18. 2x2 Rotator 545
19. 9-1 Rotator 600
Random Patterns FPM
20. Quint (corners & ends) 71
21. Quad (in & out) 81
22. Rotating Alternating 375
23. Cycle 1 variable
24. Cycle 2 variable
(Flashes per Minute)
1.800.338.7337 / www.soundoffsignal.com
EL3MBPD(x)C 09.15
