Thank You!
Thank you for choosing a Jensen product. We hope you will find the instructions in this owner’s
manual clear and easy to follow. If you take a few minutes to look through it, you’ll learn how to
use all the features of your new Jensen receiver for maximum enjoyment.
System Features . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1
Installation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2
Wiring . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2
Basic Operation. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3
Tuner Operation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4
Weather Band Operation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4

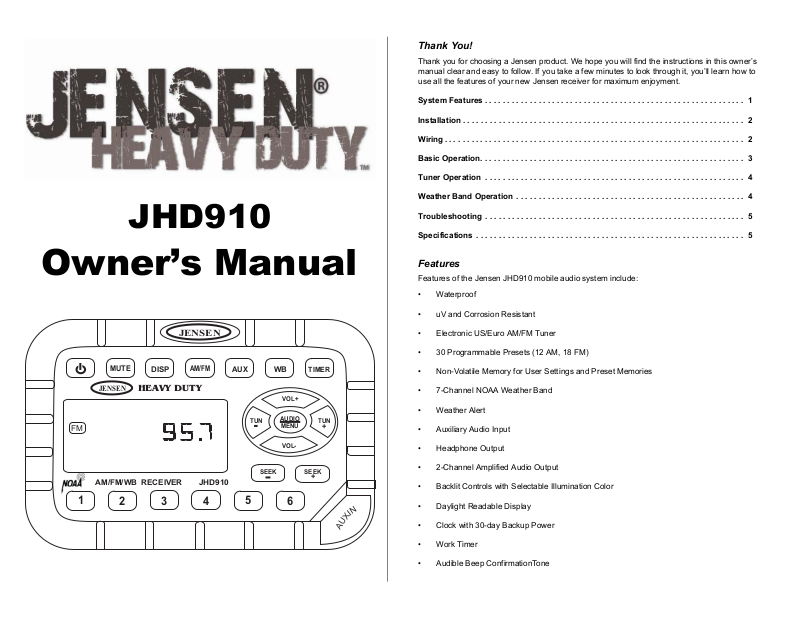

JHD910
Owner’s Manual
JENSEN
MUTE
JENSEN
FM
AM/FM/WB RECEIVER
1
234
DISP
HEAVY DUTY
AM/FM
JHD910
AUX
WB
VOL+
AUDIO
TUN TUN
5
MENU
VOL-
SEEK
6
TIMER
SEEK
+
+
X
U
A
Troubleshooting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5
Specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5
Features
Features of the Jensen JHD910 mobile audio system include:
• Waterproof
• uV and Corrosion Resistant
• Electronic US/Euro AM/FM Tuner
• 30 Programmable Presets (12 AM, 18 FM)
• Non-Volatile Memory for User Settings and Preset Memories
• 7-Channel NOAA Weather Band
• Weather Alert
• Auxiliary Audio Input
• Headphone Output
• 2-Channel Amplified Audio Output
• Backlit Controls with Selectable Illumination Color
N
I
• Daylight Readable Display
• Clock with 30-day Backup Power
•Work Timer
• Audible Beep ConfirmationTone
JHD910
Package Contents
• JHD910 Radio
• Radio Mounting Bracket
• Headphone Mounting Bracket
• Five (5) 10-16 x 3/4” Stainless Steel PPH Screws
• Five (5) 10-32 x 5/8” Stainless Steel PPH Screws
• Five (5) 10-32 Stainless Steel Hex Nuts
• Four (4) M4 x .7 x 8MM Stainless Steel Hex Screws with Captivated Washers
• Wiring Harness
• Auxiliary Input Patch Cord
• Owner’s Manual
Owner’s Manual
JHD910 Radio
JENSEN
MUTE
JENSEN
AM/FM/WB RECEIVER
1
AM/FM
DISP
HEAVY DUTY
23456
JHD910
WB
AUX
TUN TUN
SEEK
VOL+
AUDIO
MENU
VOL-
TIMER
+
SEEK
+
N
I
X
U
A
Radio
Mounting Bracket
Headphone
Mounting Bracket
Installation

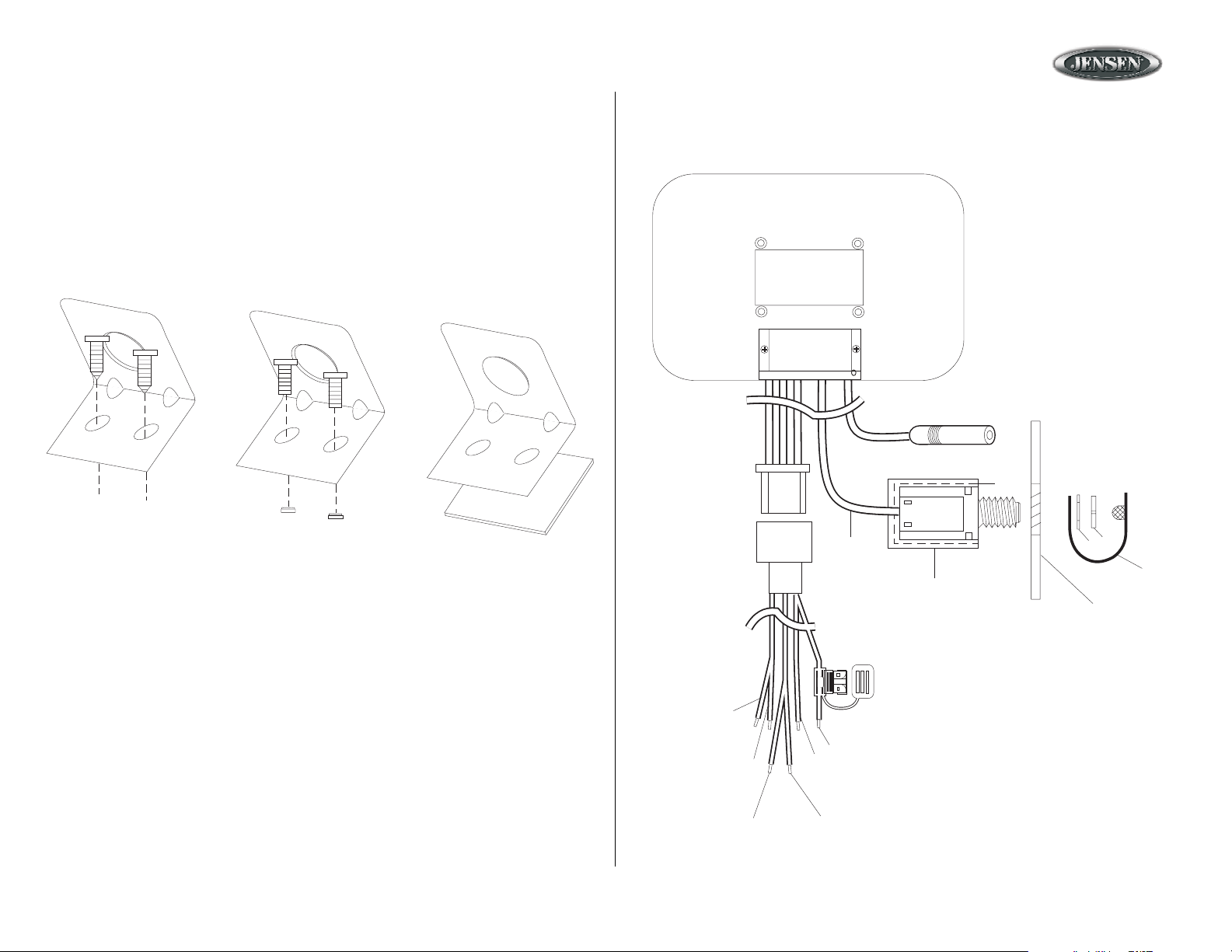

Mounting the Bracket
Two options are provided for mounting the bracket (self-tapping screws or machine screws with
nuts) to ensure a mounting option ideal for your mounting location. Avoid obstructing airflow to the
rear cooling fins on the radio.
Note: Mounting holes should be drilled to 7/32”. Before drilling the mounting holes, make
sure the area behind the panel where the holes are desired is clear of wires and fuel,
vacuum and or brake lines.
Self-Tapping
Screws
(Hole size 7/32")
Attaching the Radio
Once the bracket is securely mounted, use the four included M4 machine screws to fasten the
bracket to the back of the radio. Alternately, the radio can be mounted directly to the instrument
panel if access to the rear of the instrument panel is available.
Machine Screws
with Nuts
(Hole size 7/32")
Wiring Harness
Self-Tapping
Screws (3)
Machine Screws
with Nuts (3)
M4 Machine
Screws (4)
Self-Tapping
Screws (2)
Machine Screws
with Nuts (2)
Auxiliary Input
Patch Cord
Regular
Mounting
Overhead
Mounting
2
JHD910
Installation (continued)
Mounting the Headphone Bracket
Three options are provided for mounting the bracket (self-tapping screws, machine screws with
nuts or double-sided tape) to ensure a mounting option ideal for your mounting location.
Alternately, the headphone can be mounted directly to the instrument panel if access to the rear
of the instrument panel is available.
Note: Mounting holes should be drilled to 7/32”. Before drilling the mounting holes, make
sure the area behind the panel where the holes are desired is clear of wires and fuel,
vacuum and or brake lines.
Self-Tapping
Screws
(Hole size 7/32")
Machine Screws
with Nuts
(Hole size 7/32")
Double-Sided
Tape
Wiring
The wiring diagram depicts all the wiring connections required for proper operation of the unit.
Antenna Connector
(Black Wire)
9-Pin Connector
(Male)
PCB
Black Wire
Heat Shrink Tubing
1/4”HEADPHONE OUTPUT
NUT
WASHER
RUBBER CAP
VEHICLE PANEL
OR HEADPHONE
MOUNTING BRACKET
3A FUSE
Left Speaker +
(White)
Left Speaker -
(White/Black)
Right Speaker +
(Gray)
Accessory
(Red)
Ground
(Black)
Right Speaker -
(Gray/Black)
Note: Do not connect the red wire to a
constant power connection. It should be
connected to a vehicle connection with
switched power, such as IGN or ACC.
3
JHD910

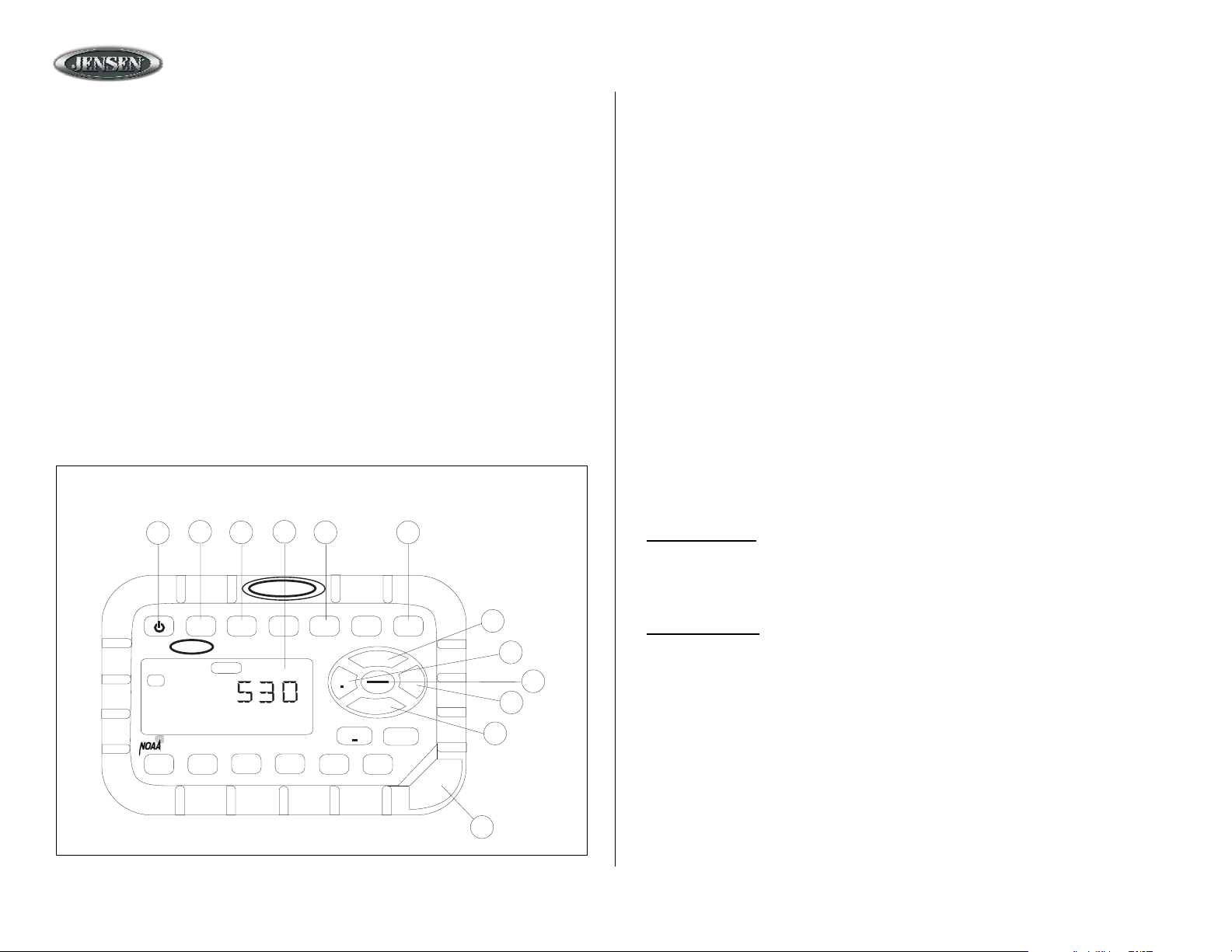

Basic Operation
1. Power
Press the power button (1) momentarily to turn the unit on or off. This button is also used to
access the version number of the software. To briefly display the software version on the LCD,
press and hold the power button for more than five seconds.
2. Mute
Press MUTE (2) to silence the audio output in tuner, weather band or auxiliary input mode.
When the audio output is silenced, “MUTE” will appear in the display. If the mute feature is
activated when the unit is turned off, the volume will default to the programmed turn-on level
when the unit is turned back on.
3. Display
Press DISP (3) momentarily to toggle the LCD display between function mode (showing tuner,
auxiliary input or weather band information, depending on which mode is currently activated)
and clock mode (showing the time).
4. Liquid Crystal Display
The Liquid Crystal Display (LCD) panel (4) displays the frequency, time and activated functions.
Basic Operation
2
1
MUTE
JENSEN
AM
AM/FM/WB RECEIVER
1
234
3
JENSEN
DISP
HEAVY DUTY
TIMER
4
AM/FM
JHD910
5a
WB
AUX
VOL+
AUDIO
TUN TUN
MENU
VOL-
SEEK
5
6
TIMER
+
SEEK
+
6
U
A
7a
8a
9
8b
7b
N
I
X
5b
5. Auxiliary Input Function
To connect a portable audio device (MP3 player, iPOD, etc.) to the JHD910, connect the
headphone or line level output of the device to the 1/8" auxiliary input jack of the JHD910 (5b)
using the audio patch cord (included). Pres AUX (5a) to select auxiliary input mode.
6. Timer
Press TIMER (6) momentarily to directly access timer mode. Briefly press TIMER to start the timer
function, and the “TIMER” icon will flash in the display. Press TIMER again to stop the timer, and
the “TIMER” icon will remain in the display (without flashing). Press the button again briefly to
resume the timer, or press and hold it for three seconds to reset it to zero and to remove the
“Timer” icon from the display.
7. Volume
Briefly press VOL+ (7a) or VOL- (7b) to adjust the volume up or down one step. Press and hold
VOL+ or VOL- for more than one second to continuously adjust the volume level until the button is
released. The current volume level (0 to 40) will appear in the display when the volume is
adjusted, returning to the default display three seconds after the adjustment is complete.
8. Setting the Clock
To set the clock to display the current time, press DISP for more than three seconds to enter clock
setting mode, and the time will flash in the display. Press TUN- (8a) to adjust the hours or TUN+
(8b) to adjust the minutes. When no adjustment is made for ten seconds, the time will be set and
normal operation will resume.
9. Audio and Menu Adjustment
Audio Adjustment
Press AUDIO/MENU (9) momentarily to step through the following audio adjustment options:
Bass, Treble and Balance (left to right). When the desired option appears in the display, press
VOL+ (7a) or VOL- (7b) to adjust that audio feature. When no adjustments have been made for
three seconds, the unit will resume normal operation.
Menu Adjustment
Press AUDIO/MENU for more than three seconds to enter menu adjustment mode and adjust any
of the menu options: When the desired option appears in the display, press VOL+ or VOL- to
adjust that menu option. When no adjustments have been made for three seconds, the unit will
resume normal operation. The following menu options may be adjusted using this feature:
• Beep Confirm (On or Off) - Determines if a beep will be heard each time a button is pressed.
• Operation Region (USA or Euro) - Selects the appropriate operating region.
• Clock Display (12 or 24) - Selects a 12-hour or 24-hour clock display.
• Display Brightness (Low, Mid or High) - Determines brightness level of the display.
• Backlight Color (Amber or Green) - Determines the backlight color of the unit.
• Turn On Volume (0-40) - Selects desired volume level for the unit to assume when turned on.
• WB Alert (On or Off) - Determines if the weather band alert feature is activated.
4
JHD910
Tuner Operation
10. Select a Band
Press AM/FM (10) momentarily to directly access tuner mode from any other function mode.
When the unit is already in tuner mode, briefly press AM/FM to change between two AM bands
(AM1 and AM2) and three FM bands (FM1, FM2 and FM3).
Note: If the unit is programmed for European operation, the sequence will be MW1, MW2,
FM1, FM2 and FM3.
11. Manual Tuning
Press TUN- (11a) or TUN+ (11b) momentarily to tune the frequency one step higher or lower.
Press and hold TUN+ or TUN- for more than one second to tune continuously in the selected
direction until the button is released.
12. Seek Tuning
Press SEEK- (12a) or SEEK+ (12b) momentarily to automatically tune the frequency down or up
to the next strong station.
Radio and Weather Band Operation
MUTE
JENSEN
AM
AM/FM/WB RECEIVER
1
234
JENSEN
DISP
HEAVY DUTY
13
10
AM/FM
CH2
JHD910
14
AUX
WB
VOL+
AUDIO
TUN TUN
MENU
VOL-
SEEK
5
12a
TIMER
11a
+
11b
SEEK
+
6
N
I
X
U
A
12b

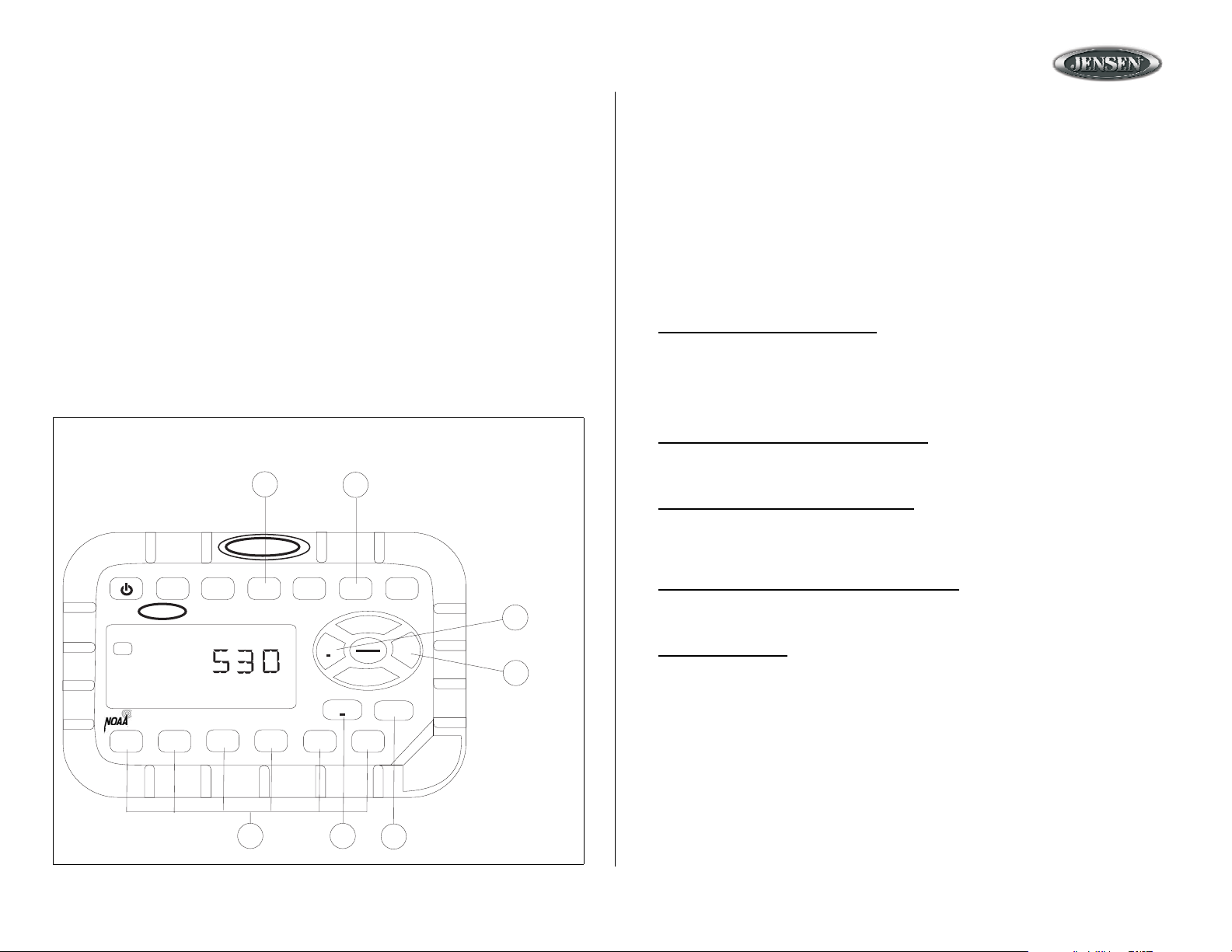

13. Preset Stations
Six numbered preset buttons (13) store and recall stations for each AM and FM band. To store a
station, select a band (if needed), then select a station. Hold a preset button for three seconds.
The current station will be stored, and the corresponding preset number will appear in the
display. To recall a station, select a band (if needed). Press a preset button momentarily, and the
unit will tune to the corresponding stored station.
Note: Preset buttons recall channels 1-6 on weather band and cannot be set by the user.
Weather Band Operation
14. Accessing the Weather Band
Press WB (14) to directly access the weather band mode from any other function mode.
What is the NOAA Weather Radio?
This is a nationwide system that broadcasts local weather emergency information 24 hours a day. The
U.S. network has more than 530 stations covering the 50 states as well as the adjacent costal waters,
Puerto Rico, the U.S. Virgin Islands and the U.S. Pacific Territories. Each local area has its own
transmitting station and there are a total of seven broadcasting frequencies used: 162.400MHz (CH1),
162.425MHz (CH2), 162.450MHz (CH3), 162.475MHz (CH4), 162.500MHz (CH5), 162.525MHz
(CH6) and 162.550MHz (CH7).
How many stations can I expect to receive?
Since the broadcasts are local weather and information, the transmission power is usually very low
(much less than AM or FM stations) so you will usually receive only one station unless you are on the
edge of two or more broadcast signals. The most you will receive will be two or three, and that is rare.
Is it possible I won't receive any stations?
Depending on location, it’s possible you will receive a very weak signal or none at all. Also, similar to
AM and FM signals, weather band signals are subject to surrounding conditions, weather, obstructions
of the signal by hills or mountains, etc. If no NOAA signals are found/received, the “NO SIG” icon will
flash in the display and the tuner will scan all seven NOAA frequencies every 30 seconds.
How will I know I am tuned to the weather band?
When you select the weather band, the “WB” icon will appear on the display panel, along with the
current channel indication. Press TUN+ or TUN- to tune to each of the seven channels until you find
the weather band station broadcasting in your area.
NOAA Weather Alert
The Weather Alert function adds an additional level of user safety by automatically switching from the
current function mode to weather band mode for a minimum of 60 seconds if a NOAA warning tone
(1050 Hz) is received/detected. If no additional warning tone is received for 60 seconds, the unit will
switch back to the last known function mode.
The Weather Alert function can be turned “on” or “off” by the Audio/Menu key, as described on page
three. When “ON” (default), the Weather Alert icon appears in the display and the weather tuner
remains active, even when the radio is turned off (as long as the power is still applied to the radio). If a
weather alert is issued, the radio will turn on and play the announcement. for 60 seconds, then turn
back off and revert to weather alert monitor mode.
If the Weather Alert function is set to “OFF”, no Weather Alert icon appears in the display. The radio
will not respond to any weather alerts when it is off and will not automatically switch to the weather
band if an alert is issued.
Note: If the unit is programmed for European operation, the WB function will be disabled.
5
JHD910
TTrroouubblleesshhoooottiinngg
Pro
blem Cause Corrective Action
No
power. Vehicle ignition switch is not
on.
The 3A fuse is blown. Replace the 3A fuse.
No receptio
Radio does not wo
Volume too high or too
w when the radio is
lo
turned on
LCD
difficult to read
No W
Weather alert does not
function
Note: Proper care and cleaning is essential to optimal operation. The JHD910 may be
eaned with mild detergent/water mixture and a soft cloth to remove grease and grime.
cl
Do not pressure wash directly on the radio.
n Volume turned down too low. Adjust volume until sound is heard.
Wiring not connected p
rk Antenna cable not connected. Insert antenna cable firmly.
Preset volume is set incorrectly Use the Menu adjustment (page
display is dark and
B function Programmed to “European” Program to “USA” (setup menu)
Radio too hot Turn radio off and allow to cool
Weather alert programmed to
“off”
roperly. Check wiring connections.
If the power supply is connected to
th
e vehicle accessory circuits but
the engine is not moving, switch the
n key to “ACC”.
ignitio
ree) to change preset volume to
th
desired level
down
Program to “on” (setup menu)
SSppeecciiffiiccaattiioonnss
General
Power Supply Requirements . . . . . . . . . . . . . . . . . . . . . . . . . DC 12 Volts, Negative Ground
Chassis Dimensions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 131.6 (W) x 47.5 (D) x 86 (H)
Loading Impeda
Tone Controls . . . . . . . . . . . . . . . . . . . Bass (at 100 Hz), ±10 dB; Treble (at 10 kHz), ±10 dB
Current Drai
FM
Tuner
Tuning range. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 87.5-108.0
FM mono sensitivity . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .1.5uV
Stereo separation @ 1 kHz. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . >25dB
Tuner
AM
Tuning range. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 522-1710
Sensitivity . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . <30uV
Weather Band
Sensitivity . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . <1uV
Amplifier
Total system power . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15 Watts Maximum
al to Noise . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . >70dB
Sign
fications subject to change without notice.
Speci
nce . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4 -8 ohms per channel
n . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1.5 Ampere (max)
No
te: The manufacturer is not responsible for any radio or TV interference caused by
unauthorized modifications to this equipment. Such modifications could void the
User’s authority to operate the equipment.
This device complies with Part 15 of the FCC Rules.
Operation is subject to the following two conditions:
(1) this device may not cause harmful interference, and
(2) this device must accept any interference received, including interference that may
cause undesired operation.
www.asaelectronics.com
© 2006 ASA Electronics Corporation
v.082506
6
Loading...
