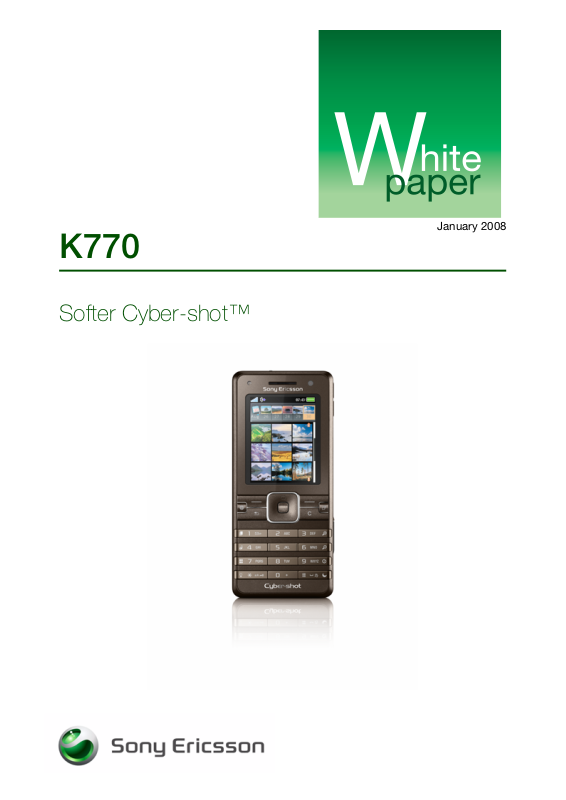

Page 1
K770
Softer Cyber-shot™
January 2008
Page 2
White paper K770
Preface
Purpose of this document
This White paper will be published in several revisions as the phone is developed. Therefore, some of the
headings and tables in this document contain limited information. Additional information and facts will be
forthcoming in later revisions.
The aim of this White paper is to give the reader an understanding of the main functions and features of
this phone.
People who can benefit from this document include:
• Operators
• Service providers
• Software developers
• Support engineers
• Application developers
This White paper is published by:
Sony Ericsson Mobile Communications AB,
SE-221 88 Lund, Sweden
Phone: +46 46 19 40 00
Fax: +46 46 19 41 00
www.sonyericsson.com/
© Sony Ericsson Mobile Communications AB,
2008. All rights reserved. You are hereby granted
a license to download and/or print a copy of this
document.
Any rights not expressly granted herein are
reserved.
First edition (January 2008)
Publication number: 1202-7369.2
This document is published by Sony Ericsson
Mobile Communications AB, without any
warranty*. Improvements and changes to this text
necessitated by typographical errors, inaccuracies
of current information or improvements to
programs and/or equipment, may be made by
Sony Ericsson Mobile Communications AB at any
time and without notice. Such changes will,
however, be incorporated into new editions of this
document. Printed versions are to be regarded as
temporary reference copies only.
*All implied warranties, including without limitation
the implied warranties of merchantability or fitness
for a particular purpose, are excluded. In no event
shall Sony Ericsson or its licensors be liable for
incidental or consequential damages of any
nature, including but not limited to lost profits or
commercial loss, arising out of the use of the
information in this document.
1 January 2008
Page 3
White paper K770
Sony Ericsson Developer World
On www.sonyericsson.com/developer, developers will find documentation and tools such as phone White
papers, Developers guidelines for different technologies, SDKs and relevant APIs. The Web site also
contains discussion forums monitored by the Sony Ericsson Developer Support team, an extensive
Knowledge Base, Tips & Tricks, example code and news.
Sony Ericsson also offers technical support services to professional developers. For more information
about these professional services, visit the Sony Ericsson Developer World Web site.
Document history
Change history
2007-08-14 Version 1 First released version
2008-01-21 Version 2 Second released version
2 January 2008
Page 4
White paper K770
Contents
Product overview ....................................................................................................................... 4
Key features ............................................................................................................................. 5
Images ..................................................................................................................................... 8
Technologies in detail ................................................................................................................ 9
Functions and features ........................................................................................................... 10
Facts and figures ..................................................................................................................... 23
Technical specifications ......................................................................................................... 24
General technical data ........................................................................................................ 24
Performance and technical characteristics ......................................................................... 24
USSD technical data ........................................................................................................... 25
GPRS technical data ........................................................................................................... 25
SIM AT services supported ................................................................................................. 26
Entertainment ......................................................................................................................... 31
Audio and Video .................................................................................................................. 31
Java™.................................................................................................................................. 32
Imaging/Messaging ................................................................................................................ 32
3.2 Megapixel camera ......................................................................................................... 32
Video telephony ................................................................................................................... 33
Images ................................................................................................................................. 34
Short Messaging Service..................................................................................................... 34
Enhanced Messaging Service ............................................................................................. 36
Multimedia Messaging Service............................................................................................ 37
Email client technical data ................................................................................................... 38
Connectivity ........................................................................................................................... 40
Bluetooth™ technical data .................................................................................................. 40
OMA Data Synchronization (SyncML) technical data.......................................................... 41
Web browser data ............................................................................................................... 42
Web browser and Operator technical data ......................................................................... 43
Abbreviations ........................................................................................................................... 48
Related information ................................................................................................................. 52
Documents ............................................................................................................................. 52
Links ....................................................................................................................................... 52
Trademarks and acknowledgements ..................................................................................... 52
3 January 2008
Page 5
White paper K770
Product overview
K770 is a natural step in the Sony Ericsson ‘True Imaging’ evolution. The everyday need for multiple
devices - such as a compact mobile phone and a quality Digital Still Camera (DSC) - are all in the one
device with easy-to-use functionality, a Cyber-shot™ phone.
The K770 features include:
• 3.2 megapixel camera with auto focus and
photo fix.
• Illuminated camera icons.
• Easy-to-use horizontal digital camera menu.
• Share full-size images via mobile blogging.
• Web browser supporting html.
• RSS reader.
• PictBridge™ to print pictures directly on a
printer.
The slim, elegant stick form factor has a large 1.9inch 262,144k QVGA colour screen. Memory capacity is
up to 16 MB internally. The ergonomic keypad allows you to write text messages quickly, type in phone
numbers or search for particular content such as pictures or songs. You can multitask with applications
running in the background, for example, talk and browse, send messages or download music at the same
time.
• Easy content management with PictureDJ™,
VideoDJ™ and more.
• A music player.
• FM radio with RDS.
•3D gaming.
• A handsfree, USB cable and 256 MB Memory
Stick Micro™ (M2™) are provided in the kit.
4 January 2008
Page 6
White paper K770
Key features
3.2 Megapixel camera and Video call camera
There are two built-in cameras. For high quality imaging the main 3.2 megapixel camera offers 3x digital
zoom and auto focus. The horizontal user interface allows for easier camera handling. The active lens
cover and the illuminated camera icons contribute to the intuitive operation of the camera. There is also a
QCIF video call camera, which is activated via the main menu.
Illuminated camera icons (still pictures only)
When the camera is activated, that is the lens cover is opened, icons close to the keys 1, 3, 4, 6, 7, 9 * and
# are illuminated by blue LEDs to facilitate picture-taking.
1.9-inch colour screen
The large 1.9 inch (240x320 pixels) full graphic QVGA 262,144k colour screen enhances viewing,
facilitating high-quality multimedia and entertainment.
Photo fix
This feature will compensate for dark image areas which are not clearly visible. In one single click, it
enhances the dark areas without affecting the bright areas.
Video camera
The built-in camera captures a video recording and stores it in the phone or on the Stick Micro™ (M2™).
A video clip can be shared as a picture message with friends or family. The phone supports QCIF size
video recording and streaming and QVGA playback.
RSS Reader
A Really Simple Syndication (RSS) Reader is used in combination with the Internet browser. When
browsing, frequently updated content, such as news headlines can be received as feeds.
HTML Web browser support
Browse the Internet and look at the Web sites in a different way with Access NetFront 3.3 – An HTML
browser which supports an complete Web standard suite.
Mobile blogging
Send pictures via the Internet to show on your personal blog web page, allowing people easy access and
possibility to comment your pictures.
5 January 2008
Page 7
White paper K770
PictBridge™ – Camera album printing
Transfer images from the phone via USB cable directly to a printer, without a computer or photo editing
software.
Push email
The phone supports push email, a method of pushing new emails automatically to mobile devices. Push
email increases mobile email usability, with email being delivered in the background (similar to SMS or
MMS).
Music player and Video player
Play music, audio and video clips, streamed or downloaded. The folder system enables you, for example,
to organize your favourite songs into groups and create simple playlists.
Disc2Phone
Music management software on the CD which is included in the kit. You can create your own playlists and
albums and transfer them to the phone. Music files can be transferred from a computer to the phone by
using software included on the CD in the box. Search for and select music on your computer or audio CDs
and convert your existing audio tracks to MP3 format.
PlayNow™
A unique and easy-to-use direct link for the downloading of best selling content in the form of music files,
video clips, games, themes and images. For example, select PlayNow™ and go straight to a live list of top
music hits.
All formats that are supported in the phone will be possible to download. Music, video and images may be
previewed before purchase. The music format is MIDI, MP3, MP4, Real ® 8 or WAV (Polyphonic 24 voices
or more).
3D Gaming
Gaming is a very popular feature in mobile phones, and with Java™, users can download new games and
skill levels to further enhance their entertainment experience. Several embedded games are included in
the phone at purchase.
Java™
Download additional applications which are information- and entertainment- based. This gives users a
chance to personalize the functions and features in their phones, and developers the opportunity to create
new applications.
6 January 2008
Page 8
White paper K770
Bluetooth™ wireless technology
Several devices (simultaneous Bluetooth™ connections) can be connected up to 10 metres (33 feet) away
using Bluetooth wireless technology. For example, when it rings, the phone can be answered with a
Bluetooth headset, and images can be sent to another phone at the same time. Several mobile phones
can take part in a Bluetooth-supported game and the phone and a computer can exchange data such as
images, video clips, vCards, music files and calendar data. Bluetooth version 2.0 is supported.
Bluetooth™ audio streaming
Listen to audio in compatible devices. By connecting a Bluetooth A2DP compatible accessory you can
enjoy high quality stereo audio streaming wirelessly from the phone. Many A2DP accessories also support
the Bluetooth Audio Video Remote Control Profile (AVRCP) – allowing you to control the music player in
the phone using the accessory interface.
USB 2.0 mass storage
When connecting the phone to a computer using the provided USB cable, the memory in the phone
appears on the computer screen as a removable disk along with other disks and drives in the computer.
You can then quickly and easily drag and drop items such as images, documents, music files and video
clips between folders in the phone and your computer.
Personal Information Management
(PIM)
Stay up-to-date with everyday events by synchronizing phone contacts, calendar appointments, tasks
and notes in the phone with similar programs in a computer. The USB cable which comes with the phone,
or the Bluetooth feature can be used together with the synchronization software which is available on the
CD in the kit or can be downloaded from www.sonyericsson.com/support
.
7 January 2008
Page 9
Images
White paper K770
8 January 2008
Page 10
White paper K770
Technologies in detail
This chapter includes short descriptions of the technologies available in this product compared to one
other Sony Ericsson product.
9 January 2008
Page 11
White paper K770
Functions and features
The following includes short descriptions of the technologies available in K770 compared to K810i.
Feature K770 K810i
3D games Yes Yes
3G enabled
Technology that enables 384 Kbps data transfer and video
telephony
Active lens cover
When the camera cover is opened, camera functionality starts
automatically
Activity menu (multi-tasking)
The user can easily handle missed calls, new text and picture
messages, task reminders, shortcuts and get quick access to
favourite Internet bookmarks
Alarm clock
Set a time for individual or recurring alarms
Backlight
White backlight to illuminate the phone screen
Battery 3.6V, 930mAh,
Yes Yes
Yes Yes
Yes
with enhanced
functionality for
background
applications.
Yes Yes
Yes Yes
Lithium Polymer
Yes
with enhanced
functionality for
background
applications.
3.6V, 950mAh,
Lithium Polymer
Battery charging time At least 90%
charged within 2
hours. Fully
charged within
2.5 hours.
BestPic™
Enhances picture-taking by automatically capturing a range of 9
pictures, ranging from before to after a camera button press.
Select the best picture to catch the moment. You can also save
more than one picture.
Bluetooth™ audio streaming
Listen to audio in compatible devices
Bluetooth™ audio video remote control
Use the phone as a remote control for home electronics, PC
applications and other accessories
No Yes
Yes Yes
Yes Yes
At least 90%
charged within 2
hours. Fully
charged within
2.5 hours.
10 January 2008
Page 12
White paper K770
Feature K770 K810i
Bluetooth™ PAN
Connect the phone to Internet using Bluetooth™
Bluetooth™ wireless technology
Wireless connectivity between devices. Range - up to 10 metres
(33 feet). Support for specification of the Bluetooth System,
version 2.0
Business card exchange
Exchange contact information
Calculator Yes Yes
Calendar
Calendar with day, week and month views and reminders
Call list
View calls made and received
Camera 3.2 Megapixel 3.2 Megapixel
Camera auto focus
Yes Yes
Yes Yes
Yes Yes
Yes Yes
Yes Yes
Yes Yes
The camera automatically focuses on the subject in a focus area
in the screen/viewfinder
Camera button
A dedicated camera button. Press and hold to activate the
integrated camera
Camera buttons on top
When the camera is used in horizontal mode, the side buttons
with camera functionality are on top, for a digital still camera feel
Camera file browser
Browse the picture folder without leaving the camera function
Camera light Yes Flash
Camera menu
Easy-to-use horizontal digital camera menu
Camera Picture stabilizer
Picture and video image stabilizer functionality. If available, use
to keep the image steady
Yes Yes
Yes Yes
Yes Yes
Yes Yes
No Yes
Camera red eye reduction No Yes
11 January 2008
Page 13
White paper K770
Feature K770 K810i
Camera scene modes
Use predefined settings when taking pictures in different
environments, for example, at night or fast-moving objects
Chinese input method
Chinese input methods: Text input methods based on Simplified
or Traditional Chinese. Bopomofo, Pinyin or Stroke
Clock
On-screen clock that keeps time even when the phone is off
Co-branding area 41.8 x 6.0 mm 40.1 x 6.9 mm
Code memo
A safe place to store all PIN codes and other information. To
access Code memo, only one PIN code is needed
Colour Sandy Beige
Contacts
Yes Yes
Yes Yes
Yes Yes
Yes Yes
Noble Blue
Truffle Brown
Ultra Violet
Yes Yes
Golden Ivory
Phonebook with fields for name, phone and fax numbers, email
address, street address, company, title
Conference calls
Support for multiparty calling
Connector A1 (Fast port) Yes Yes
Content online
Downloadable pictures, games, themes, ringtones available
online
Copyright protection - DRM
DRM (Digital Rights Management) features the rights and copy
protection of downloaded content (audio, pictures, music tones,
video, entertainment features such as games, Java applications
etc.)
Design Intergrated active
Yes Yes
Yes Yes
Yes Yes
Dual front with
lens cover
active lens cover
12 January 2008
Page 14
White paper K770
Feature K770 K810i
Device Management (DM)
DM utilizes GPRS as bearer (basic network connectivity needs to
be in place) of the provisioning data and allows the operator to
access the phone and check and set different settings such as
network connectivity (GPRS), email, MMS, WAP and Java™.
Device Management is achieved by supporting Over The Air
provisioning 7.1 (OTA), OMA Client Provisioning 1.1 (CP) and
OMA Device Management (DM) 1.2
Digital zoom VGA resolution:
Email
Email client with inbox, outbox, compose/send and other
functions
EMS (Enhanced messaging)
Text messaging (SMS) with support for pictures and sounds
Exterior description
Yes Yes
3x
Video recording:
4x
Yes Yes
Yes Yes
all resolutions:
16x
Size mm (Length x width x thickness/thinnest) 105 x 46 x 14,5 mm106 x 48 x 17 (19)
mm
External antenna connector
For use with an advanced car handsfree accessory
Fast port
A system connector which enables faster data transfer between
the phone and a computer
File manager
Folder structure storage to help store and organize pictures,
sounds and other phone content
Flight mode
All phone radio transceivers are inactivated. This starts the phone
so that only certain functions are available, such as the calendar,
music player or a game. The phone may then be used in some
areas, such as aeroplanes or hospitals, where full mobile phone
functionality is not allowed
No Yes
Yes Yes
Yes
with enhanced
functionality for
camera content
Yes Yes
Yes
with enhanced
functionality for
camera content
13 January 2008
Page 15
White paper K770
Feature K770 K810i
FM radio with RDS
FM radio with presets, auto and manual search. The handsfree is
used as an antenna. The radio can also be used as an alarm
signal
Games download
Replace in-phone games with new ones
Games embedded Yes Yes
GPRS
General Packet Radio Services - a communications standard
enabling packet data transfer of 21.4 Kbit/s per time slot.
Multislot class 10 supported (max 5 simultaneously)
High Speed Data
HSCSD - a communications standard enabling GSM data
transfer 14.4 - 28.8 Kbps
Icon Desktop 12
A graphic icon desktop with 12 interactive icons
Yes Yes
Yes Yes
Yes Yes
Yes Yes
Yes Yes
Image formats
QQVGA (160x120 pixels)
VGA (640x480 pixels)
1 MP (1280x960 pixels)
2 MP (1632x1224 pixels)
3 MP (2048x1536 pixels) or
3 MP (2000x1500 pixels) with image stabilizer on
Note: MP = Megapixel (values without fractions).
Instant messaging (Wireless Village/My friends)
Chat - several people can take part in a mobile messaging
session.
Instant messaging/Wireless Village server community
No
Yes
Yes
Yes
Yes
No
Yes Yes
No
Yes
Yes
Yes
Yes
Yes
14 January 2008
Page 16
White paper K770
Feature K770 K810i
Internet browser
cHTML - A mobile device adapted version of the standard
Internet communications protocol HTML.
Full HTML support, ECMA script, DOM level 1& 2, etc.).
Progressive download of video files
Internet blogging
Share up to full-size pictures over the Internet on your personal
Web page. The size of uploaded pictures is dependent on
customizations
Internet security
Encrypts confidential information such as credit card and bank
account numbers. Necessary for mobile banking and shopping
TM
Java
Support for J2ME™ technology
Keys - navigation and more 4+1 navigation
Yes
Yes
Yes
Yes
Yes Yes
Yes, SSL/TLS Yes, SSL/TLS
Java 2, Micro
Edition (J2ME™),
Java 3D™
with preset
shortcut to
camera pictures
2 soft
Back
Clear
Activity menu
Yes
Yes
Yes
Yes
Java 2, Micro
Edition (J2ME™),
Java 3D™
4+1 navigation
2 soft
Back
Clear
Activity menu
Internet/operator
Internet/operator
Keys - keypad 12 alphanumeric
Illuminated
camera icons
close to the keys
1, 3, 4, 6, 7, 9 *
and # (still picture
mode only)
15 January 2008
12 alphanumeric
Illuminated
camera icons
close to the keys
1, 4, 7 and * (still
picture mode
only)
Page 17
White paper K770
Feature K770 K810i
Keys - side and other Volume/camera
zoom
Separate on/off
Camera key
Volume/camera
zoom
Multimedia (play/
stop)
Separate on/off
Camera key
Photo key (upper/
right):
Camera mode:
• Camera
scenes or
Video night
mode
Standby mode:
• Camera album
Photo key (lower/
left):
Camera mode
• Camera or
Video shoot
mode
Standby mode
• The most
recently taken
picture shown
in full view
Lunar calendar
A calendar system used in China and other parts of Asia. A lunar
month is determined by the period required for the moon to
complete its full cycle of 29.5 days
Media player
A combined digital media player for music and video. Play music
and video clips, streamed or downloaded and the folder system
enables you, for example, to organizing favourite songs into
groups and create simple playlists. A practical play/stop function
makes it easier to listen to music any time, anywhere
Memory (built-in)
User-free memory in phone Up to 16 MB Up to 64 MB
Yes Yes
No
See Music player
or Video player
No
See Music player
or Video player
16 January 2008
Page 18
White paper K770
Feature K770 K810i
Memory card reader (slot)
A slot for inserting a micro peripheral storage device
Memory card support:
Memory Stick Micro™ (M2™)
Menu shortcuts
A function making it possible to dedicate shortcuts to the mostused phone functions
MMS (Multimedia messaging)
Picture messaging with text and sound
MMS video
Support in the phone for sending video using MMS
Modem
Circuit Switched/Packet Switched Internet dial-up support
MusicDJ™
A sampler music tool with MIDI drum, guitar, keyboard, bass and
brass loops in different music styles, which can be combined to
create polyphonic ringtones
Yes
Yes
Yes Yes
Yes Yes
Yes Yes
Yes Yes
Yes Yes
Yes
Yes
Music player
A digital music player. It is possible to play music files in the
folder system, organize your favourite songs into groups and
create simple playlists. A practical play/stop function makes it
easy to listen to music any time, anywhere
Music tones
Music tones, also called master tones, are DRM protected music
by original artists. Various digital audio formats are supported
My friends
See Instant messaging
Networks
3G
GSM/GPRS
Yes Yes
Yes Yes
Yes Yes
UMTS 2100
GSM (R99) 900,
1800, 1900, EGSM 900
UMTS 2100
GSM (R99) 900,
1800, 1900, EGSM 900
17 January 2008
Page 19
White paper K770
Feature K770 K810i
OMA Data Synchronization (SyncML)
A device communications standard that enables remote
synchronization between devices
OTA settings
WAP, email and other settings can be sent over the air to the
phone
Photo fix
Improves an under-exposed picture by calculating and adjusting
the light balance
Photo light
When lighting conditions are poor, activate the picture light
PhotoDJ™
A drawing tool in the phone where existing pictures can be
altered
Picture gallery
Yes
SyncML 1.2
SyncML 1.1
Yes Yes
Yes Yes
Yes No
Yes Yes
Yes Yes
Yes
SyncML 1.2
SyncML 1.1
Automatic Xenon
flash
A thumbnail image gallery where sections of several pictures can
be viewed at the same time
Picture phonebook
Add a picture to a stored contact. The picture appears on the
screen when the stored contact calls
PlayNow™ (direct link)
Listen to music before you purchase and download it to your
phone
PlayNow™ Games (direct link)
Preview games straight from the phone desktop in three clicks
before you purchase and download
Polyphonic voices 72 72
Predictive text input Yes Yes
PictBridge™
Transfer images from the phone via the USB cable directly to a
printer, without a computer or photo editing software
Yes Yes
Yes Yes
Yes Yes
Yes Yes
18 January 2008
Page 20
White paper K770
Feature K770 K810i
RSS Reader
Frequently updated content delivered as feeds via a Web site, for
example, news headlines in the browser
Screen
Type:
Size:
Resolution:
Technology:
Colours displayed together:
Backlight colour:¨
Screen saver Yes Yes
Settings download (Ready to run)
Set up functions that require a connection to the Internet such as
the Internet browser and picture messaging.
This function runs in the setup wizard or can also be chosen in
the Settings menu. This function is not included in the setup
wizard for customized phones
SIM card lock
Yes Yes
Full graphical
1.9 inches
240 x 320 pixels
TFT, QVGA
262,144 (18 bit)
White
Yes Yes
Yes Yes
Full graphical
2.0 inches
240 x 320 pixels
TFT, QVGA
262,144 (18 bit)
White
The possibility to protect the SIM card with a four-digit PIN code
SMS long (Text messaging)
Concatenated SMS text messaging
Sleep mode
A power-saving feature that minimizes battery power consumed
when the phone is in standby
Sony Ericsson Remote Update Service
Download the latest operator-approved software, over the air, for
your mobile phone
Sony Ericsson Update Service
Connect the phone to an Internet-connected computer,
download the latest operator-approved software from the web,
www.sonyericsson.com/support
Sound recorder
A recording device in the phone that can record voice messages
or other sounds
and update the mobile device
Yes Yes
Yes Yes
Yes Yes
Yes Yes
Yes Yes
Speakerphone Yes Yes
19 January 2008
Page 21
White paper K770
Feature K770 K810i
Speed dialling
Allocate contacts in the phone book to specific keys on the
keypad
Standby time
GSM
UMTS
Status view
The screen shows the network being used, the time and other
status information
Stopwatch Yes Yes
SVG Tiny 1.1
Scalable Vector Graphics for impressive animated wallpapers,
menus and other graphic elements
Synchronization Apple®
Synchronize and share phone content with Apple® computers
supporting iSyn
Yes Yes
Up to 400 hours
Up to 400 hours
Up to 400 hours
Yes Yes
Yes Yes
Pending
certification
Pending
certification
Synchronization PC
Synchronize and share phone content with a computer
Tal k t i me
GSM
UMTS
Ta sk s
Keeps track of important things you have to do
Themes
Phone menu texts and background graphics
Timer
Set the phone to alert after a specific time
TrackID™
Identify tracks playing on the radio
Yes Yes
Up to
10 hours
Up to10 hours
2 hours 35
minutes
Yes Yes
Yes Yes
Yes Yes
Yes Yes
20 January 2008
Page 22
White paper K770
Feature K770 K810i
Tw i n c a me ra
Two cameras - a 3.2 megapixel camera capable of taking still
pictures/recording video and an additional video call camera
optimized for video calls located above the screen
UMTS
A 3G technology standard capable of data transfer 384 Kbps
USB connectivity support
Connect the phone to a computer with the USB cable provided
and the memory in the phone appears on the computer screen as
a mass storage device
Vibrating alert
The phone vibrates when a call comes in
Video call camera Yes Yes
Video calling
When you make a video call, the recipient can be seen in the
screen. The service requires UMTS/WCDMA
Yes Yes
Yes Yes
Yes Yes
Yes Yes
Yes Yes
Video call talk time Target
Up to 1 hour 35
minutes
VideoDJ™
Create video sequences by combining different clips and adding
music and images
Video player
Play video clips, streamed or downloaded. Transfer video clips to
another phone or a computer via available transfer method
Video streaming
Real-time streaming of video, for example, live cam. Media can
also be downloaded and saved in the phone memory
Viewfinder
When using the camera, a picture can be previewed before it is
captured
Voice control
Yes Yes
Yes Yes
Yes Yes
Yes Yes
Yes Yes
Target
Up to 1 hour 35
minutes
Voice answer, reject and call. Assign voice commands to items in
the phonebook and when a call is made, the voice command can
be used instead of pressing keys
21 January 2008
Page 23
White paper K770
Feature K770 K810i
Voicemail
Support for voicemail operator service including automatic
answering and message recording
WAP 1.2.1
A mobile Internet standard to access specially designed Internet
sites
Weight 95 g 103.5 g
Yes Yes
Yes Yes
22 January 2008
Page 24
White paper K770
Facts and figures
This chapter offers readers a detailed listing of all the technical data relating to the product.
Comprehensive descriptions of performance and technical characteristics are presented in table format
for quick and easy access.
23 January 2008
Page 25
White paper K770
Technical specifications
General technical data
System Tri-band GSM Release 99 recommendations. GSM 900, GSM 1800,
e-GSM and WCDMA FDD mode supported, GSM 1900 and e-GSM
mode supported
Speech coding HR, FR, EFR, AMR supported where available, for high speech quality
GSM SIM/ UMTS USIM card GSM SIM - GSM 11.11, UMTS SIM - 3GPP™ TS 31.101.
Small plug-in card, 1,8 V and 3 V
Memory Up to 16 MB internal (depending on software configuration/file
content) + extra slot for supported memory cards
Data transfer speeds Up to 384 Kbps (downlink)
Up to 384 Kbps (uplink)
Performance and technical characteristics
Dimension WCDMA GSM 900/
E-GSM 900
Frequency range (MHz) TX:1920 – 1980
RX:2110 – 2170
Channel spacing 5 MHz with
200 kHz channel
rasters
Number of channels 277 174 Carriers *8
Modulation QPSK GMSK GMSK GMSK
TX Phase Accuracy Error Vector
Magnitude:
<17.5%
Duplex spacing 190 MHz 45 MHz 95 MHz 80 MHz
Frequency stability +/- 0.1 ppm +/- 0.1ppm +/- 0.1ppm +/- 0.1ppm
Voltage operation
(nominal)
3.6 V 3.6 V 3.6 V 3.6 V
TX: 880 – 915
RX: 925 – 960
200 kHz 200 kHz 200 kHz
(TDMA)
< 5º RMS Phase
error (burst)
GSM 1800 GSM 1900
TX: 1710 – 1785
RX: 1805 – 1880
374 Carriers *8
(TDMA)
< 5º RMS Phase
error (burst)
TX:1850 –1910
RX:1930 –1990
299 Carriers *8
(TDMA)
< 5º RMS Phase
error (burst)
Transmitter RF power
output
Transmitter output
impedance
24dBm Class 3
(0.25 W peak)
50 ohm 50 ohm 50 ohm 50 ohm
33 dBm Class 4
(2 W peak)
30 dBm Class 1
(1 W peak)
30 dBm Class 1
(1 W peak)
24 January 2008
Page 26
White paper K770
Dimension WCDMA GSM 900/
E-GSM 900
Transmitter spurious
emission (according to
specification)
Receiver RF sensitivity Better than -
Receiver RX Bit error
rate
< -36 dBm up to
1 GHz
< -30 dBm over
1GHz
(according to
3GPP™ spec.)
106.7 dBm @
12.2 Kbps CS
voice
< 0.1% < 2.4% < 2.4% < 2.4%
< -36 dBm up to
1 GHz
< -30 dBm over 1
GHz
Better than – 102
dBm
GSM 1800 GSM 1900
< - 30 dBm < - 30 dBm
– 102 dBm – 102 dBm
USSD technical data
Feature Support
USSD support GSM Phase 1/2 (Cross-phase compatibility)
Mode support UI-mode supported
SAT initiated USSD supported
UI-mode details • It is possible to scroll the text up and down in USSD messages.
• It is possible to highlight embedded numbers and take actions
accordingly
GPRS technical data
Dimension Support
Compatible GPRS and SMG
specifications
Data rates Multislot class 10 supported (max 5 simultaneously)
Medium Access Modes Dynamic allocation
Support of Packet Control
Channels (PBCCH/PCCCH)
Network operation mode NOM I, II, III
Release 99 according to ETSI specification
CS-1, CS-2, CS-3, CS-4
9,050 bps, 13,400 bps, 15,600 bps, 21,400 bps supported
(network-dependent)
Yes
Support of GPRS/CS combined
procedures
Yes
25 January 2008
Page 27
Dimension Support
Network control mode NC0 and 2
Support of access in 2 phases Yes
Support of PRACH on 11 bits Yes
White paper K770
Support of GPRS re-selection C31/
C32
Support of static and dynamic
addressing
Support of power control Uplink
and Downlink
Support of ciphering algorithms GEA1, GEA2, GEA3
Support of compression algorithms Yes, V42bis and IP header
Mode of operation Class B and Class C modes of operation supported
R Reference point Physical layer: Support of RS232
IP connectivity PDP type IP is supported
PDP context 10 PDP context descriptions stored in mobile
Yes
Yes
Uplink = yes, Downlink is a network feature
compression
PPP is supported as L2 layer in the R reference point
Authentication algorithms PAP, CHAP supported
IP termination in mobile or TE (laptop, PDA) supported
PDP context description is edited via application in mobile,
AT-command or via OTA
Simultaneous PDP contexts are supported, maximum 4
SIM GPRS aware, as well as non-GPRS aware; SIM cards are
supported
AT commands Some of the supported commands:
AT+CGDCONT - DEFINE PDP CONTEXT
AT+CGEQREQ - Quality of Service Profile (REQUESTED)
AT+CGEQMIN - Quality of Service Profile (Minimum Acceptable)
AT+CGATT - PACKET DOMAIN SERVICE ATTACH OR DETACH
AT+CGACT - PDP CONTEXT ACTIVATE OR DEACTIVATE
AT+CGDATA - ENTER DATA STATE
For more information, see www.sonyericsson.com/developer
SIM AT services supported
Service Mode Support
CALL CONTROL BY SIM Yes
MO SMS CONTROL No
26 January 2008
Page 28
White paper K770
Service Mode Support
DATA DOWNLOAD TO SIM Cell Broadcast
SMS
DISPLAY TEXT Text of up to 240 characters (120 UCS2 coded) Yes
bit 1: 0 = normal priority Yes
1 = high priority Yes
bit 8: 0 = clear message after a delay Yes
1 = wait for user to clear message Yes
GET INKEY General: The GET_INKEY requires that the user
confirms his/her choice
bit 1: 0 = digits (0-9, *, # and +) only
1 = alphabet set
bit 2: 0 = SMS default alphabet
1 = UCS2 alphabet
bit 3: 0 = character sets defined by bit 1 and bit 2 are
enabled
1 = character sets defined by bit 1 and bit 2 are
disabled and the Yes/No response is requested
Yes
Yes
Yes
Yes
Yes
Yes
Yes
Yes
Yes
GET INPUT General: No. of hidden input characters 252
bit 1: 0 = digits (0-9, *, # and +) only
1 = alphabet set
bit 2: 0 = SMS default alphabet
1 = UCS2 alphabet
bit 3: 0 = ME may echo user input on the display
1 = user input not to be revealed in any way (see
note)
bit 4: 0 = user input to be in unpacked format
1 = user input to be in SMS packed format
bit 8: 0 = no help information available
1 = help information available
LAUNCH BROWSER Yes
MORE TIME Yes
Yes
Yes
Yes
Yes
Yes
Yes
Yes
Yes
Yes
Yes
PLAY TONE Yes
27 January 2008
Page 29
White paper K770
Service Mode Support
POLLING OFF Yes
POLL INTERVAL Yes
PROVIDE LOCAL
INFORMATION
REFRESH General: The reset option requests the user to
SELECT ITEM Yes
'00' = Location Information (MCC, MNC, LAC and
Cell Identity)
'01' = IMEI of the ME Yes
'02' = Network Measurement results Yes
'03' = Date, time and time zone (DTTinPLI) Yes
'04' - Language setting Yes
'05' - Timing setting Yes
wait while the phone restarts
'00' =SIM Initialization and Full File Change
Notification
'01' = File Change Notification Yes
'02' = SIM Initialization and File Change
Notification
'03' = SIM Initialization Yes
'04' = SIM Reset Yes
Yes
Yes
Yes
Yes
SEND DTMF Yes
SEND SHORT MESSAGE bit 1: 0 = packing not required
1 = SMS packing by the ME required
SEND SS Yes
SEND USSD Yes
Yes
Yes
28 January 2008
Page 30
White paper K770
Service Mode Support
SET UP CALL General: Capability configuration
Set-up speech call CallParty
Subaddress DTMF support
'00' = set up call, but only if not currently busy on
another call
'01' = set up call, but only if not currently busy on
another call, with re-dial
'02' = set up call, putting all other calls (if any) on
hold
'03' = set up call, putting all other calls (if any) on
hold, with re-dial
'04' = set up call, disconnecting all other calls (if
any)
'05' = set up call, disconnecting all other calls (if
any), with re-dial
SET UP EVENT LIST '00' = MT call Yes
'01' = Call connected Yes
'02' = Call disconnected Yes
Yes
No
Yes
Yes
Yes
Yes
Yes
Yes
Yes
'03' = Location status Yes
'04' = User activity Yes
'05' = Idle screen available Yes
'06' = Card reader status Not
Applicable
'07' = Language selection Yes
'08' = Browser termination Yes
'09' = Data available No
'OA' = Channel status No
SET UP IDLE MODE TEXT Yes, 1 row
of text is
supported
SET UP MENU Yes
TIMER MANAGEMENT Yes
OPEN CHANNEL Yes
CLOSE CHANNEL Yes
RECEIVE DATA Yes
29 January 2008
Page 31
White paper K770
Service Mode Support
SEND DATA Yes
GET CHANNEL STATUS Yes
User Interaction with SIM AT
Display text
Text of up to 240 characters (120 UCS coded) is
supported.
Text clearing times are 5-20 seconds and a 60second time-out limit for the user to clear the text.
‘Key’ responses:
• ‘Long Back’ – Proactive session terminated by
user.
• ‘Back’ – Backward move in proactive session.
Any other key clears the screen if the command is
performed successfully.
Get inkey
Prompt for a one-character input. Pressing ‘Ok’
without entering a character gives warning
message “Minimum 1 character”. ‘Key’ responses:
Select item
Scroll to highlight item for selection. ‘Key’
responses:
• Navigational key press down – Scroll down list.
• Navigational key press up – Scroll up list.
• Long ‘Back’ terminates proactive session.
• ‘Back’ – Backward move in proactive session.
• ‘OK’– Command performed successfully.
Send short message
Default message “Sending message, please wait”
can be replaced for the Alpha Identifier text, or
suppressed completely if a null text is provided.
Default responses are “MESSAGE FAILED” or
“MESSAGE SENT”. ‘Key’ responses:
• Long ‘Back’ or ‘Back’ ends the proactive session.
Set up call
• ‘C’ clears current character.
• ‘Long Back’ terminates the proactive session.
• ‘Back’ – Backward move in proactive session.
• ‘OK’ – Command performed successfully.
Get input
Prompt for character input. The phone will refuse to
accept further input when maximum response
length is exceeded. UI Maximum Response
lengths:
• Digits Only – 160 characters.
• SMS default alphabet characters – 160 characters.
• Hidden Characters (digits only) – 20 characters.
‘Key’ responses:
• ‘C’ clears current character.
• ‘Long Back’ terminates the proactive session.
• ‘Back’ – Backward move in proactive session.
• ‘OK’ – Command performed successfully.
If the ME is on a call when the command ‘Set up
Call’, ‘putting all other calls on hold' is sent, the
user will see the text 'Setting up a call current call
will be held'. If ‘OK’ is pressed the current call will
be put on hold and the new call set up. If the ME is
on a call when the command ‘Set Up Call,
disconnecting all other calls’ is sent, the user will
see the text ‘Setting up a call current call will be
disconnected’. If the ‘OK’ key is pressed the
current call will be disconnected and the new call
set up.
Set up menu
Incorporates a SIM Application Toolkit Menu Item
into the ME’s main menu structure.
If an Alpha Identifier is supplied in the Set Up Menu
command, this is used as the SIM AT entry in the
ME’s main menu. If no alpha identifier is supplied
and several items are found in the menu, a default
title is used. If the SIM AT Menu Item is selected by
30 January 2008
Page 32
White paper K770
pressing ‘Select’, all the items sent in the Set Up
Menu command will be available for selection, in
the same way as the Select Item command.
Entertainment
Audio and Video
File types Formats Extensions
Audio
(All listed audio file formats are
supported ringtone file formats)
Video
(including audio part)
Streaming transport RTSP according to 3GPP™
Video encoding H.263 Profile 0, Level 10
MP4 (AAC, AAC+, eAAC+)
MP3 (192 Kbit/s)
M4A
3GPP™ (AAC, AMR)
AMR-NB
AMR-WB
WAV
G-MIDI 1
SP-MIDI
RealAudio ® 8
eMelody
iMelody
RHZ
XMF
WMA
MP4 (video: MPEG4, audio: AAC or AMR)
3GPP™ (video: MPEG4 or H.263, H.264, audio:
AAC or AMR)
RealVideo ® 8
WMV
ASF
.mp4
.mp3
.m4a
.3gp, .3ga
.amr
.awb, .amr
.wav
.mid
.mid
.ra, .rm
.emy
.imy
.rhz
.xmf
.wma
.mp4
.3gp
.rv, .rm
wmv
Video decoding MPEG-4 Simple Visual Profile Level 0
H.263 Profile 0, Level 10
H.264 Baseline Profile (Main subset), Level 1b
RealVideo 8
Audio encoding AMR
Audio decoding AAC, AMR, MPEG-1 Layer 3, RealAudio 8
31 January 2008
Page 33
White paper K770
Java™
Feature Functionalities
Java 2, Micro Edition (J2ME™) • CLDC 1.1 (JSR 139)
• MIDP 2.0 (JSR 118)
• Wireless Messaging API (JSR 120/205)
• Mobile Media API (JSR 135)
• Java™ Technology for the Wireless Industry
(JSR 185)
• Java™ API for Bluetooth™ (JSR 82)
• PDA Optional Packages for J2ME™ Platform
(JSR 75)
• Web Services (JSR 172)
• Advanced Multimedia Supplements API (Camera Capabilities of JSR-234)
Java 3D • Mascot Capsule Micro3D Version 3
• Mobile 3D Graphics API for J2ME™ (JSR 184)
Imaging/Messaging
3.2 Megapixel camera
Facts and figures
Digital still camera (DSC)
Colour depth 24 bit (8 bits per RGB channel)
Digital zoom Main camera: 3x zoom (in VGA mode)
Settings camera (DSC)
Shoot modes Normal, Panorama, Frames
Scenes Auto, Twilight landscape, Twilight portrait, Landscape, Portrait,
Beach/Snow, Sports, Document
Picture sizes (resolution) 3 MP (2048x1536 pixels) or
2 MP (1632x1224 pixels)
1 MP (1280x960 pixels)
VGA (640x480 pixels)
Note: MP = Megapixel (values without fractions)
Focus Auto, Macro, Infinite
Light Manual On/Off
Self-timer Yes
Effects Off, Black & white, Negative, Sepia, Solarize
32 January 2008
Page 34
Facts and figures
White balance Auto, Daylight, Cloudy, Fluorescent, Incandescent
Metering mode Normal, Spot
Picture quality Normal, Fine
Shutter sounds Yes
Turn on time and date Yes, add a time and date to a picture
Reset file number Yes
Save to memory Using phone memory or a memory card;
no memory dedicated to the camera only
Video recorder
Video sizes (resolution) QCIF 176 x 144 pixels
Settings video
White paper K770
Shoot modes For picture message, High quality video
Focus Yes, same as camera
Night mode Yes
Effects Yes, same as camera
White balance Yes, same as camera
Metering mode Yes, same as camera
Turn on/off microphone Yes
Reset file number Yes, same as camera
Save to memory Yes, same as camera
Video telephony
Facts and figures
Picture sizes (resolution) QCIF (176x144 pixels)
SQCIF (128x96 pixels)
Digital zoom 3.2 Megapixel camera: 4x zoom (in VGA mode)
Video call camera: 2x zoom
Night mode Yes
White balance Auto
Brightness Yes
33 January 2008
Page 35
White paper K770
Facts and figures
Video coding H.263
MPEG-4 (Simple Visual Profile Level 0)
Audio coding AMR
Images
Images can be shared via Bluetooth connection, MMS, email, computer file transfer or Cable.
Amount of free XRAM contols upper limit of image size and/or complexity that can be decoded.
Formats Details
JPEG ISO/IEC JPEG
Baseline DCT
Progressive DCT
Non-differential
GIF 87a, 89a, support for interlacement, animation and
transparency
BMP Windows® bitmap format
PNG
SVG SVG Tiny 1.1, support for anti aliasing, compression, opacity
and gradients
WBMP Wireless bitmap
Short Messaging Service
Feature Support
SMS Service Centre Number It is possible to pre-load the SMS Service Centre
Number
Pictures It is possible to insert a picture or an icon into the text
message. EMS compliant mobile handsets will be able
to see the picture correctly
Reply to messages It is possible to reply to received messages by SMS,
MMS, voice message and email
Input methods: Predictive writing and multitap
Copy and paste words Yes
Teaching of predictive words that are not
in the predictive dictionary
Possibilities when creating a message:
Yes
34 January 2008
Page 36
Feature Support
White paper K770
save a sent message in a “Sent items”
folder
insert a line in the message Yes
assign a validity period to the message Yes
use predefined messages Yes
Possibilities when receiving a message:
reply to the sender Yes
forward the message Yes
save the message on the SIM card Yes
get delivery time and date Yes
Possibilities of the previously sent message:
delivery report of the message Yes (if requested when sending)
forward the message Yes
save the message on the SIM card Yes
know the remaining capacity storage Yes, > 95% full warning, capacity on the SIM card when
Yes
saving to the SIM card
Possibilities of the previously received
message:
reply to the sender Yes
save the message in the inbox Yes
forward the message Yes
know the remaining capacity storage Yes, > 95% full warning, capacity on SIM when saving to
SIM
Supported ways for replying to a received
SMS:
via SMS, MMS, voice message, email Yes
via phone call (set up a call to the number
contained in the message body)
via WAP call (go to the WAP address
contained in the message body)
via USSD session No
Print via infrared No
Possibility to enable the user to send an SMS
to a list of recipients
Yes
Yes
Yes
35 January 2008
Page 37
Feature Support
White paper K770
Possibility to write an email address as a
recipient address
SMS storage On the SIM card and in the phone
Nokia Picture Messaging Yes
Yes, if email gateway is present
Enhanced Messaging Service
Feature Support
Level of compliance supported by the
handset regarding the specifications
described in release 99.
Number of messages that the handset is
able to handle to generate a concatenated
message
Capacity storage Up to 1000 and the space on the SIM card
Outgoing messages It is possible to...
Enhanced Messaging Service (EMS) according to the
standard 3GPP™ TS 23.040 v4.3.0, with the addition of
the ODI feature from 3GPP™ TS 23.040 v5.0.0
10
• see how many short messages an EMS message consists of before sending it
• choose whether to send the message or not after writing it
Incoming messages • A signal is heard once all parts of the message have
been received or when a time-out occurs
• It is possible to re-use the content of an EMS message.
Sounds, pictures, and animations can be inserted in a
new message, if the object is not protected using ODI
Delivery report for concatenated messages A receipt is received in the handset when all parts of a
concatenated message have been delivered if a delivery
report is requested when it is being sent
Insert objects It is possible to add pictures, animations and sounds to
an EMS message
Sounds Chimes high, chimes low, ding, tada, notify, drum, claps,
fanfare, chords high, chords low
I-melody Yes, version 1.2
Melodies It is possible to...
• receive (always), send via EMS (if not copyright protected)
• download melodies and commercial tunes from WAP/
WAP portals
WBMP Yes
Picture sizes 16x16, 32x32 pixels, variable size in black and white
36 January 2008
Page 38
White paper K770
Feature Support
Pictures It is possible to...
• edit pictures using PhotoDJ™
• receive (always), send via EMS (if not copyright protected)
• download pictures from WAP/WAP portals
Animations There is support for the following animations: Angry,
Crying, Flirty, Happy, Kiss, Sad, Tongue, Wow, Confused,
Devil, Glasses, Indifferent, Laughter, Sceptical and Wink,
as defined in 3GPP™ TS 23.040 v4.3.0
It is possible to send and receive animations
TP-PID field value given by the handset
before sending an EMS message
0x00
Multimedia Messaging Service
Feature Support
MMS/CSD parameters and MMS/GPRS
parameters placement
Possibility to pre-configure the MMS
parameters in factory
Possibility to configure the MMS parameters
by OTA provisioning
Possibility for all the parameters from the
parameters set to be OTA provisioned at the
same time
Possibility for only one parameter, in the set
of parameters, to be OTA provisioned
MMS is bound to an MMS profile
An MMS profile is bound to an Internet profile.
An Internet profile is bound to a Data Account.
A Data Account contains either CSD parameters or GPRS
parameters
• MMS/CSD: Yes
• MMS/GPRS: Yes
• MMS/CSD: Yes
• MMS/GPRS: Yes
• MMS/CSD: Yes
• MMS/GPRS: Yes
• MMS/CSD: No
• MMS/GPRS: No
OTA provisioning solution OTA Settings Specification v7.1 © Ericsson and Nokia
and OMA provisioning
Supplier indication of realized
interoperability tests between its MMS User
Agent and MMS Relay/Server from other
suppliers
Support of a standard or a proprietary
procedure for OTA provisioning of MMS
parameters
Yes
Proprietary and OMA provisioning
37 January 2008
Page 39
Feature Support
White paper K770
Functionalities that the user is able to set
during message composition:
From where can the user insert multimedia
elements into multimedia messages:
Possibility for sent messages to be
memorized into a folder in handset memory
Actions that the user can perform after
message retrieval:
• message subject
• message priority
• email recipient address
• message Cc, Bcc recipient(s) address(es)
• delivery report request
• read report request
• MSISDN recipient address
• Delivery time
• Validity period
File Manager
Directly from camera
Contacts
Calendar
Task
Note
Browser (vBookmark)
Yes
• reply to the sender of the message SMS/MMS
• reply to the sender and to Cc, Bcc people SMS/MMS
• forward the message
• delete the message
• save message in a dedicated folder
• call the sender of a message
• save item
• mark as unread
• details
Multimedia codecs/formats supported for
audio
Multimedia codecs/formats supported for
video
Multimedia codecs/formats supported for
Supported formats for message
presentation:
Maximum message size that can be handled
by the handset for message
AAC, AMR, MPEG Layer 3, Real 8, AWB, WAV, MP4,
MIDI, iMelody, 3GPP™, XMF, M4A, RHZ, WMA.
MPG4, 3GPP™, SDP, Real 8, WMV.
JPEG, GIF87, GIF89A, PNG, SVG, WBMP, BMP.
• message body + attachments (email presentation)
• SMIL version as described in OMA MMS IOP document version 1.2
Content Class and Creation mode are applied. Maximum
size can also be customized.
Email client technical data
Feature Support
Bearer type UMTS (IP) Yes
Bearer type GSM Data (IP) Yes, GPRS, HSCSD, ISDN and analog
38 January 2008
Page 40
White paper K770
Feature Support
Character sets ISO: ISO-8859-1, ISO-8859-2, ISO-8859-5, ISO-8859-7,
ISO-8859-9, ISO-8859-10
Windows: Windows-1251, Windows-1252, Windows1254, Windows-1255, Windows-1258
US-ASCII
Unicode: UTF-7, UTF-8, UTF-16
Japanese: Shift_JIS, ISO-2022-JP
Cyrillic: KOI8-R
Simplified Chinese: GB2312, GB18030
Traditional Chinese: Big5
Thai TIS - 60
OTA provisioning solution Yes
Protocols POP3 and IMAP4
Push email IMAP Idle (extension of IMAP4Rev1), OMA Email
Notification 1.0 and scheduled checking
Secure email SSL/TLS, both port methods (POPS/IMAPS) and
STARTTLS
Remote configuration OMA Client Provisioning and Nokia Smart Messaging
HTML mail Yes (tags removed)
Inline images Yes
Message management Window of 50 latest messages
Headers only or size limits
ESMTP Yes
Background sending Yes
39 January 2008
Page 41
White paper K770
Connectivity
Bluetooth™ technical data
Dimension Support
Bluetooth capability statement This phone supports Bluetooth Specification, version 2.0 with
enhanced data rate (EDR).
Bluetooth functions Basic Imaging Profile
Dial-up Networking Profile
File Transfer Profile
Generic Access Profile
Generic Object Exchange Profile
Handsfree Profile
Headset Profile
Human Interface Device (HID) Profile
JSR-82 Java API
Object Push Profile
Personal Area Networking Profile
Serial Port Profile
Synchronization Profile
SyncML OBEX binding
Advanced Audio Distribution Profile (A2DP)
Audio/Video Remote Control Profile
Phonebook Access Profile
Connectable devices All products supporting Bluetooth spec. 1.1, or higher, and at
least one of the profiles above.
Coverage area Varies due to radio performance on remote device and the
occurrence of obstacles. Up to 10 metres (33 feet).
Transmission power Class 2, typical +3dBm or 2mW
Frequency band 2.4 GHz - the unlicensed ISM band.
Power consumption GSM host processor excluded:
• Standby, Bluetooth On mode: <0.6mA
• Voice to headset (HV3 master): 11 mA (7 mA with EDR functionality, 2EV3 master). Dependent on various parameters
whether if the phone is master or slave.
• Data mode average: 27mA at 172.8 Kbps symmetrical (DH1).
Data transmission rate Up to 600 Kbps asymmetric and up to 350 Kbps symmetric
from an application level.
40 January 2008
Page 42
White paper K770
OMA Data Synchronization (SyncML) technical data
Feature Support for Sync ML
SyncML compliance The handset is fully SyncML compliant, having passed SyncML
Conformance testing. SyncML 1.2 or SyncML 1.1.2 is used
depending on configuration and both are supported in Serveralerted synchronization.
Basic data formats Contacts: vCard 2.1, Calendar: vCalendar 1.0 (vEvent)
Tasks: vCalendar 1.0 (vTodo)
Notes: text/plain, Bookmarks:vBookmark 1.0
Possibility for operators to extend
SyncML functionality.
Possibility to synchronize other
handsets using SyncML.
Transport method for SyncML
messages.
Synchronization application
placement.
Possibility for the user to configure
login parameters (for example,
username and password) to
access the remote database.
Configuration parameters that can
be entered/modified by the user.
Mechanisms used by the handset
to capture changes made by the
end-user (i.e. how does the
SyncML client in the handset know
which changes were made to the
address book).
The device may be configured to include preset SyncML settings,
and to control whether SyncML 1.1 or SyncML 1.2 will be used.
No
HTTP, OBEX (IR, USB, Bluetooth)
Inside the handset.
Yes
Server URL, Username, User PWD, Paths to databases (Calendar,
Contacts, Tasks, Notes and Bookmarks), UserID and PWD for
Databases, Databases to be synchronized (on/off), Internet profile,
Synchronization interval, Server ID and Server PWD, and
permission to allow server-alerted synchronization.
Can be provisioned with Ericsson Nokia OTA Settings Specification
v7.1, OMA Client provisioning v1.1, and OMA Device Management
1.2
It uses a change log where it marks the contact as updated.
Ability to deal with multiple servers. Yes
Ability to perform conflict
resolution actions.
No
41 January 2008
Page 43
Web browser data
Feature Support in the browser
White paper K770
Back/forward to previous/next
page
Bearer type GPRS Yes
Bearer type GSM Data Yes, HSCSD, ISDN and analouge.
Bookmarks Yes, with folders and sorting supported.
Bookmark Export/Import Yes, can be sent and received using vBookmark format via
Cache Yes (size 300 KB).
Character sets * UTF-8 (Default), UTF-16, USASCII, Latin1, UCS2.
Clear cache Yes
Yes
Bluetooth™, SMS, MMS and email.
*) When creating WML applications, it is recommended to always save
the page contents as UTF-8, and that this is clearly indicated in the
pages before publishing. This ensures that the contents of the
application can be viewed, regardless of character sets used in
gateways and the phone. All characters are not supported in all
phones. The software version depends on which market the phone is
associated to. Also, please note that the phone may not support input
on a WAP Service which uses certain characters (languages), even if
those characters are supported for browsing in the phone.
Home page Yes, up to 10 different; one for each Internet profile.
HTML version for WAP browser XHTML, Mobile Profile 1.2
Full HTML is supported
ECMA Script is supported
DOM level 1& 2 is supported
Hyperlinks in Text Yes, highlighted as blue underlined text.
Hyperlinks in Images Yes, indicated by a frame
Image Animation Yes
Image Formats GIF (interlaced and non-interlaced) WBMP, no transparent layers,
JPEG, PNG, BMP and SVG.
Network Settings Up to 10 different settings available by selecting WAP profile (Internet,
Banking, Gateway etc.).
OTA Support Yes
PPP Authentication PAP, CHAP supported.
Reload page Yes
42 January 2008
Page 44
White paper K770
Feature Support in the browser
Security TLS version 1
SSL version 3
WIM on SIM ICC
X.509 certificate support, WAP Profile
WPKI OTA download of trusted certificates
Tables Yes
User Agent Profiles Yes, list of client characteristics - for example screen size.
Internet profiles Dynamic - up to 10 WAP profiles, each with its own settings.
Web browser and Operator technical data
Feature Support for browser
Web browser
Version 2.0 baseline
HTML XHTML Mobile Profile
Access NetFront 3.3 • HTML 4.01, XHTML 1.1 Including mobile phone
• CSS 1 & CSS 2 (Partial)
• ECMAScript 3rd edition (equal to Java script 1.5)
• DOM level1, level2 and Dynamic HTML (Partial)
• Graphic formats: GIF, Animated GIF, JPEG, progressive JPEG,
PNG, MNG, BMP, WBMP
Provisioning
Provisioning types The Ericsson-Nokia OTA
solution
Over the Air Settings
Specification, v7.1
© Ericsson and Nokia
Total Parameter sets 10 (shared between the WAP provisioning types).
< or = 10 (total number of WAP profiles).
OMA Client provisioning
(v1.1)
43 January 2008
Page 45
Feature Support for browser
White paper K770
Parameter set list name,
homepage and homepage
title (1st bookmark
element),
proxy/GW address,
bookmarks (remaining
bookmark elements),
CSD phone number,
CSD data rate,
CSD dial type,
GPRS APN,
protocol authentication,
GW authentication,
secure connection on/off
Parameter sets include CSD, GPRS (different sets).
Factory pre-configuration CSD (possibility to lock a setting), GPRS.
OTA CSD, GPRS configuration possible.
Security mechanism
Bearer The Ericsson-Nokia
solution
OTA via SMS Operator verification
through a code that can be
included in the OTA
configuration data.
This code is shown to the
user who can choose to
install or not.
name,
homepage,
proxy/GW address,
CSD phone number,
CSD data rate,
CSD dial type,
CSD response timer,
GPRS APN,
protocol authentication,
GW authentication,
GPRS QoS
OMA Client Provisioning
Uses security mechanism (SEC)
methods according to WAP-183ProvCont-20010724-a (see
www.openmobilealliance.org
).
Interface
Bearer The Ericsson-Nokia
solution
OTA via SMS A question whether to
install, with the code if
available is asked. The user
may have to choose
whether to create a new
WAP profile or to replace
an existing WAP profile.
Re-provisioning Interface The Ericsson-Nokia
solution
OTA via SMS Same interface as above. If the settings previously installed
OMA Client Provisioning
For NETWPIN the user is asked to
accept to install received settings.
For USERPIN, USERNETWPIN and
USERPINMAC the user is
subsequently asked to enter a PIN
code that is a shared secret between
the service provider and the user.
OMA Client Provisioning
were privileged or have higher
priority, it might not be possible to
install the settings again unless the
terminal is reset, otherwise as above.
44 January 2008
Page 46
White paper K770
Feature Support for browser
Carrier reset/provisioning Yes, but not if the set is pre-configured in the factory and locked.
SWIM Not used for provisioning.
The SWIM is only used for WAP security, both SSl/TLS
connections and digital signatures.
Applicative provisioning
Preferred bearer customization Yes
Email customization Yes
Other applications/features Yes (MMS, SyncML, Wireless Village, OMA Device Management,
Streaming).
Technologies
OMA Client provisioning Yes, WAP provisioning document v1.1.
Openwave OTA No
Other Yes. The Ericsson-Nokia solution.
OTA Settings Specification v7.1.
Provisioning bearer SMS
Parameter sets available < or = 10 (total number of Internet profiles)
Parameter sets for OTA
modification
PUSH
Content types
Service Indication (SI) Yes
Service Loading (SL) Yes
Cache Operation (CO) content type Yes
Session Initiation Application (SIA) Yes
Man Machine Interface
SI/content retrieval postponing Yes
SI menu structure accessibility Messaging, Inbox
< or = 10 (total number of Internet profiles)
SL reception warning The user can make a choice if a dialogue is wanted or not before
loading the SL.
Messaging/Settings/Push/Allow push msg/Always ask
SIA reception warning Yes
Cache size limitations The oldest push in the inbox will be discarded.
Number of push messages Depends on the size of the push messages. Around 20 push
messages with a size of 500 bytes can be stored.
45 January 2008
Page 47
White paper K770
Feature Support for browser
Push deactivate Yes (Messaging/Settings/Push/Allow push msg).
Dynamic push menu changes No. There are no changes in the menus when activating/
deactivating push.
Security
Mechanisms for push None
Trust with PPG Sending a SIA is the most reliable.
WSP push sessions The White List is supported.
Denial of service/spoofing
User agent profile
UA profile content sent at beginning
of WSP session
OA profile content size
URL sent pointing to the UA profile
at the beginning of WSP session
URL location On the manufacturer Internet site.
WTAI mailto: scheme
WTA Make Call Yes
WTA Send DTMF Yes
WTA Add Phonebook Yes
DOWNLOAD
OMA download functionality Yes
HTTP GET solution to download
content
Other download content Yes. No download limit when using HTTP protocol.
No
Yes
smsto:scheme
mmsto:scheme
Yes
Download application/product
memory check
Downloaded object solution Yes. The user is informed where the content is saved and asked if
UAP indication for downloading Yes
Other features Yes. Store, delete, forward, use, manage.
Object formats Formats supported in the
GRAPHICAL USER INTERFACE
Yes
it should be used at once or later.
phone.
46 January 2008
Page 48
Feature Support for browser
Man Machine Interface
Selection keys Yes
White paper K770
Separate/dedicated back or erase
keys
Display backlight on when browsing Yes
Predictive writing Yes
“http://” string displayed
automatically when entering URLs
Elements
Pop-up menus Yes, in XHTML.
Radio buttons Yes, in XHTML.
Check boxes Yes, in XHTML.
Buttons Available as XHTML form controls.
Yes
Not displayed but the “http://” is added automatically to the URL.
47 January 2008
Page 49
Abbreviations
White paper K770
3GPP™
3rd Generation Partnership Project
AAC+
Advanced Audio Coding
AMR
Adaptive Multi Rate.
Audio format for speech sounds.
API
Application Programming Interface
CS
Circuit Switched
CSD
Circuit Switched Data
eAAC+
Enhanced Advanced Audio Coding
EDR
Enhanced Data Rate.
EFR
Enhanced Full Rate, speech coding.
EMS
Enhanced Messaging Service. Allows the user to
add simple pixel pictures and animations, sounds
and melodies to a text message. The EMS 3GPP™
standard also includes text formatting.
ETSI
European Telecommunications Standards Institute.
FM
DRM
Digital Rights Management. Controlling copying
and distribution of contents, with respect to
intellectual property rights.
DTMF or Touch Tone
Dual Tone Multi-Frequency signal. Codes sent as
tone signals. Used for telephone banking,
accessing an answering machine, etc.
e-GSM
Extended GSM. New frequencies specified by the
European Radio Communications Committee
(ERC) for GSM use when additional spectrum is
needed (network-dependent). It allows operators to
transmit and receive just outside GSM’s core 900
frequency band. This extension provides increased
network capability.
Frequency Modulation of the (radio) carrier wave.
FR
Full Rate, speech coding.
GIF
Graphics Interchange Format
GPRS
General Packet Radio Services
GSM
Global System for Mobile Communications. GSM
is the world’s most widely used digital mobile
phone system, now operating in over 100 countries
around the world, particularly in Europe and AsiaPacific.
48 January 2008
Page 50
White paper K770
The GSM system family includes GSM 850, GSM
900, GSM 1800 and GSM 1900. There are different
phases of roll-out for the GSM system and GSM
phones are either phase 1 or phase 2 compliant.
HR
Half Rate, speech coding.
HSCSD
High Speed Circuit Switched Data
HTML
HyperText Markup Language
HTTP
HyperText Transfer Protocol
JPEG
Joint Photographer Expert Group
MT
Mobile Termination
ODI
Object Distribution Indicator
OMA
Open Mobile Alliance
OTA
Over-The-Air Configuration. To provide settings for
the phone by way of sending an SMS message
over the network to the phone. This reduces the
need for the user to configure the phone manually.
PDA
Personal Digital Assistant
PDP
MIDI
Musical Instrument Digital Interface
ME
Mobile Equipment
MMI
Man-Machine Interface. See UI.
MP
Megapixel
MP3
Short for “MPEG-1 layer 3”, an effective audio
coding scheme.
MPEG4/MPG4
MPEG-4 extends the earlier MPEG-1 and MPEG-2
algorithms with synthesis of speech and video,
fractal compression, computer visualisation and
artificial intelligence-based image processing
techniques.
Packet Data Protocol
PIM
Personal Information Management
PNG
Portable Network Graphic
RDS
Radio Data System
RSS
Really Simple Syndication
RTSP
Real Time Streaming Protocol session control.
SI
Service Indication
SL
Service Loading.
49 January 2008
Page 51
White paper K770
SIM card
Subscriber Identity Module card – a card that must
be inserted in any GSM-based mobile phone. It
contains subscriber details, security information
and memory for a personal directory of numbers.
The card can be a small plug-in type or credit cardsized, but both types have the same functions. The
phone uses the small plug-in card.
SMS
Short Messaging Service. Allows messages of up
to 160 characters to be sent and received via the
network operator’s message centre to a mobile
phone.
SP-MIDI
SP-MIDI stands for Scalable Polyphony MIDI.
SS
Supplementary Services
call centres, conferences, PIMs /PDAs, pagers, fax,
office equipment and smart cards. vCard is
specified by IETF.
VGA
Video Graphics Array
WAP
Wireless Application Protocol. Handheld devices,
low bandwidth, binary coded, a deck/card
metaphor to specify a service. A card is typically a
unit of interaction with the user, that is, either
presentation of information or request for
information from the user. A collection of WML
cards is called a deck, which usually constitutes a
service.
WAP Application
A collection of WML cards, with the new context
attribute set in the entry card.
SSL
Secure Socket Layer
TLS
Transport Layer Security
UI
User Interface
URL
Uniform Resource Locator.
The global address of documents and other
resources on the World Wide Web.
USSD
Unstructured Supplementary Services Data
vCard
WAP service
A WML application residing on a Web site.
WAV
Windows media audio.
WBMP
Wireless BitMap.
A graphic format optimized for mobile computing
devices.
WML
Wireless Markup Language. A markup language
used for authoring services, fulfilling the same
purpose as HyperText Markup Language (HTML)
does on the World Wide Web (WWW). In contrast
to HTML, WML is designed to fit small handheld
devices.
WMLScript
vCard automates the exchange of personal
information typically found on a traditional business
card, for use in applications such as Internet mail,
voicemail, Web browsers, telephony applications,
Wireless Markup Language Script can be used to
enhance the functionality of a service, just as, for
example, Java Script may be utilized in HTML. It
makes it possible to add procedural logic and
computational functions to WAP-based services.
50 January 2008
Page 52
WSP
Wireless Session Protocol
WWW
World Wide Web
XHTML
Extensible HyperText Markup Language
XML
Extensible Markup Language
White paper K770
51 January 2008
Page 53
Related information
Documents
White paper K770
• Sony Ericsson User Guide
• Sony Ericsson FAQ
• AT Command Reference Manual
• WAP 1.2 Specifications
Links
• www.sonyericsson.com/
• www.ericsson.com/mobilityworld/
• www.midi.org
• www.extendedsystems.com
• www.gsmworld.com/
• www.bluetooth.com
• www.imc.org
• www.3gpp.org
• www.irda.org
• www.etsi.fr
• www.openmobilealliance.org
• www.imc.org/pdi/
• www.w3.org/TR/xhtml-basic/
• www.java.sun.com
• www.memorystick.org/
• www.memorystick.com/
Trademarks and acknowledgements
The Bluetooth™ word mark and logos are owned by the Bluetooth SIG, Inc. and any use of such marks by
Sony Ericsson is under licence.
Cyber-shot™, BestPic™, PlayNow™, PlayNow™ Game, VideoDJ™, MusicDJ™ and PhotoDJ™ are
trademarks or registered trademarks of Sony Ericsson Mobile Communications AB.
TrackID™ is powered by Gracenote Mobile MusicID™. Gracenote and Gracenote Mobile MusicID are
trademarks or registered trademarks of Gracenote, Inc.
Memory Stick Micro™ and M2™ are registered trademarks of Sony corporation.
Real, RealAudio, RealVideo are the trademarks or registered trademarks of RealNetworks, Inc.
XHTML™ is a registered trademark of the W3C.
Apple and Mac are trademarks of Apple Computer, Inc.
52 January 2008
Page 54
White paper K770
Microsoft and Windows are either registered trademarks or trademarks of Microsoft Corporation in the
United States and/or other countries.
3GPP™ is a trademark of ETSI in France and other jurisdictions.
Java and all Java based trademarks and logos are trademarks or registered trademarks of Sun
Microsystems, Inc. in the U.S. and other countries.
End-user license agreement for Sun Java™ J2ME™:
1. Restrictions: Software is confidential copyrighted information of Sun and title to all copies is retained by
Sun and/or its licensors. Customer shall not modify, decompile, disassemble, decrypt, extract, or
otherwise reverse engineer Software. Software may not be leased, assigned, or sub licensed, in whole or
in part.
2. Export Regulations: Software including technical data, is subject to U.S. export control laws, including
the U.S. Export Administration Act and its associated regulations, and may be subject to export or import
regulations in other countries. Customer agrees to comply strictly with all such regulations and
acknowledges that it has the responsibility to obtain licenses to export, re-export, or import Software.
Software may not be downloaded, or otherwise exported or re-exported (i) into, or to a national or resident
of, Cuba, Iraq, Iran, North Korea, Libya, Sudan, Syria (as such listing may be revised from time to time) or
any country to which the U.S. has embargoed goods; or (ii) to anyone on the U.S. Treasury Department's
list of Specially Designated Nations or the U.S. Commerce Department's Table of Denial Orders.
3. Restricted Rights: Use, duplication or disclosure by the United States government is subject to the
restrictions as set forth in the Rights in Technical Data and Computer Software Clauses in DFARS
252.227-7013(c) (1) and FAR 52.227-19(c) (2) as applicable.
All other trademarks and copyrights are the property of their respective owners.
53 January 2008
Loading...
